IBC Tilt Stands w/ Fork Pockets & IBC Tilting Cart

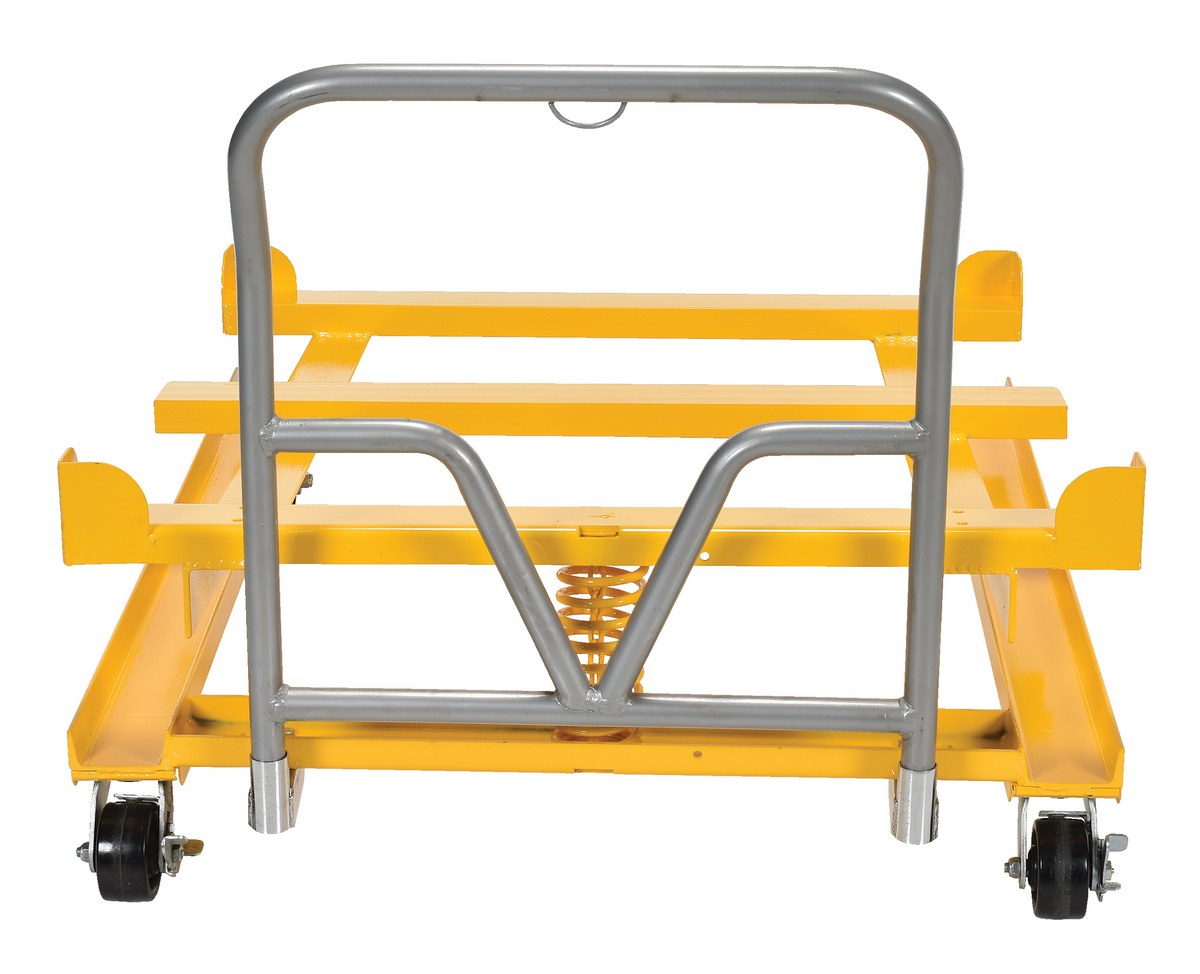

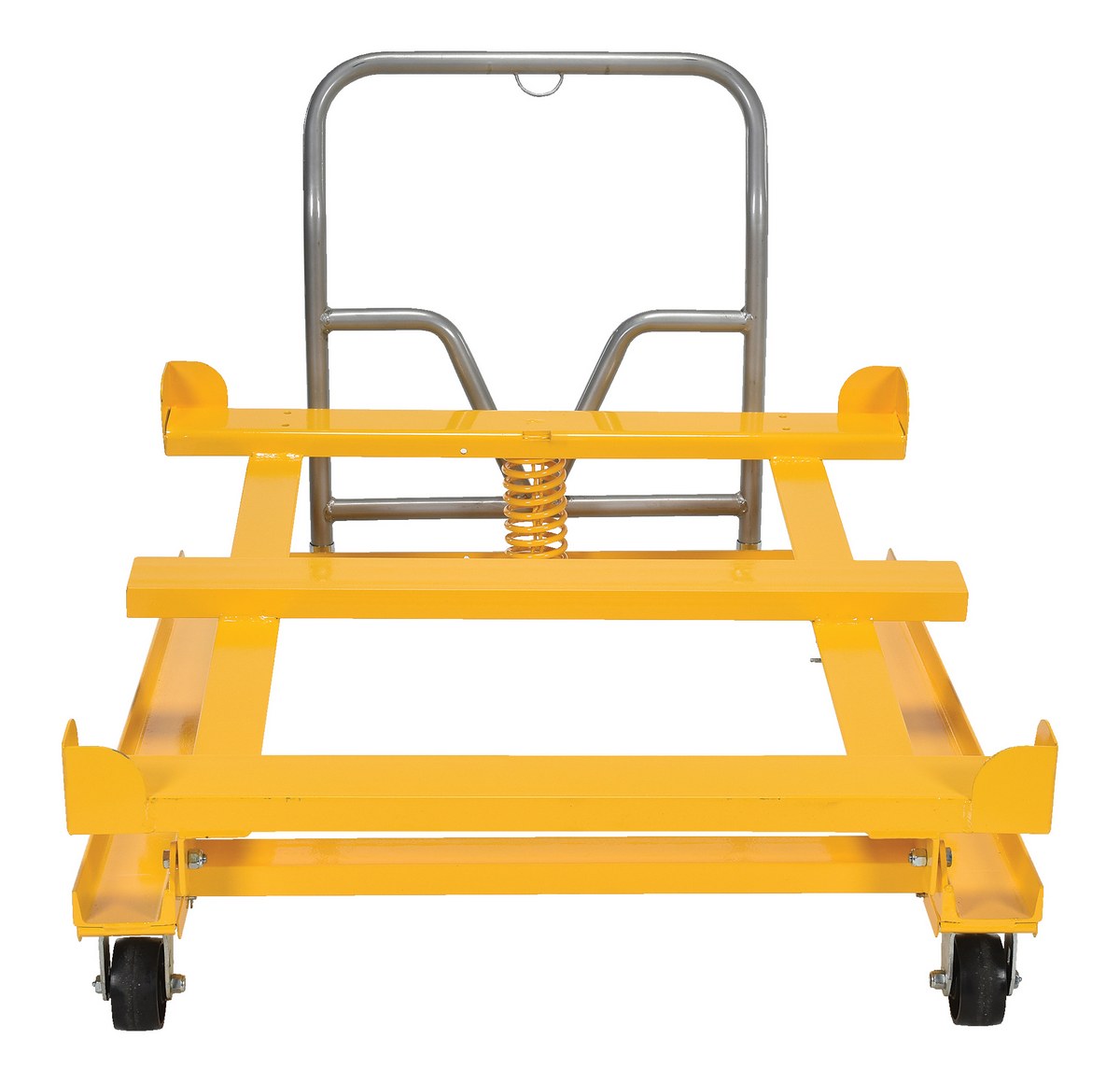

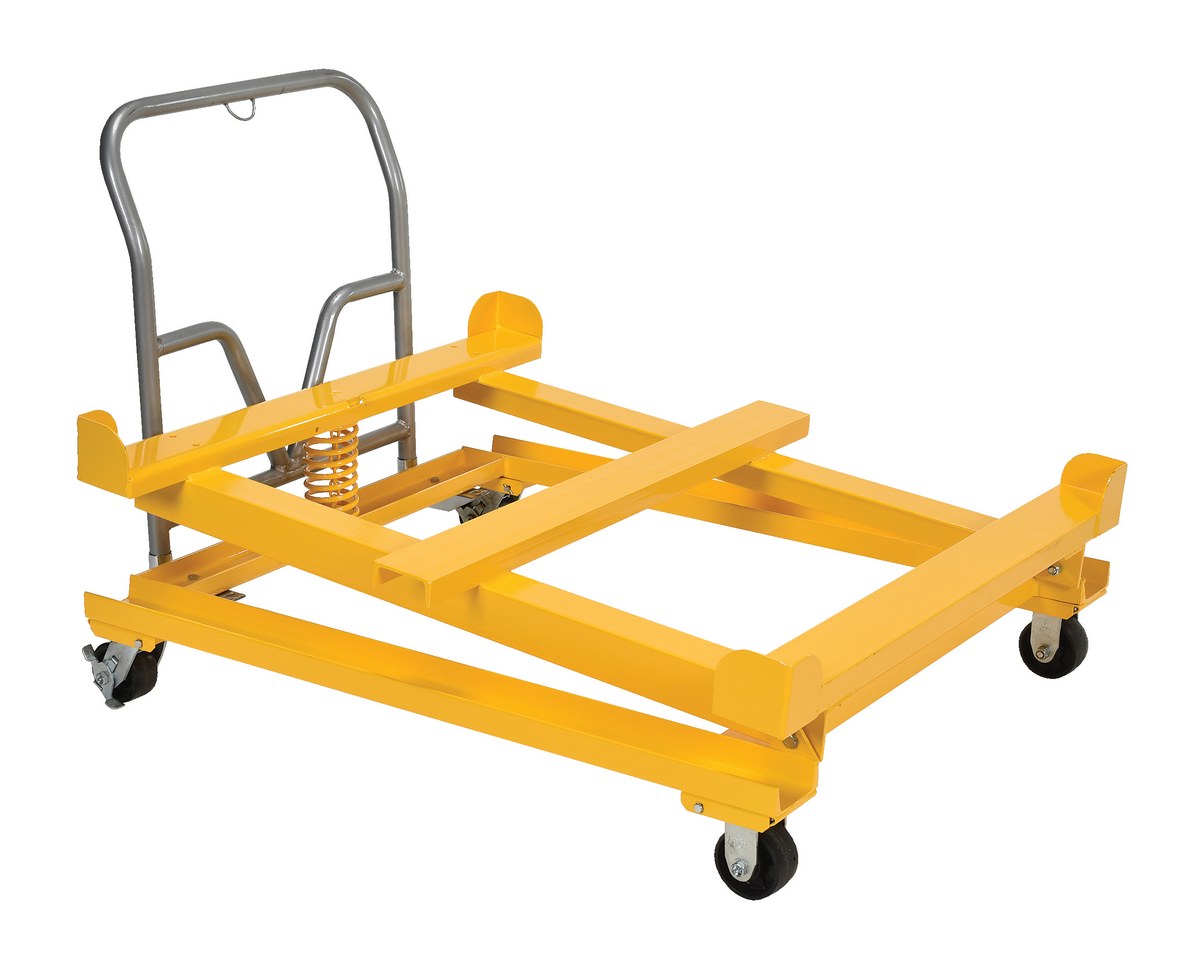

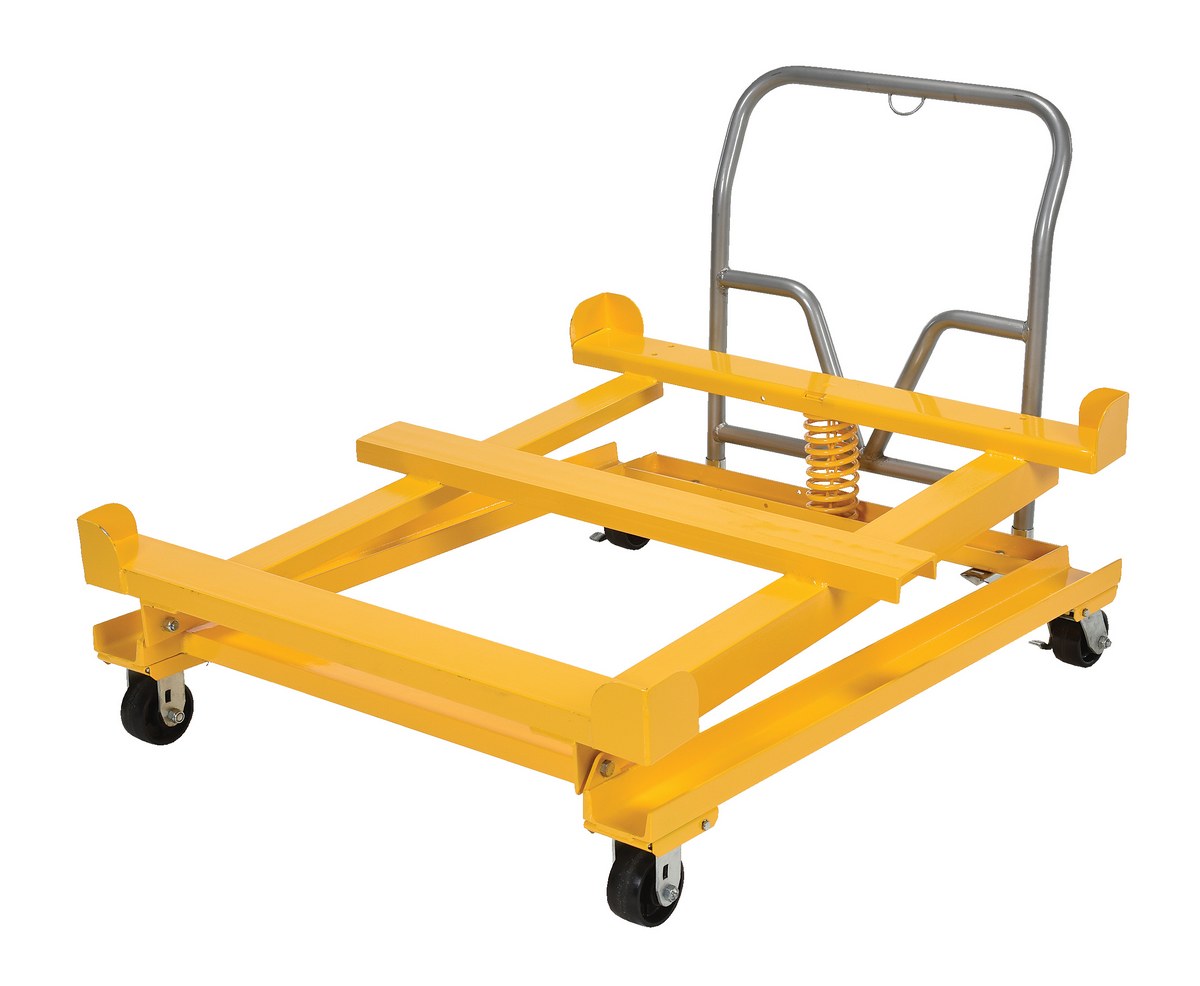

IBC Tilting Cart

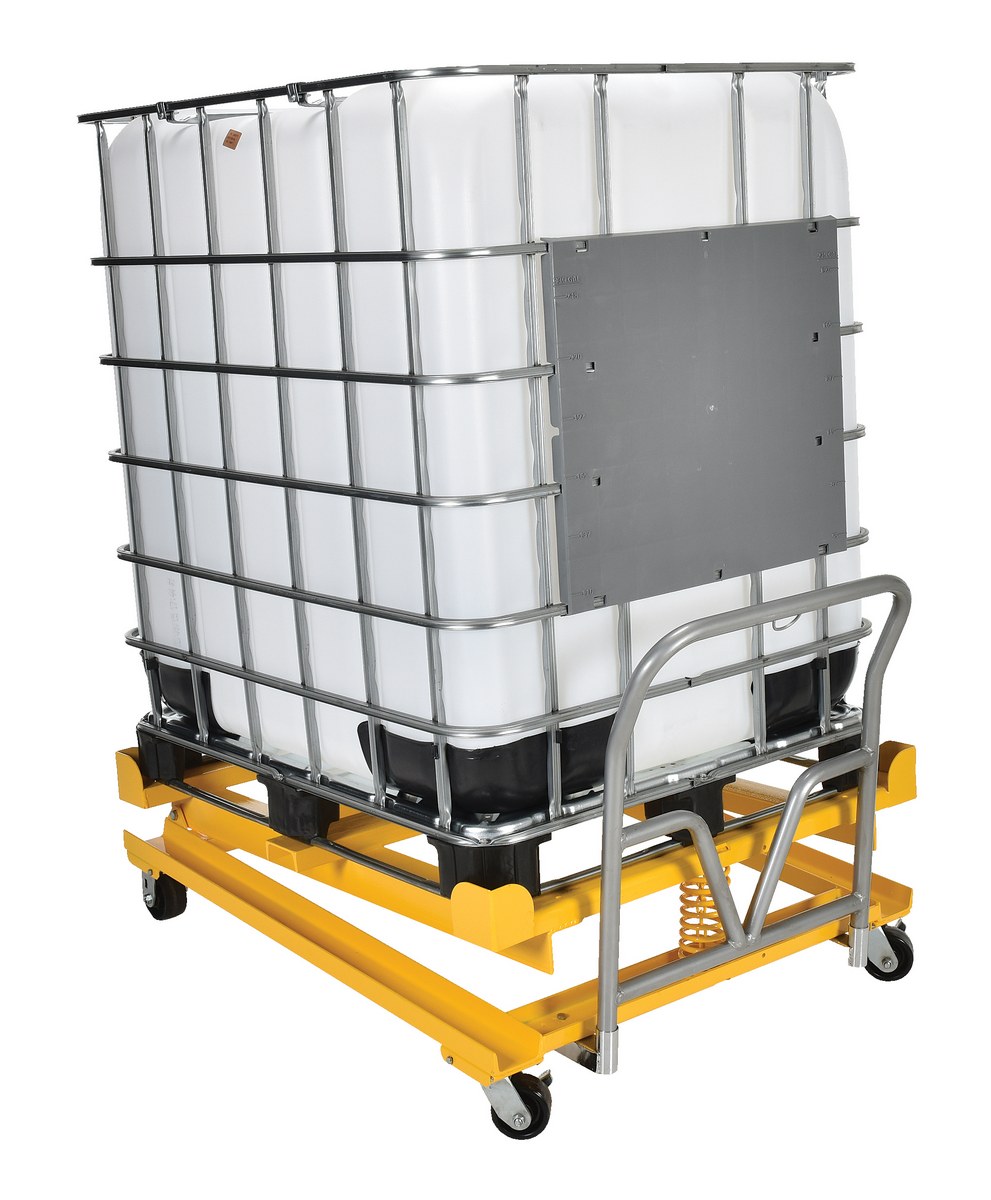

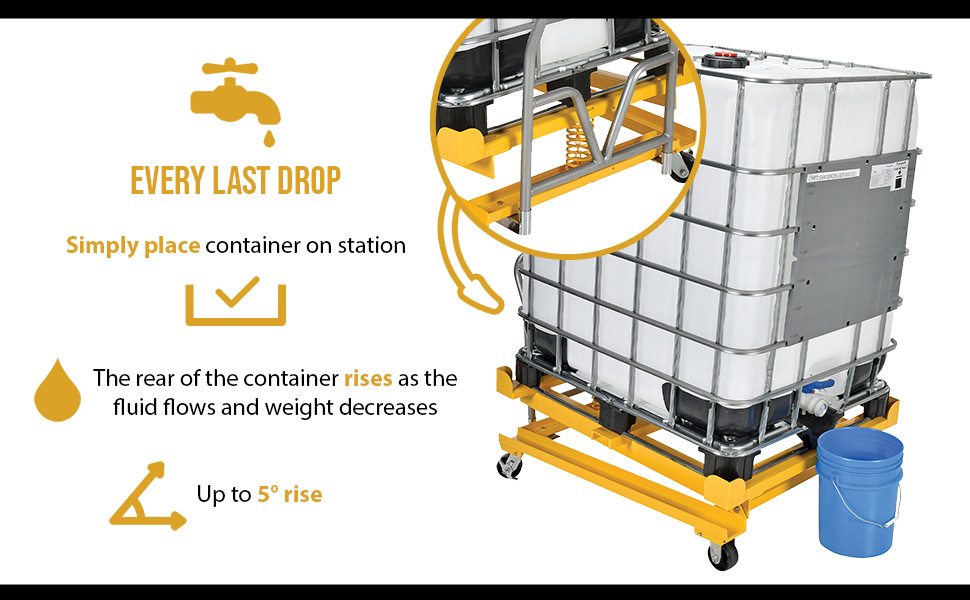

The intermediate bulk container tilting cart is built with a sturdy steel construction which provides a secure tilting of containers for complete draining. To use, simply place the container on the cart. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the cart will rise creating an angle for a better release of fluids. The cart rolls on casters for smooth transition from workstation to workstation.
- Ergonomic handle for upright push position
- Rising design as weight diminishes
- Strong construction for daily use
- Highly visible yellow finish
IBC Tilting Stands

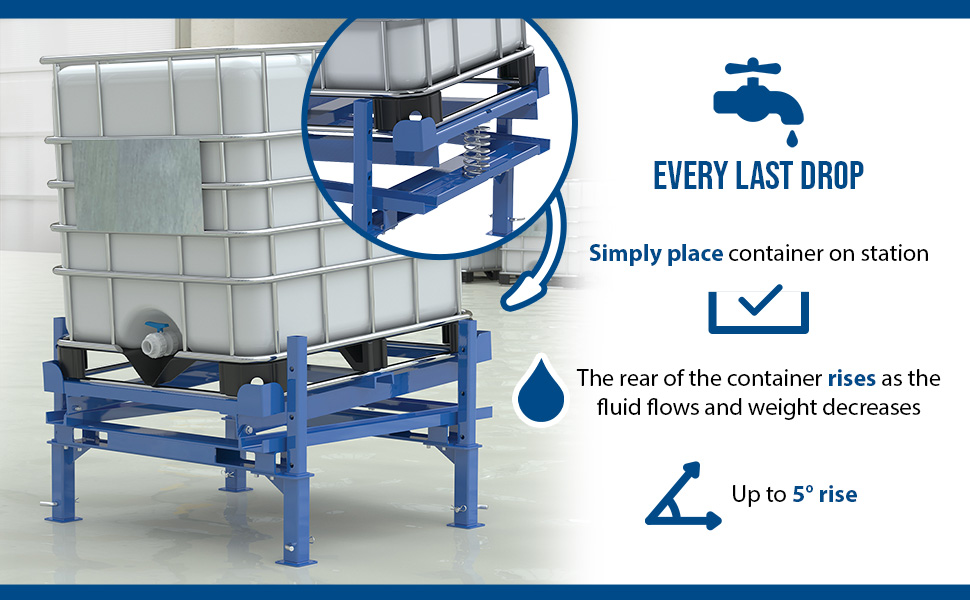

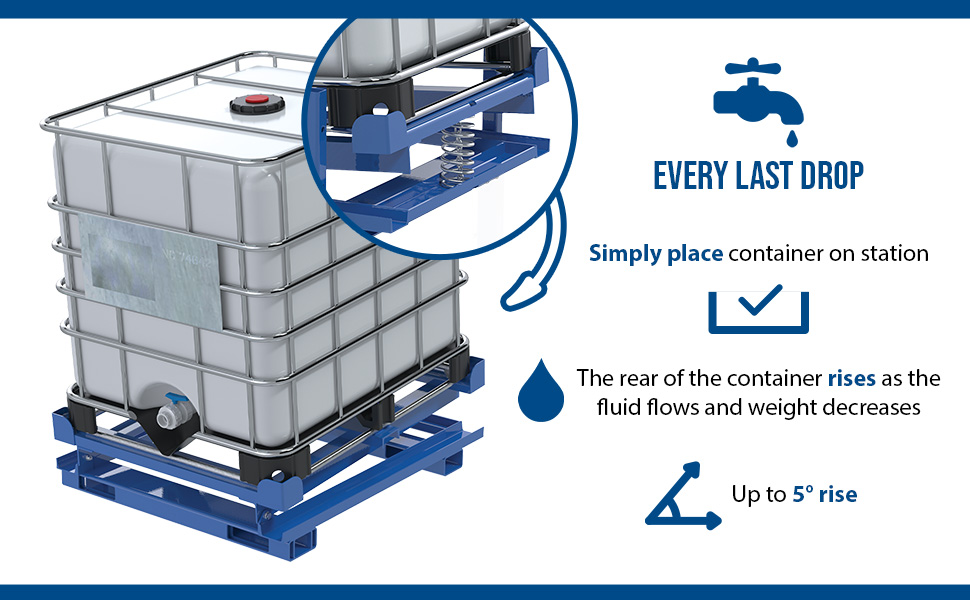

An Intermediate Bulk Container Tilt support stand is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids. The stand has pre-drilled mounting holes for simple mounting to a variety of surfaces and fork pockets for simple movement, if necessary.
- Rising design as weight diminishes
- Strong construction for daily use
- Sleek smooth finish
- Available in Stainless Steel or Powder coated for baked in added toughness
Vertical Steel Retention Basins
Drum Storage Hard Top Containers
Steel Retention Basin Carts
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

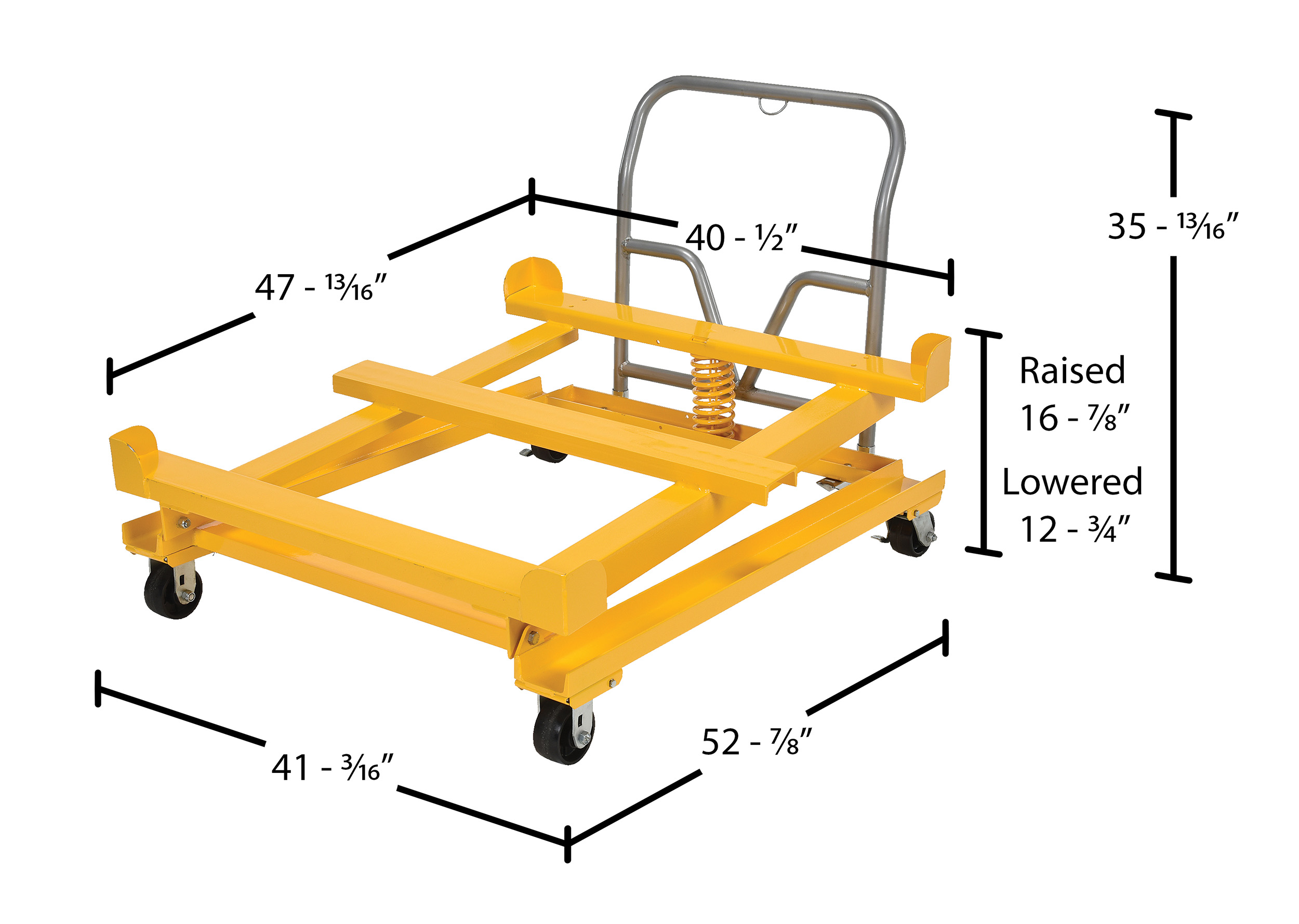

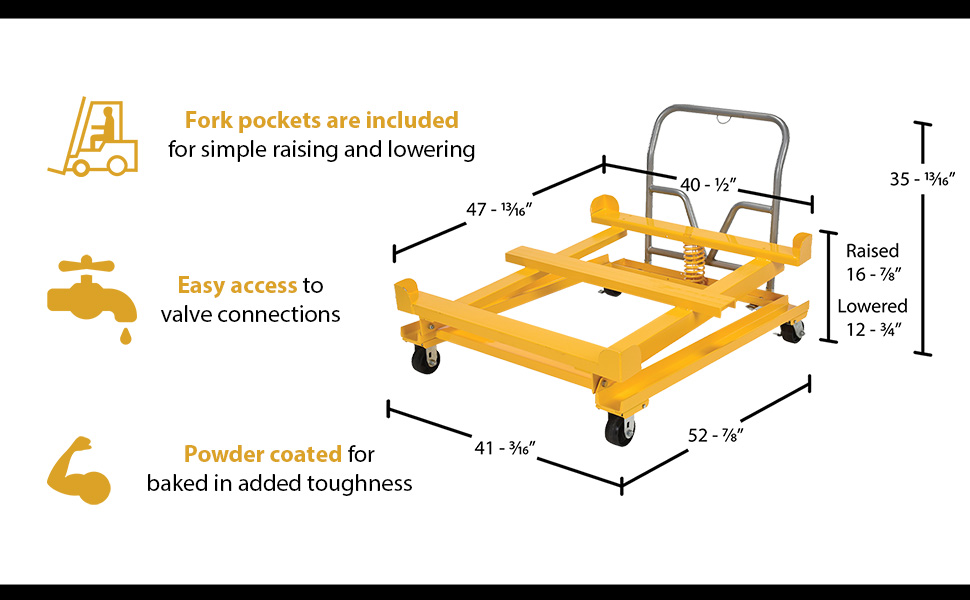

| IBC-TLT |  | 90 Days Limited Warranty | Steel Intermediate Bulk Container Tilting Cart 53-3/8 In. x 35-13/16 In. 4400 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,400 Lowered Height (in.): 12-3/4 | 250 | ||

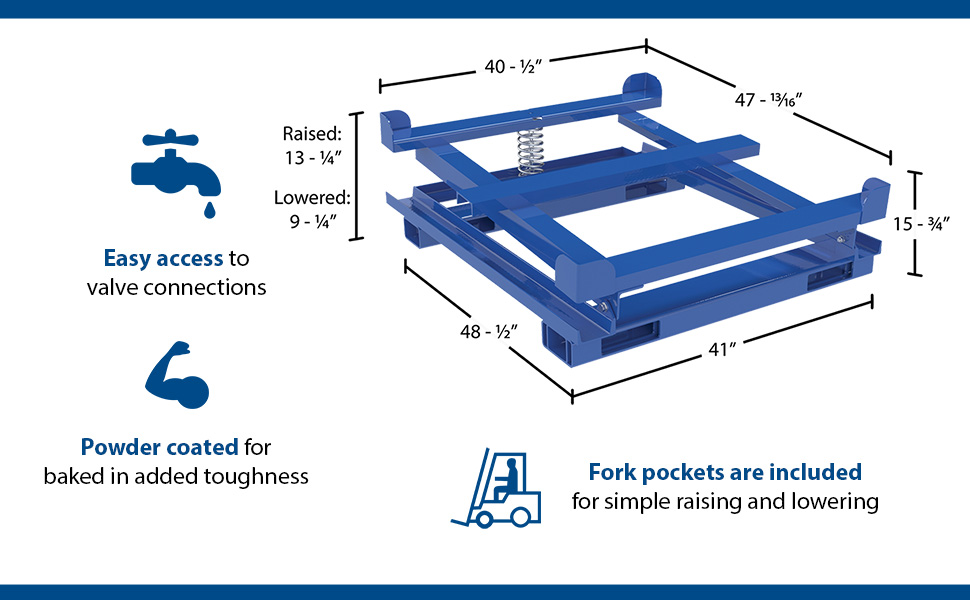

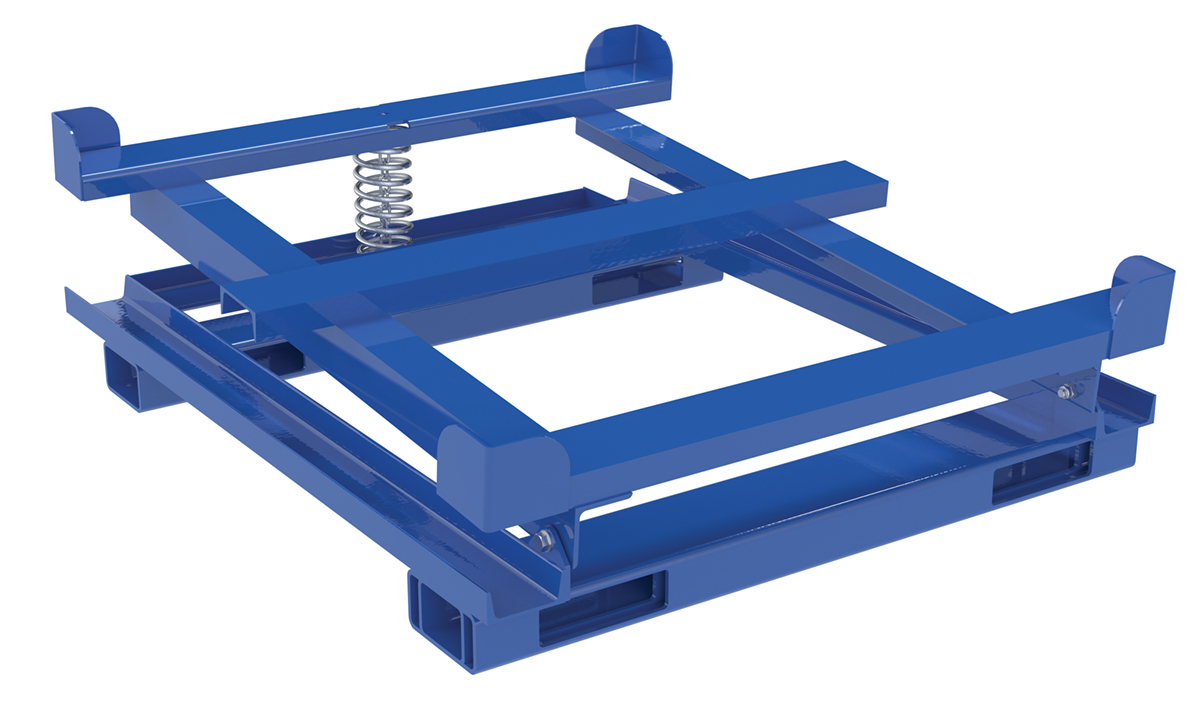

| IBC-TLT-FP |  | 90 Days Limited Warranty | Steel Intermediate Bulk Container Tilt Stand with Fork Pockets 48-1/2 In. x 15-1/4 In. 4400 Lb. Capacity Blue | Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 | 268 | ||

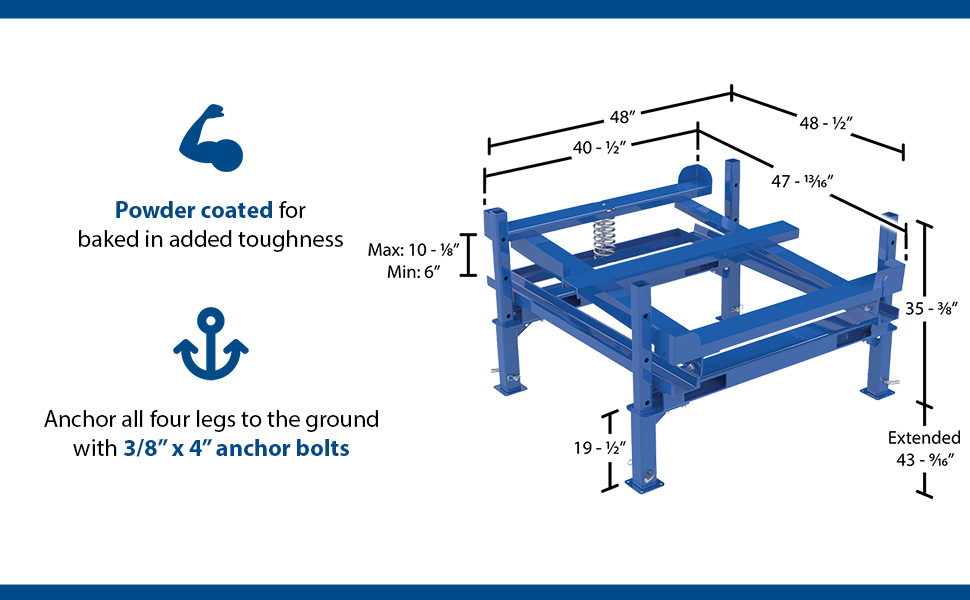

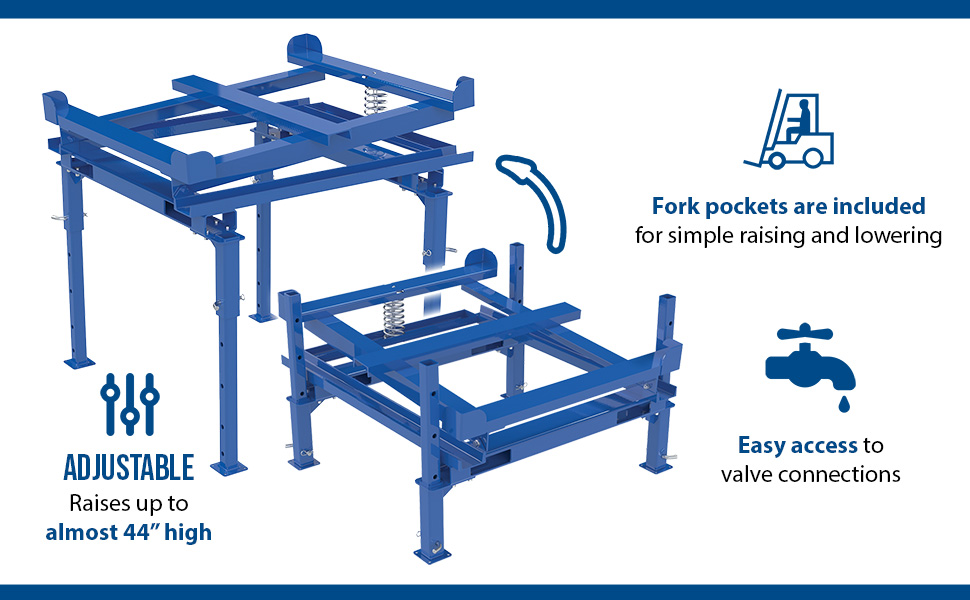

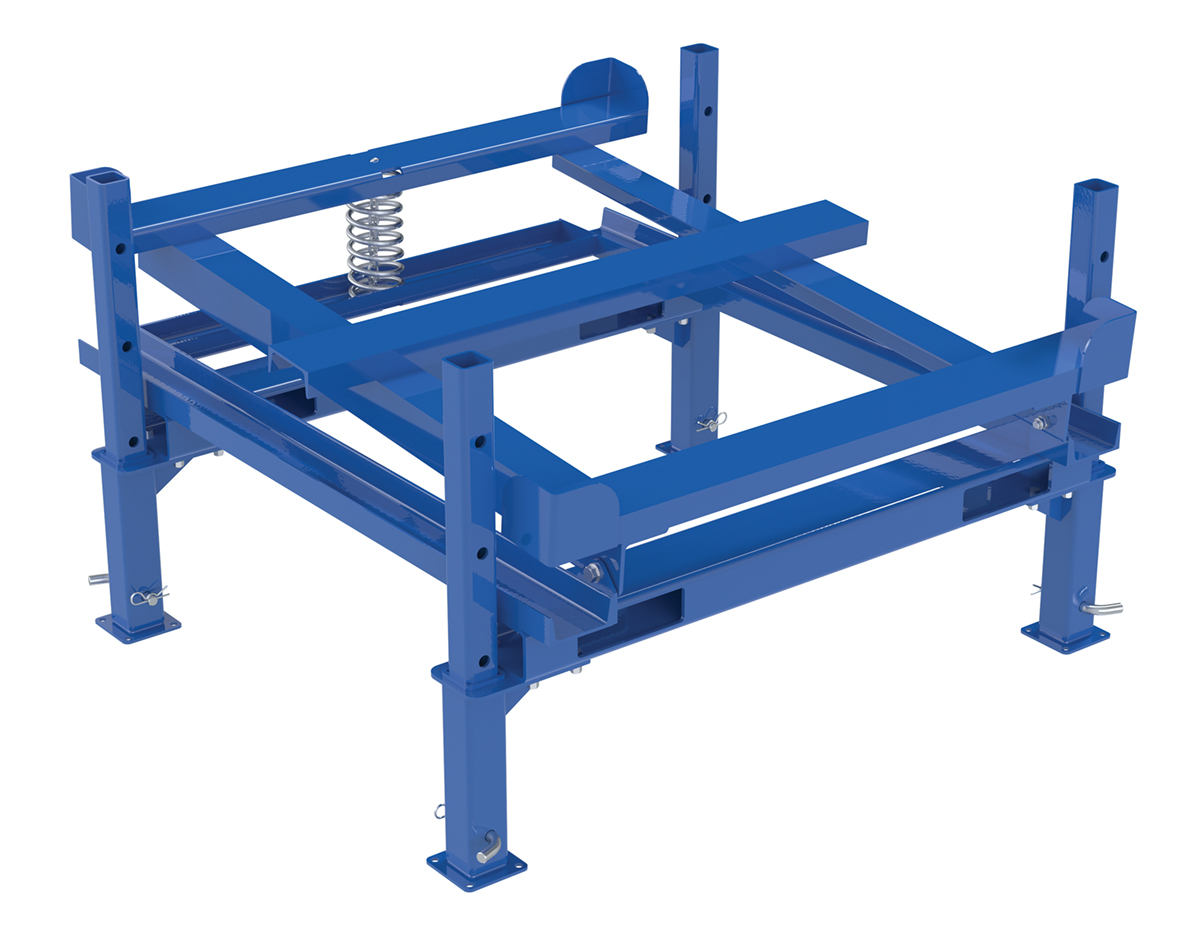

| IBC-TLT-FPL | POPULAR |  | 90 Days Limited Warranty | Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 48-1/2 In. x 49-1/2 In. 4400 Lb. Capacity Blue | Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 | 348 | |

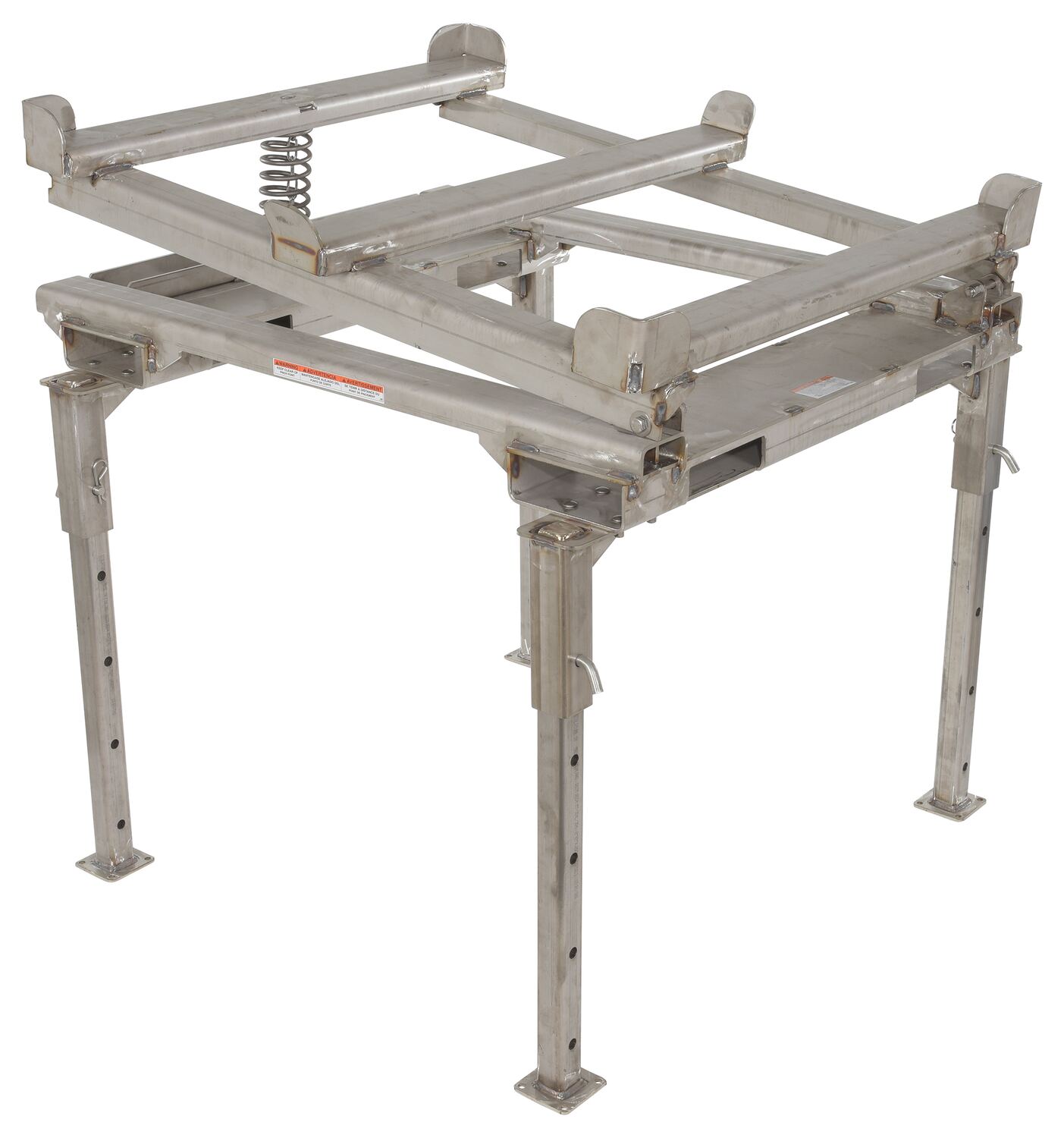

| IBC-TLT-FPL-SS | NEW |  | 90 Days Limited Warranty | Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver | Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 | 452 | |

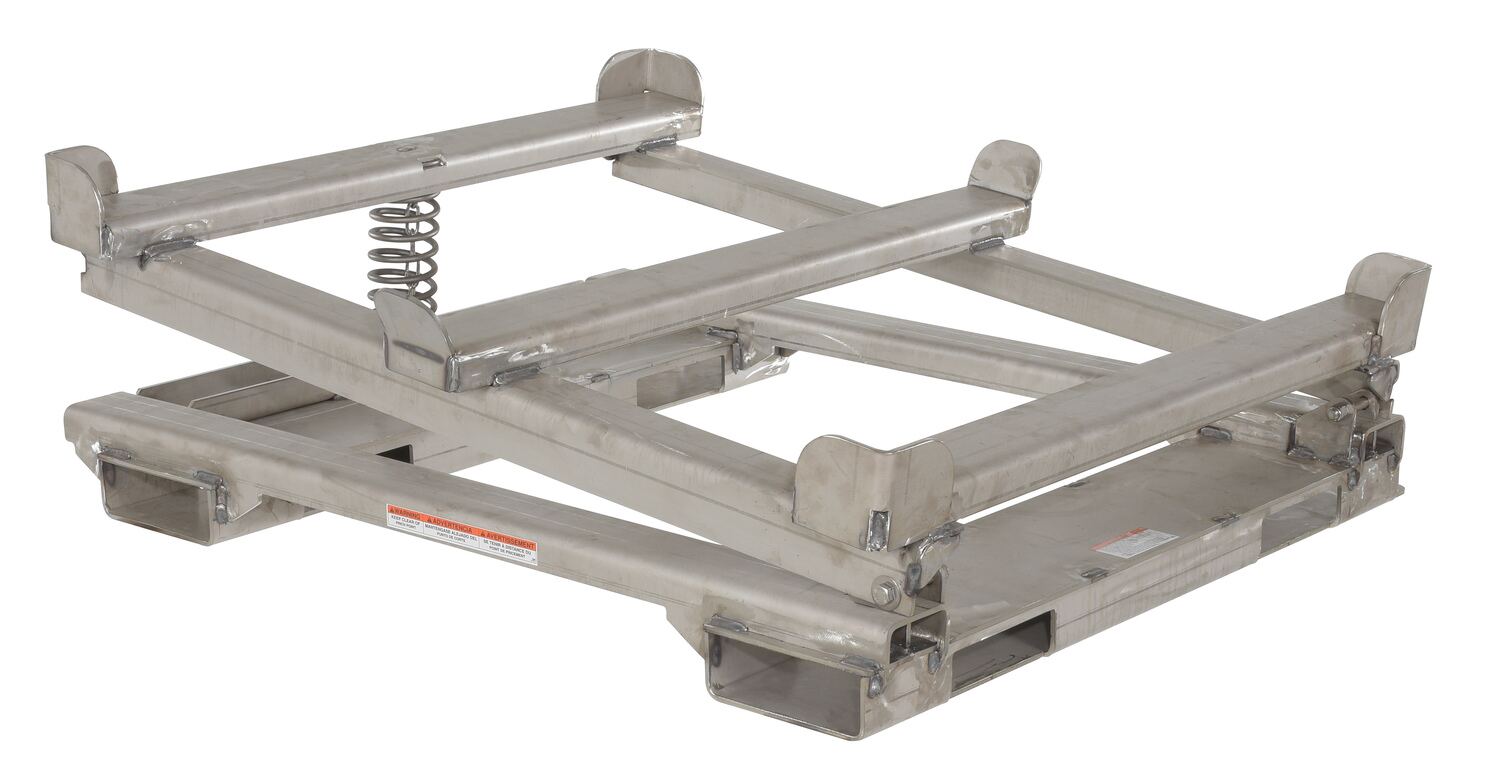

| IBC-TLT-FP-SS | NEW |  | 90 Days Limited Warranty | Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets 48-1/2 In. x 15-1/4 In. 4400 Lb. Capacity Silver | Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 | 332 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,400
Lowered Height (in.): 12-3/4
Uniform Capacity (lb.): 4,400
Lowered Height (in.): 12-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Uniform Capacity (lb.): 4400
Fork Pocket (in.) WxH: 7 x 2
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Will the tilt stand work with the IBC-275 or the IBC-330?
A: The tilt stands can be used with the IBC-275 and the IBC-330.
Q: What is the clearance under the IBC-TLT-FPL?
A: When the IBC-TLT-FPL is in the raised position, underneath clearance is 31 1/4". IN the lowered position, underneath clearance is 7 1/4".
 |
||||||||||||||||||||||||||||||||
