Counter Balanced Narrow Stacker w/ Multi-Use Attachments

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery

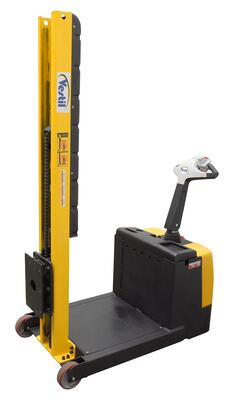

FEATURED Counter Balanced Narrow Stacker w/ Multi-Use Attachments

model: S-CB-NM-60

S-CB-NM-60_A.jpg S-CB-NM-60_B.jpg S-CB-NM-60_C.jpg S-CB-NM-60_D.jpg S-CB-NM-60_E.jpg S-CB-NM-60_F.jpg S-CB-NM-60_G.jpg S-CB-NM-60_A+_Carousel_A.JPG S-CB-NM-60_A+_Carousel_B.JPG S-CB-NM-60_A+_Carousel_C.JPG More Images +
Counter Balanced Narrow Stacker w/ Multi-Use Attachments
SERIES: S-CB-NM   18Products
New Product

AVAILABLE ATTACHMENTS BELOW
(click show more or OPTIONS tab below)

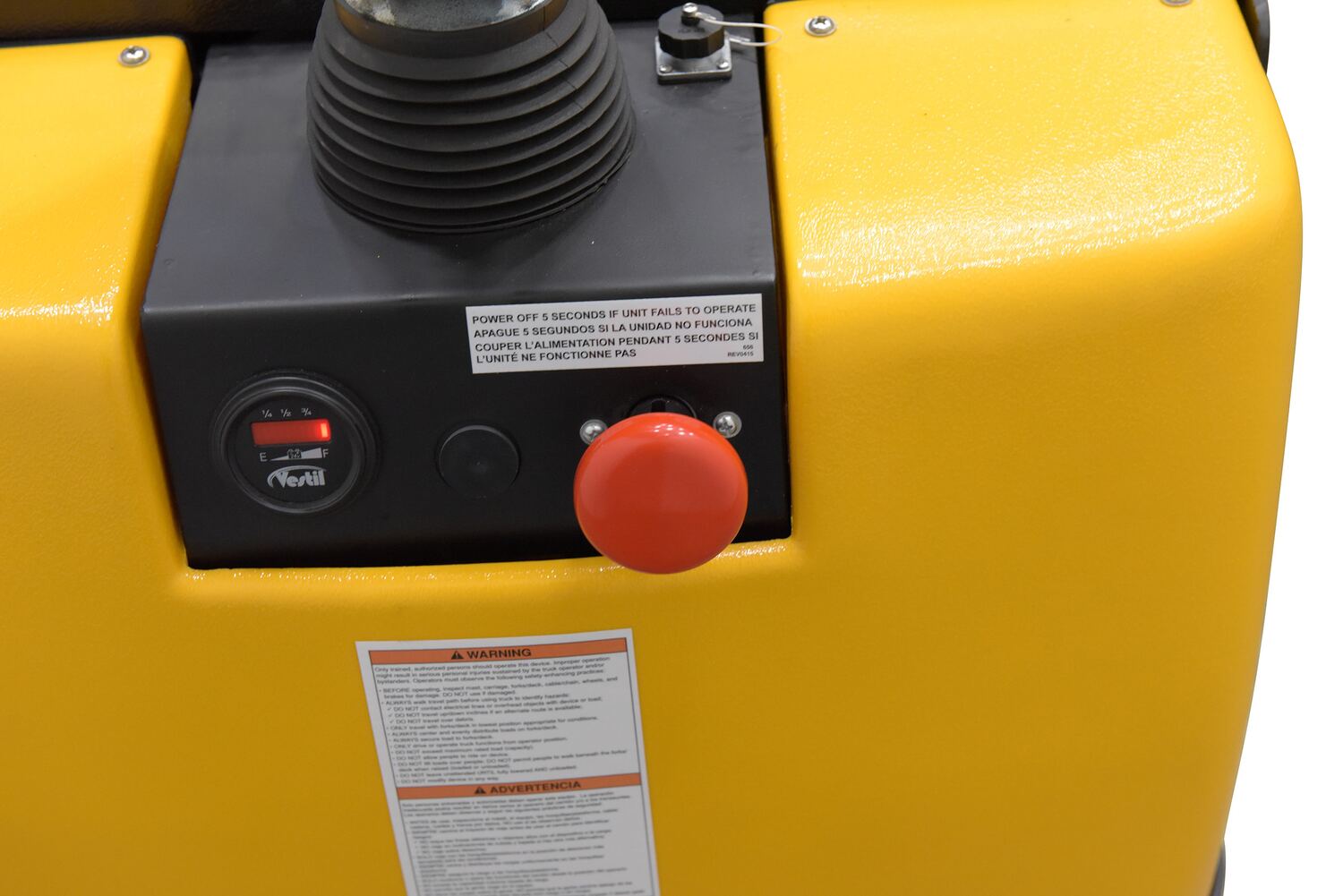

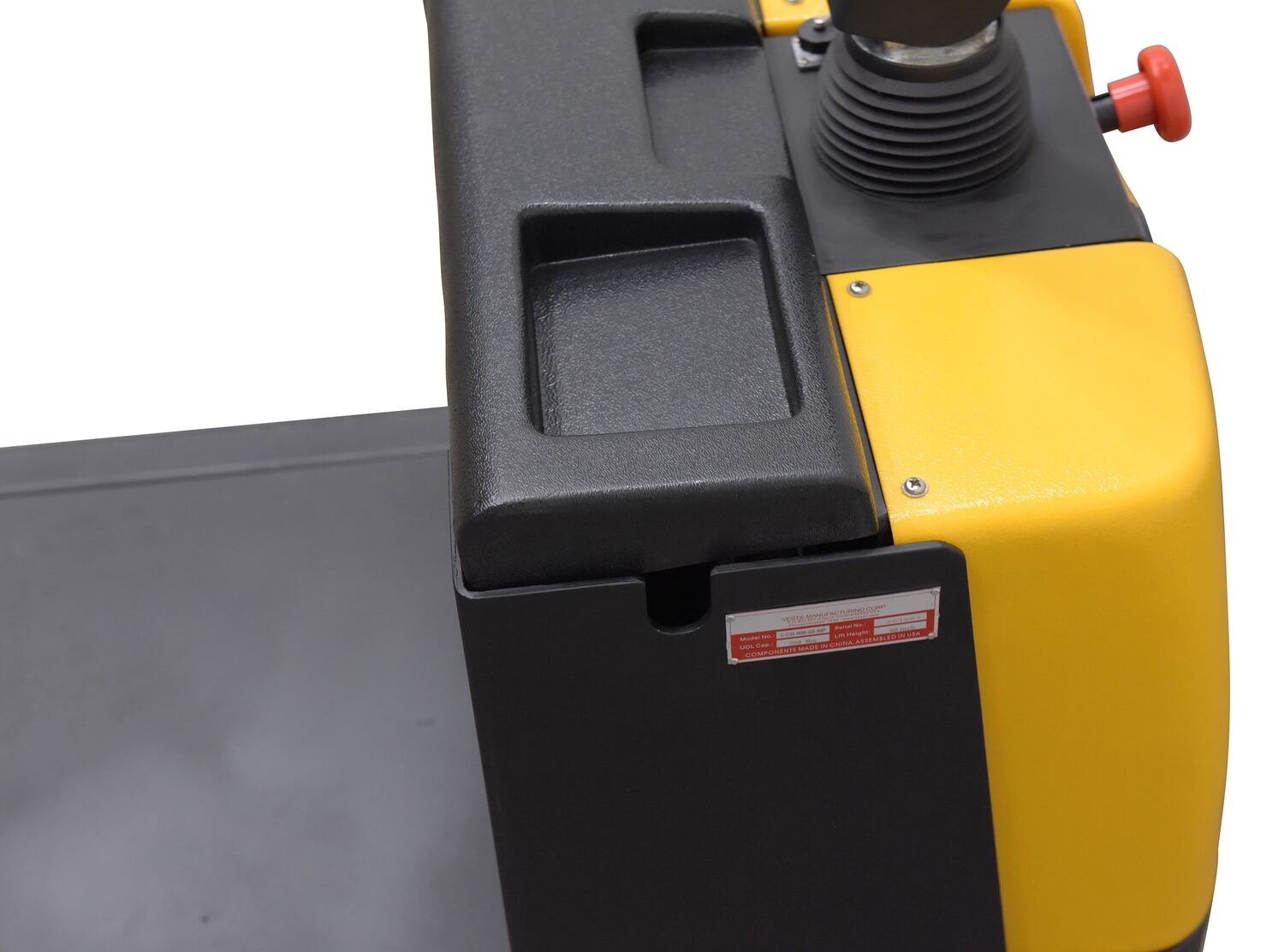

STA-ATT-SDG_G.jpgCounter balance stacker with a narrow mast design is ideal for die loading, machine feeding, and for loading and unloading trucks in confined areas. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, and emergency reverse function. Multiple attachments available. Includes an automatic dead-man feature that activates when the user releases the handle. Also included are batteries, an integral battery charger, and battery level gauge. Easy access battery compartment simplifies battery maintenance.

  • Counter Balance has simple controls for quick movement
  • Quick attachment for immediate use
  • Durable steel construction
  • Low maintenance design
Attachments

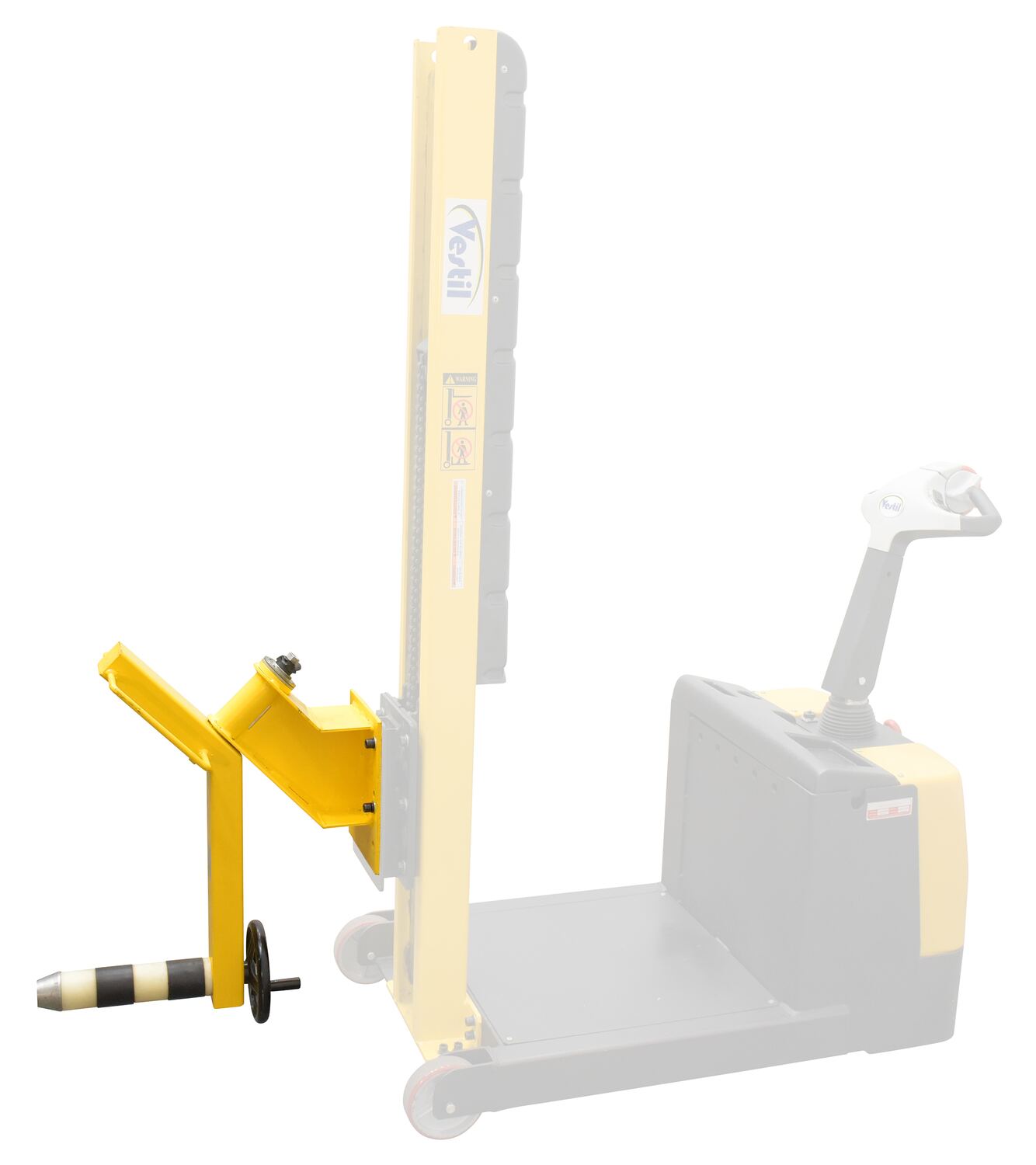

STA-ATT-RR Reel Rotator
STA-ATT-BAH Single Ball Hitch
STA-ATT-RP Roller Platform
STA-ATT-PRP Paper/Roll Lifter

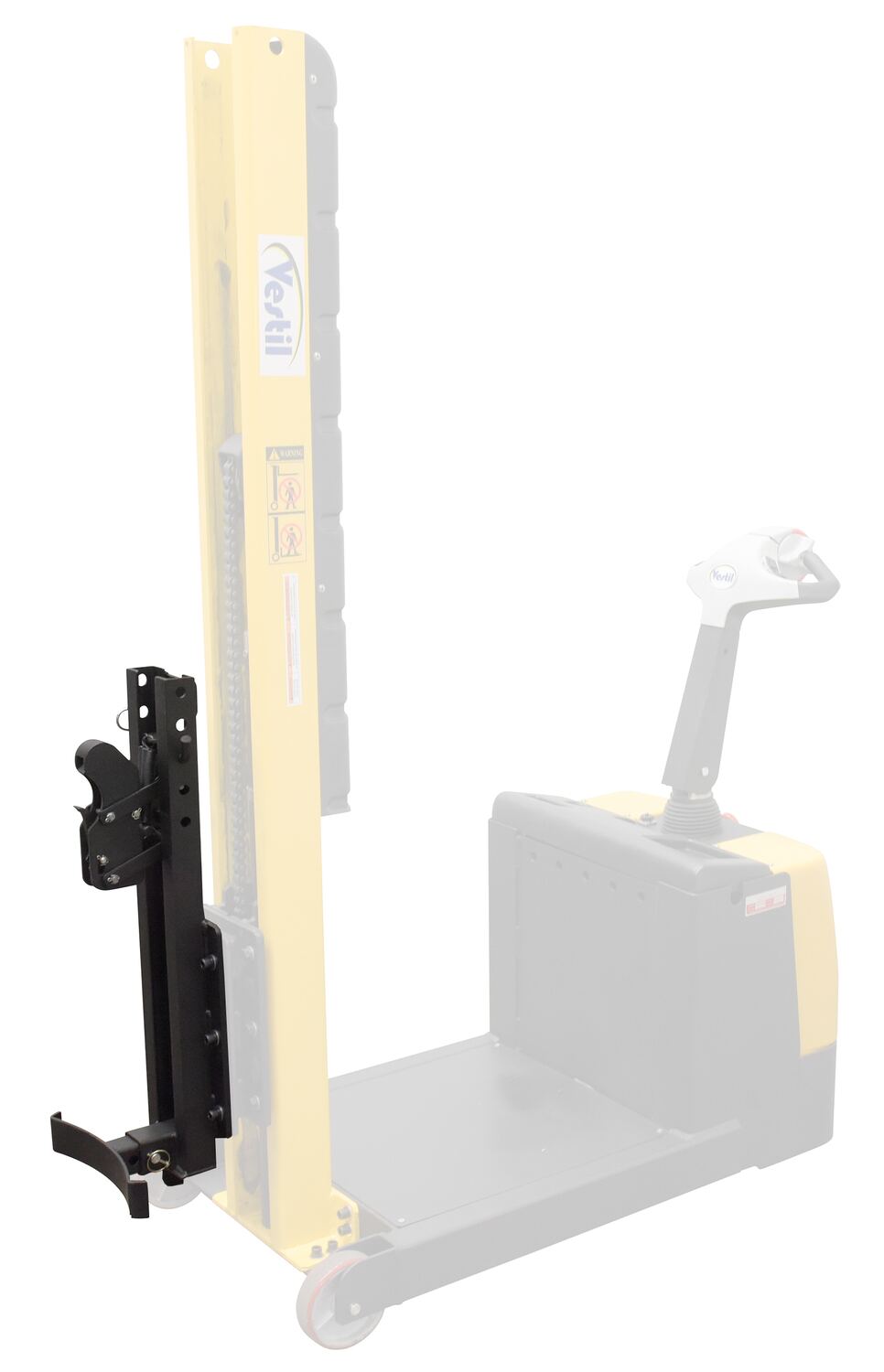

STA-ATT-SDG Single Drum Gripper

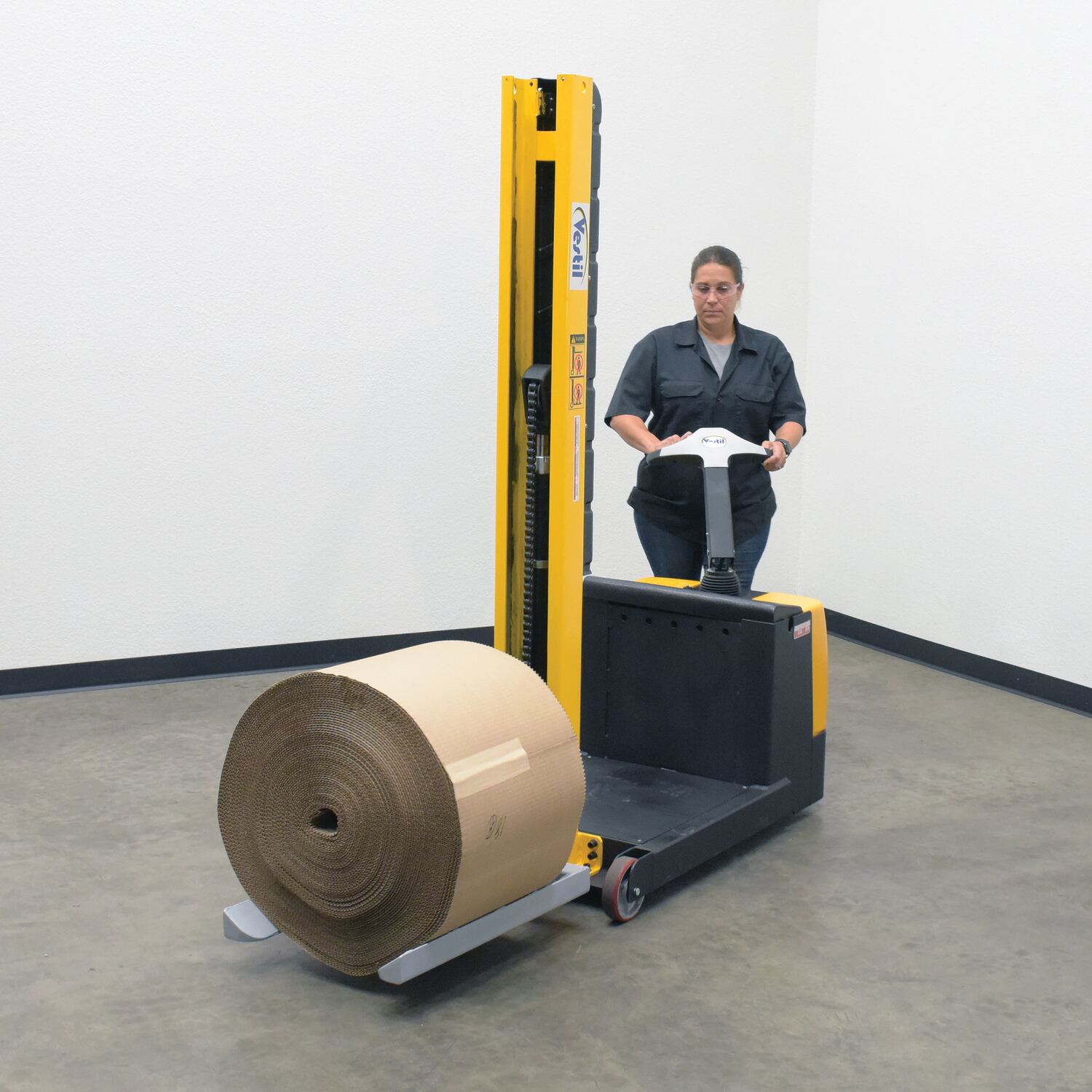

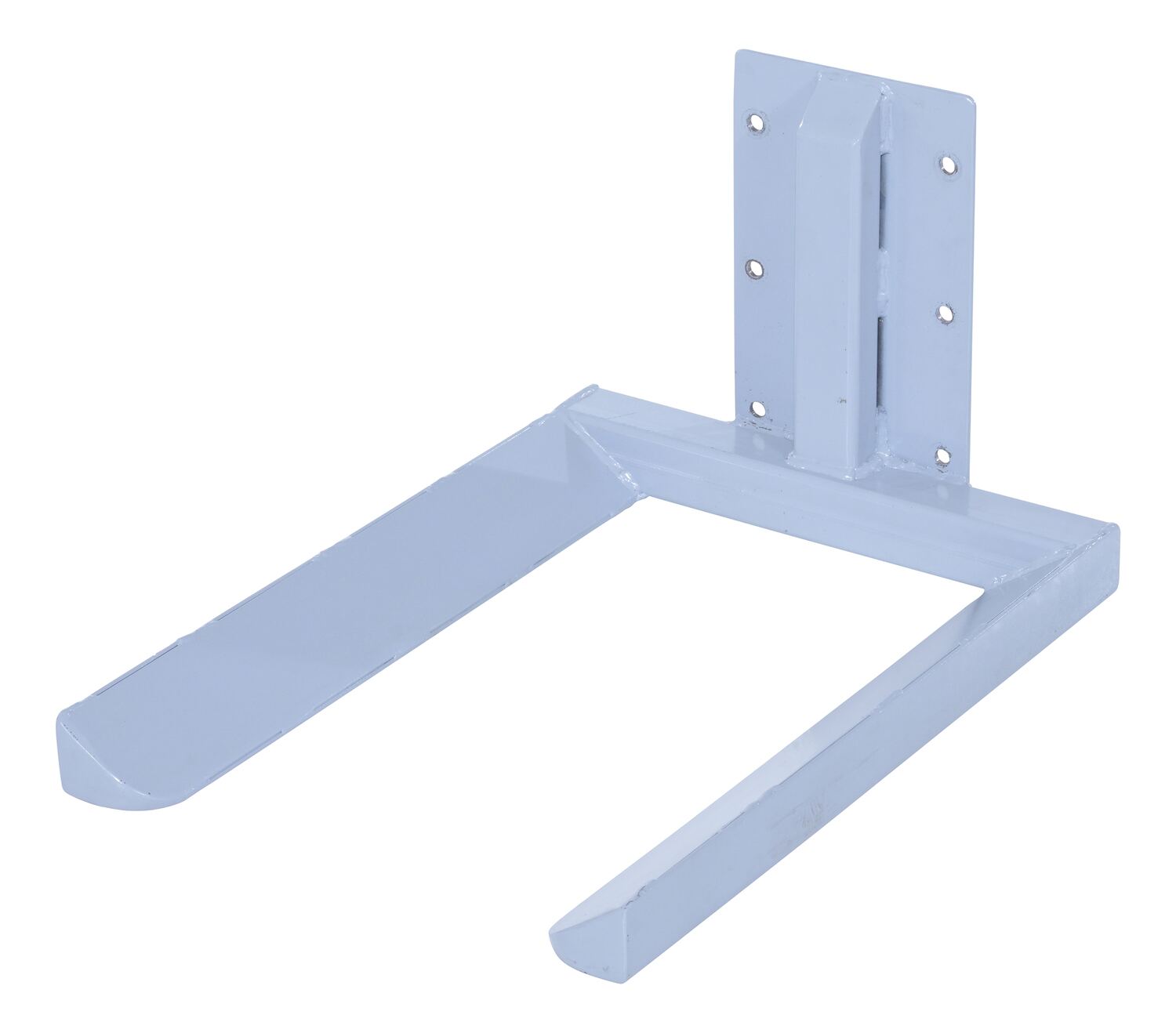

STA-ATT-FRF-20 Fixed Roll 20" Forks
STA-ATT-FRF-24 Fixed Roll 24" Forks

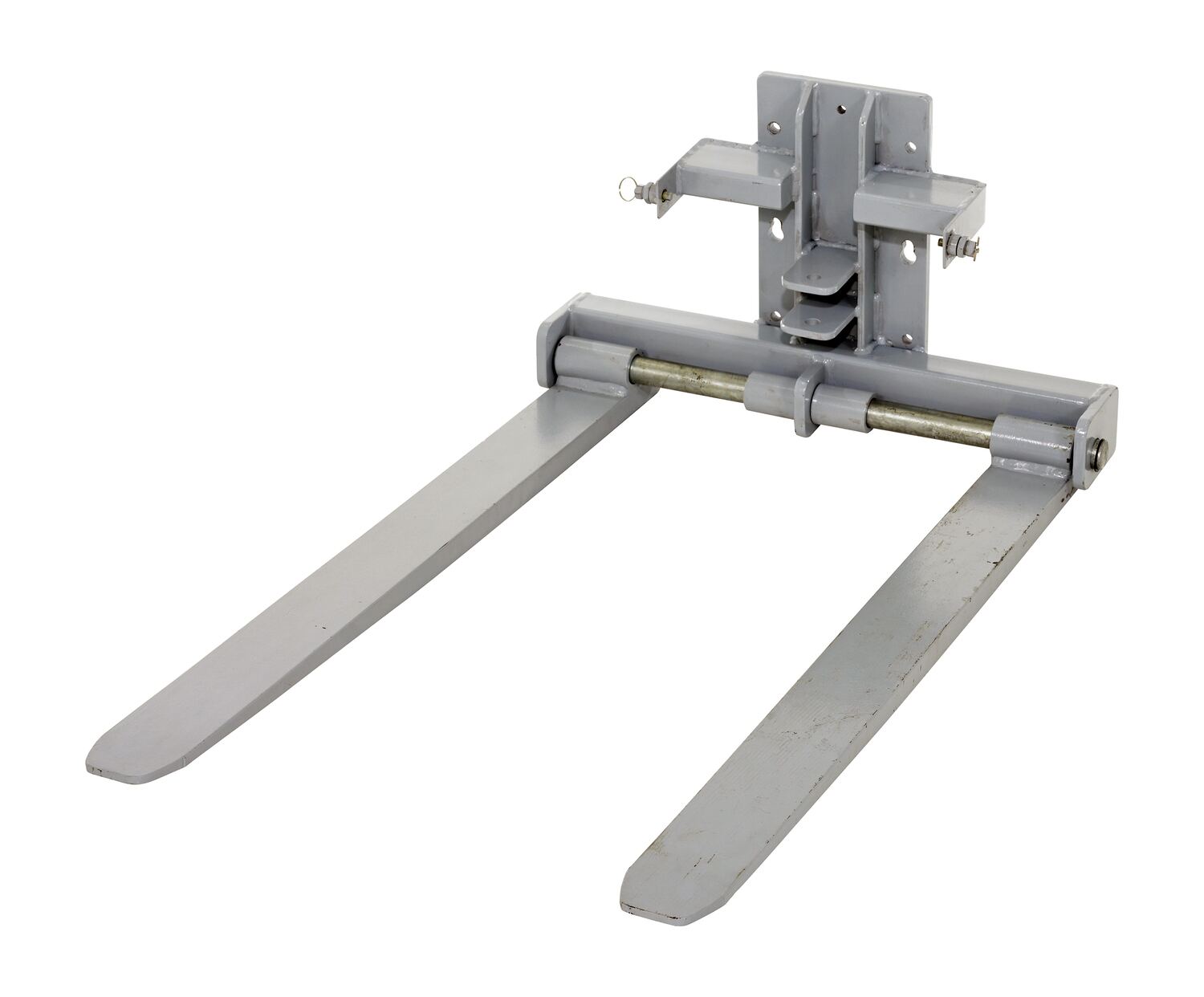

STA-ATT-AFFK-42 Adjustable 42" Forks

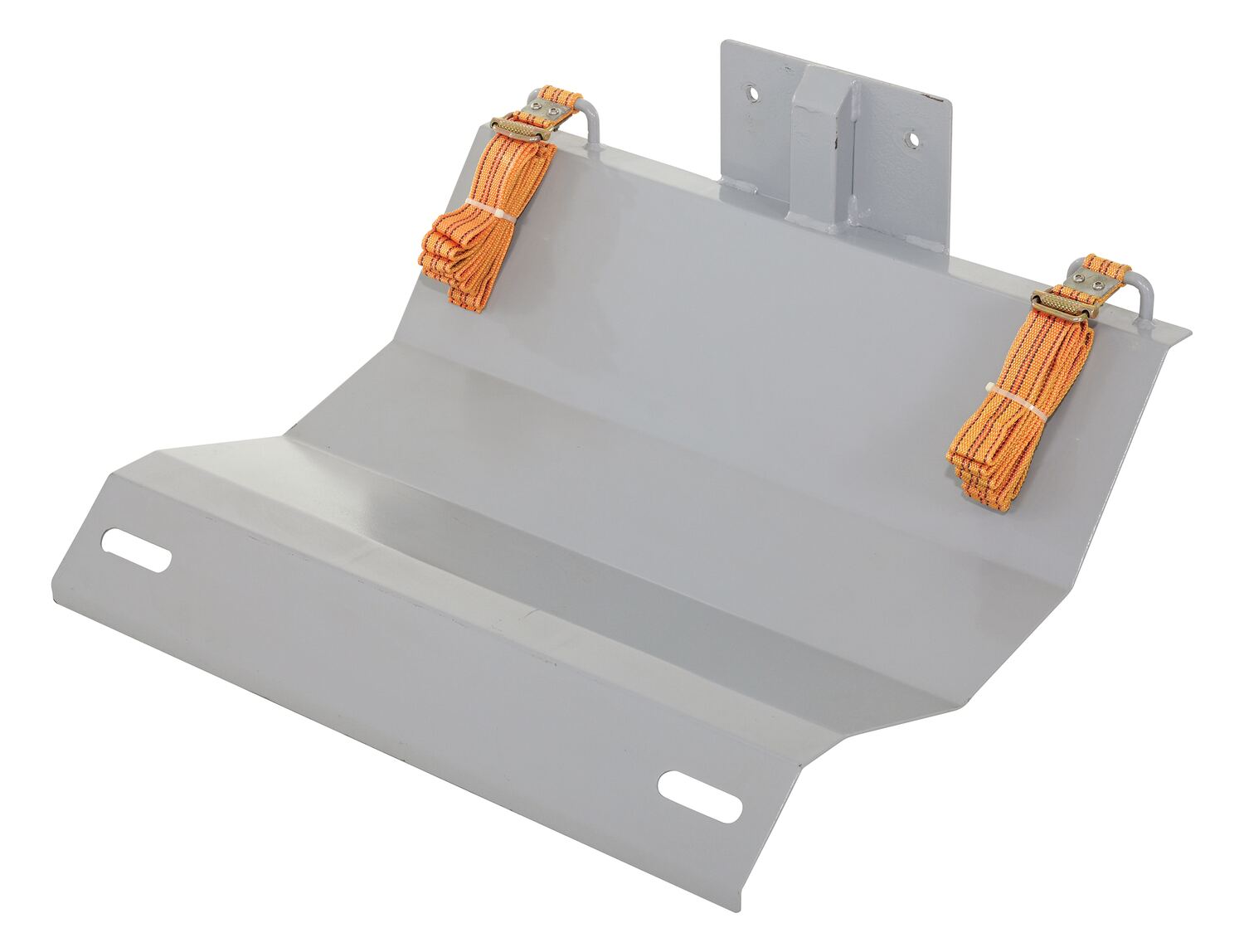

STA-ATT-RLFT-30 Roll Lifter 20" Dia. STA-ATT-RLFT-30_A.jpg
STA-ATT-BG-23 Buggy Lifter
STA-ATT-DSPIN-20 Double Spindle

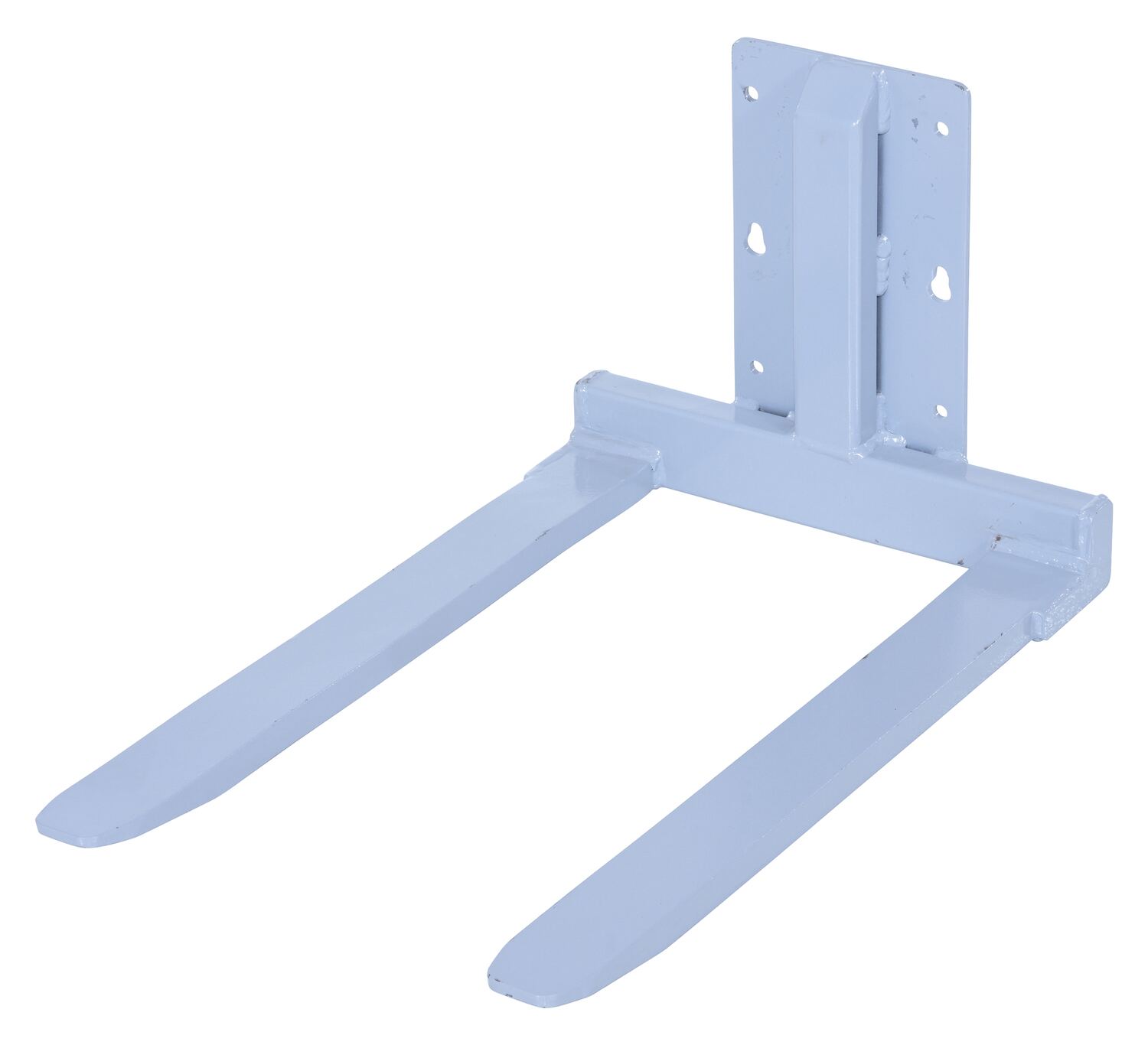

STA-ATT-FF-30 Fixed 30" Forks
STA-ATT-SPINR-25 Single Spindle w/ Rollers
STA-ATT-HDGR Hydraulic Drum Gripper
STA-ATT-DGS-55 55 Gal. Drum Gripper
STA-ATT-DGP-55 55 Gal. Poly Drum Gripper
STA-ATT-DGP-30 30 Gal. Poly Drum Gripper
Counter Balanced Narrow Stacker w/ Multi-Use Attachments

model: S-CB-NM-60

Model # Description Attributes Net Wt.
(lbs)

* Multi-Use Attachments Assortment Listed Under Options Section Below

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
S-CB-NM-60
STA-ATT-AFFK-42
STA-ATT-BAH
STA-ATT-BG-23
STA-ATT-DGP-30
STA-ATT-DGP-55
STA-ATT-DGS-55
STA-ATT-DSPIN-20
STA-ATT-FF-30
STA-ATT-FRF-20
STA-ATT-FRF-24
STA-ATT-HDGR
STA-ATT-PRP
STA-ATT-RLFT-30
STA-ATT-RP
STA-ATT-RR
STA-ATT-SDG
STA-ATT-SPINR-25
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

1
S-CB-NM-60
Open Drawing

Testing Certificates

18
S-CB-NM-60
Open Certificate
STA-ATT-AFFK-42
Open Certificate
STA-ATT-BAH
Open Certificate
STA-ATT-BG-23
Open Certificate
STA-ATT-DGP-30
Open Certificate
STA-ATT-DGP-55
Open Certificate
STA-ATT-DGS-55
Open Certificate
STA-ATT-DSPIN-20
Open Certificate
STA-ATT-FF-30
Open Certificate
STA-ATT-FRF-20
Open Certificate
STA-ATT-FRF-24
Open Certificate
STA-ATT-HDGR
Open Certificate
STA-ATT-PRP
Open Certificate
STA-ATT-RLFT-30
Open Certificate
STA-ATT-RP
Open Certificate
STA-ATT-RR
Open Certificate
STA-ATT-SDG
Open Certificate
STA-ATT-SPINR-25
Open Certificate

SDS Sheets

2
Acid Battery
S-CB-NM-60 SDS
Open SDS
Hydraulic Oil
STA-ATT-HDGR SDS
Open SDS

Other PDFs

1

Narrow Mast Stacker and Attachments Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

S-CB-NM-60

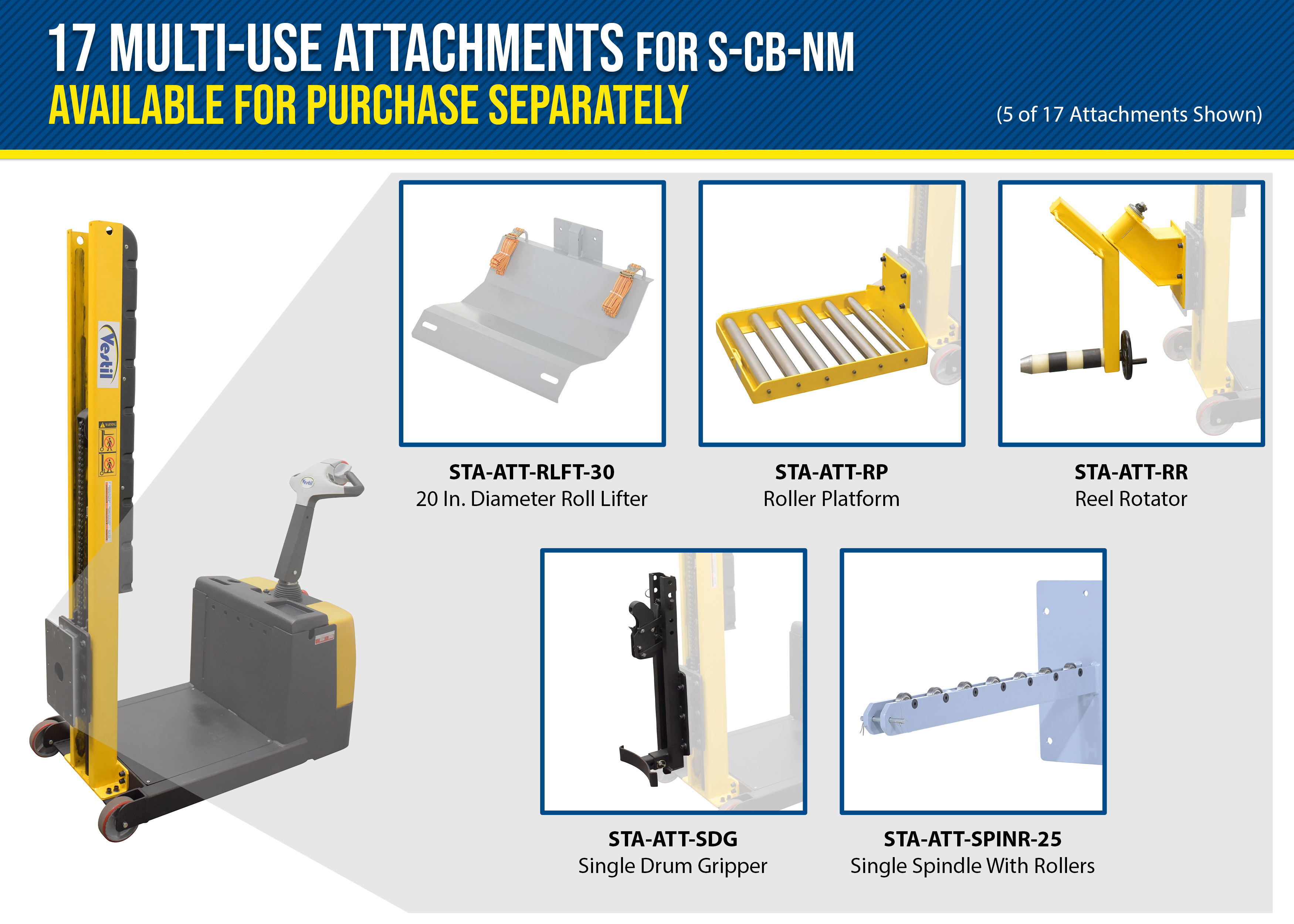

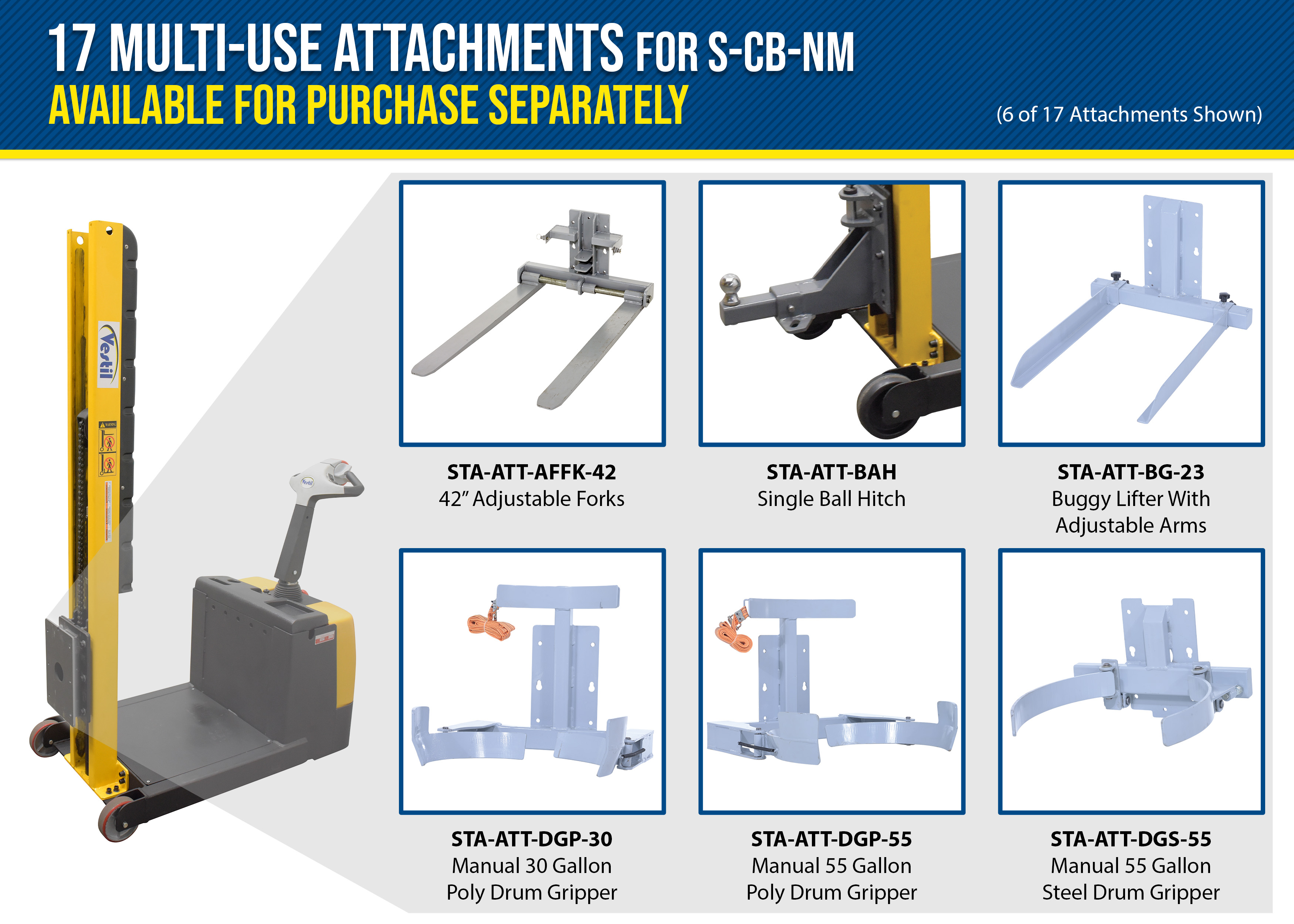

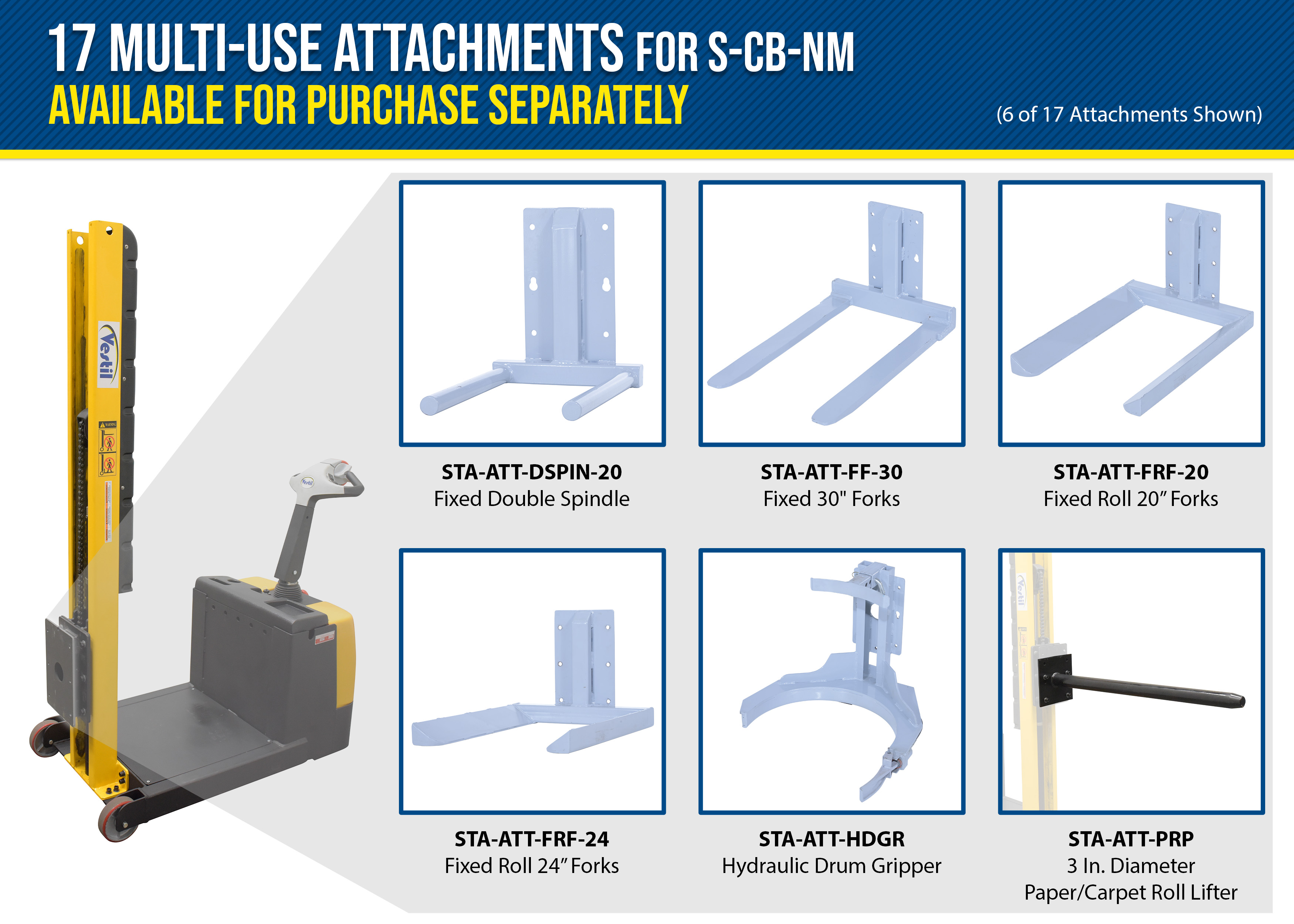

S-CB-NM-60 S-CB-NM-60 A+ Slide 3
S-CB-NM-60 S-CB-NM-60 A+ Slide 2
S-CB-NM-60 S-CB-NM-60 A+ Slide 1

Related or Similar Products:

More From Stackers





Counter Balanced Narrow Stacke...




AVAILABLE ATTACHMENTS BELOW
(click show more or OPTIONS tab below)

STA-ATT-SDG_G.jpgCounter balance stacker with a narrow mast design is ideal for die loading, machine feeding, and for loading and unloading trucks in confined areas. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, and emergency reverse function. Multiple attachments available. Includes an automatic dead-man feature that activates when the user releases the handle. Also included are batteries, an integral battery charger, and battery level gauge. Easy access battery compartment simplifies battery maintenance.

  • Counter Balance has simple controls for quick movement
  • Quick attachment for immediate use
  • Durable steel construction
  • Low maintenance design
Attachments
STA-ATT-RR Reel Rotator
STA-ATT-BAH Single Ball Hitch
STA-ATT-RP Roller Platform
STA-ATT-PRP Paper/Roll Lifter
STA-ATT-SDG Single Drum Gripper
STA-ATT-FRF-20 Fixed Roll 20" Forks
STA-ATT-FRF-24 Fixed Roll 24" Forks
STA-ATT-AFFK-42 Adjustable 42" Forks
STA-ATT-RLFT-30 Roll Lifter 20" Dia. STA-ATT-RLFT-30_A.jpg
STA-ATT-BG-23 Buggy Lifter
STA-ATT-DSPIN-20 Double Spindle
STA-ATT-FF-30 Fixed 30" Forks
STA-ATT-SPINR-25 Single Spindle w/ Rollers
STA-ATT-HDGR Hydraulic Drum Gripper
STA-ATT-DGS-55 55 Gal. Drum Gripper
STA-ATT-DGP-55 55 Gal. Poly Drum Gripper
STA-ATT-DGP-30 30 Gal. Poly Drum Gripper

Model # Description Attributes Net Wt.
(lbs)

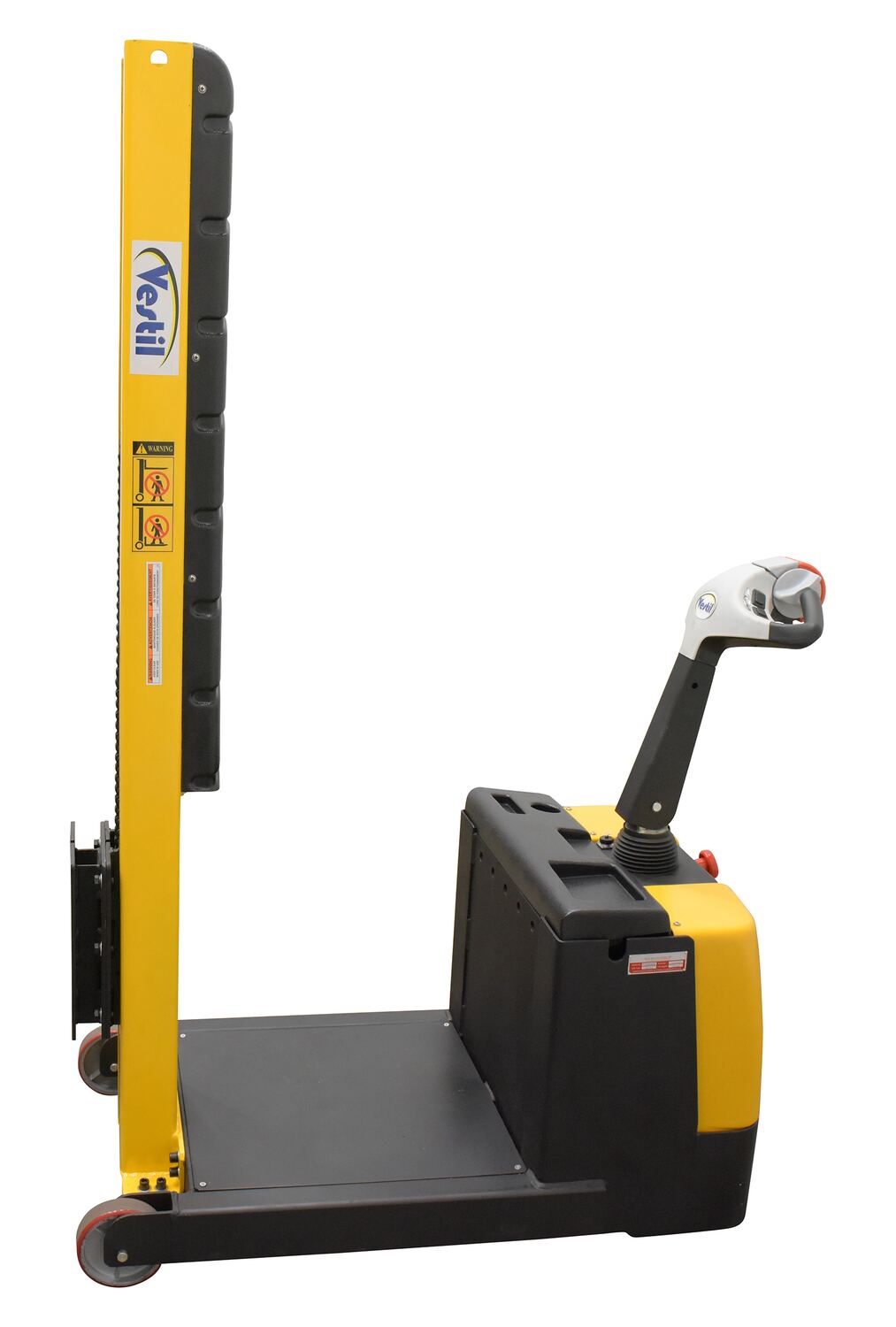

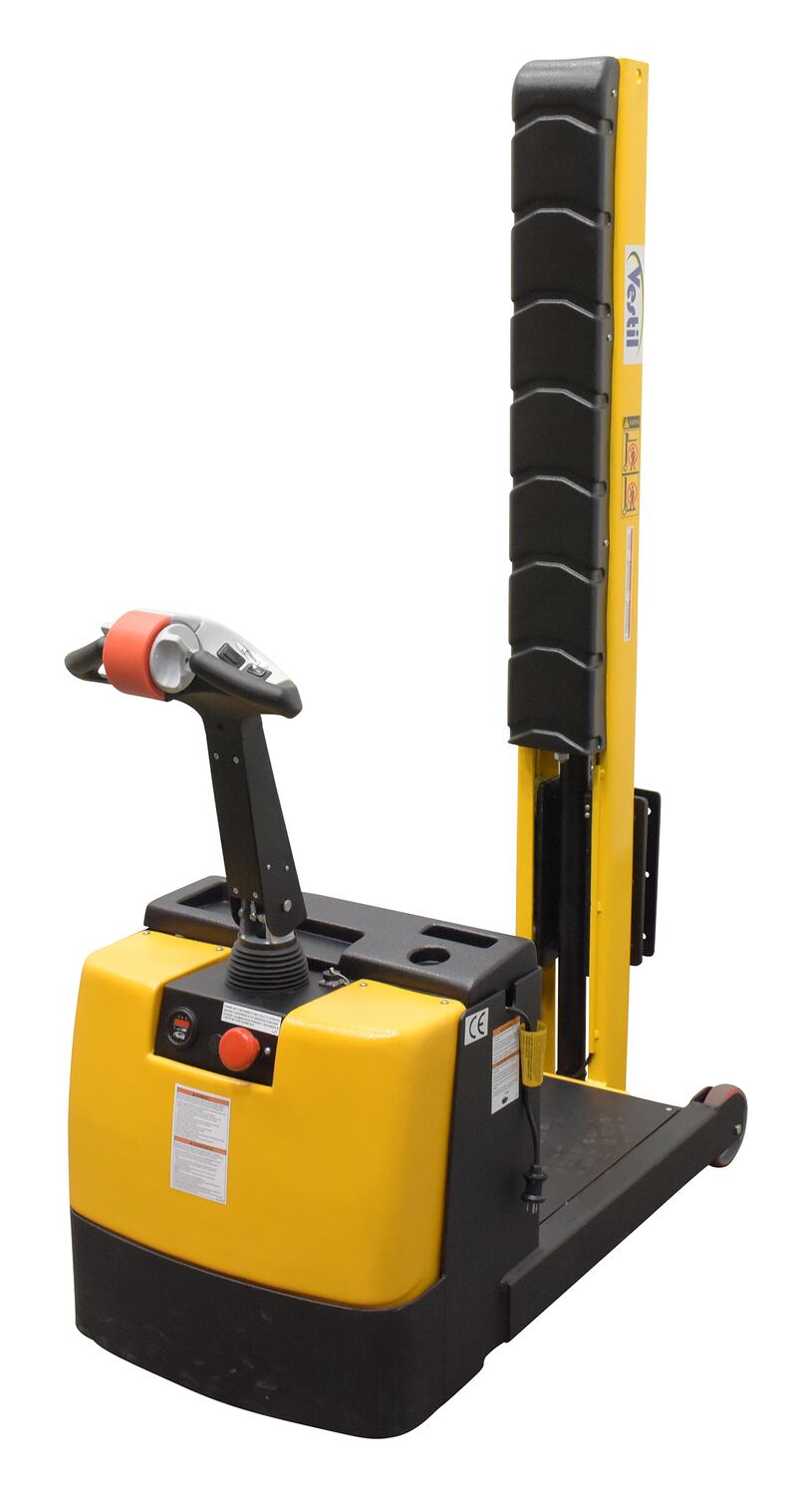

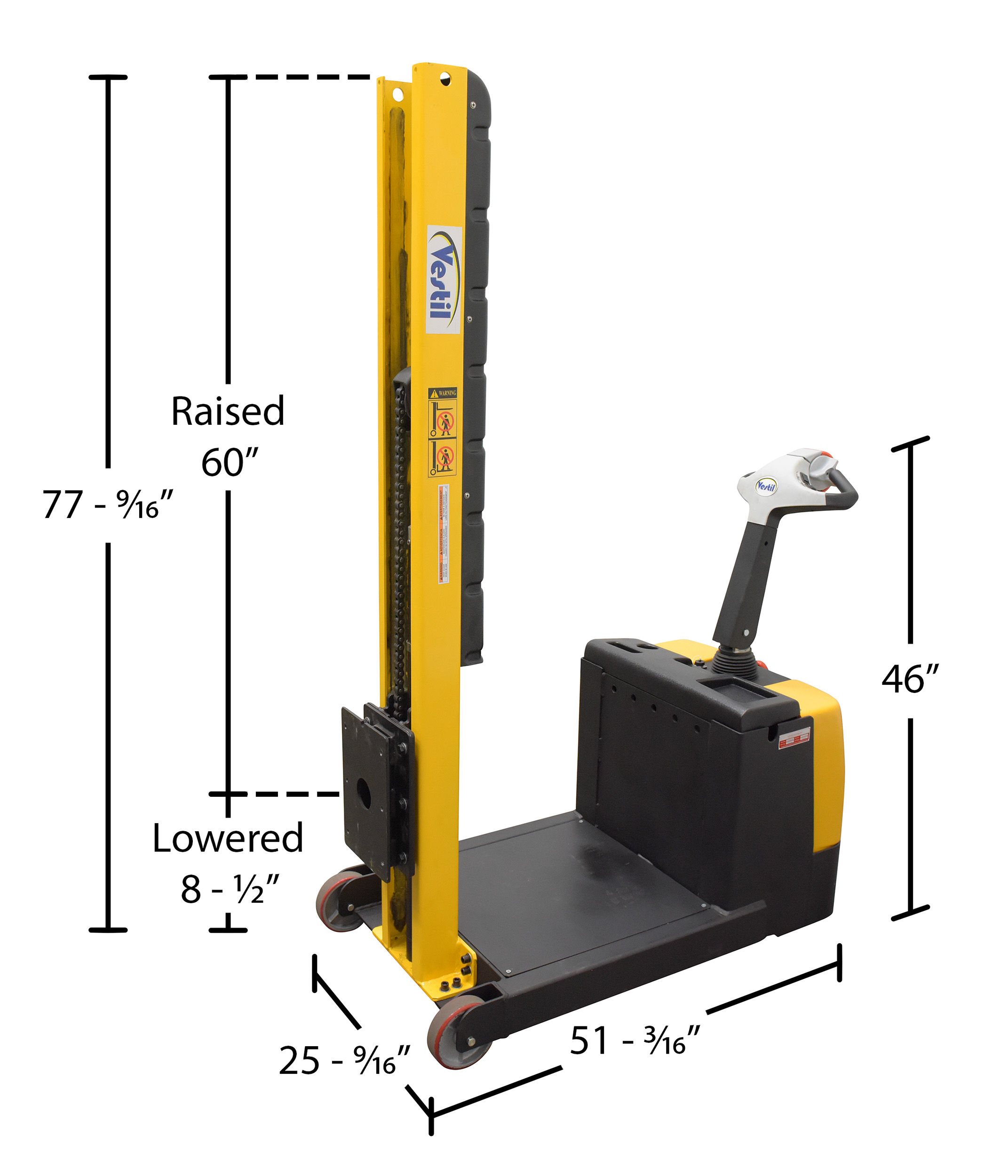

S-CB-NM-60 S-CB-NM-60Steel Counter Balanced Powered Drive Narrow Mast Stacker 60" Lift 51-9/16"L x 25-9/16"W x 61-13/16"H 600 Lb. Capacity Black / YellowUniform Capacity (Lbs.): 600
Raised Lift Height (In.): 60		815
STA-ATT-AFFK-42 STA-ATT-AFFK-42Steel Counter Balanced Power Lift Adjustable Forks 42" Fork Length Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Fork Length (In.): 42		109

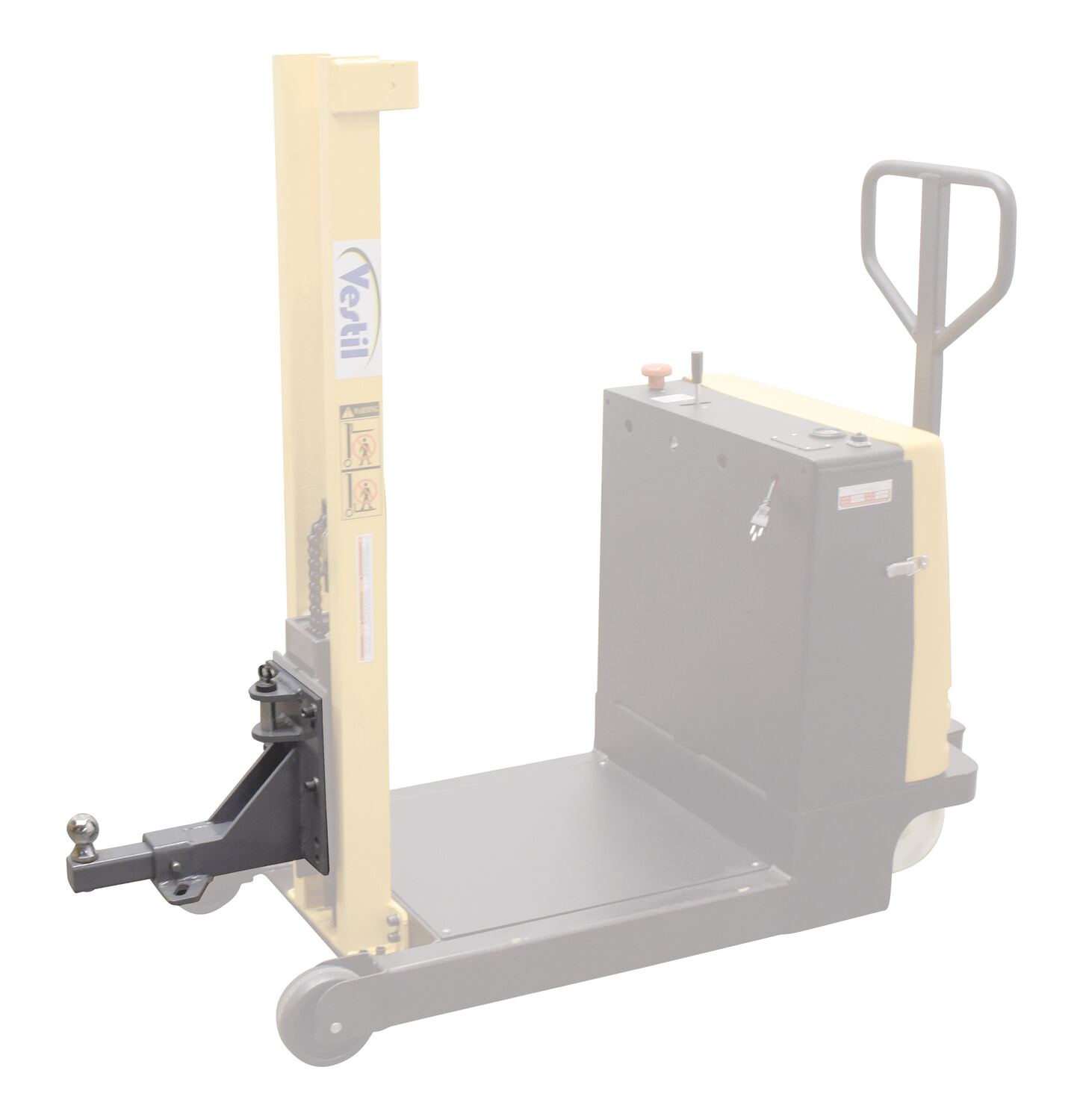

STA-ATT-BAH STA-ATT-BAHSteel Counter Balanced Power Lift Single Ball Hitch Attachment 600 Lb. Capacity BlackUniform Capacity (Lbs.): 600
36

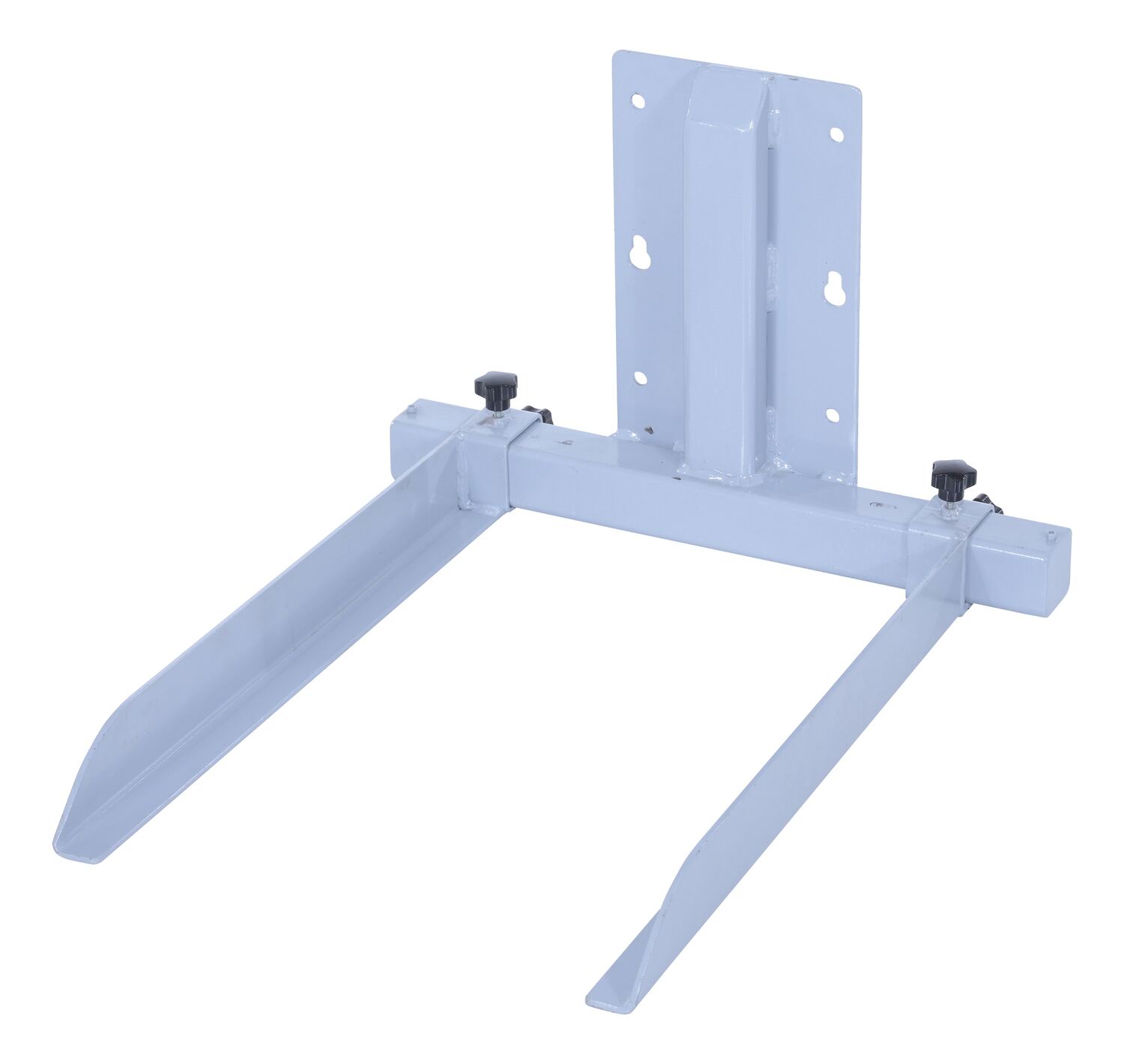

STA-ATT-BG-23 STA-ATT-BG-23Steel Counter Balanced Power Lift Buggy Lifter With Adjustable Arms Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Arm Type: Adjustable		65

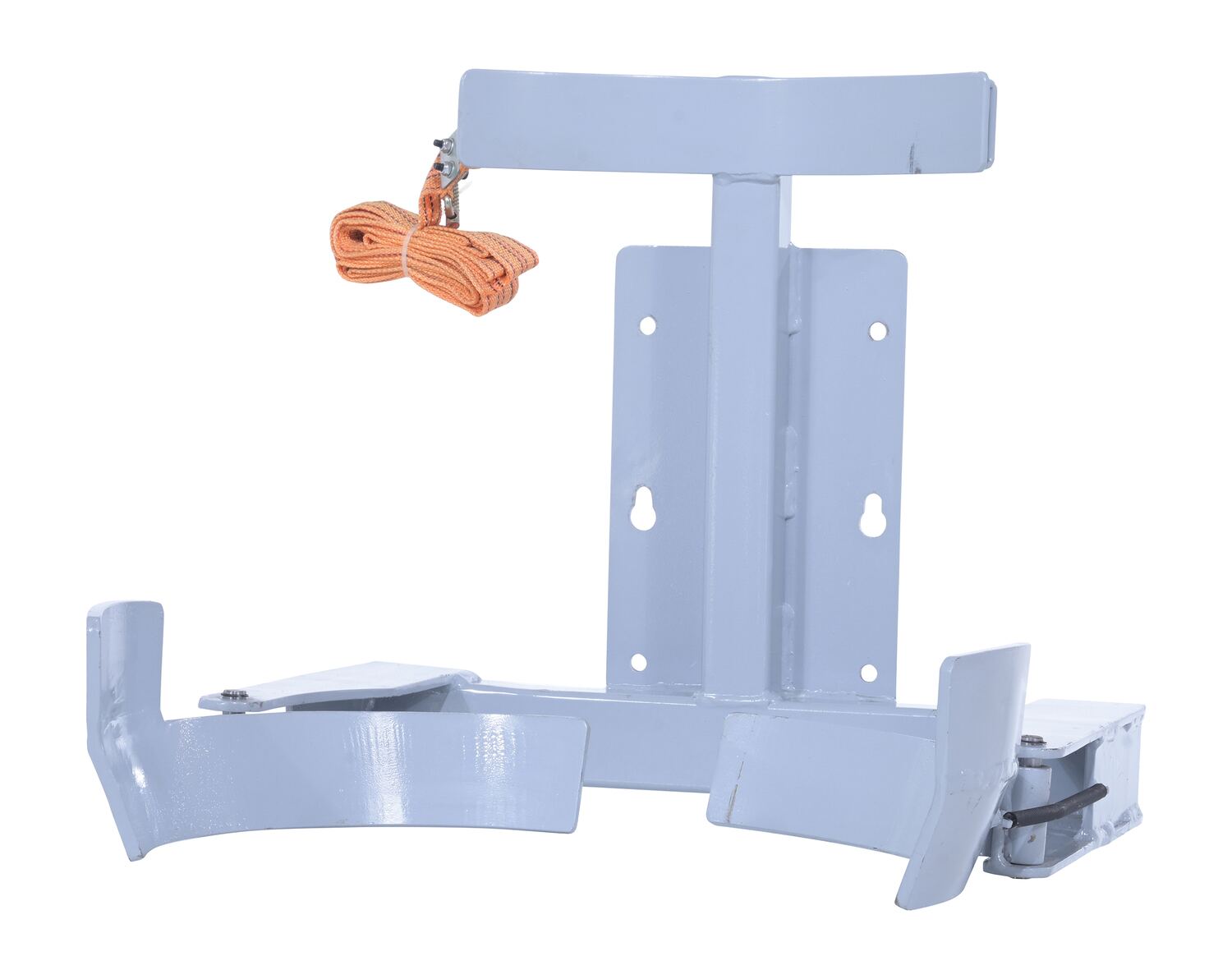

STA-ATT-DGP-30 STA-ATT-DGP-30Steel Counter Balanced Power Lift Manual 30 Gallon Poly Drum Gripper Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Drum Accomodation Type: 30 Gallon Poly Drum		51

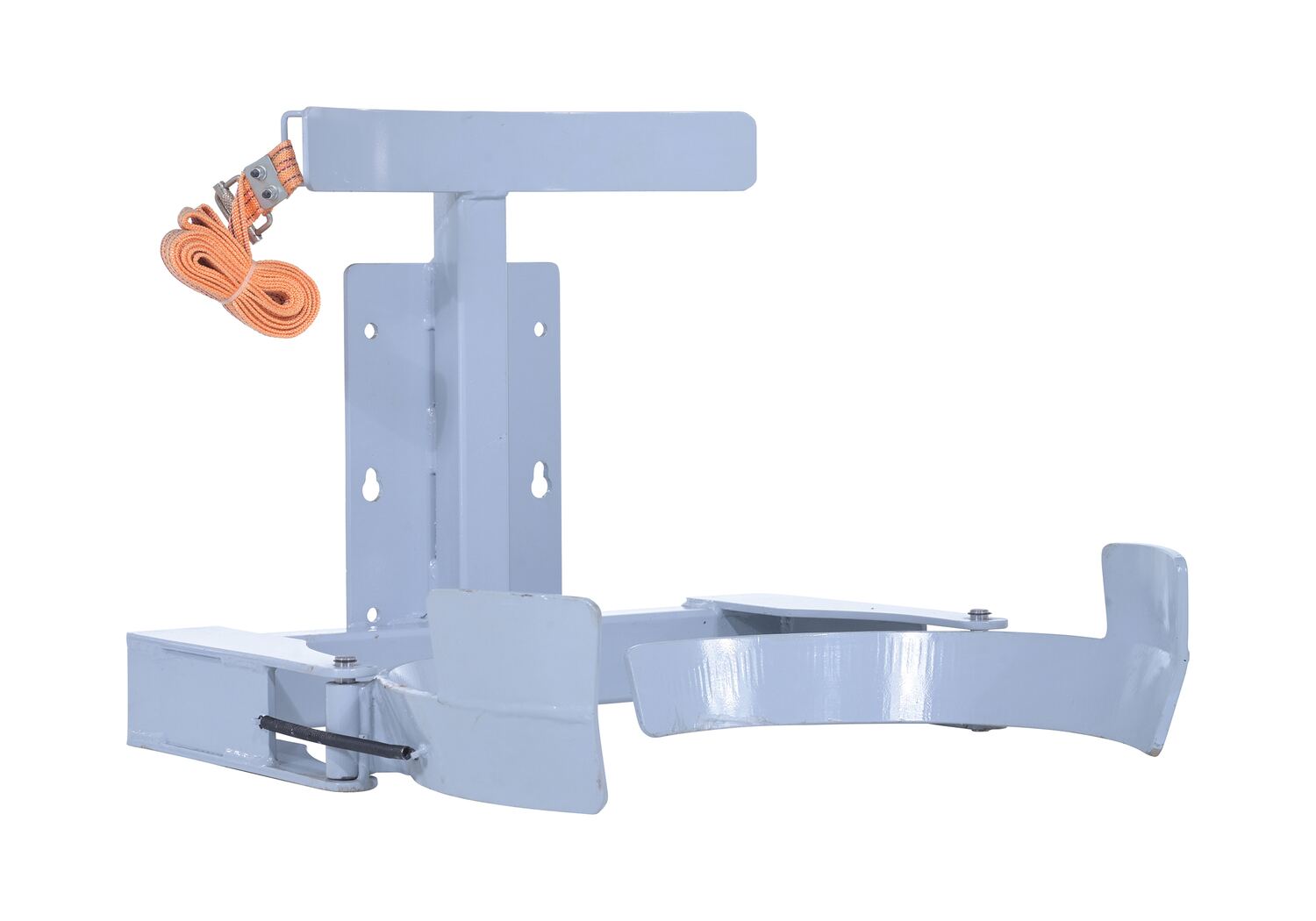

STA-ATT-DGP-55 STA-ATT-DGP-55Steel Counter Balanced Power Lift Manual 55 Gallon Poly Drum Gripper Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Drum Accomodation Type: 55 Gallon Poly Drum		51

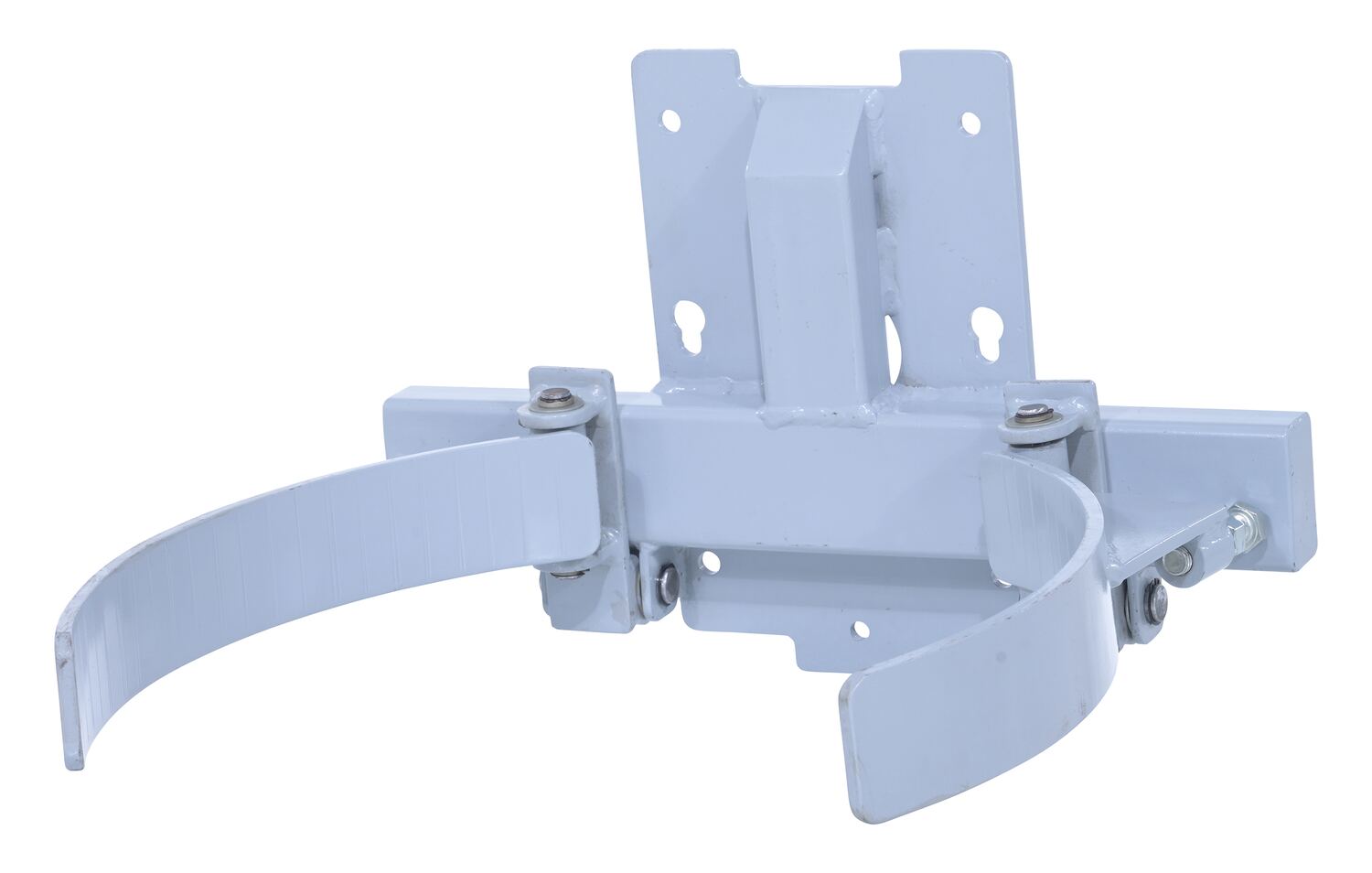

STA-ATT-DGS-55 STA-ATT-DGS-55Steel Counter Balanced Power Lift Manual 55 Gallon Steel Drum Gripper Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Drum Accomodation Type: 55 Gallon Steel Drum		46

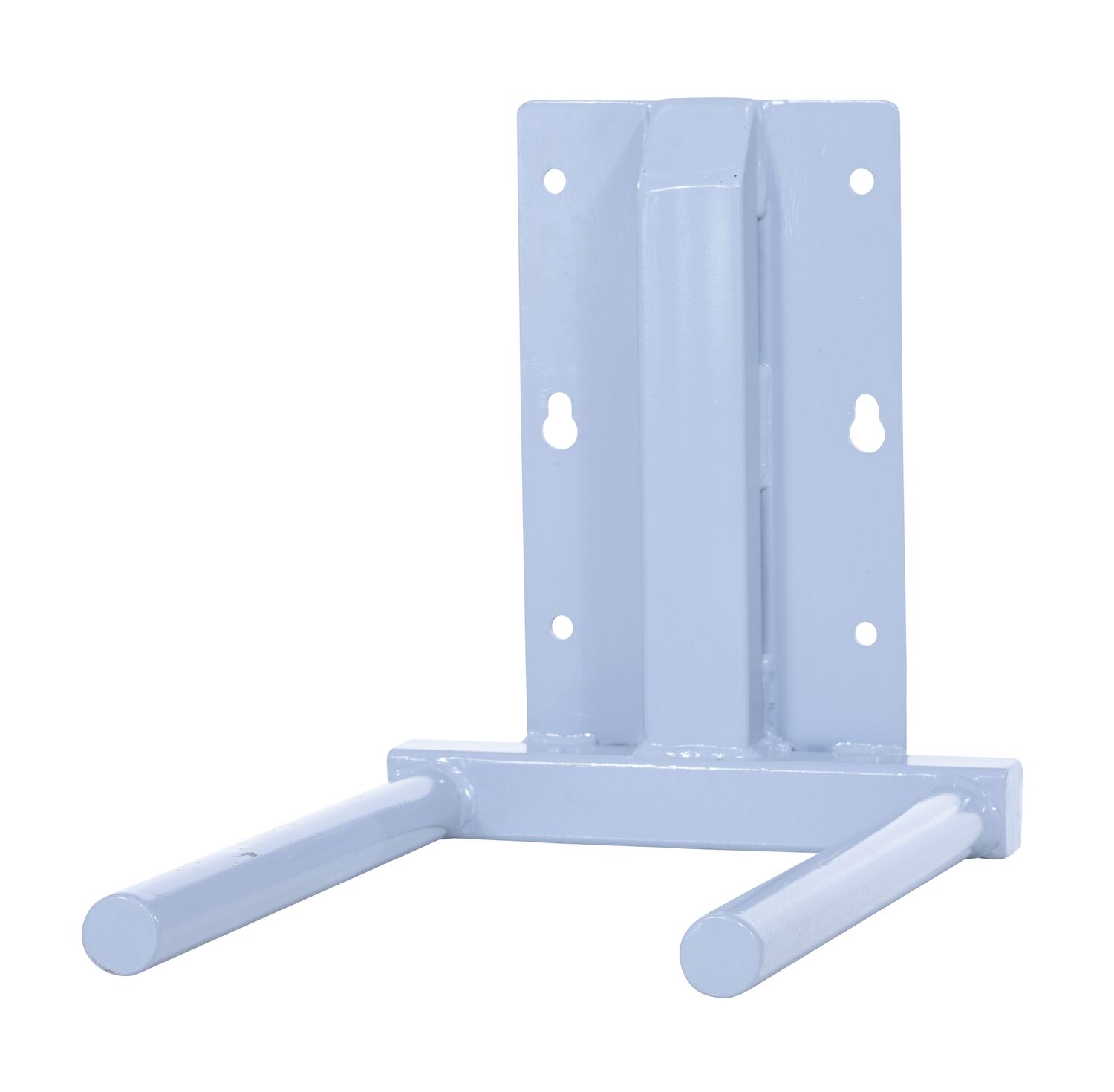

STA-ATT-DSPIN-20 STA-ATT-DSPIN-20Steel Counter Balanced Power Lift Fixed Double Spindle Attachment 200 Lb. Capacity GrayUniform Capacity (Lbs.): 200
Spindle Type: Fixed Double		36
STA-ATT-FF-30 STA-ATT-FF-30Steel Counter Balanced Power Lift Fixed 30" Forks Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Fork Length (In.): 30		65
STA-ATT-FRF-20 STA-ATT-FRF-20Steel Counter Balanced Power Lift Fixed Roll Fork, 20 " Fork Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Fork Length (In.): 20		64

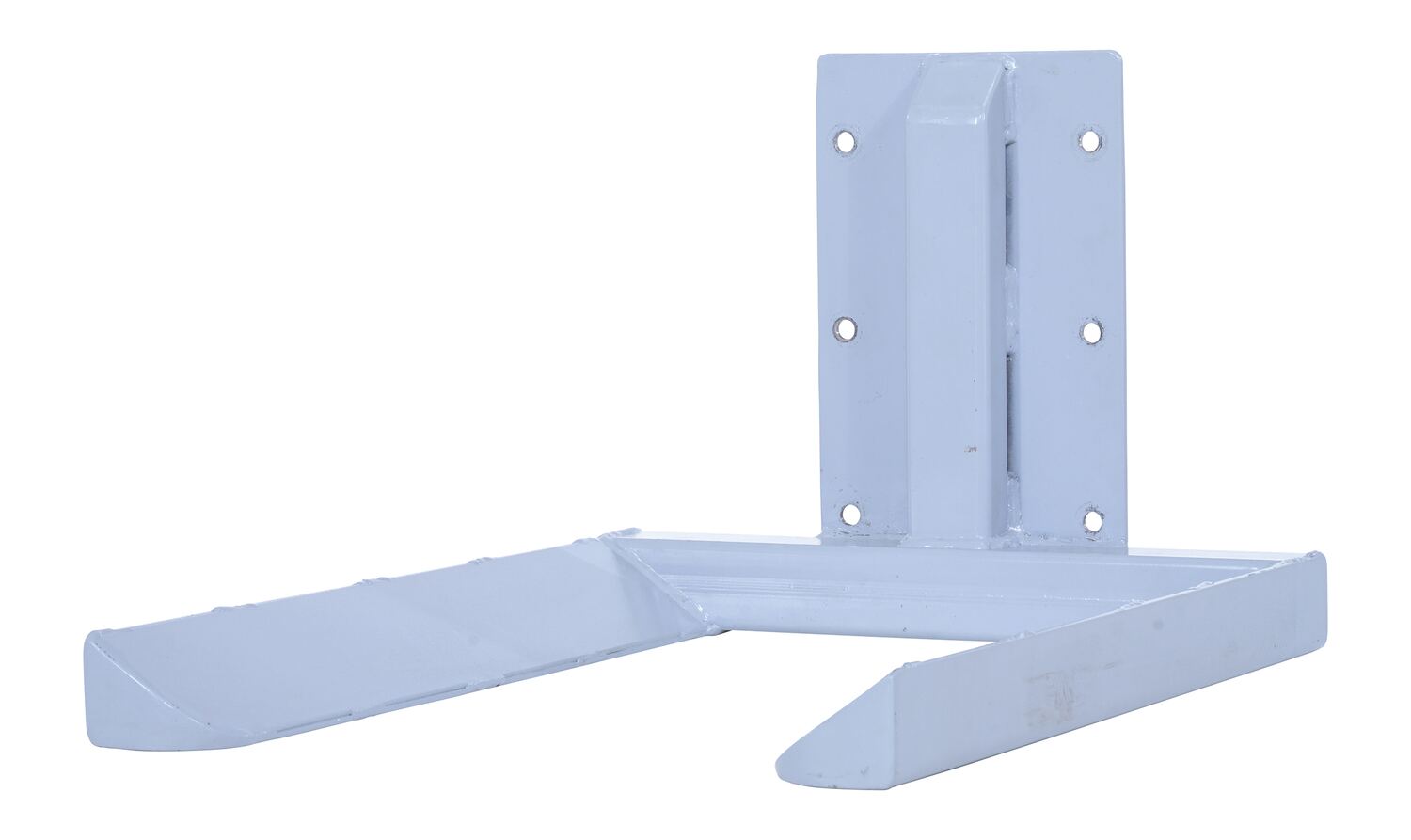

STA-ATT-FRF-24 STA-ATT-FRF-24Steel Counter Balanced Power Lift Fixed Roll Fork, 24" Fork Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Fork Length (In.): 24		46

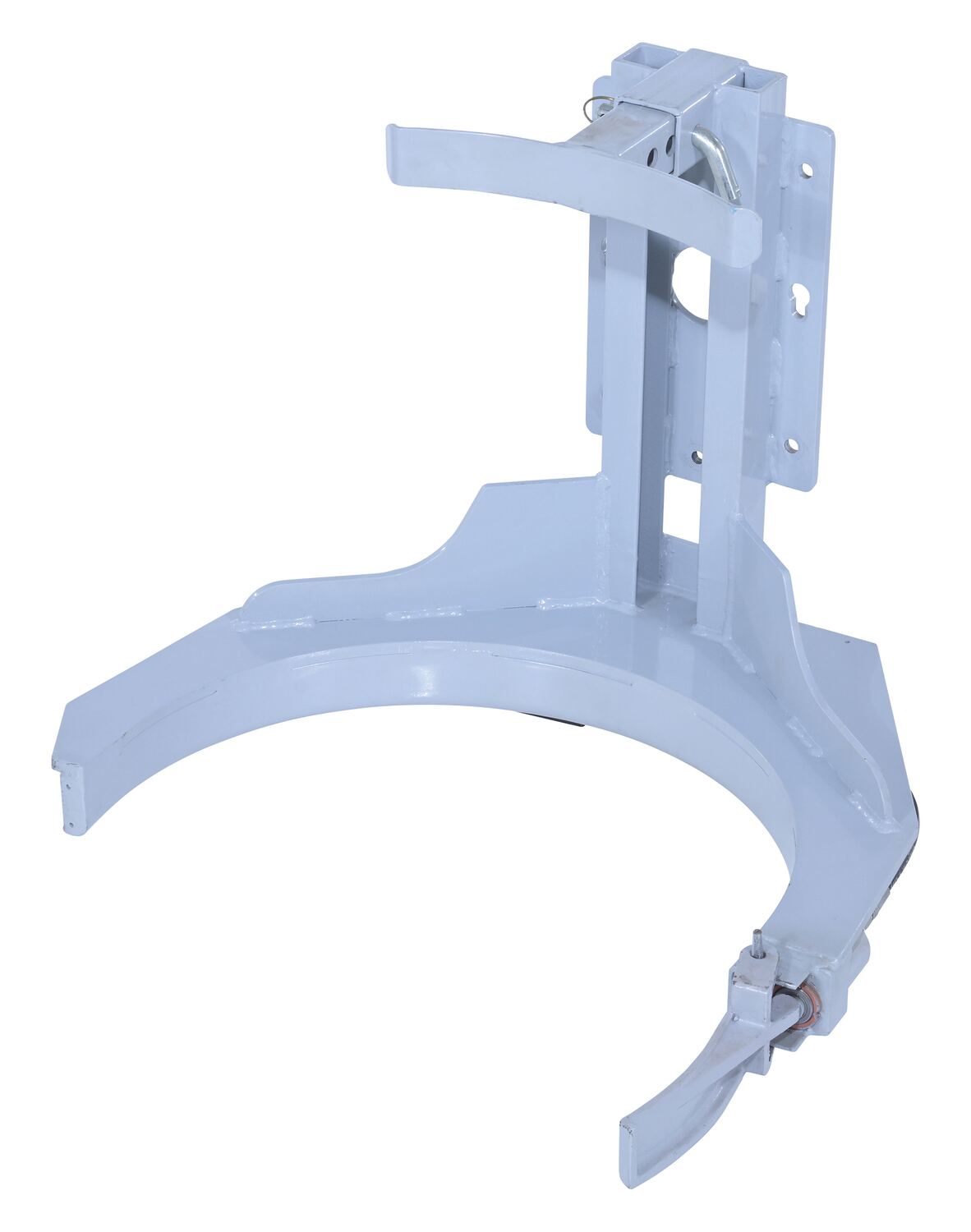

STA-ATT-HDGR STA-ATT-HDGRSteel Counter Balanced Power Lift Hydraulic Drum Gripper Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Gripper Type: Hydraulic Drum		52

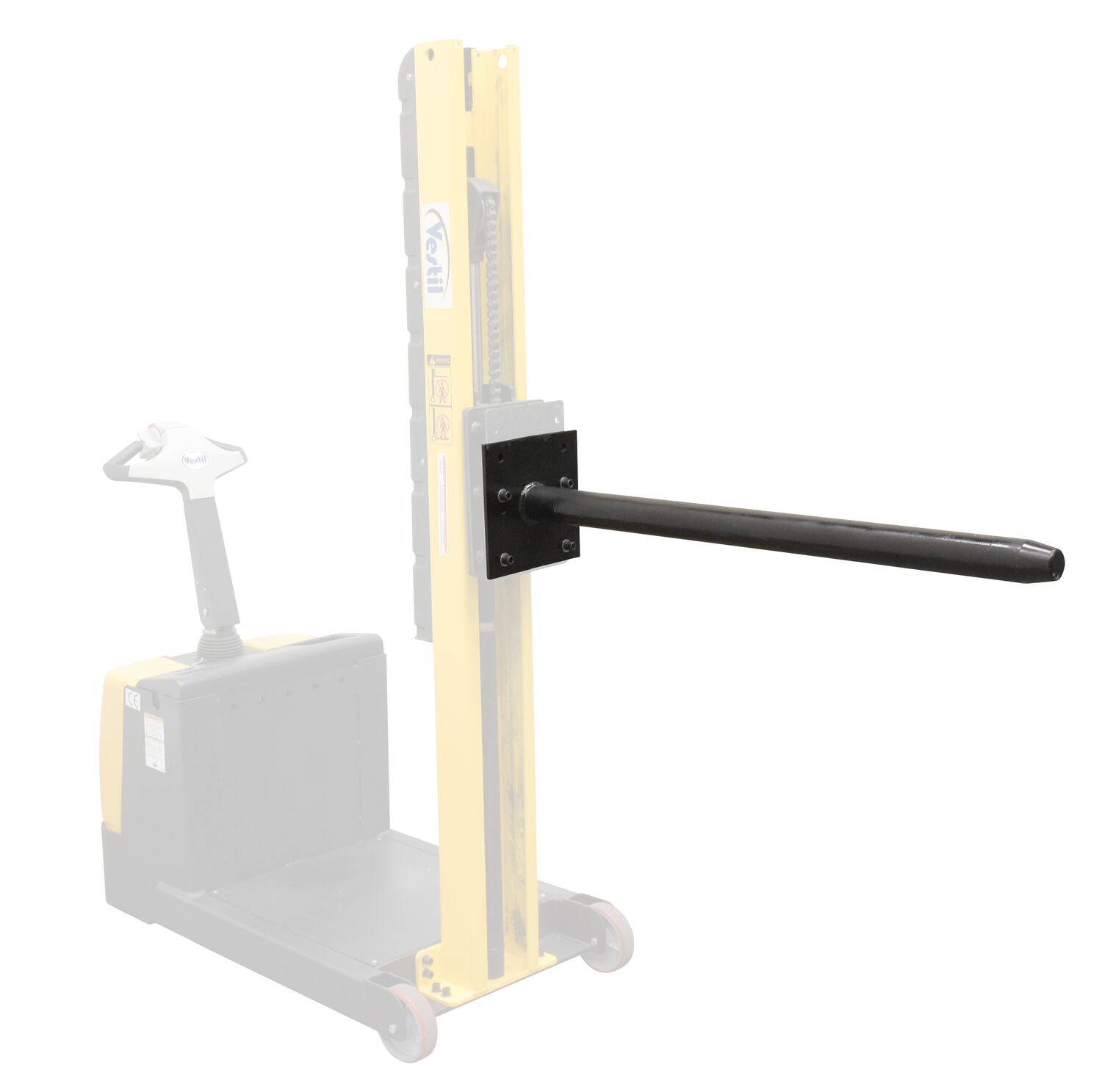

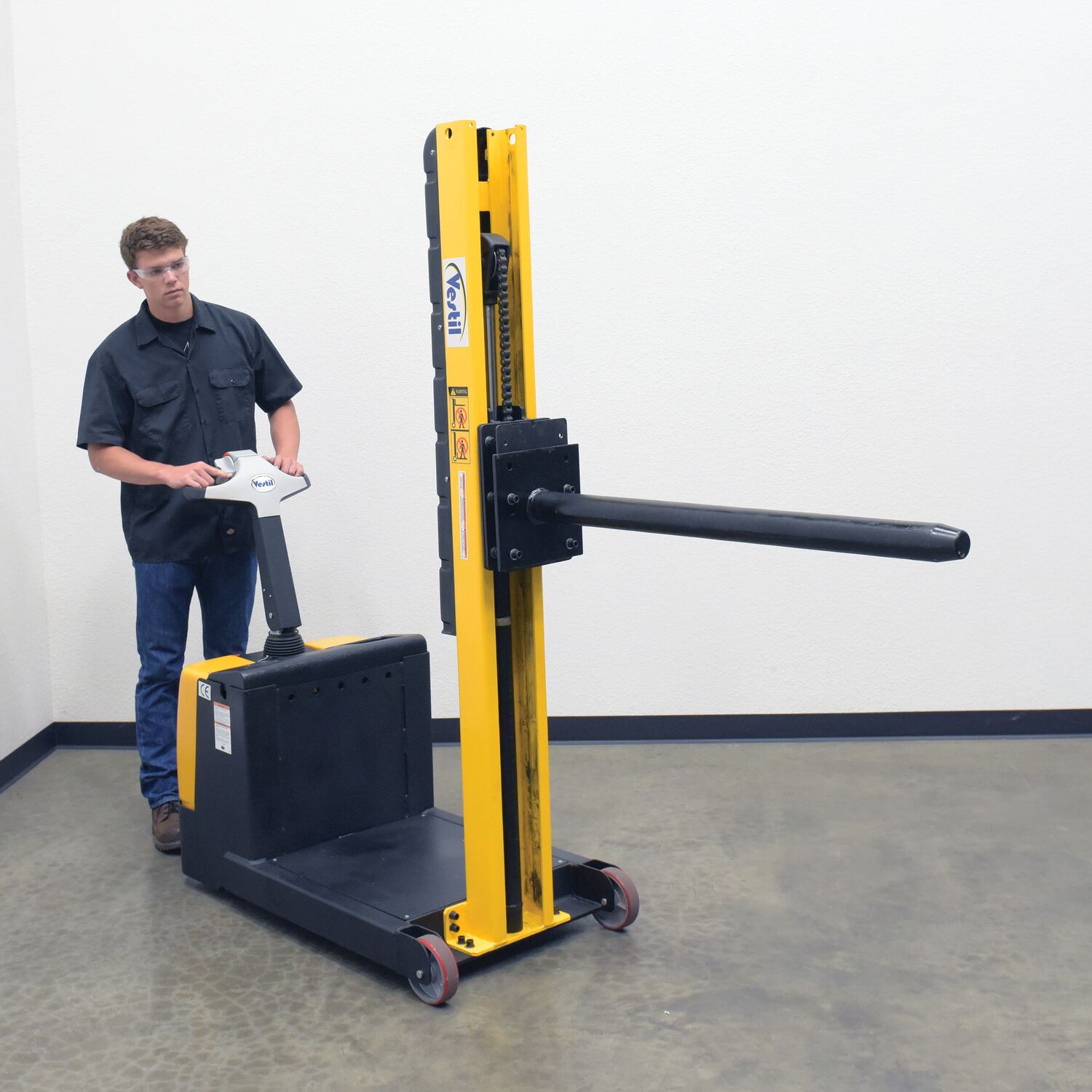

STA-ATT-PRP STA-ATT-PRPSteel Counter Balanced Power Lift Paper/Carpet Roll Lifter 3 In. Diameter Attachment 200 Lb. Capacity BlackUniform Capacity (Lbs.): 200
Lifter Type: Paper/Carpet Roll Lifter		34
STA-ATT-RLFT-30 STA-ATT-RLFT-30Steel Counter Balanced Power Lift Roll Lifter 20 In. Diameter Attachment 600 Lb. Capacity GrayUniform Capacity (Lbs.): 600
Lifter Type: Roll Lifter		112

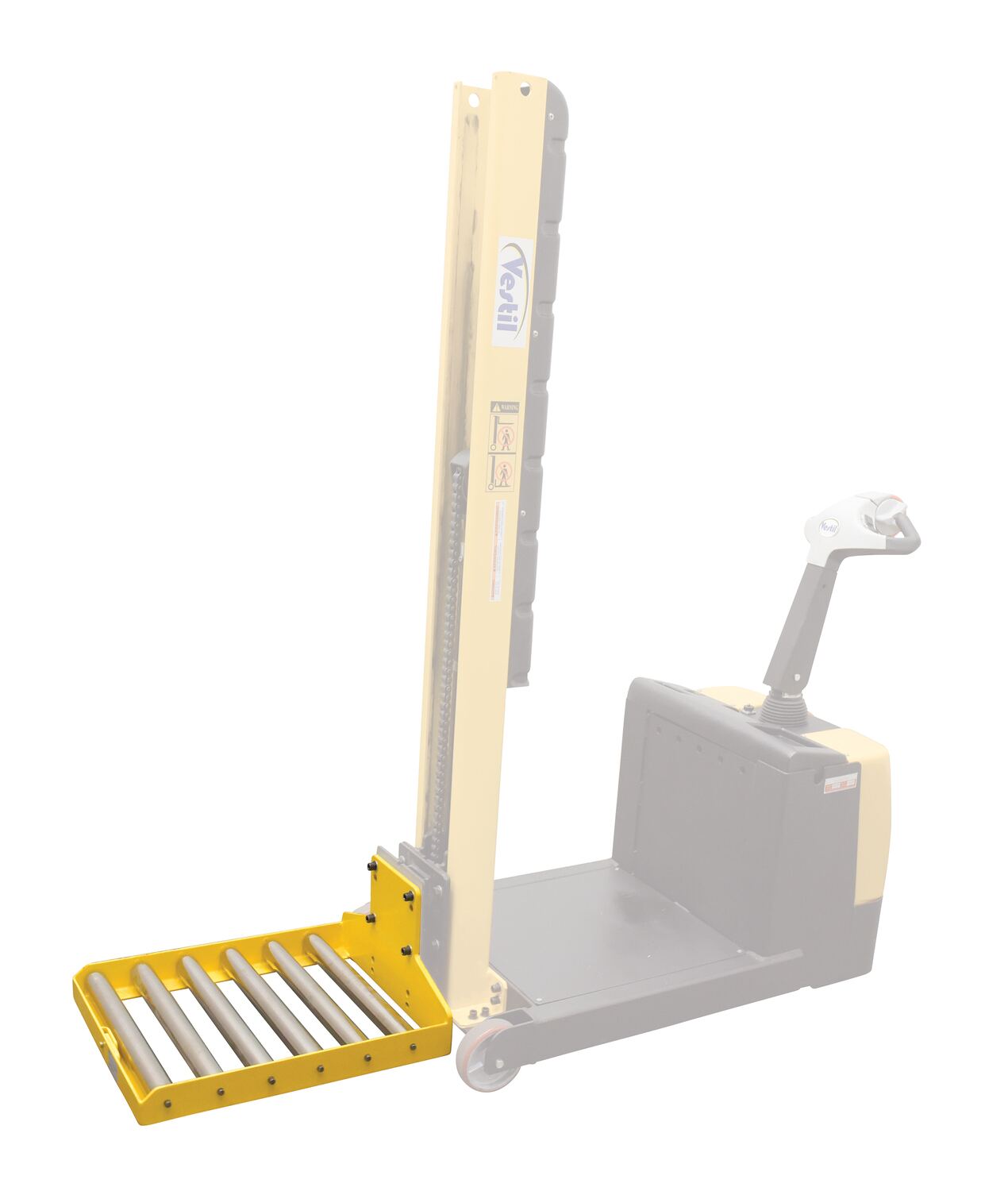

STA-ATT-RP STA-ATT-RPSteel Counter Balanced Power Lift Roller Platform Attachment 500 Lb. Capacity YellowUniform Capacity (Lbs.): 500
Platform Type: Roll Platform		57
STA-ATT-RR STA-ATT-RRSteel Counter Balanced Power Reel Rotator Attachment 200 Lb. Capacity YellowUniform Capacity (Lbs.): 200
Rotator Type: Reel Rotator		55
STA-ATT-SDG STA-ATT-SDGSteel Counter Balanced Power Lift Single Drum Gripper Attachment 550 Lb. Capacity BlackUniform Capacity (Lbs.): 550
Gripper Type: Single Drum Gripper		67

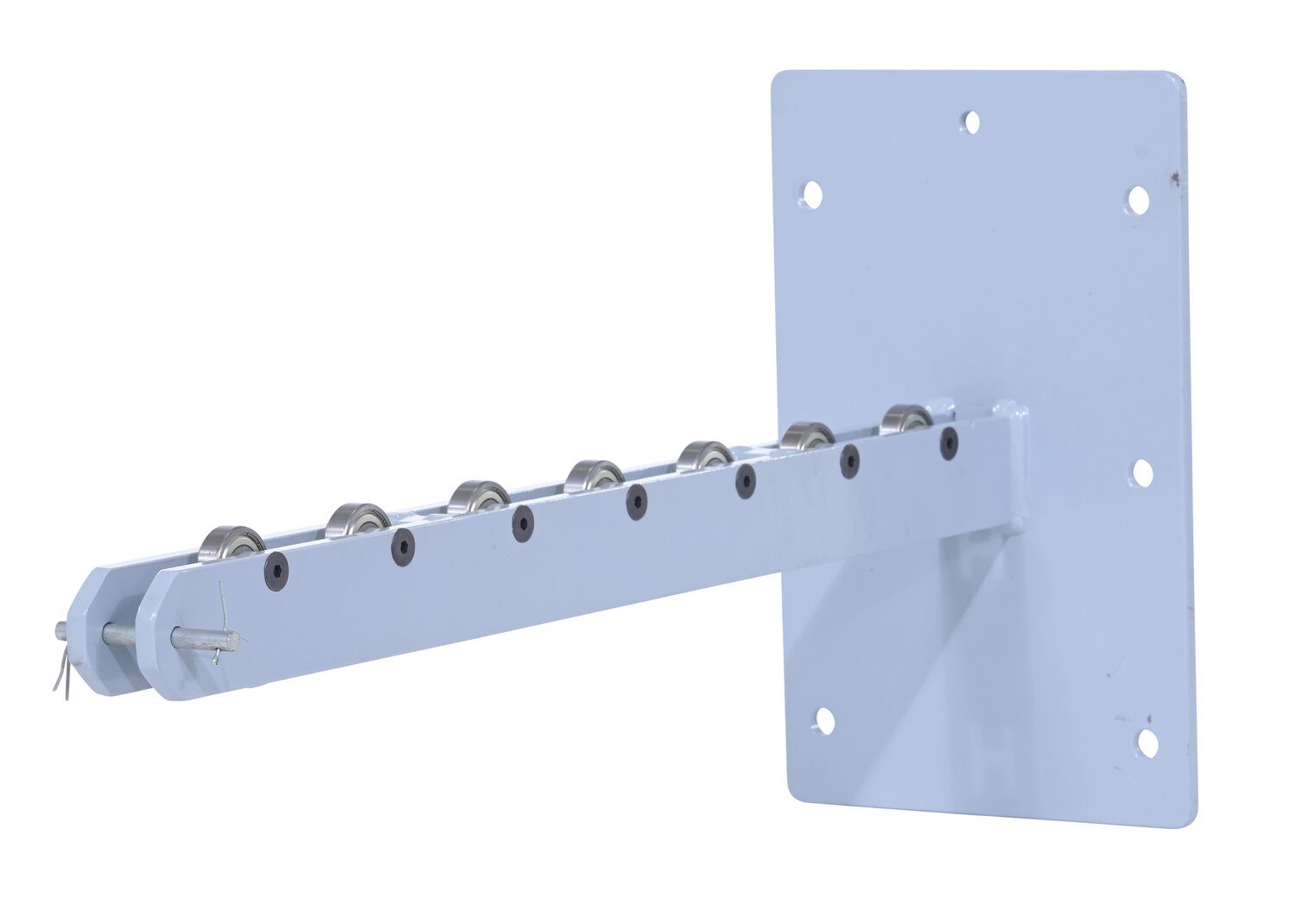

STA-ATT-SPINR-25 STA-ATT-SPINR-25Steel Counter Balanced Power Lift Single Spindle With Rollers 2-3/8" Attachment 200 Lb. Capacity GrayUniform Capacity (Lbs.): 200
Spindle Type: Single With Rollers		27
