Counter-Balanced Powered Drive LiftsCounter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3⅛" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
Electric Powered Stacker
Specialty Stackers
Stacker with Powered Lift
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

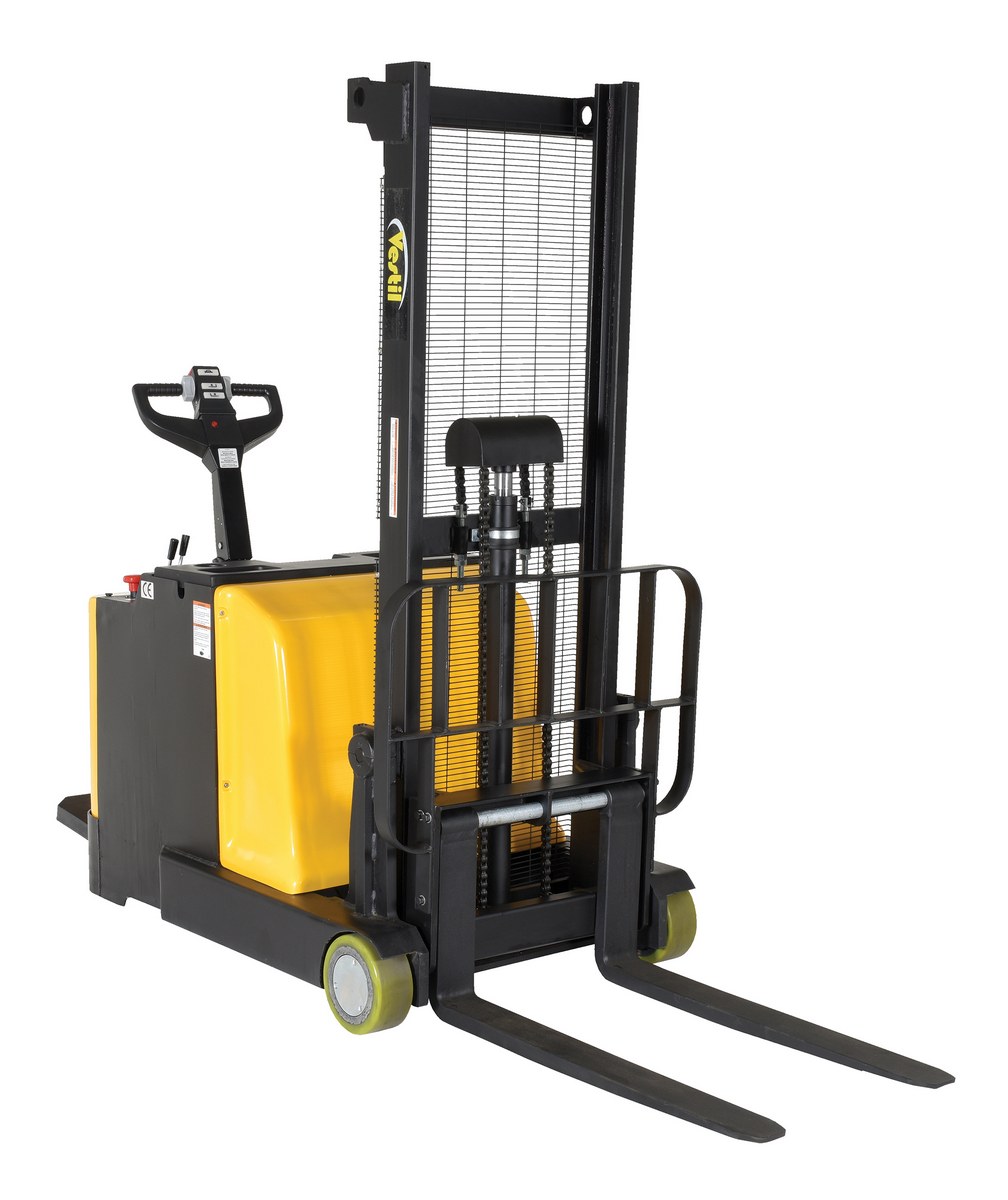

| S-2CB-62 |  | 1 Year Limited Warranty | Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2000 Fork Length (in.): 36-1/4 | 2496 | ||

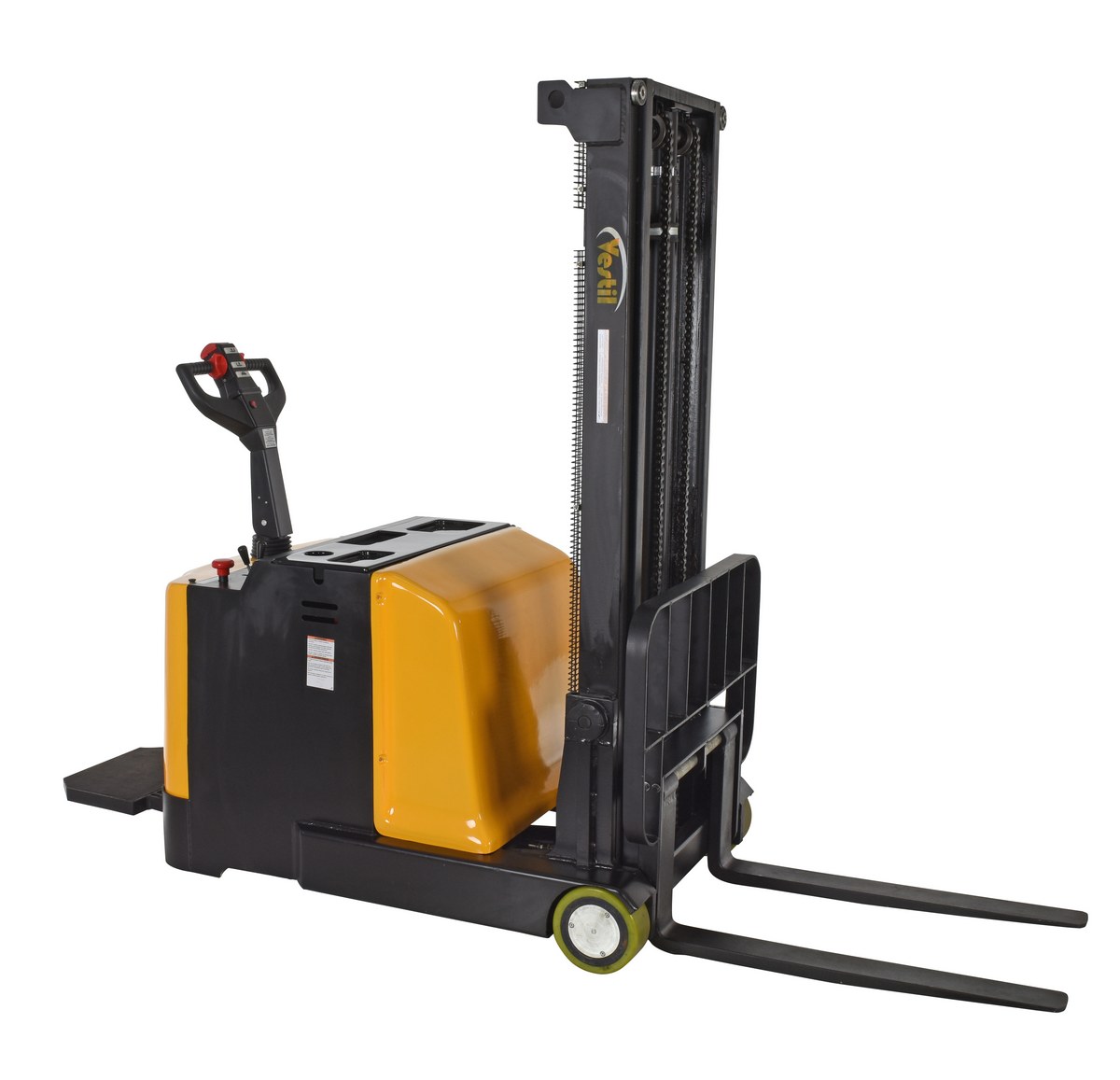

| S-2CB-118 |  | 1 Year Limited Warranty | Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000 | 2652 | ||

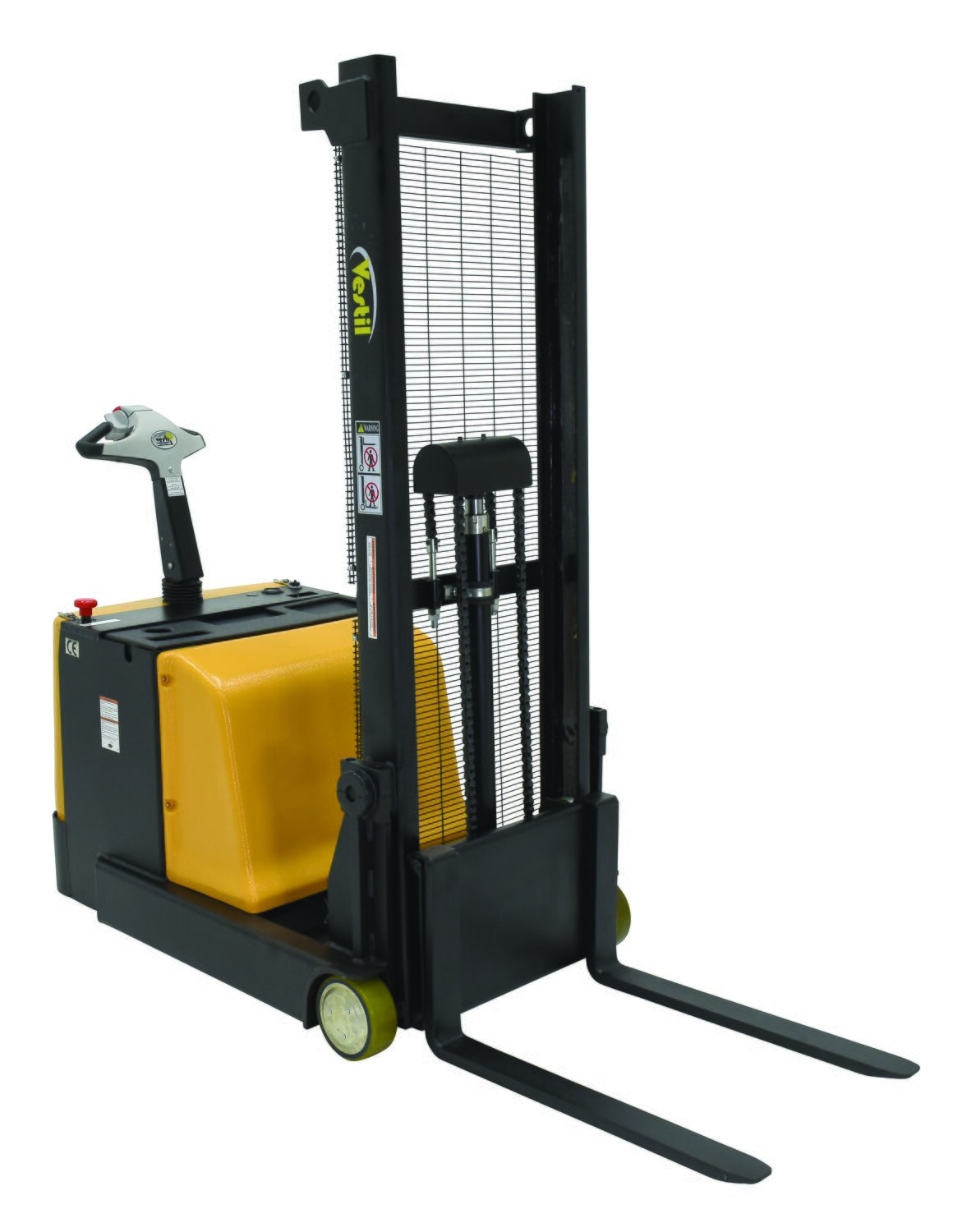

| S-CB-62 |  | 1 Year Limited Warranty | Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 1,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-62 (in.): 1,000 Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8 | 1850 | ||

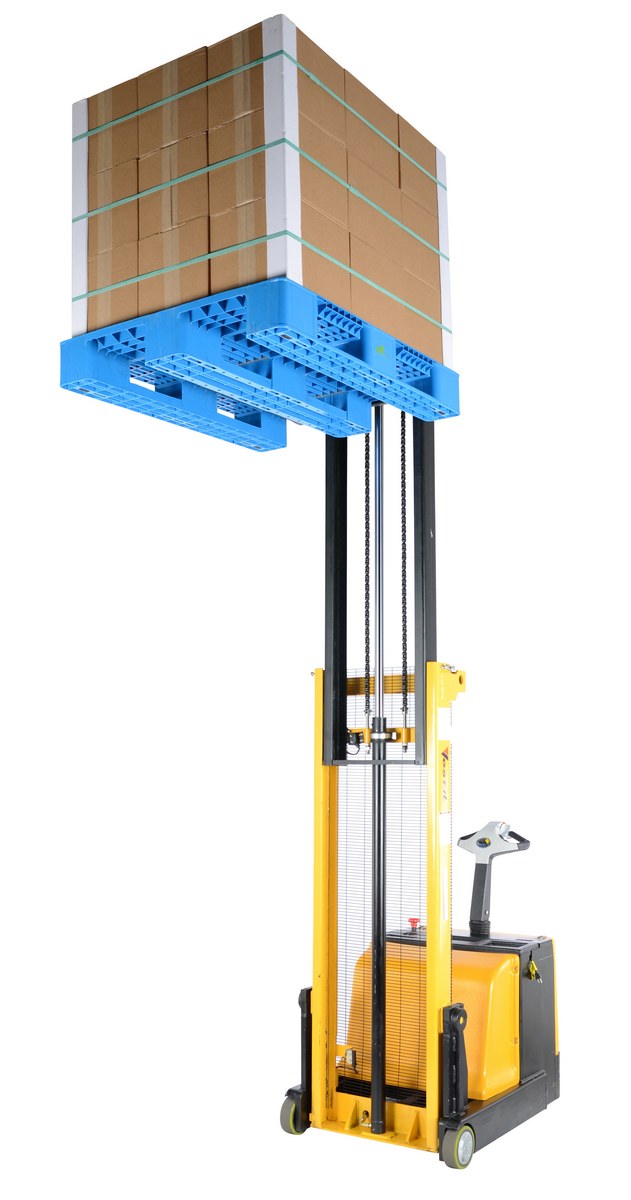

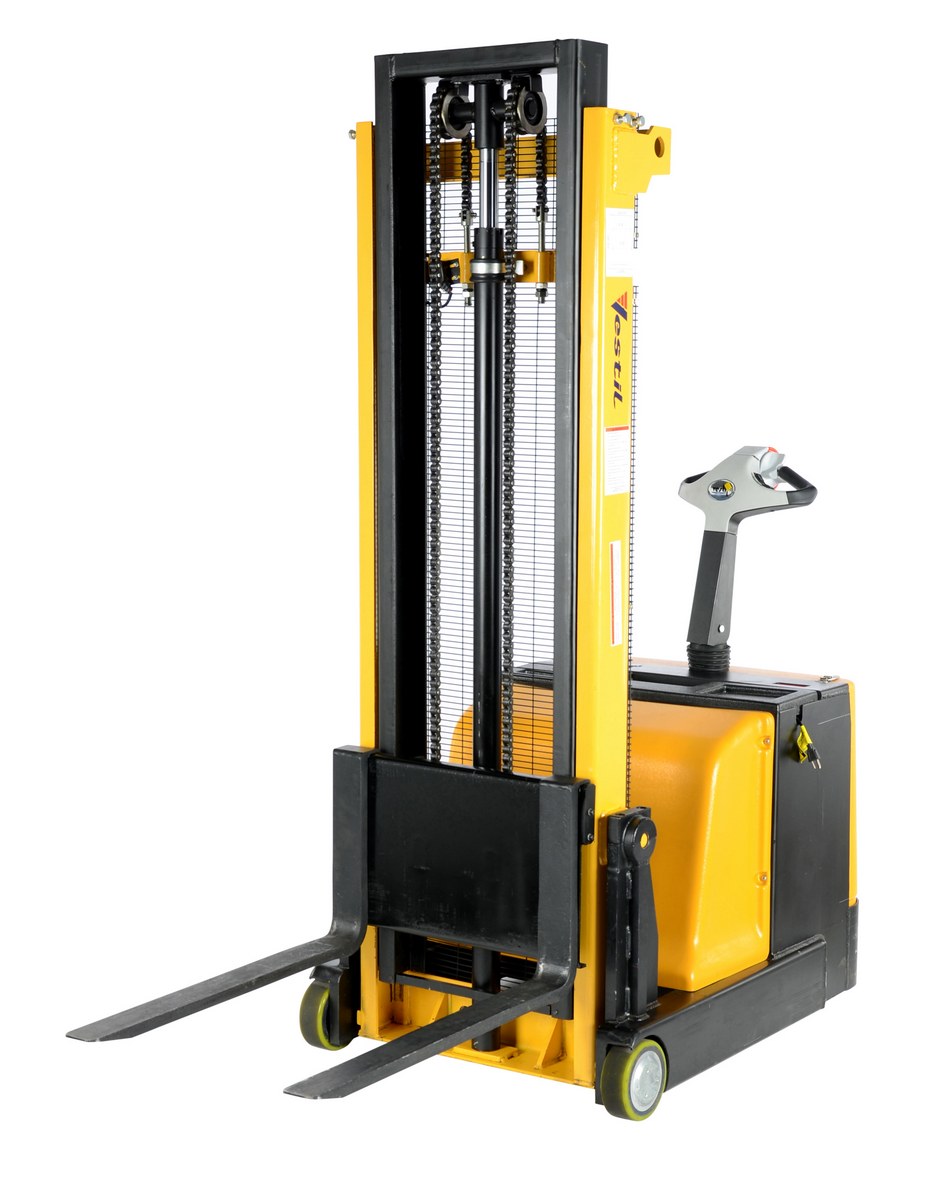

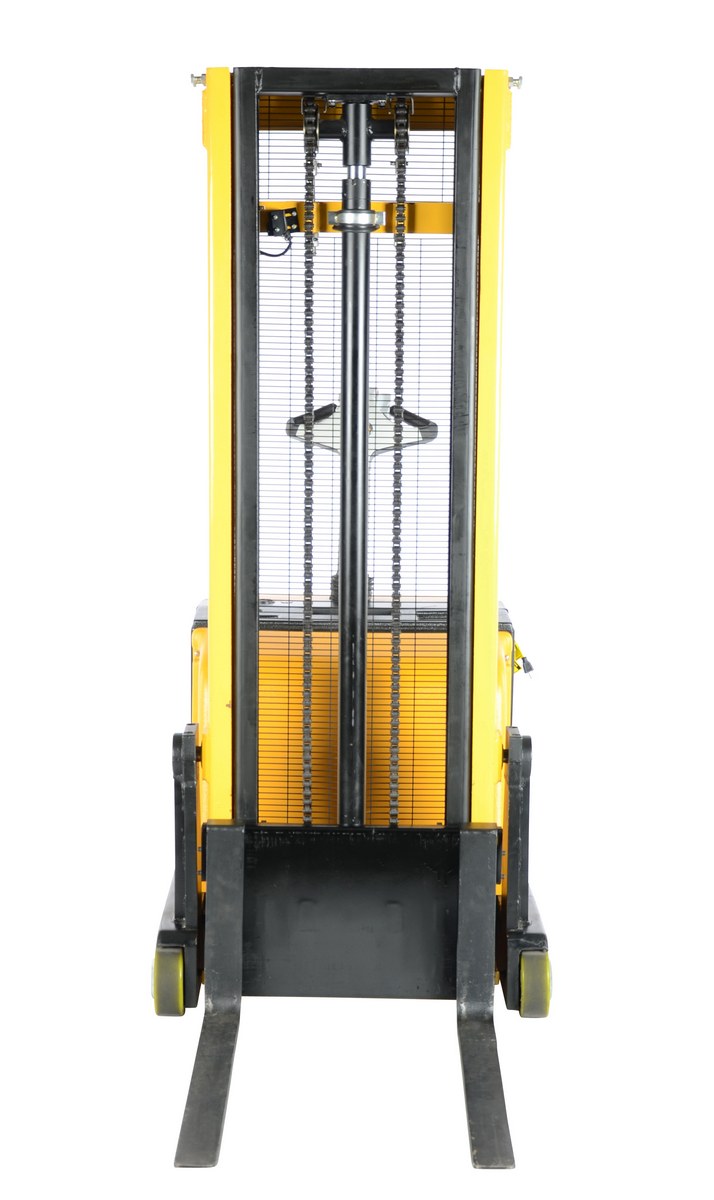

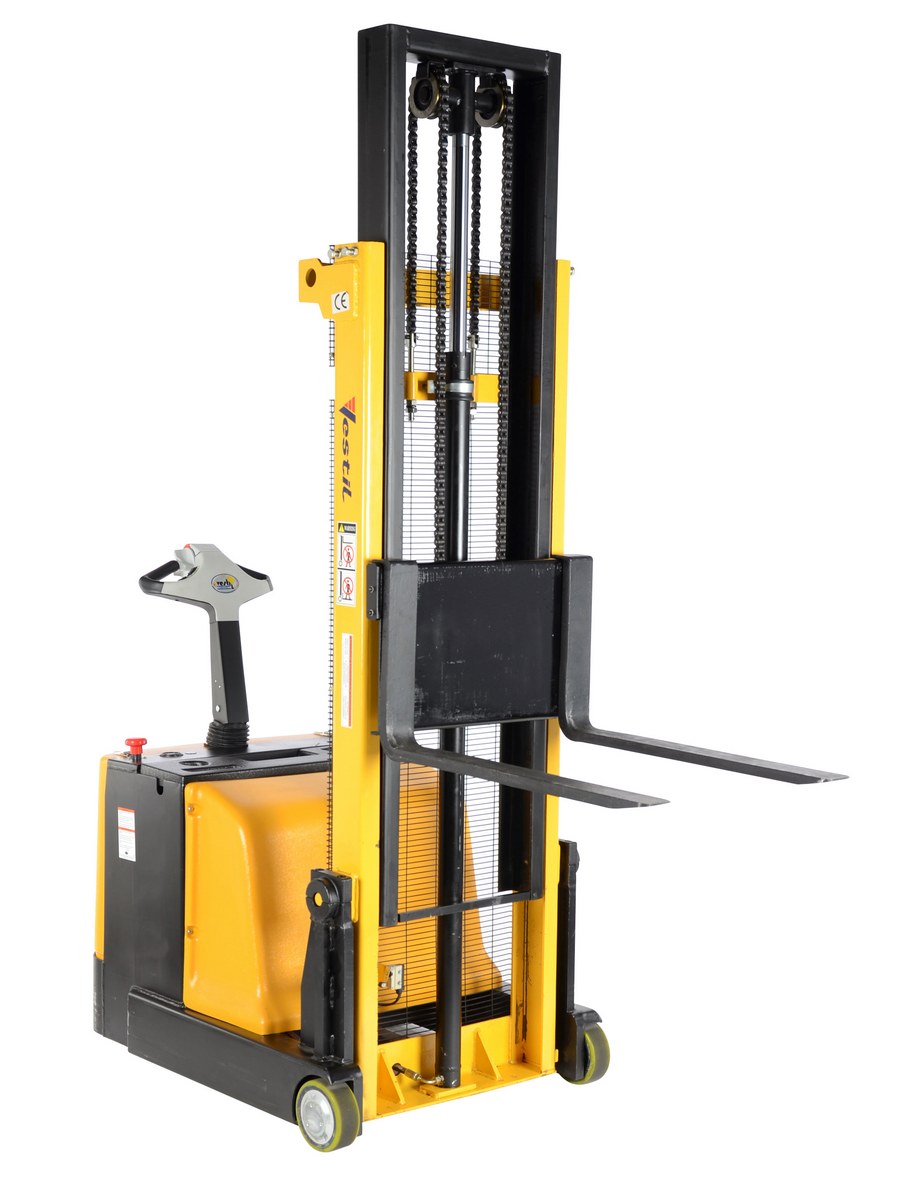

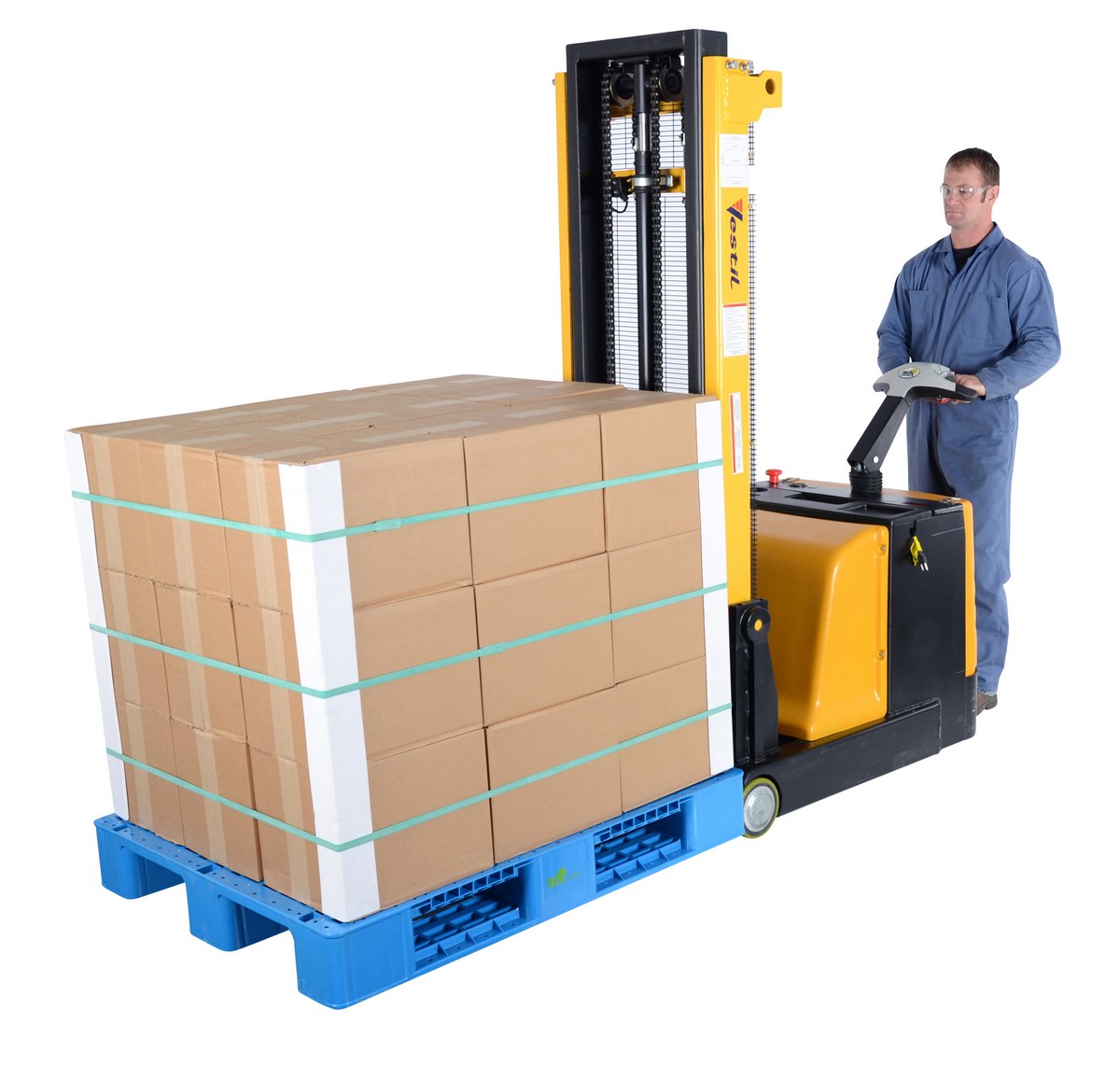

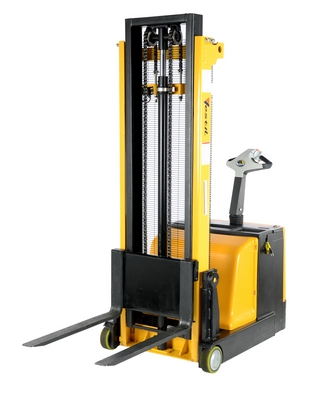

| S-CB-118 | POPULAR |  | 1 Year Limited Warranty | Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 1,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-62 (in.): 1,000 Uniform Capacity (lb.) at 62-118 (in.): 500 | 2140 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Fork Length (in.): 36-1/4
Uniform Capacity (lb.): 2000
Fork Length (in.): 36-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Uniform Capacity (lb.) at 62-118 (in.): 500
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Uniform Capacity (lb.) at 62-118 (in.): 500
For More Details of the Option Click the Red Model Button
| AGM-UPG-2-12V |  | 90 Days Limited Warranty | Factory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt Battery Quantity 2 | Battery Quantity: 2 Volts: 12 | 120 | |

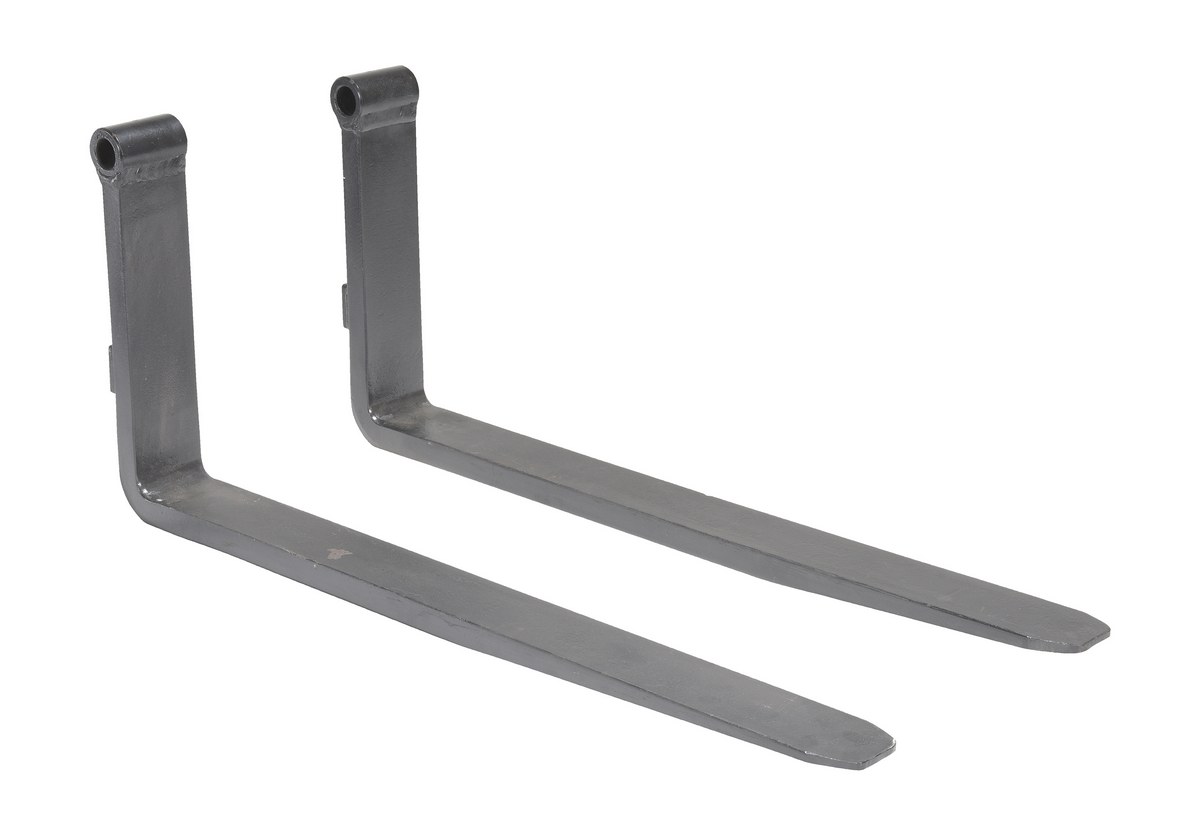

| S-2CB-42-FK |  | 90 Days Limited Warranty | Steel Forks 42 In. Long For Counter Balanced Powered Lift Models Black | Uniform Capacity at 0" to 62" Raised Height (lb.): 1,200 Uniform Capacity at 62" to 118" Raised Height (lb.): 600 | 191 | |

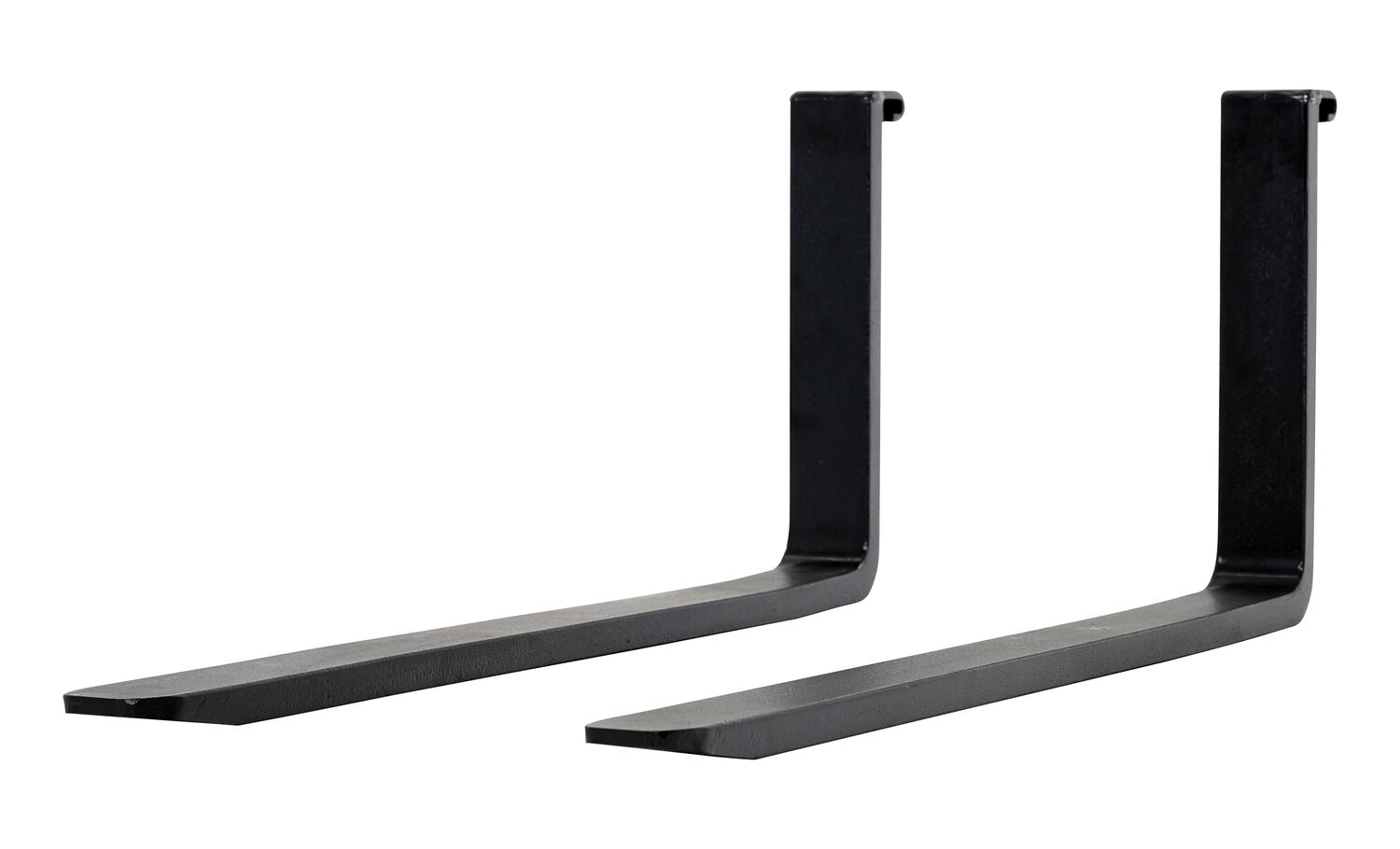

| S-CB-42-FK |  | 90 Days Limited Warranty | Steel Forks for Stackers 42 In. Length 500 Lb. Capacity Black | Forklift Carriage Class: Class III Capacity (lbs.) at 62": 500 | 205 | |

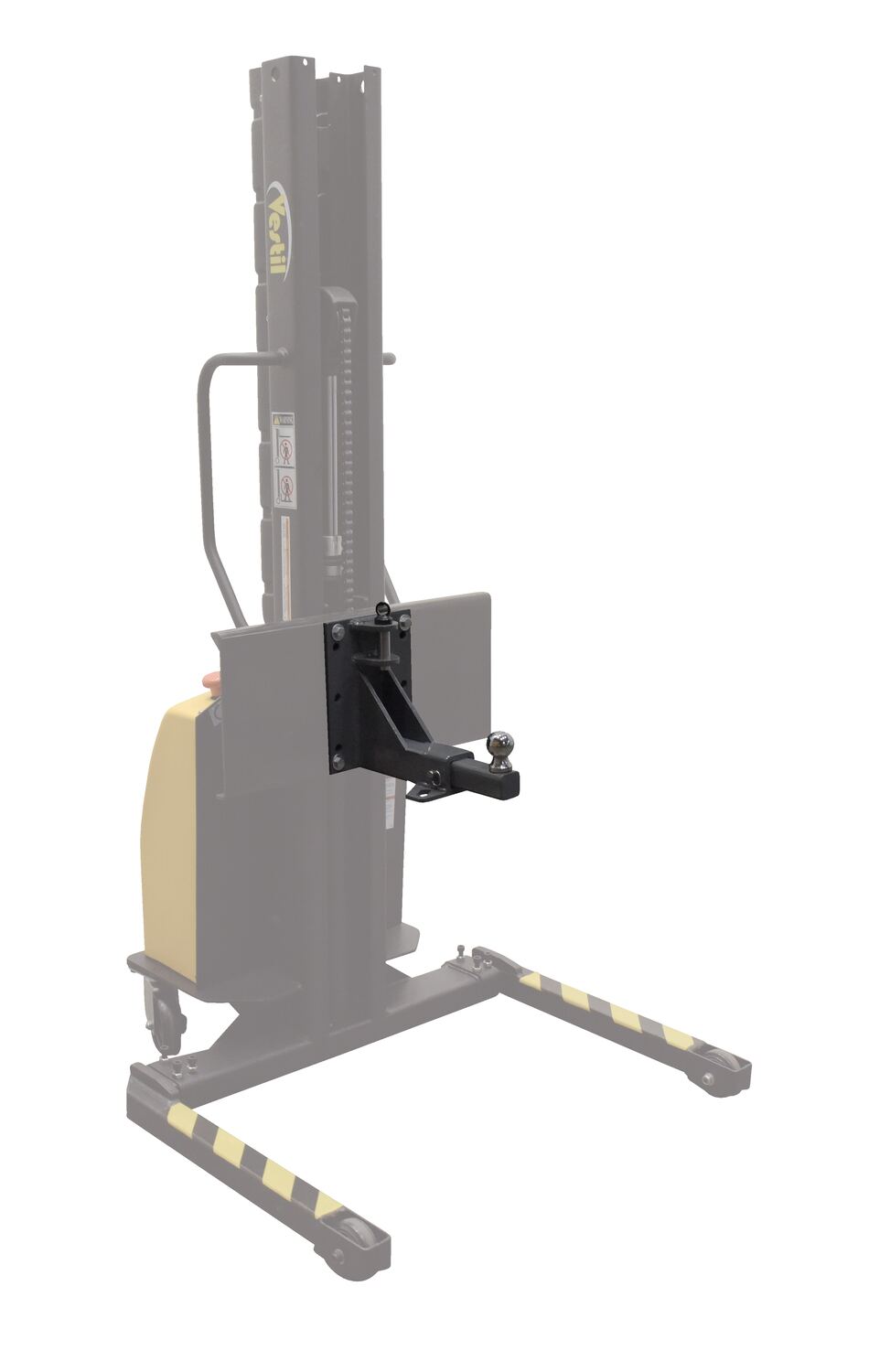

| S-CB-BAH |  | 90 Days Limited Warranty | Steel Counter Balanced Power Lift Single Ball Hitch Attachment Black | Shank Diameter (in): Ball Size: | 37 | |

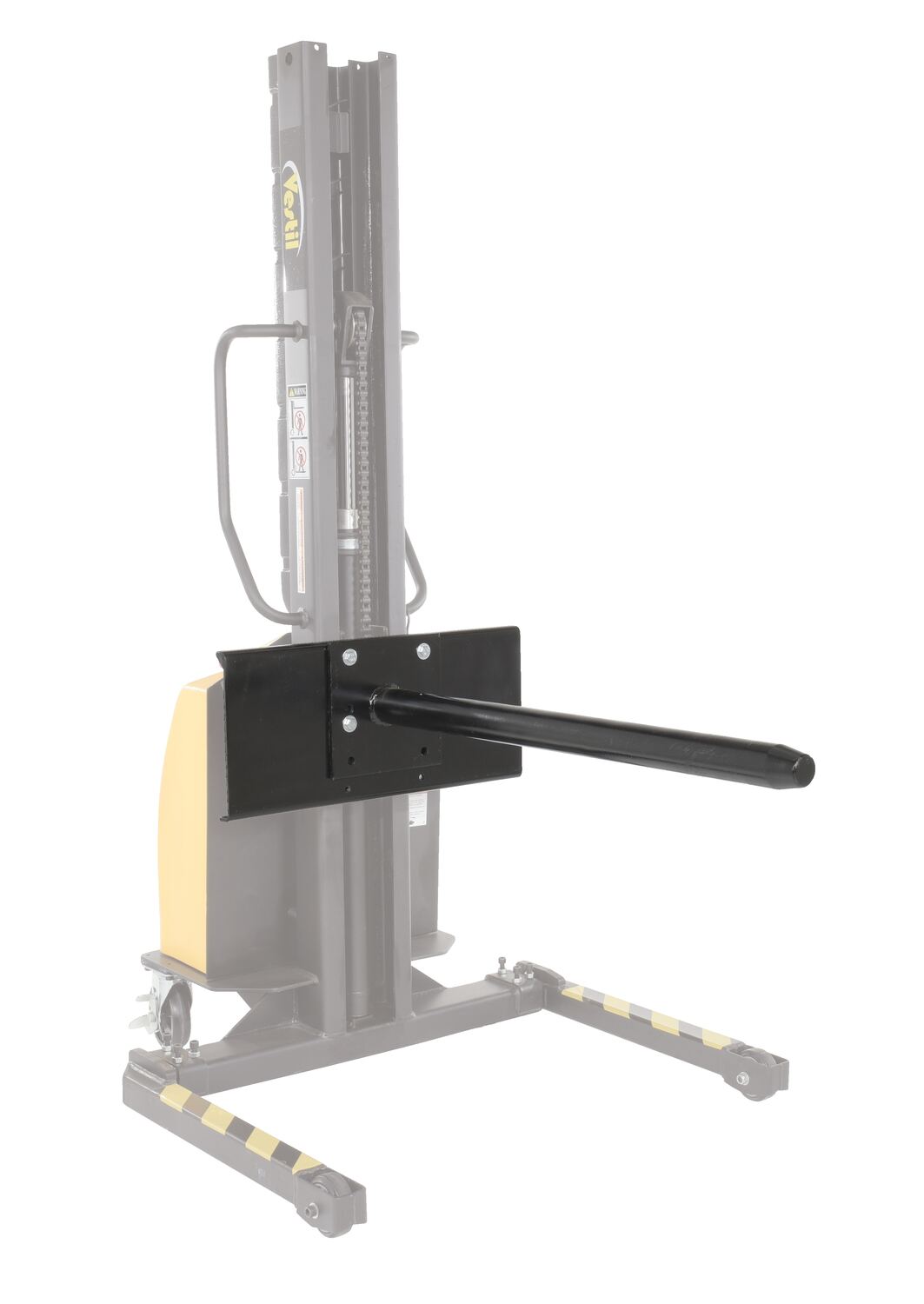

| S-CB-PRP |  | 90 Days Limited Warranty | Steel Counter Balanced Power Lift Pole Attachment Black | - | 35 | |

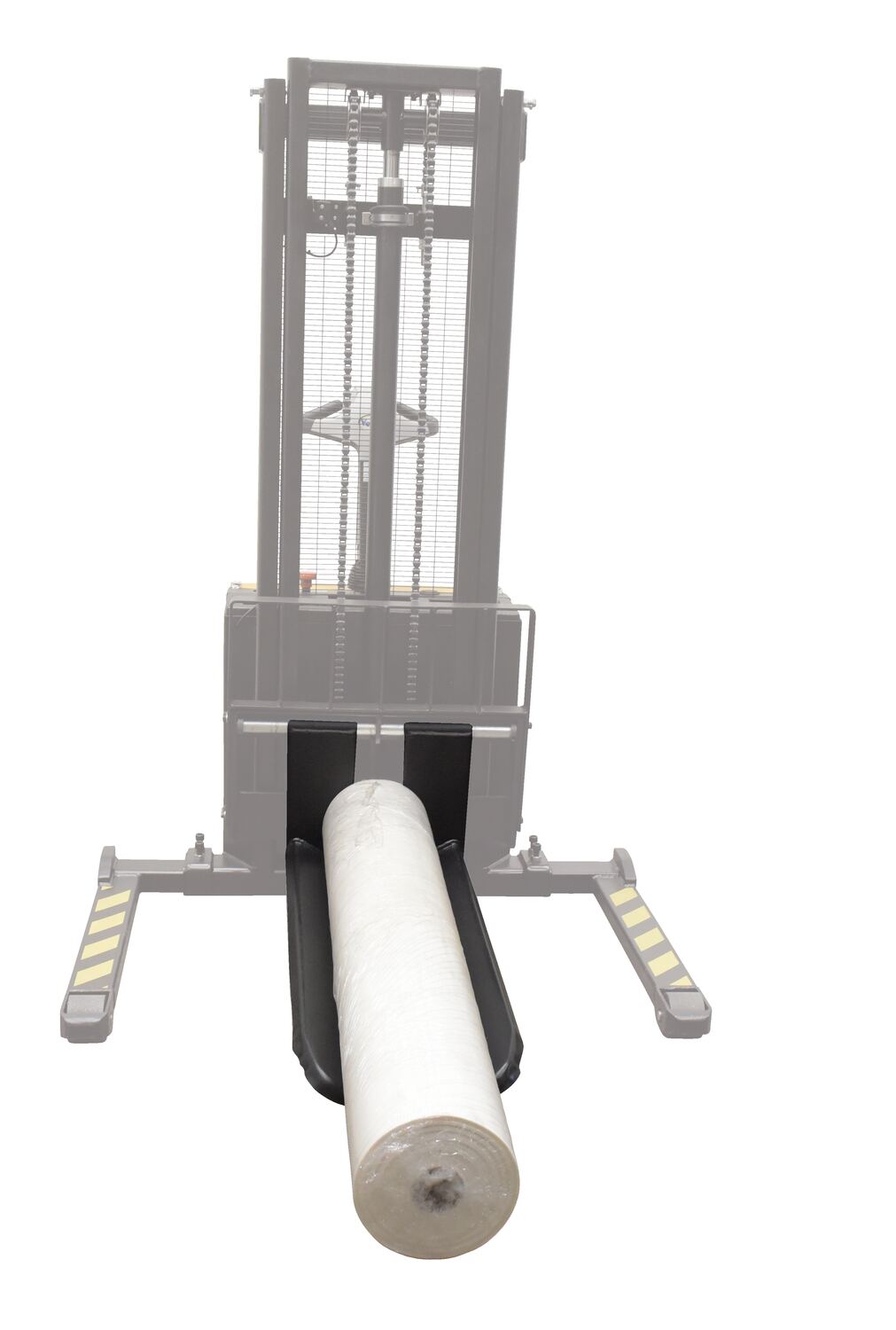

| S-CB-RFK |  | 90 Days Limited Warranty | Steel Counter Balanced Power Lift Roll Fork Attachment Black | Forklift Carriage Class: Class III Capacity (lbs): 1000 | 111 | |

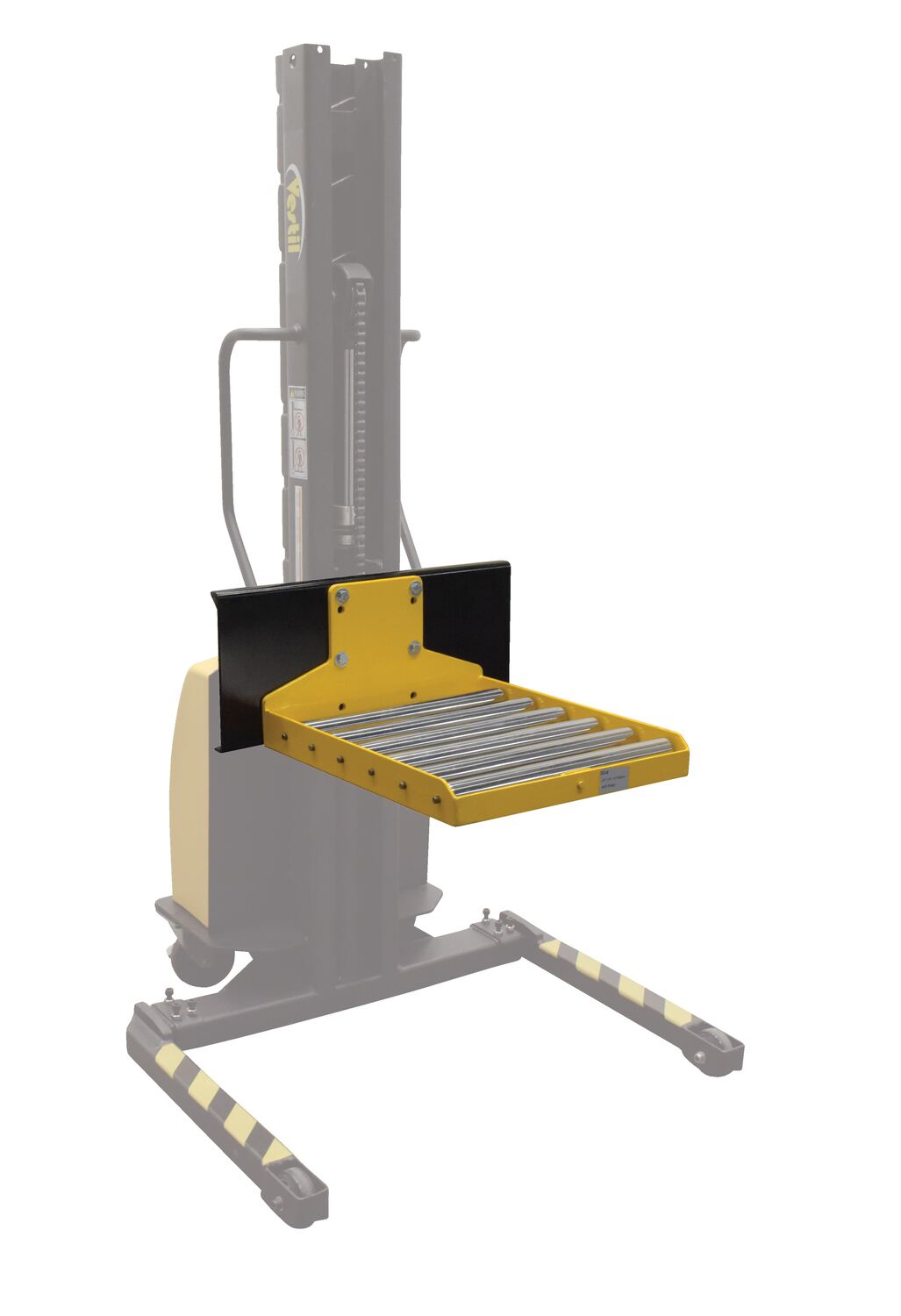

| S-CB-RP |  | 90 Days Limited Warranty | Steel Counter Balanced Power Lift Roller Platform Attachment Yellow | - | 57 | |

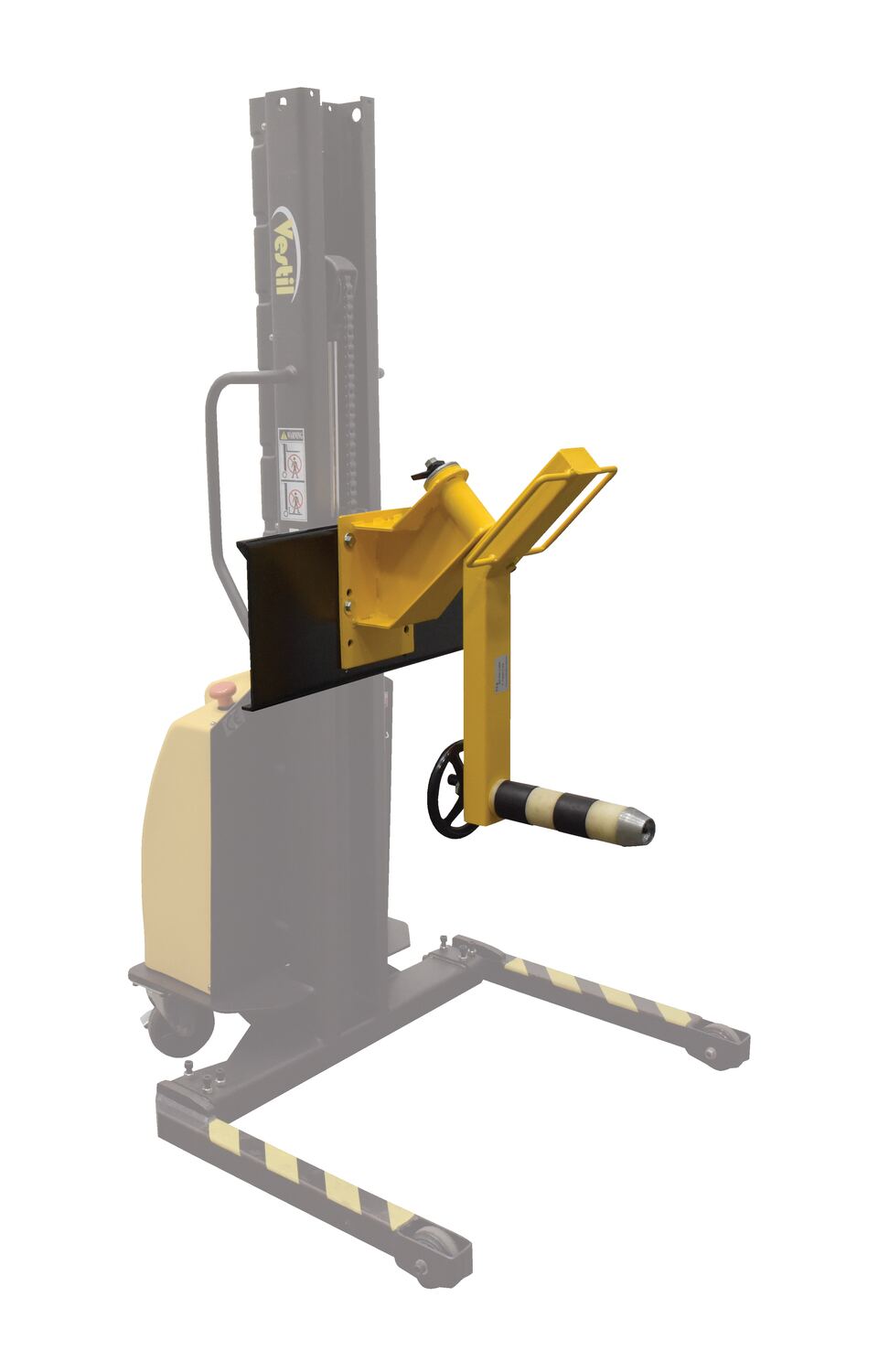

| S-CB-RR |  | 90 Days Limited Warranty | Steel Counter Balanced Power Lift Reel Rotator Attachment Yellow | - | 55 |
| Model | Image | PDFs | Description | Capacity | Wt (lbs.) | ||
| AGM-UPG-4-6V |  |
 |
AGM Battery Upgrade (4x6V) w/ purchase w/ new unit | - | 67 | ||
| S-2CB-DRR-FK | |
- | Drum/Roll/Reel Forks for S-2CB Models | 1200 | 140 | ||
| S-AA-DRR-FK | |
- | Drum/Roll/Reel Forks for S-2CB Models | 1200 | 140 | ||
| S-DK |  |
- | Factory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For S-2CB models | 2000 | 40 | ||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-2CB-118
Hydraulic Oil SDS Sheet for: S-2CB-118
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-2CB-62
Hydraulic Oil SDS Sheet for: S-2CB-62
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-118
Hydraulic Oil SDS Sheet for: S-CB-118
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-62
Hydraulic Oil SDS Sheet for: S-CB-62
Other PDF's
Directory Links Of Available PDF's For All Products
Q: I'm interested in adding the 42" forks to the S-2CB-62 stacker. What would the load center be with the longer forks?
A: The S-2CB-42-FK load center would be 21" when installed on the S-2CB-62 stacker.
Q: Is S-CB-118 a class 2 carriage?
A: This is not a class 2 carriage.
Q: Are the forks removable on the S-CB-118?
A: Yes! The forks on the S-CB-118 are removable.
Q: What is the free lift on the counterbalanced stackers?
A: There is not a "free lift" on the counterbalanced stackers. It will lift at a 2:1 ratio. For every 2" the forks raise , the mast will raise 1".
Q: Will the S-2CB-42-FK forks come installed on the stacker?
A: When the S-2CB-42 is ordered with the counter balanced stacker, the original forks will be shipped on the stacker and the 42" forks will be sent along the side.
Q: Does S-DK work with S-CB models?
A: S-DK does not work with S-CB models, but it does work with S-2CB models.
