Portable Pallet Inverters24V DC STANDARD

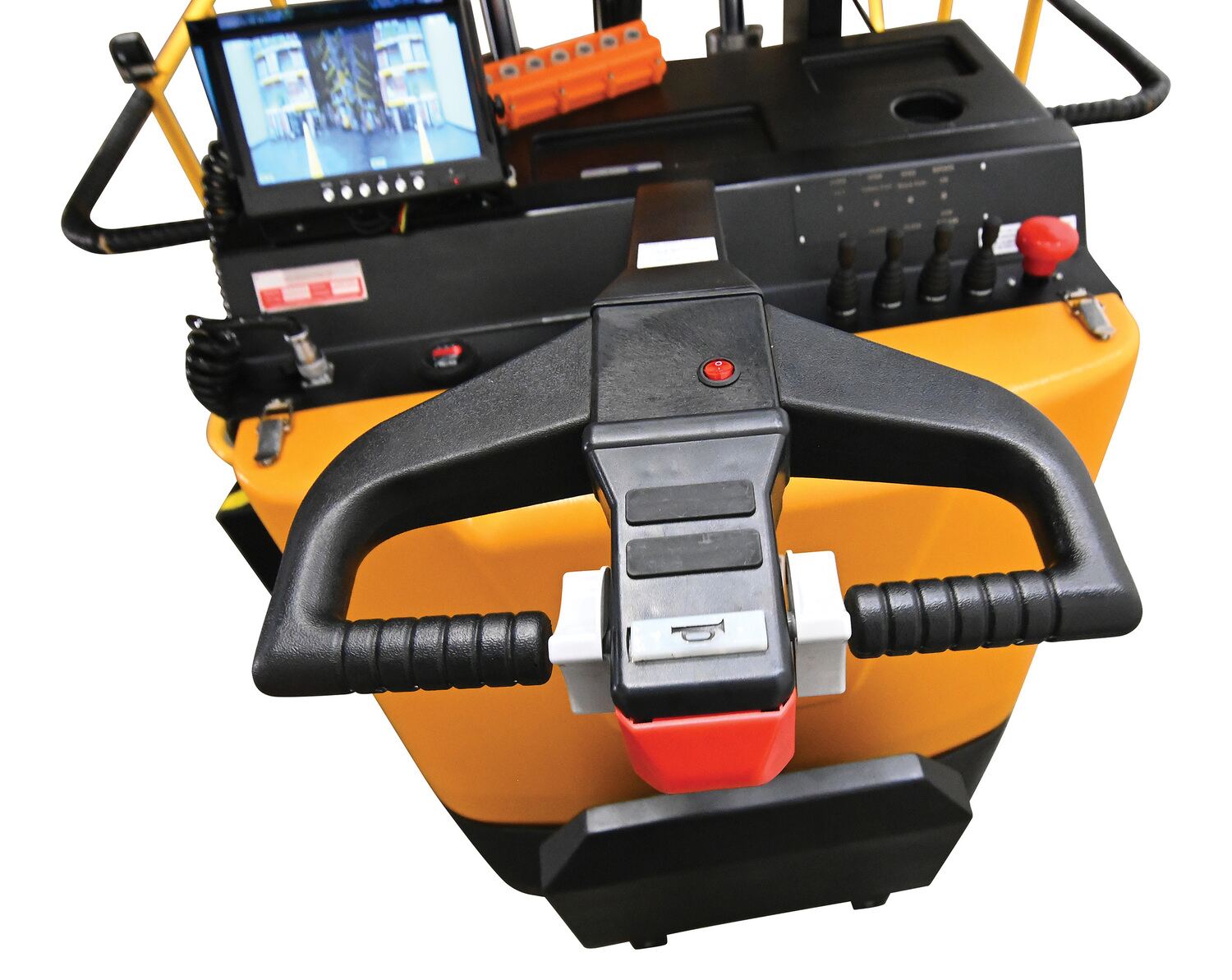

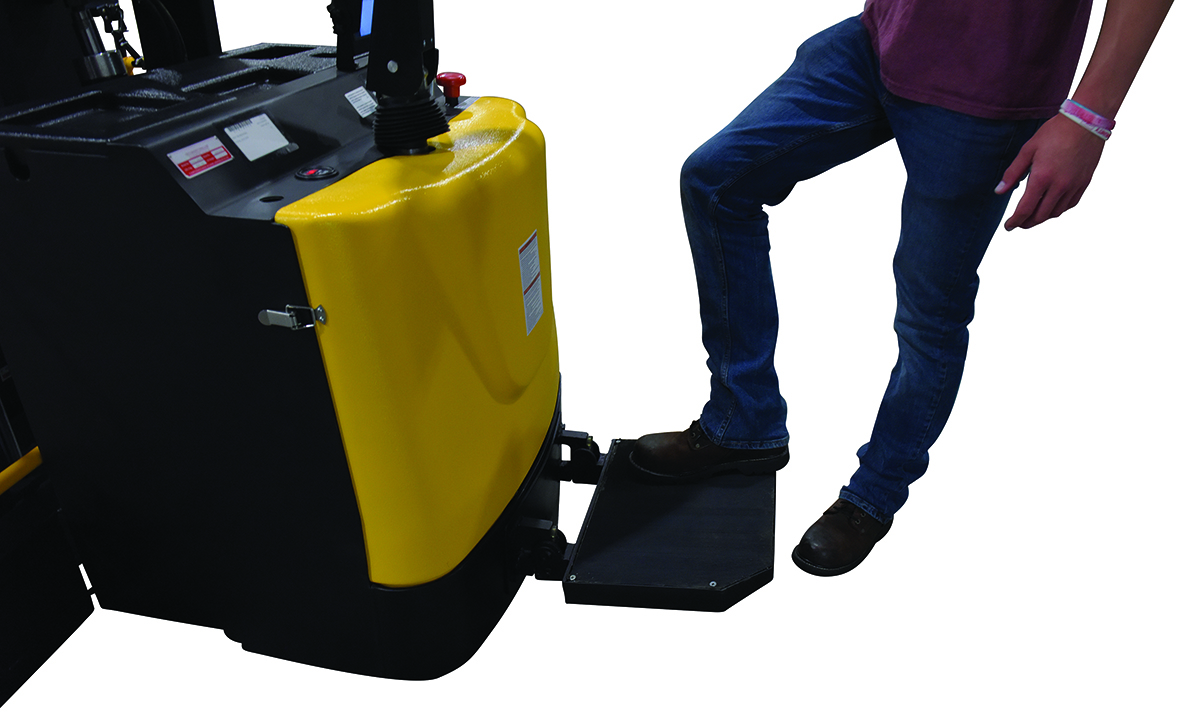

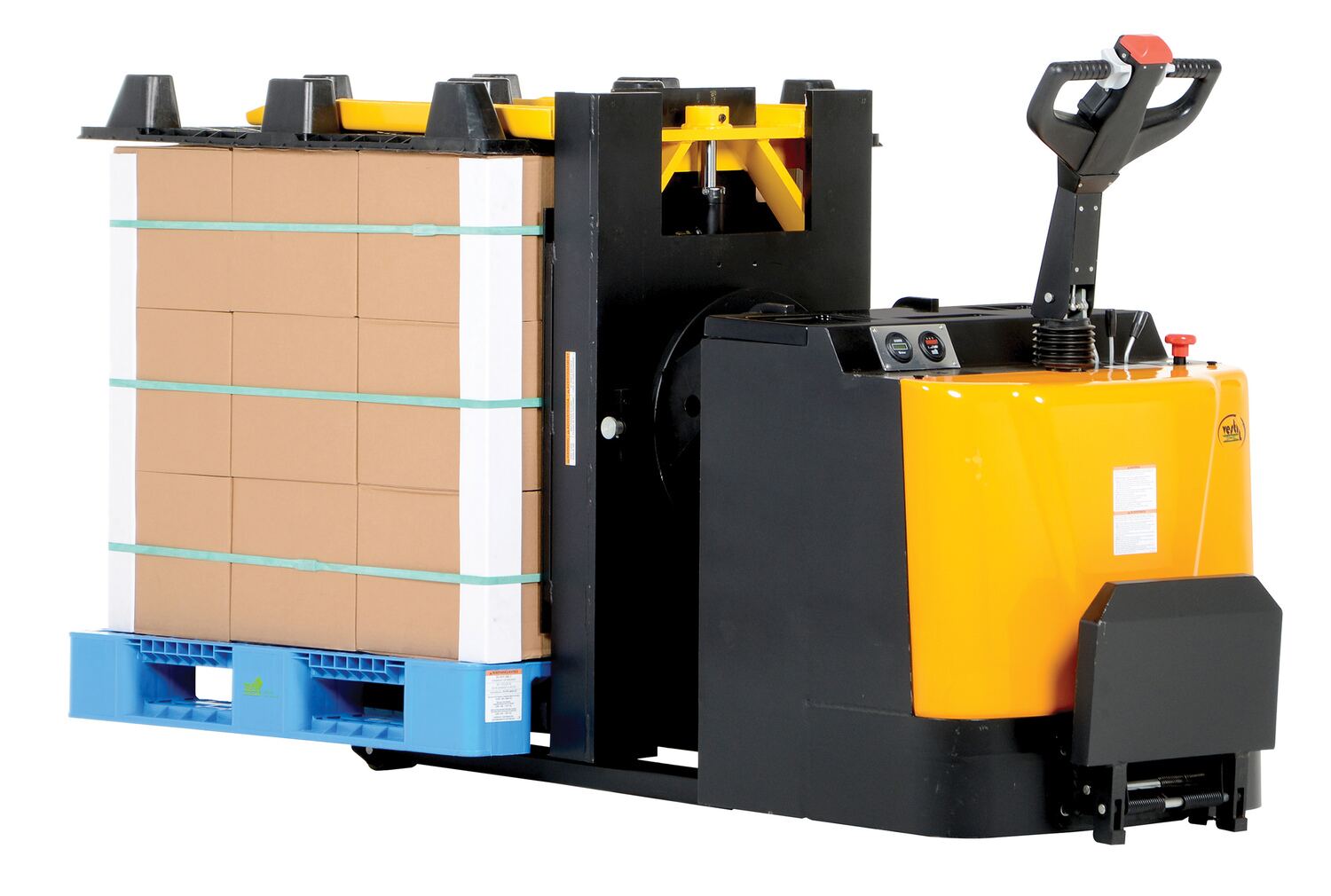

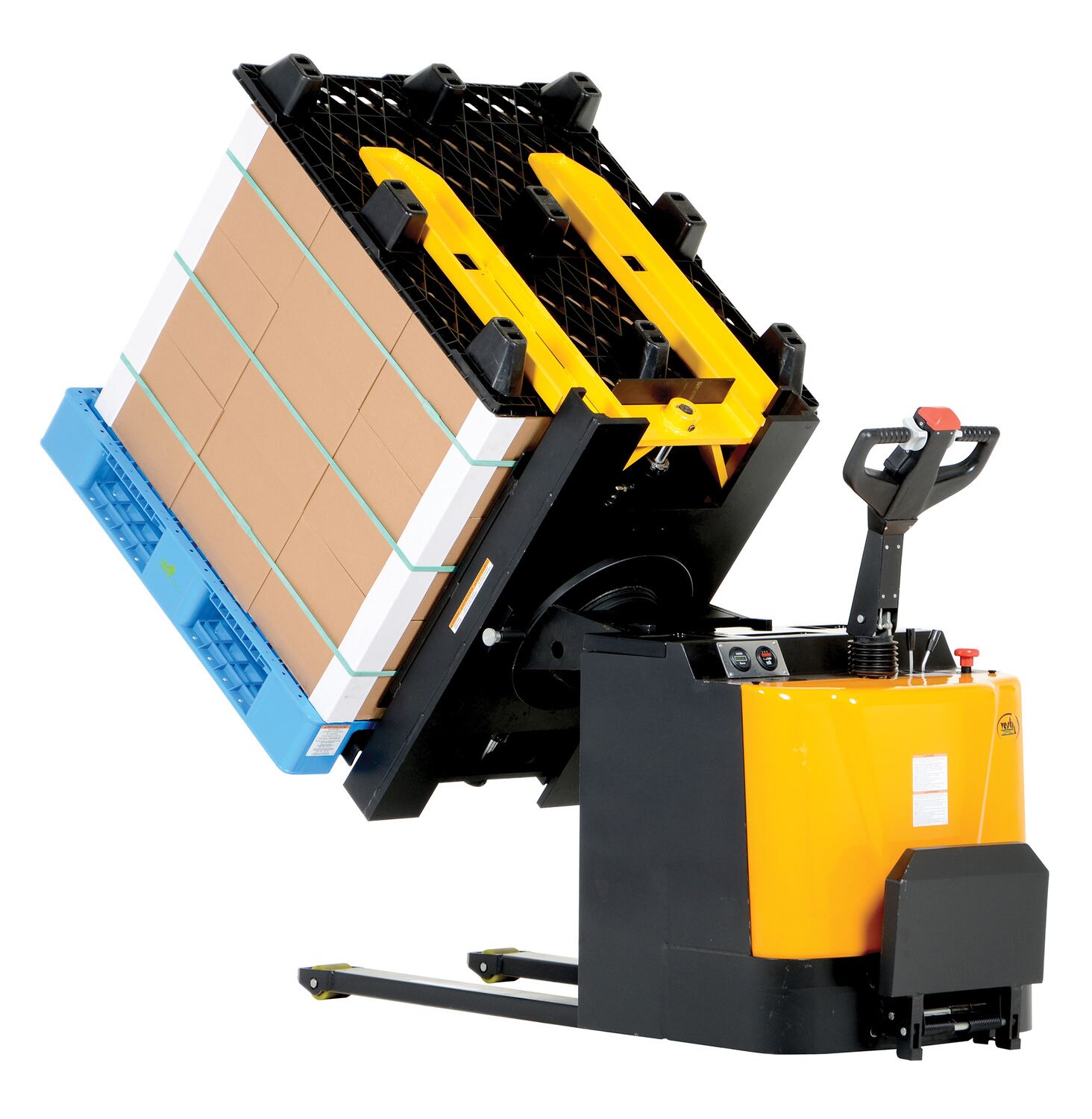

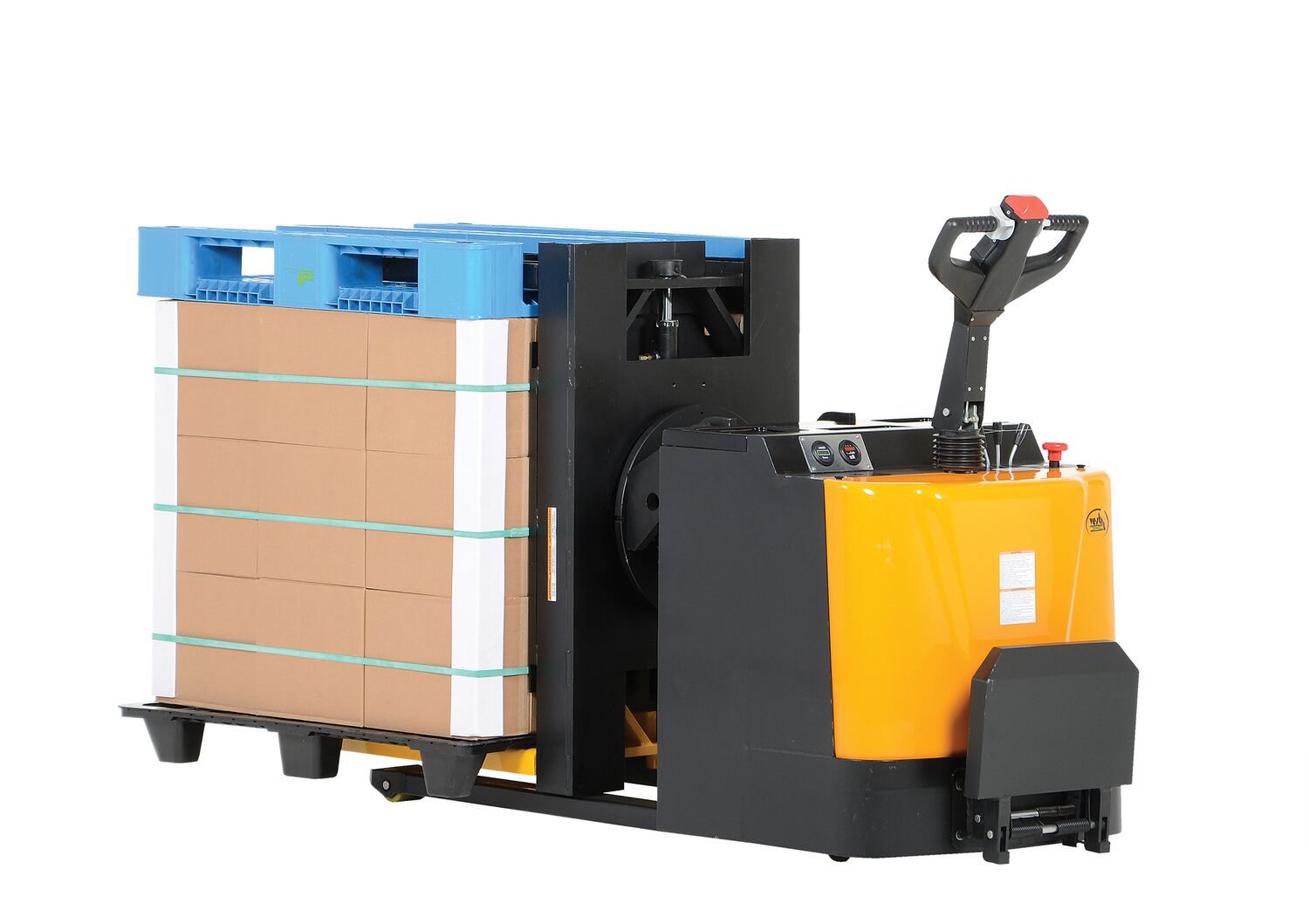

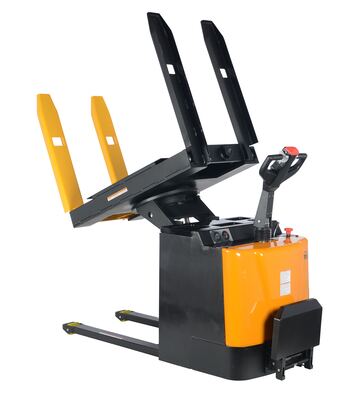

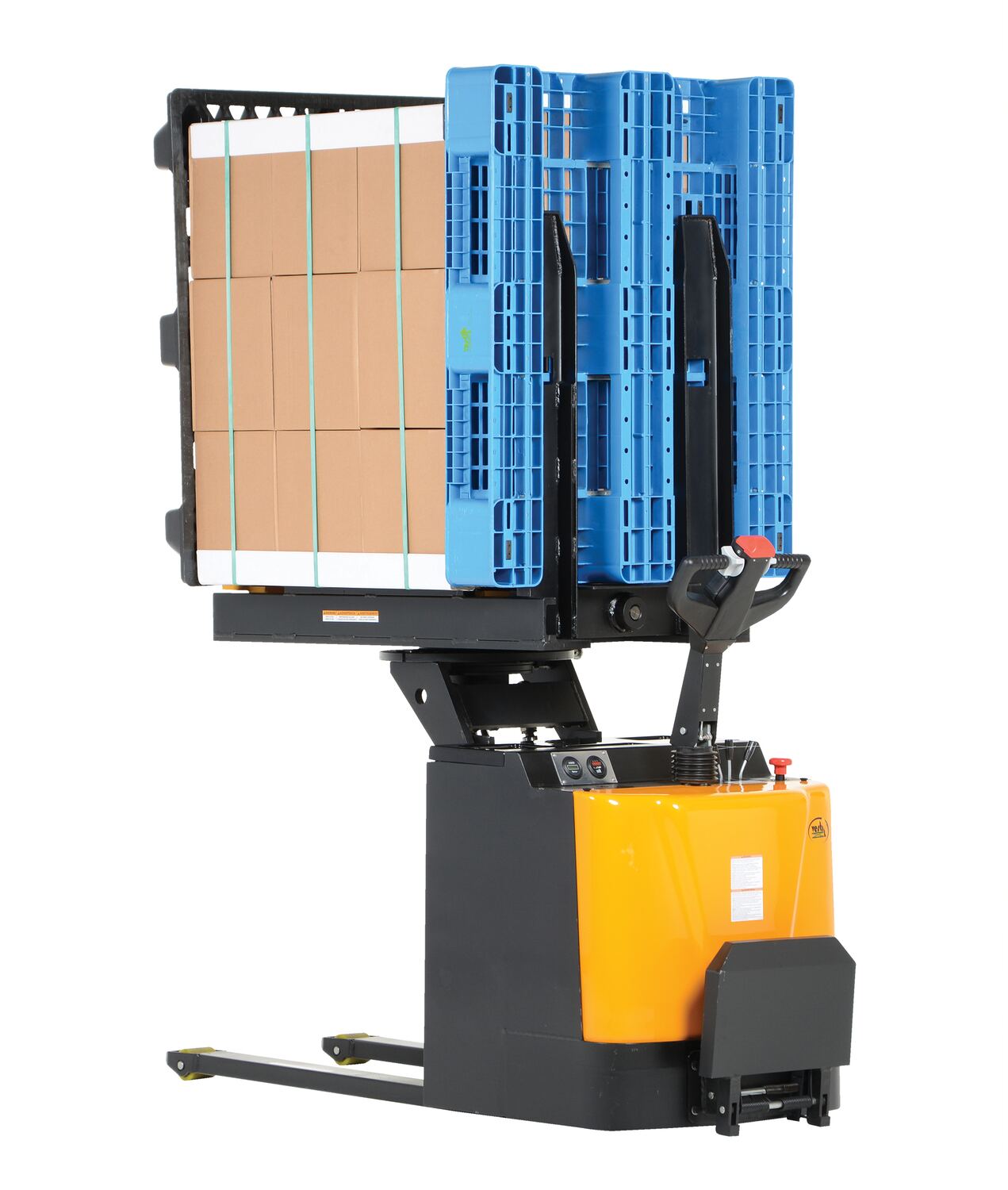

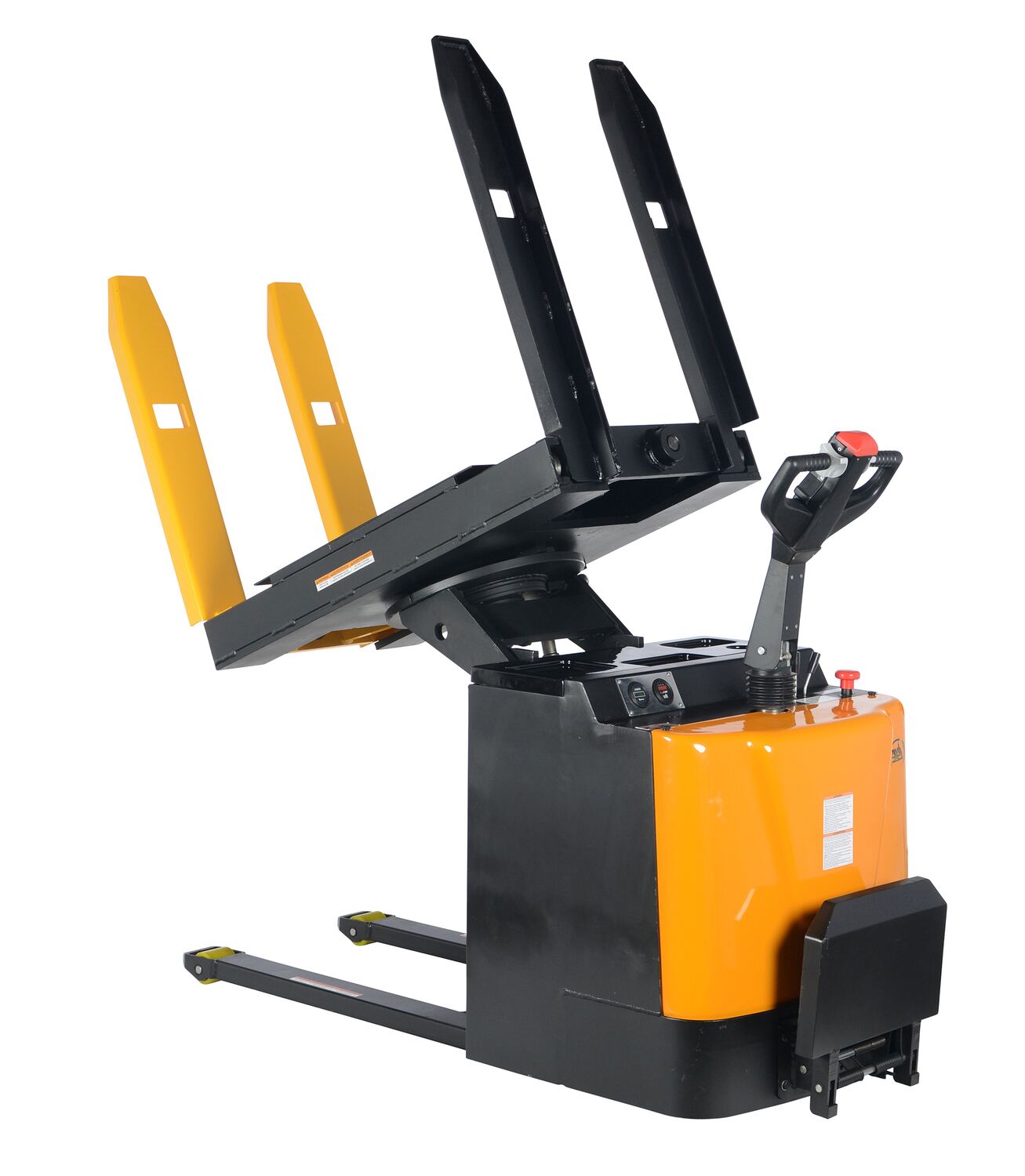

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

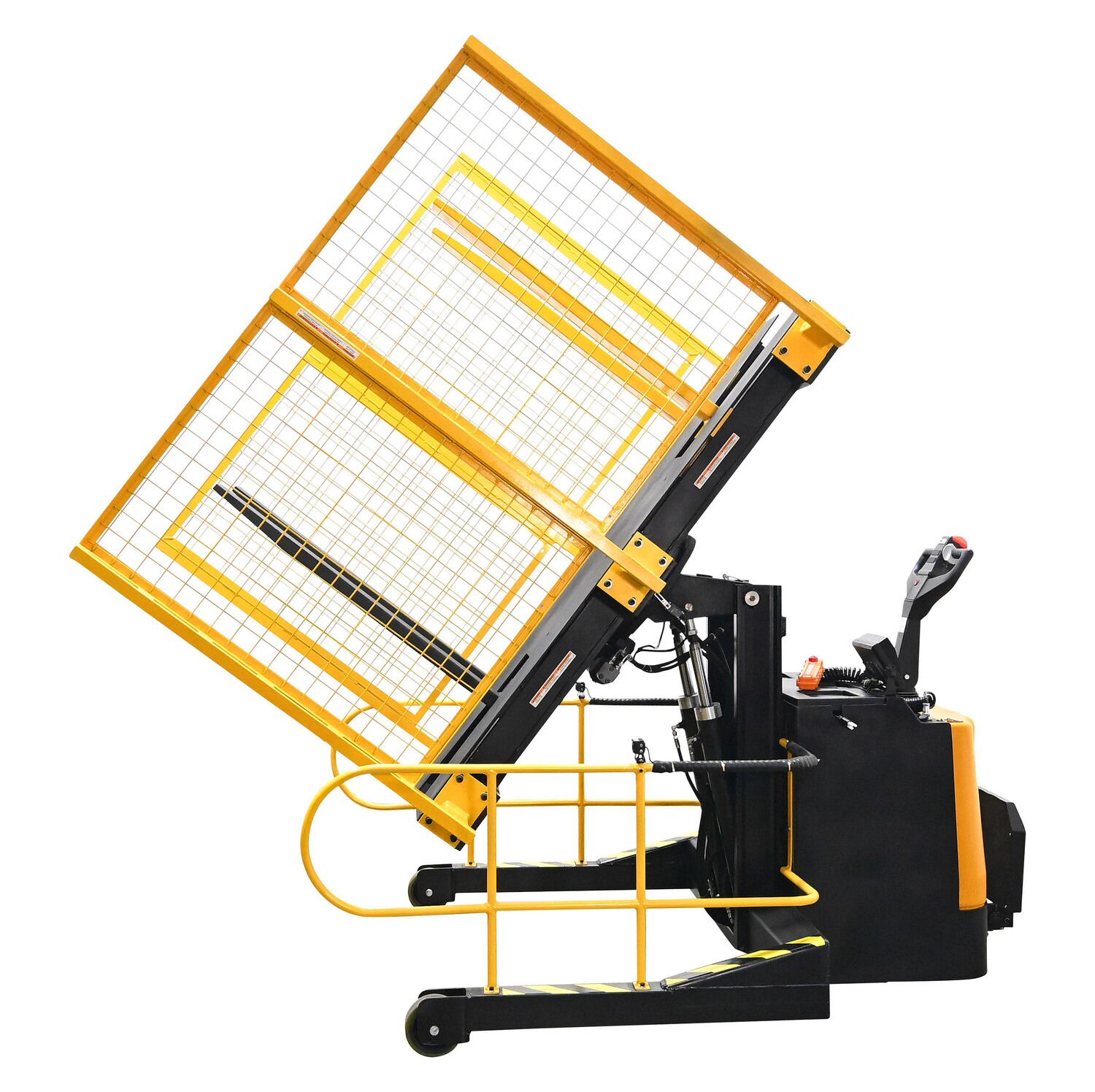

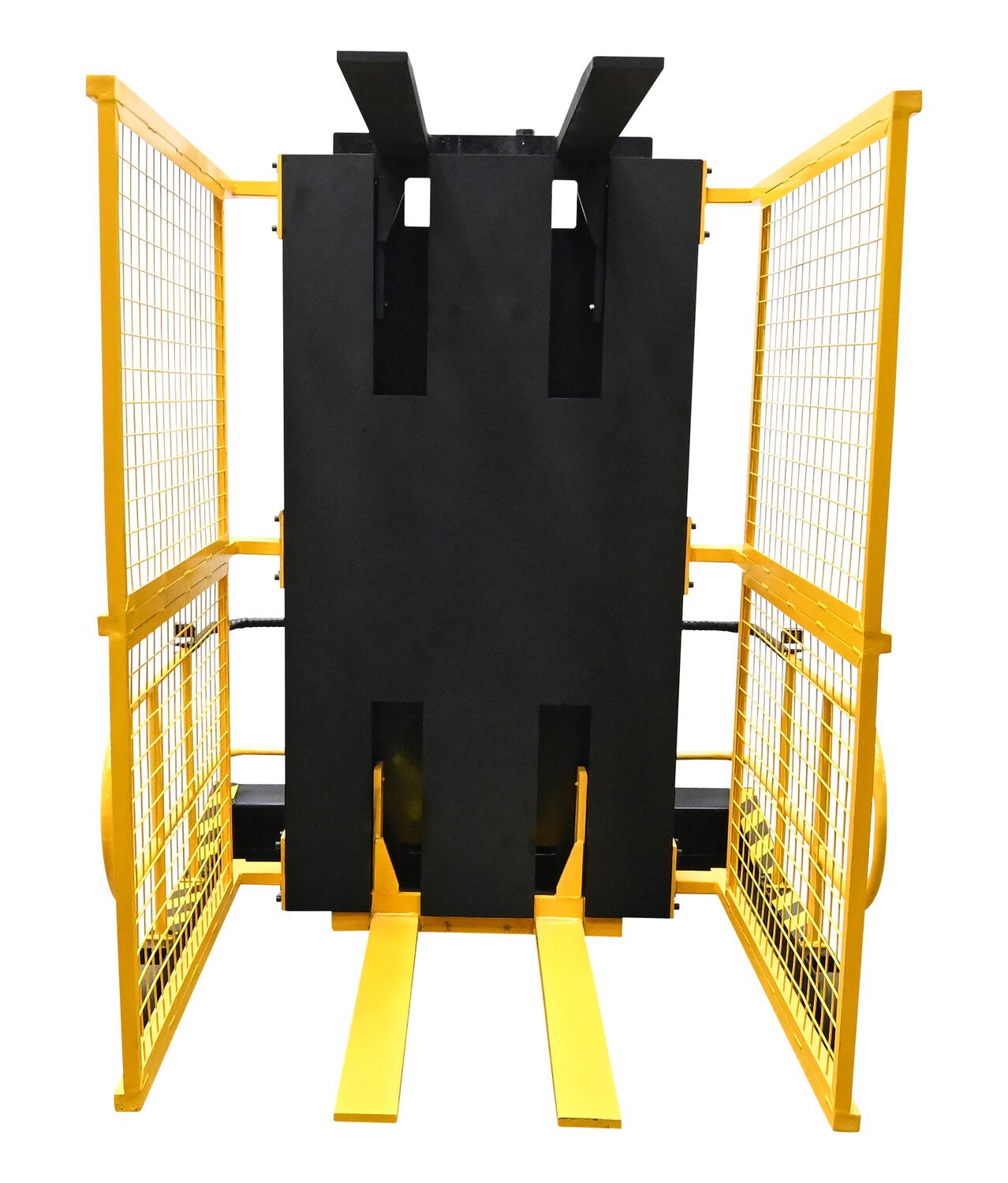

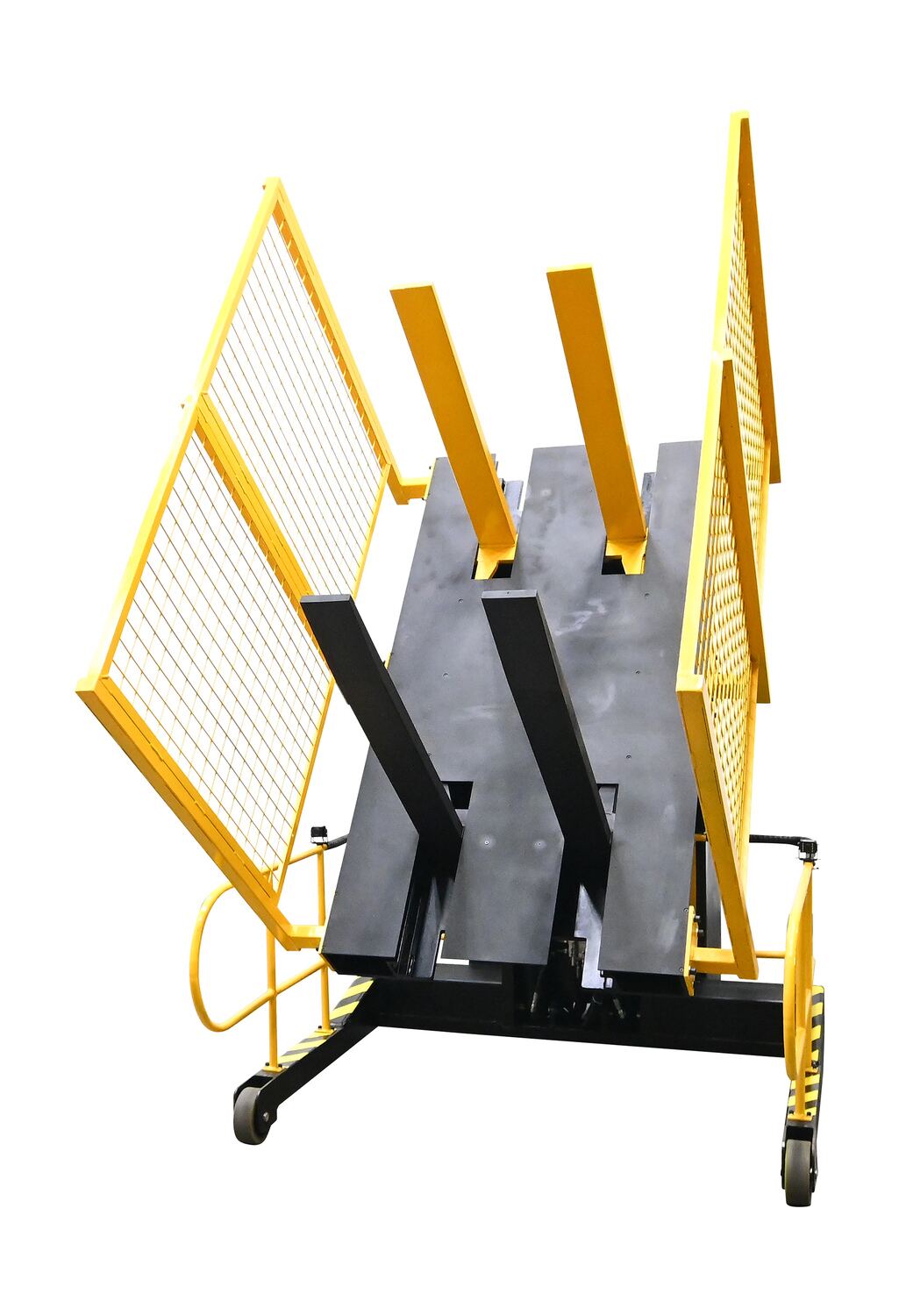

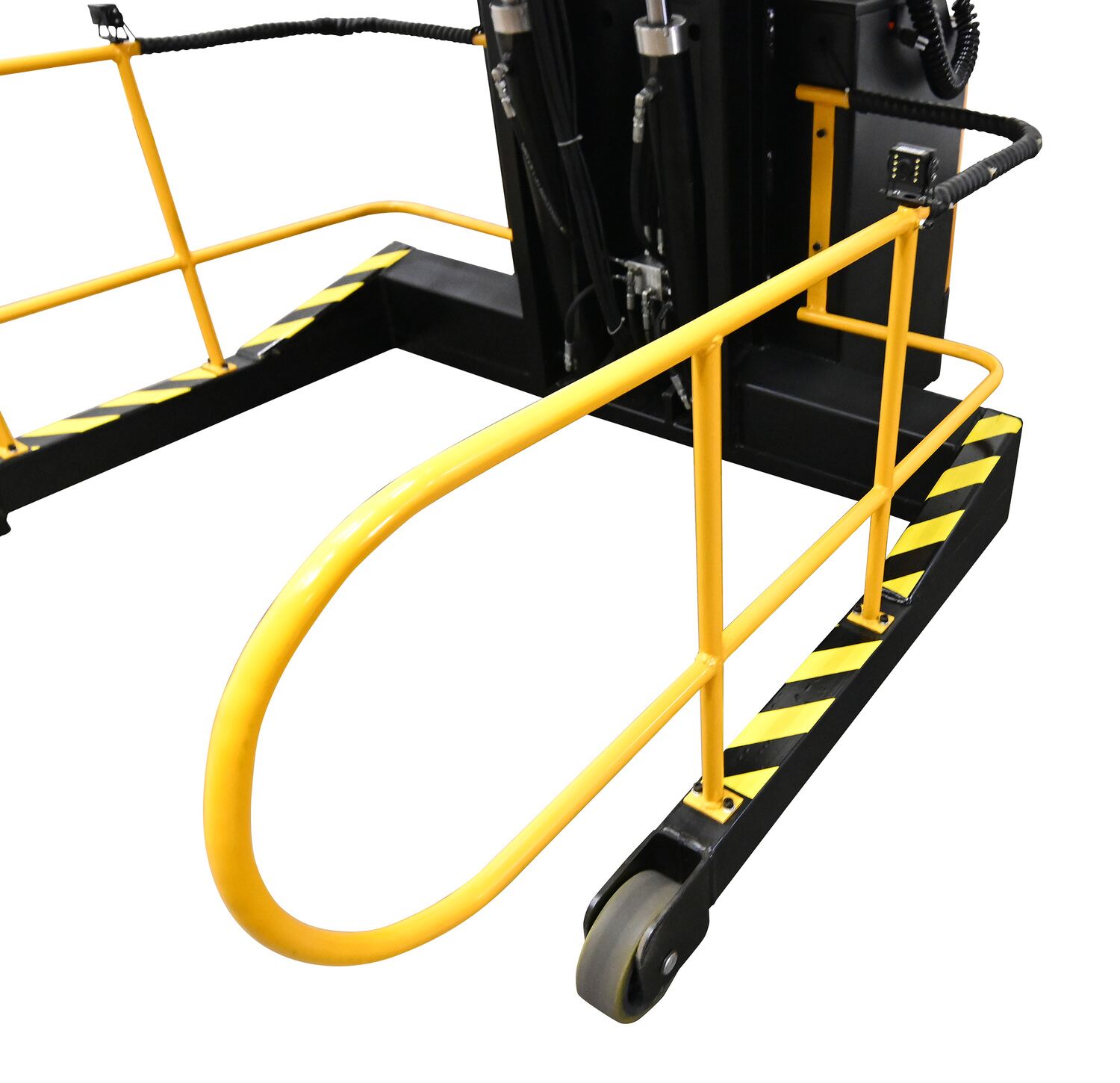

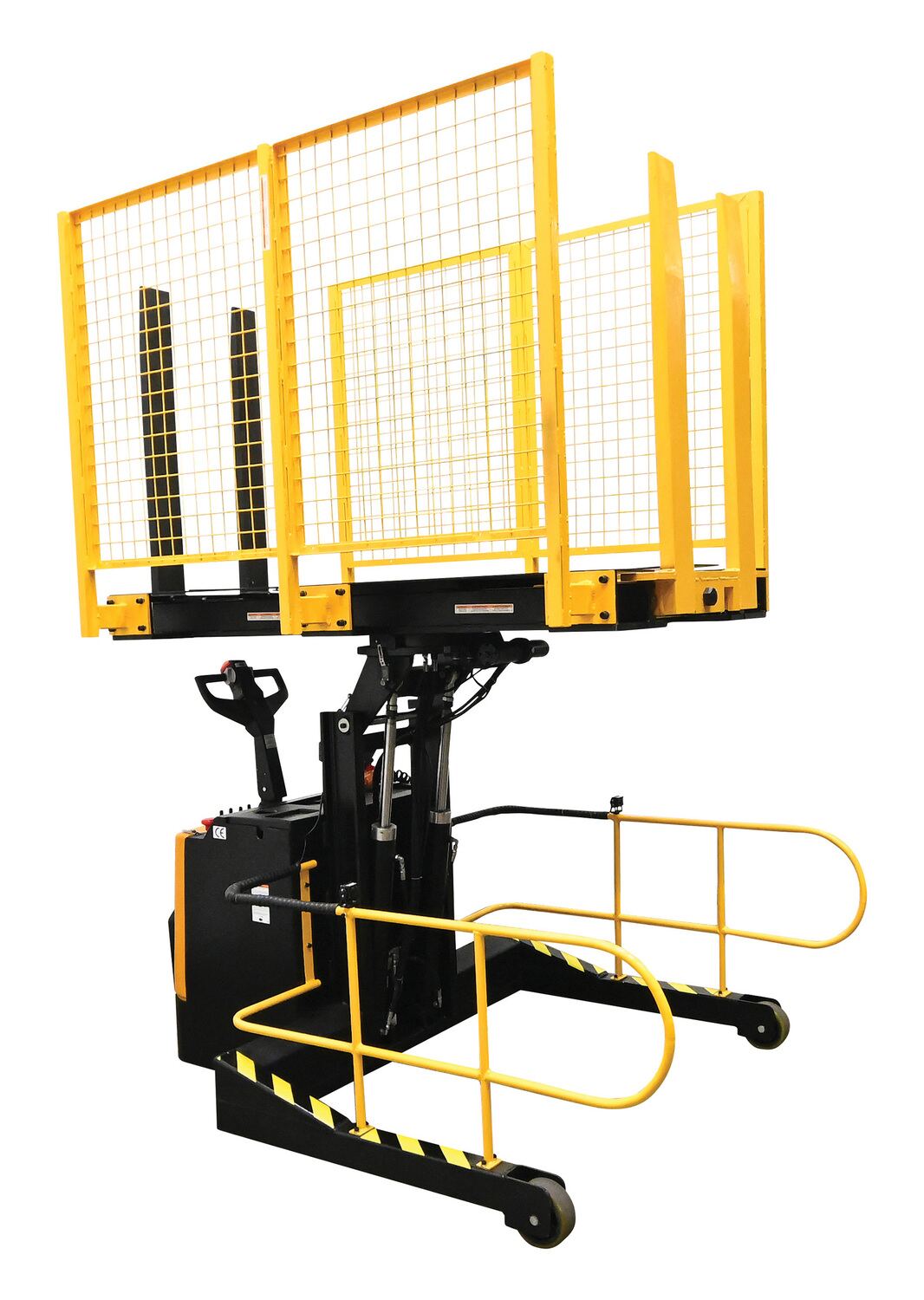

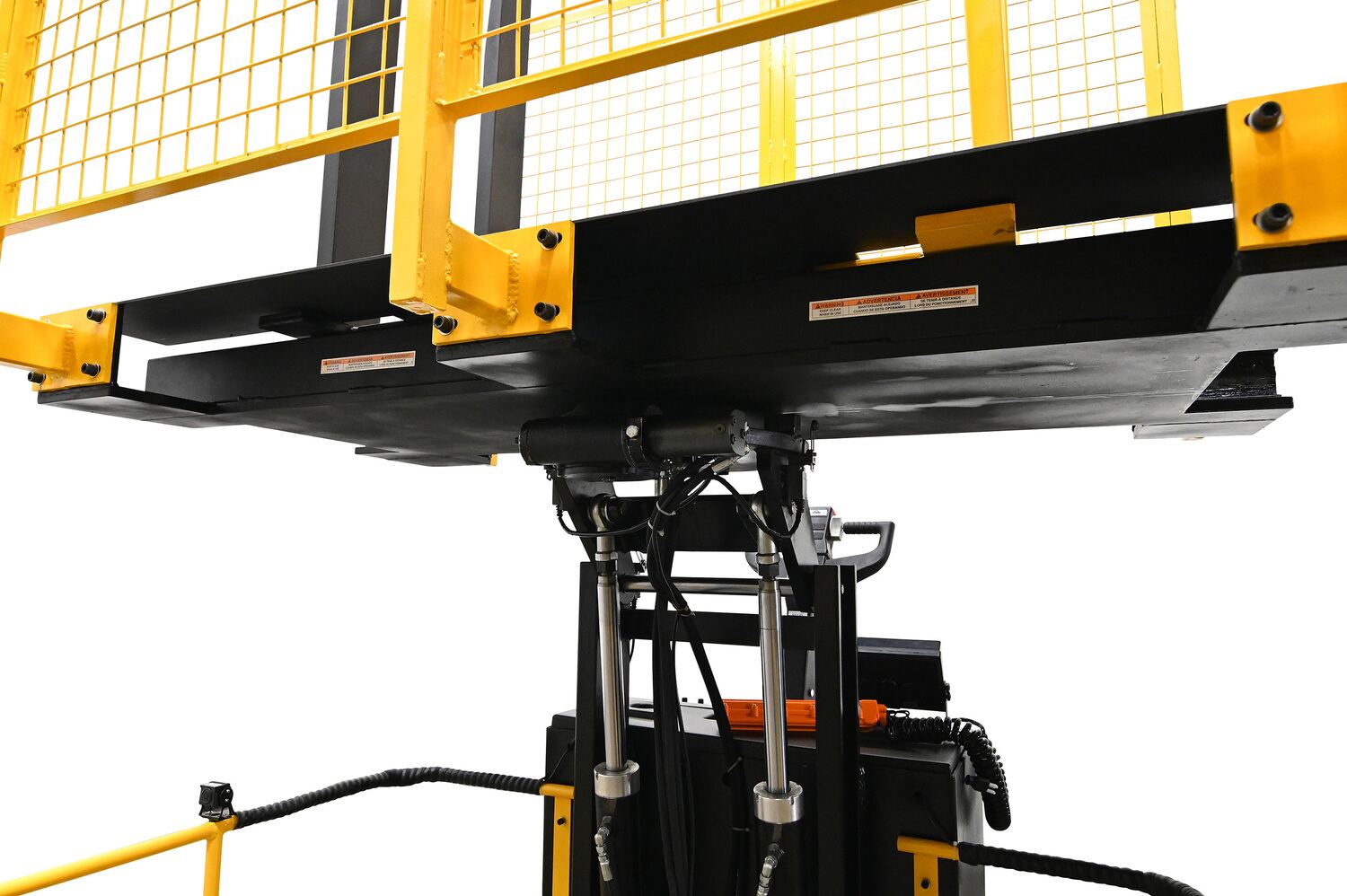

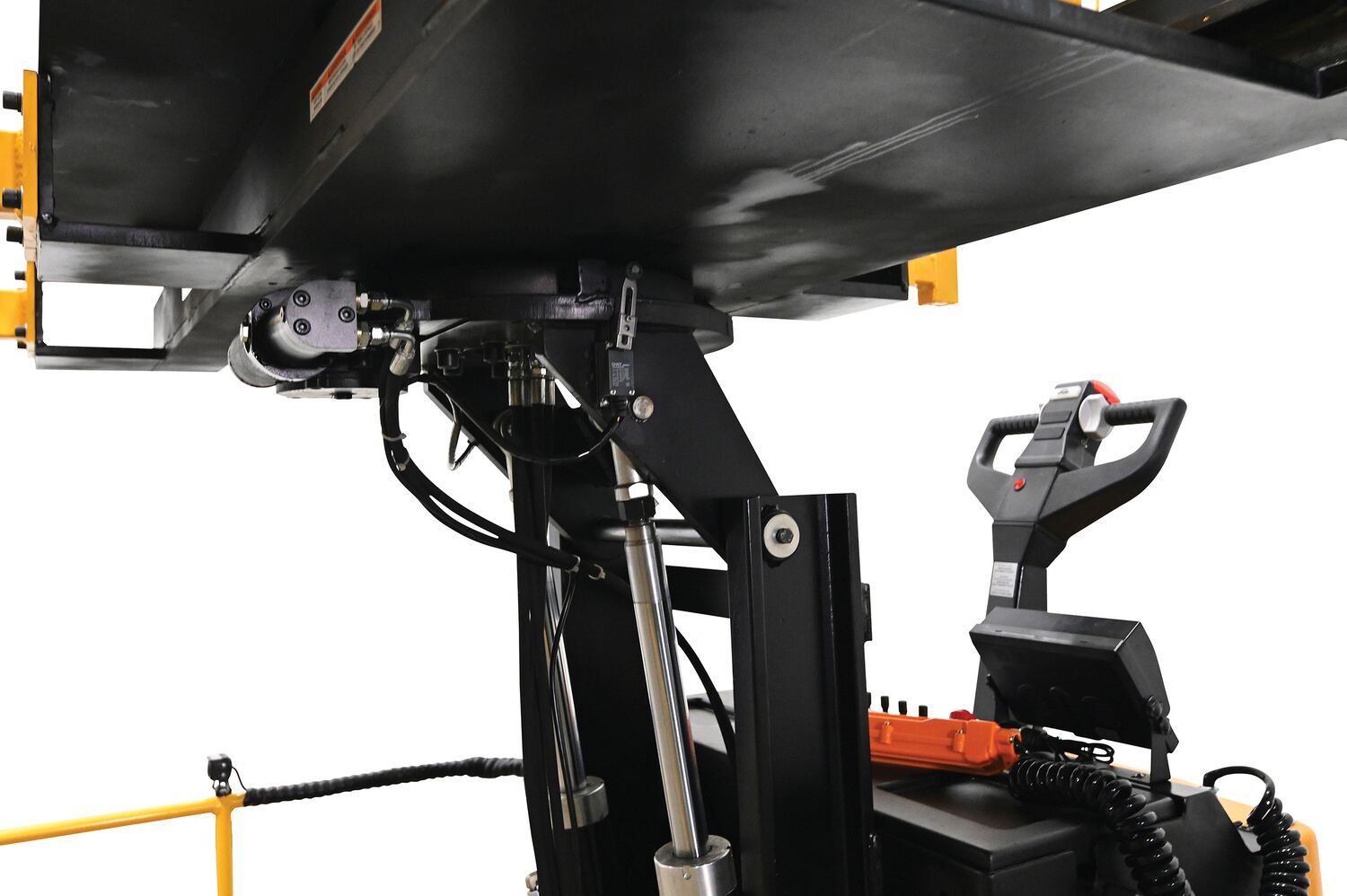

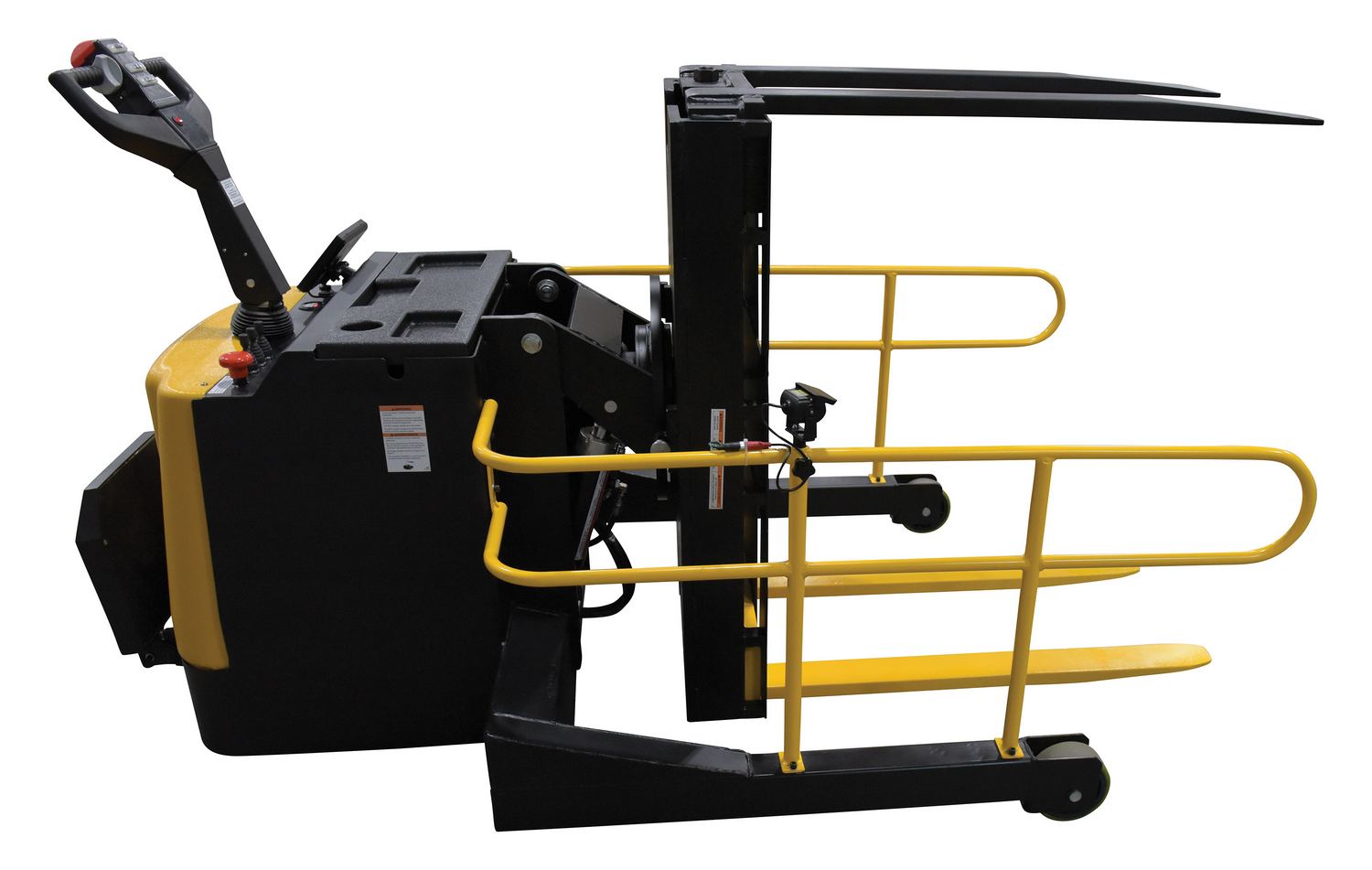

Model PI-P-SL-3276-PRSR includes safety cage for safe enclosure.
Pallet InvertersAdditional Models In This Family
PI-P-SL-3000-4088
PI-P-SL-3276-PRSR
PI-P-SL-3000-4088
PI-P-SL-3276-PRSR
PI-P-3000-3254
PI-P-3000-3254
PI-P-3000-3254
PI-P-SL-3000-4088
PI-P-SL-3276-PRSR
PI-P-SL-3276-PRSR
PI-P-SL-3000-3276
PI-P-SL-3276-PRSR
PI-P-SL-3000-4088
PI-P-SL-3276-PRSR
PI-P-SL-3000-3276
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

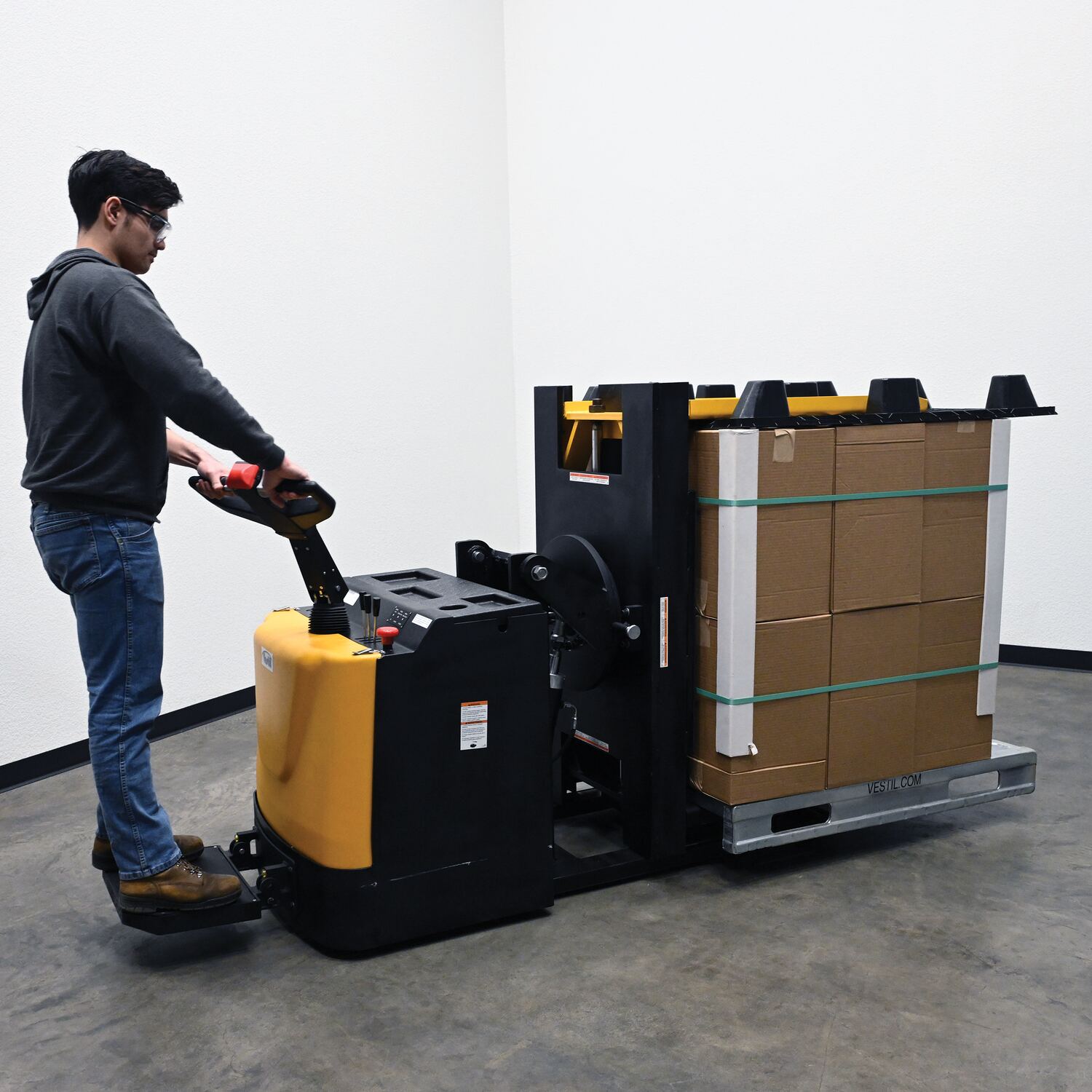

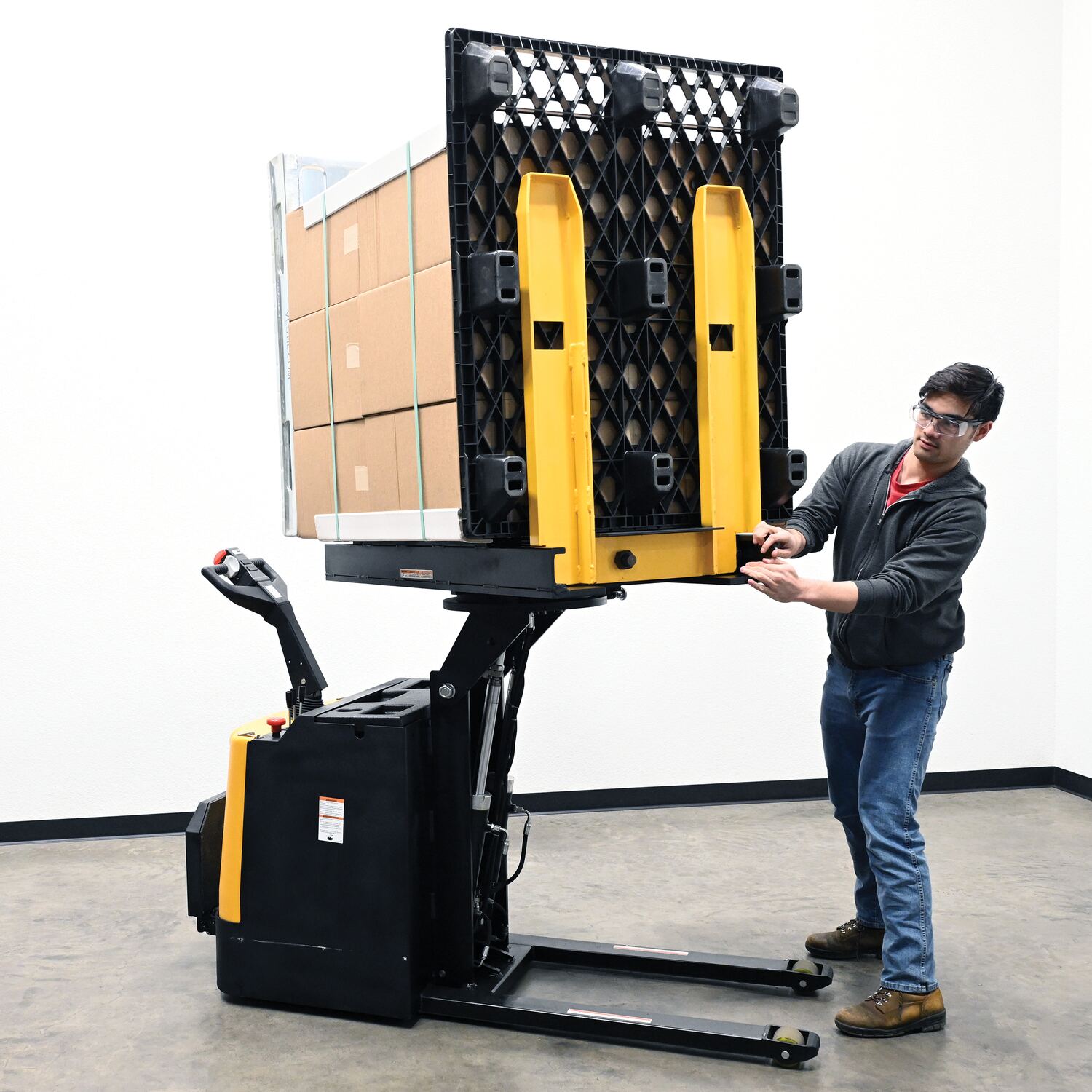

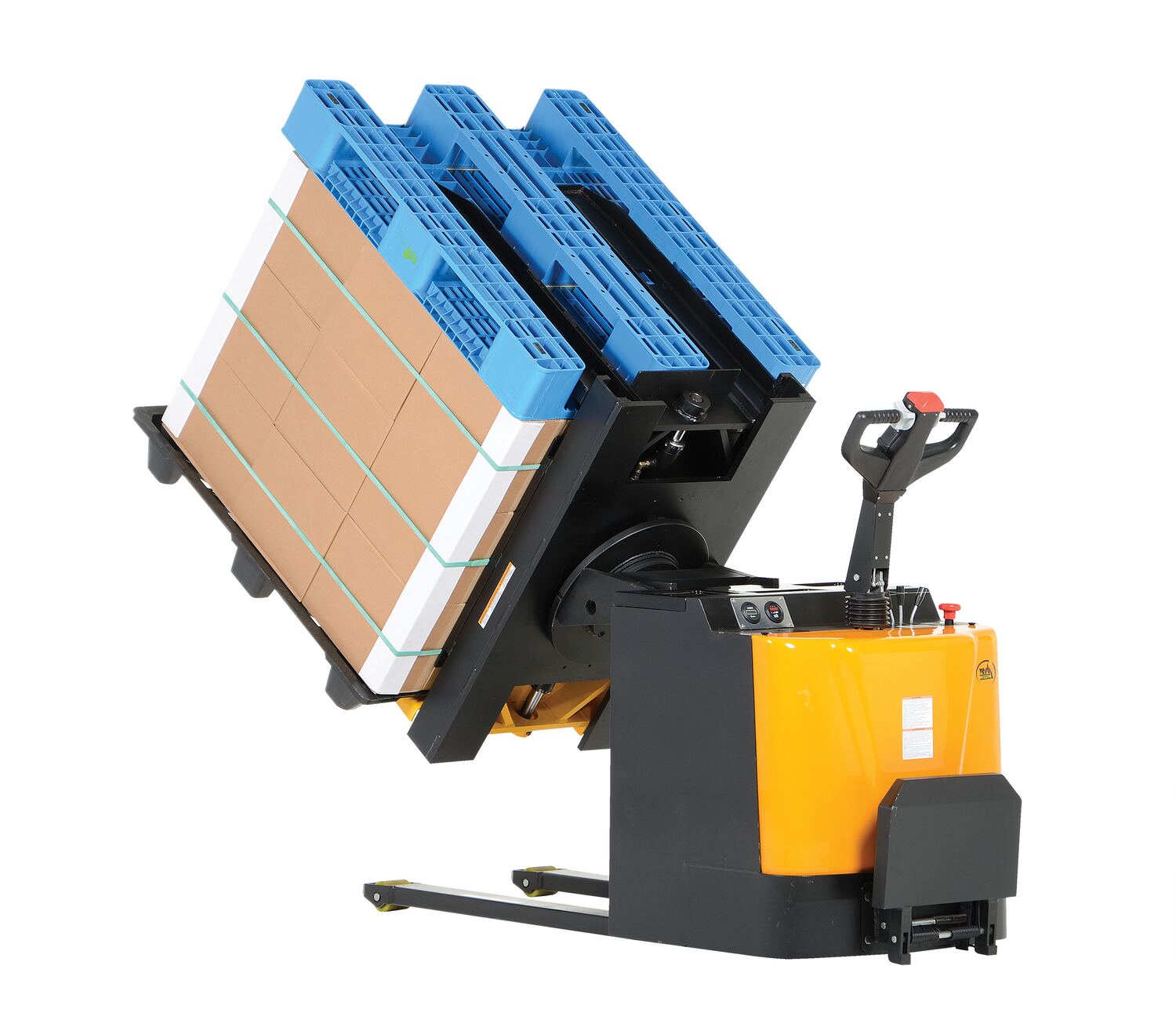

| PI-P-3000-3254 | |  | 1 Year Limited Warranty | Steel Portable Pallet Inverter Low Profile 32 In. to 54 In. Fork Opening 3000 Lb. Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Fork Opening (in.): 32 to 54 | 2388 | |

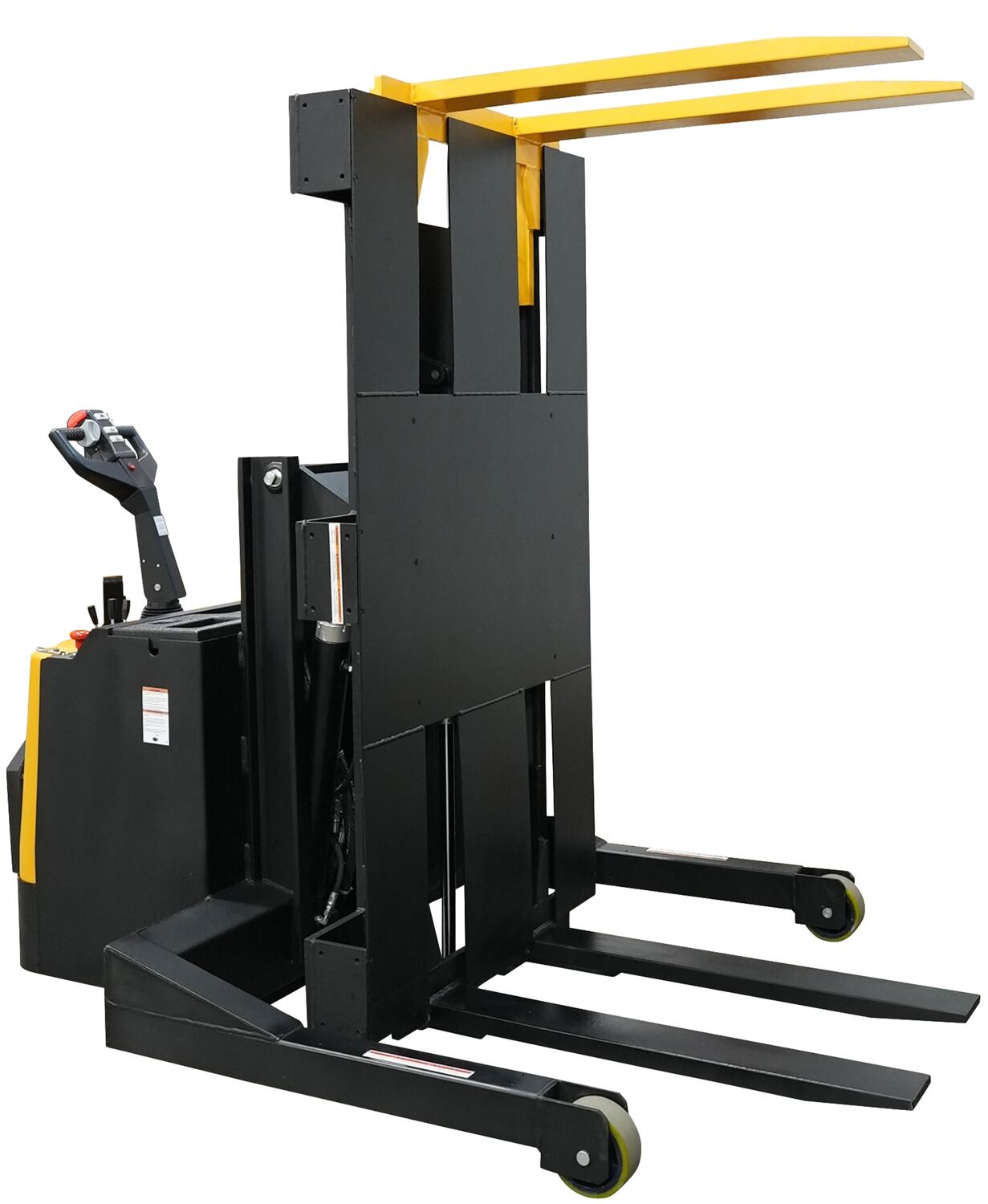

| PI-P-SL-3000-3254 | |  | 1 Year Limited Warranty | Steel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Fork Opening (in.): 32 to 54 | 1879 | |
| PI-P-SL-3000-3276 | POPULAR | | 1 Year Limited Warranty | Steel Portable Pallet Inverter 32 In. to 76 In Fork Opening 3000 Lb. Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Fork Opening (in.): 32 to 76 | 3026 | |
| PI-P-SL-3000-4088 | |  | 1 Year Limited Warranty | Steel Portable Pallet Inverter 40 In. to 88 In Fork Opening 3000 Lb. Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Fork Opening (in.): 40 to 88 | 3095 | |
| PI-P-SL-3276-PRSR | NEW | | 1 Year Limited Warranty | Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Usable Fork Opening (in.): 32 to 76 | 3275 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Usable Fork Opening (in.): 32 to 76
Uniform Capacity (lb.): 3000
Usable Fork Opening (in.): 32 to 76
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: PI-P-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3254
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3276
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3276
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-4088
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-4088
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can the portable pallet inverter pick up a loaded pallet?
A: The portable pallet inverter (part number PI-P-4400-3254) can be used to pick up skids. Please see the straddle model options to pick up pallets or skids. (PI-P-SL-3000-3254, PI-P-SL-3000-3276, or PI-P-SL-3000-4088).
 |
||||||||||||||||||||||||||||||||
