Combination Hand Pump and Electric StackersAn economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V, 40Ah batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Individual forks are 6" wide.
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Narrow Mast Stackers with Powered Drive and Powered Lift
Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
Double Mast Stackers with Powered Drive and Powered Lift
Electric Stackers (Pramac)
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

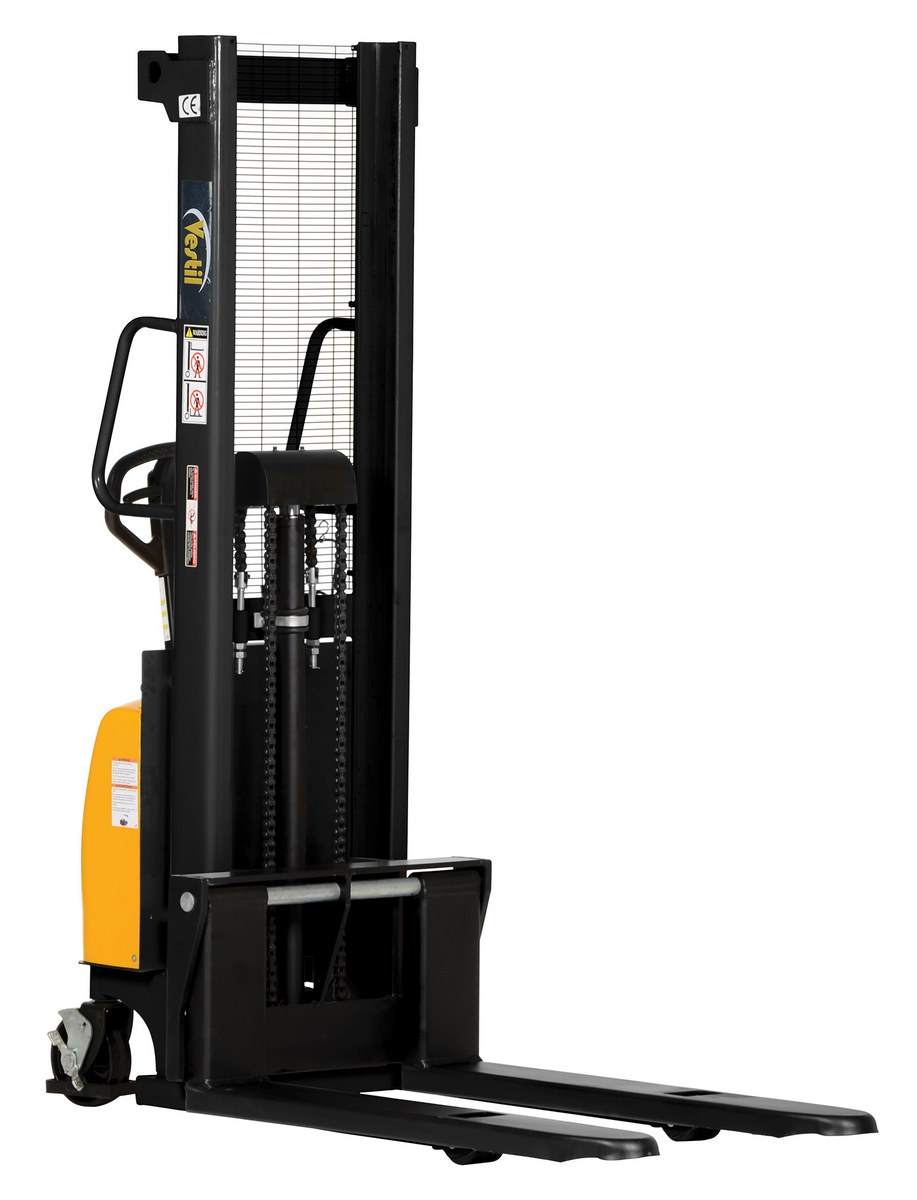

| SE/HP-63 |  | 1 Year Limited Warranty | Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Fork WxL (in.): 26-3/4 x 42 | 768 | ||

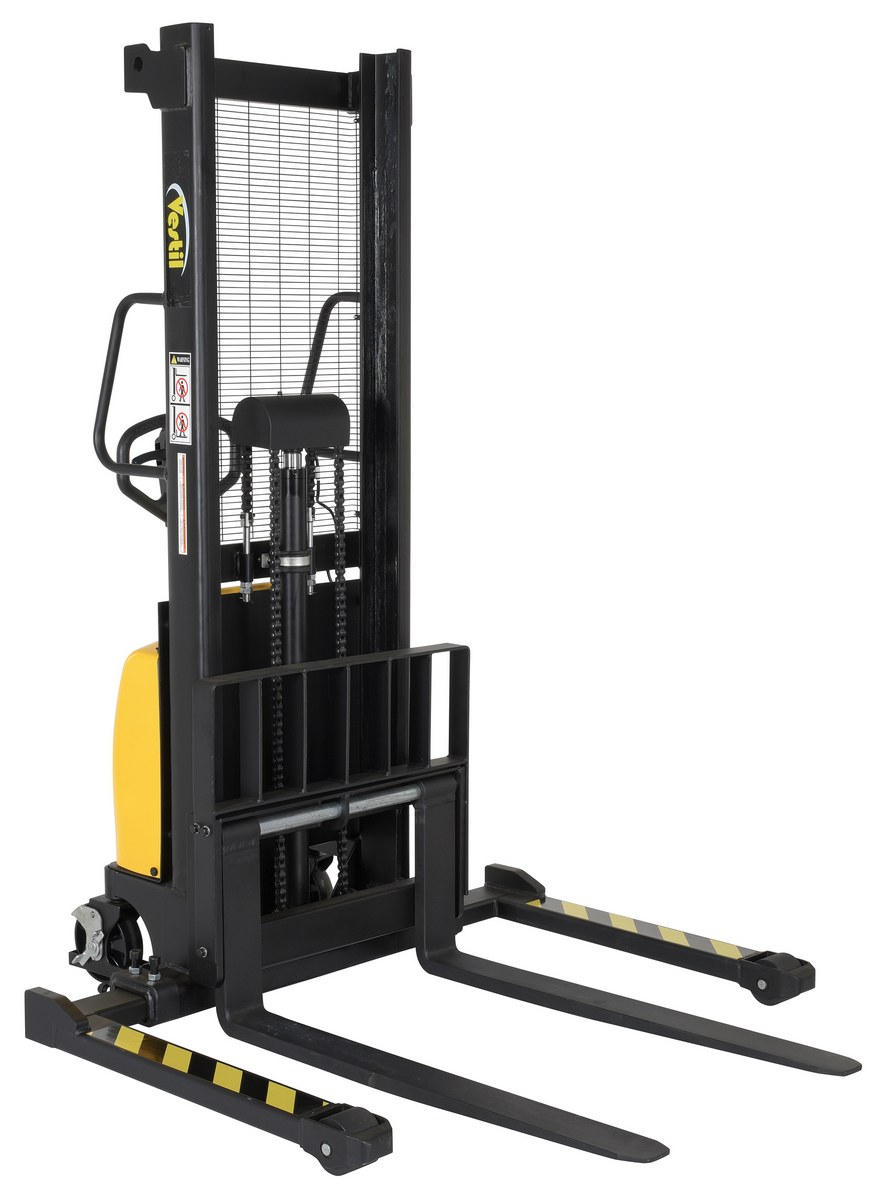

| SE/HP-63-AA |  | 1 Year Limited Warranty | Steel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Fork WxL (in.): 26-3/4 x 42 | 958 | ||
| SE/HP-98 | POPULAR |  | 1 Year Limited Warranty | Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Yellow | Uniform Capacity 0-63" (lb.): 2000 Uniform Capacity 63-118" (lb.): 1500 | 941 | |

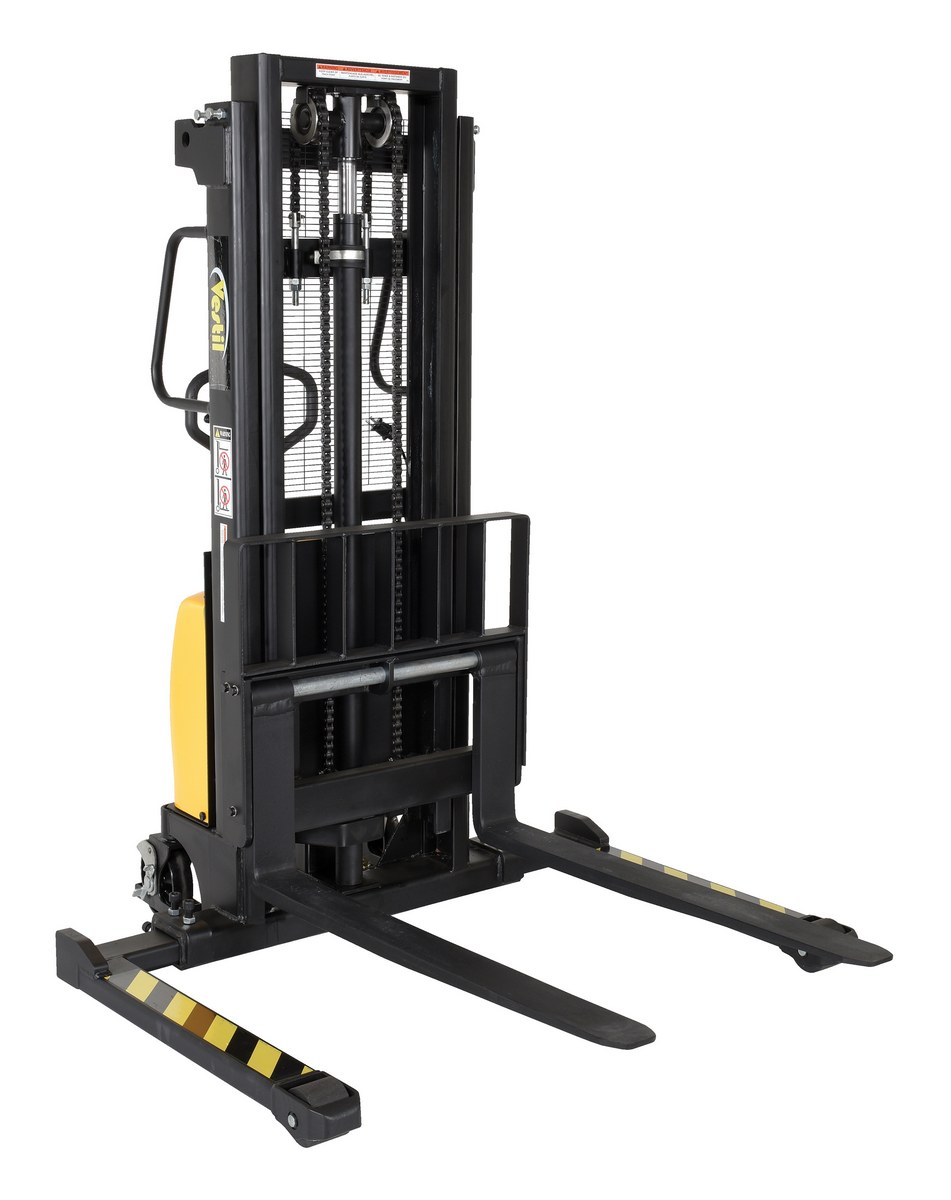

| SE/HP-98-AA |  | 1 Year Limited Warranty | Steel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Uniform Capacity 63-118" (lb.): 1500 | 1108 | ||

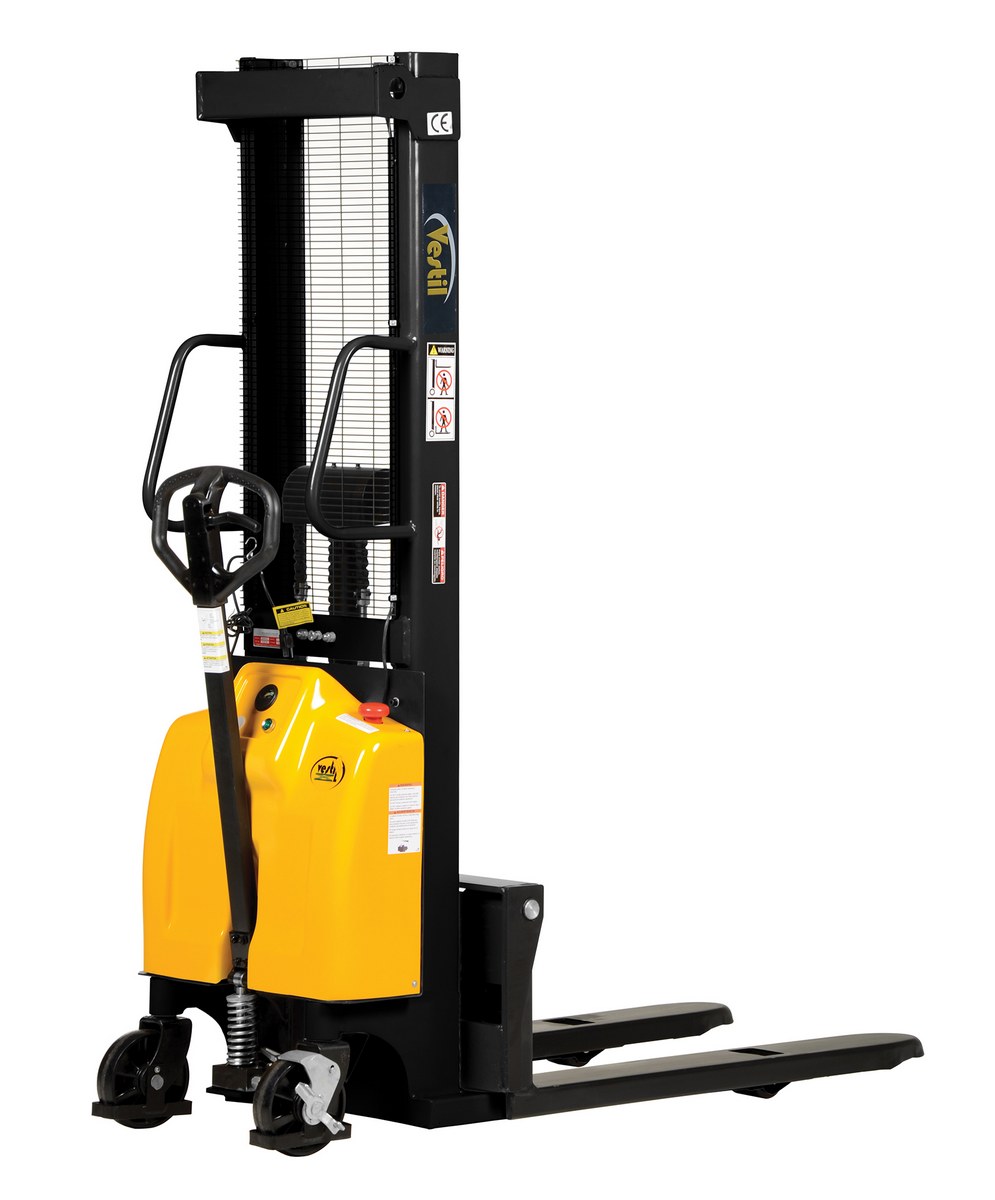

| SE/HP-118 |  | 1 Year Limited Warranty | Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Uniform Capacity 63-118" (lb.): 1500 | 984 | ||

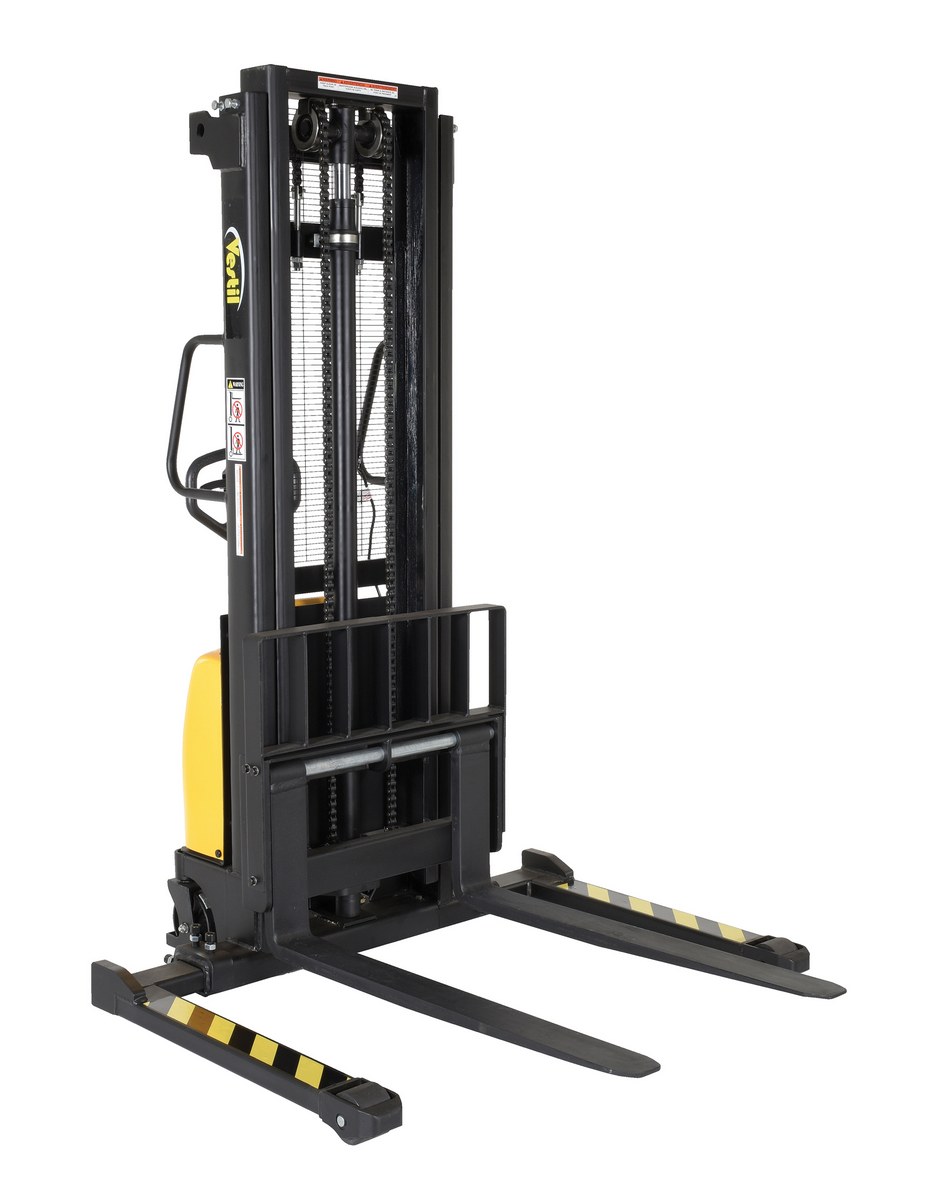

| SE/HP-118-AA |  | 1 Year Limited Warranty | Steel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Uniform Capacity 63-118" (lb.): 1500 | 1160 | ||

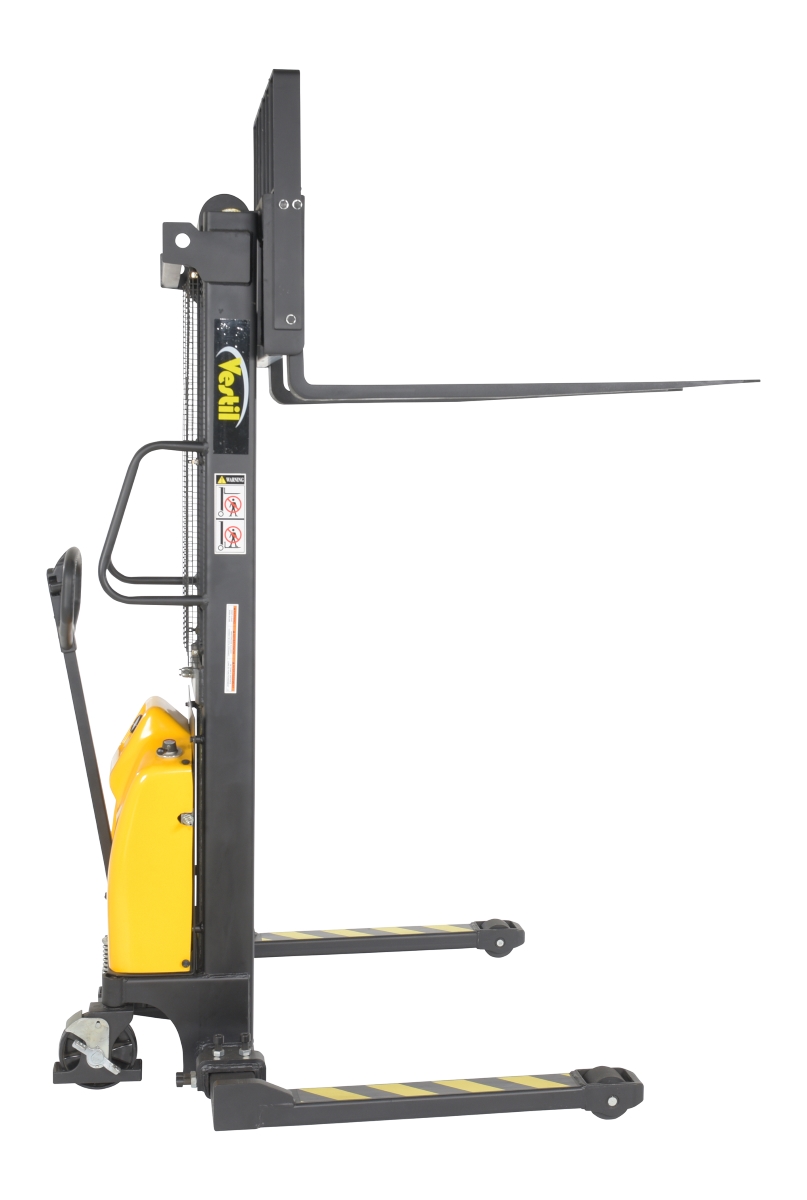

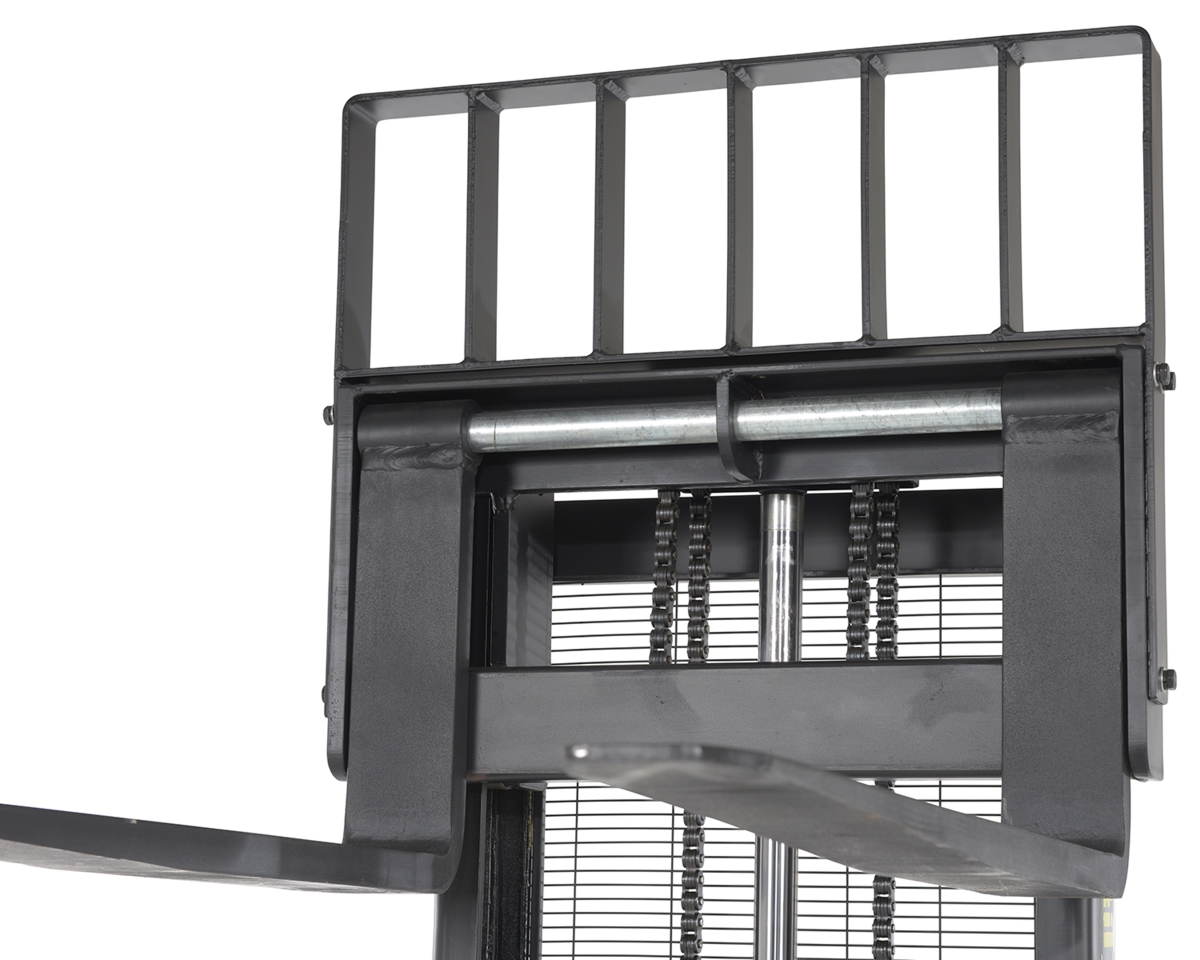

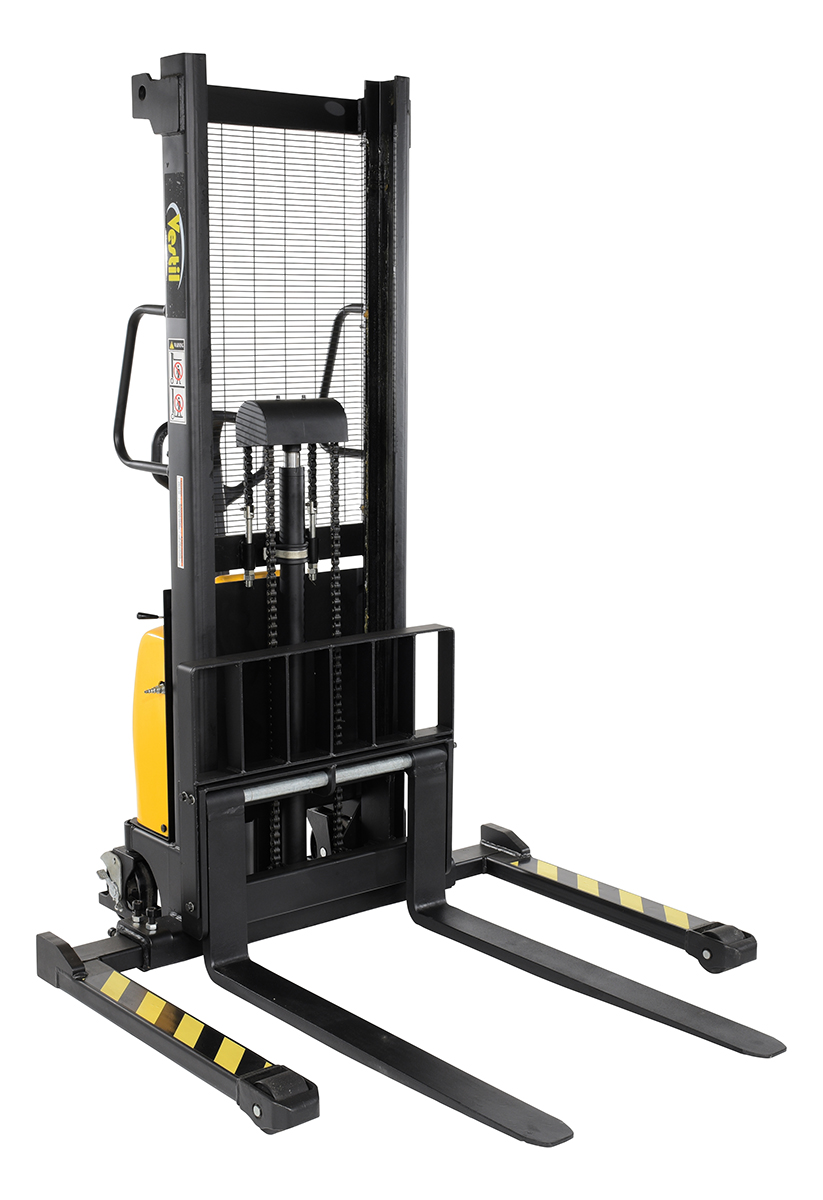

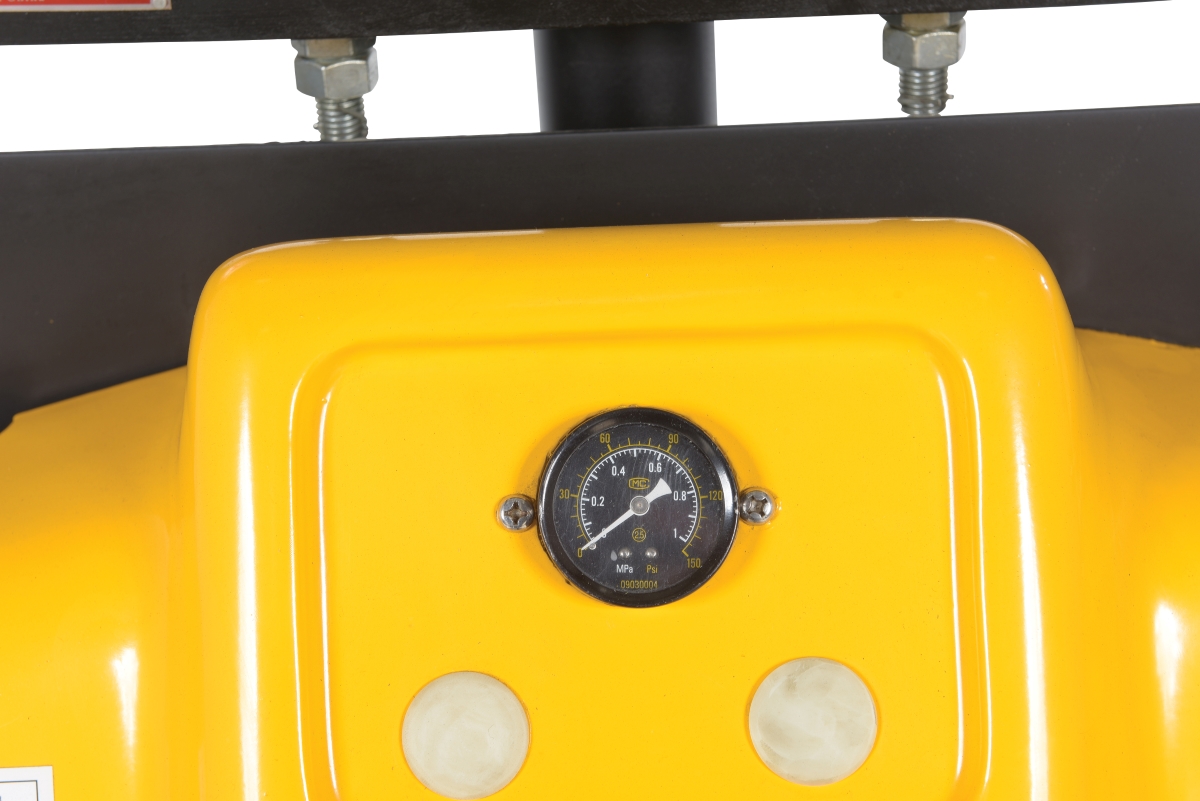

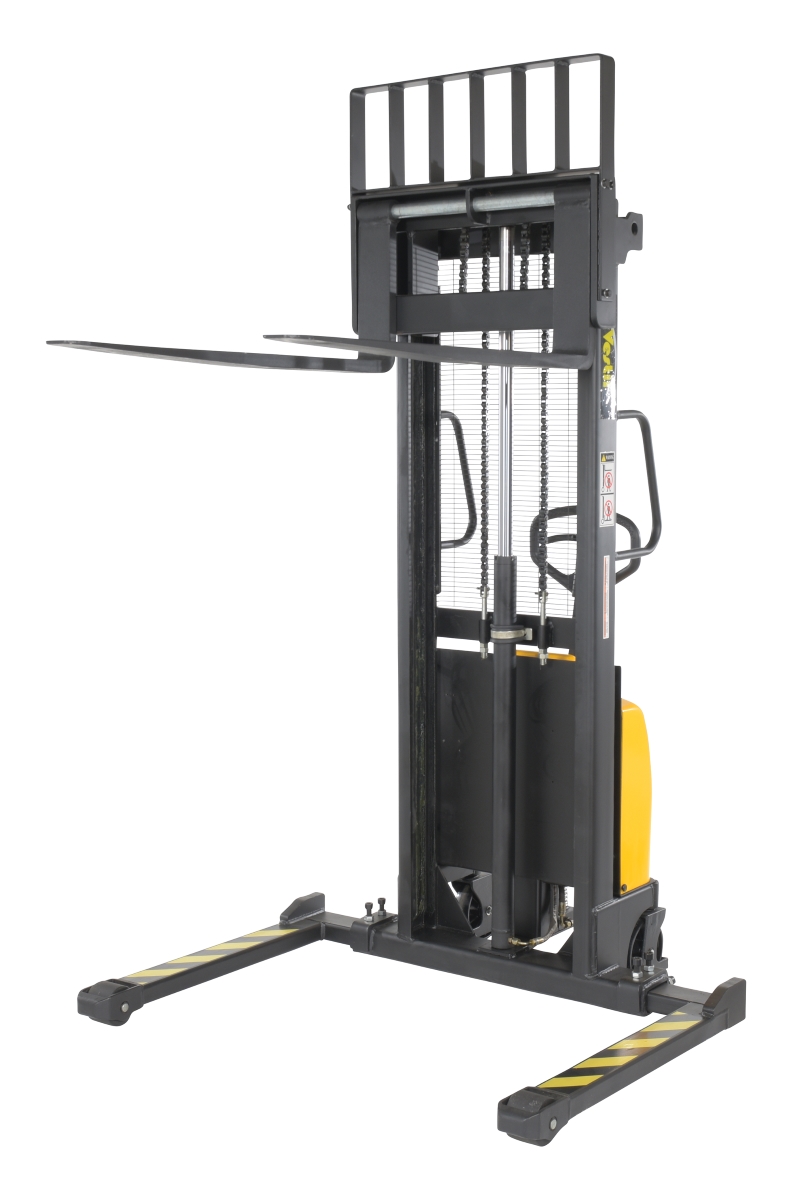

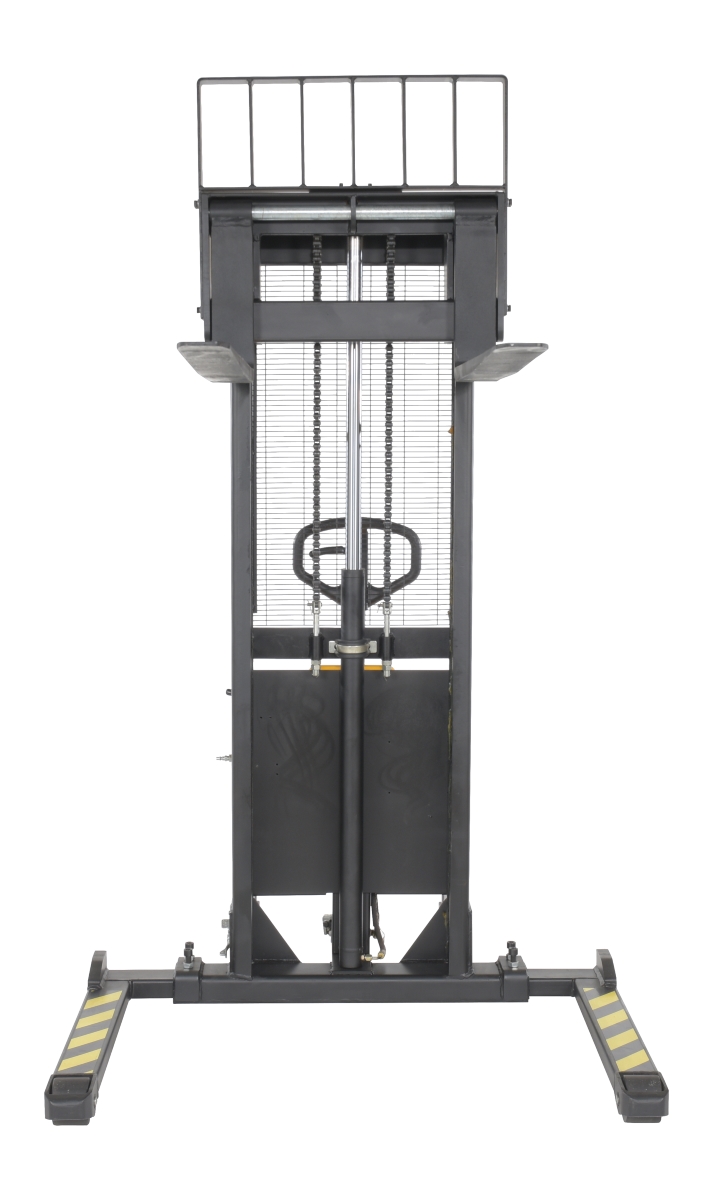

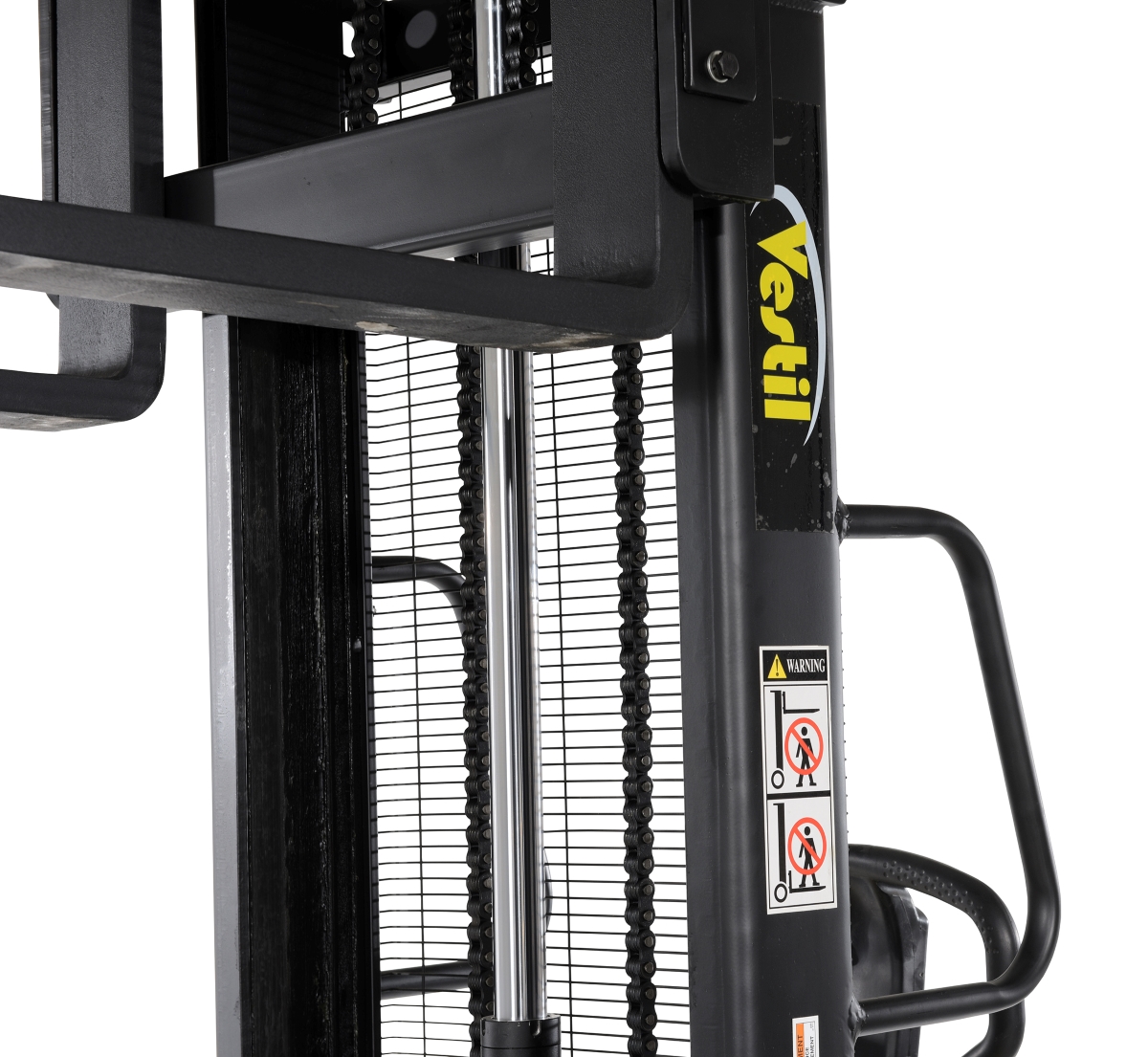

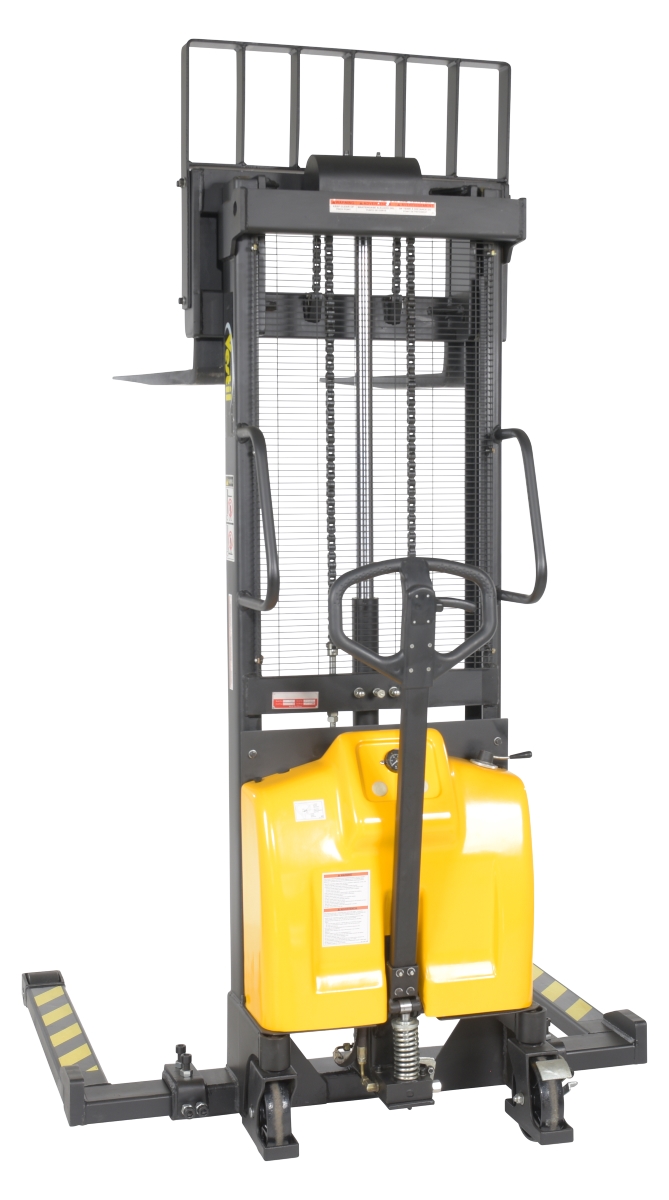

| SE/HP-63-AA-AIR | |  | 1 Year Limited Warranty | Steel/Fiberglass Hand Pump Air Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity 0-63" (lb.): 2000 Fork WxL (in.): 26-3/4 x 42 | 958 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
For More Details of the Option Click the Red Model Button

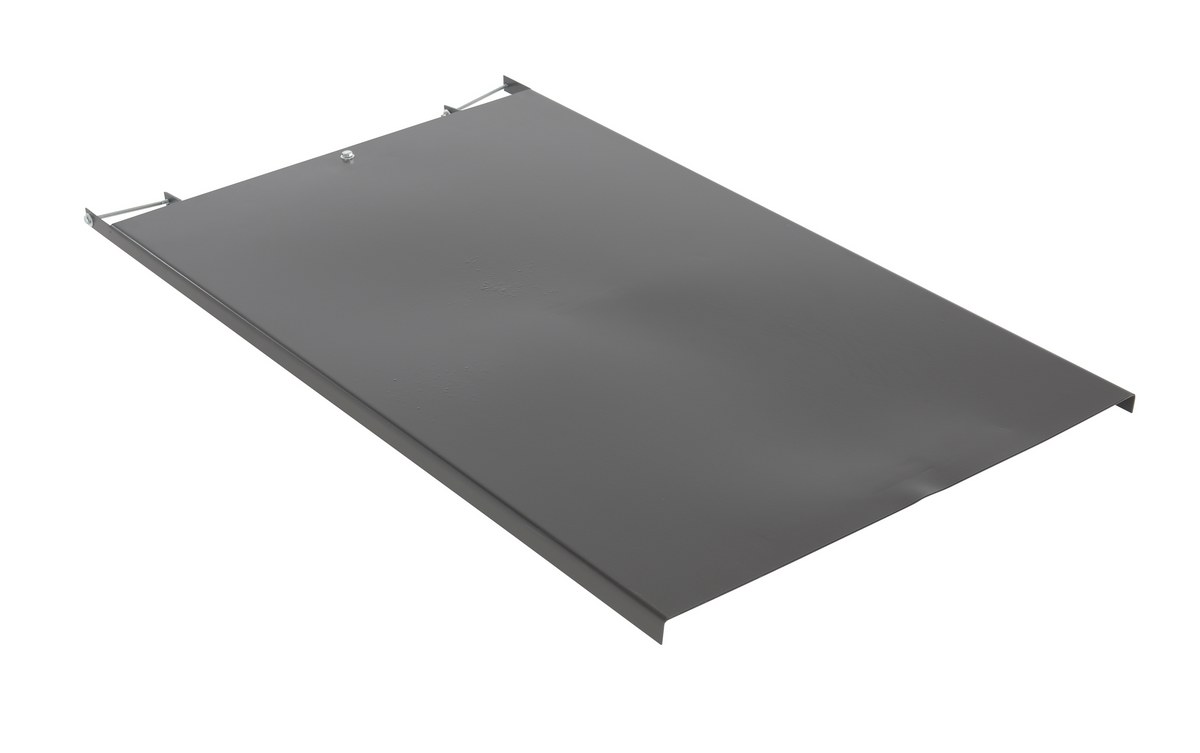

| SE/HP-DK |  | 30 Days Limited Warranty | Factory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For Combination Hand Pump/Electric Stackers | Weight Capacity (lbs): 2000 Attachment Method: Factory Installed | 40 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: SE/HP-118
Hydraulic Oil SDS Sheet for: SE/HP-118-AA
Hydraulic Oil SDS Sheet for: SE/HP-63
Hydraulic Oil SDS Sheet for: SE/HP-63-AA
Hydraulic Oil SDS Sheet for: SE/HP-98
Hydraulic Oil SDS Sheet for: SE/HP-98-AA
Hydraulic Oil SDS Sheet for: SE/HP-DK
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the turning radius on the fixed fork stacker?
A: The turning radius of the SE/HP-118 is 47-1/4".

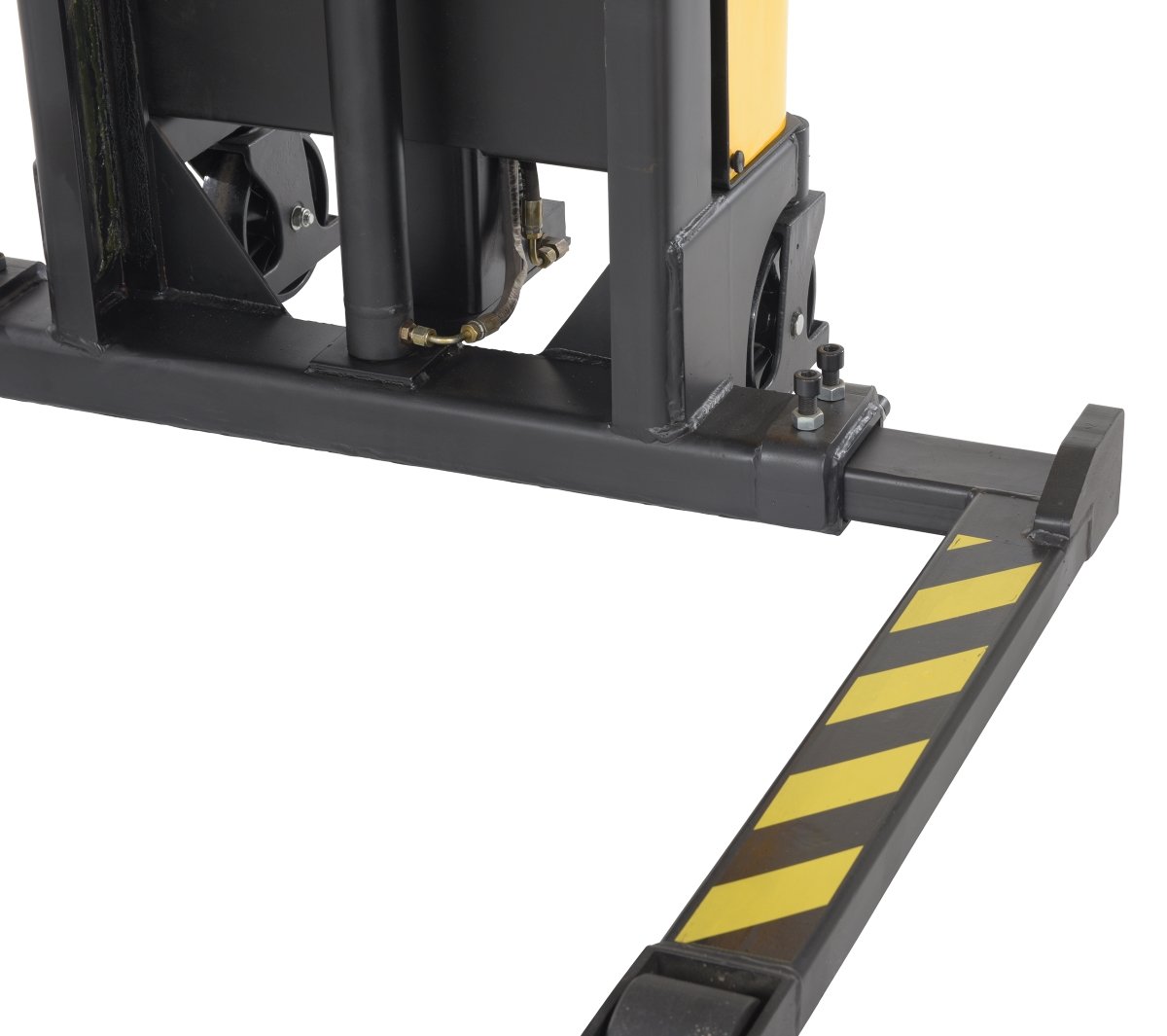

Q: What size hex socket is required to adjust the outriggers on model SE/HP-63-AA?
A: The stacker can be adjusted with a 12mm hex socket.
Q: What voltage can be used to charge this stacker?
A: Charger is designed to accept dual voltage; 115V and 220/230V.
Q: What should the output voltage be on the solenoid model SE/HP-98?
A: 12V system.
 |
||||||||||||||||||||||||||||||||||||||||||
