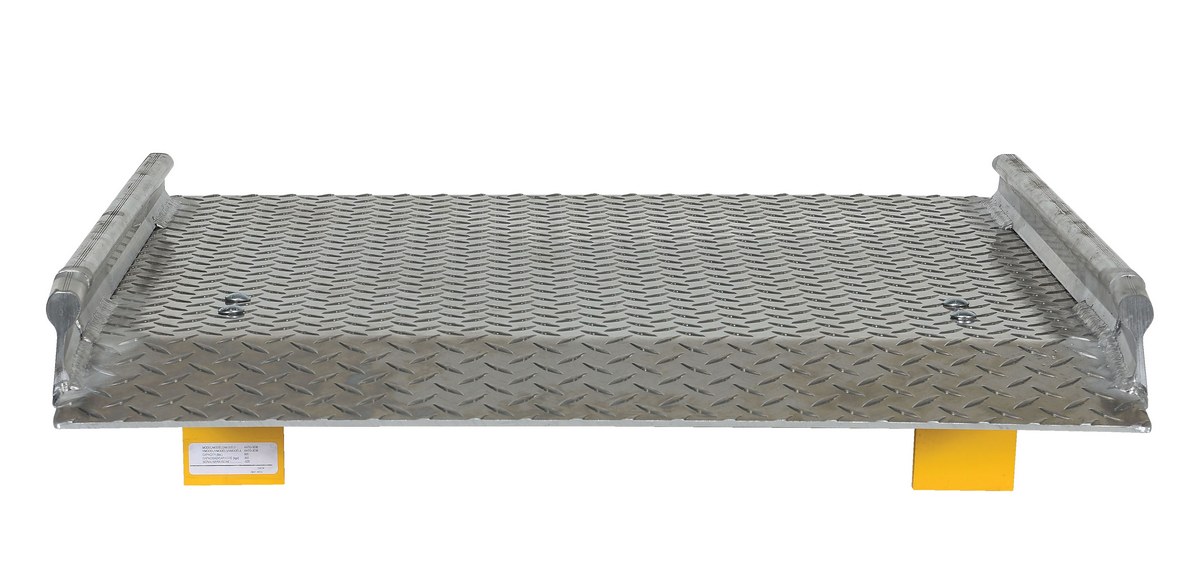

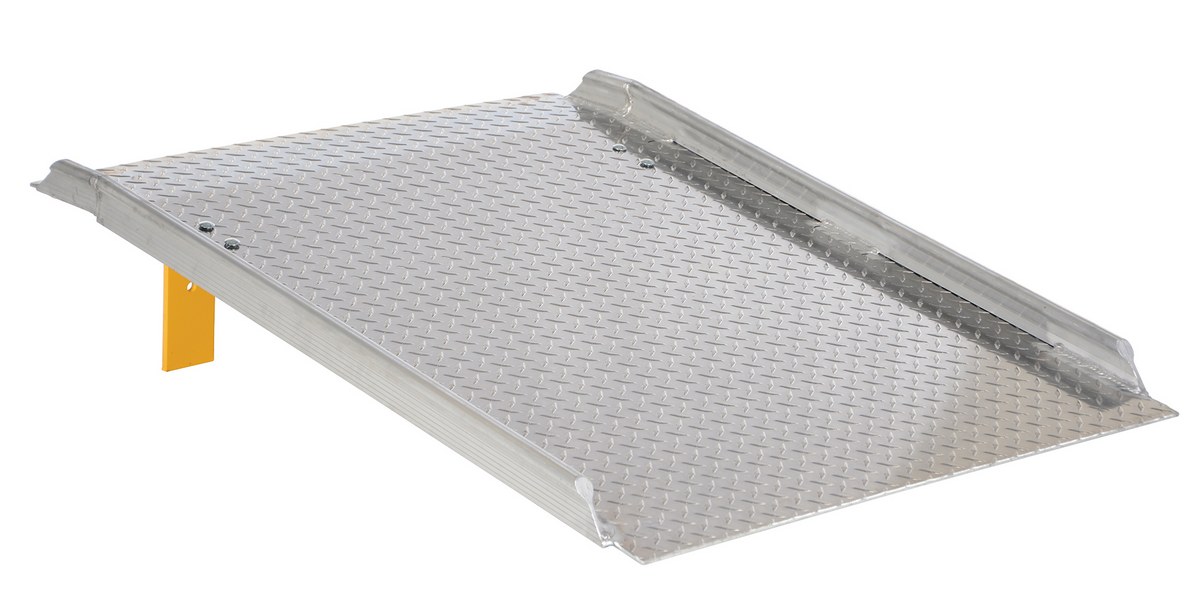

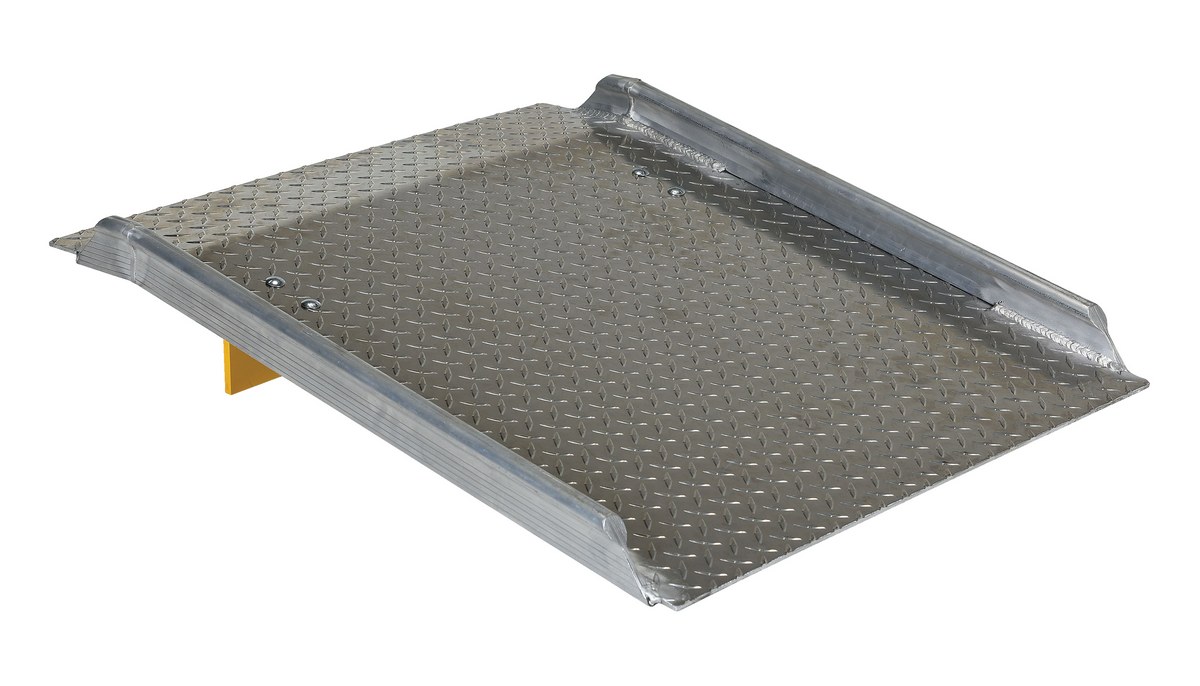

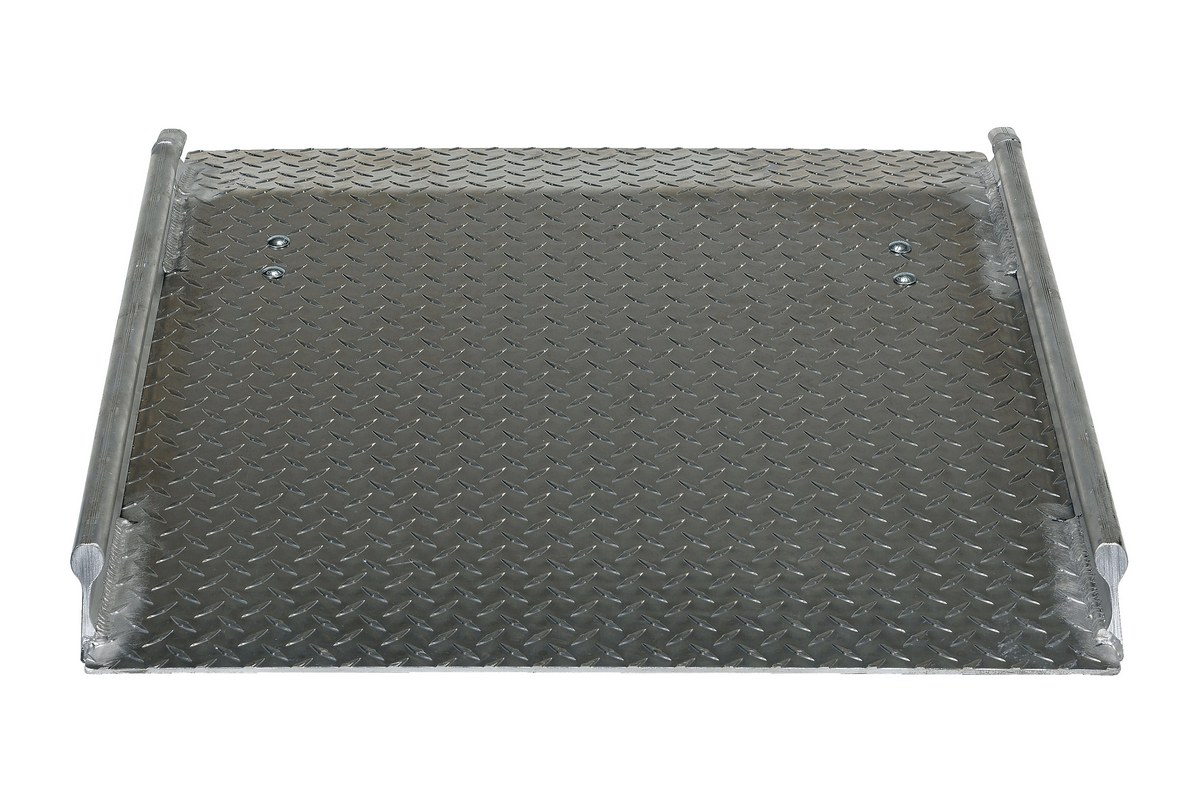

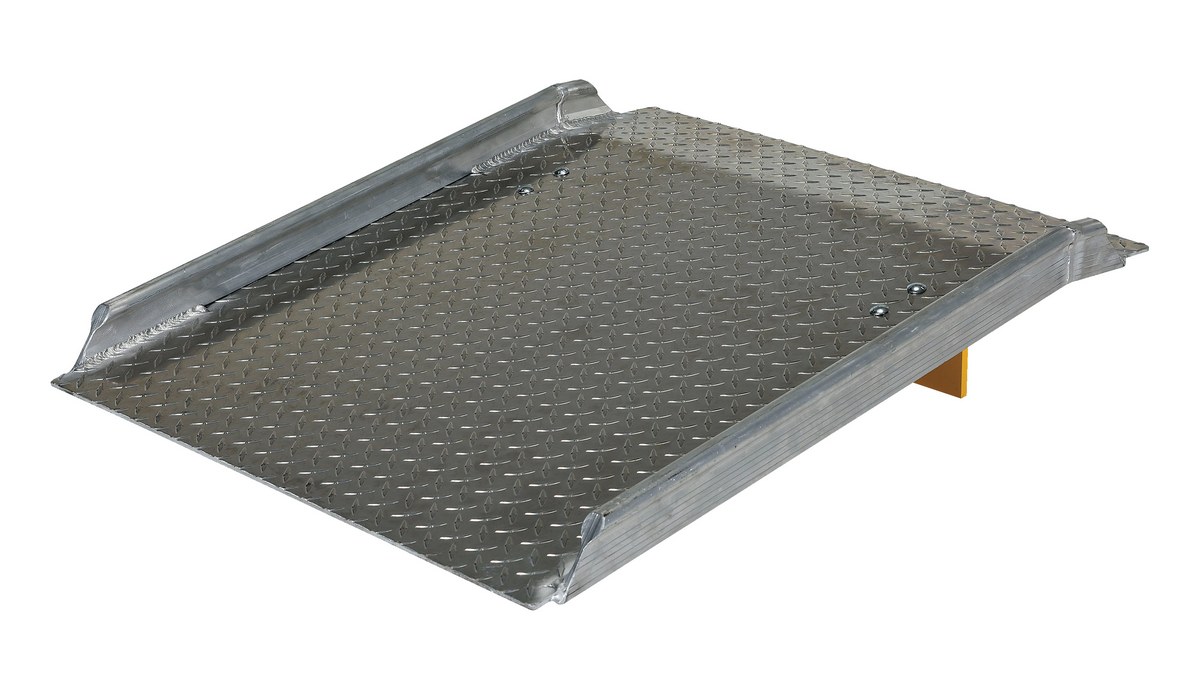

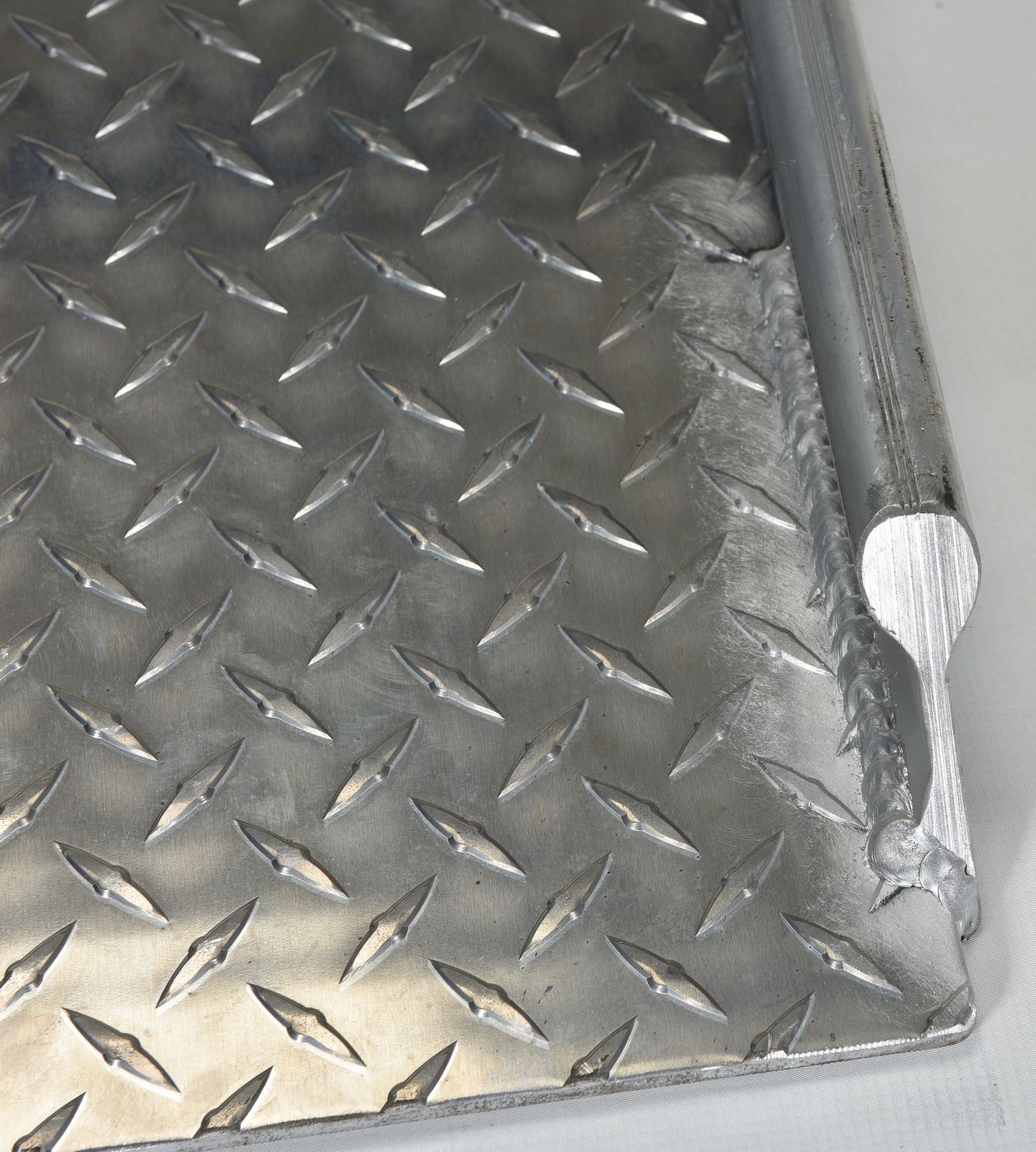

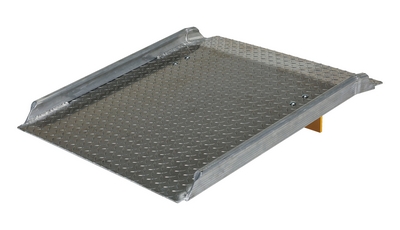

Aluminum Hand Truck DockboardsThe Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
- Lightweight design is ideal for foot or hand truck traffic
- Beveled entrance and exit edges provide smooth transition
- Tread plate surface ensures skid-resistant safe traction
- Bolt-on locking legs and lifting handles for OSHA compliance
Steel Truck Dockplates
Steel Railroad Dockboards
Aluminum Mini Dockplates
Steel Dock Plate Storage Rack
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| AHTD-3036 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 35-7/8 In. x 31-1/4 In. x 7-3/16 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 235 | ||
| AHTD-3048 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 31-1/4 In. x 10-3/16 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 246 | ||
| AHTD-3648 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 37-1/4 In. x 10-3/16 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 250 | ||
| AHTD-3660 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 59-7/8 In. x 37-1/4 In. x 13-3/16 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 112 | ||
| AHTD-3672 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 71-7/8 In. x 37-1/4 In. x 16-1/8 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 95 | ||
| AHTD-3696 |  | 90 Days Limited Warranty | Aluminum Diamond Tread Hand Truck Dock Board with Curbs 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 | 107 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
For More Details of the Option Click the Red Model Button
| Aluminum Hand Truck Dockboard-Options | |||||||
| Model | PDFs | Description | |||||
| DPR-2616 | - | Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow | |||||
| 1HDL |  |
One Handle | |||||
| SDP | |
Smooth Deck Plate (Diamond side down with grip tape) | |||||
| S2B | |
Special 2nd Bend Location | |||||
| SBL | |
Special Bend Location | |||||
| SLL | |
Special Location of Legs | |||||
| ATC-12 | |
Anti-Theft Chain (144") | |||||
| LHDL | |
Extra Pair of Legs with Handles & Hardware | |||||
| TRADE | |
Trade in Allowance (F.O.B. IN) | |||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products

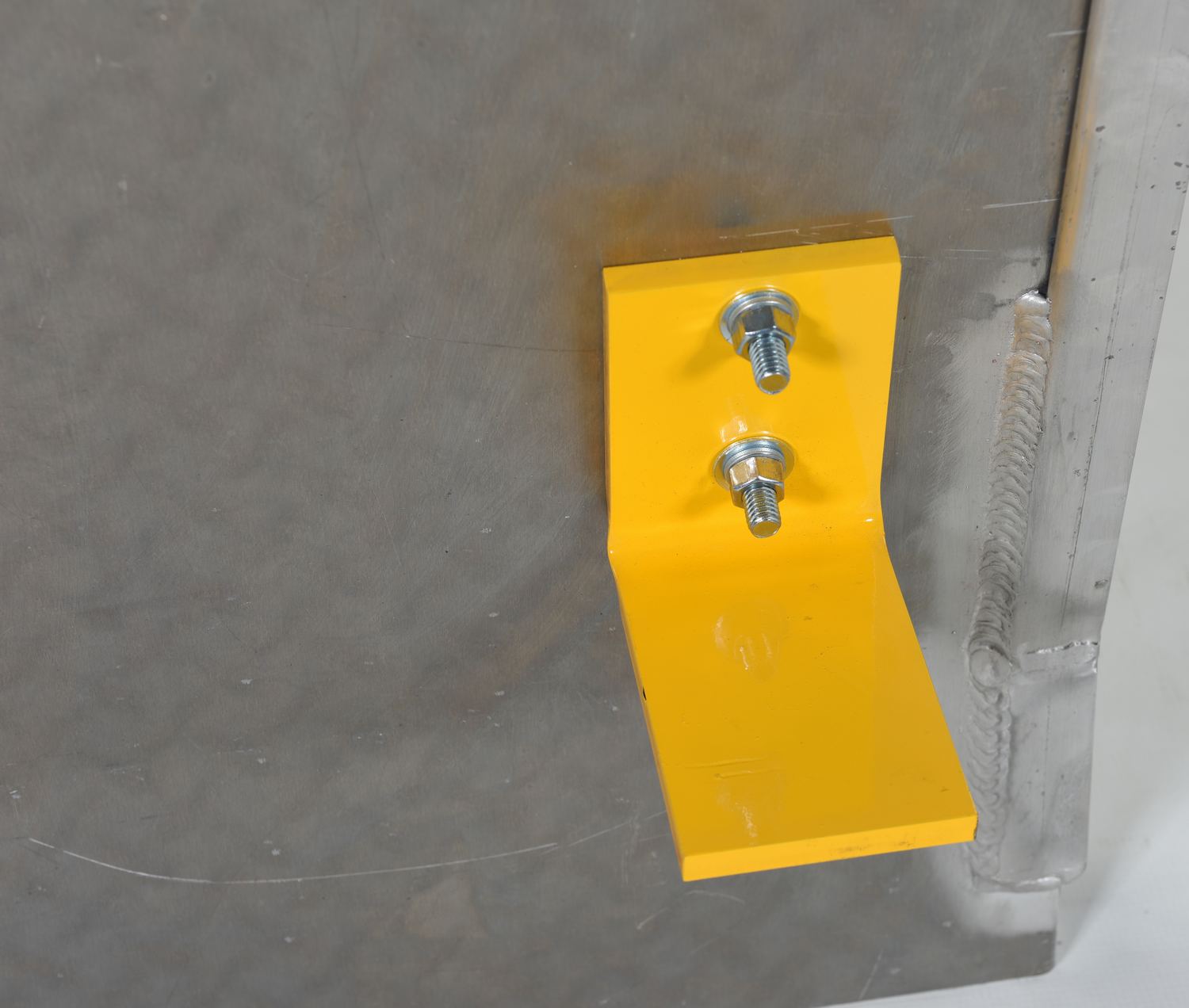

Q: How many holes are in the AHTD dock board legs?
A: Model AHTD-3036 has 2 holes to mount the legs to the dock board. All other AHTD's have 4 holes- two to mount the legs to the dock board, and two on the other side of the bend.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aluminum Hand Truck Dockboards |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
