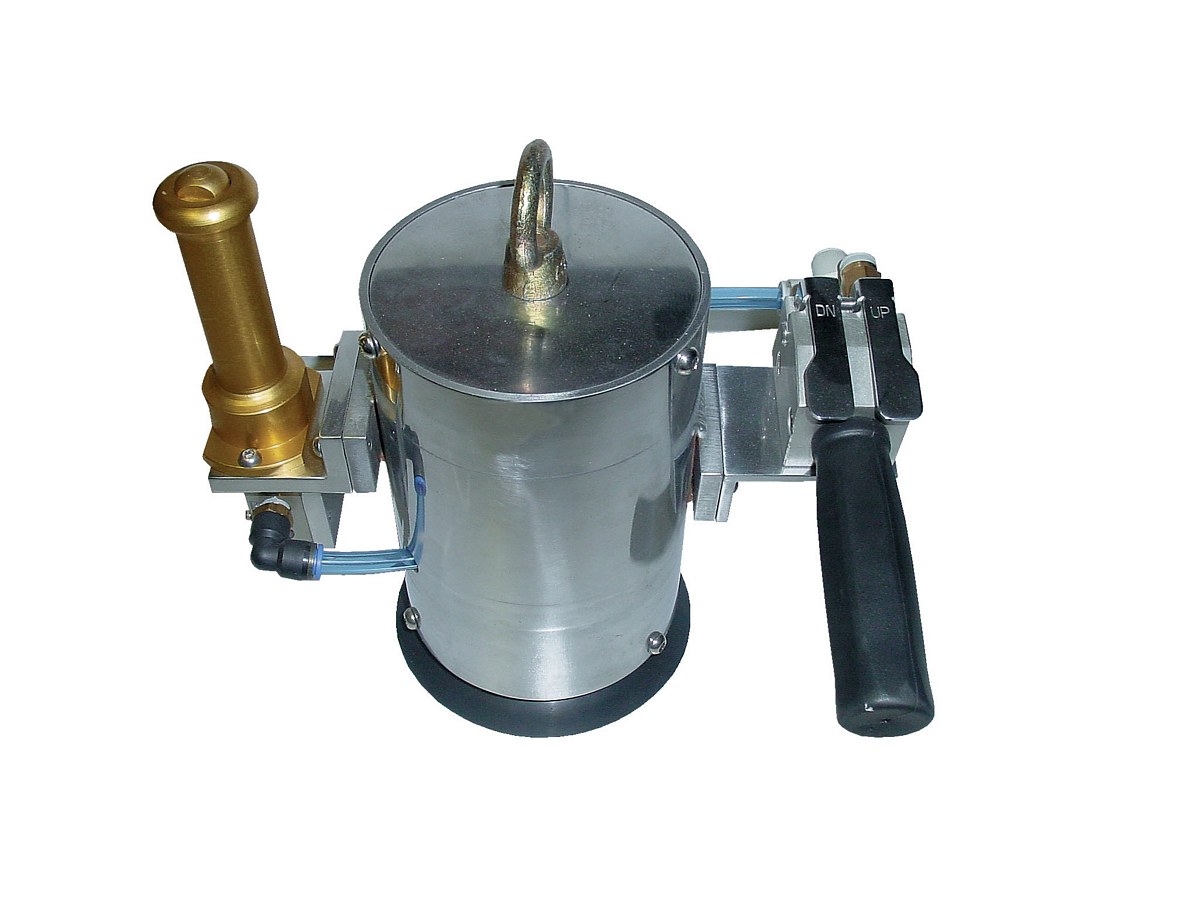

Mechanical & Pneumatic Hoist AttachmentsPneumatic Vacuum Lifter is designed to lift products with smooth, flat and non-porous surfaces. Push button to operate vacuum to grab product. Release button to release product. Positioning of product is provided by the Air Balance Jib Lifter.

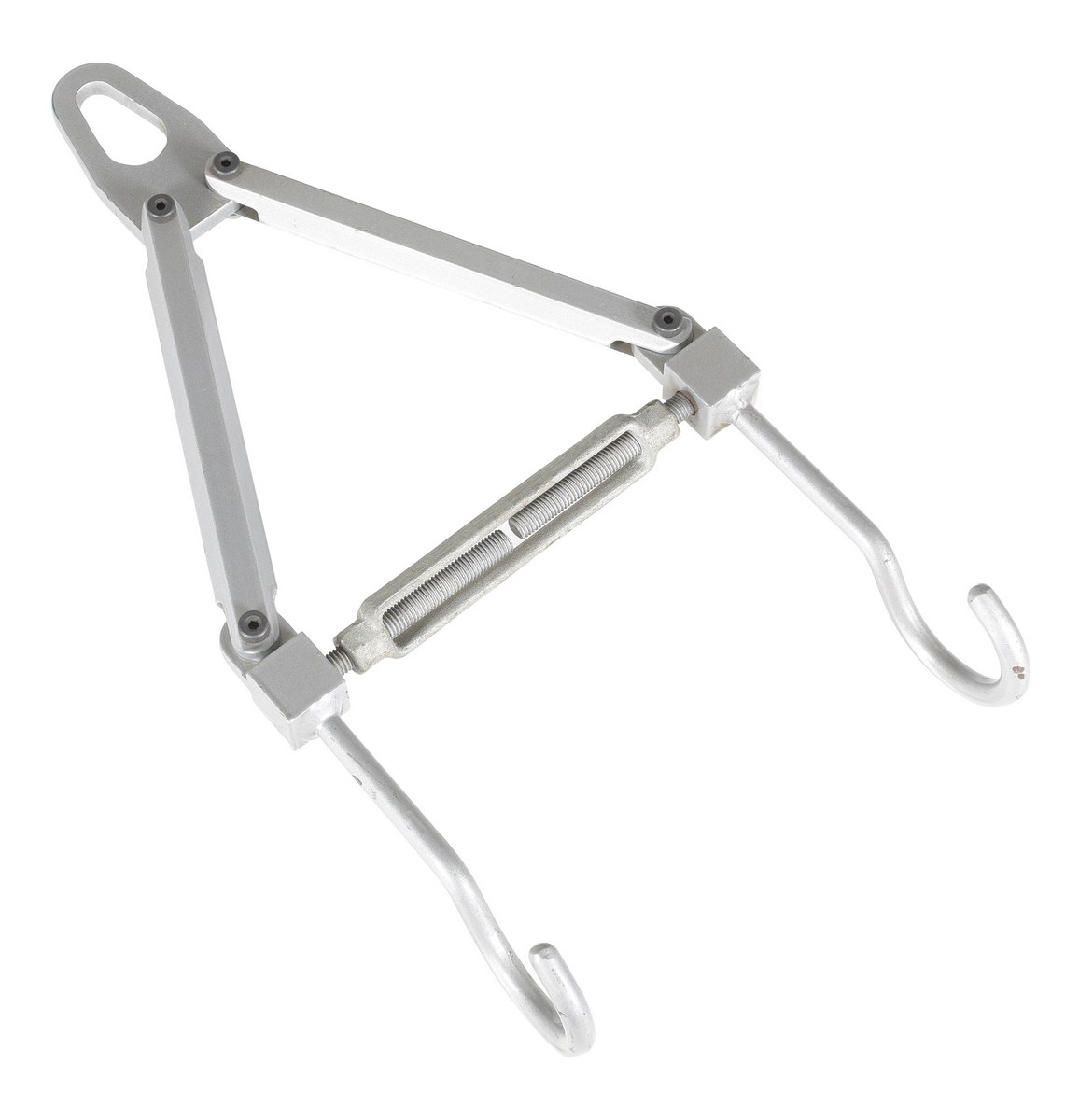

Double Hook Lifter is designed to lift virtually any type of object, either small or large, long or short, round or flat. Simple double-hook design with mechanical operation only.
Specialty Vacuum Lifters
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| LMEC-DH |  | 30 Days Limited Warranty | Steel Double Hook Hoist Attachment 250 Lb. Capacity Gray | Uniform Capacity (lb.): 250 Minimum/Maximum Width (in.): 10-1/2 to 16-1/2 | 20 | ||
| VAC-6 |  | 90 Days Limited Warranty | Aluminum Pneumatic Vacuum Lifter 250 Lb. Capacity Silver | Uniform Capacity (lb.): 250 Maximum (psi.): 75 | 32 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Minimum/Maximum Width (in.): 10-1/2 to 16-1/2
Uniform Capacity (lb.): 250
Minimum/Maximum Width (in.): 10-1/2 to 16-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Maximum (psi.): 75
Uniform Capacity (lb.): 250
Maximum (psi.): 75
