Modular Style StairwaysAttractive Modular Style Stairway is economical and easily assembled. Steps are 36" wide with non-skid grip strut, which bolt in place and are baked-in powder-coated toughness. Standard climb angle is 31 degrees. Customer must provide their landing height at time of purchase. Handrails and side rails bolt together. The handrail tubing has a powder coat yellow finish. Units meet OSHA requirements and unit ships disassembled. Concrete Anchoring Hardware available.
- Strong steel construction
- Brightly colored, highly visible handrails
- Serrated steps for extra grip
- Wide step design for simple transference of awkward sized objects
Fiberglass Twin Front Ladders
Rolling Warehouse Ladders (12-16 Step)
Fiberglass Step Ladders
Semi-Trailer Access LadderAdditional Models In This Family
STAIR-108
STAIR-72
STAIR-36
STAIR-96
STAIR-144
STAIR-48
STAIR-60
STAIR-60
STAIR-132
STAIR-120
STAIR-84
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

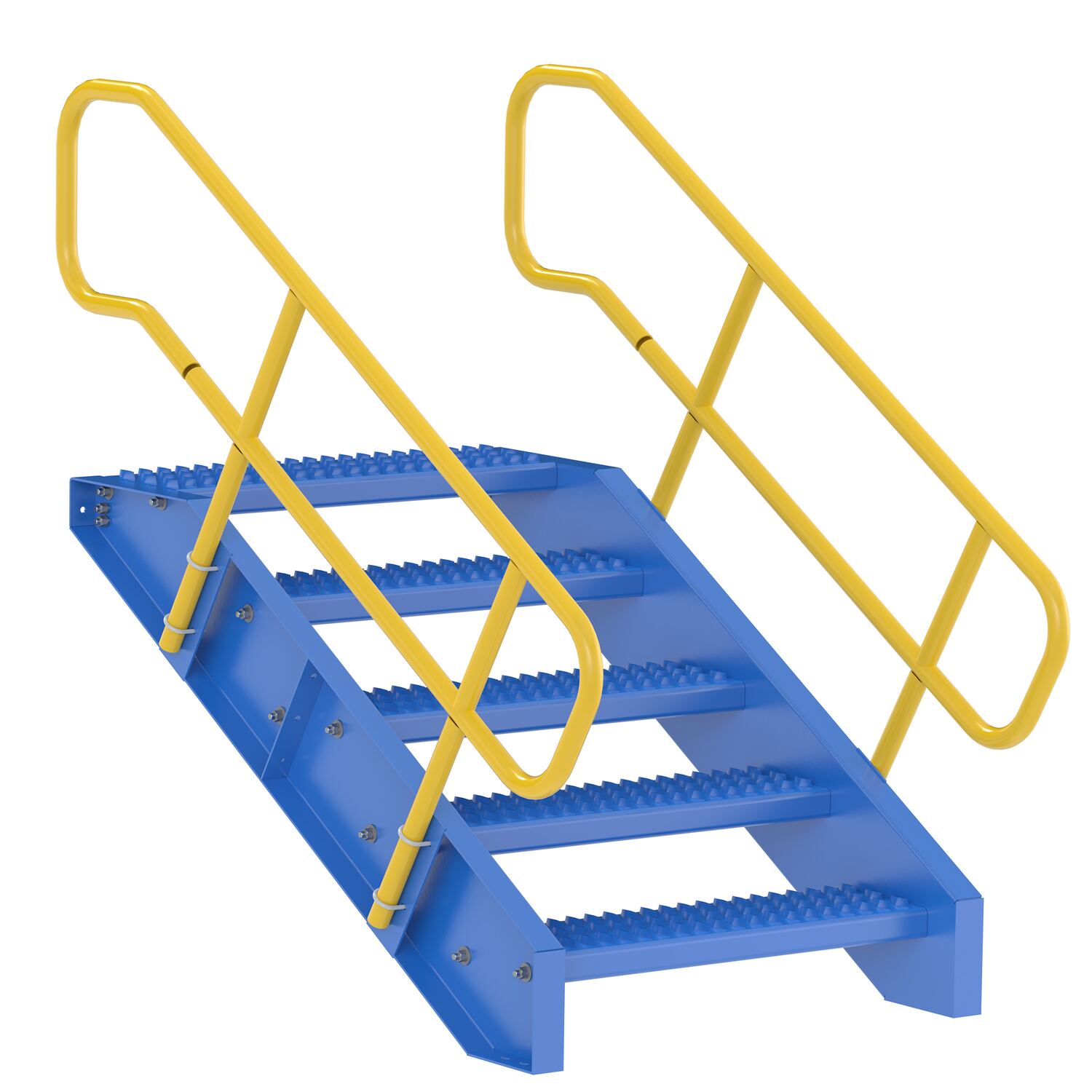

| STAIR-36 | | | 1 Year Limited Warranty | Steel 5 Step Modular Style Stairway Top Step 36 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 399 | |

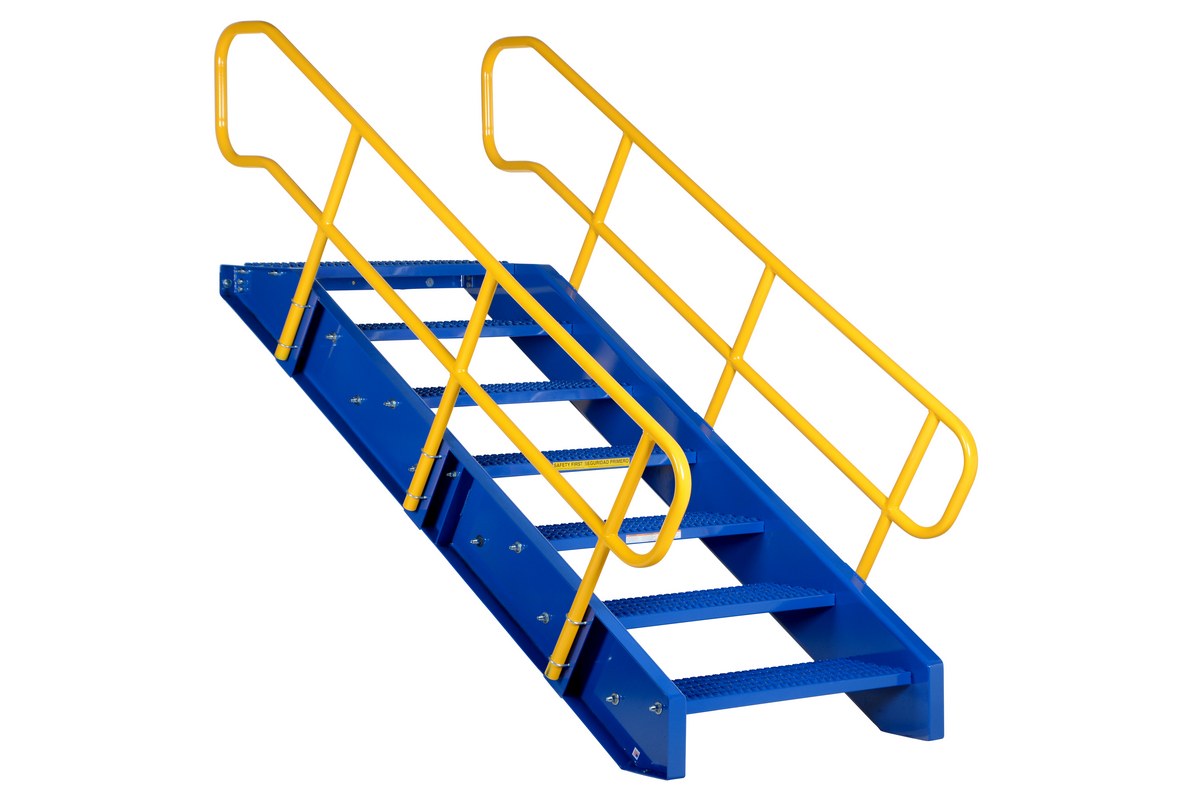

| STAIR-48 | | | 1 Year Limited Warranty | Steel 7 Step Modular Style Stairway Top Step 48 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 519 | |

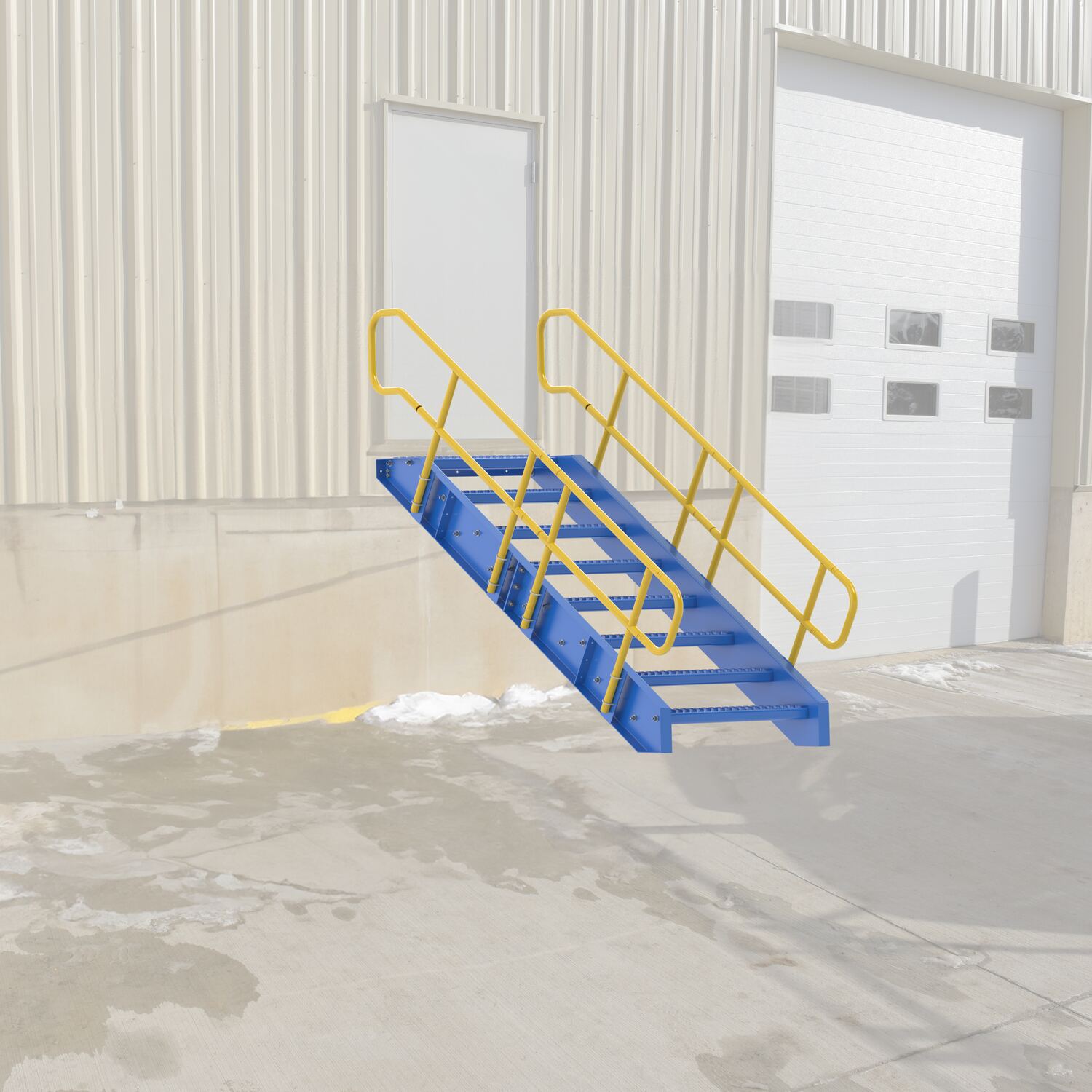

| STAIR-60 | | | 1 Year Limited Warranty | Steel 8 Step Modular Style Stairway Top Step 60 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 528 | |
| STAIR-72 | | | 1 Year Limited Warranty | Steel 10 Step Modular Style Stairway Top Step 72 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 592 | |

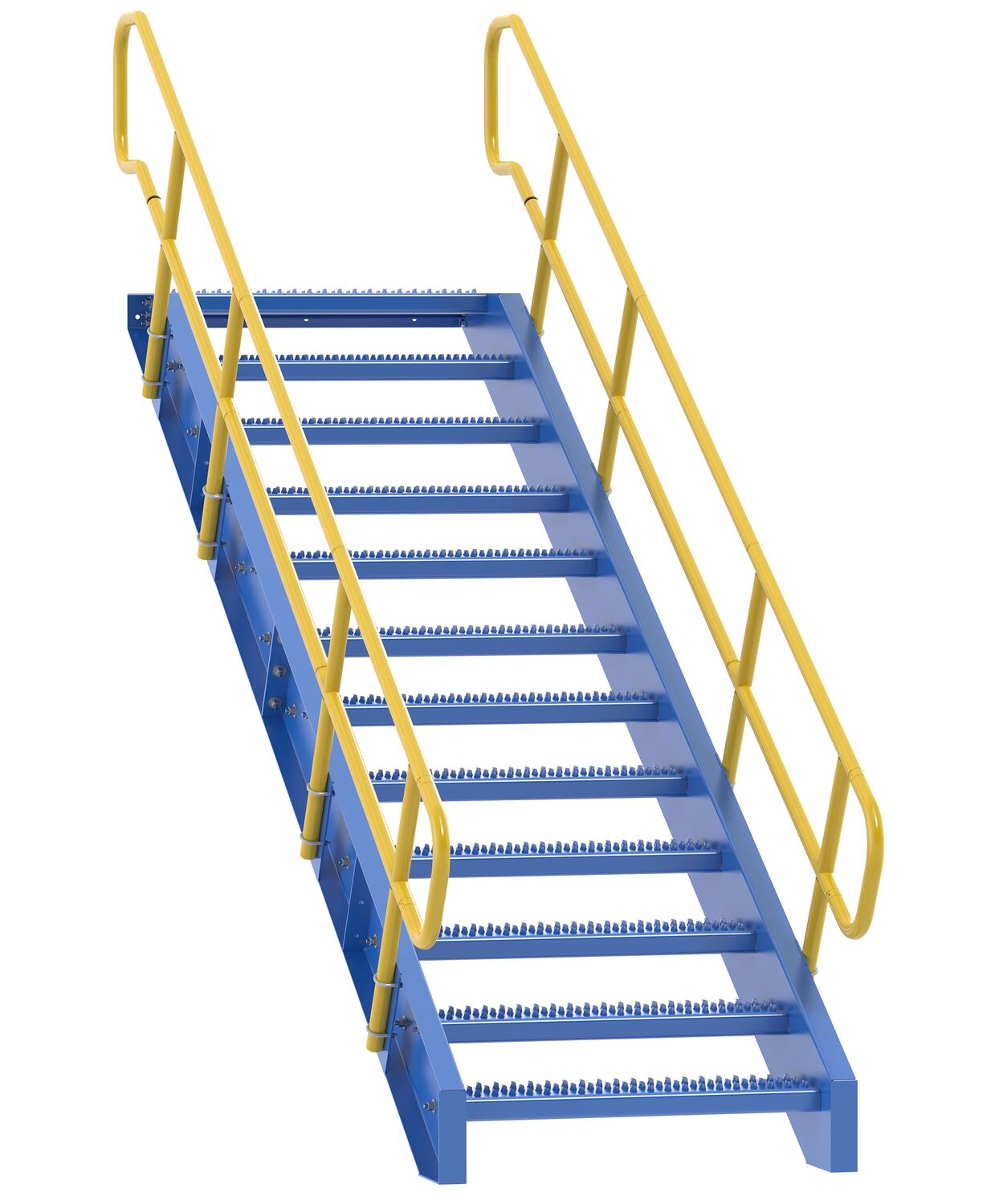

| STAIR-84 | | | 1 Year Limited Warranty | Steel 12 Step Modular Style Stairway Top Step 84 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 735 | |

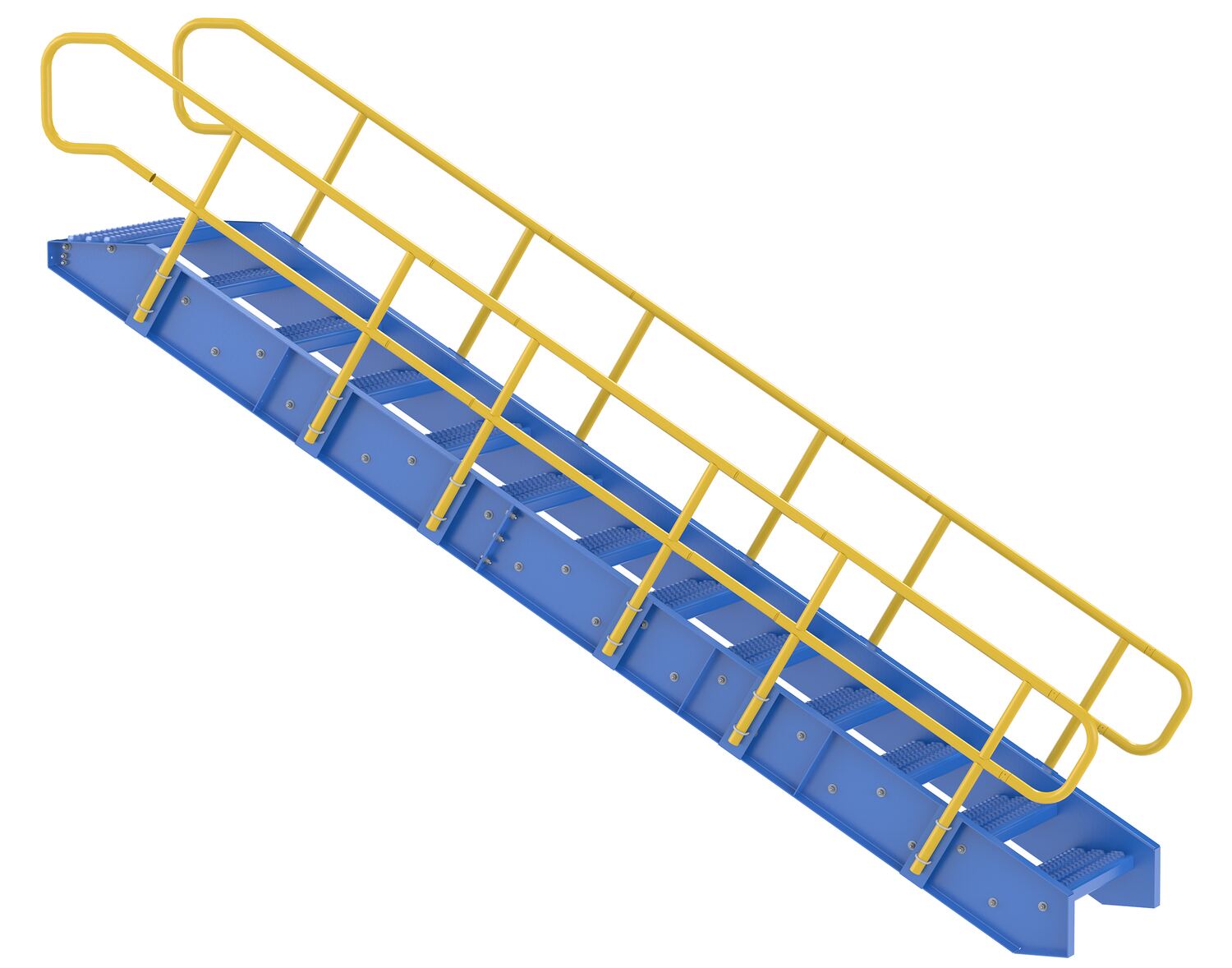

| STAIR-96 | | | 1 Year Limited Warranty | Steel 13 Step Modular Style Stairway Top Step 96 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 898 | |

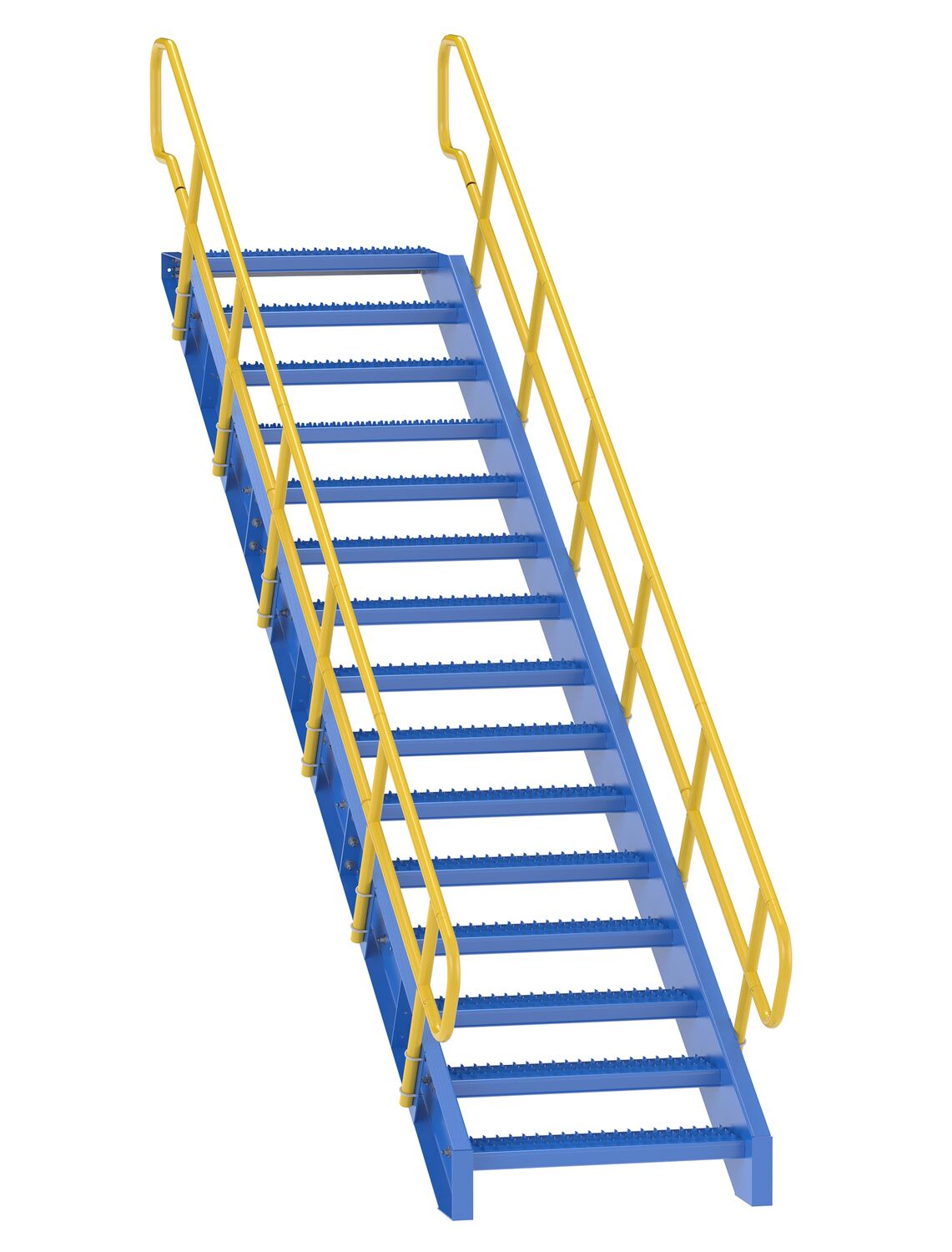

| STAIR-108 | | | 1 Year Limited Warranty | Steel 15 Step Modular Style Stairway Top Step 108 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 954 | |

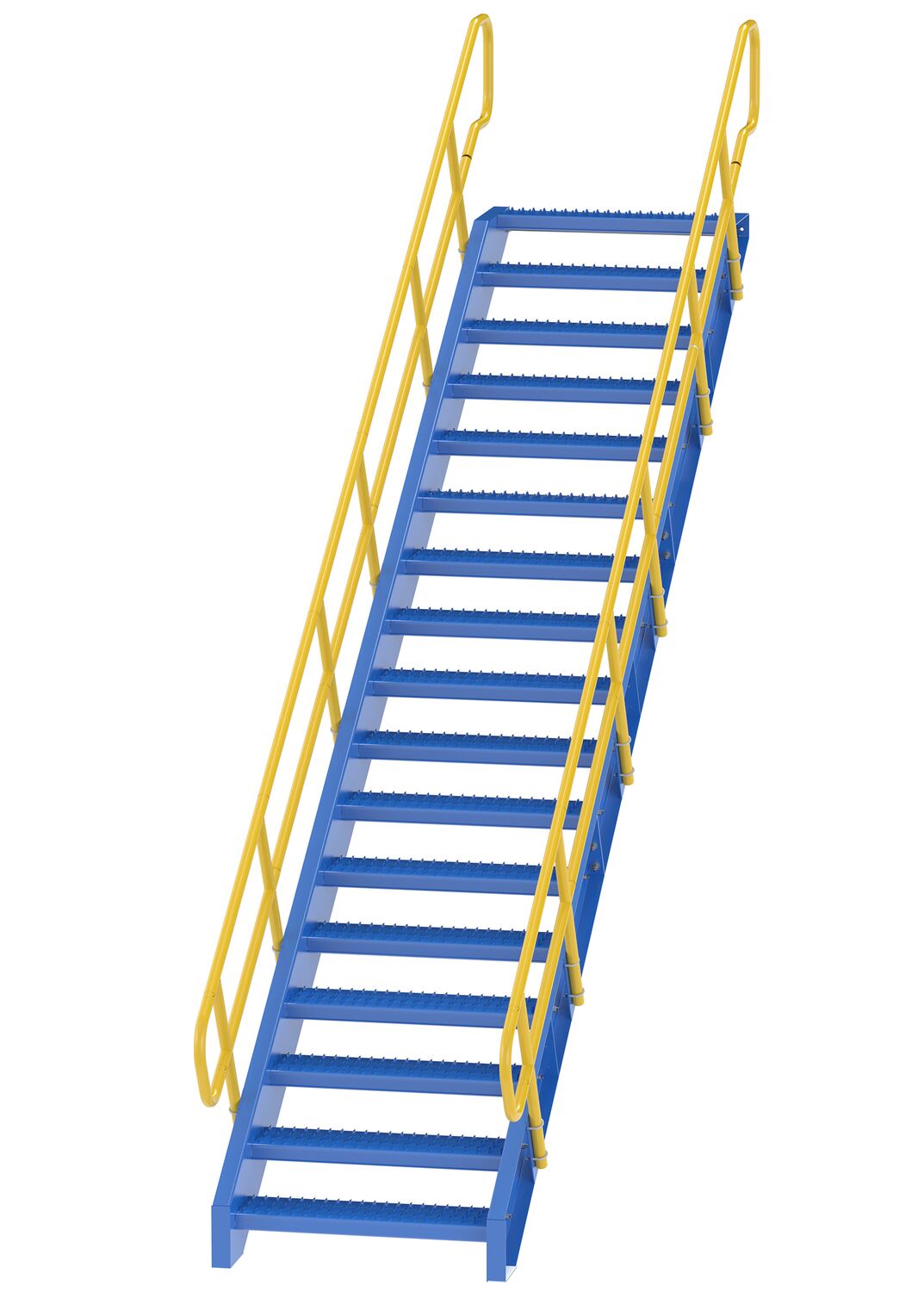

| STAIR-120 | | | 1 Year Limited Warranty | Steel 17 Step Modular Style Stairway Top Step 120 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 1004 | |

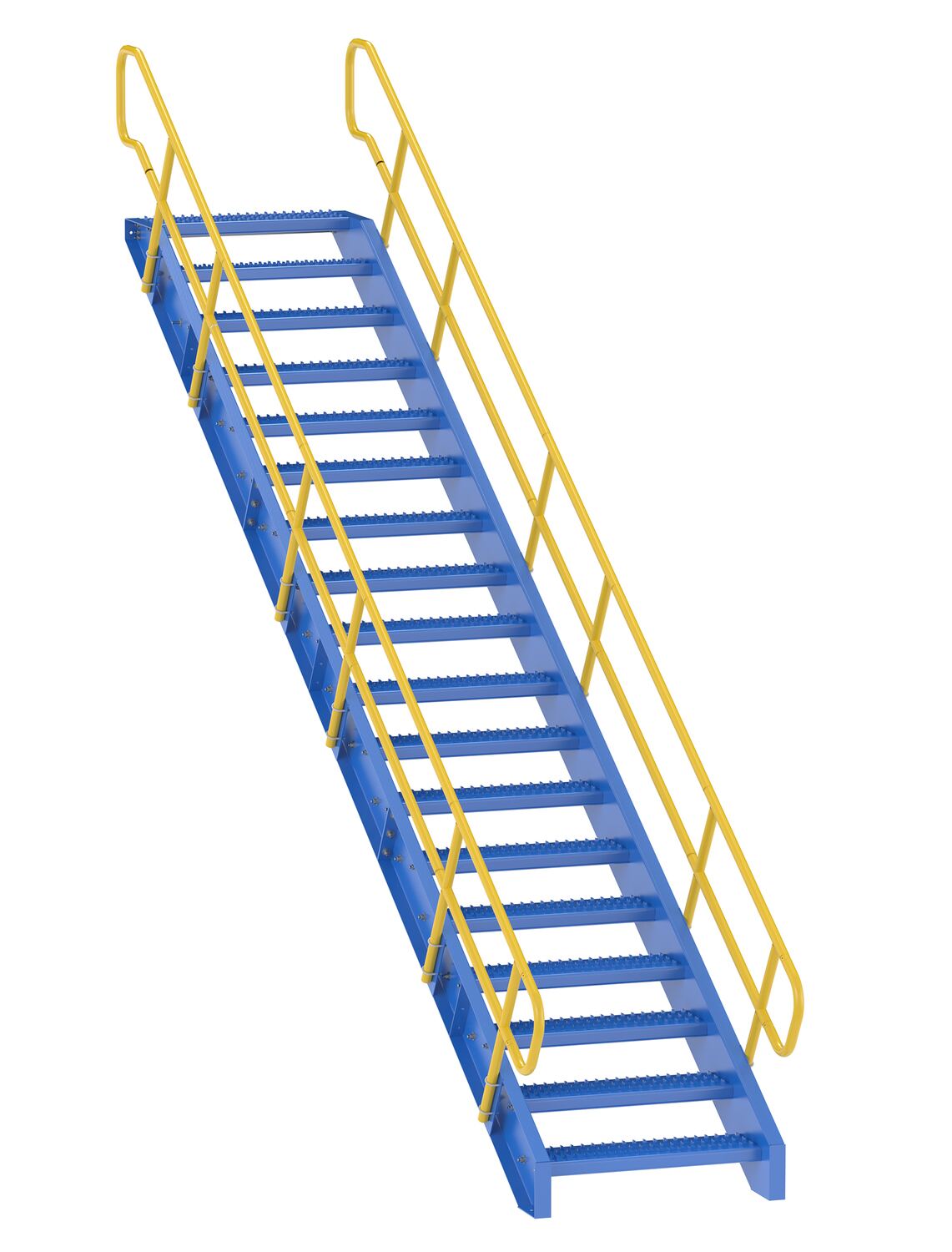

| STAIR-132 | | | 1 Year Limited Warranty | Steel 18 Step Modular Style Stairway Top Step 132 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 1145 | |

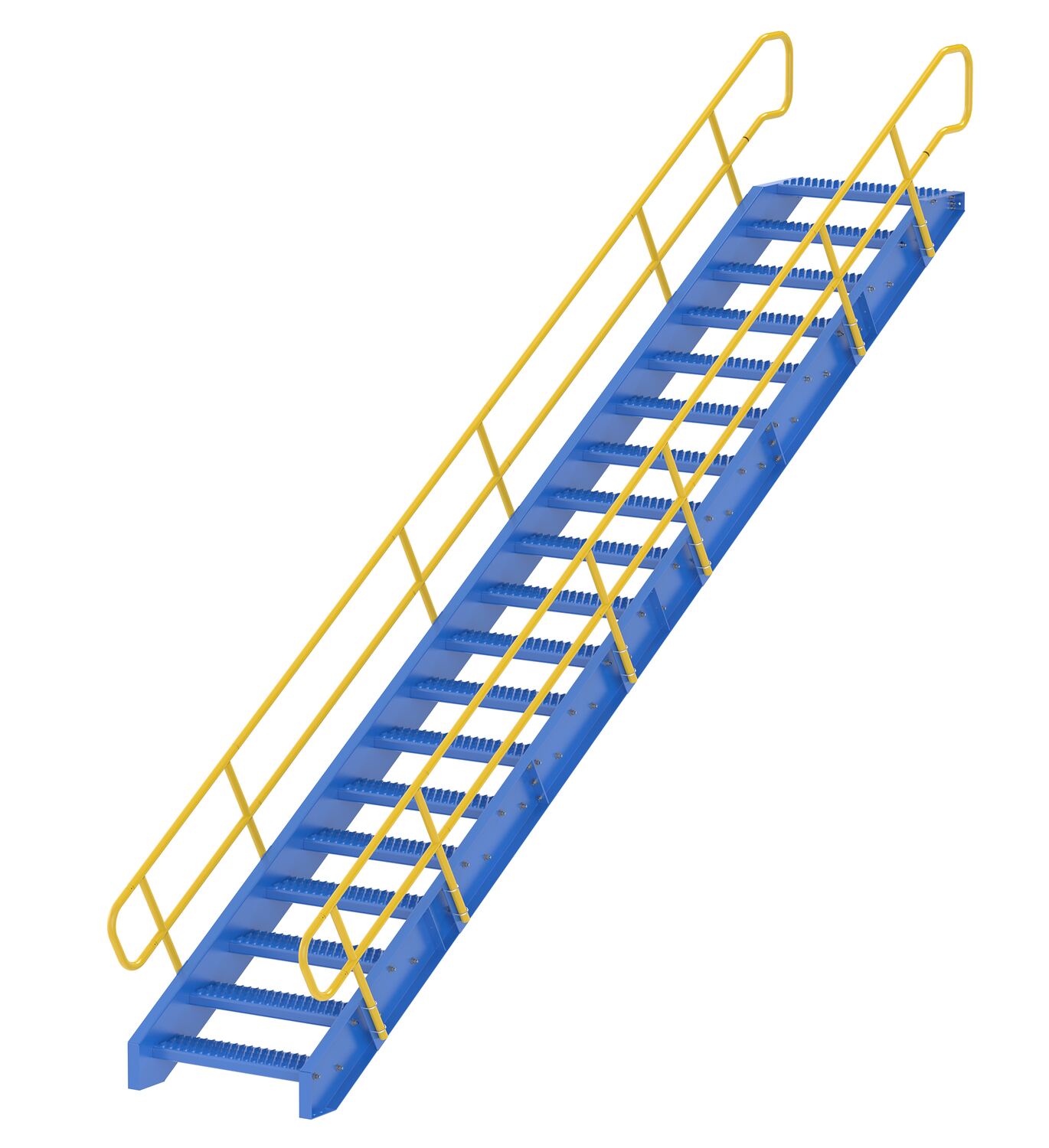

| STAIR-144 | | | 1 Year Limited Warranty | Steel 19 Step Modular Style Stairway Top Step 144 In. 1,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 | 1190 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
