For More Details of the Option Click the Red Model Button
ATS-SCG | NEW | ![]() | 1 Year Limited Warranty | Steel Alternating Tread Step Self-Closing Gate Steel Yellow | Hardware Included?: Yes Overall Width (in.): 3 | 16 |
.
Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.

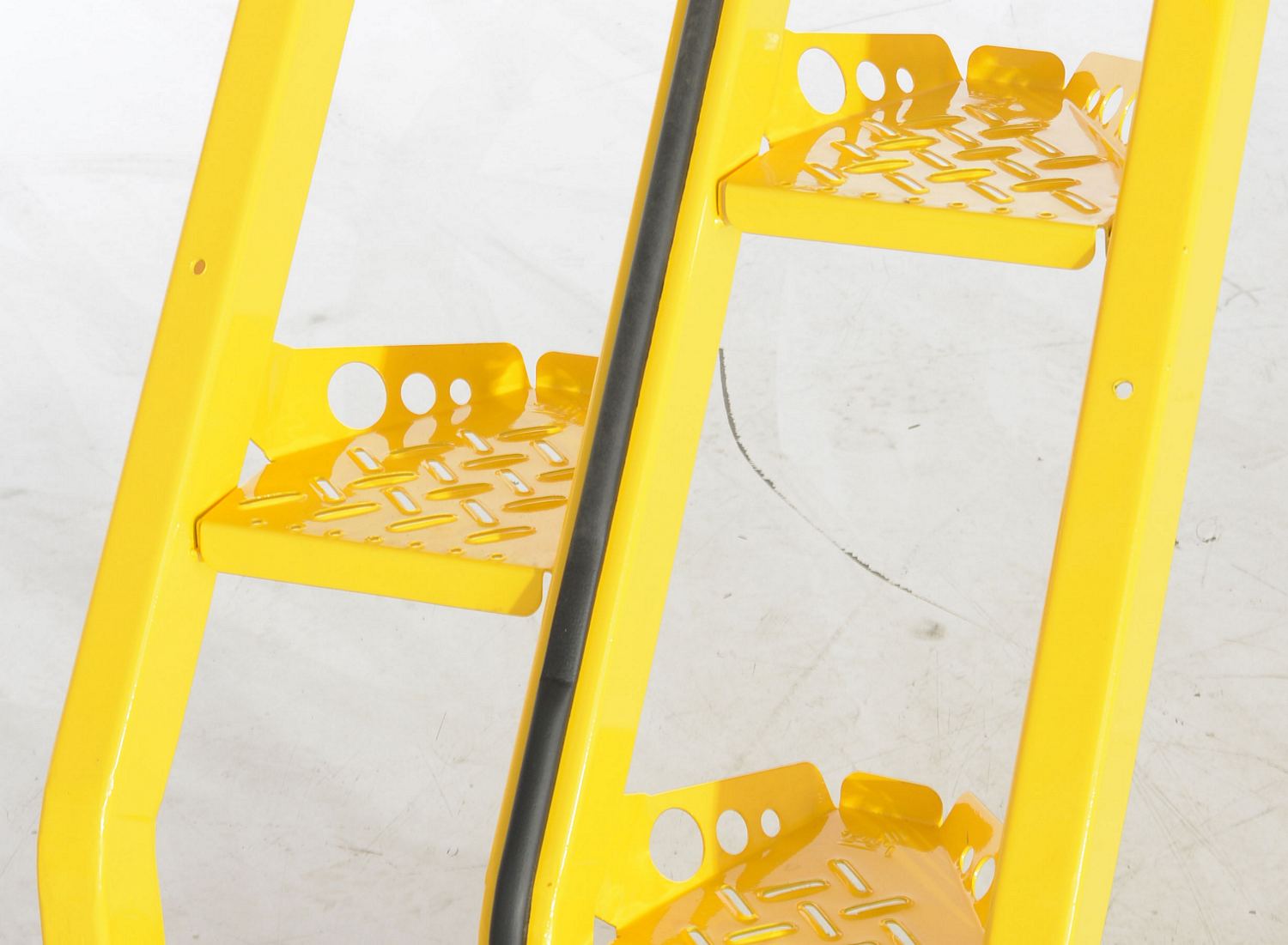

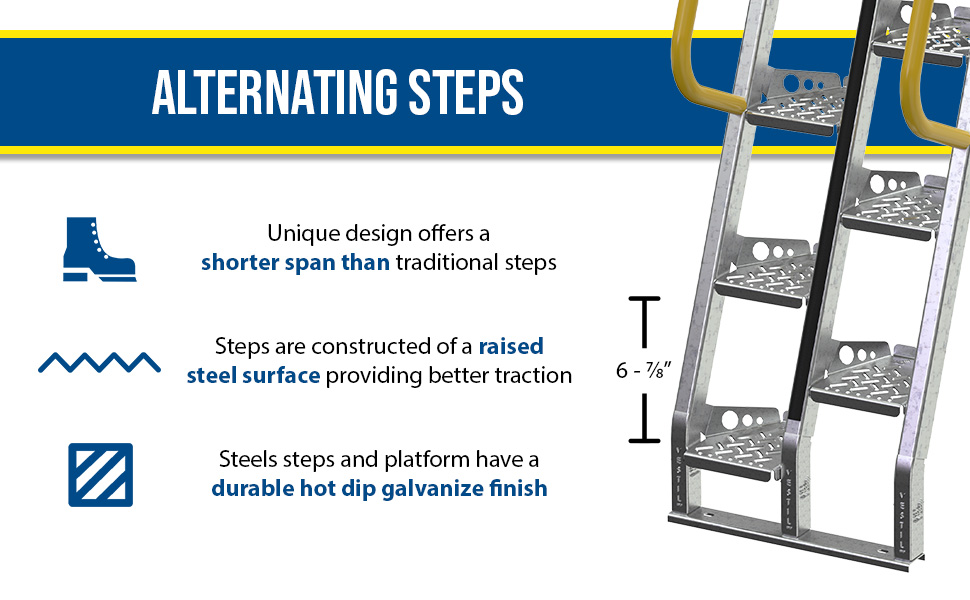

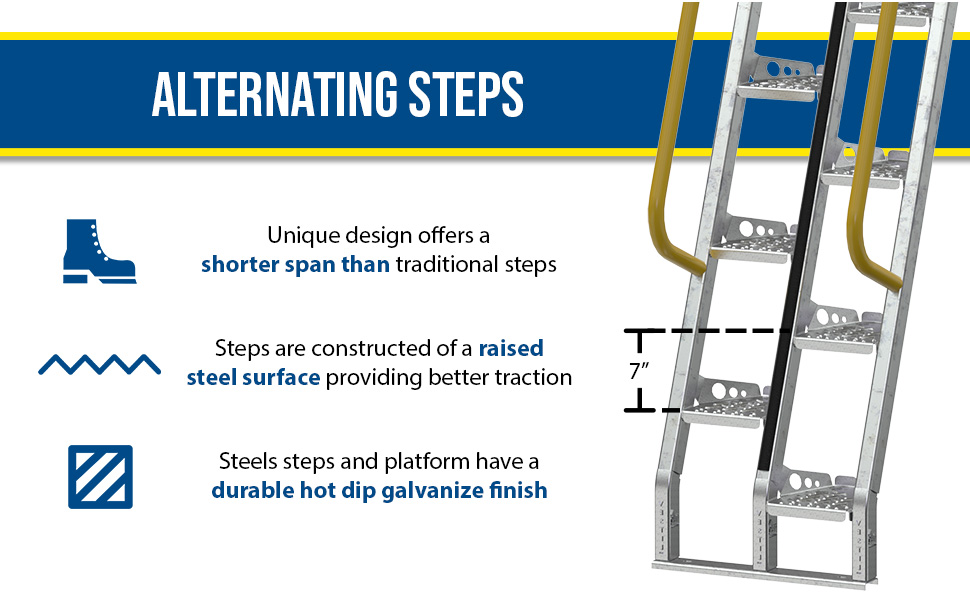

Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Baked-in powder coat finish for added toughness. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.
Models ending in -HDG have hot dip galvanized steel steps. As well as hot dip galvanized handrails with a yellow powder coat finish.

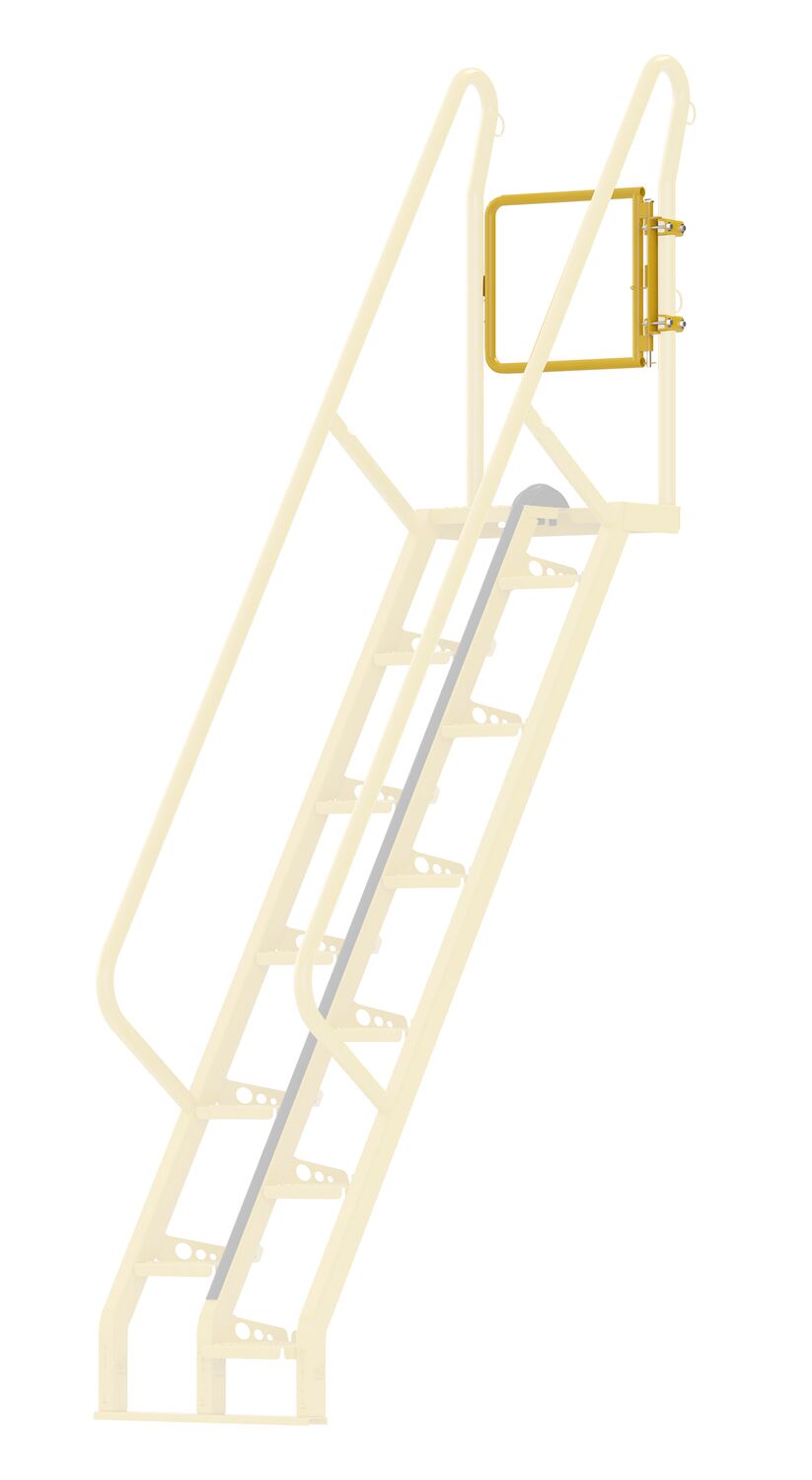

Optional Self Closing Gate
Often times the top step of a ladder is left open, with no railing. This optional gate brings the two ladder side rails together, providing much needed personnel protection. The gate includes a top and bottom rail ensuring high and low user safety.
Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Baked-in powder coat finish for added toughness. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.
Models ending in -HDG have hot dip galvanized steel steps. As well as hot dip galvanized handrails with a yellow powder coat finish.
Optional Self Closing Gate
Often times the top step of a ladder is left open, with no railing. This optional gate brings the two ladder side rails together, providing much needed personnel protection. The gate includes a top and bottom rail ensuring high and low user safety.
Model # | Description | Attributes | Net Wt. (lbs) |
||||
---|---|---|---|---|---|---|---|

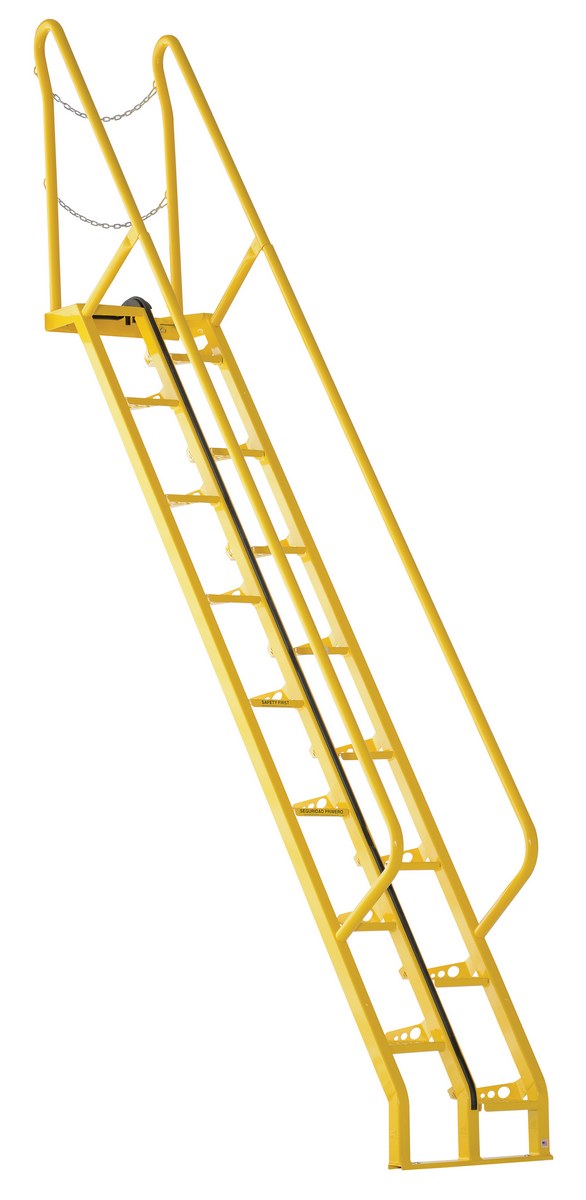

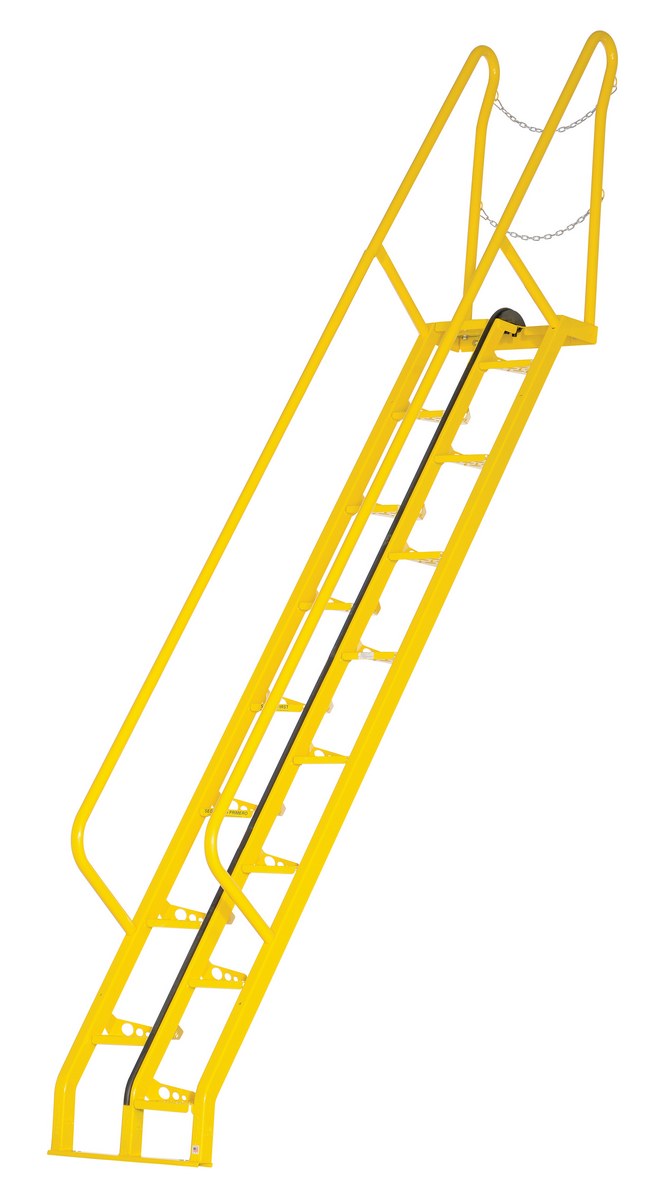

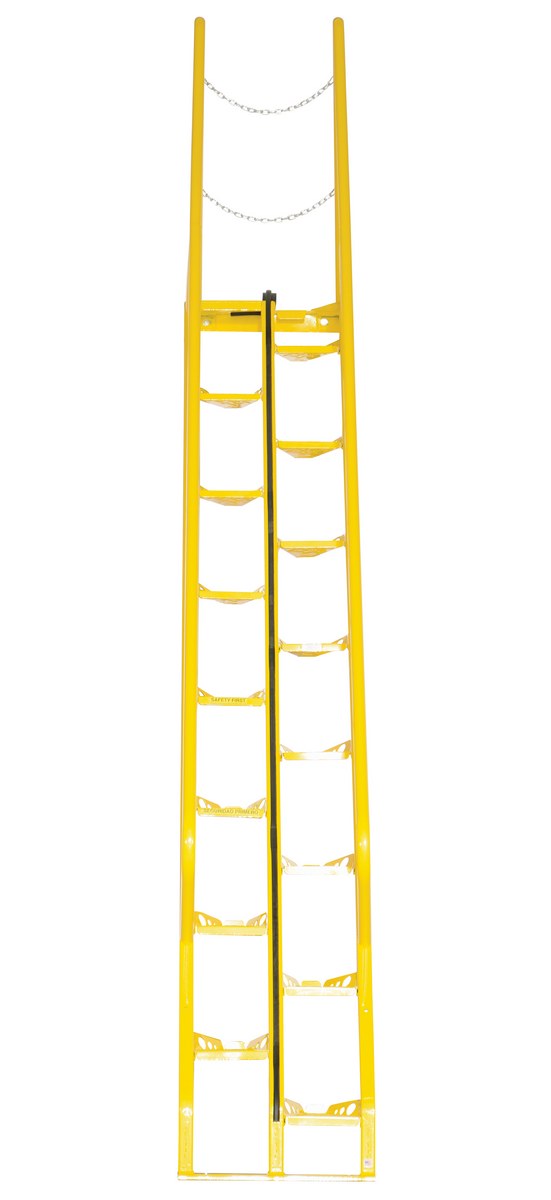

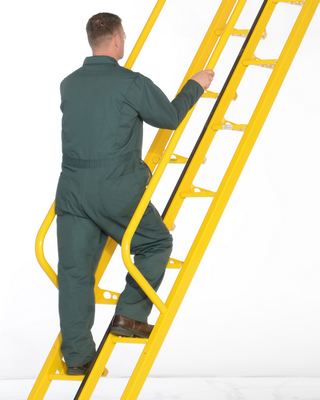

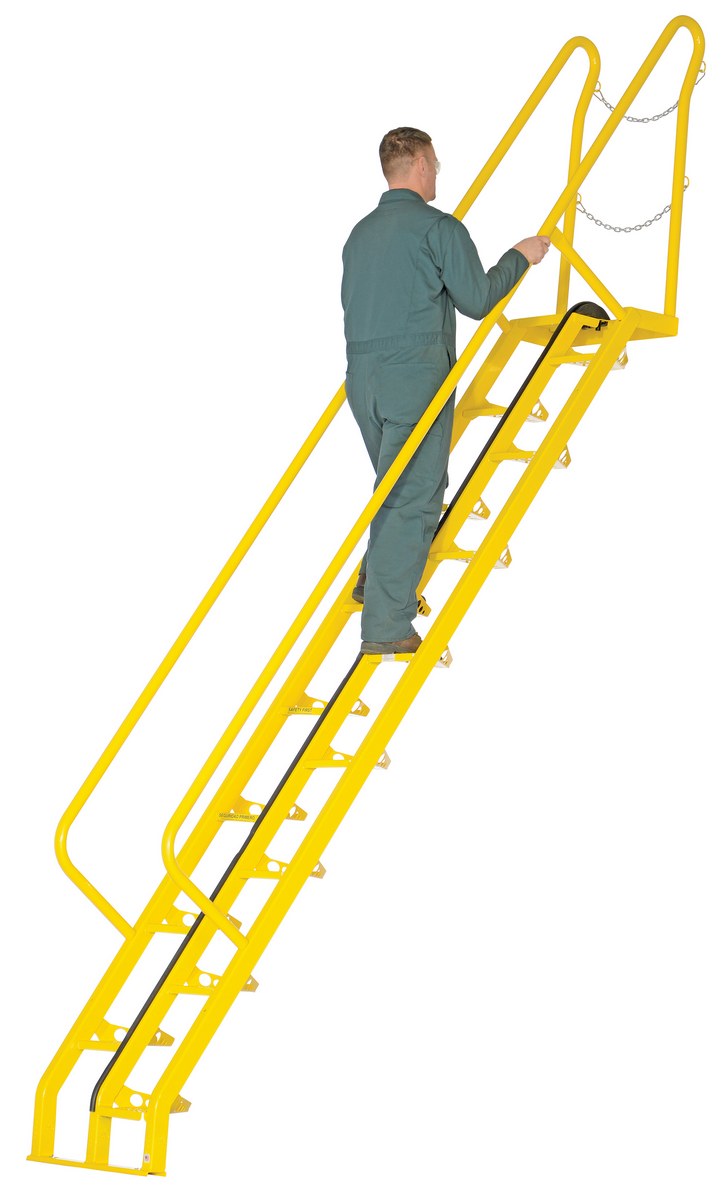

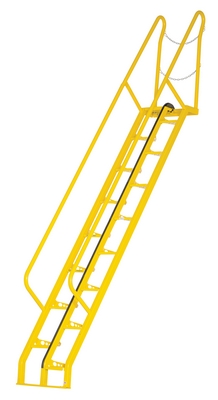

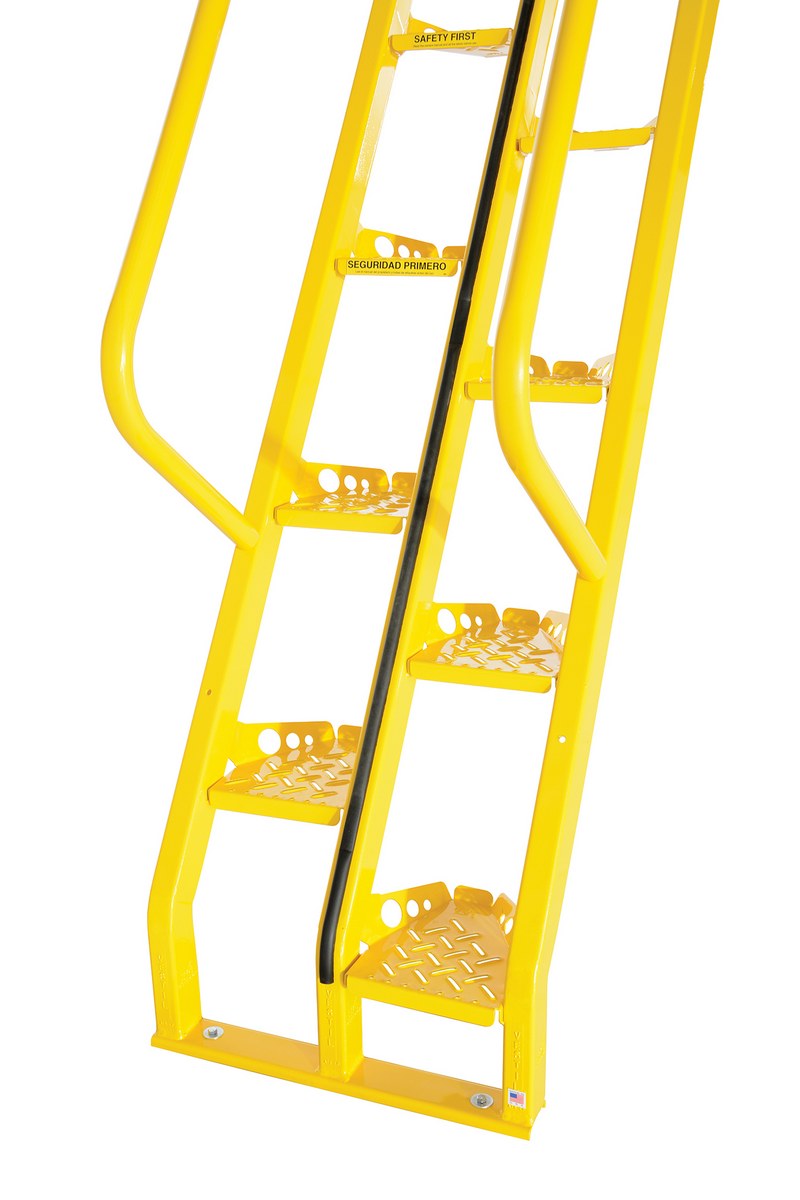

ATS-10-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 89-3/4 In. x 23-1/2 In. x 162-3/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps (Including Top Step): 16 | 312 | ||

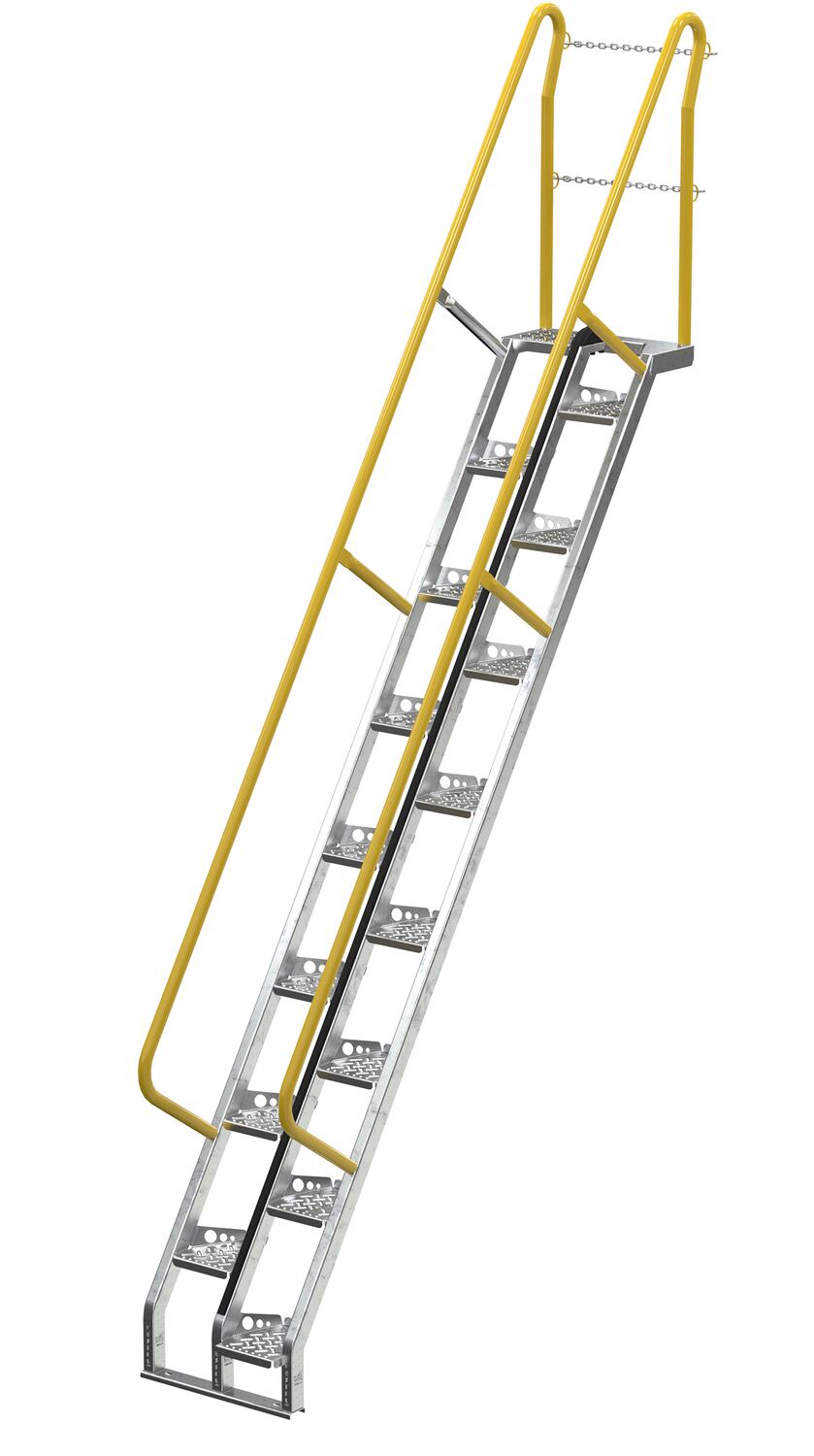

ATS-10-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 89-3/4 In. x 23-1/2 In. x 162-3/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps (Including Top Step): 16 | 312 | ||
ATS-10-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 58-7/8 In. x 23-1/2 In. x 161-7/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 16 | 274 | ||

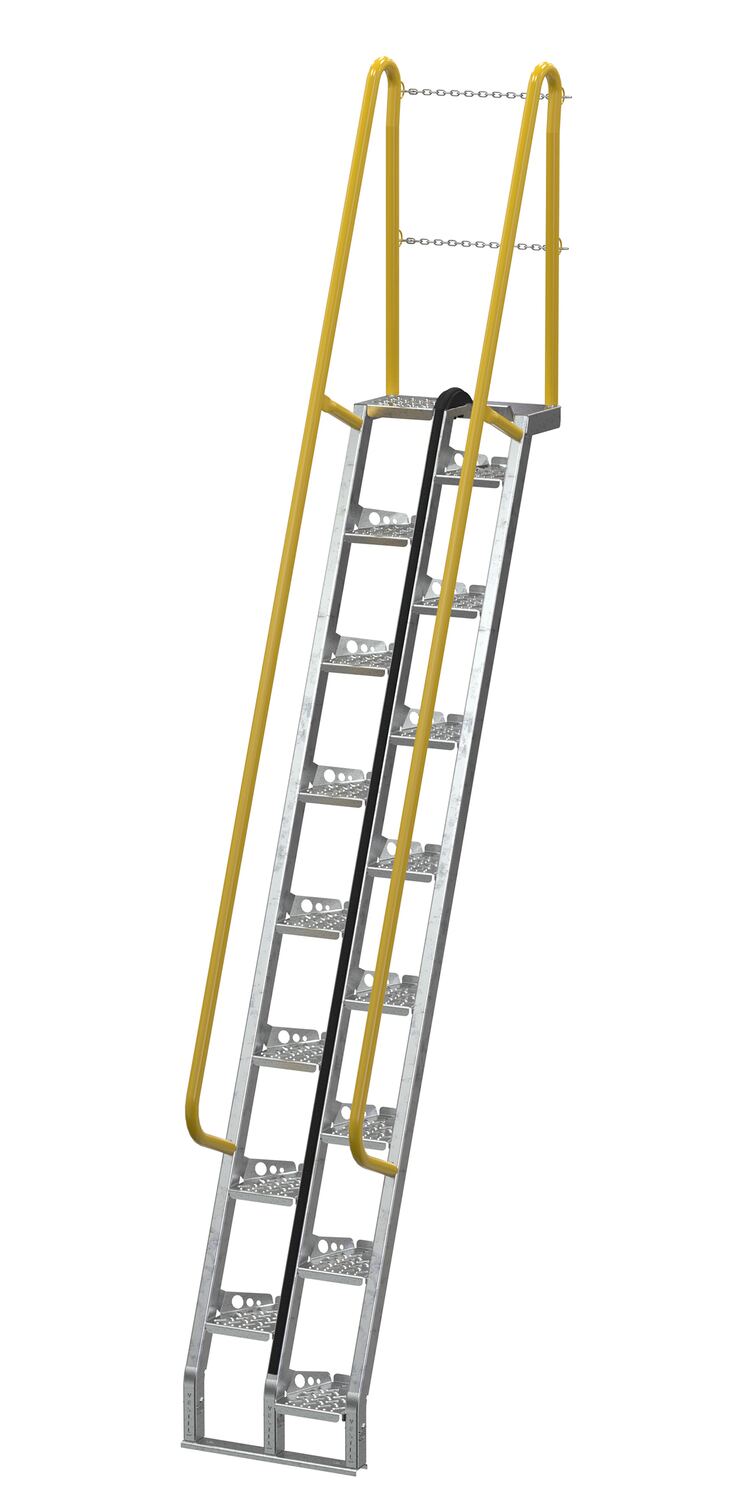

ATS-10-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 58-7/8 In. x 23-1/2 In. x 161-7/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 16 | 274 | ||

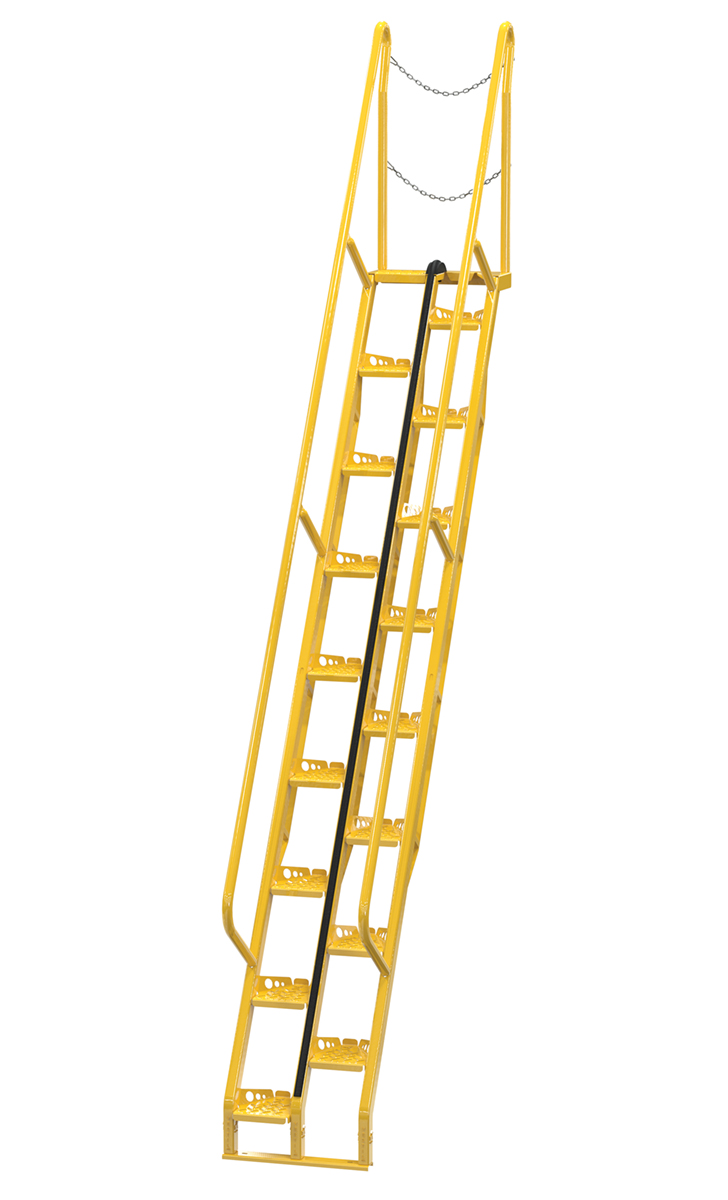

ATS-11-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 97-1/2 In. x 23-1/2 In. x 174-1/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 17 | 374 | ||

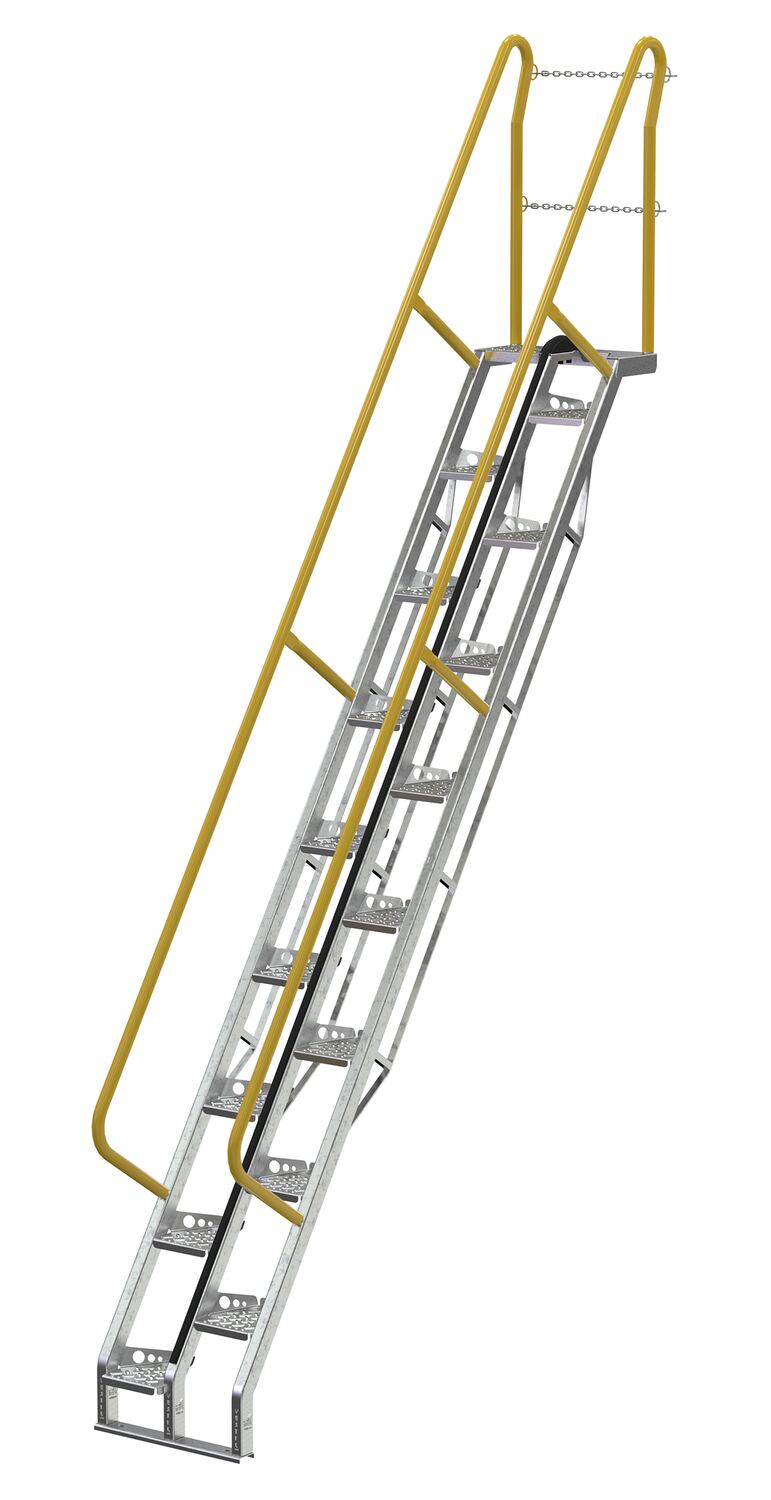

ATS-11-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 97-1/2 In. x 23-1/2 In. x 174-1/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 17 | 374 | ||

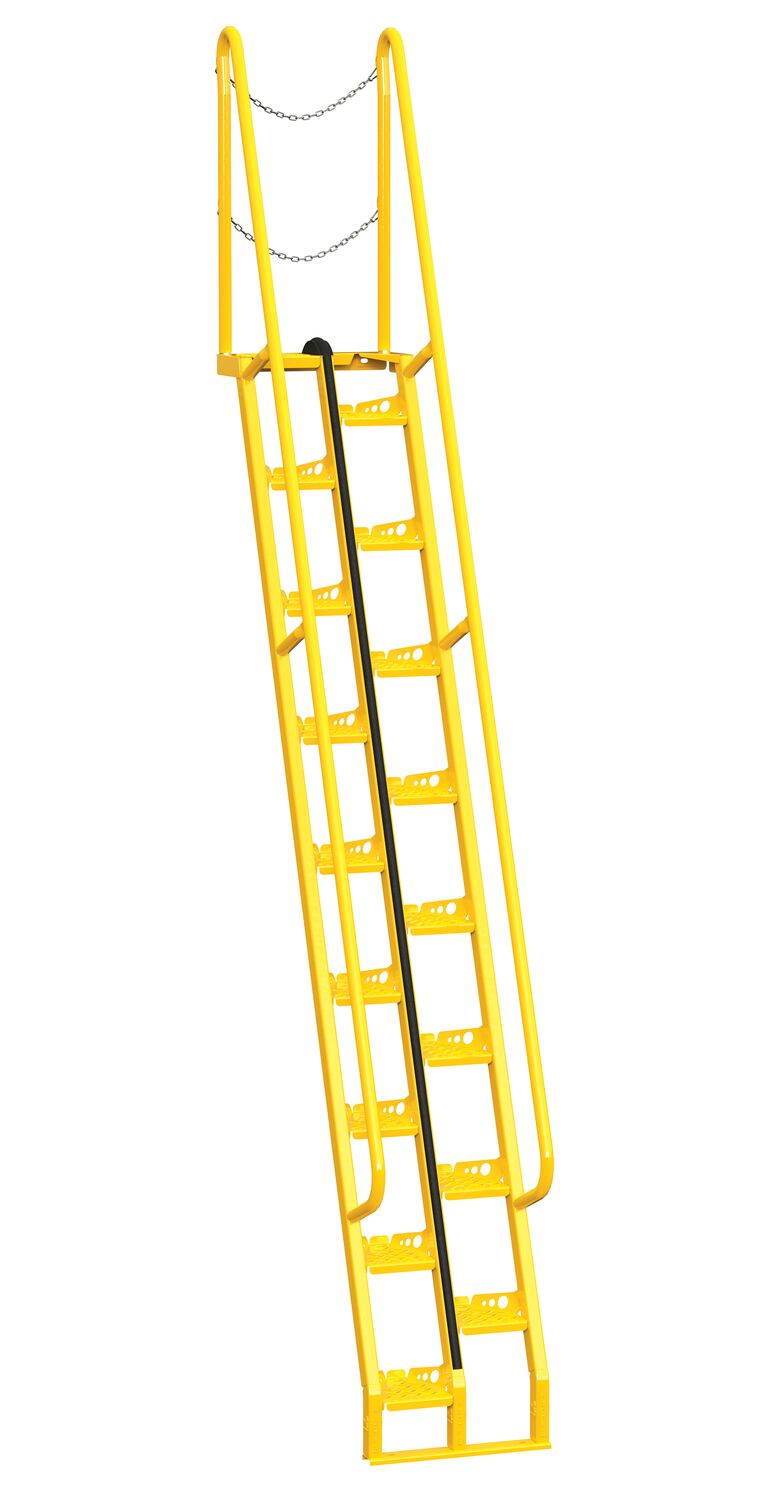

ATS-11-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 63-1/2 In. x 23-1/2 In. x 173-5/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 17 | 298 | ||

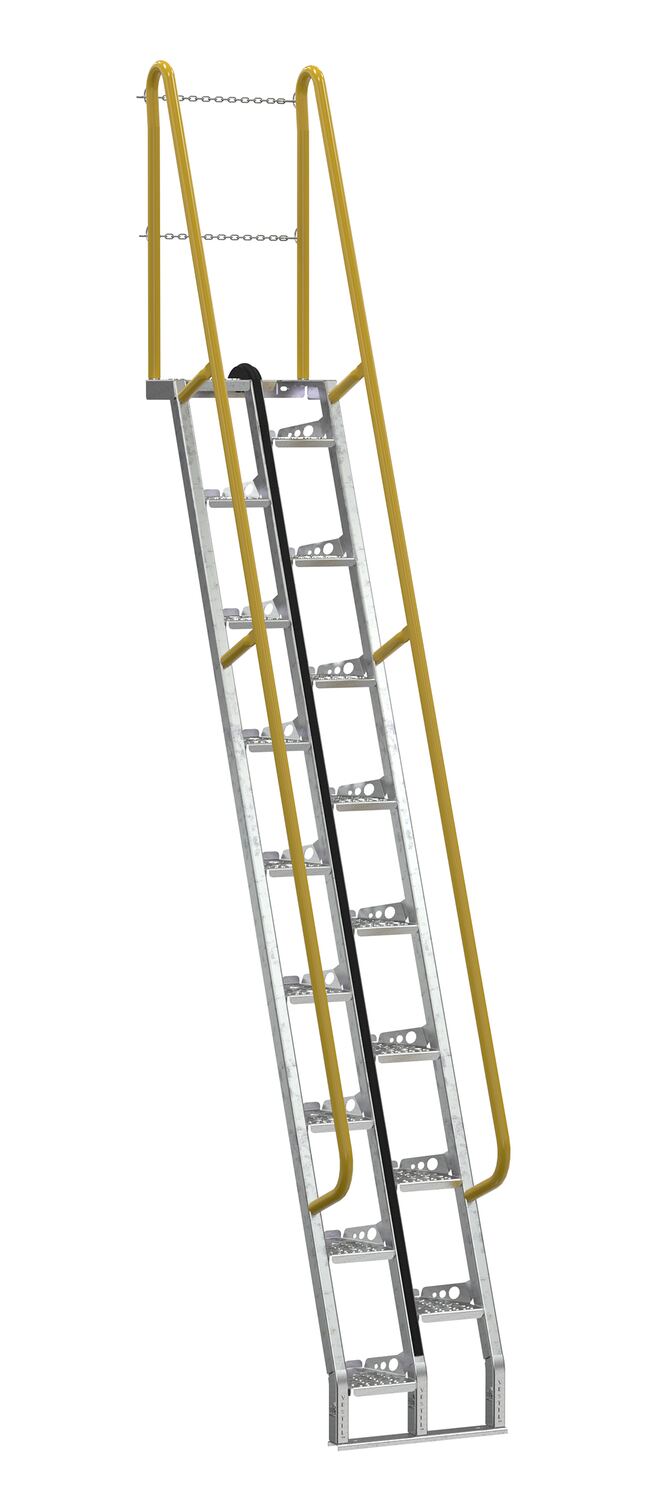

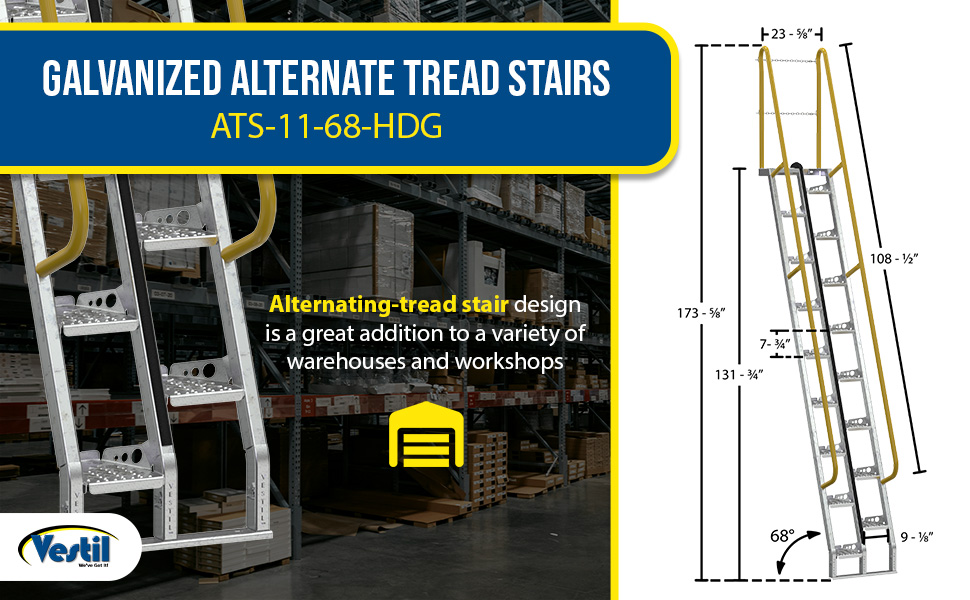

ATS-11-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 63-1/2 In. x 23-1/2 In. x 173-5/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 17 | 298 | ||

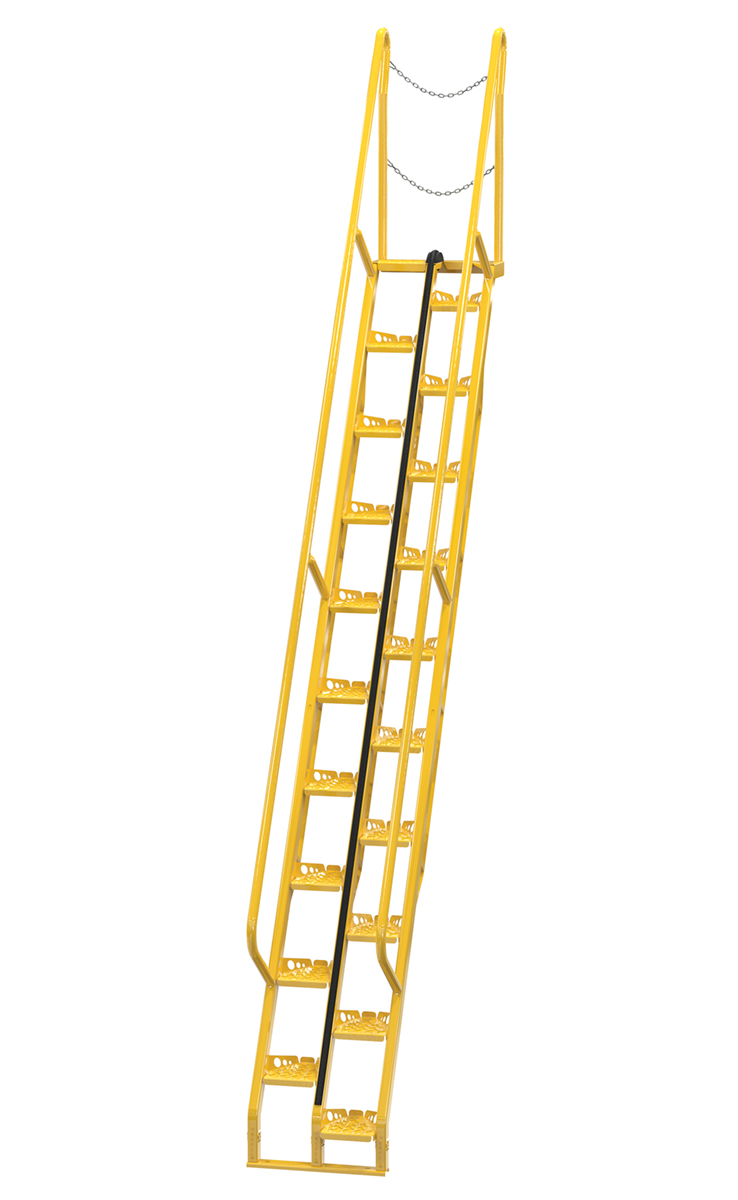

ATS-12-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 106 In. x 23-1/2 In. x 186-1/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 20 | 400 | ||

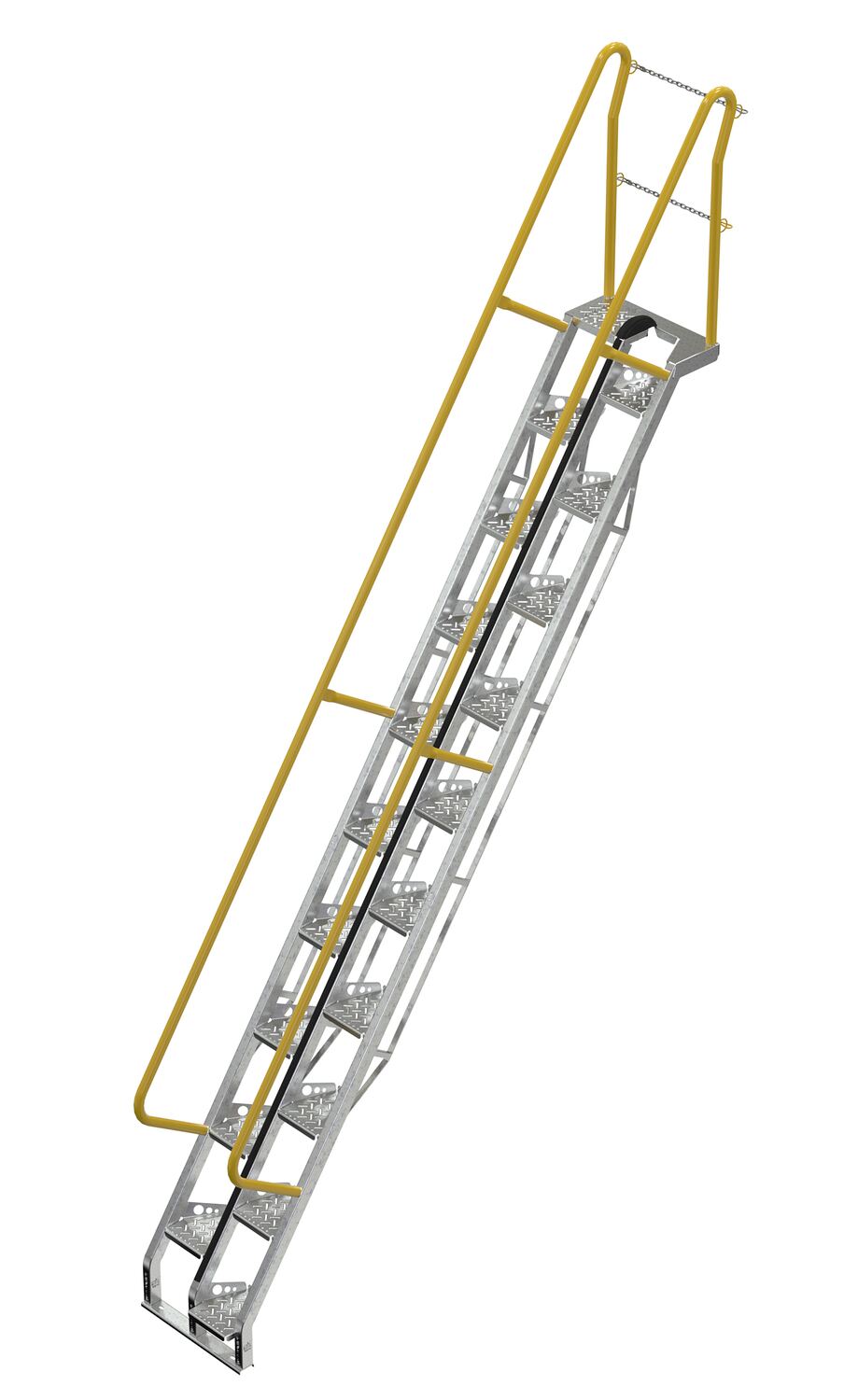

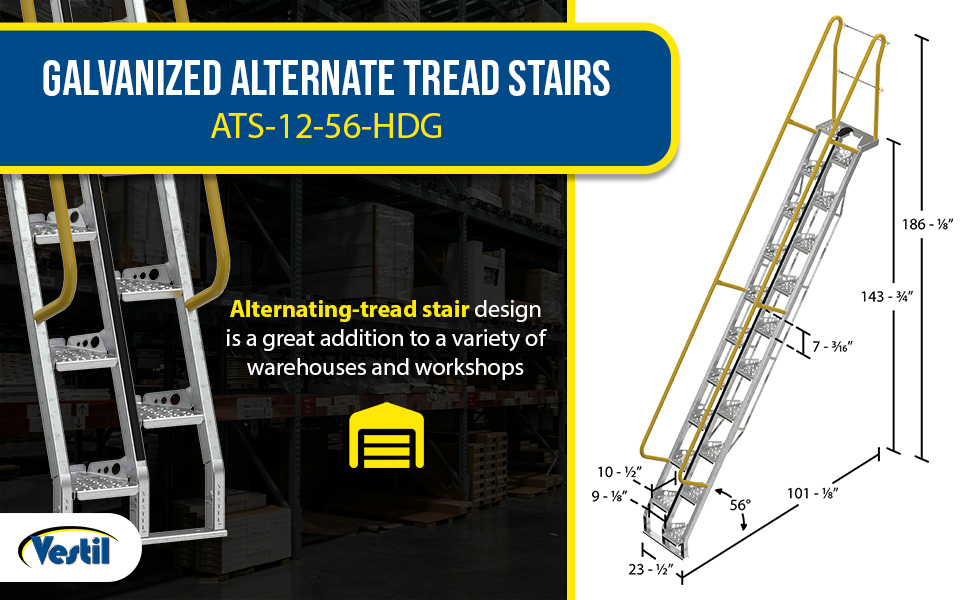

ATS-12-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 106 In. x 23-1/2 In. x 186-1/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 20 | 400 | ||

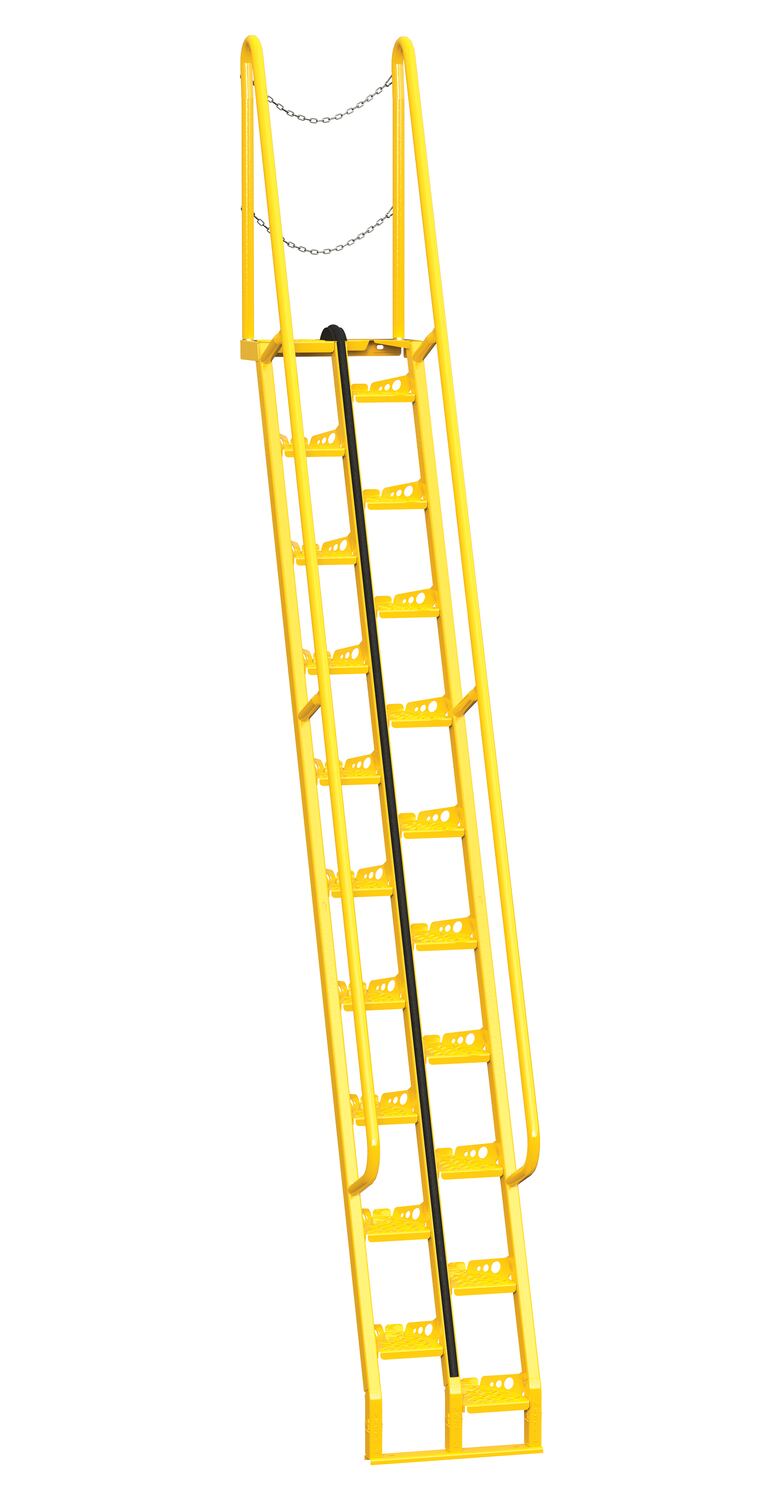

ATS-12-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 68-1/2 In. x 23-1/2 In. x 185-5/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 20 | 338 | ||

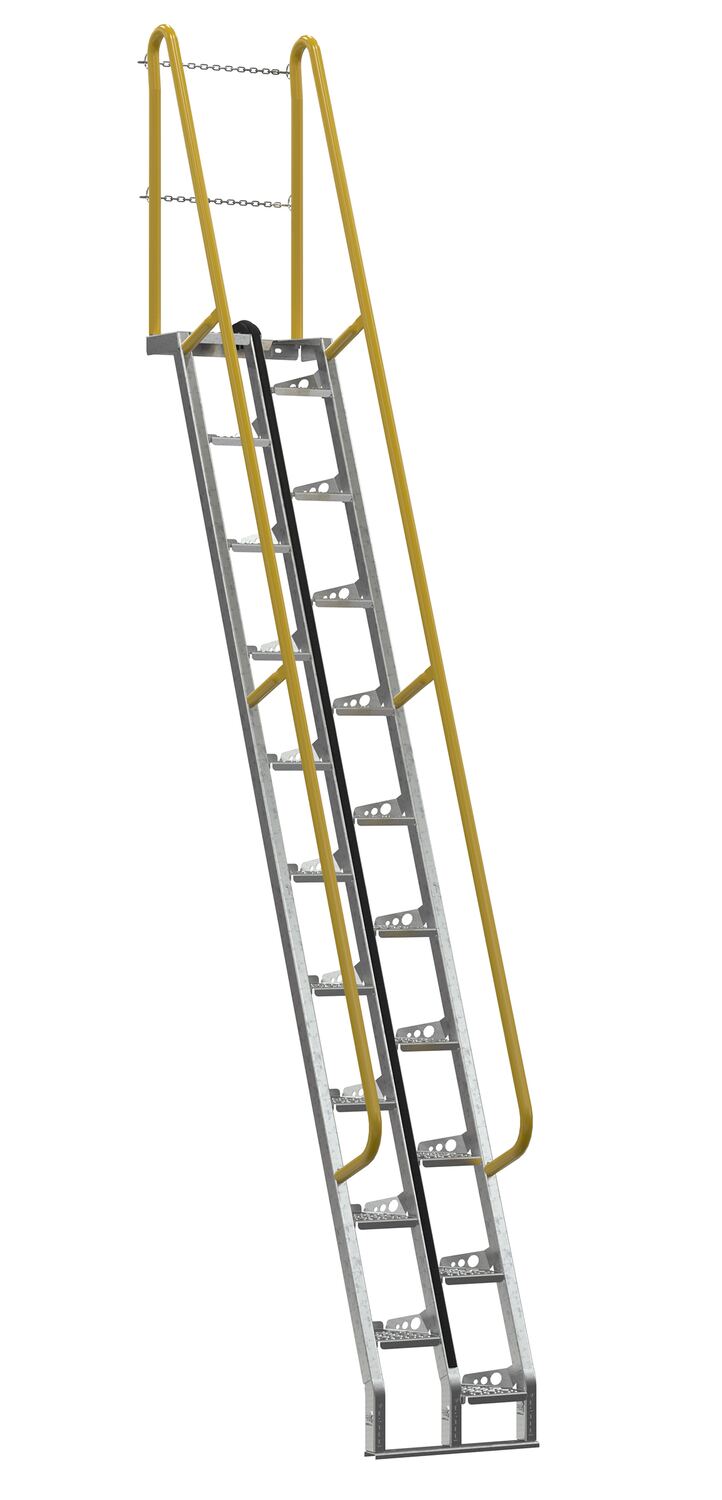

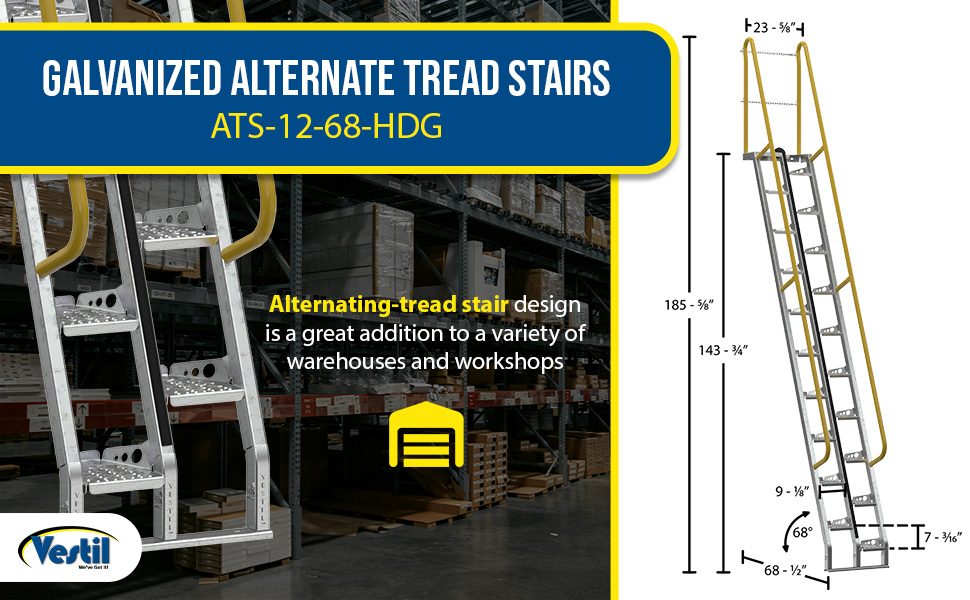

ATS-12-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 68-1/2 In. x 23-1/2 In. x 185-5/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 20 | 338 | ||

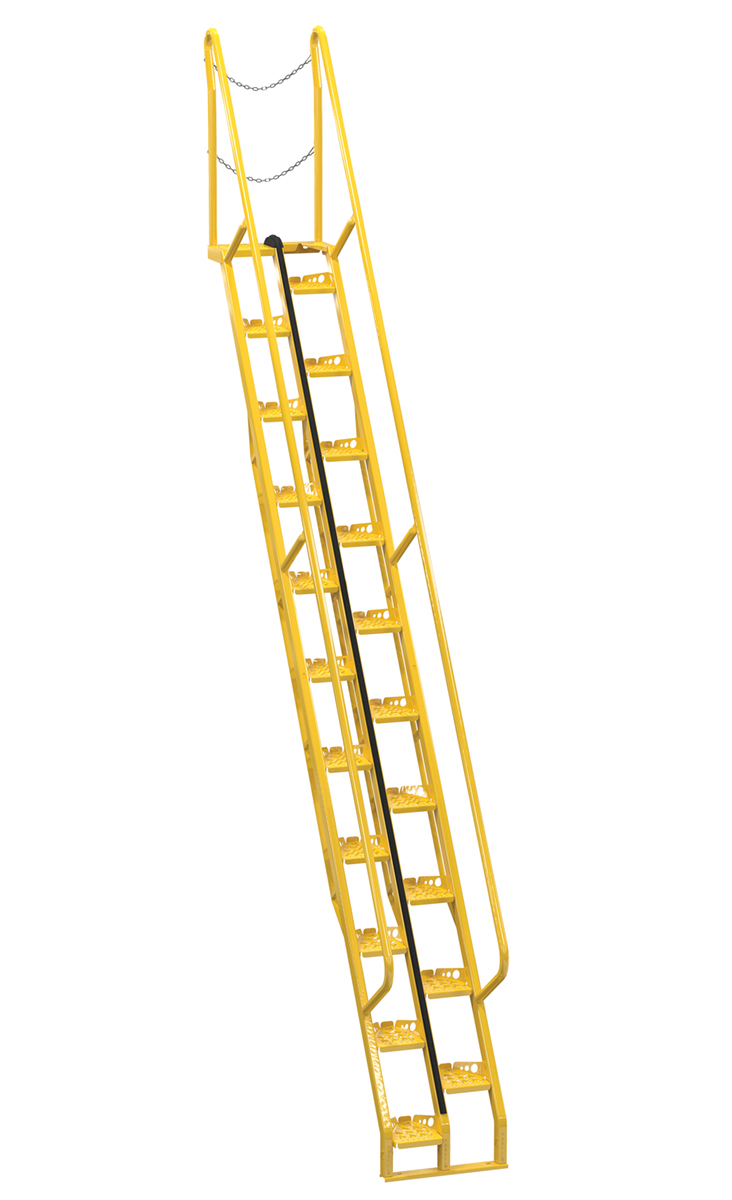

ATS-13-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 114-1/8 In. x 23-1/2 In. x 198-5/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 21 | 608 | ||

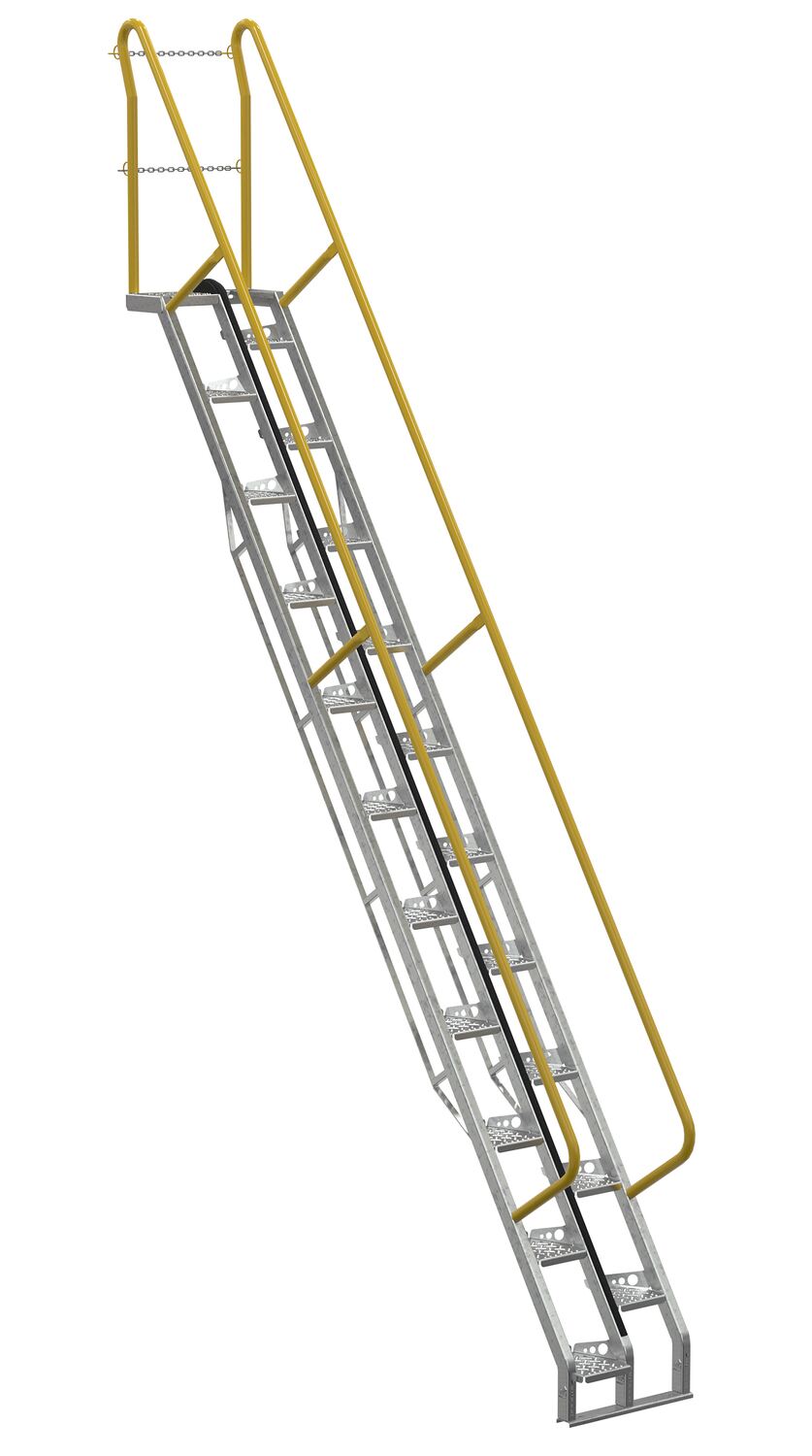

ATS-13-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 114-1/8 In. x 23-1/2 In. x 198-5/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 21 | 608 | ||

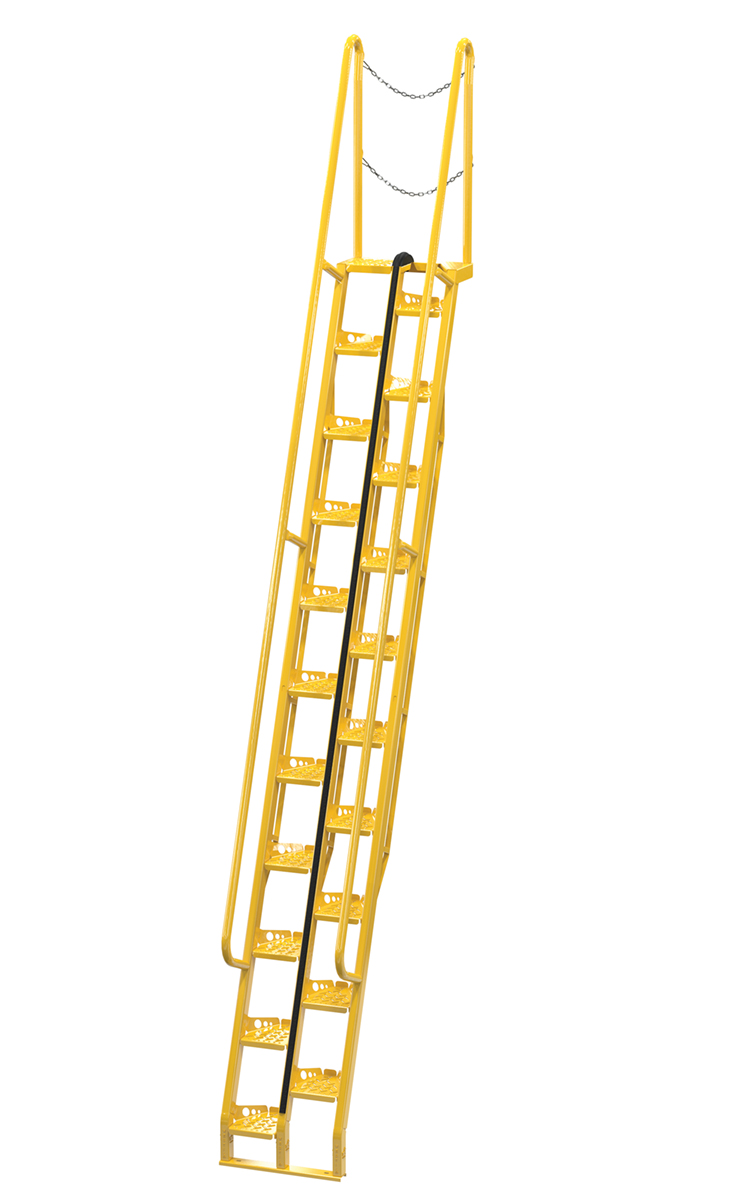

ATS-13-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 21 | 600 | ||

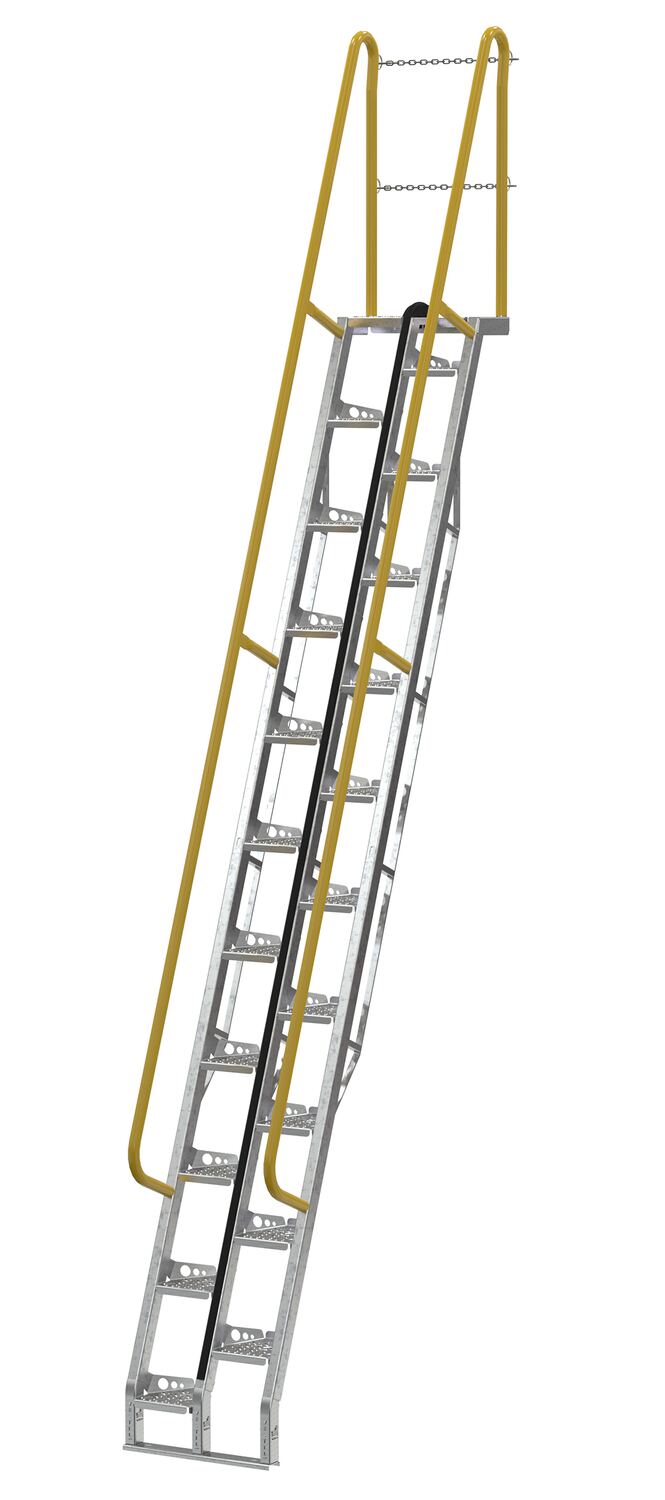

ATS-13-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 21 | 600 | ||

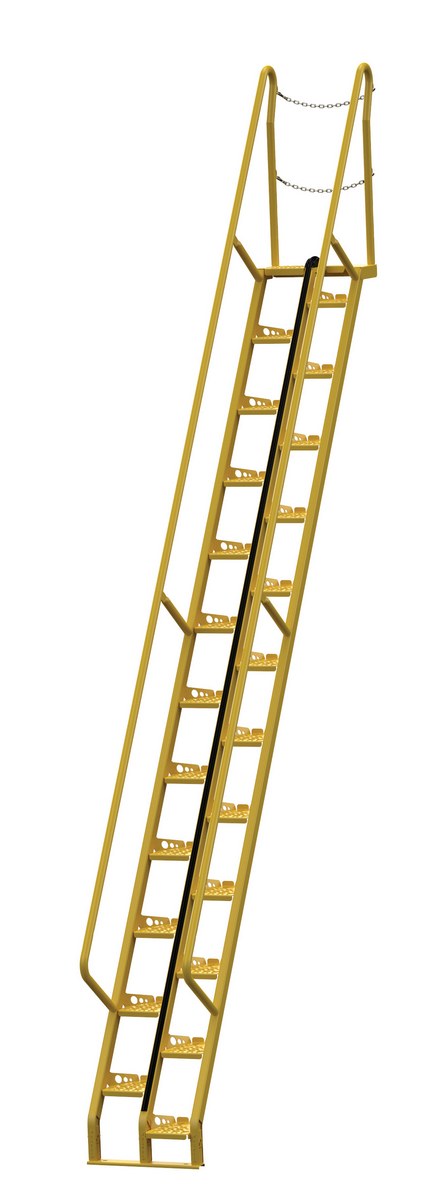

ATS-14-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 122-3/8 In. x 23-1/2 In. x 210-3/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 24 | 638 | ||

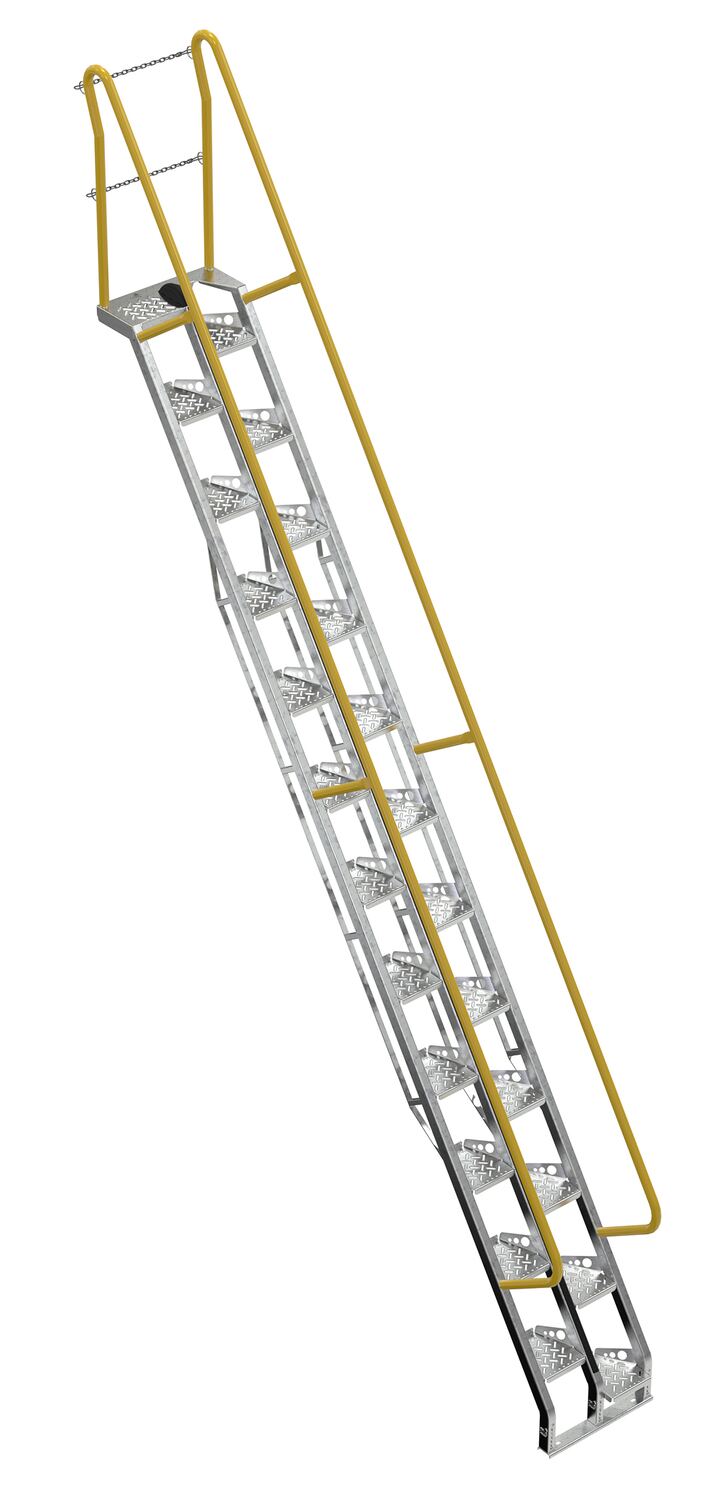

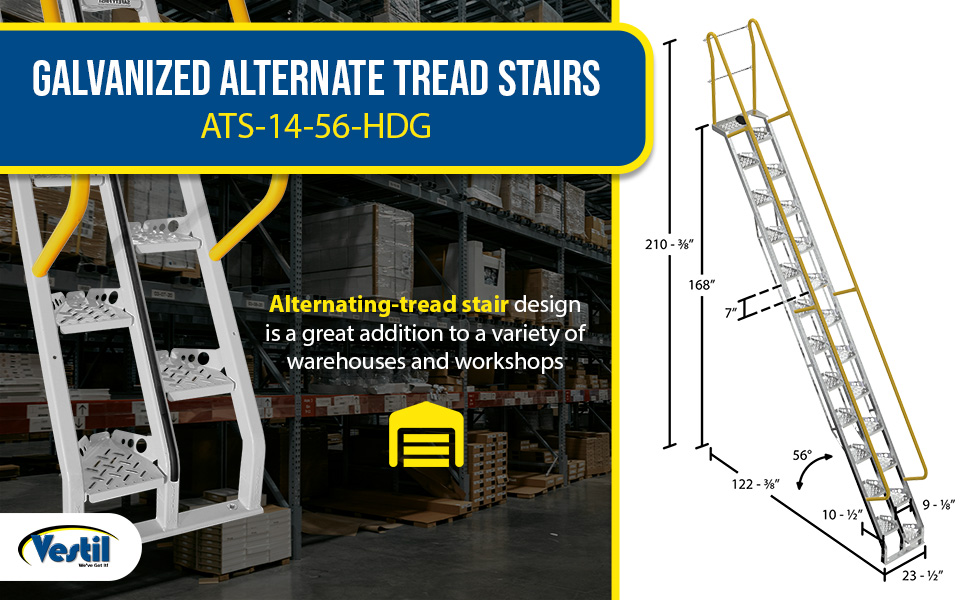

ATS-14-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 122-3/8 In. x 23-1/2 In. x 210-3/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 24 | 638 | ||

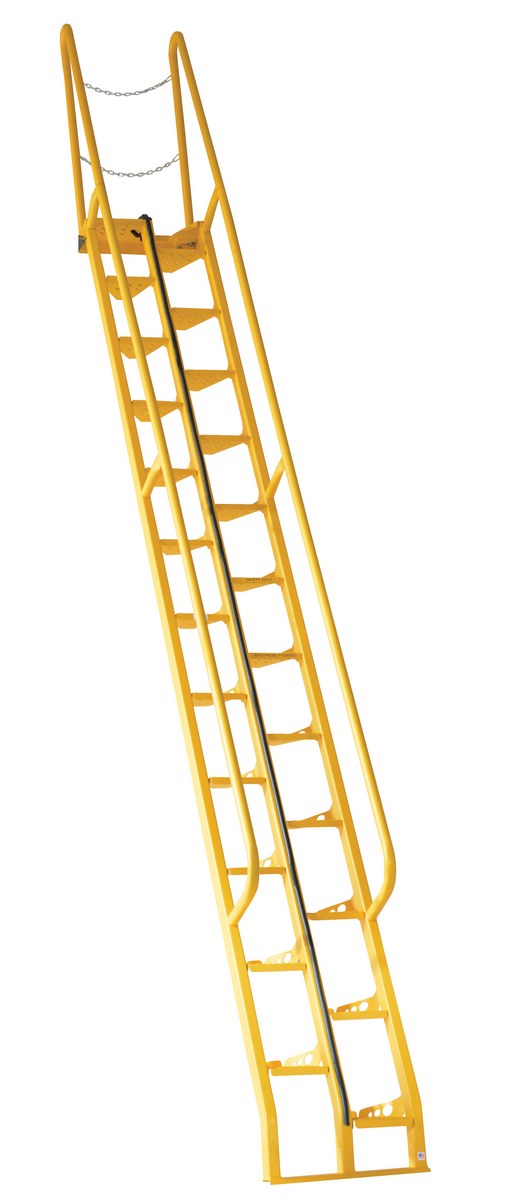

ATS-14-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 24 | 610 | ||

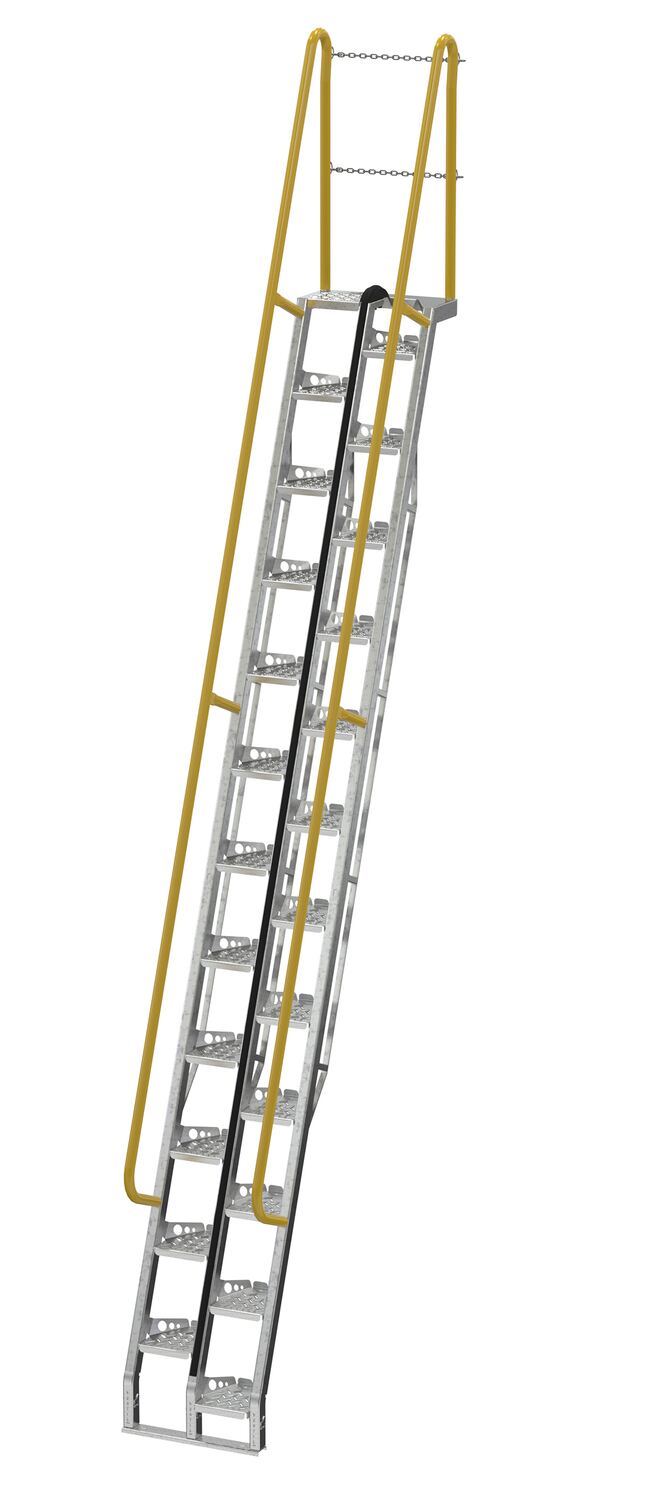

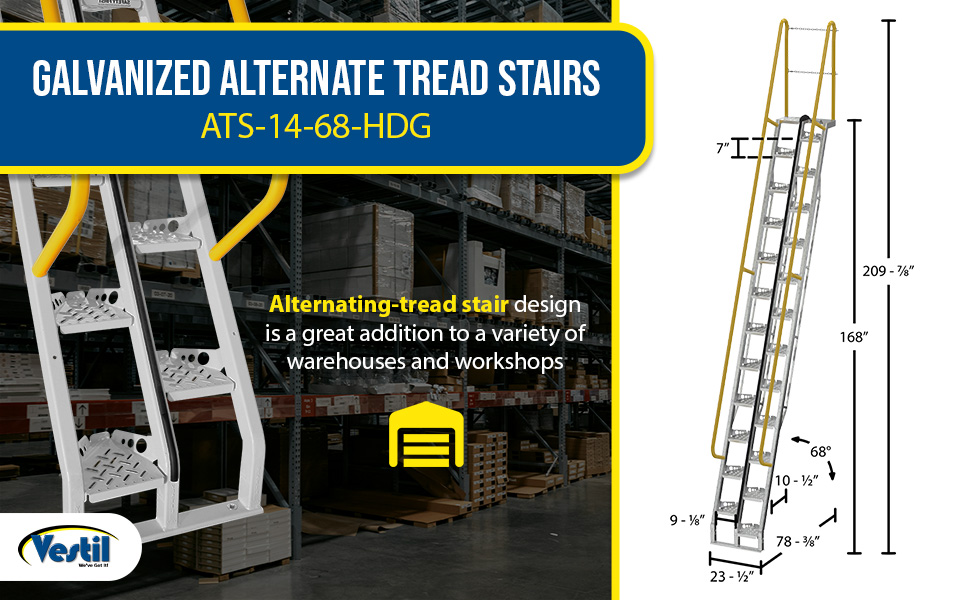

ATS-14-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 24 | 610 | ||

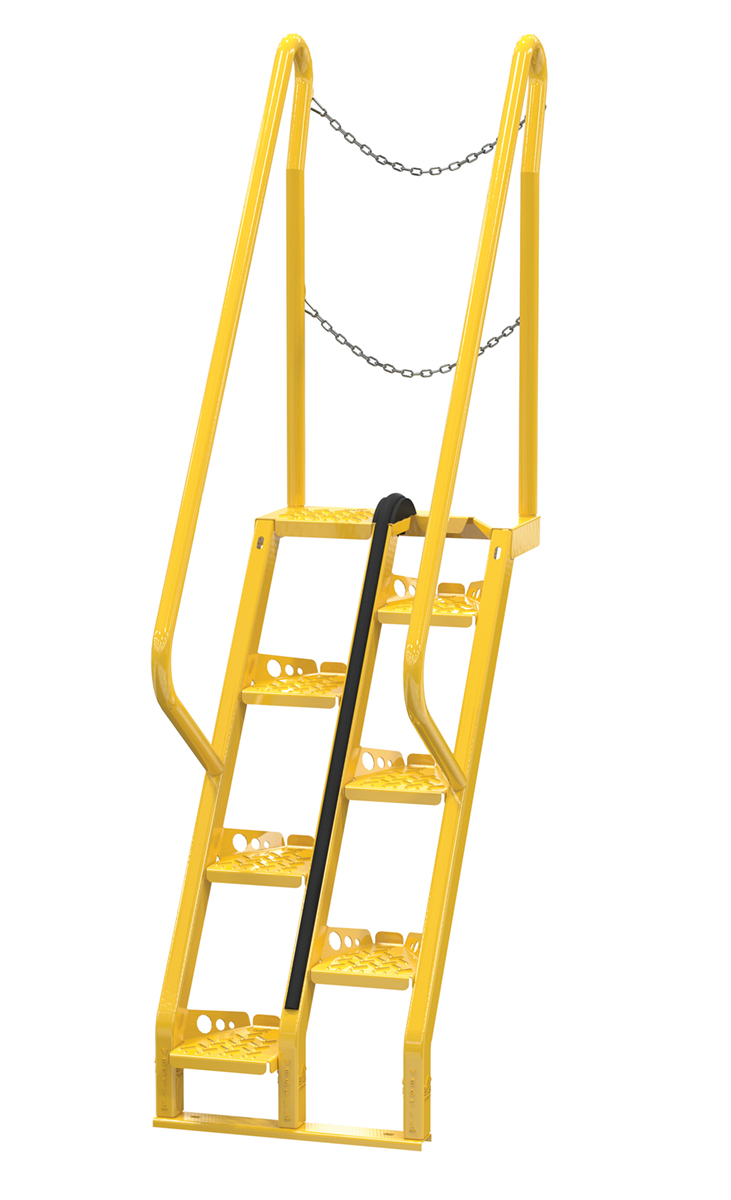

ATS-4-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 42 In. x 23-1/2 In. x 90-1/2 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 7 | 156 | ||

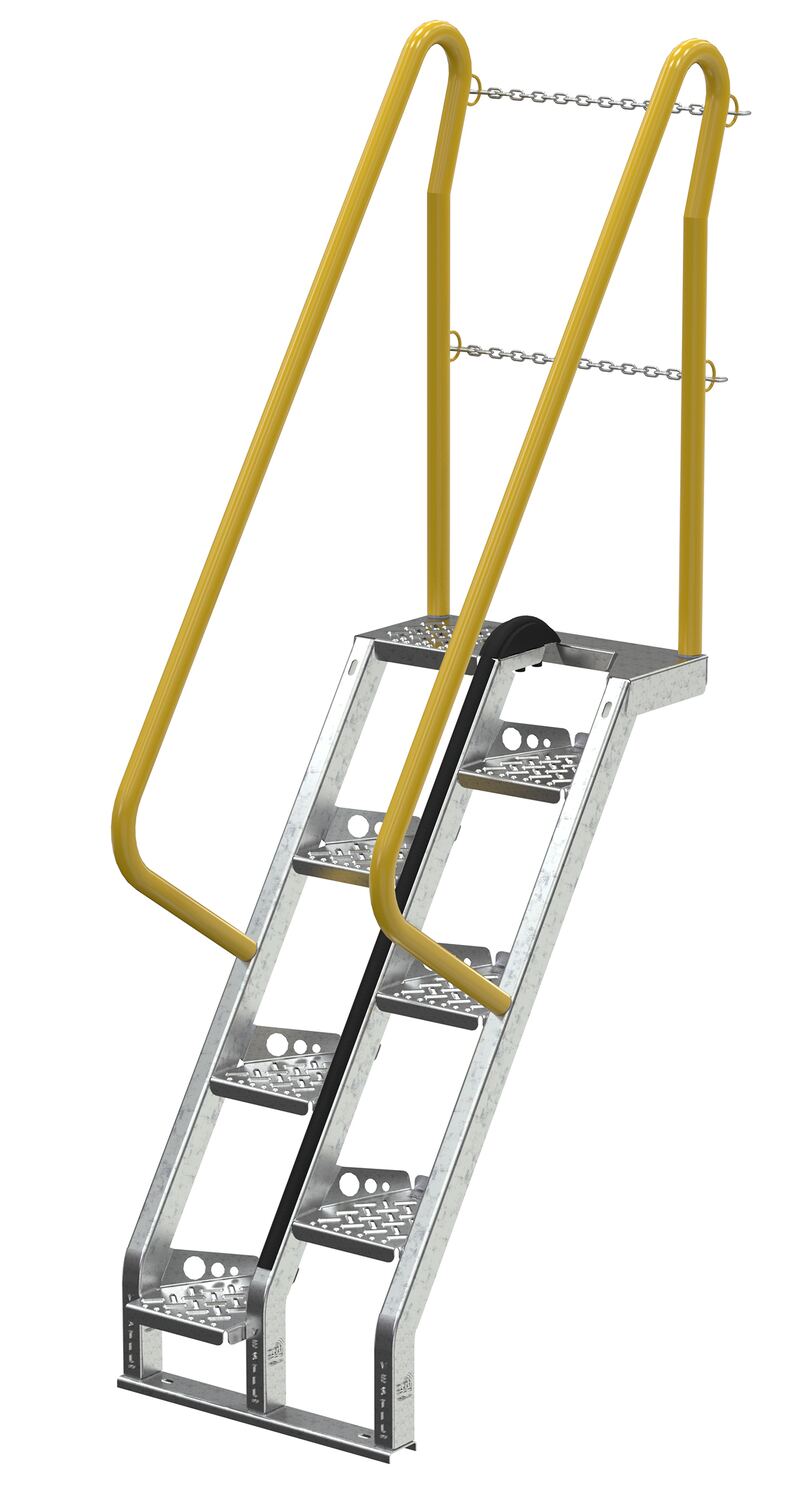

ATS-4-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 42 In. x 23-1/2 In. x 90-1/2 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 7 | 156 | ||

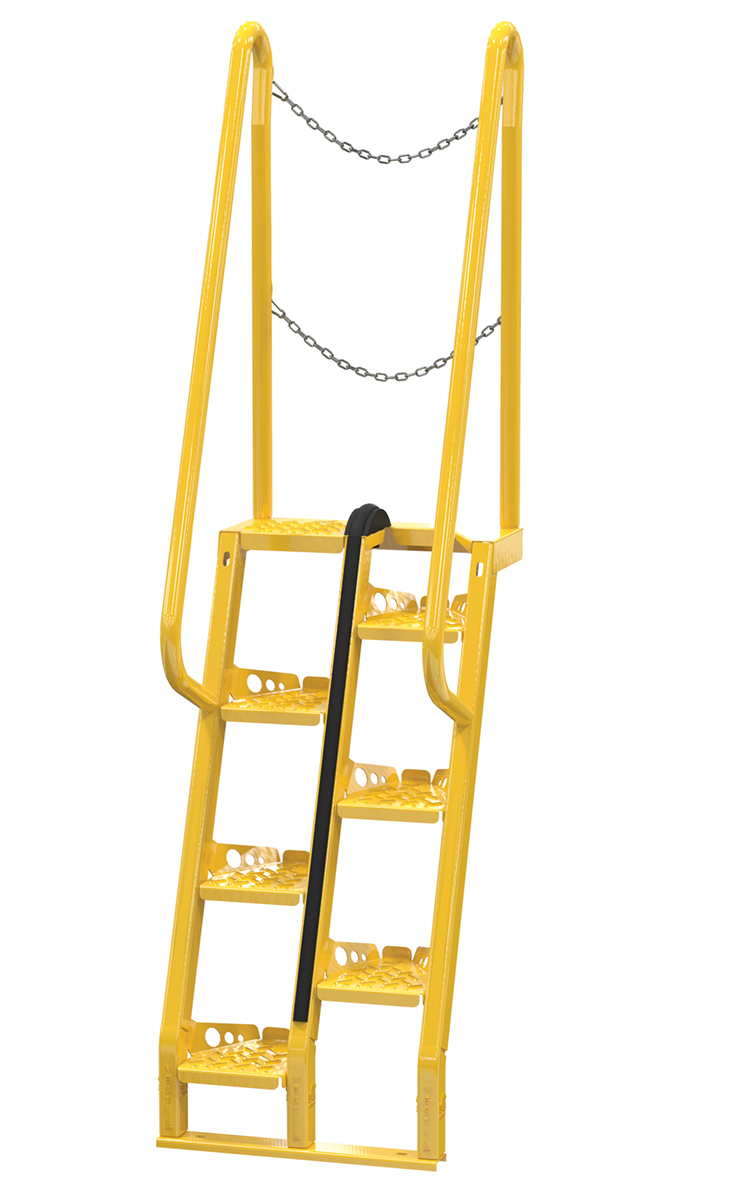

ATS-4-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 30 In. x 23-1/2 In. x 90 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 7 | 150 | ||

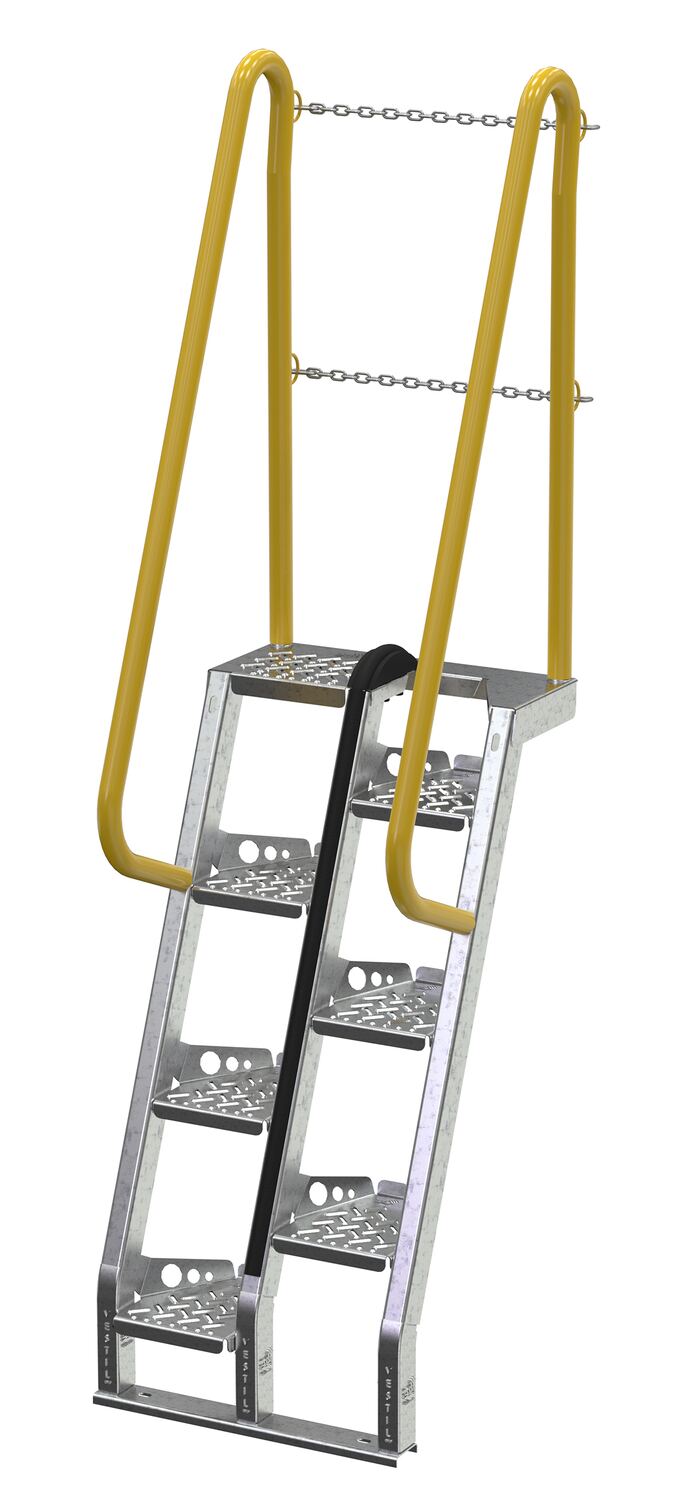

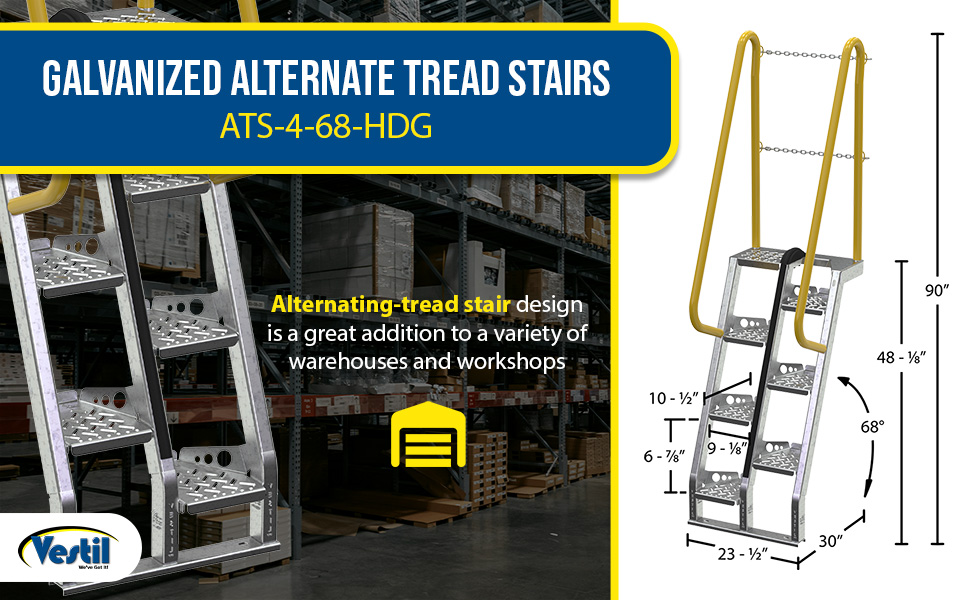

ATS-4-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 30 In. x 23-1/2 In. x 90 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 7 | 150 | ||

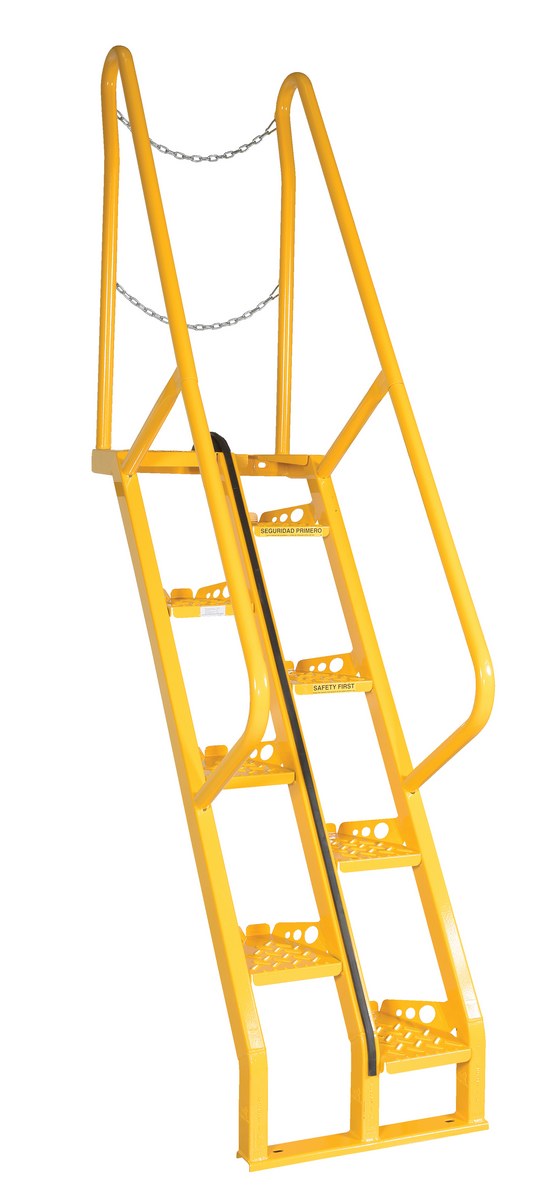

ATS-5-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 49-1/4 In. x 23-1/2 In. x 102-7/16 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 8 | 192 | ||

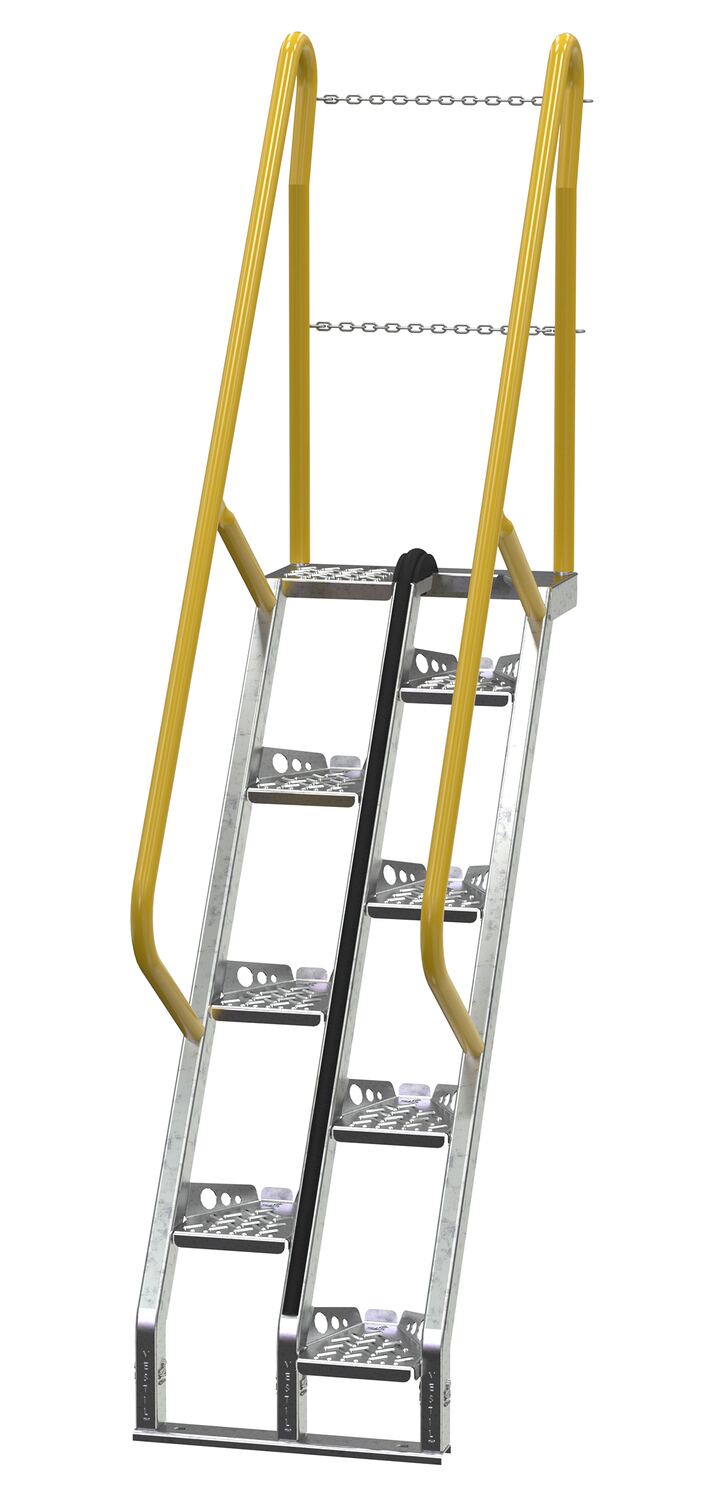

ATS-5-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 49-1/4 In. x 23-1/2 In. x 102-7/16 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 8 | 192 | ||

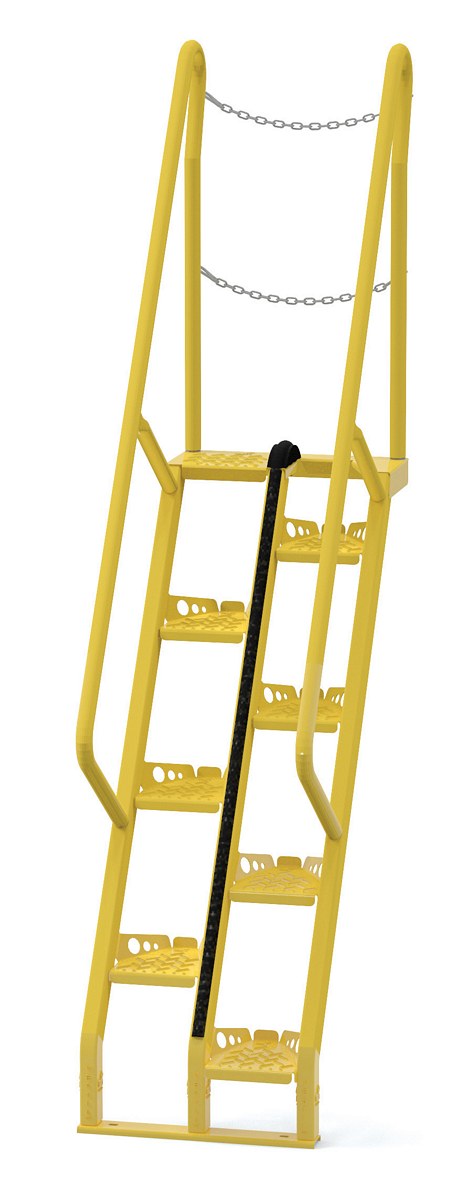

ATS-5-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 34-5/8 In. x 23-1/2 In. x 101-7/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 8 | 180 | ||

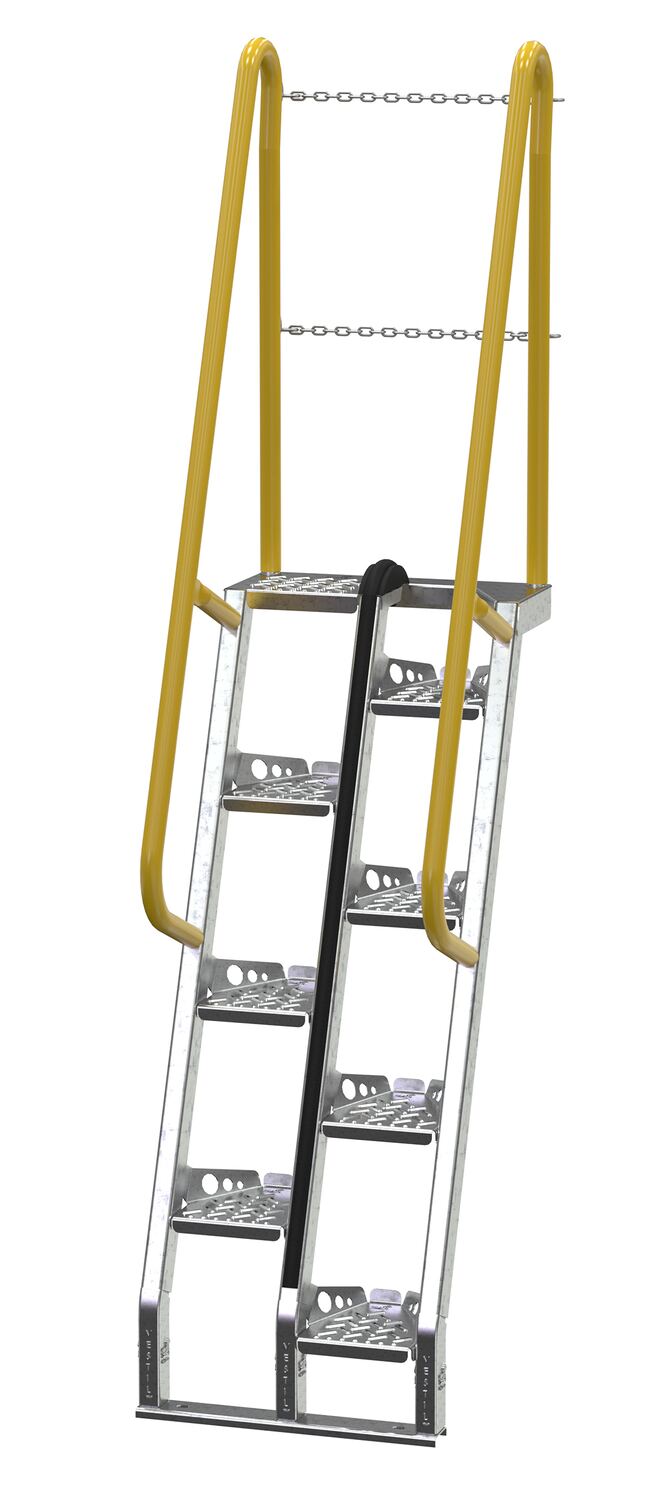

ATS-5-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 34-5/8 In. x 23-1/2 In. x 101-7/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 8 | 180 | ||

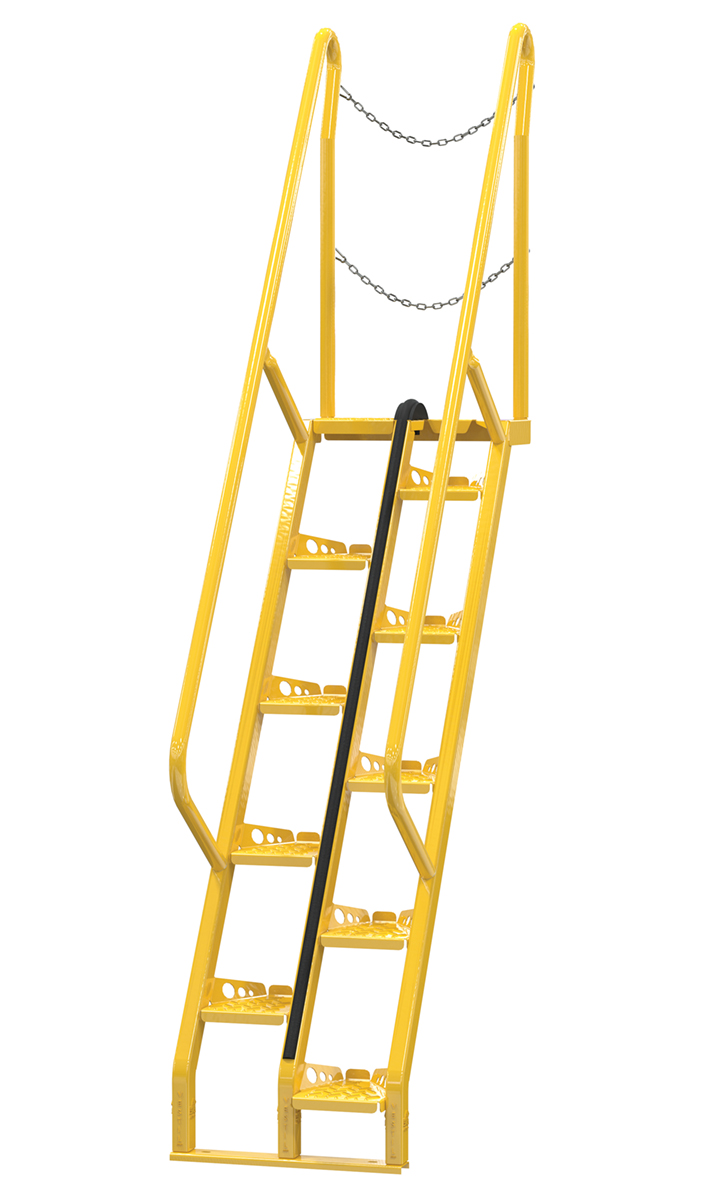

ATS-6-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 57-1/2 In. x 23-1/2 In. x 114-1/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 10 | 214 | ||

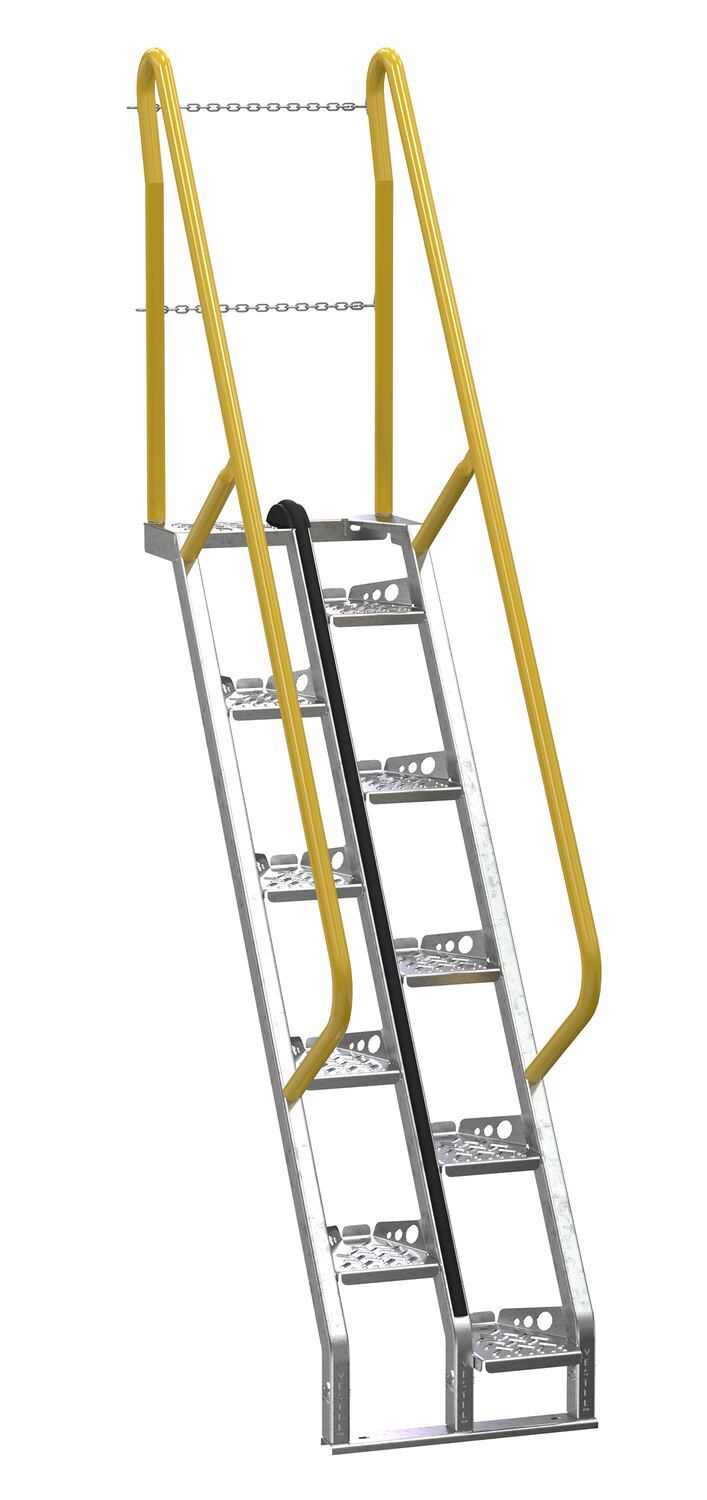

ATS-6-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 57-1/2 In. x 23-1/2 In. x 114-1/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 10 | 214 | ||

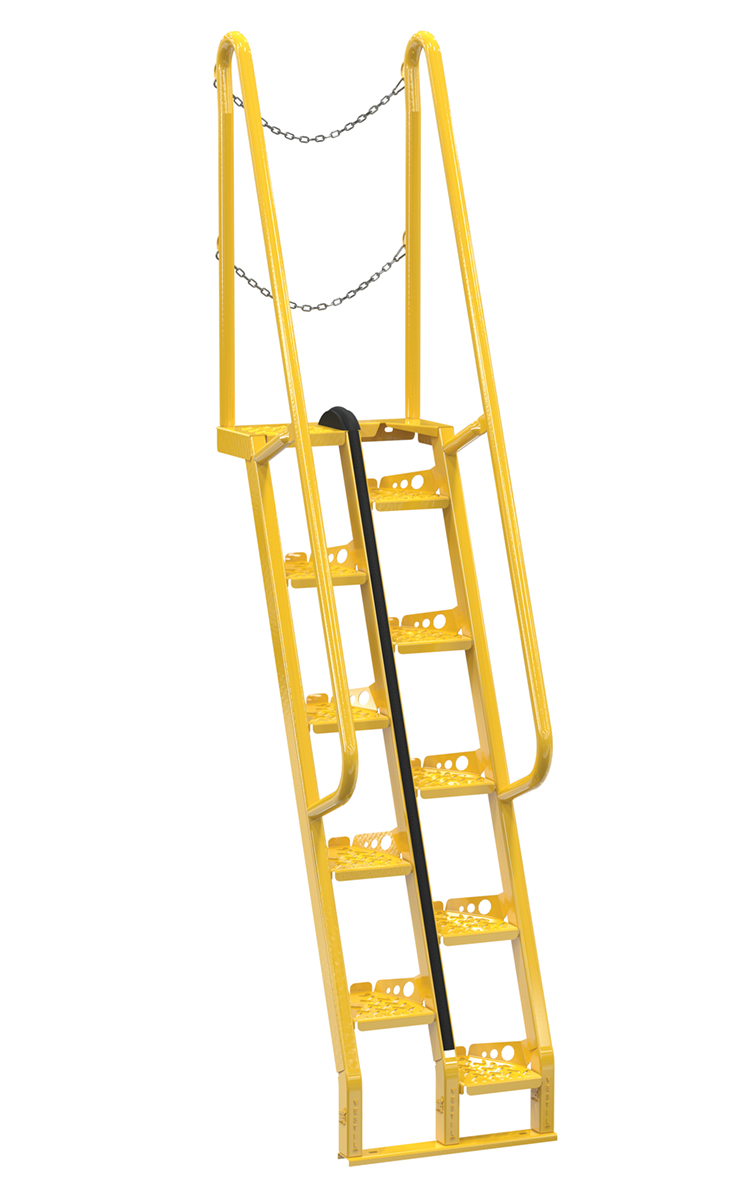

ATS-6-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 39-1/2 In. x 23-1/2 In. x 113-3/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 10 | 188 | ||

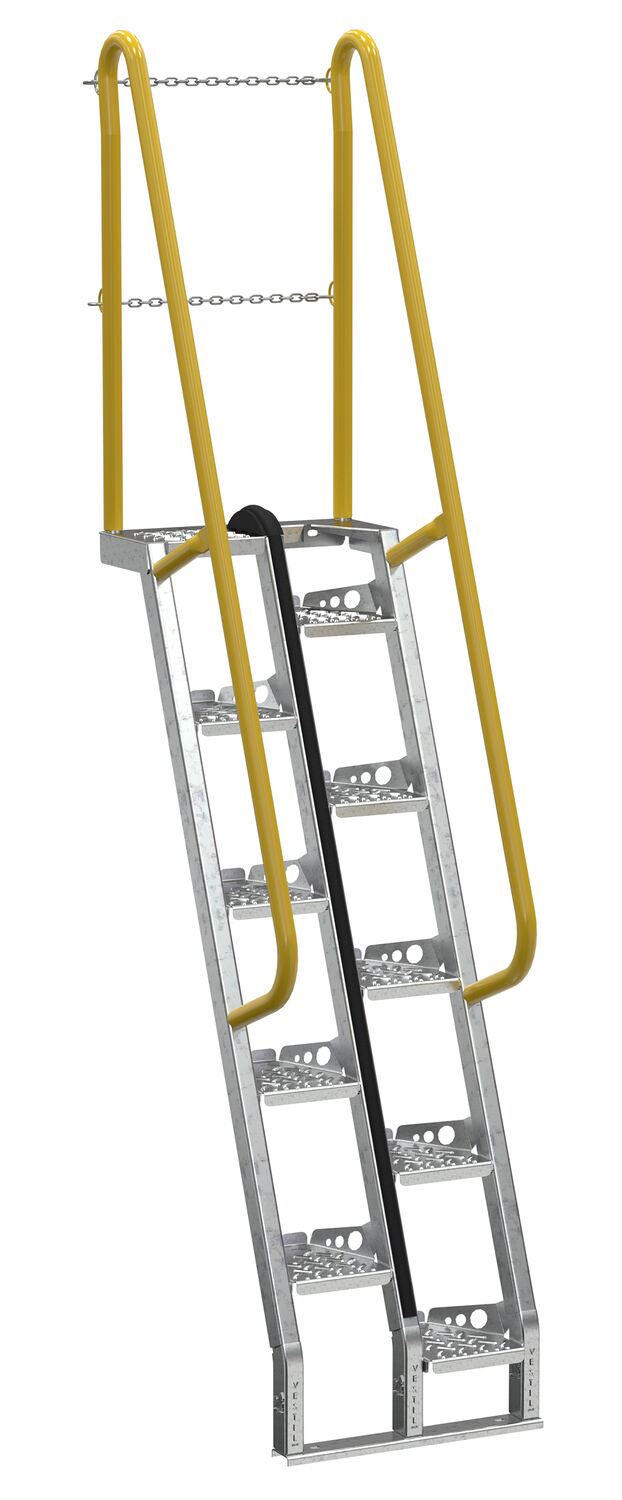

ATS-6-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 39-1/2 In. x 23-1/2 In. x 113-3/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 10 | 188 | ||

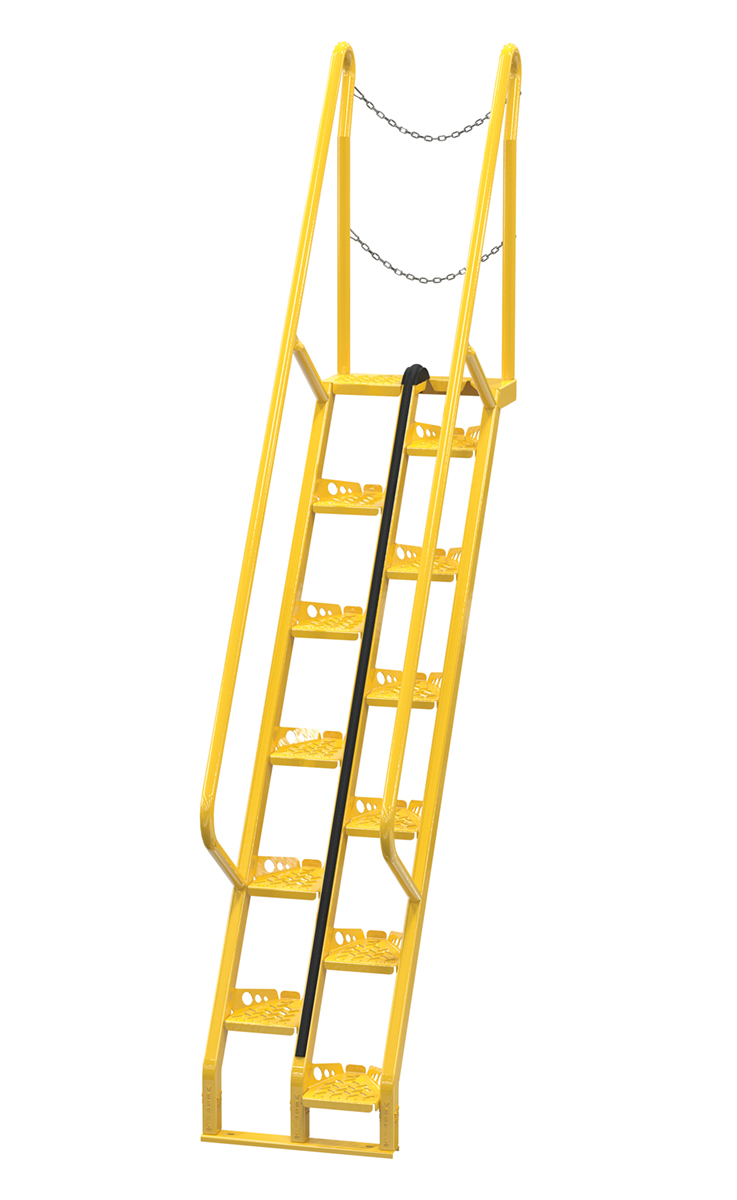

ATS-7-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 65-3/4 In. x 23-1/2 In. x 126-3/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 12 | 224 | ||

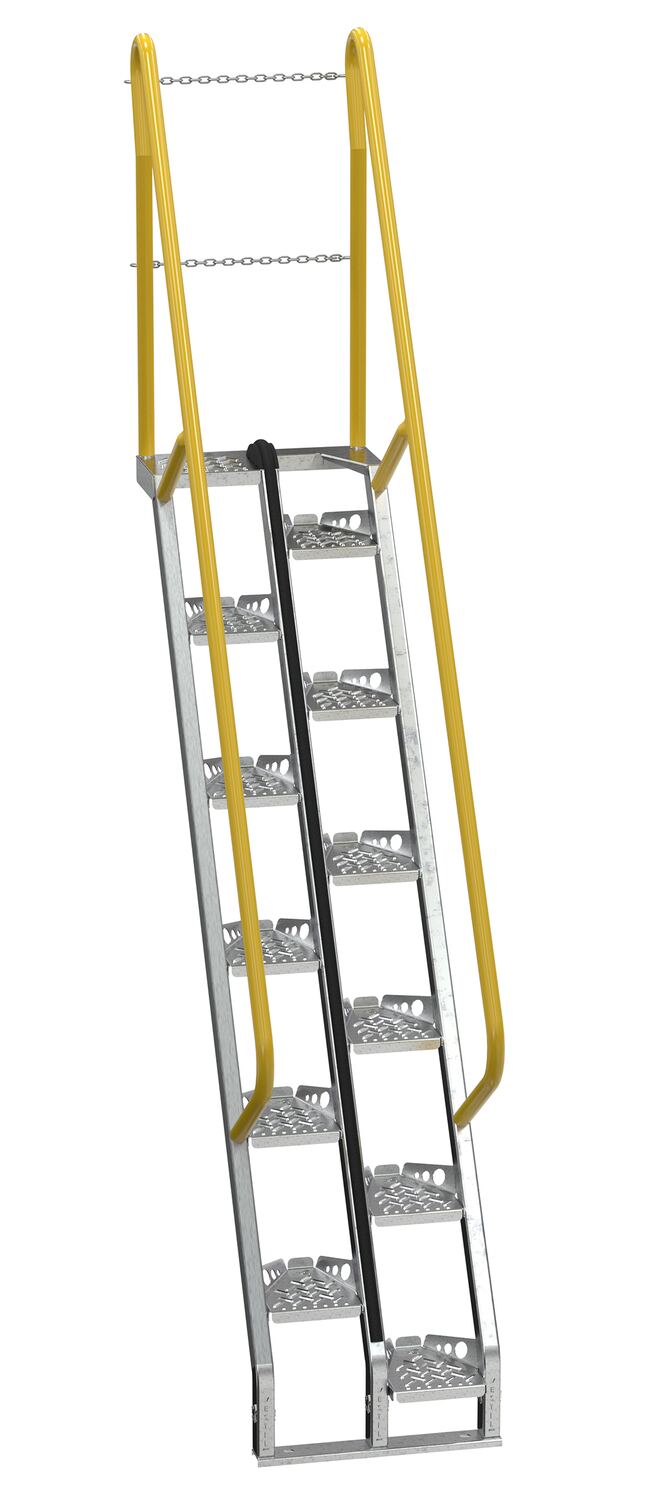

ATS-7-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 65-3/4 In. x 23-1/2 In. x 126-3/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 12 | 224 | ||

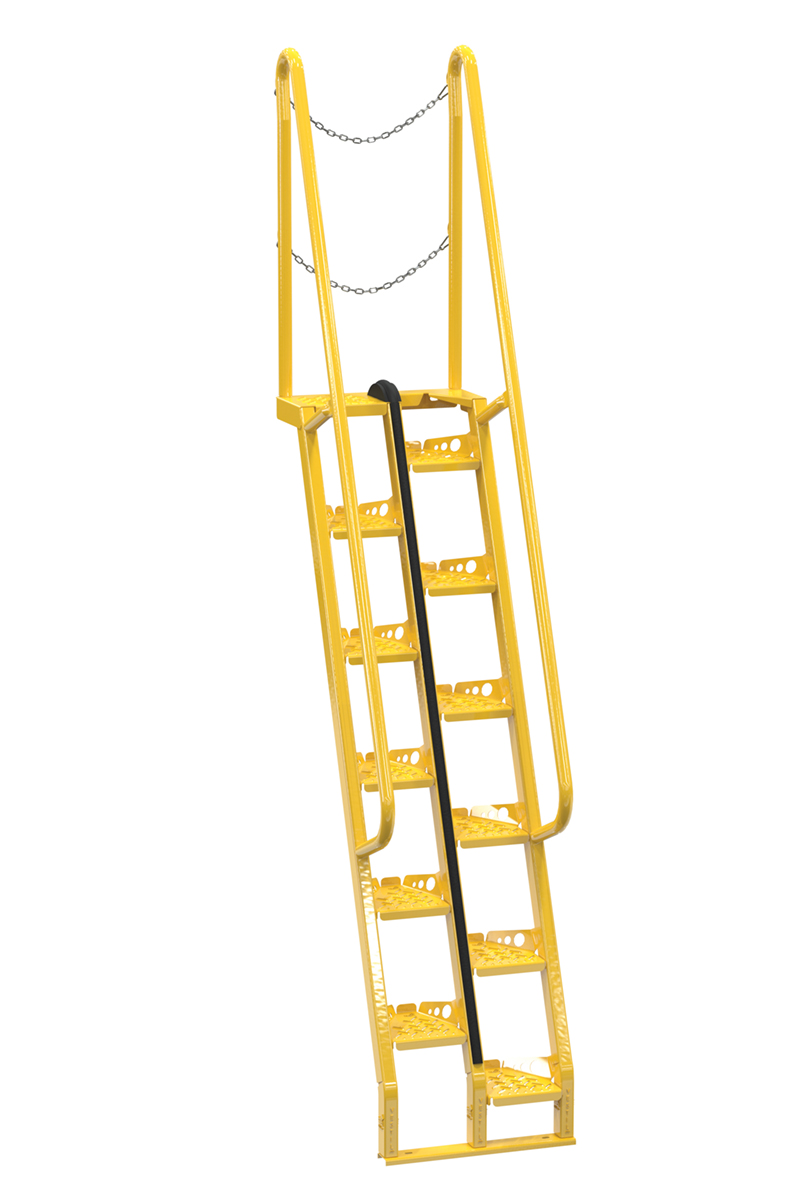

ATS-7-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 44-1/2 In. x 23-1/2 In. x 125-7/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 12 | 238 | ||

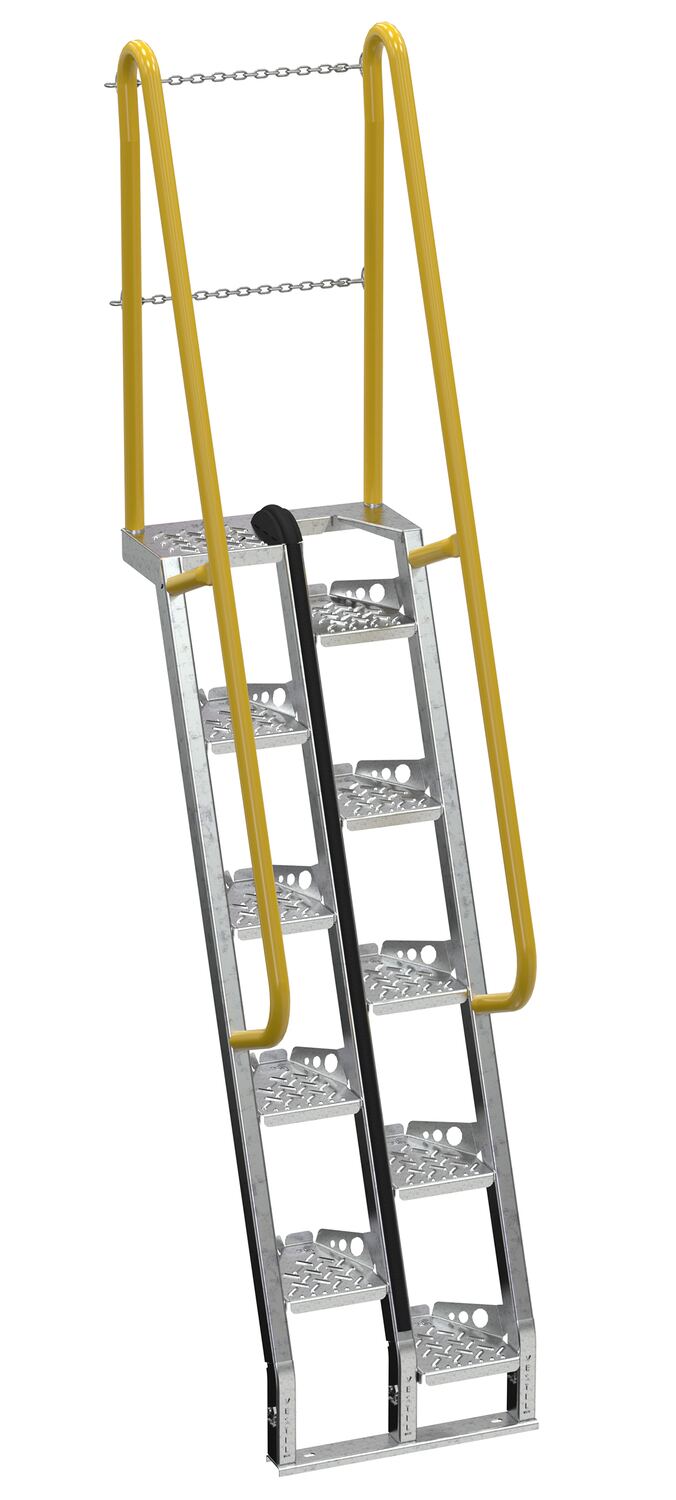

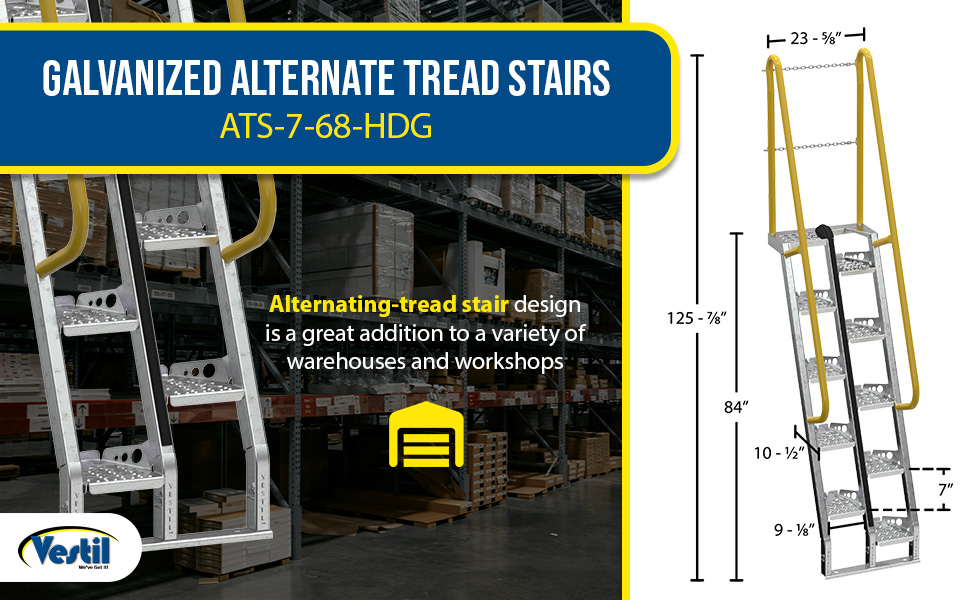

ATS-7-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 44-1/2 In. x 23-1/2 In. x 125-7/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 12 | 238 | ||

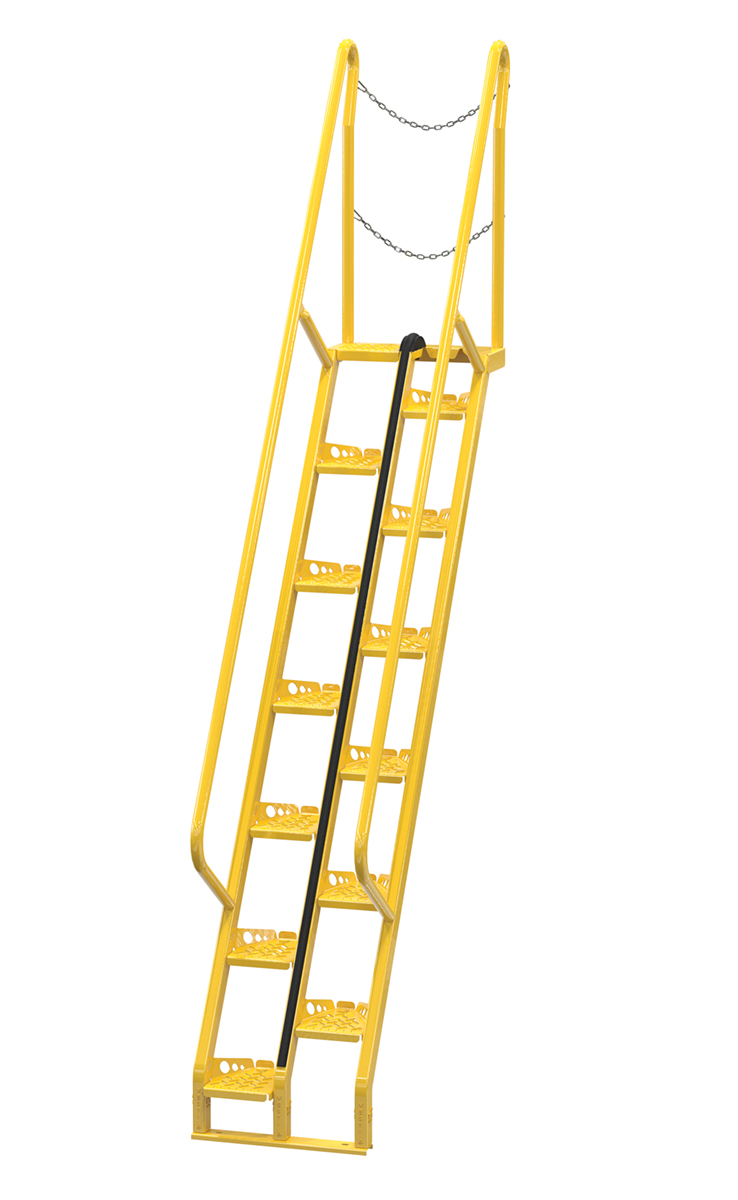

ATS-8-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 73-1/2 In. x 23-1/2 In. x 138-1/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 13 | 254 | ||

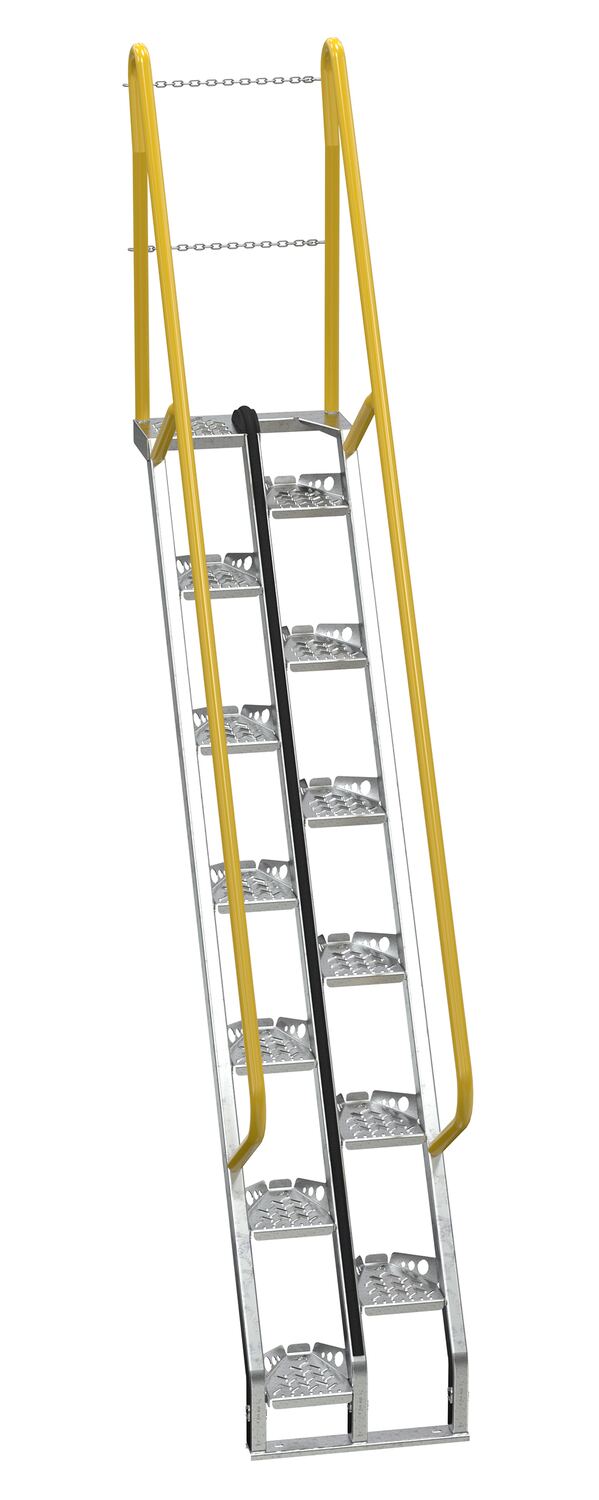

ATS-8-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 73-1/2 In. x 23-1/2 In. x 138-1/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 13 | 254 | ||

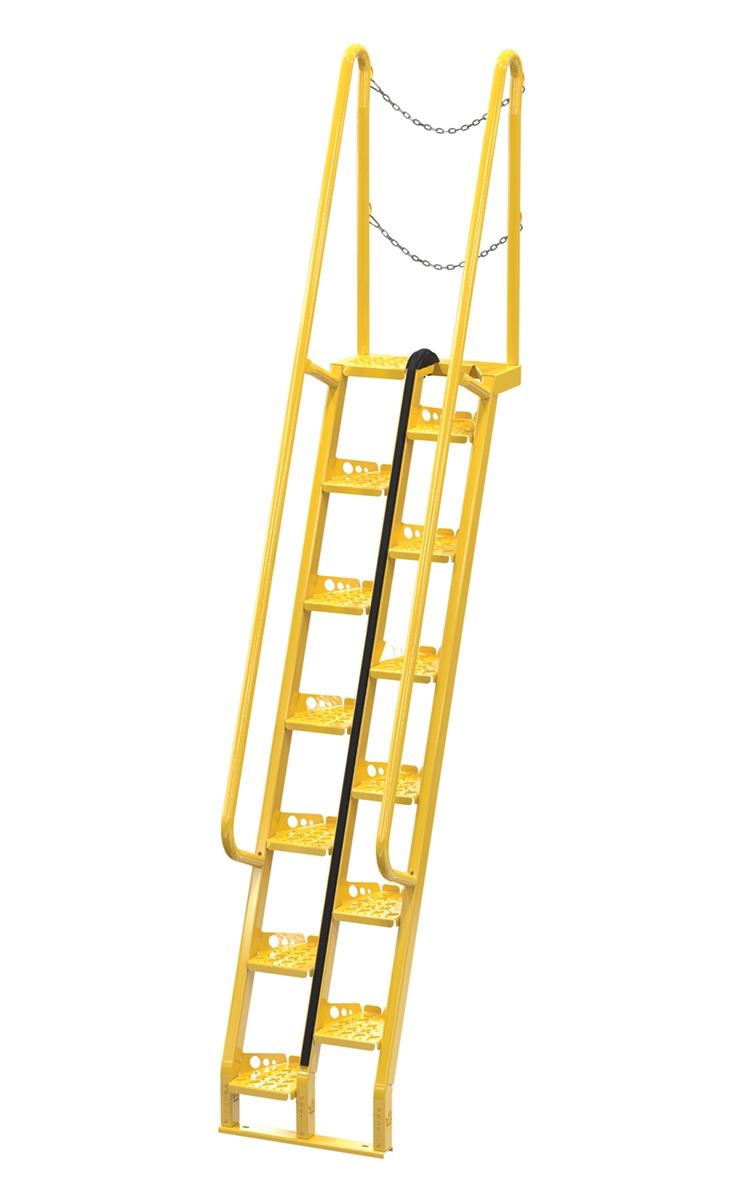

ATS-8-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 49-3/4 In. x 23-1/2 In. x 137-3/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 13 | 248 | ||

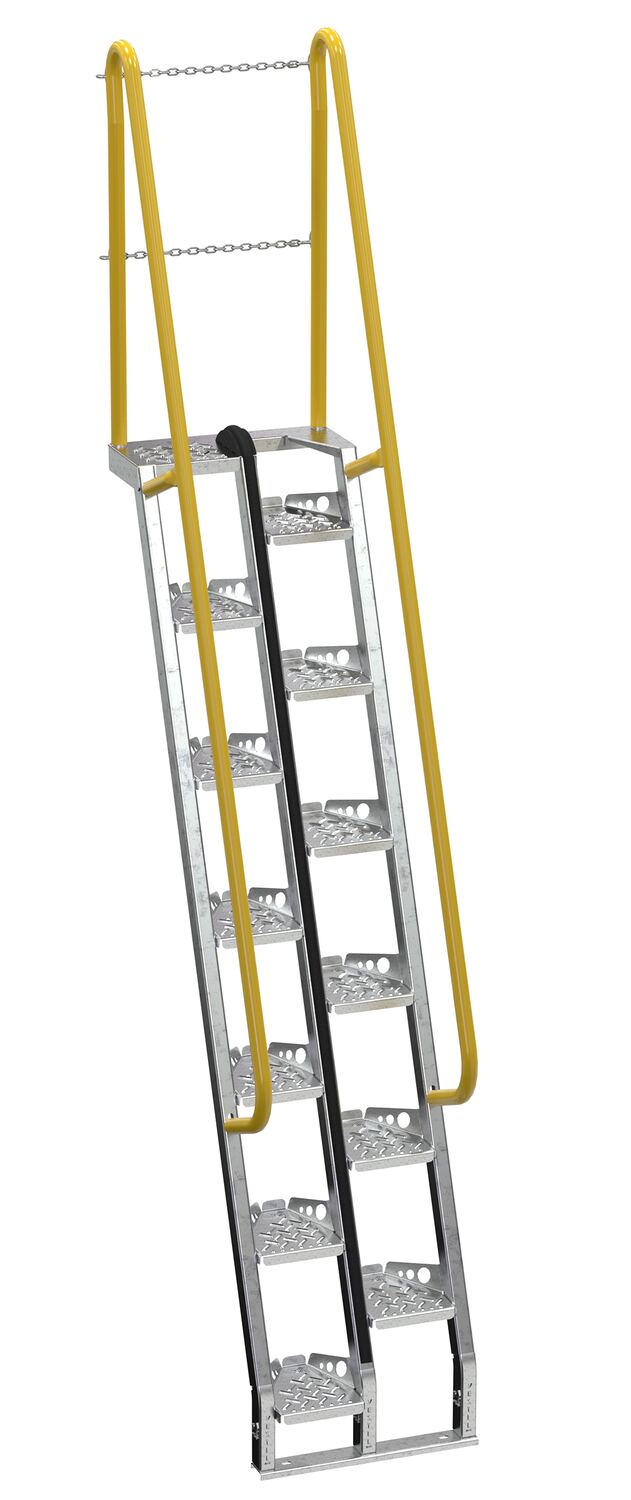

ATS-8-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 49-3/4 In. x 23-1/2 In. x 137-3/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 13 | 248 | ||

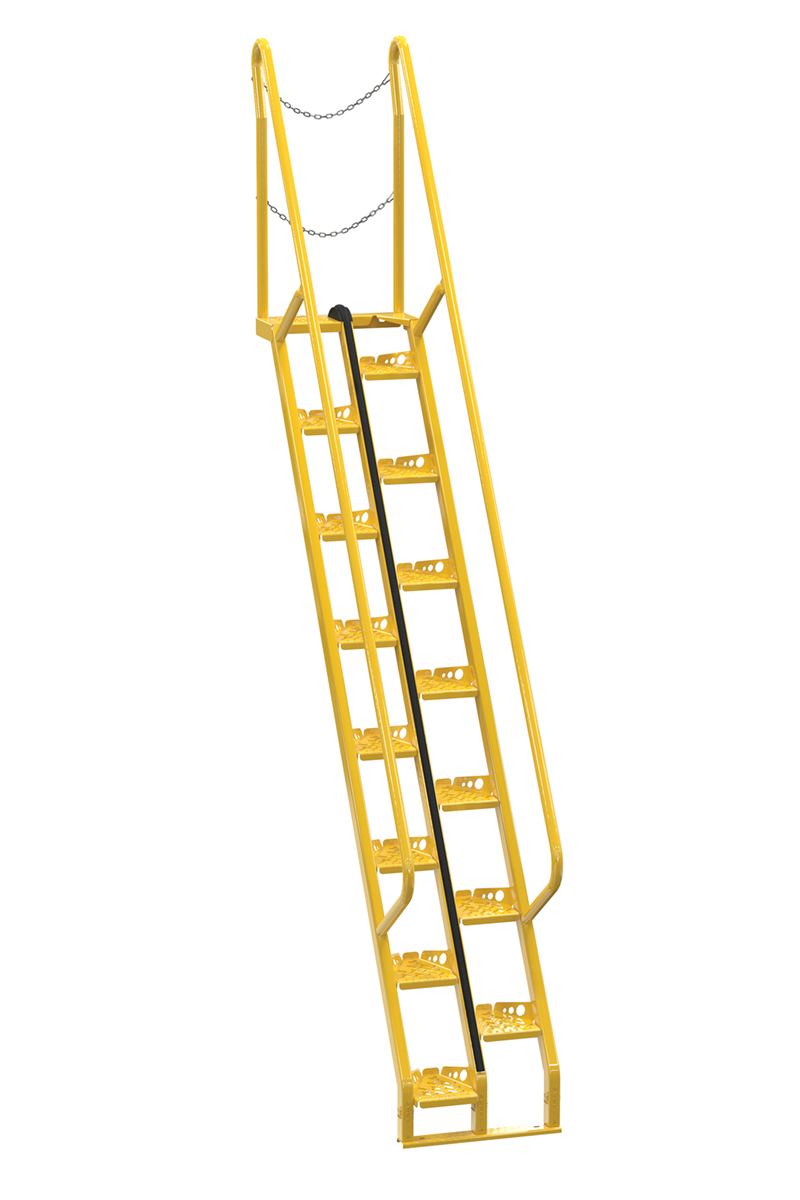

ATS-9-56 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 15 | 284 | ||

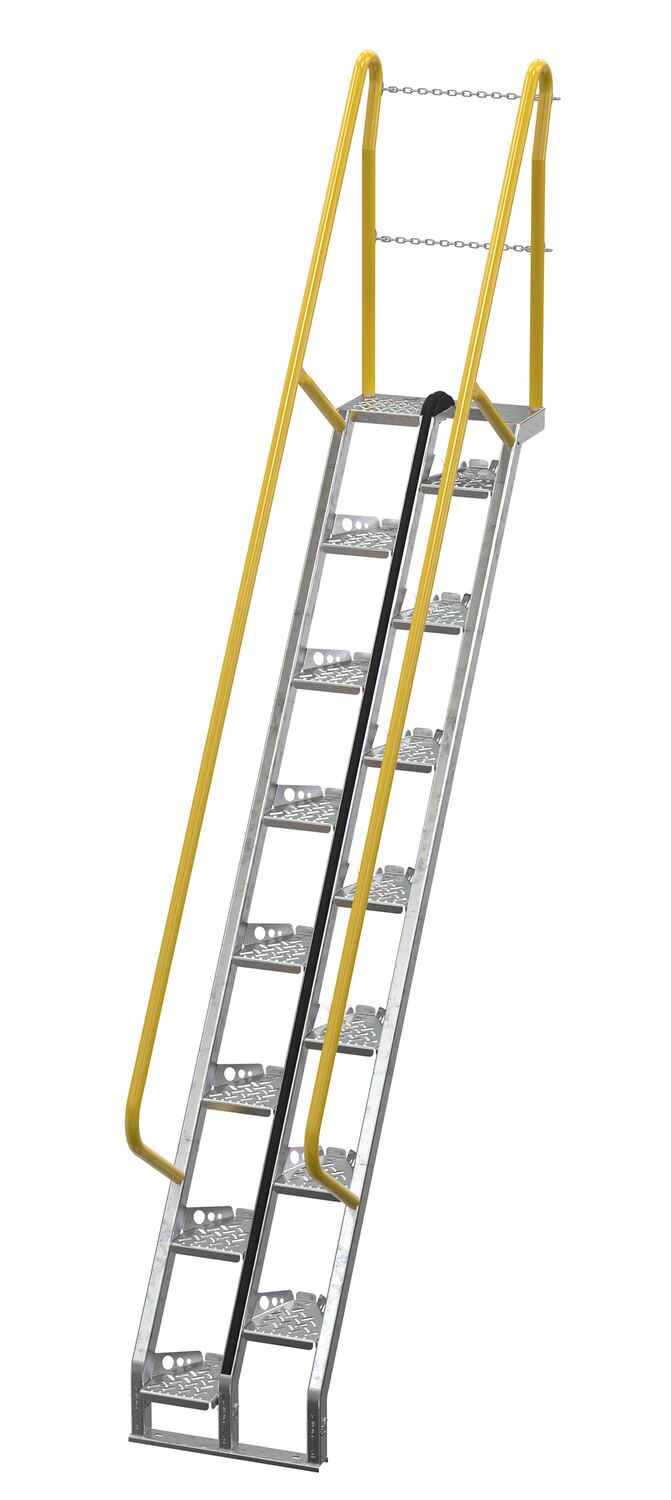

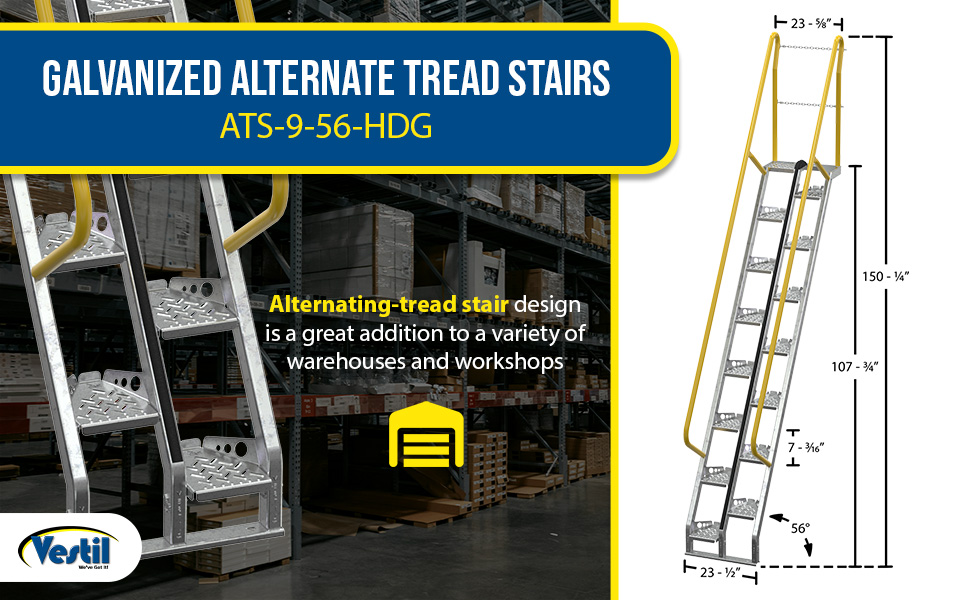

ATS-9-56-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 15 | 284 | ||

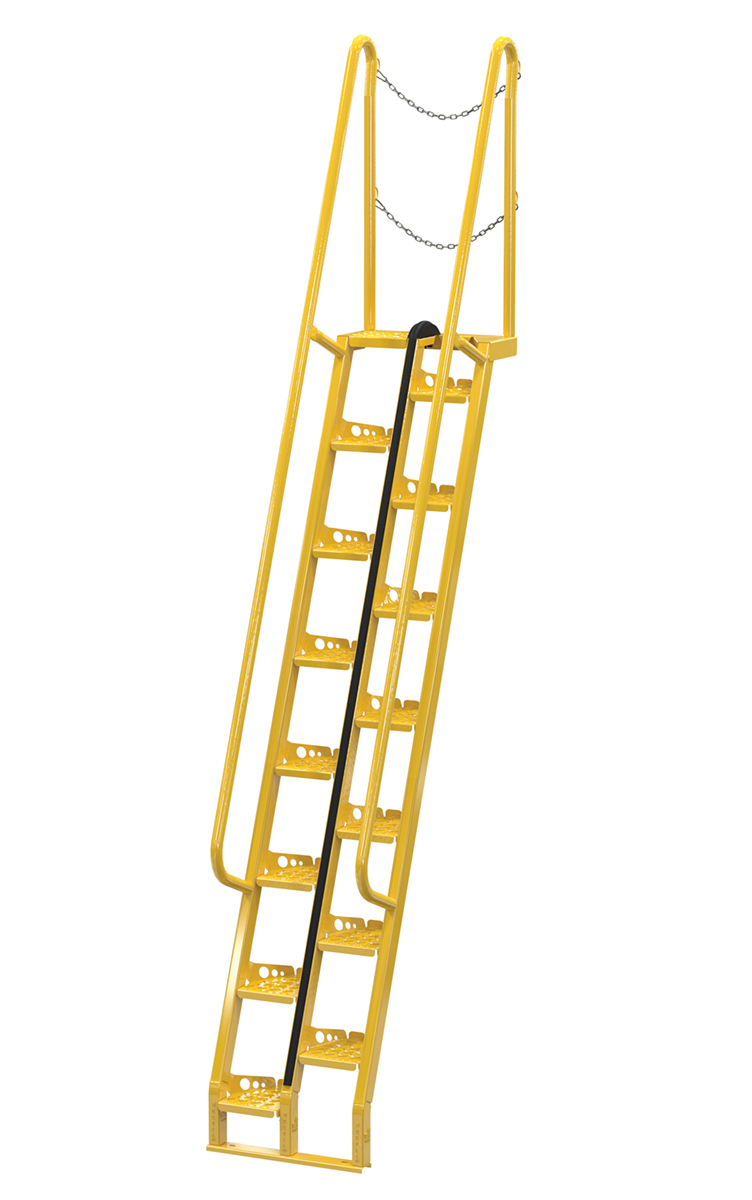

ATS-9-68 |
![]() | 1 Year Limited Warranty | Steel Alternate Tread Stair 68 Degrees 54-1/8 In. x 23-1/2 In. x 149-5/8 In. 350 Lb. Capacity Yellow | Uniform Capacity (lb.): 350 Number of Steps: 15 | 256 | ||

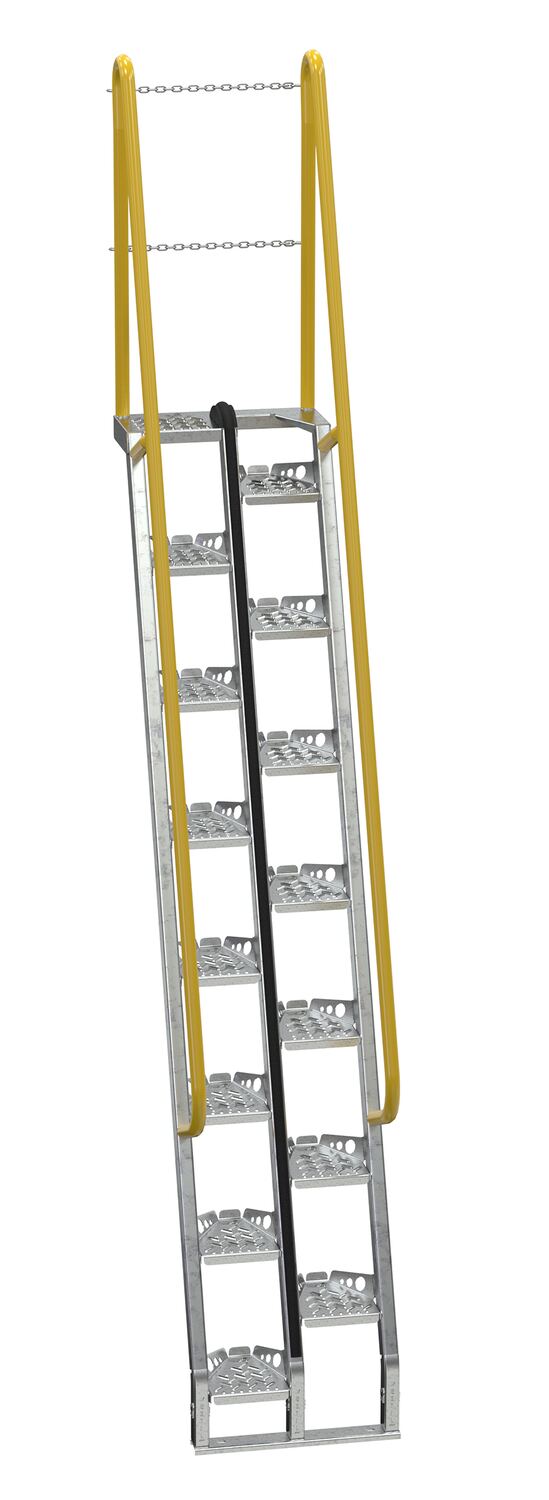

ATS-9-68-HDG |
![]() | 1 Year Limited Warranty | Galvanized Alternate Tread Stair 68 Degrees 54-1/8 In. x 23-1/2 In. x 149-5/8 In. 350 Lb. Capacity Silver | Uniform Capacity (lb.): 350 Number of Steps: 15 | 256 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
ATS-SCG | NEW |
![]() | 1 Year Limited Warranty | Steel Alternating Tread Step Self-Closing Gate Steel Yellow | Hardware Included?: Yes Overall Width (in.): 3 | 16 |
.
A: The handrail has a 1-1/4" diameter.
A: The ATS-68 (68 degree step angle) can be designed up to 204" top step height. The ATS-56 (56 degree step angle) can be designed up to 168" top step height. Please contact a sales associate for details.
A: Our ATS ladders are built out of ASTM A36 hot rolled steel.
