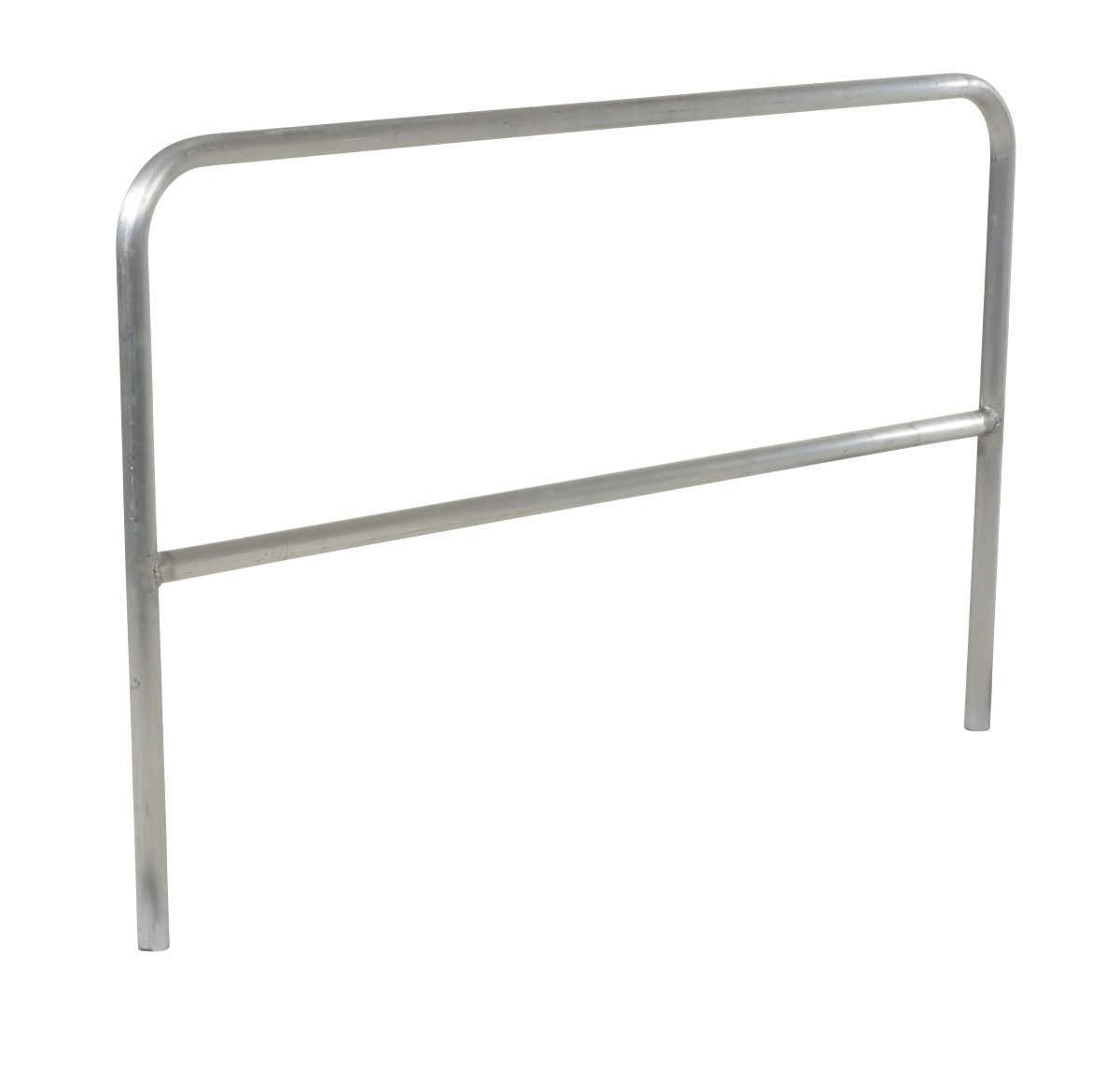

model: ADKR-6

Aluminum Safety Railings

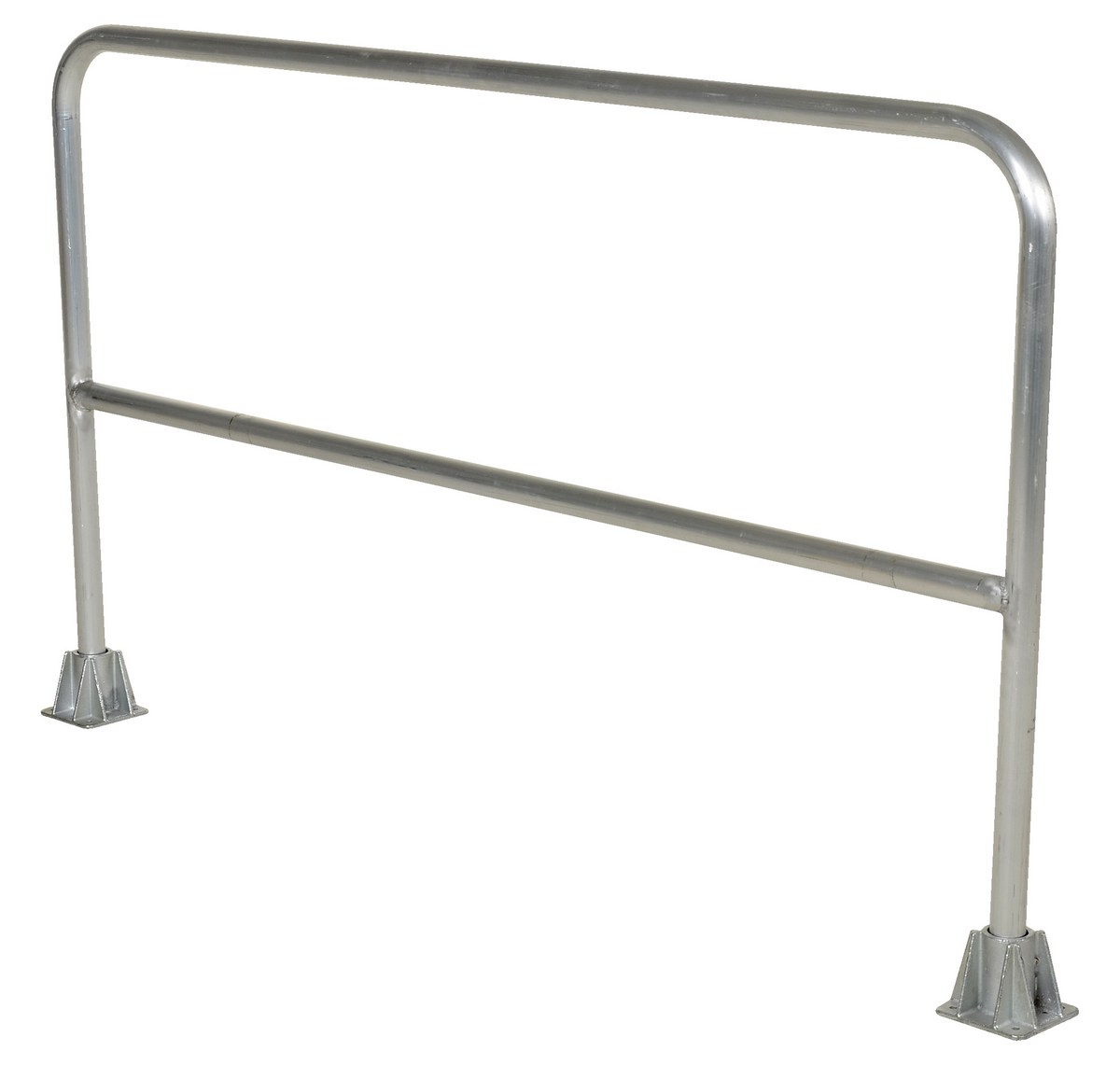

model: ADKR-6

Featured Protective Barriers

Adjustable Perimeter Guard Systems

Traffic Cone Barrier

Polyethylene Ultra I-Beam Protector

Crowd Control Interlocking Barriers

Mezzanine Safety Gates

Chain & Attachments for Bollards

Square Safety Handrails

Swivel Dock Gates

Crowd Control Barriers Cart

model chart

Print Friendly

Aluminum Safety Railings

SERIES: ADKR

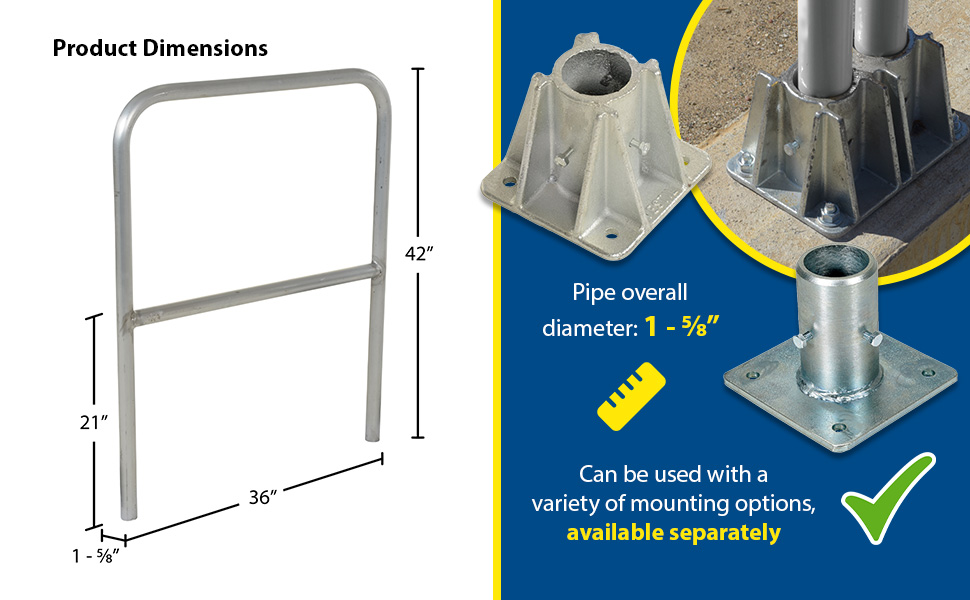

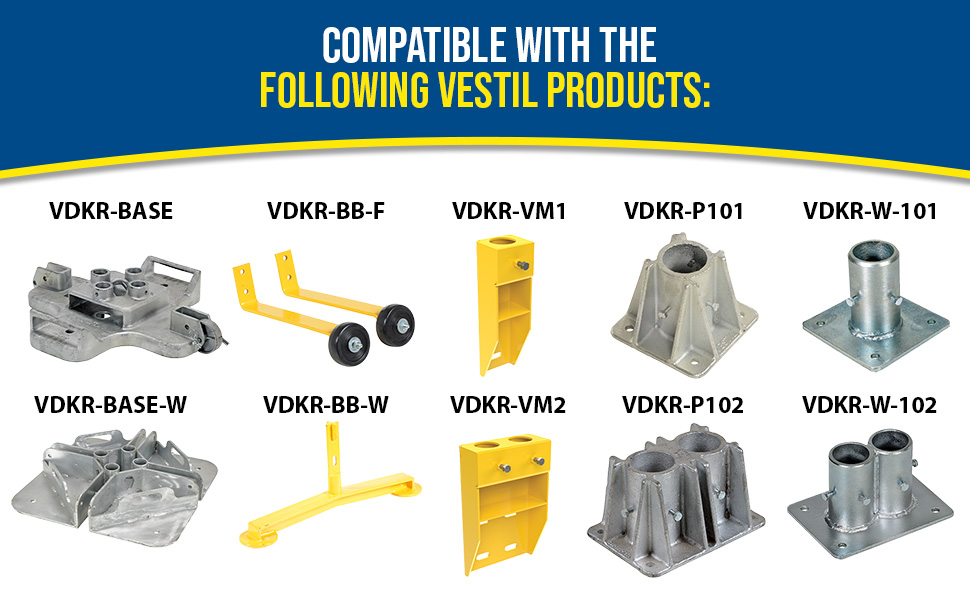

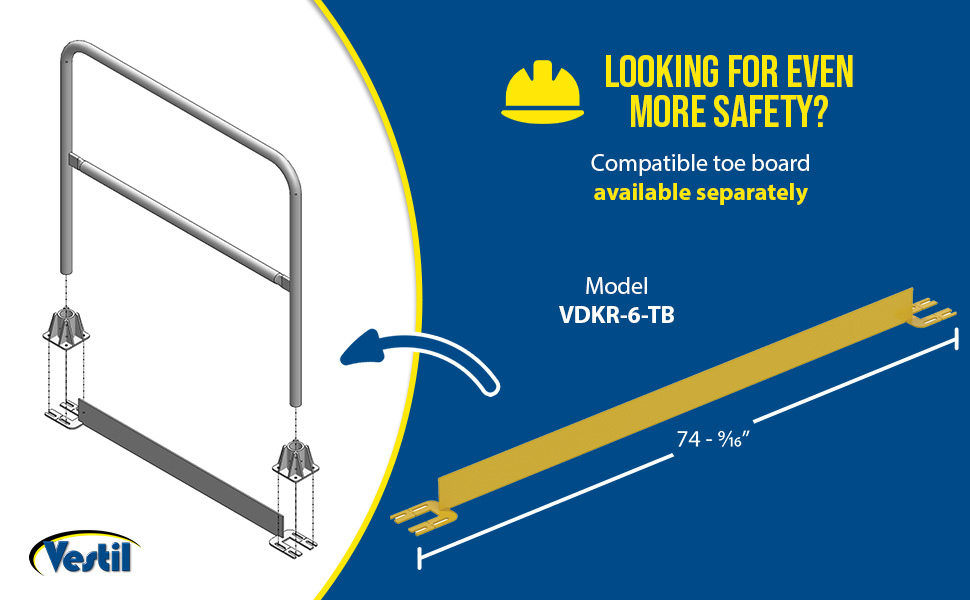

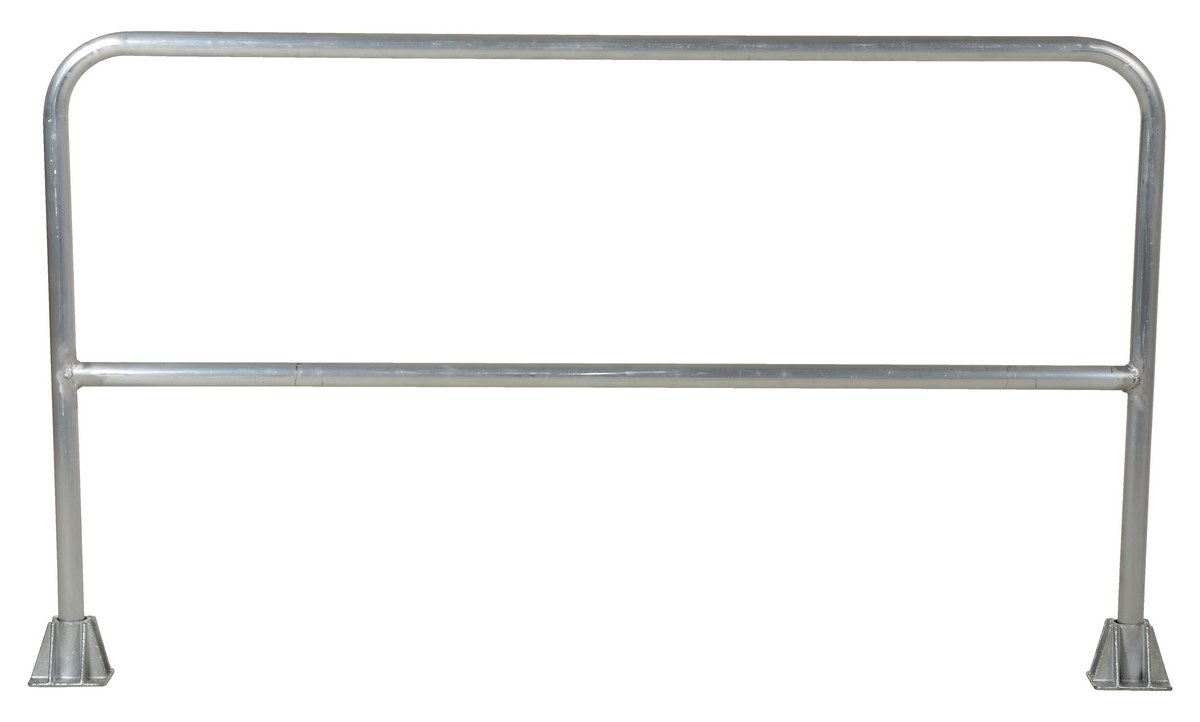

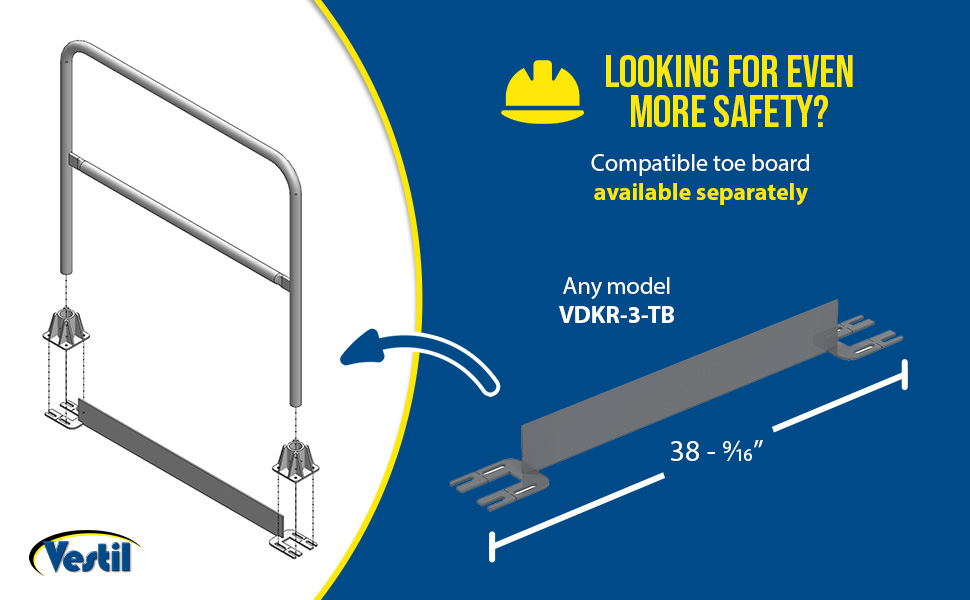

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 40 aluminum. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept 2" x 4" or 2" x 6" wood when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The aluminum models are available in a variety of colors. Add one of the abbreviations, found in the below table, to the end of the model number of your choice to designate the desired color. The ADKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

Aluminum models (ADKR-) are available in a variety of colors. Add one of the abbreviations, found in the below table, to the end of the model number of your choice to designate the desired color.

High and mid-rail design provides added safety
Aluminum construction provides durability and protection
Heavy-duty aluminum pipe hand railing can be used in multiple application areas
Railing protects people on uneven walkways and mezzanines

Check Out Our Steel Safety Railing

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 40 aluminum. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept 2" x 4" or 2" x 6" wood when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The aluminum models are available in a variety of colors. Add one of the abbreviations, found in the below table, to the end of the model number of your choice to designate the desired color. The ADKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

Aluminum models (ADKR-) are available in a variety of colors. Add one of the abbreviations, found in the below table, to the end of the model number of your choice to designate the desired color.

High and mid-rail design provides added safety
Aluminum construction provides durability and protection
Heavy-duty aluminum pipe hand railing can be used in multiple application areas
Railing protects people on uneven walkways and mezzanines

Check Out Our Steel Safety Railing

Other Safety Railing

Self-Closing Steel Gates (Adjustable Width)

Safety Lift Gates

Mezzanine Safety Gates

Economical Safety Swing Gate

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

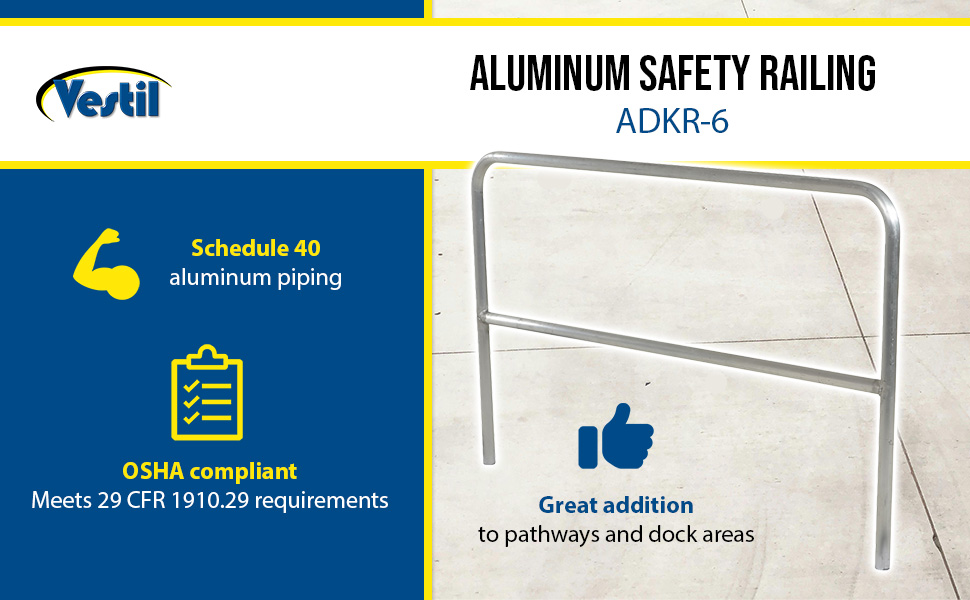

ADKR-6

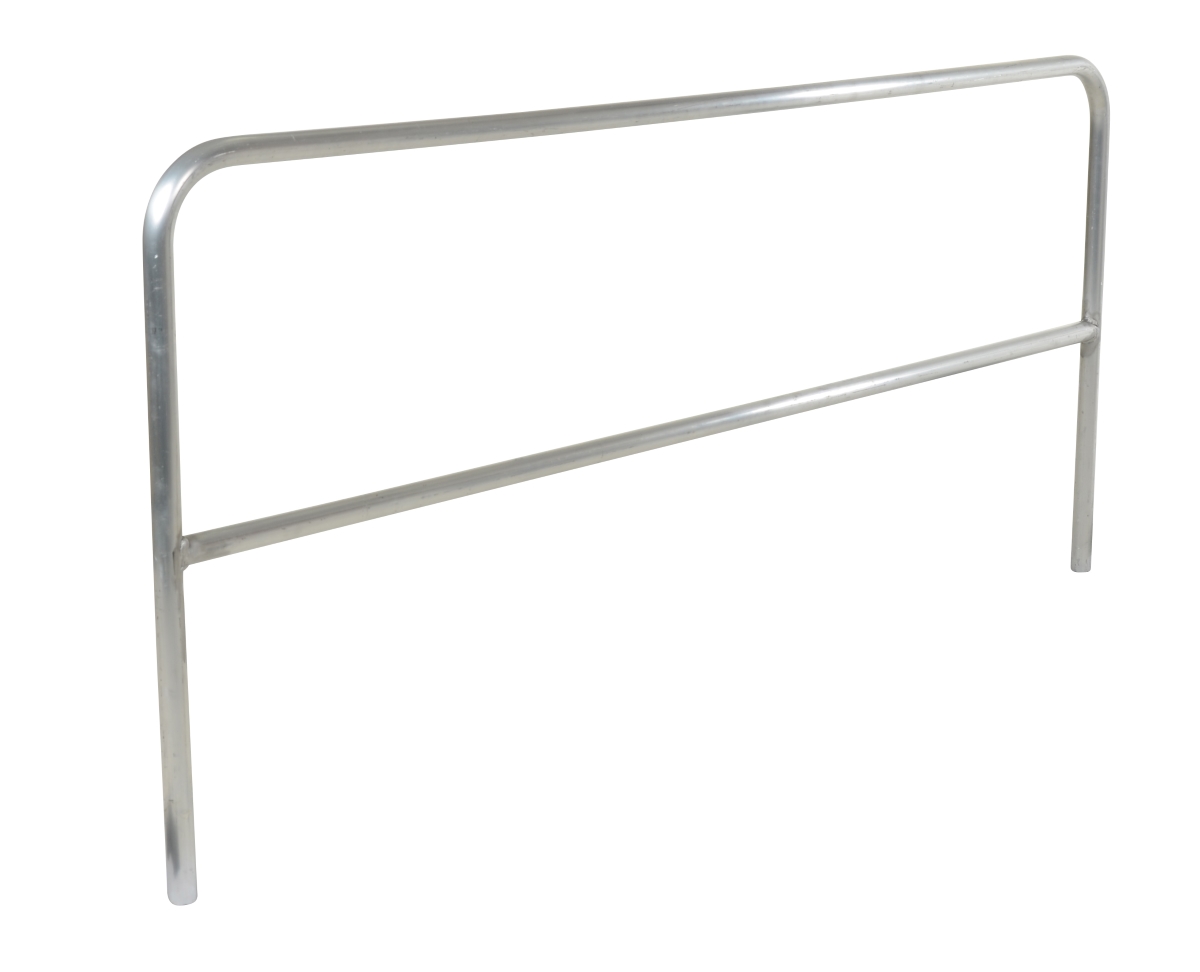

ADKR-8

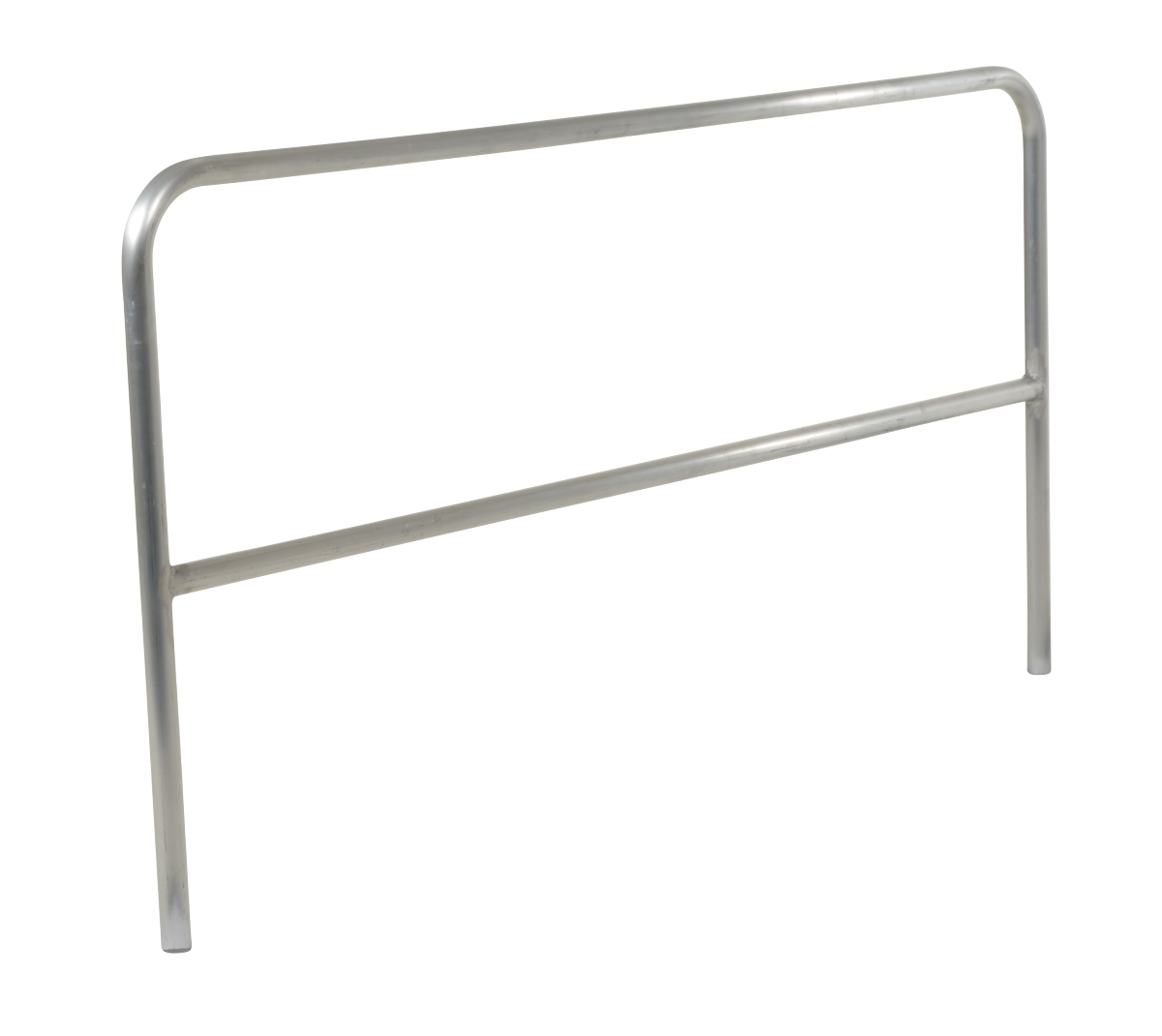

ADKR-7

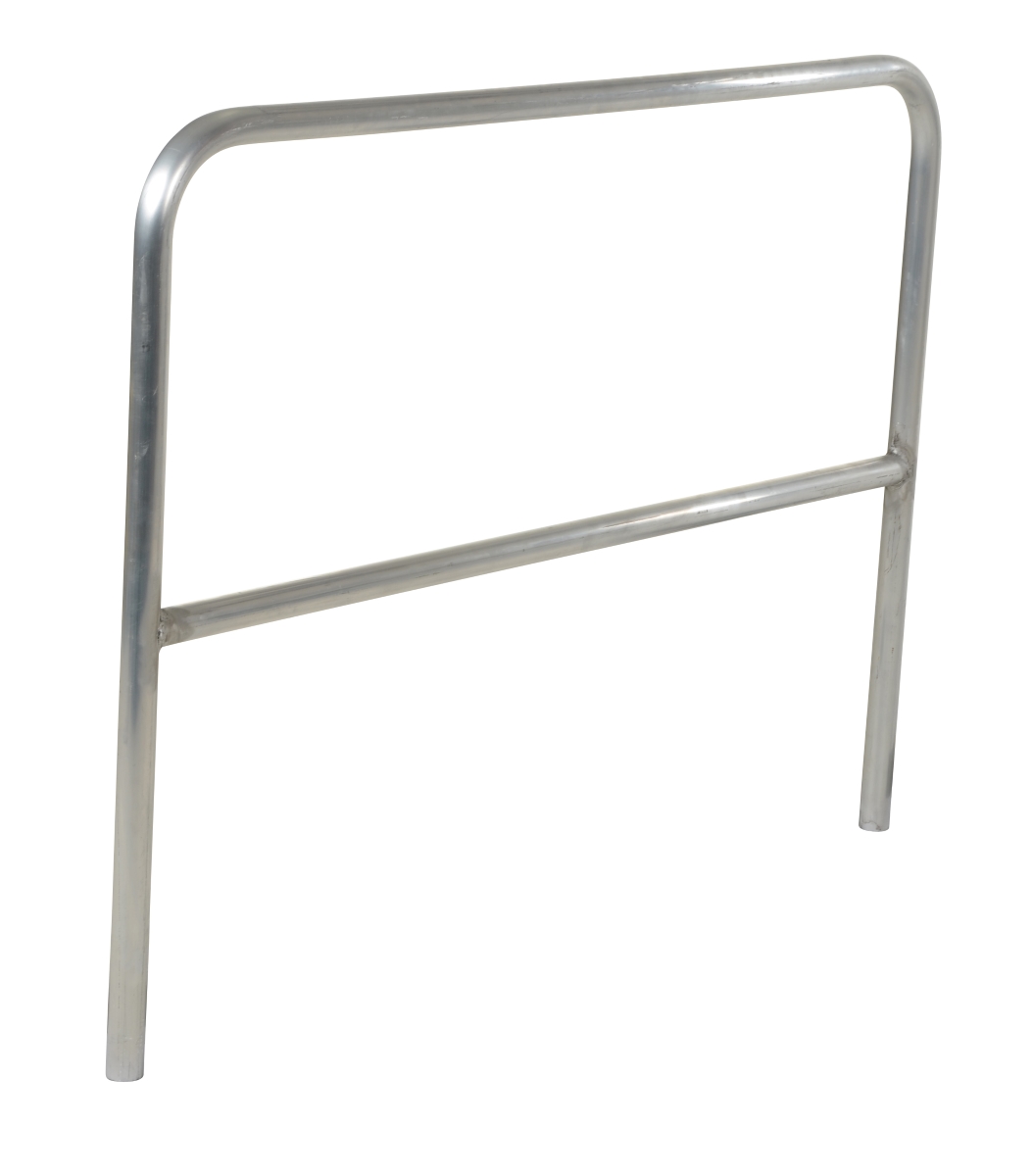

ADKR-5

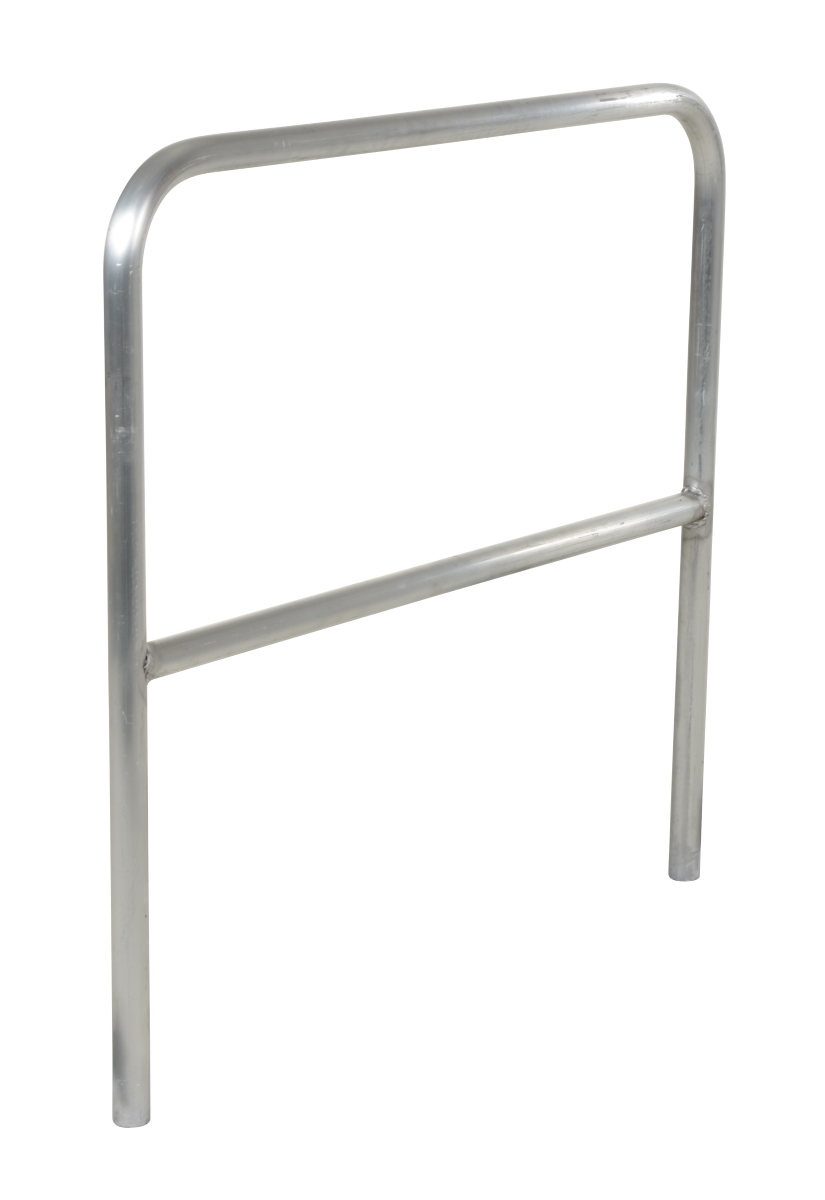

ADKR-4

ADKR-6

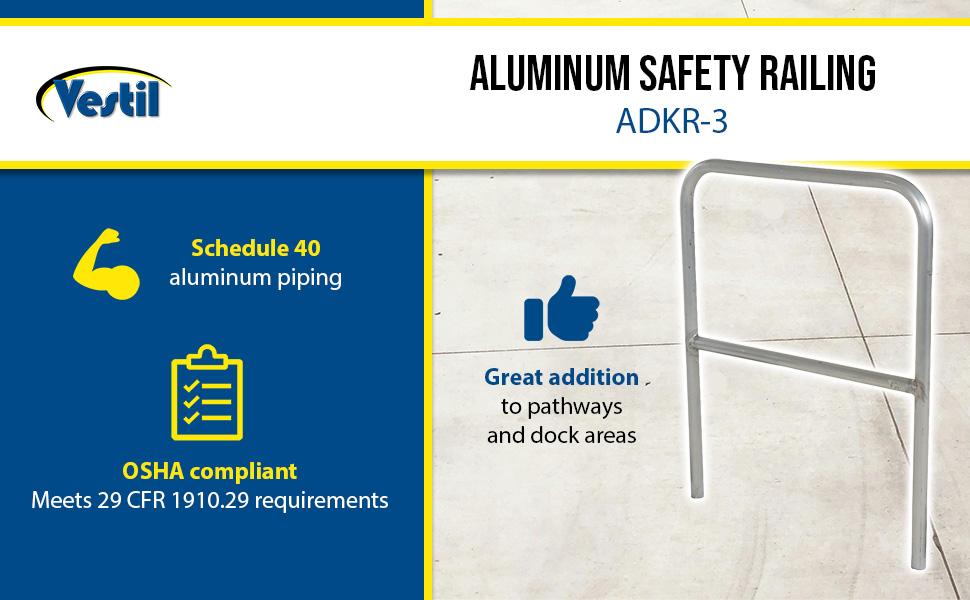

ADKR-3

ADKR-8

ADKR-6

ADKR-4

ADKR-5

ADKR-4

ADKR-10

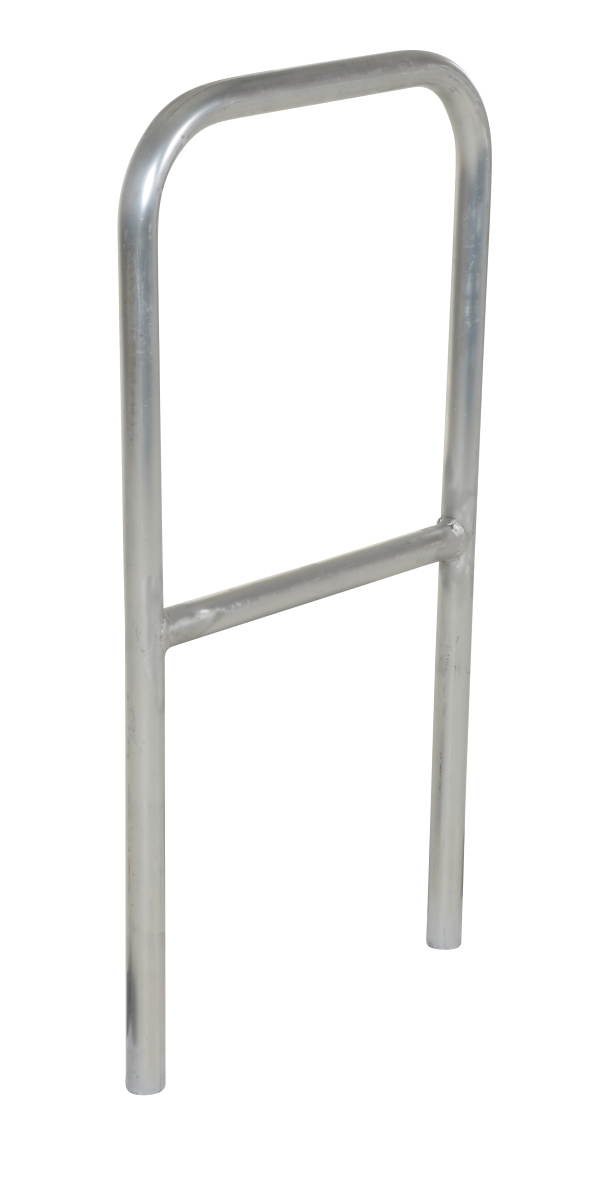

ADKR-2

Safety Railing Specialty Colors Available!

Aluminum ADKR Colors

YELLOW

YELLOW
Model Suffix: -YL

BLACK

BLACK
Model Suffix: -BK

BROWN

BROWN
Model Suffix: -BN

GREEN

GREEN
Model Suffix: -GN

ORANGE

ORANGE
Model Suffix: -OR

RED

RED
Model Suffix: -RD

Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)
ADKR-2	90 Days Limited Warranty	Aluminum Pipe Safety Railing 24 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	9
ADKR-3	90 Days Limited Warranty	Aluminum Pipe Safety Railing 36 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	10
ADKR-4	90 Days Limited Warranty	Aluminum Pipe Safety Railing 48 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	16
ADKR-5	90 Days Limited Warranty	Aluminum Pipe Safety Railing 60 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	13
ADKR-6	90 Days Limited Warranty	Aluminum Pipe Safety Railing 72 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	15
ADKR-7	90 Days Limited Warranty	Aluminum Pipe Safety Railing 84 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	16
ADKR-8	90 Days Limited Warranty	Aluminum Pipe Safety Railing 96 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	18
ADKR-10	90 Days Limited Warranty	Aluminum Pipe Safety Railing 120 In. Length Silver	Midrail Height (in.): 21 Aluminum Pipe (schedule): 40	22

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
