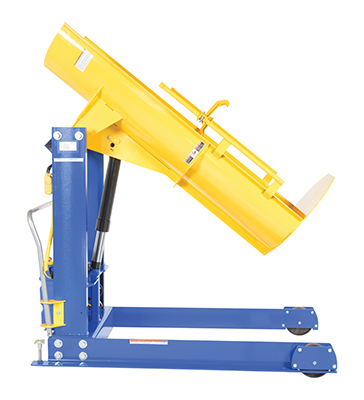

HDD-48-10-P_A.jpg HDD-48-10-P_D.jpg HDD-48-10-P_E.jpg HDD-48-10-P_K.jpg

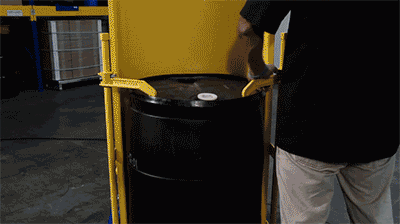

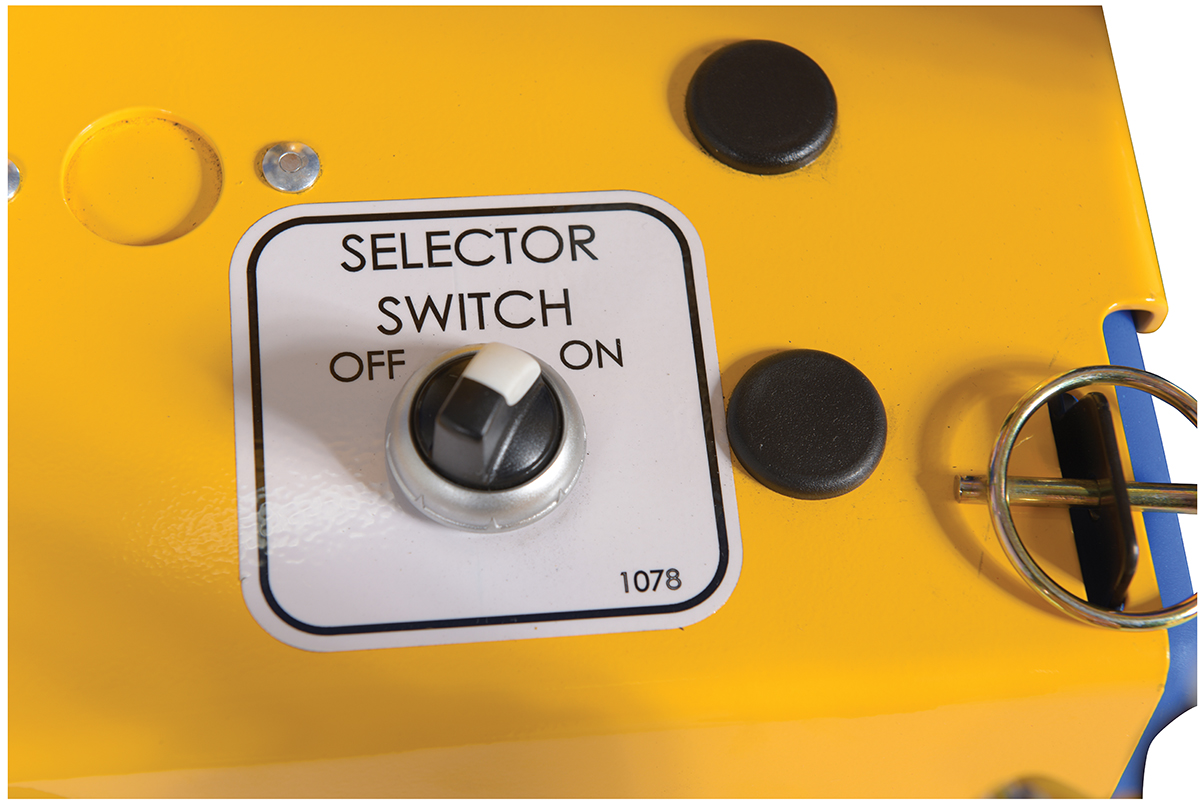

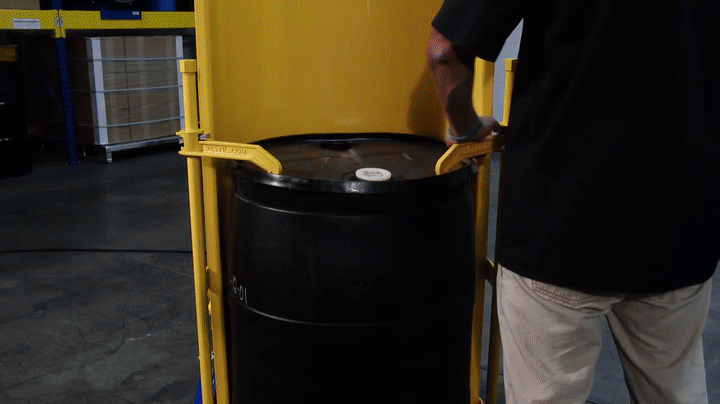

HDD-48-10-P_L.jpg HDD-48-10-P_M.jpg HDD-48-10-P_N.jpg HDD_X.gif

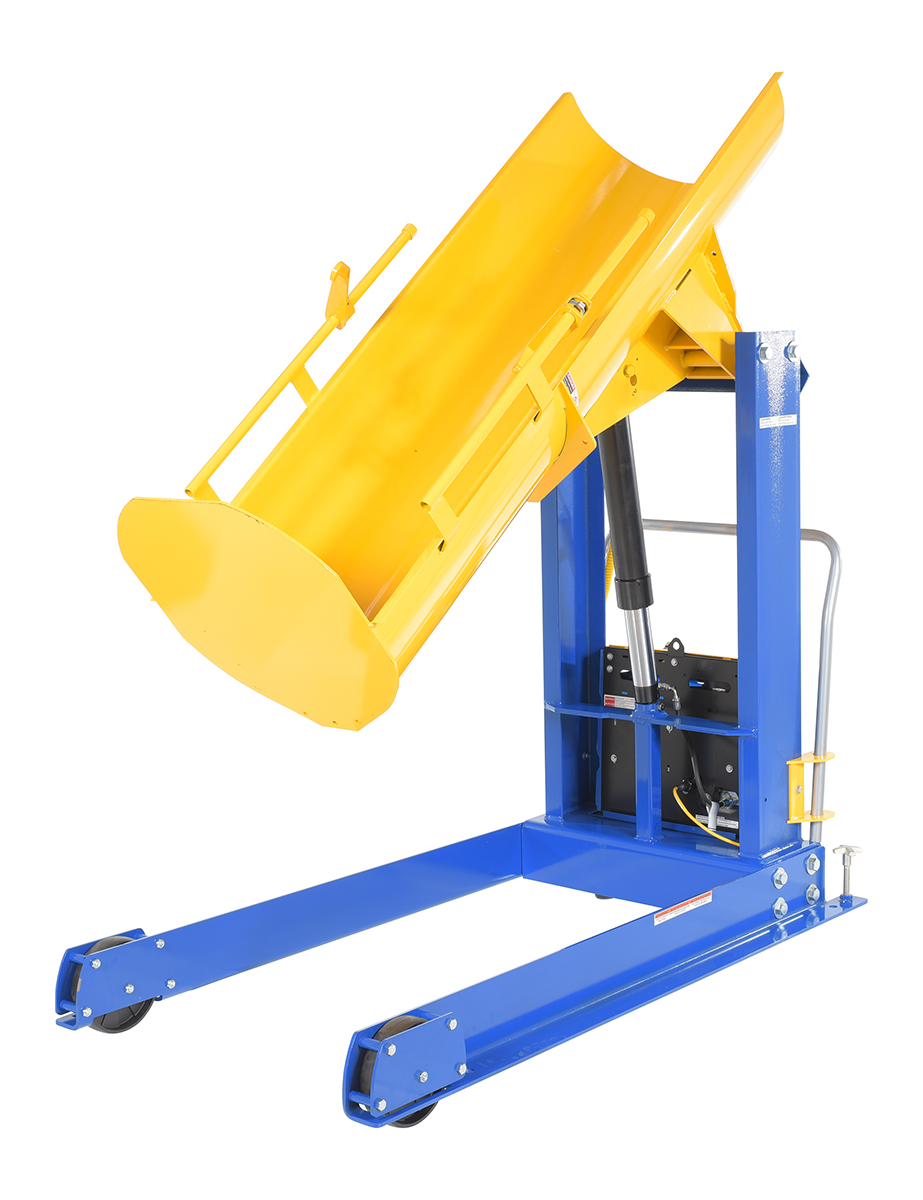

Hydraulic Drum Dumpers

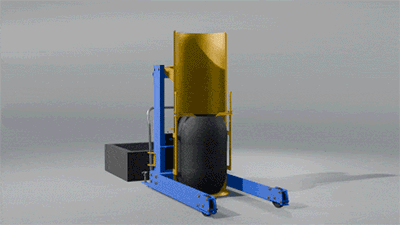

model: HDD-48-10-P



Featured Drum Handling Equipment


Multi-Purpose Dollies
Drum Stand
Keg Transport Skate
Steel Drums Standard and U.N. Rated
Drum Vents
Intermediate Bulk Containers
Electric Drum Pumps
Overhead Drum Lifter
Cylinder Storage Cabinets (Canada sales)
model chart

Product Family Overview

Print Friendly
Hydraulic Drum Dumpers
SERIES: HDD

115V 1-PHASE STANDARD

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. DC powered units available in portable models. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness
  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact

115V 1-PHASE STANDARD

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. DC powered units available in portable models. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness
  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact

Other Drum Positioners & Dumpers

 Lift-and-Dump Hydraulic Drum Dumpers Hoist Mounted Drum Carrier/Rotators Economy Drum Positioner Drum & Bin Dumpers

Additional Models In This Family
view entire Image Gallery

HDD-36-10-S-SSC

HDD-36-10-S-SSC

HDD-60-7-P

HDD-60-7-P

HDD-48-10-P

HDD-48-10-P

HDD-72-15-P-SSC

HDD-72-15-P-SSC

HDD-72-10-P

HDD-72-10-P

HDD-48-15-P-DC

HDD-48-15-P-DC

HDD-48-7-S

HDD-48-7-S

HDD-72-7-P-SSC

HDD-72-7-P-SSC

HDD-60-7-S

HDD-60-7-S

HDD-36-15-S-SSC

HDD-36-15-S-SSC

HDD-60-7-P-SSC

HDD-60-7-P-SSC

HDD-36-10-P-SSC

HDD-36-10-P-SSC

HDD-60-15-P-SSC

HDD-60-15-P-SSC

HDD-48-15-P

HDD-48-15-P

HDD-72-7-P

HDD-72-7-P

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDD-36-10-P HDD-36-10-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		797
HDD-36-10-P-DC NEW HDD-36-10-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		782
HDD-36-10-P-SSC HDD-36-10-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 36		763
HDD-36-10-S HDD-36-10-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		707
HDD-36-10-S-SSC HDD-36-10-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 36		707
HDD-36-15-P HDD-36-15-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		776
HDD-36-15-P-DC NEW HDD-36-15-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		782
HDD-36-15-P-SSC HDD-36-15-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 36		776
HDD-36-15-S HDD-36-15-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		966
HDD-36-15-S-SSC HDD-36-15-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 36		966
HDD-36-7-P HDD-36-7-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		788
HDD-36-7-P-DC NEW HDD-36-7-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		782
HDD-36-7-P-SSC HDD-36-7-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 36		788
HDD-36-7-S HDD-36-7-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		709
HDD-36-7-S-SSC HDD-36-7-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 36		709
HDD-48-10-P HDD-48-10-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		862

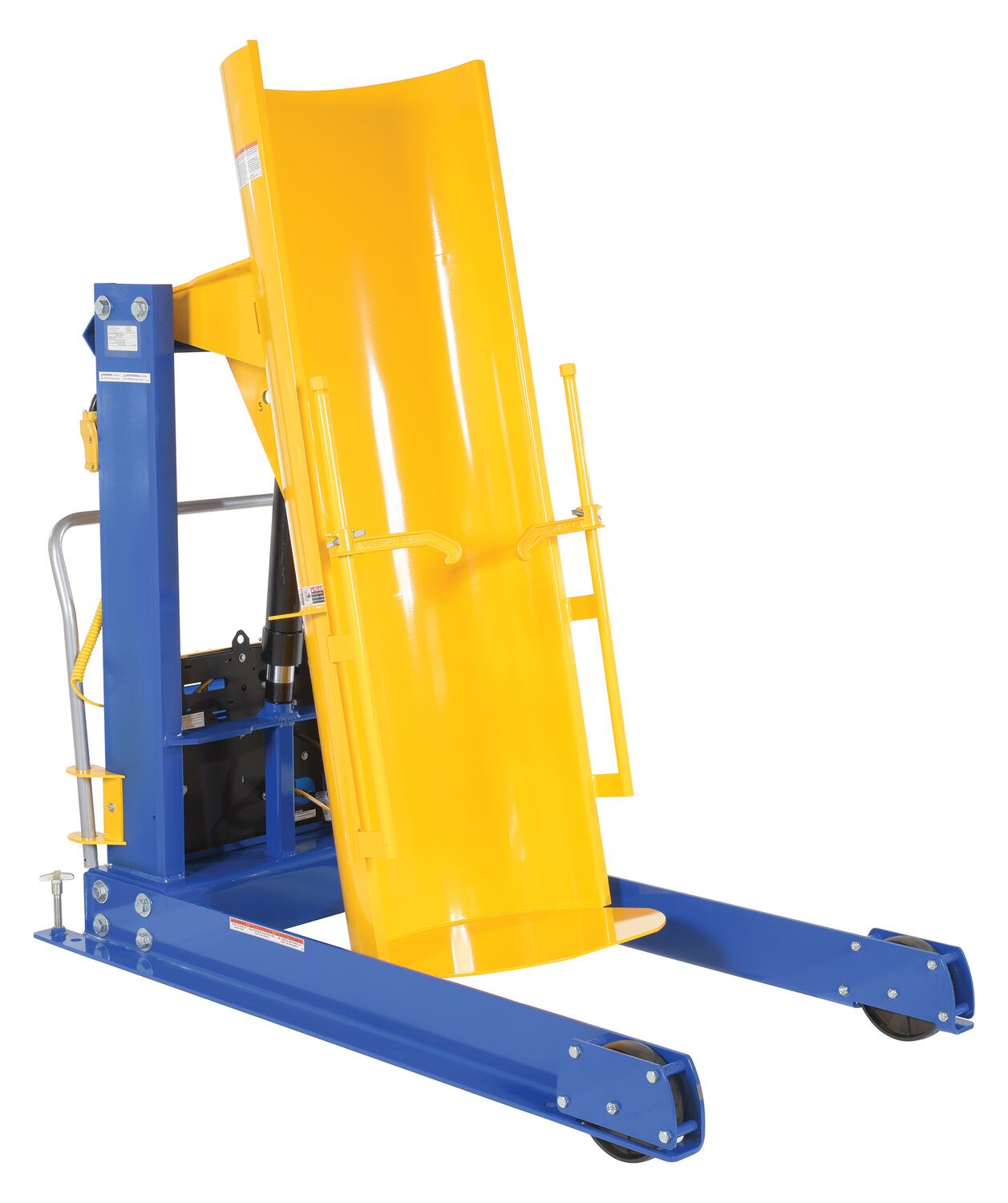

HDD-48-10-P-DC NEW HDD-48-10-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		850
HDD-48-10-P-SSC HDD-48-10-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 48		862
HDD-48-10-S HDD-48-10-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		792
HDD-48-10-S-SSC HDD-48-10-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 48		792
HDD-48-15-P HDD-48-15-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		880
HDD-48-15-P-DC NEW HDD-48-15-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		850
HDD-48-15-P-SSC HDD-48-15-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 48		880
HDD-48-15-S HDD-48-15-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		814
HDD-48-15-S-SSC HDD-48-15-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 48		814
HDD-48-7-P HDD-48-7-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		864
HDD-48-7-P-DC NEW HDD-48-7-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		850
HDD-48-7-P-SSC HDD-48-7-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 48		864
HDD-48-7-S HDD-48-7-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		811
HDD-48-7-S-SSC HDD-48-7-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 48		800
HDD-60-10-P POPULAR HDD-60-10-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		980
HDD-60-10-P-DC NEW HDD-60-10-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		1032
HDD-60-10-P-SSC HDD-60-10-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 60		1005
HDD-60-10-S HDD-60-10-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		945
HDD-60-10-S-SSC HDD-60-10-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 60		947
HDD-60-15-P HDD-60-15-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		999
HDD-60-15-P-DC NEW HDD-60-15-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		1032
HDD-60-15-P-SSC HDD-60-15-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 60		1026
HDD-60-15-S HDD-60-15-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		963
HDD-60-15-S-SSC HDD-60-15-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 60		937
HDD-60-7-P HDD-60-7-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		998
HDD-60-7-P-DC NEW HDD-60-7-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		1032
HDD-60-7-P-SSC HDD-60-7-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 60		1019
HDD-60-7-S HDD-60-7-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		986
HDD-60-7-S-SSC HDD-60-7-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 60		988
HDD-72-10-P HDD-72-10-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1064
HDD-72-10-P-DC NEW HDD-72-10-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1110
HDD-72-10-P-SSC HDD-72-10-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1069
HDD-72-10-S HDD-72-10-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1055
HDD-72-10-S-SSC HDD-72-10-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1055
HDD-72-15-P HDD-72-15-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1122
HDD-72-15-P-DC NEW HDD-72-15-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1110
HDD-72-15-P-SSC HDD-72-15-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1092
HDD-72-15-S HDD-72-15-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1030
HDD-72-15-S-SSC HDD-72-15-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1036
HDD-72-7-P HDD-72-7-P1 Year Limited WarrantySteel Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1076
HDD-72-7-P-DC NEW HDD-72-7-P-DC1 Year Limited, 90 Days Wearable Parts Limited WarrantySteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1110
HDD-72-7-P-SSC HDD-72-7-P-SSC1 Year Limited WarrantyStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 72		1034

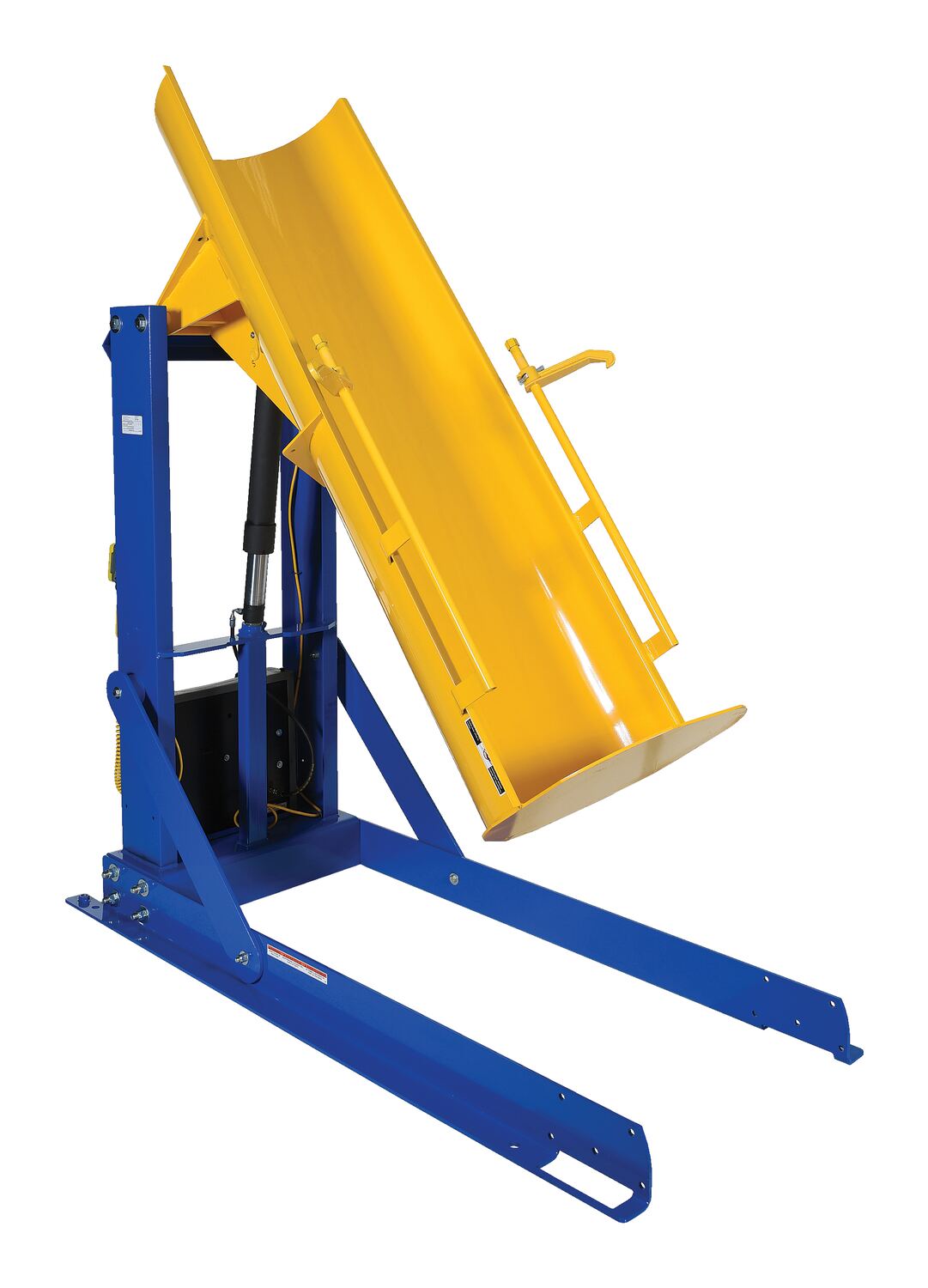

HDD-72-7-S HDD-72-7-S1 Year Limited WarrantySteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1040
HDD-72-7-S-SSC HDD-72-7-S-SSC1 Year Limited WarrantyStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 72		1013

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDD-36-10-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36

HDD-36-10-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36

HDD-36-10-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36

HDD-36-10-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36

HDD-36-15-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36

HDD-36-15-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36

HDD-36-15-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36

HDD-36-15-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36

HDD-36-7-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 36
Uniform Capacity (lb.): 750
Dump Height (in.): 36

HDD-36-7-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 36
Uniform Capacity (lb.): 750
Dump Height (in.): 36

HDD-36-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 36
Uniform Capacity (lb.): 750
Dump Height (in.): 36

HDD-36-7-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 36
Uniform Capacity (lb.): 750
Dump Height (in.): 36

HDD-48-10-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48

HDD-48-10-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48

HDD-48-10-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48

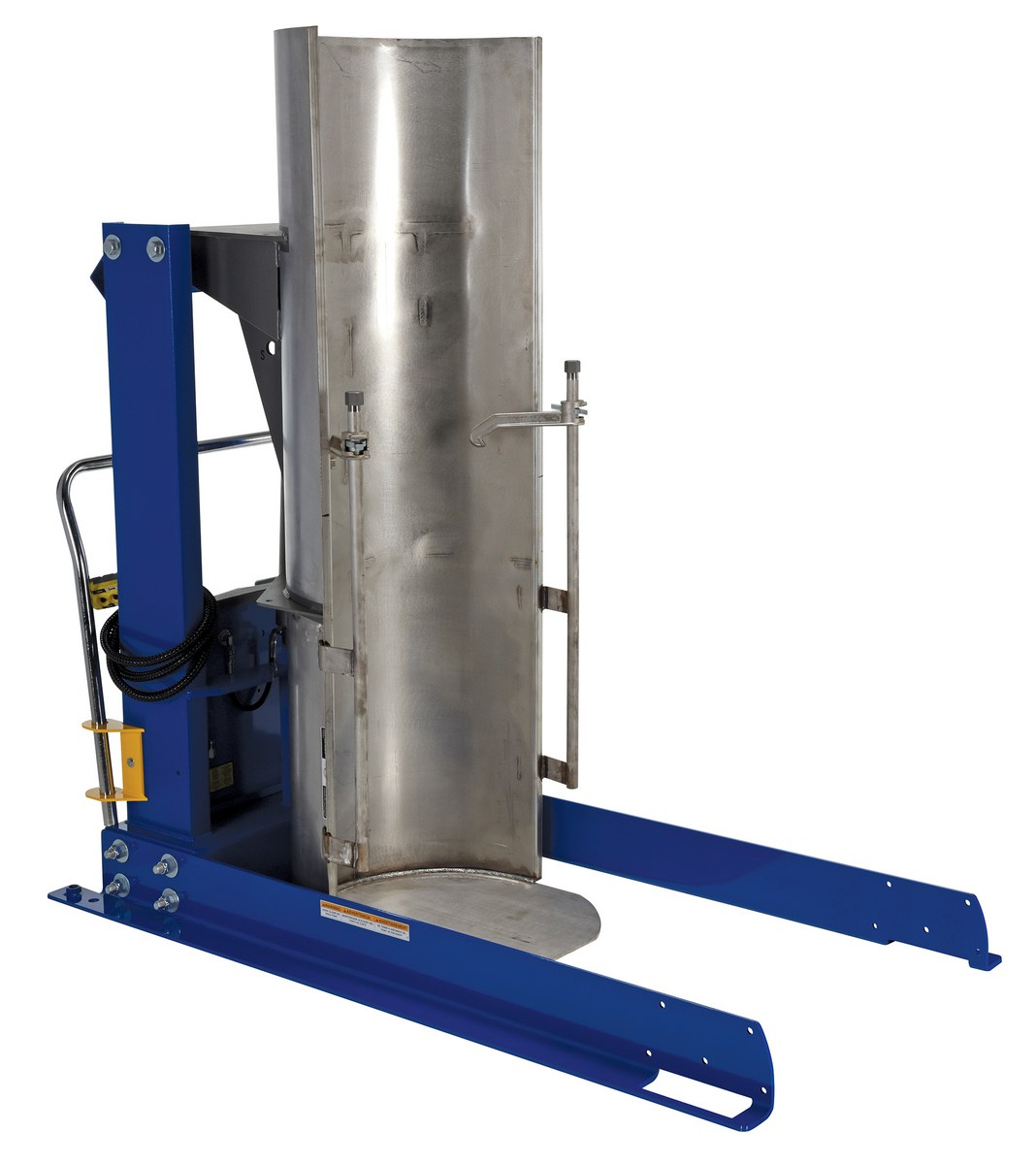

HDD-48-10-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48

HDD-48-15-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48

HDD-48-15-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48

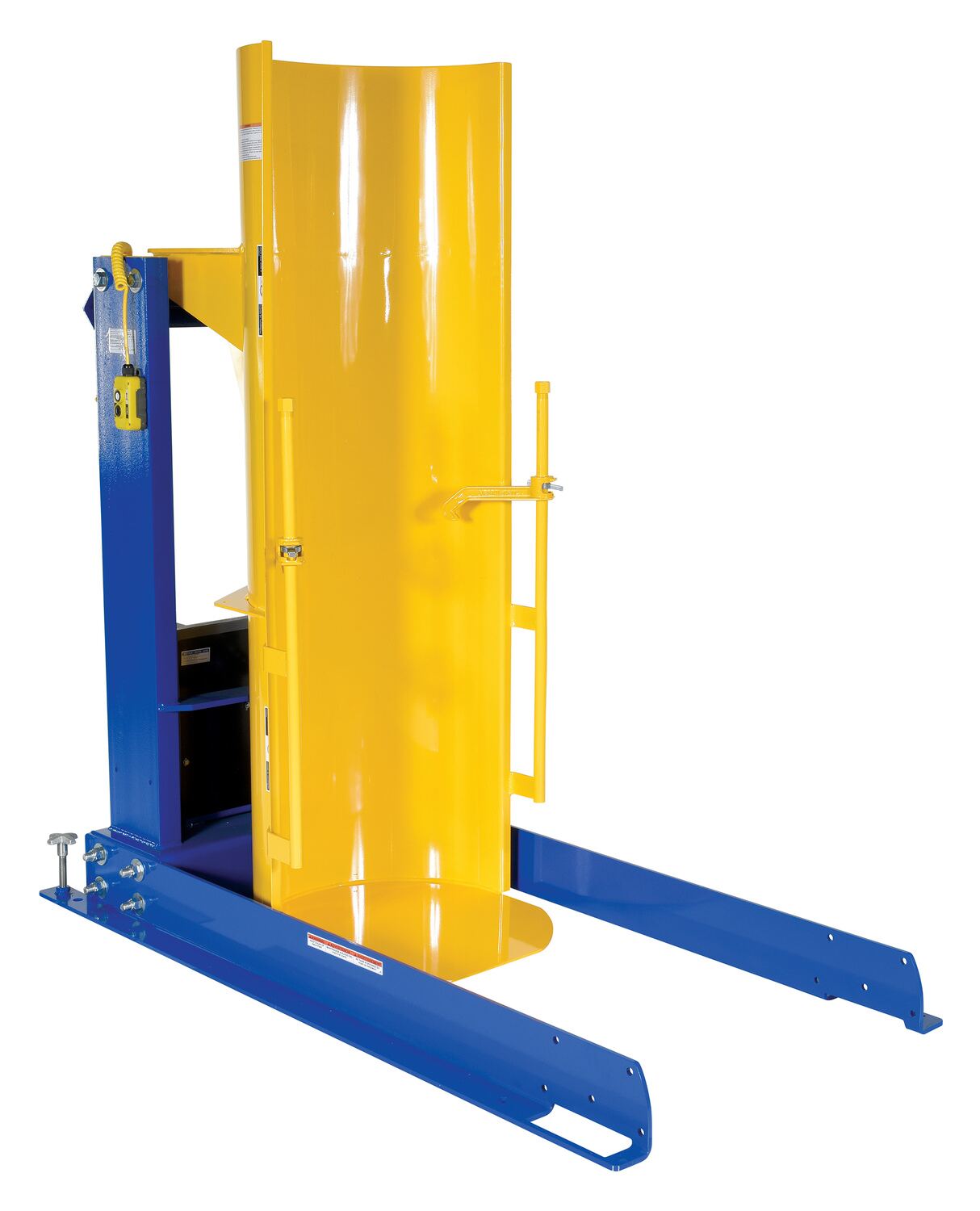

HDD-48-15-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48

HDD-48-15-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48

HDD-48-7-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 48
Uniform Capacity (lb.): 750
Dump Height (in.): 48

HDD-48-7-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 48
Uniform Capacity (lb.): 750
Dump Height (in.): 48

HDD-48-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 48
Uniform Capacity (lb.): 750
Dump Height (in.): 48

HDD-48-7-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 48
Uniform Capacity (lb.): 750
Dump Height (in.): 48

HDD-60-10-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60

HDD-60-10-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60

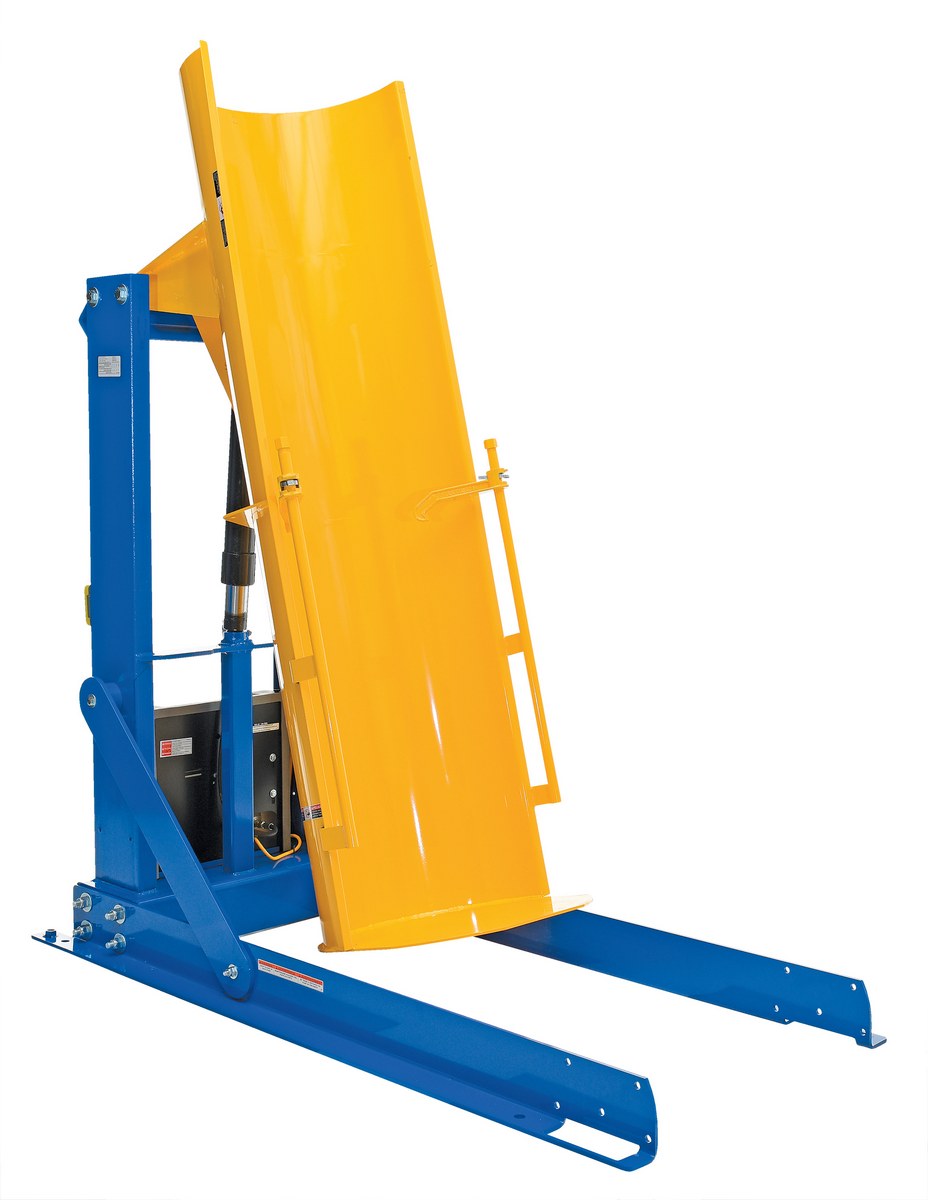

HDD-60-10-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60

HDD-60-10-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60

HDD-60-15-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60

HDD-60-15-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60

HDD-60-15-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60

HDD-60-15-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60

HDD-60-7-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 60
Uniform Capacity (lb.): 750
Dump Height (in.): 60

HDD-60-7-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 60
Uniform Capacity (lb.): 750
Dump Height (in.): 60

HDD-60-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 60
Uniform Capacity (lb.): 750
Dump Height (in.): 60

HDD-60-7-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 60
Uniform Capacity (lb.): 750
Dump Height (in.): 60

HDD-72-10-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72

HDD-72-10-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72

HDD-72-10-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72

HDD-72-10-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72

HDD-72-15-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72

HDD-72-15-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72

HDD-72-15-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72

HDD-72-15-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72

HDD-72-7-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 72
Uniform Capacity (lb.): 750
Dump Height (in.): 72

HDD-72-7-P-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 72
Uniform Capacity (lb.): 750
Dump Height (in.): 72

HDD-72-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 72
Uniform Capacity (lb.): 750
Dump Height (in.): 72

HDD-72-7-S-SSC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 72
Uniform Capacity (lb.): 750
Dump Height (in.): 72

HDD-36-10-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36
Uniform Capacity (lb.): 1,000
Dump Height (in.): 36

HDD-36-15-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36
Uniform Capacity (lb.): 1,500
Dump Height (in.): 36

HDD-36-7-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 36
Uniform Capacity (lb.): 750
Dump Height (in.): 36

HDD-48-10-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48
Uniform Capacity (lb.): 1,000
Dump Height (in.): 48

HDD-48-15-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48
Uniform Capacity (lb.): 1,500
Dump Height (in.): 48

HDD-48-7-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 48
Uniform Capacity (lb.): 750
Dump Height (in.): 48

HDD-60-10-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60
Uniform Capacity (lb.): 1,000
Dump Height (in.): 60

HDD-60-15-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60
Uniform Capacity (lb.): 1,500
Dump Height (in.): 60

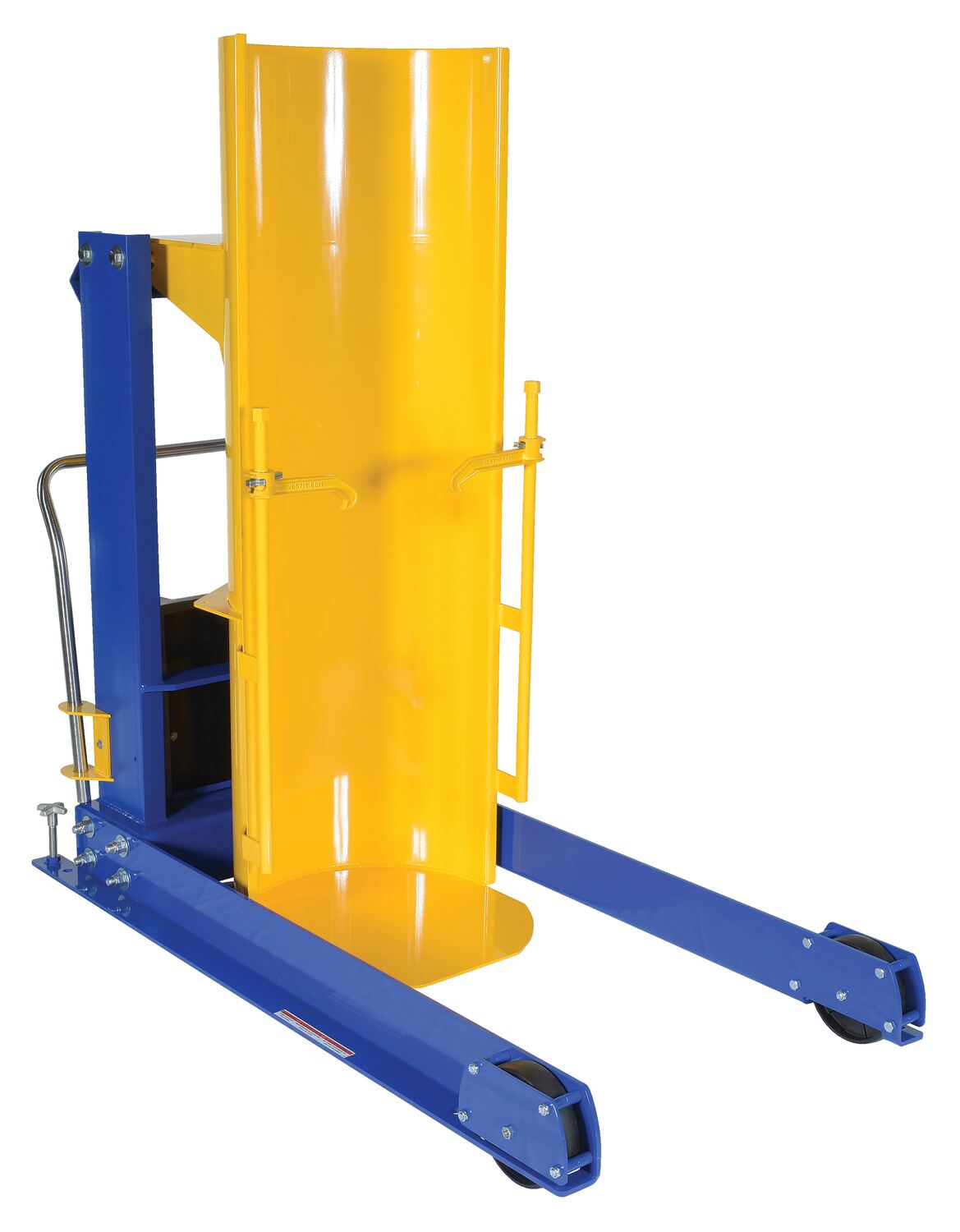

HDD-60-7-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 60
Uniform Capacity (lb.): 750
Dump Height (in.): 60

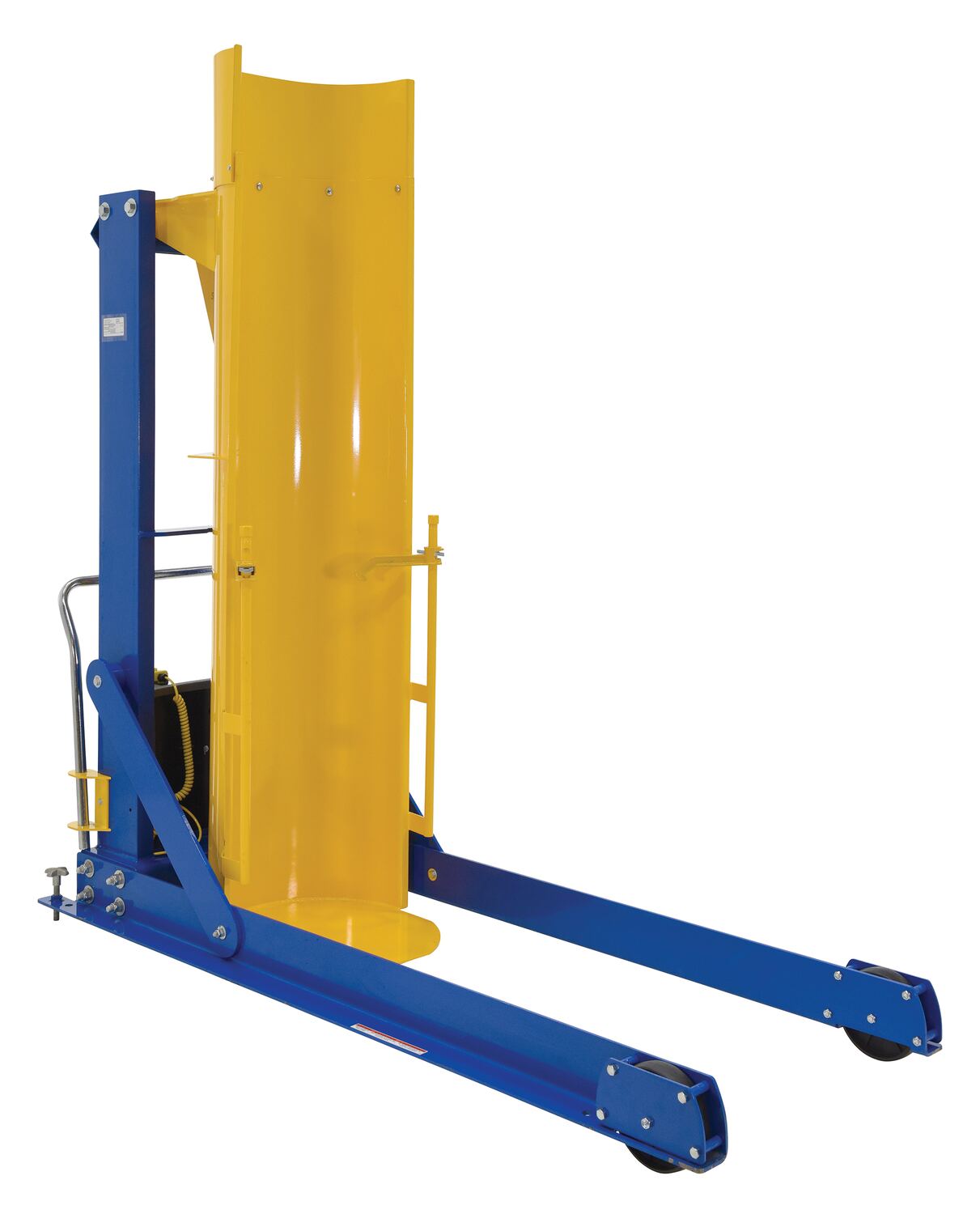

HDD-72-10-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72
Uniform Capacity (lb.): 1,000
Dump Height (in.): 72

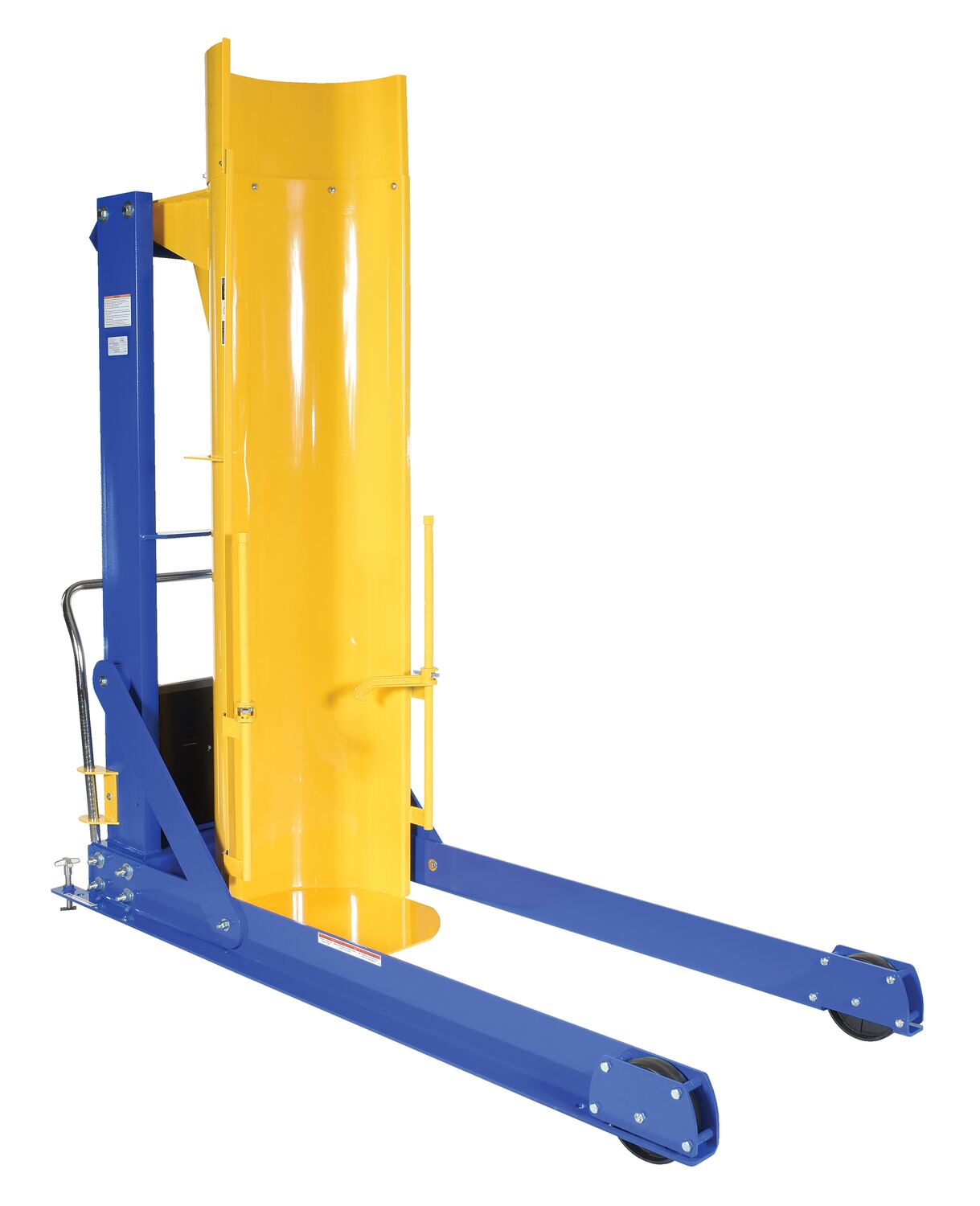

HDD-72-15-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72
Uniform Capacity (lb.): 1,500
Dump Height (in.): 72

HDD-72-7-P-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Dump Height (in.): 72
Uniform Capacity (lb.): 750
Dump Height (in.): 72
For More Details of the Option Click the Red Model Button

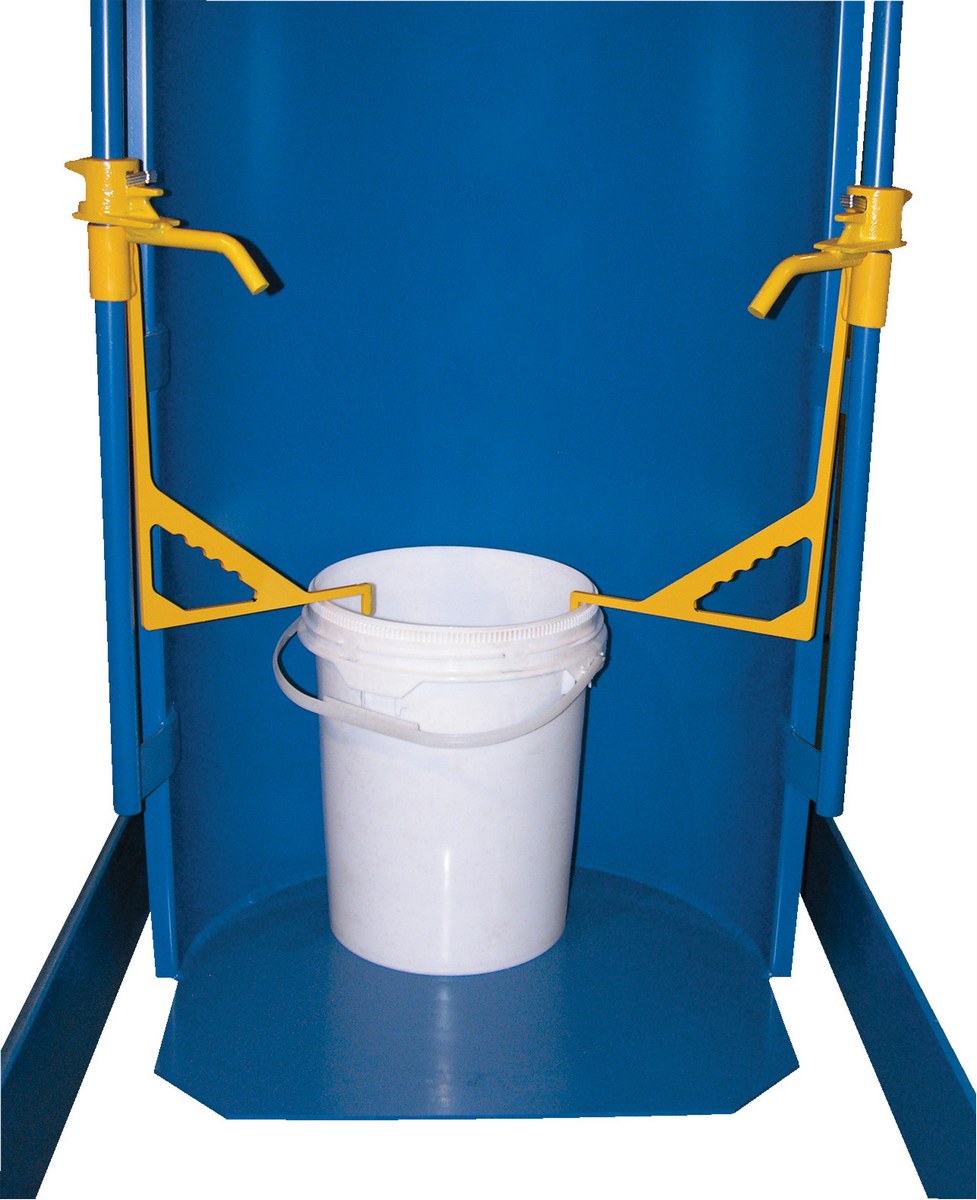

HDD-5G-ADP HDD-5G-ADP1 Year Limited WarrantySteel Hydraulic Drum Dumper Adapter 2 In. Diameter For 5 Gallon Pails BlueDiameter (in.): 2
6
Model PDFs Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-2PB - Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit 1
VCC-12VDC - Voltage Change from default to one 12V DC (Battery) Powered (External) -
VCC-115-1 - Voltage Change To 115V 1-Phase AC Power -
VCC-208/230-1 - Voltage Change To 208-230V 1-Phase AC Power -
VCC-208/230-3 - Voltage Change To 208-230V 3-Phase AC Power -
VCC-460-3 - Voltage Change To 460V 3-Phase AC Power -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Hydraulic Drum Dumpers PDF's will open in a new window when clicked.

Manuals


HDD
Owners Manual

Survey Sheets


HDD DRUM DUMPER
Survey Sheet

Approval Drawings


HDD-36-10-P

HDD-36-10-S

HDD-36-15-P

HDD-36-15-S

HDD-36-7-P

HDD-36-7-S

HDD-48-10-P

HDD-48-10-S

HDD-48-15-P

HDD-48-15-S

HDD-48-7-P

HDD-48-7-S

HDD-60-10-P

HDD-60-10-S

HDD-60-15-P

HDD-60-15-S

HDD-60-7-P

HDD-60-7-S

HDD-72-10-P

HDD-72-10-S

HDD-72-15-P

HDD-72-15-S

HDD-72-7-P

HDD-72-7-S

Testing Certificates


HDD-36-10-P

HDD-36-10-P-SSC

HDD-36-10-S

HDD-36-10-S-SSC

HDD-36-15-P

HDD-36-15-P-SSC

HDD-36-15-S

HDD-36-15-S-SSC

HDD-36-7-P

HDD-36-7-P-SSC

HDD-36-7-S

HDD-36-7-S-SSC

HDD-48-10-P

HDD-48-10-P-SSC

HDD-48-10-S

HDD-48-10-S-SSC

HDD-48-15-P

HDD-48-15-P-SSC

HDD-48-15-S

HDD-48-15-S-SSC

HDD-48-7-P

HDD-48-7-P-SSC

HDD-48-7-S

HDD-48-7-S-SSC

HDD-5G-ADP

HDD-60-10-P

HDD-60-10-P-SSC

HDD-60-10-S

HDD-60-10-S-SSC

HDD-60-15-P

HDD-60-15-P-SSC

HDD-60-15-S

HDD-60-15-S-SSC

HDD-60-7-P

HDD-60-7-P-SSC

HDD-60-7-S

HDD-60-7-S-SSC

HDD-72-10-P

HDD-72-10-P-SSC

HDD-72-10-S

HDD-72-10-S-SSC

HDD-72-15-P

HDD-72-15-P-SSC

HDD-72-15-S

HDD-72-15-S-SSC

HDD-72-7-P

HDD-72-7-P-SSC

HDD-72-7-S

HDD-72-7-S-SSC

SDS Sheets

Hydraulic Oil SDS Sheet for: HDD-36-10-P
Hydraulic Oil SDS Sheet for: HDD-36-10-P-SSC
Hydraulic Oil SDS Sheet for: HDD-36-10-S
Hydraulic Oil SDS Sheet for: HDD-36-10-S-SSC
Hydraulic Oil SDS Sheet for: HDD-36-15-P
Hydraulic Oil SDS Sheet for: HDD-36-15-P-SSC
Hydraulic Oil SDS Sheet for: HDD-36-15-S
Hydraulic Oil SDS Sheet for: HDD-36-15-S-SSC
Hydraulic Oil SDS Sheet for: HDD-36-7-P
Hydraulic Oil SDS Sheet for: HDD-36-7-P-SSC
Hydraulic Oil SDS Sheet for: HDD-36-7-S
Hydraulic Oil SDS Sheet for: HDD-36-7-S-SSC
Hydraulic Oil SDS Sheet for: HDD-48-10-P
Hydraulic Oil SDS Sheet for: HDD-48-10-P-SSC
Hydraulic Oil SDS Sheet for: HDD-48-10-S
Hydraulic Oil SDS Sheet for: HDD-48-10-S-SSC
Hydraulic Oil SDS Sheet for: HDD-48-15-P
Hydraulic Oil SDS Sheet for: HDD-48-15-P-SSC
Hydraulic Oil SDS Sheet for: HDD-48-15-S
Hydraulic Oil SDS Sheet for: HDD-48-15-S-SSC
Hydraulic Oil SDS Sheet for: HDD-48-7-P
Hydraulic Oil SDS Sheet for: HDD-48-7-P-SSC
Hydraulic Oil SDS Sheet for: HDD-48-7-S
Hydraulic Oil SDS Sheet for: HDD-48-7-S-SSC
Hydraulic Oil SDS Sheet for: HDD-5G-ADP
Hydraulic Oil SDS Sheet for: HDD-60-10-P
Hydraulic Oil SDS Sheet for: HDD-60-10-P-SSC
Hydraulic Oil SDS Sheet for: HDD-60-10-S
Hydraulic Oil SDS Sheet for: HDD-60-10-S-SSC
Hydraulic Oil SDS Sheet for: HDD-60-15-P
Hydraulic Oil SDS Sheet for: HDD-60-15-P-SSC
Hydraulic Oil SDS Sheet for: HDD-60-15-S
Hydraulic Oil SDS Sheet for: HDD-60-15-S-SSC
Hydraulic Oil SDS Sheet for: HDD-60-7-P
Hydraulic Oil SDS Sheet for: HDD-60-7-P-SSC
Hydraulic Oil SDS Sheet for: HDD-60-7-S
Hydraulic Oil SDS Sheet for: HDD-60-7-S-SSC
Hydraulic Oil SDS Sheet for: HDD-72-10-P
Hydraulic Oil SDS Sheet for: HDD-72-10-P-SSC
Hydraulic Oil SDS Sheet for: HDD-72-10-S
Hydraulic Oil SDS Sheet for: HDD-72-10-S-SSC
Hydraulic Oil SDS Sheet for: HDD-72-15-P
Hydraulic Oil SDS Sheet for: HDD-72-15-P-SSC
Hydraulic Oil SDS Sheet for: HDD-72-15-S
Hydraulic Oil SDS Sheet for: HDD-72-15-S-SSC
Hydraulic Oil SDS Sheet for: HDD-72-7-P
Hydraulic Oil SDS Sheet for: HDD-72-7-P-SSC
Hydraulic Oil SDS Sheet for: HDD-72-7-S
Hydraulic Oil SDS Sheet for: HDD-72-7-S-SSC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: VCC-12VDC
Hydraulic Oil SDS Sheet for: VCC-12VDC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Hydraulic Drum Stackers
Product

Hydraulic Drum Stackers

Lift-and-Dump Hydraulic Drum Dumpers
Product

Lift-and-Dump Hydraulic Drum Dumpers

Drum & Bin Dumpers
Product

Drum & Bin Dumpers

Horizontal Drum Storage Racks
Product

Horizontal Drum Storage Racks

Pallet Rack Drum Cradles
Product

Pallet Rack Drum Cradles

Hydraulic Drum Crusher/Compactors
Product

Hydraulic Drum Crusher/Compactors

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hydraulic Drum Dumpers




115V 1-PHASE STANDARD

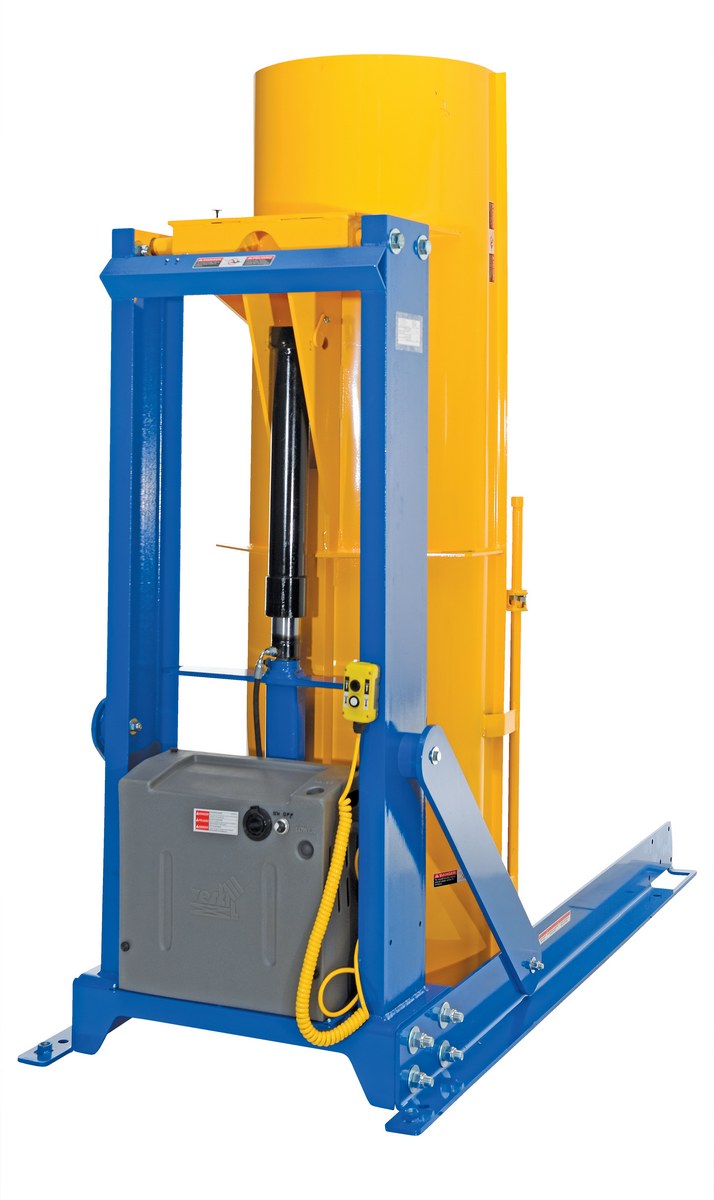

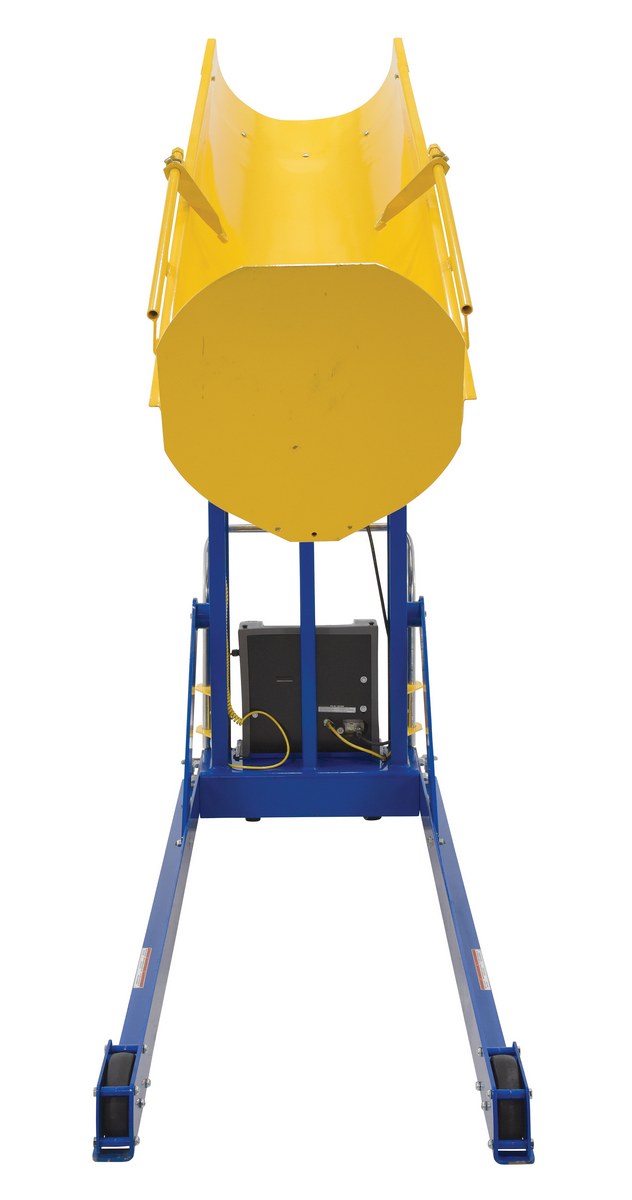

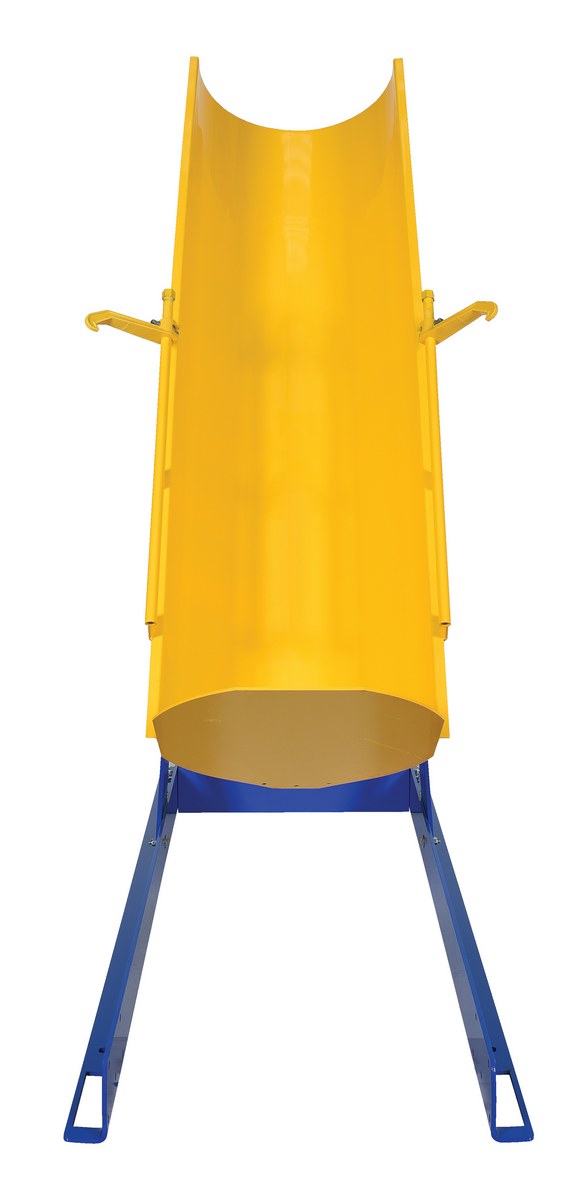

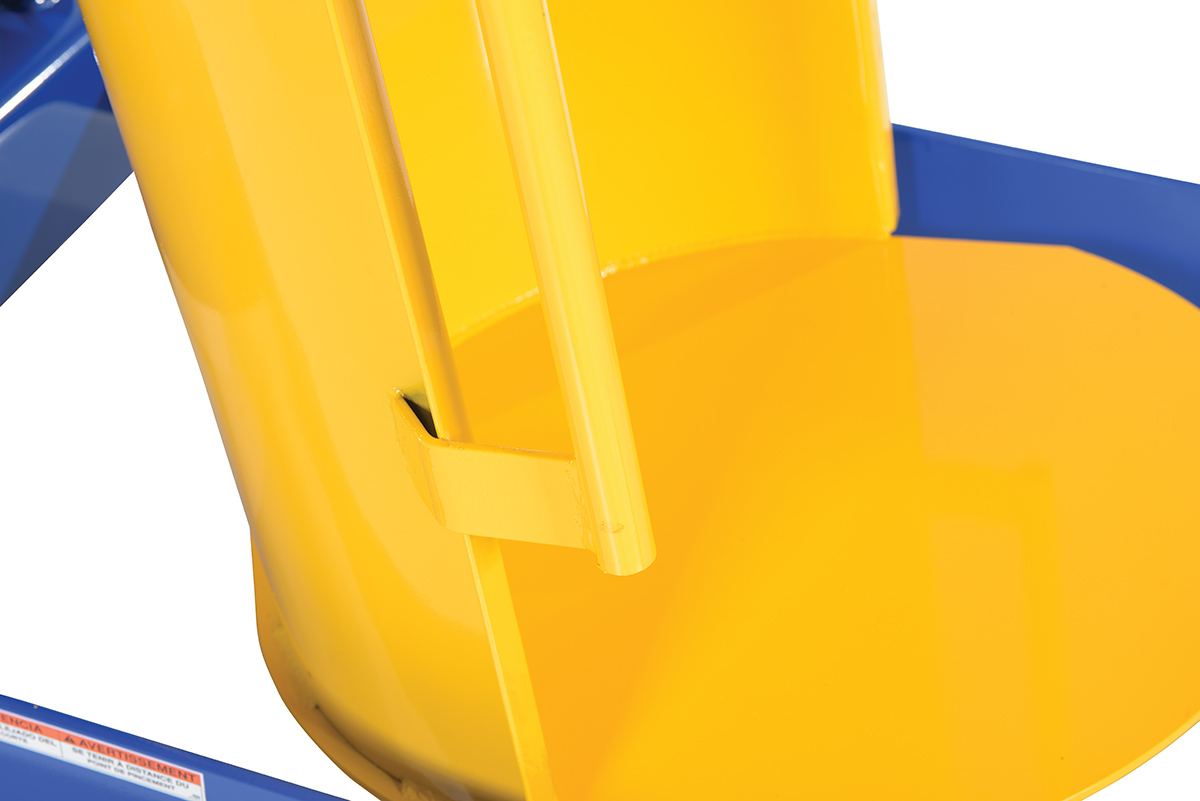

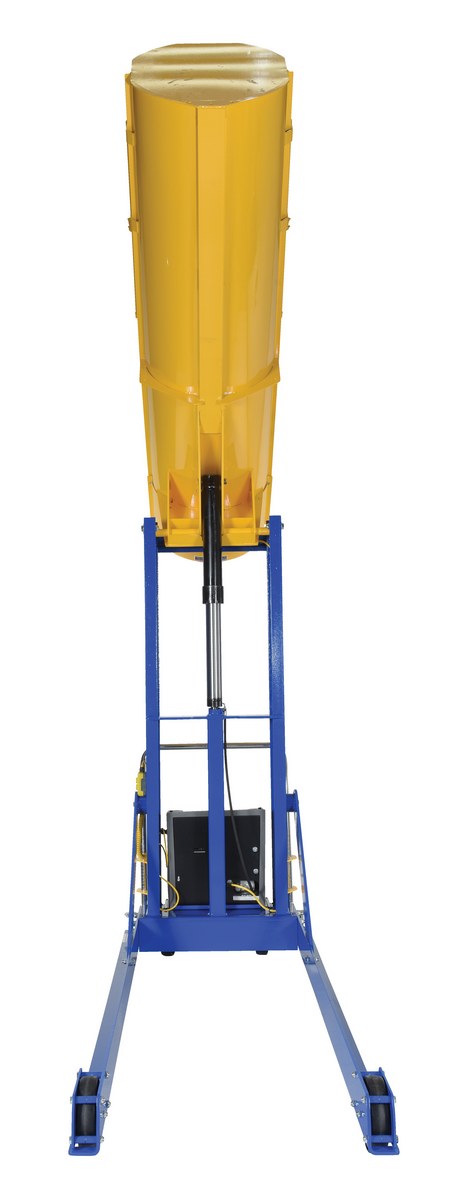

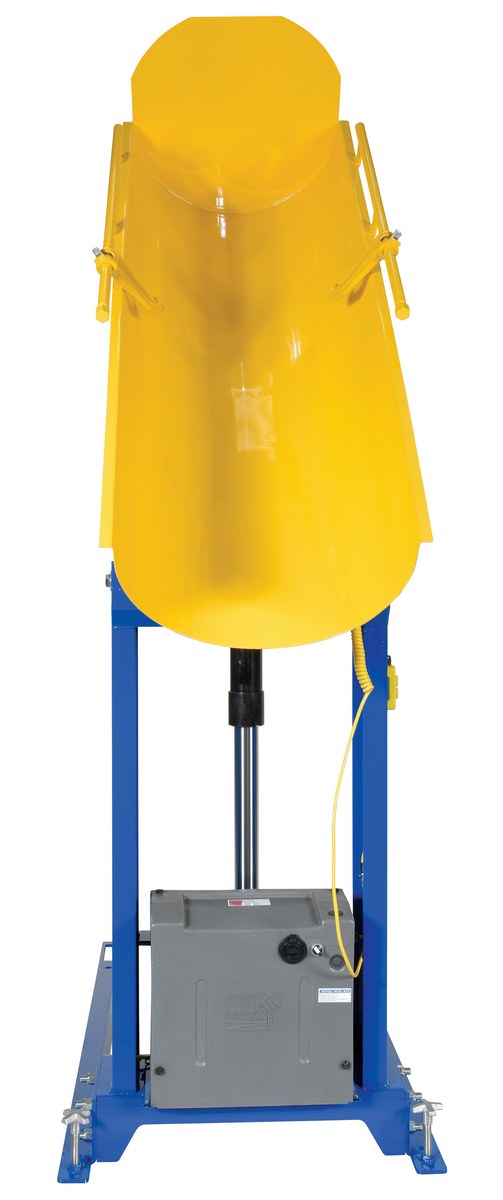

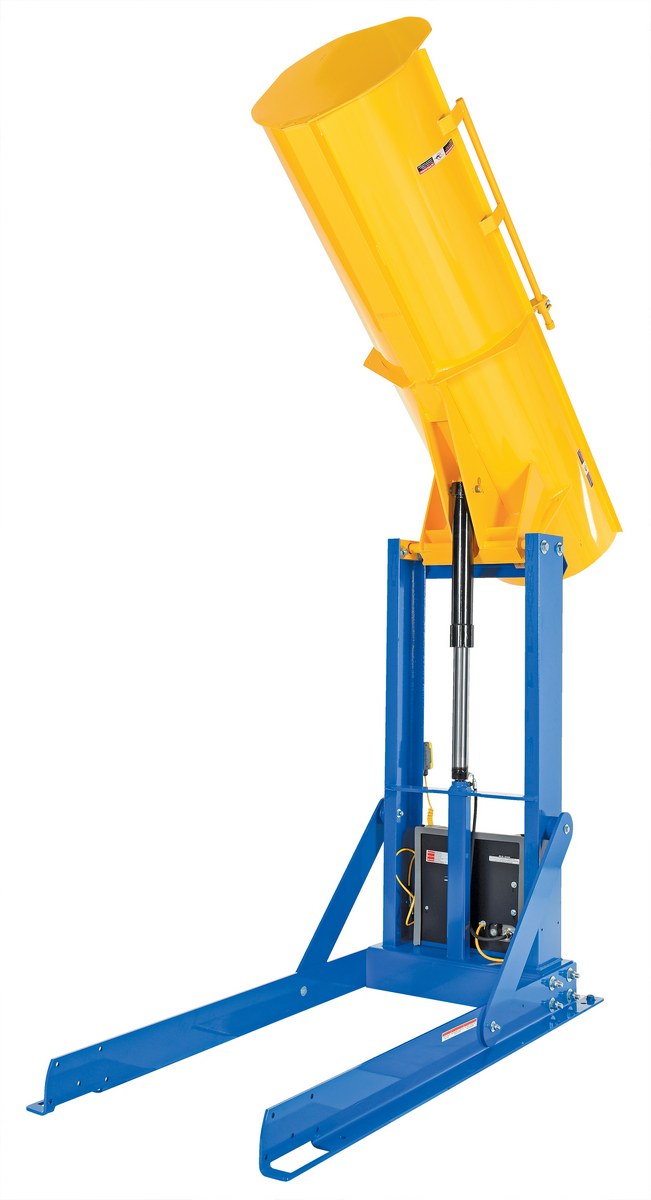

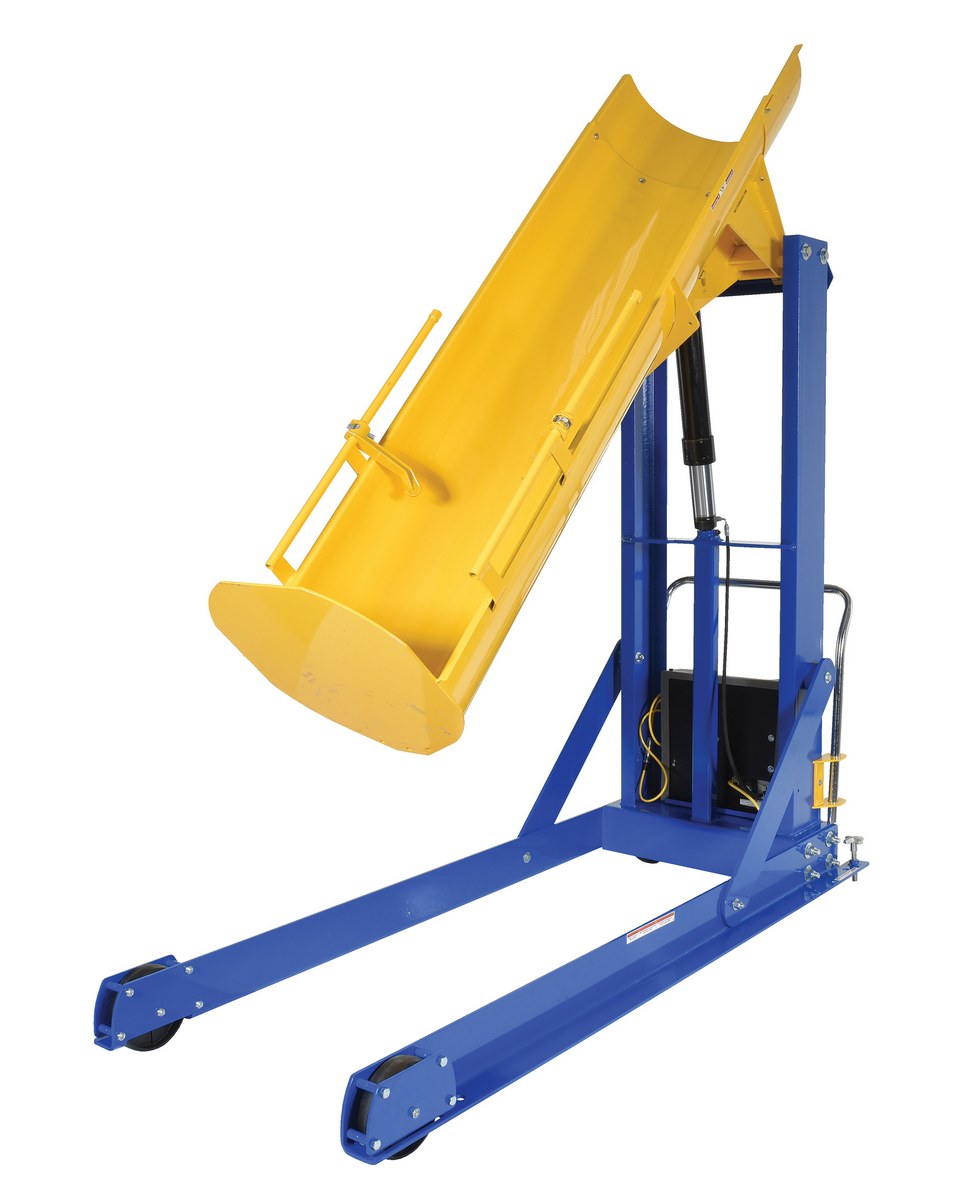

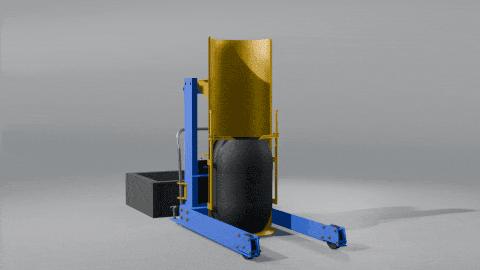

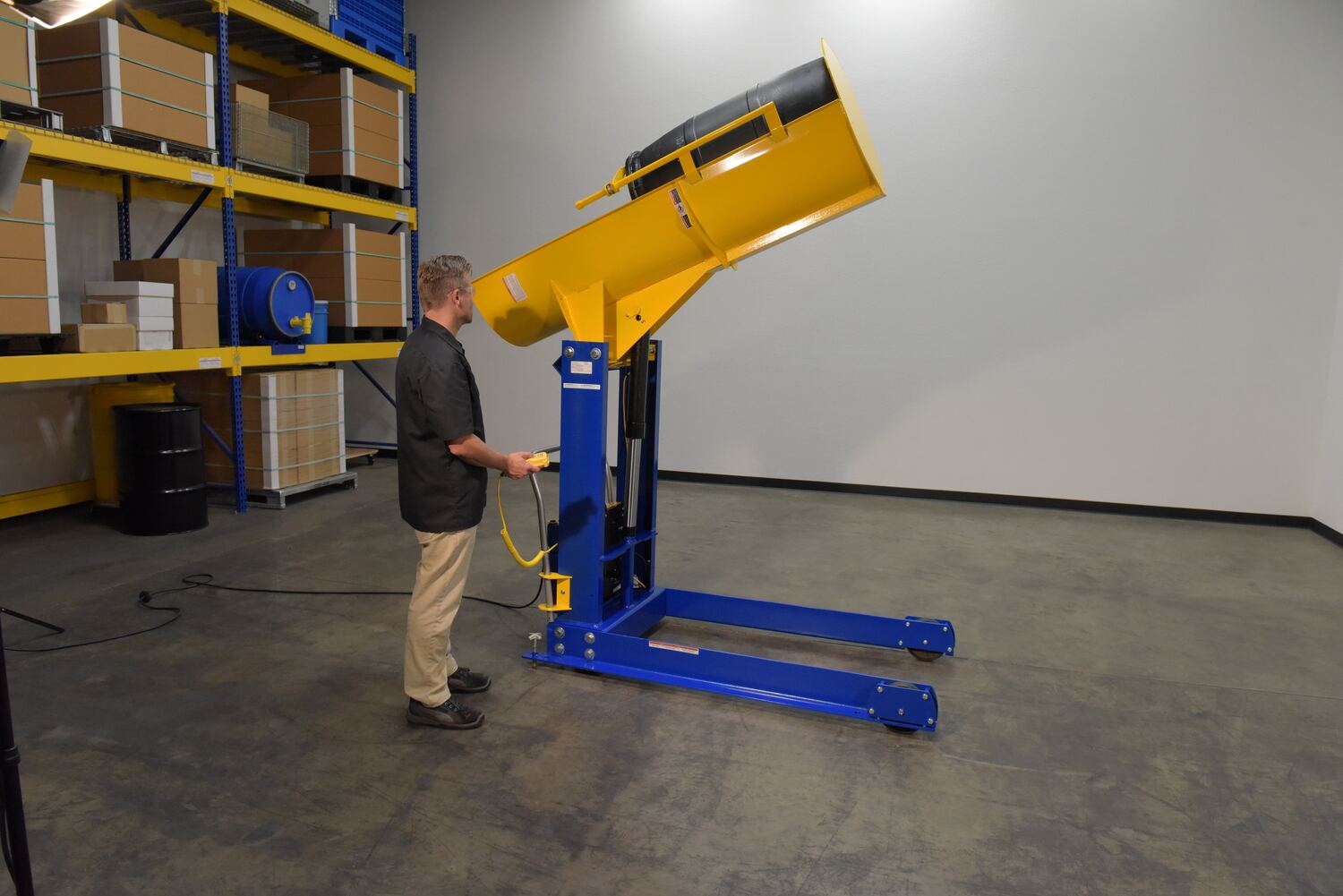

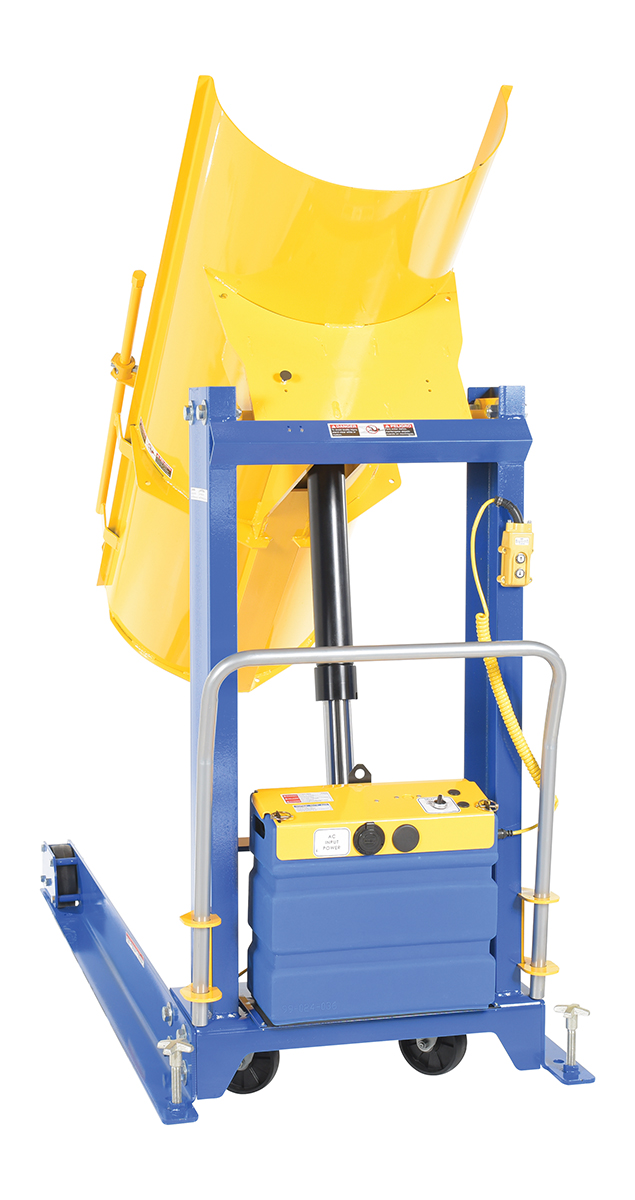

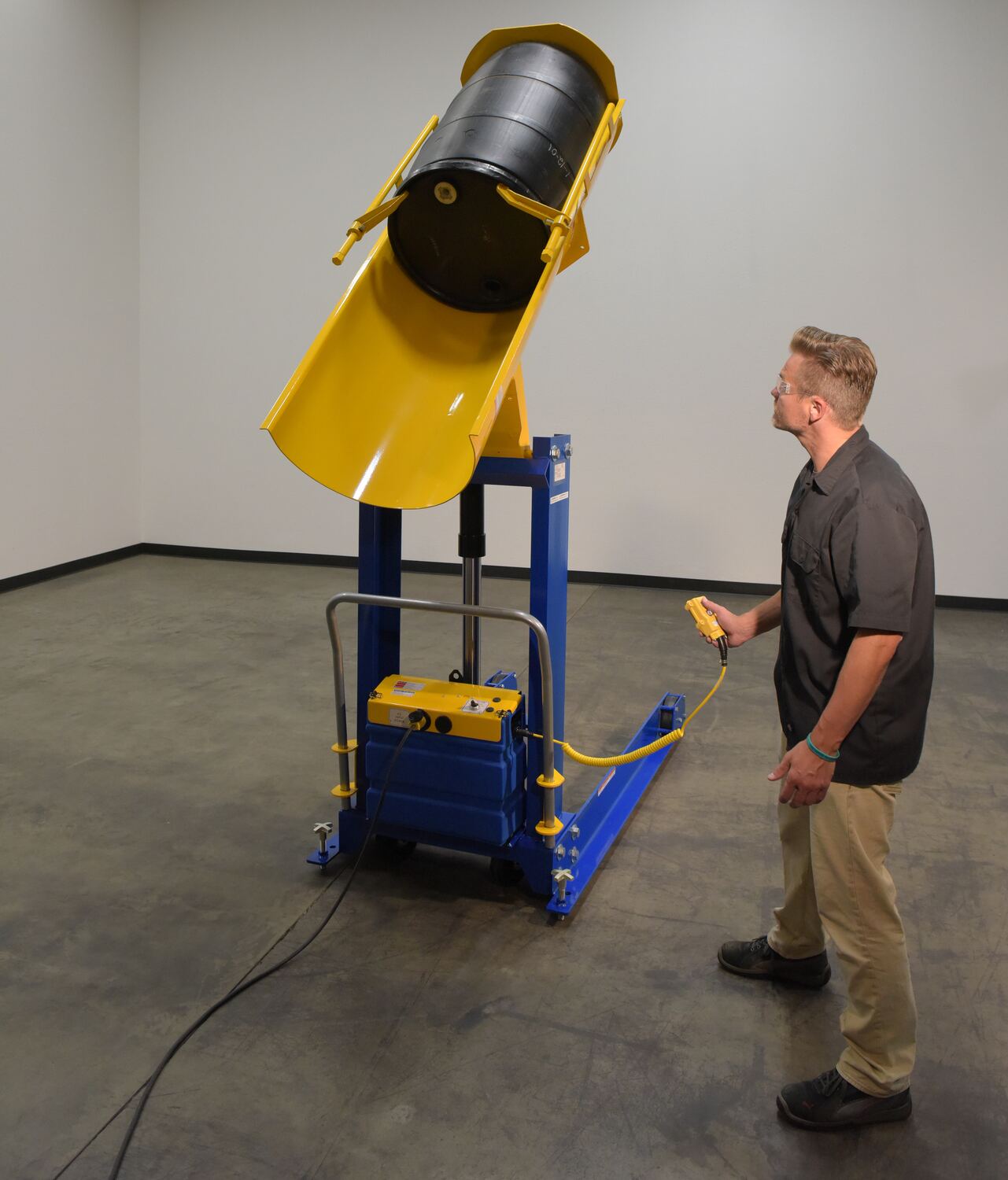

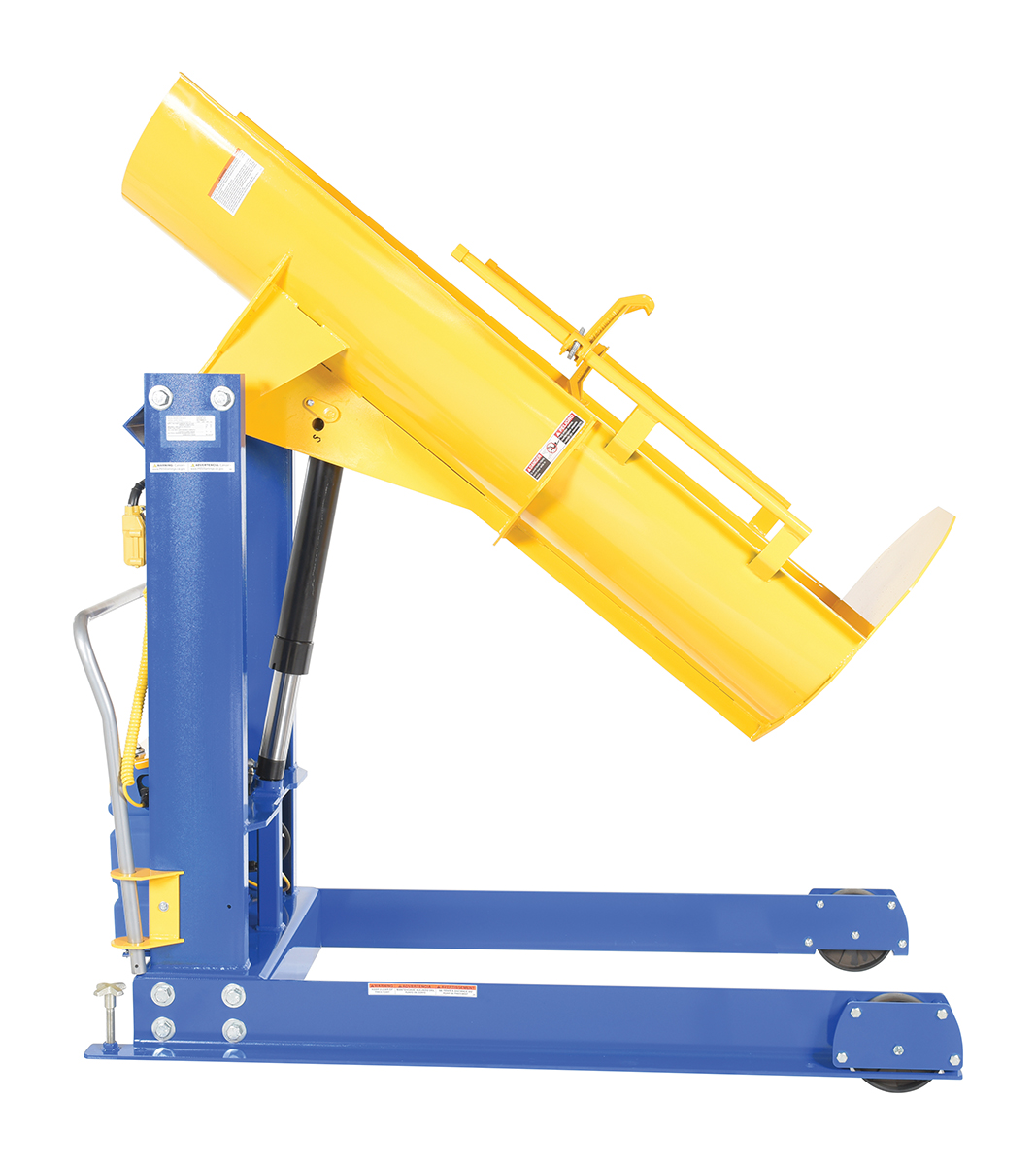

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. DC powered units available in portable models. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

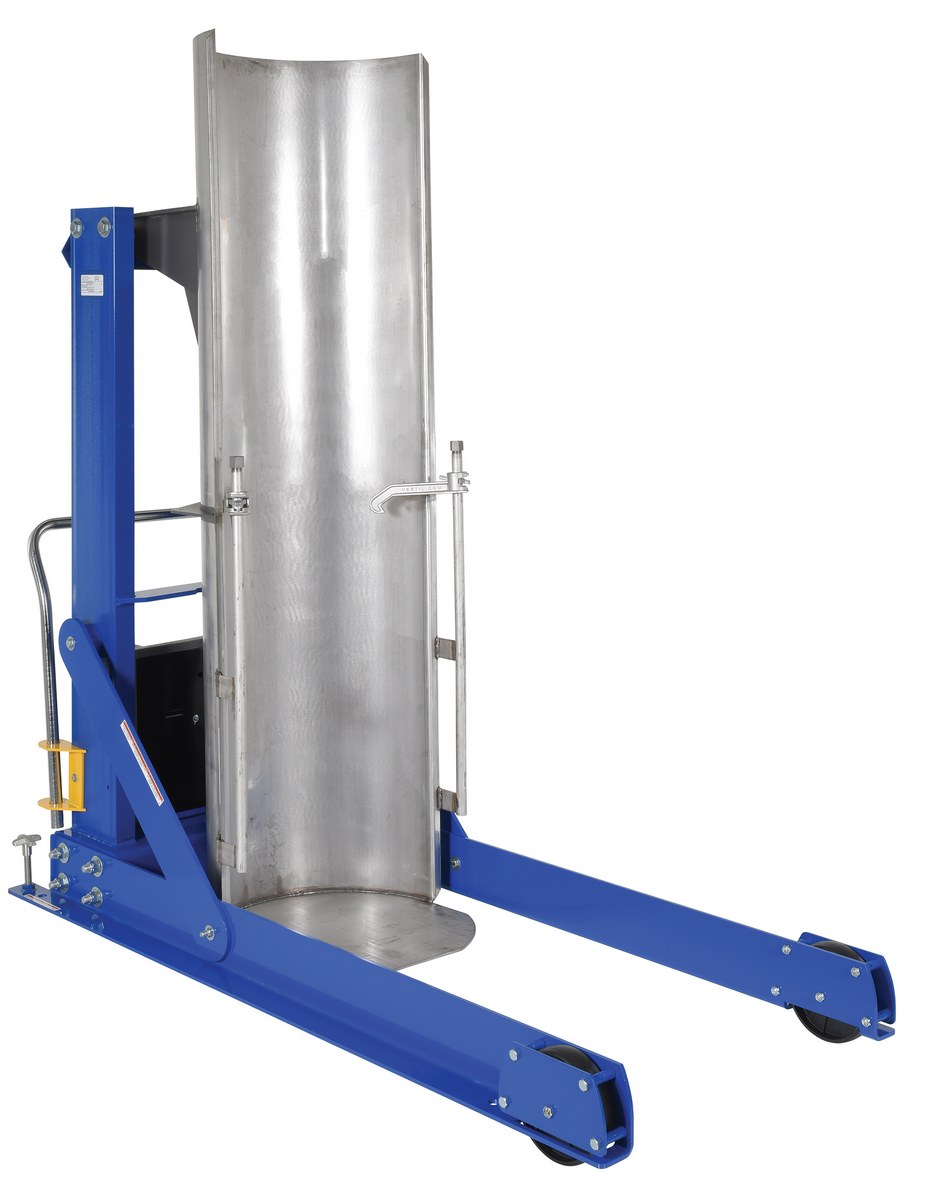

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness
  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact


Model # Description Attributes Net Wt.
(lbs)
HDD-36-10-P HDD-36-10-PSteel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		797
HDD-36-10-P-DC HDD-36-10-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		782
HDD-36-10-P-SSC HDD-36-10-P-SSCStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 36		763
HDD-36-10-S HDD-36-10-SSteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 36		707
HDD-36-10-S-SSC HDD-36-10-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 36		707
HDD-36-15-P HDD-36-15-PSteel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		776
HDD-36-15-P-DC HDD-36-15-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		782
HDD-36-15-P-SSC HDD-36-15-P-SSCStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 36		776
HDD-36-15-S HDD-36-15-SSteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 36		966
HDD-36-15-S-SSC HDD-36-15-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 36		966
HDD-36-7-P HDD-36-7-PSteel Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		788
HDD-36-7-P-DC HDD-36-7-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		782
HDD-36-7-P-SSC HDD-36-7-P-SSCStainless Steel Portable Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 36		788
HDD-36-7-S HDD-36-7-SSteel Stationary Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 36		709
HDD-36-7-S-SSC HDD-36-7-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 36		709
HDD-48-10-P HDD-48-10-PSteel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		862
HDD-48-10-P-DC HDD-48-10-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		850
HDD-48-10-P-SSC HDD-48-10-P-SSCStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 48		862
HDD-48-10-S HDD-48-10-SSteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 48		792
HDD-48-10-S-SSC HDD-48-10-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 48		792
HDD-48-15-P HDD-48-15-PSteel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		880
HDD-48-15-P-DC HDD-48-15-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		850
HDD-48-15-P-SSC HDD-48-15-P-SSCStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 48		880
HDD-48-15-S HDD-48-15-SSteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 48		814
HDD-48-15-S-SSC HDD-48-15-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 48		814
HDD-48-7-P HDD-48-7-PSteel Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		864
HDD-48-7-P-DC HDD-48-7-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		850
HDD-48-7-P-SSC HDD-48-7-P-SSCStainless Steel Portable Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 48		864
HDD-48-7-S HDD-48-7-SSteel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 48		811
HDD-48-7-S-SSC HDD-48-7-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 48		800
HDD-60-10-P HDD-60-10-PSteel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		980
HDD-60-10-P-DC HDD-60-10-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		1032
HDD-60-10-P-SSC HDD-60-10-P-SSCStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 60		1005
HDD-60-10-S HDD-60-10-SSteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 60		945
HDD-60-10-S-SSC HDD-60-10-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 60		947
HDD-60-15-P HDD-60-15-PSteel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		999
HDD-60-15-P-DC HDD-60-15-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		1032
HDD-60-15-P-SSC HDD-60-15-P-SSCStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 60		1026
HDD-60-15-S HDD-60-15-SSteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 60		963
HDD-60-15-S-SSC HDD-60-15-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 60		937
HDD-60-7-P HDD-60-7-PSteel Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		998
HDD-60-7-P-DC HDD-60-7-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		1032
HDD-60-7-P-SSC HDD-60-7-P-SSCStainless Steel Portable Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 60		1019
HDD-60-7-S HDD-60-7-SSteel Stationary Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 60		986
HDD-60-7-S-SSC HDD-60-7-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 60		988
HDD-72-10-P HDD-72-10-PSteel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1064
HDD-72-10-P-DC HDD-72-10-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1110
HDD-72-10-P-SSC HDD-72-10-P-SSCStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1069
HDD-72-10-S HDD-72-10-SSteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1055
HDD-72-10-S-SSC HDD-72-10-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Dump Height (in.): 72		1055
HDD-72-15-P HDD-72-15-PSteel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1122
HDD-72-15-P-DC HDD-72-15-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1110
HDD-72-15-P-SSC HDD-72-15-P-SSCStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1092
HDD-72-15-S HDD-72-15-SSteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue / YellowUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1030
HDD-72-15-S-SSC HDD-72-15-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 1,500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Dump Height (in.): 72		1036
HDD-72-7-P HDD-72-7-PSteel Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1076
HDD-72-7-P-DC HDD-72-7-P-DCSteel DC Powered Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1110
HDD-72-7-P-SSC HDD-72-7-P-SSCStainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 72		1034
HDD-72-7-S HDD-72-7-SSteel Stationary Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue / YellowUniform Capacity (lb.): 750
Dump Height (in.): 72		1040
HDD-72-7-S-SSC HDD-72-7-S-SSCStainless Steel Stationary Hydraulic Drum Dumper 72 In. Dump Height 750 Lb. Capacity Blue/SilverUniform Capacity (lb.): 750
Dump Height (in.): 72		1013

Options


Model PDFs Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-2PB - Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit 1
VCC-12VDC - Voltage Change from default to one 12V DC (Battery) Powered (External) -
VCC-115-1 - Voltage Change To 115V 1-Phase AC Power -
VCC-208/230-1 - Voltage Change To 208-230V 1-Phase AC Power -
VCC-208/230-3 - Voltage Change To 208-230V 3-Phase AC Power -
VCC-460-3 - Voltage Change To 460V 3-Phase AC Power -

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
