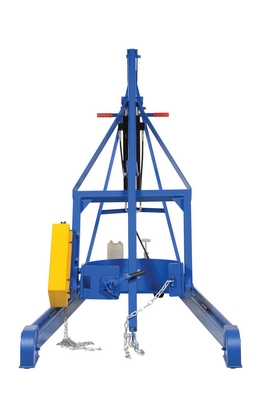

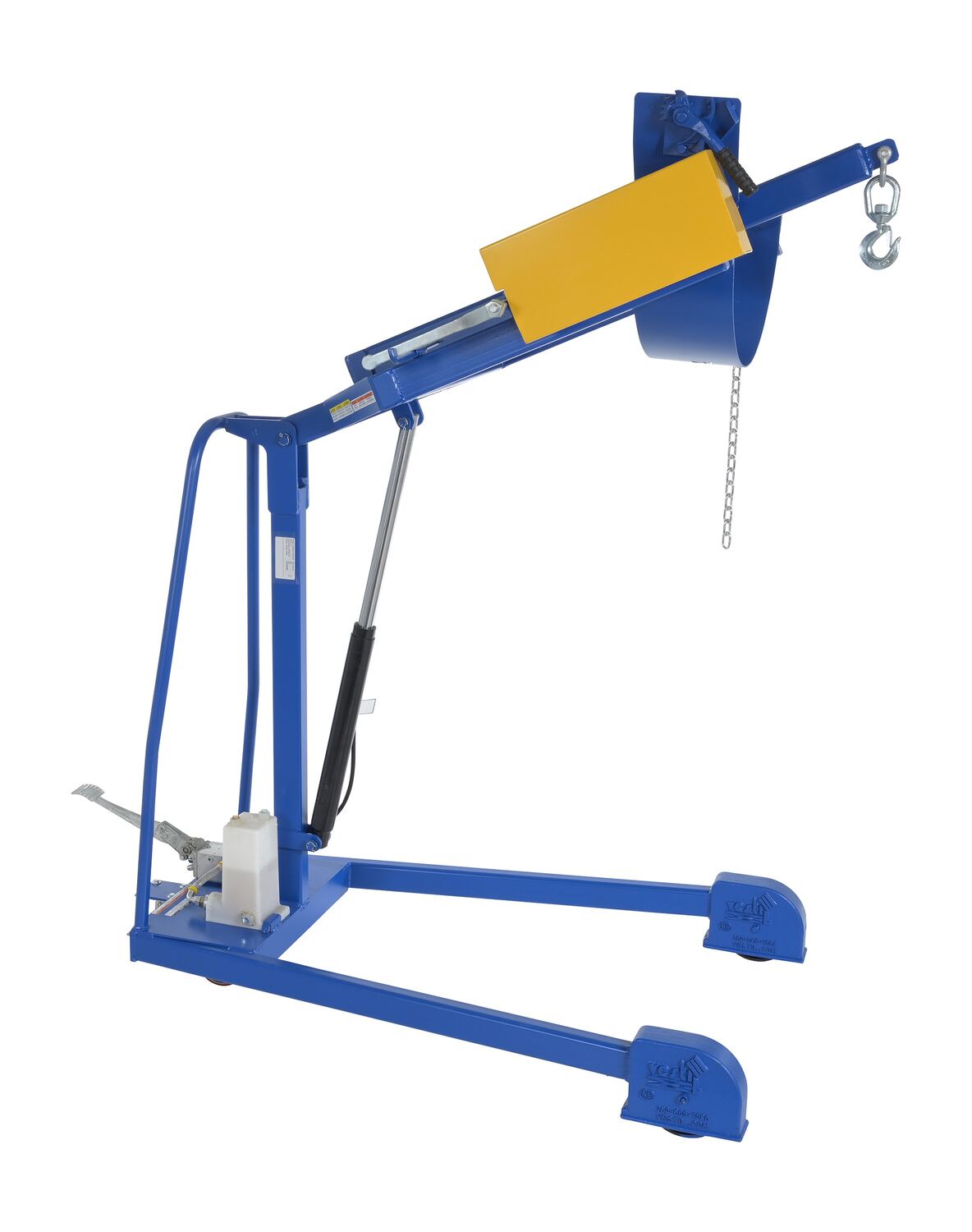

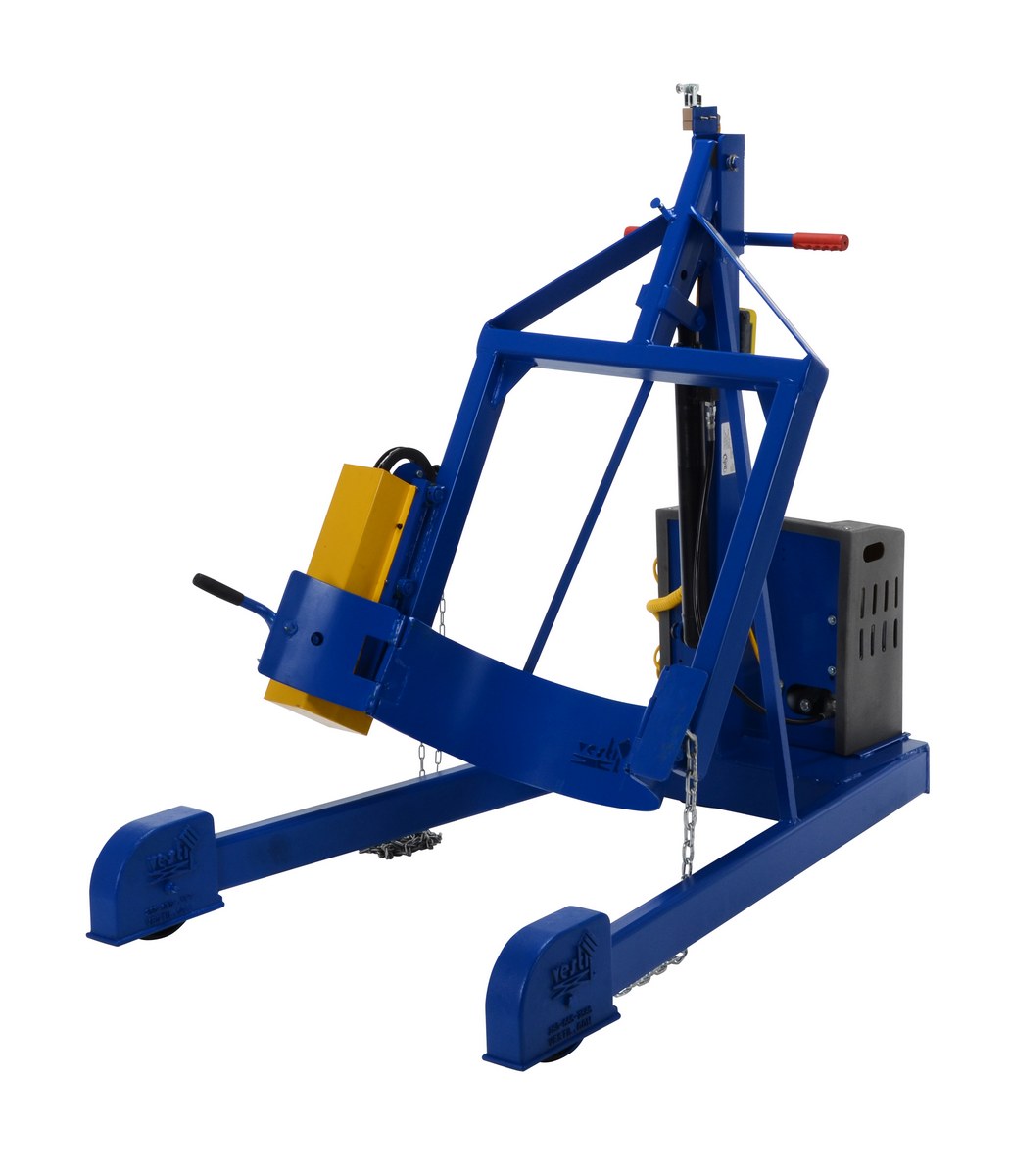

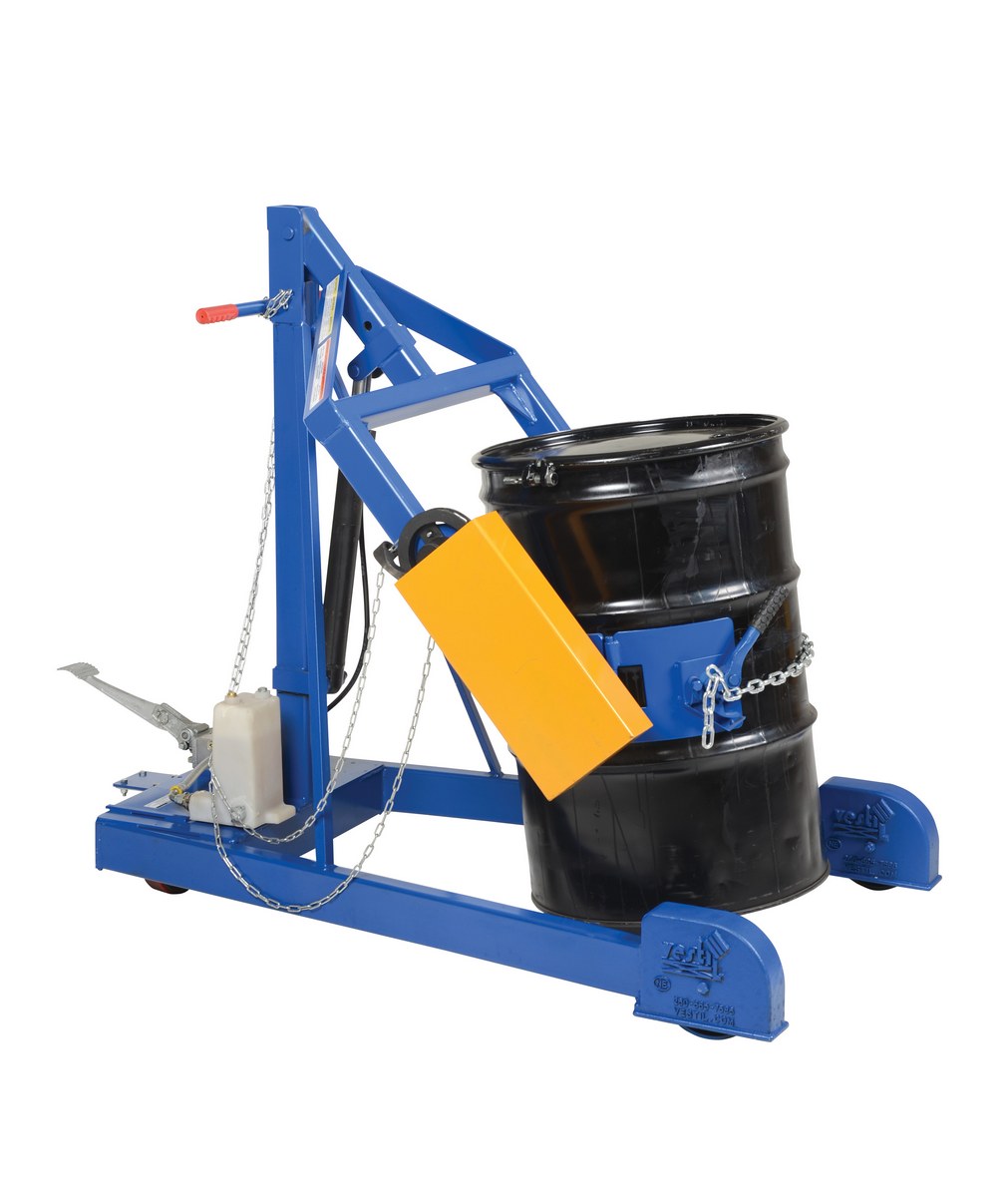

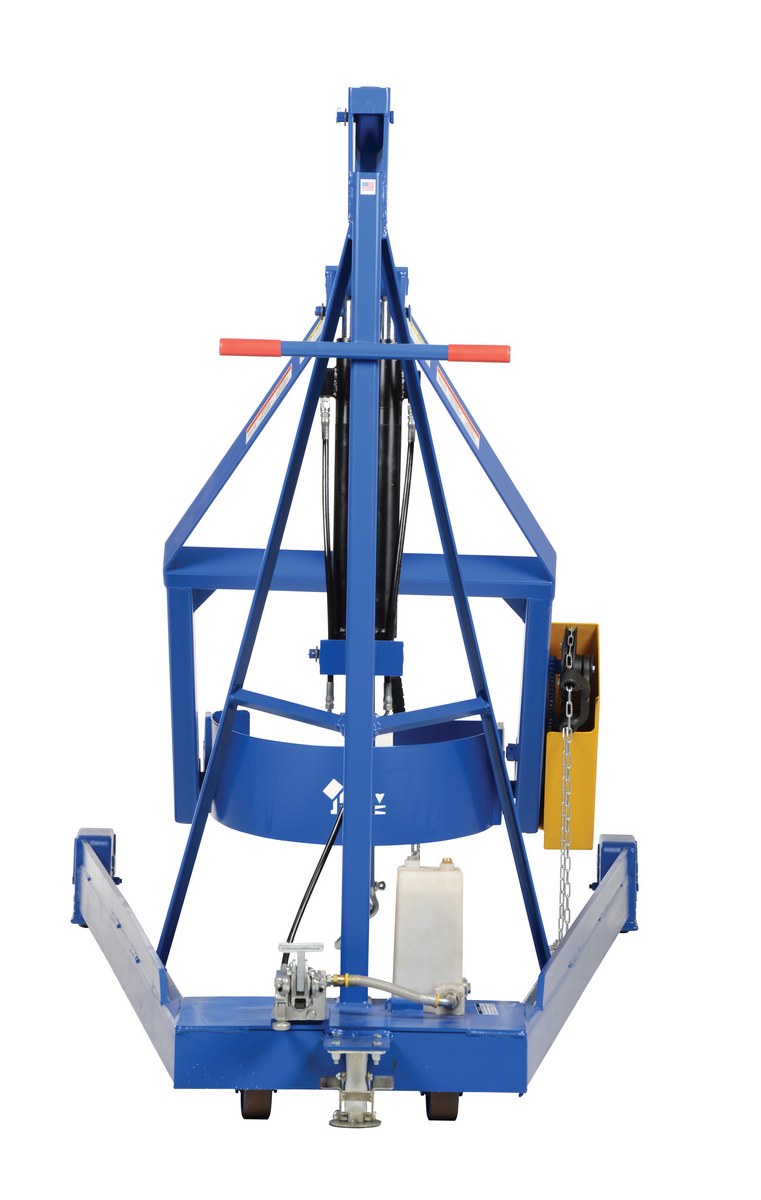

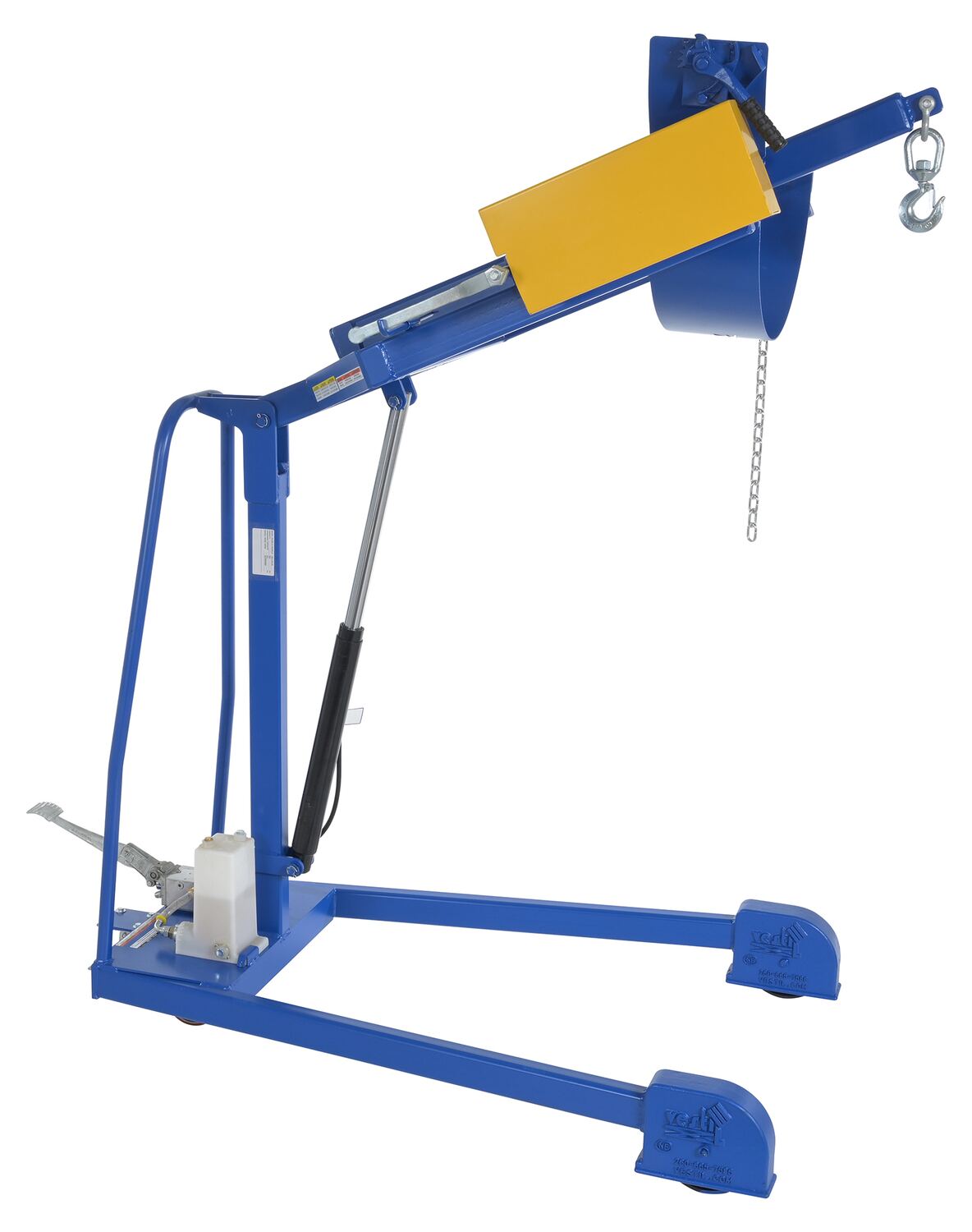

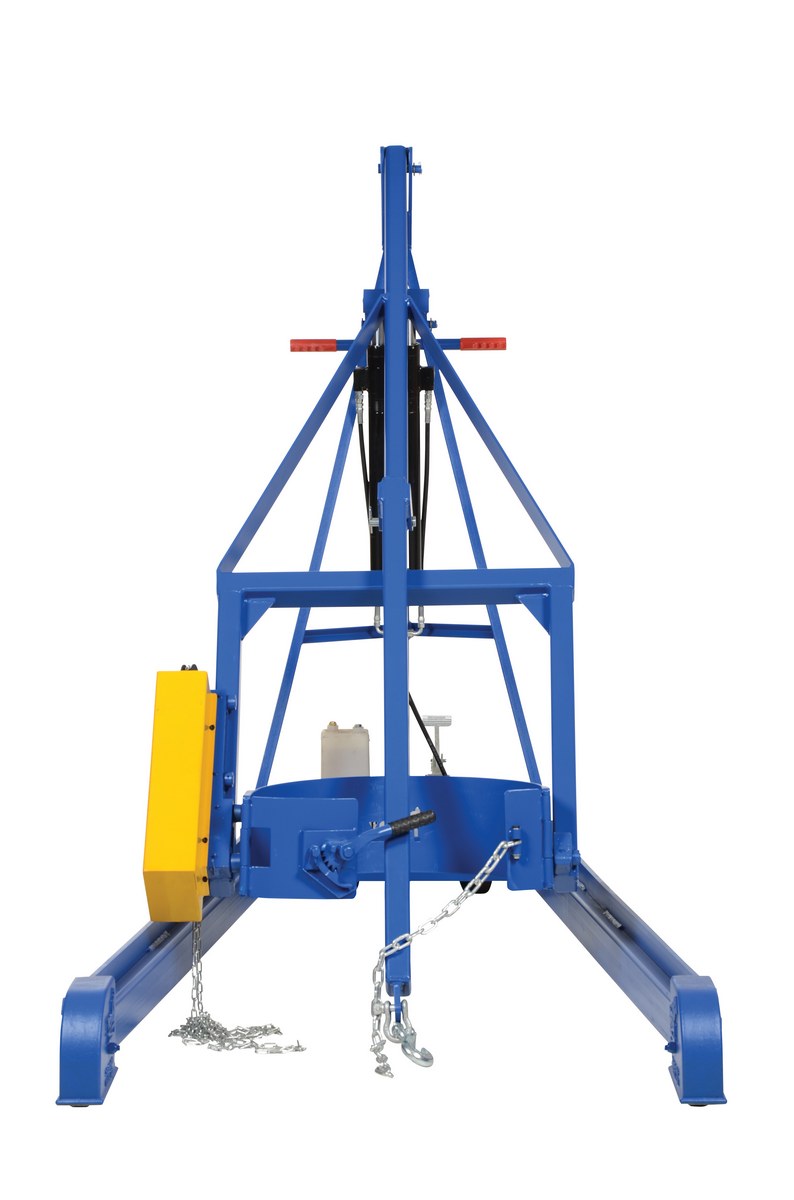

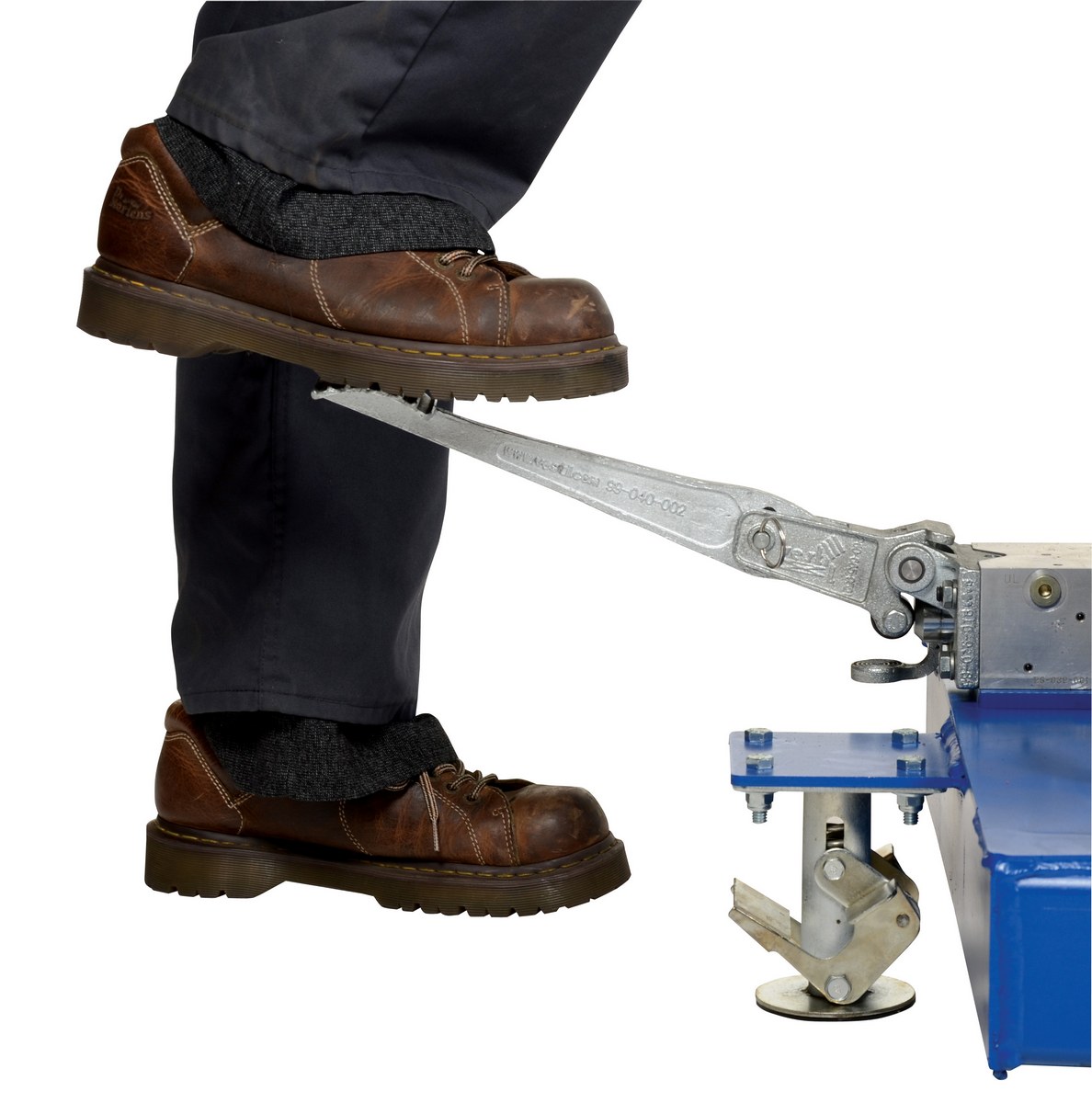

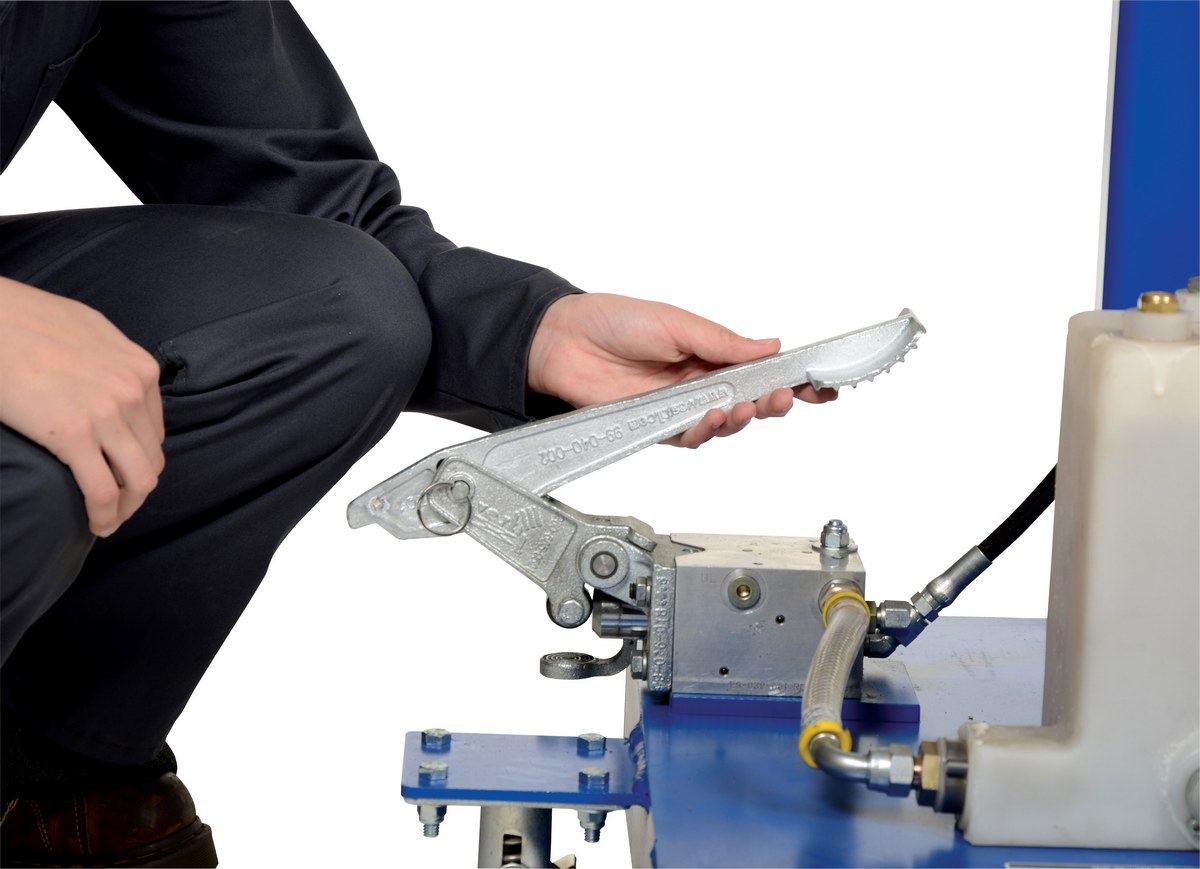

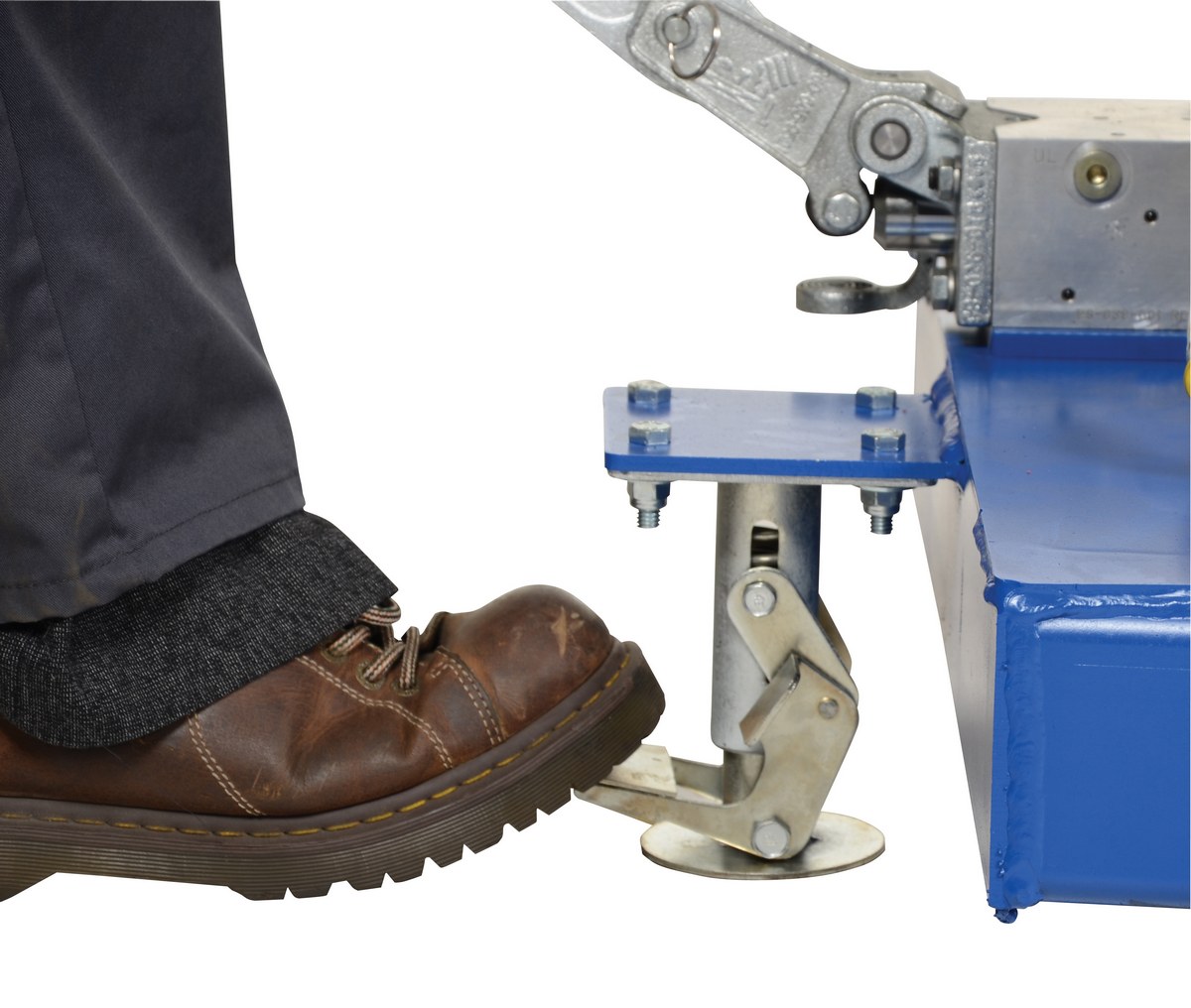

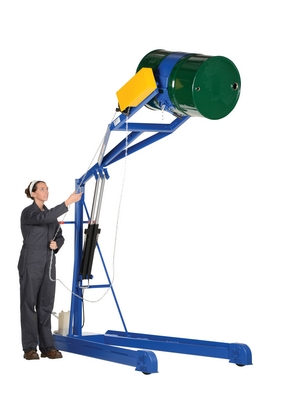

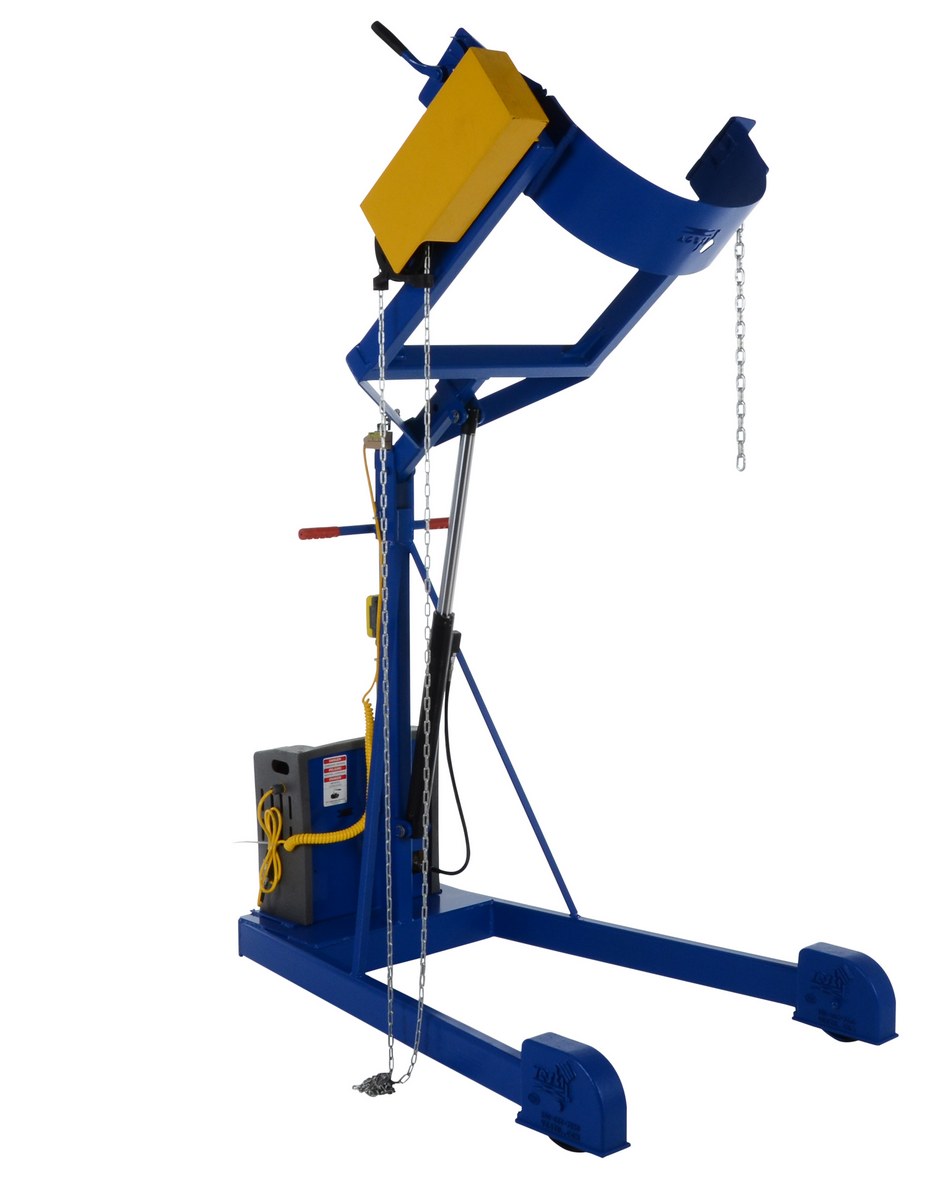

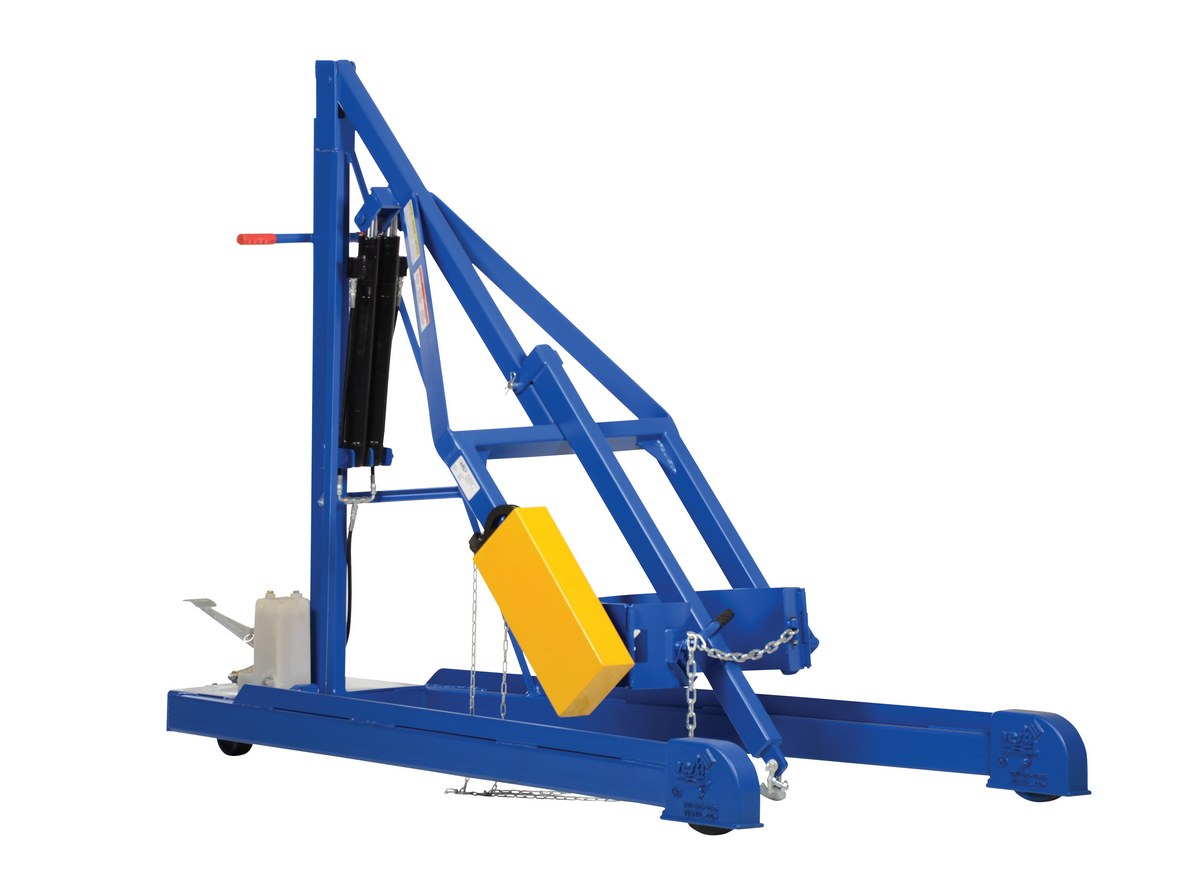

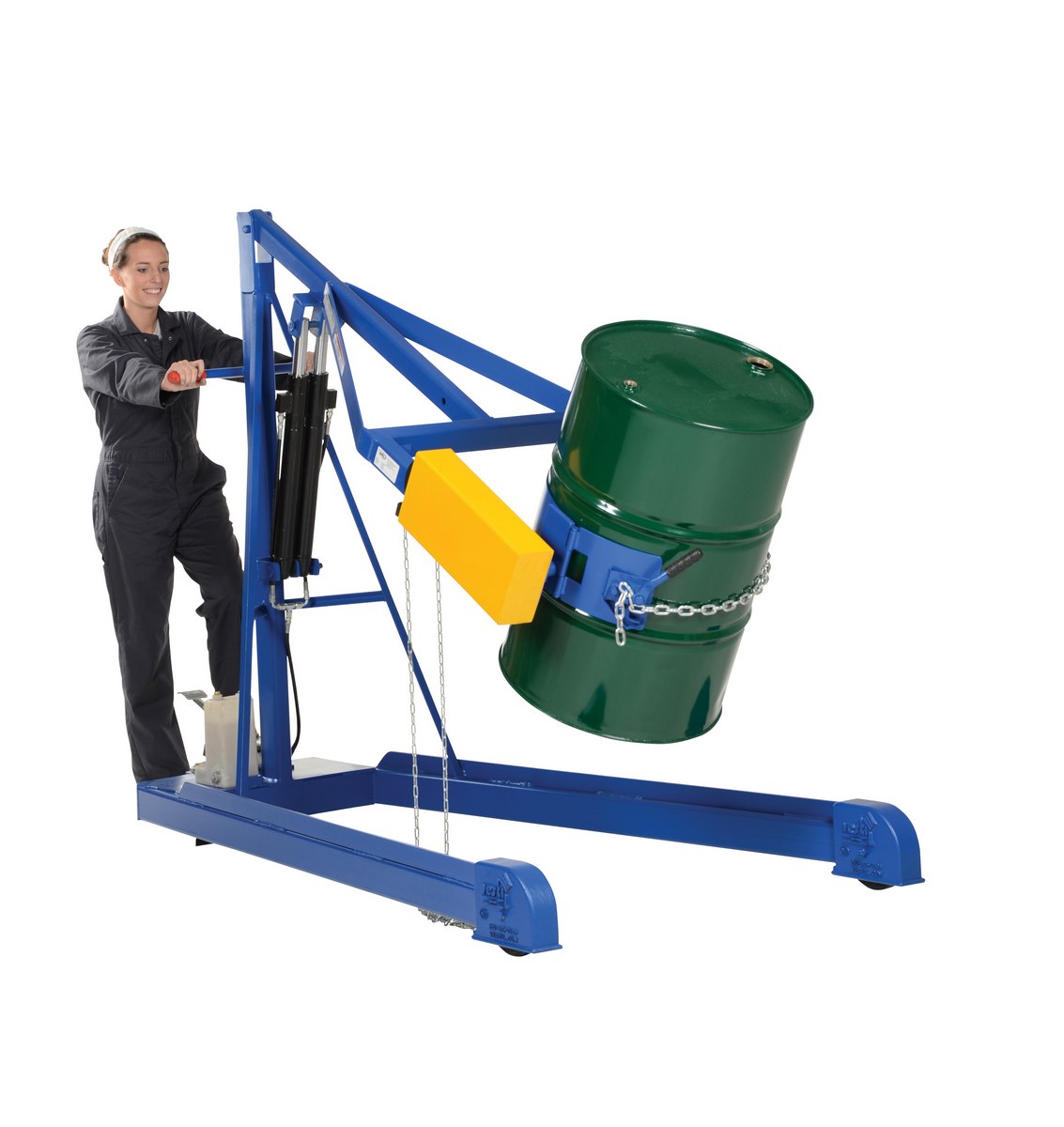

Portable Hydraulic Drum Carrier/Rotator/BoomsThis product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.
- Unique design lifts & rotates drums up to 360 degrees
- Rigid & swivel casters allow unit to roll smoothly
- Standard design is for use with 55-gallon steel drums only
- Heavy-duty welded steel construction provides long lasting rugged use
Hoist Mounted Drum Carrier/Rotators
Drum Positioners
Hydraulic Drum Stackers
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| HDC-305-60 |  | 1 Year Limited Warranty | Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 | 485 | ||
| HDC-305-72 |  | 1 Year Limited Warranty | Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 71-1/4 | 487 | ||
| HDC-305-84 | |  | 1 Year Limited Warranty | Steel Portable Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 80-5/8 | 698 | |
| HDC-305-96 | |  | 1 Year Limited Warranty | Steel Portable Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 97-9/16 | 708 | |
| HDC-305-60-AC | |  | 1 Year Limited Warranty | Steel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 | 521 | |
| HDC-305-60-DC |  | 1 Year Limited Warranty | Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 | 494 | ||
| HDC-305-72-AC | |  | 1 Year Limited Warranty | Steel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 71-1/4 | 523 | |
| HDC-305-72-DC |  | 1 Year Limited Warranty | Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 71-1/4 | 514 | ||
| HDC-305-84-AC | |  | 1 Year Limited Warranty | Steel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 80-5/8 | 723 | |
| HDC-305-84-DC | |  | 1 Year Limited Warranty | Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 80-5/8 | 681 | |
| HDC-305-96-AC | |  | 1 Year Limited Warranty | Steel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 97-9/16 | 744 | |
| HDC-305-96-DC | |  | 1 Year Limited Warranty | Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 800 Lift Height (in.): 97-9/16 | 745 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Uniform Capacity (lb.): 800
Lift Height (in.): 71-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Uniform Capacity (lb.): 800
Lift Height (in.): 80-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
Uniform Capacity (lb.): 800
Lift Height (in.): 97-9/16
For More Details of the Option Click the Red Model Button
| HDC-AC |  | 90 Days Limited Warranty | Factory Installed 115 Volt AC Power Unit For Hydraulic Drum Carrier/Rotator | Power Unit (volts): 115 | 36 | |
| HDC-AIR | | 90 Days Limited Warranty | Factory Installed Air/Oil Operated Power Unit For Hydraulic Drum Carrier/Rotator | Brand / Model Compatibility: HDC-305-60, HDC-305-72, HDC-305-84, HDC-305-96 Additional Contents: Factory Installed Power Unit | 36 | |
| HDC-DC | | 90 Days Limited Warranty | Factory Installed 12 Volt DC Power Unit For Hydraulic Drum Carrier/Rotator | Power Unit (volts): 12 | 54 | |
| HDC-R-DC | | 90 Days Limited Warranty | Factory Installed 24V DC Power Rotation For Hydraulic Drum Carrier/Rotator | Power Unit (volts): 24 | 232 | |
| HDC-R-HC | | 90 Days Limited Warranty | Factory Installed Manual Rotation For Hydraulic Drum Carrier/Rotator | Brand / Model Compatibility: HDC-305-60, HDC-305-72, HDC-305-84, HDC-305-96 Additional Contents: Factory Installed Power Unit |
Drums Must Be Full To Rotate At Rated Capacity
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Portable Hydraulic Drum Carrier/Rotator/Booms PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: HDC-305-60
Hydraulic Oil SDS Sheet for: HDC-305-60-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-60-DC
Hydraulic Oil SDS Sheet for: HDC-305-60-DC
Hydraulic Oil SDS Sheet for: HDC-305-72
Hydraulic Oil SDS Sheet for: HDC-305-72-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-72-DC
Hydraulic Oil SDS Sheet for: HDC-305-72-DC
Hydraulic Oil SDS Sheet for: HDC-305-84
Hydraulic Oil SDS Sheet for: HDC-305-84-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-84-DC
Hydraulic Oil SDS Sheet for: HDC-305-84-DC
Hydraulic Oil SDS Sheet for: HDC-305-96
Hydraulic Oil SDS Sheet for: HDC-305-96-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-305-96-DC
Hydraulic Oil SDS Sheet for: HDC-305-96-DC
Hydraulic Oil SDS Sheet for: HDC-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HDC-DC
Hydraulic Oil SDS Sheet for: HDC-DC
Valve Regulated Lead-Acid Battery SDS Sheet for: HDC-R-DC
Hydraulic Oil SDS Sheet for: HDC-R-DC
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: How many drums this can lift per hour?
A: Maximum 12 drums per hour is recommended. It takes approximately 30 seconds to raise and approximately 18 seconds to lower.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
