Pail Lid Closing Press

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
PLC-P-AIR_A.jpg PLC-P-AIR_B.jpg PLC-P-AIR_C.jpg PLC-P-AIR_F.jpg
PLC-P-AIR_D.jpg PLC-P-AIR_E.jpg PLC-P-AIR_G.jpg PLC-P-AIR_H.jpg
Pail Lid Closing Press

model: PLC-P-AIR



Featured Drum Handling Equipment


Steel Pail Pals (Pail Opener)
Economical Drum Transporters
Manual Drum Carrier/Rotator
Galvanized Trash Topper Rings
Pail Carousel Racks
IBC Tilt Stands w/ Fork Pockets & IBC Tilting Cart
Multi-Pail Dolly
Tilting Drum Dollies
Stainless Steel Vertical Drum Lifter
model chart

Product Family Overview

Print Friendly
Pail Lid Closing Press
SERIES: PLC-P

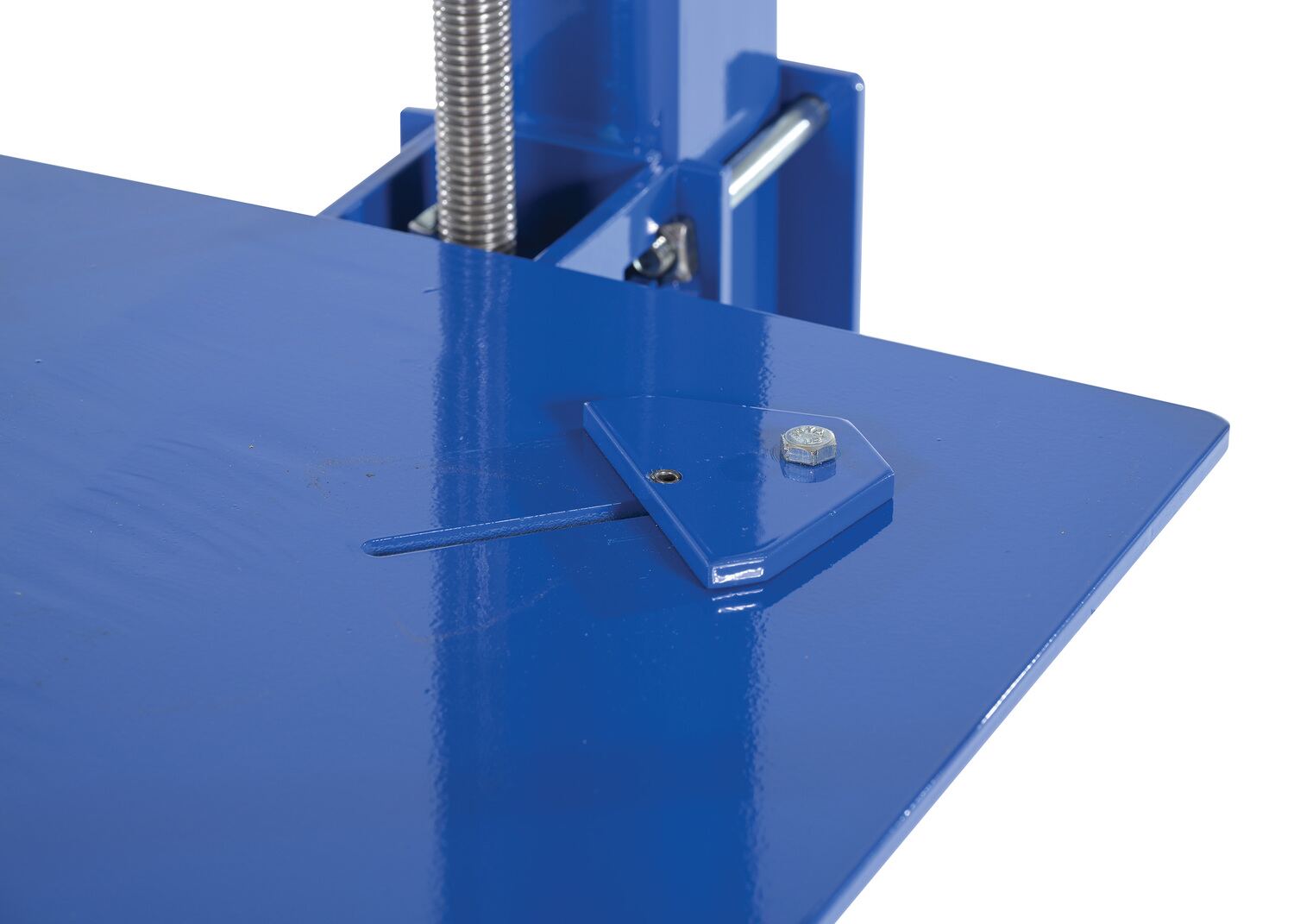

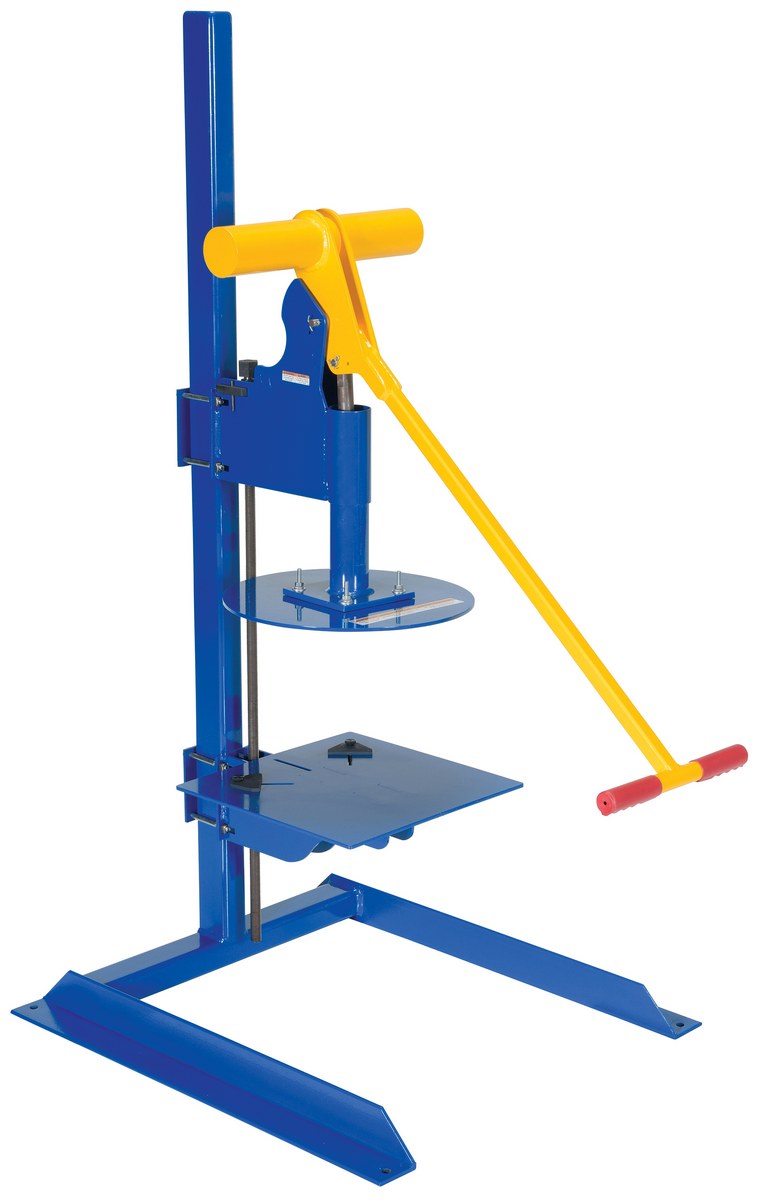

This Plastic Pail Lid Closing Press quickly and easily secures a cover onto a plastic pail. The lid closer allows for easily pressing lids on plastic pails in a single motion. The 39" long handle provides a 14:1 advantage, where 50 lbs. on handle applies 700 lbs. on the pail. Adjustable height table allows for use with different sized pails. Compression plate diameter is 16" and is fitted with an adjustable burp plunger. Base frame is predrilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall
  • Two-handle design is easy to operate
  • Long handles provide leverage reducing effort necessary to secure lids to pails
  • Steel construction can handle rugged use

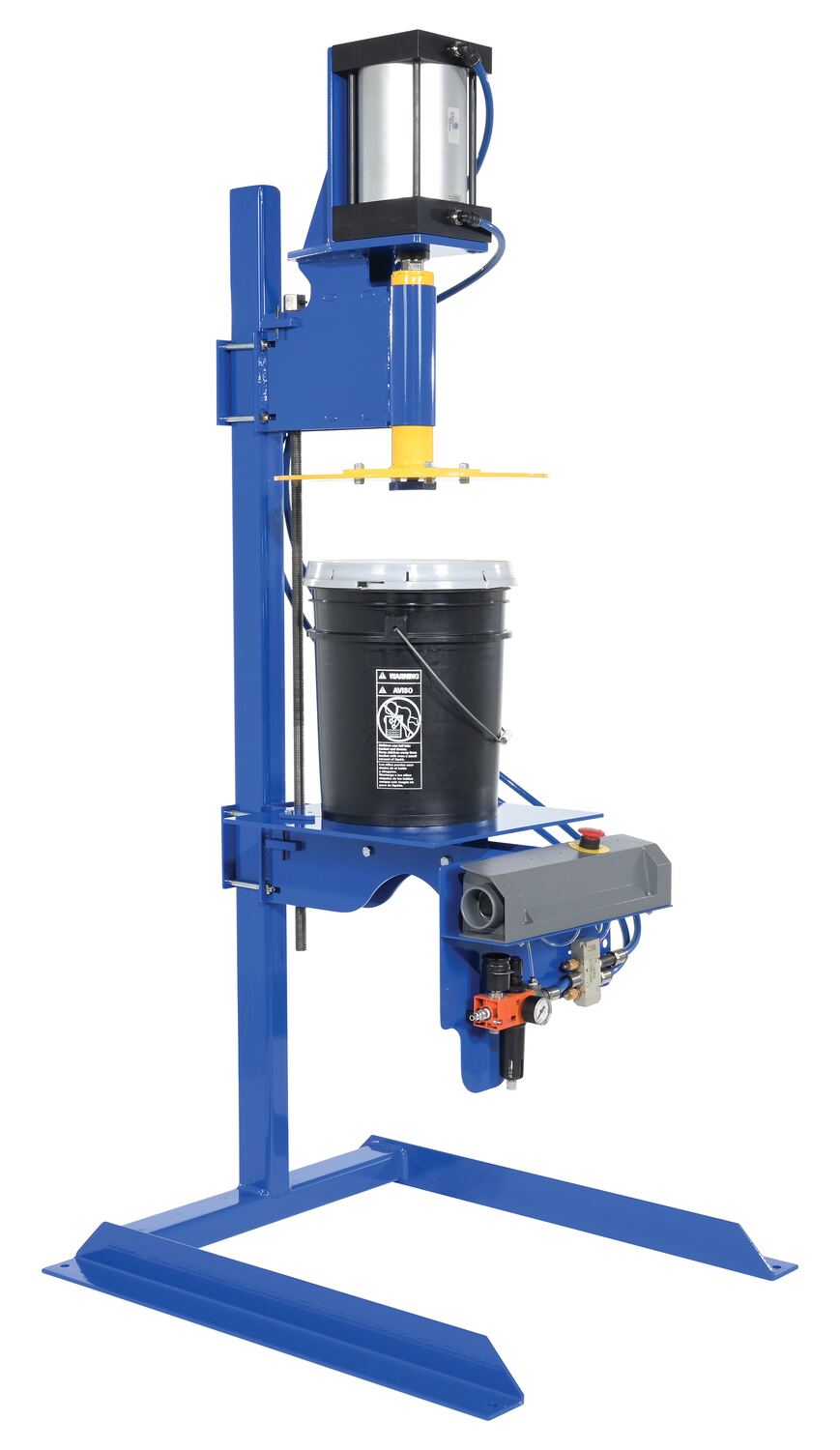

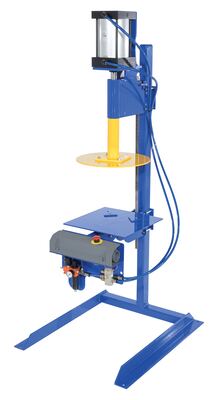

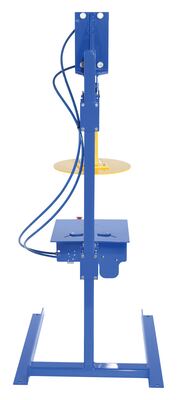

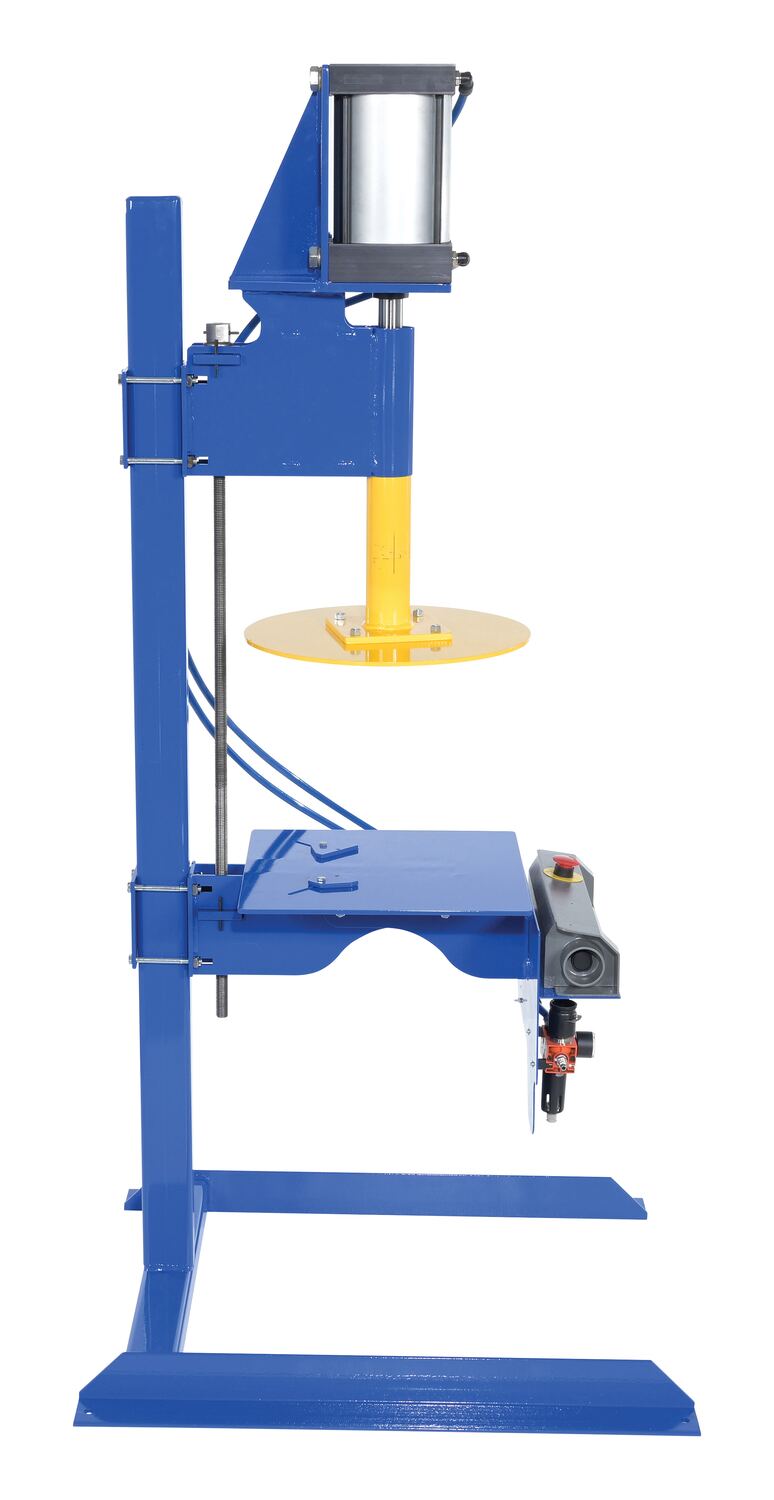

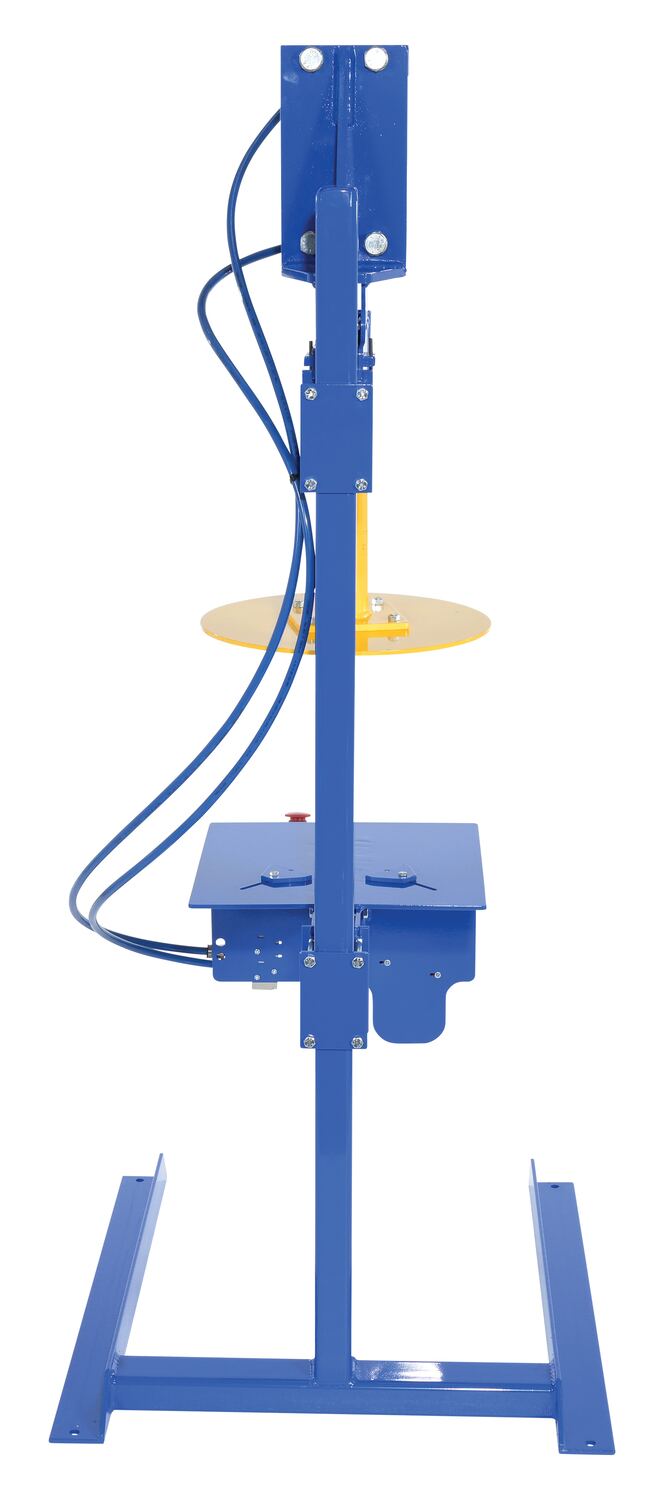

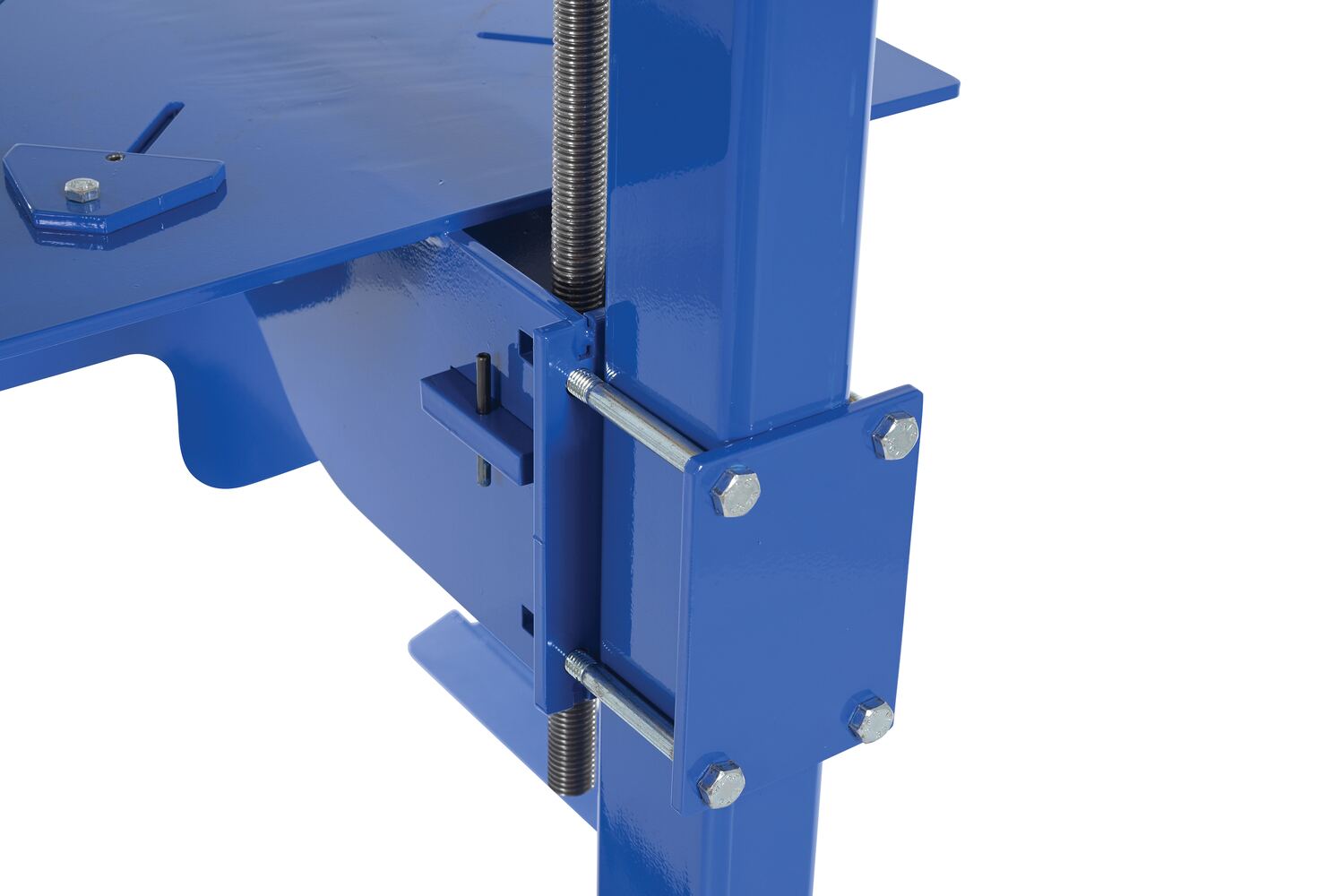

An Air Powered version, model PLC-P-AIR, eliminates the effort of manual lid compression. Through a quick connection to your shops' air source the lid press can be fully functional. With a 16" compression plate diameter, the press delivers results for a wide variety of pails and lids. An adjustable platform provides the ability to work with a diverse range of pail heights. Base frame is pre-drilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall

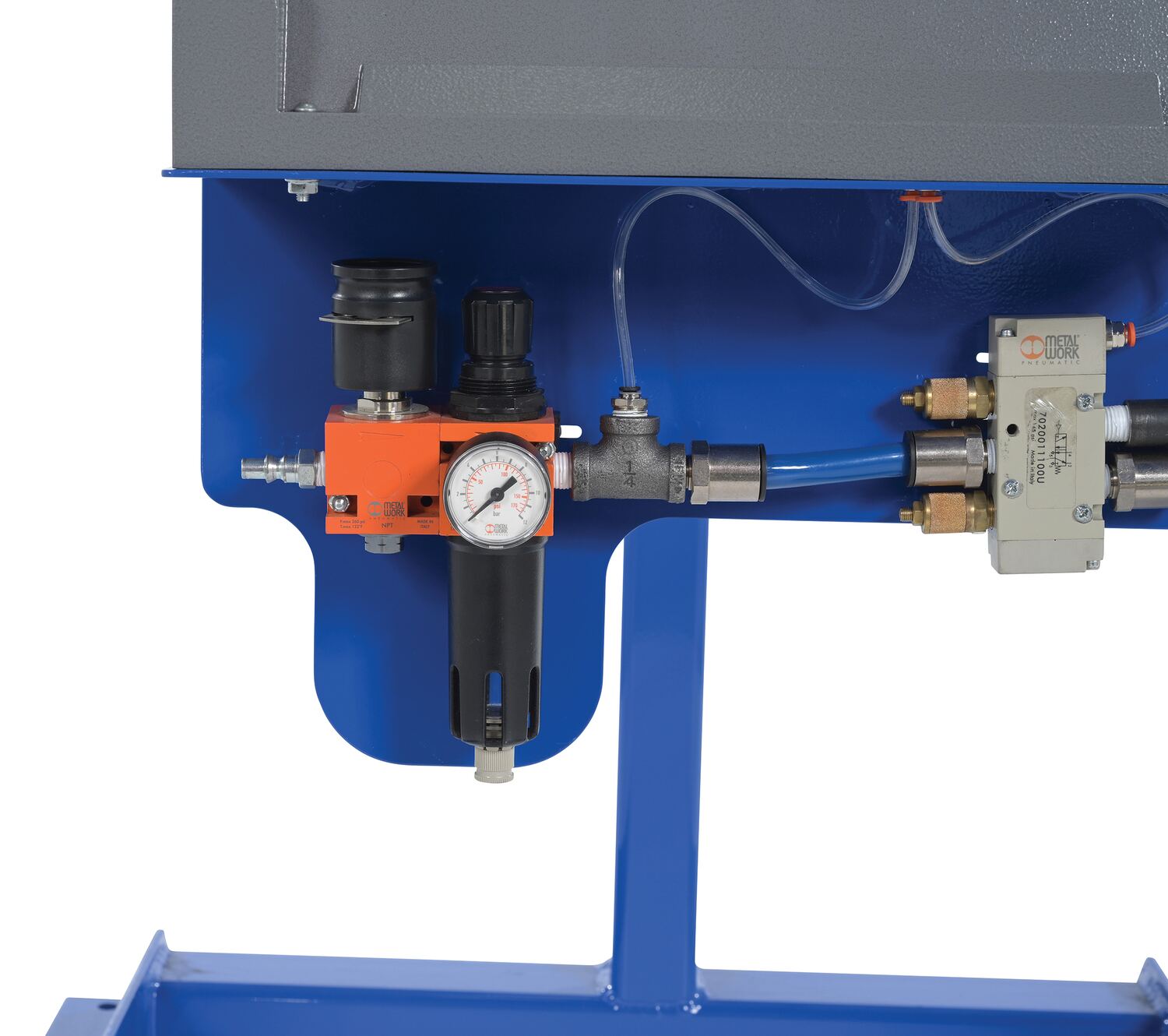

  • Closing force of up to 700 lbs. with just 100 PSI

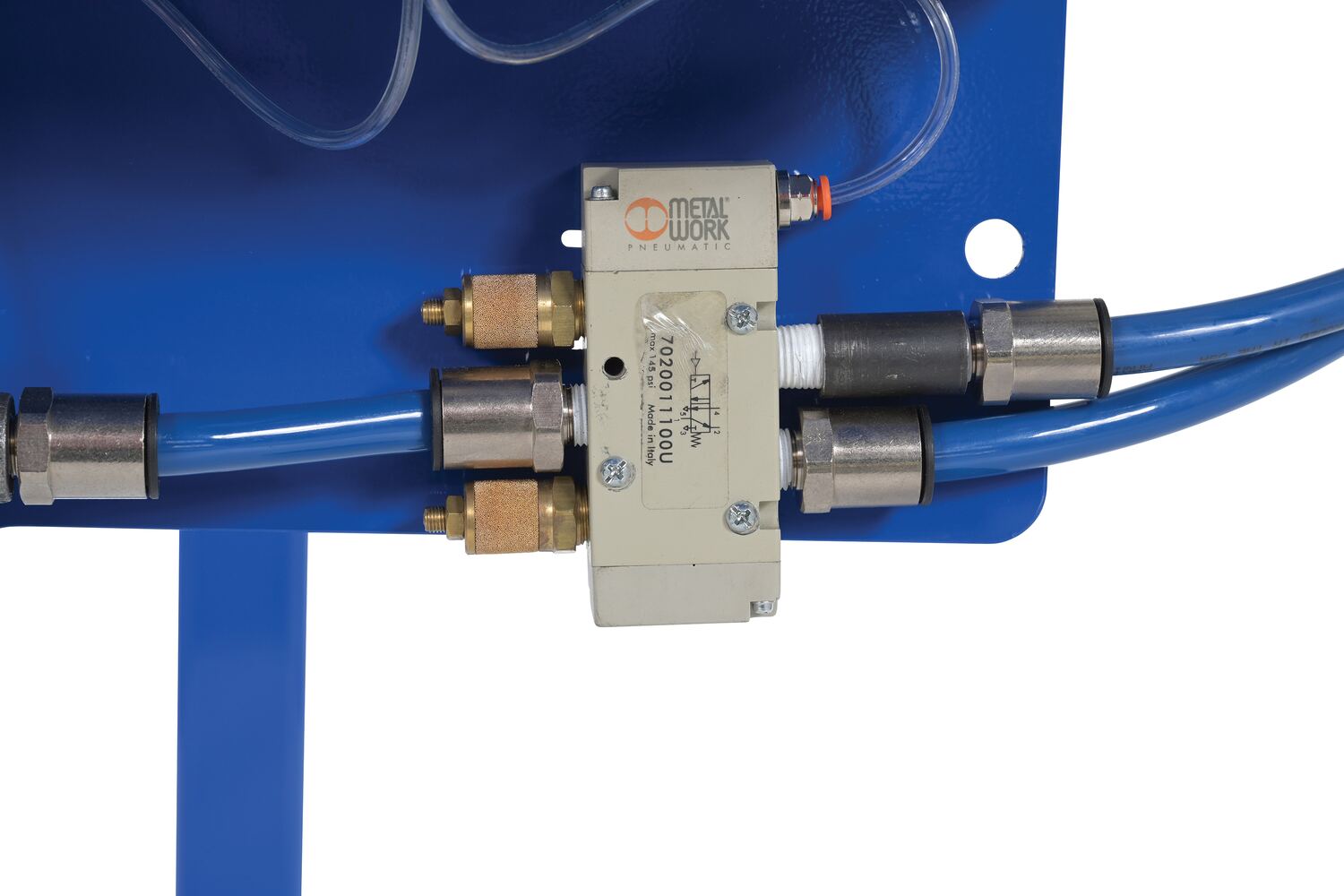

  • Push button controls
  • Steel construction with a powder coat finish

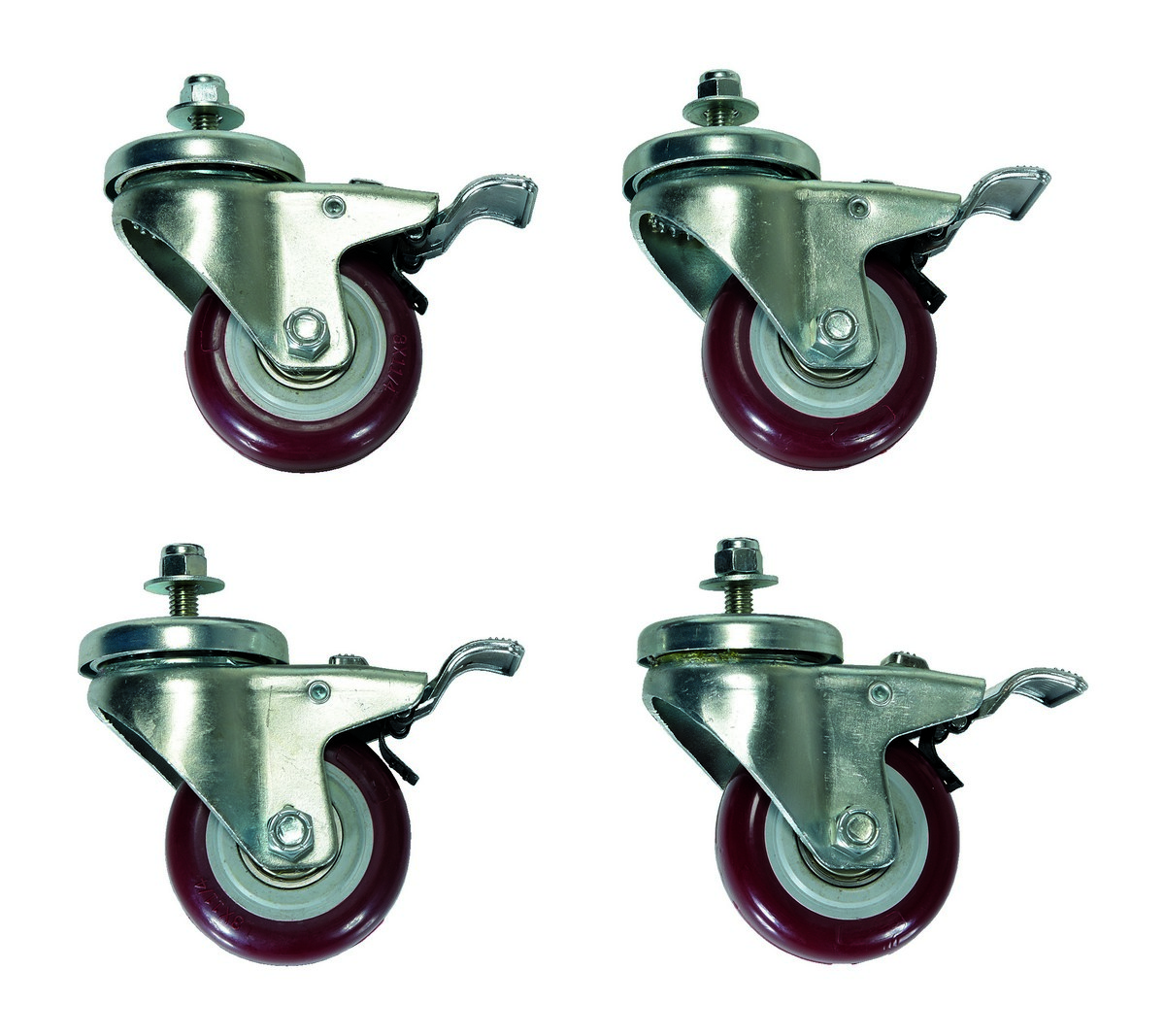

PLC-CK Optional Caster Kit includes (4) 3" x 1-1/4" poly swivel stem casters with brake.

Check Out Vestil's Pails and Lids:


Pails
Pail Lids

This Plastic Pail Lid Closing Press quickly and easily secures a cover onto a plastic pail. The lid closer allows for easily pressing lids on plastic pails in a single motion. The 39" long handle provides a 14:1 advantage, where 50 lbs. on handle applies 700 lbs. on the pail. Adjustable height table allows for use with different sized pails. Compression plate diameter is 16" and is fitted with an adjustable burp plunger. Base frame is predrilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall
  • Two-handle design is easy to operate
  • Long handles provide leverage reducing effort necessary to secure lids to pails
  • Steel construction can handle rugged use

An Air Powered version, model PLC-P-AIR, eliminates the effort of manual lid compression. Through a quick connection to your shops' air source the lid press can be fully functional. With a 16" compression plate diameter, the press delivers results for a wide variety of pails and lids. An adjustable platform provides the ability to work with a diverse range of pail heights. Base frame is pre-drilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall
  • Closing force of up to 700 lbs. with just 100 PSI
  • Push button controls
  • Steel construction with a powder coat finish

PLC-CK Optional Caster Kit includes (4) 3" x 1-1/4" poly swivel stem casters with brake.

Check Out Vestil's Pails and Lids:


Pails
Pail Lids

Other Pails & Pail Equipment

 Hydraulic Pail Crusher Hoist Mounted Pail Carrier / Rotator Pails Piston Pail Pumps

Additional Models In This Family
view entire Image Gallery

PLC-P-FM

model PLC-P-FM

PLC-CK

model PLC-CK

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PLC-P-AIR NEW PLC-P-AIR30 Days Limited WarrantySteel Pail Lid Closer Press Air Powered 700 Lb. Closing Force 100 PSI 250 Lb. Capacity Blue/YellowCompatible Drum Size: 2-7 Gallons
Compatible Drum Material: Steel & Plastic		240
PLC-P-FM POPULAR PLC-P-FM30 Days Limited WarrantySteel Constructed Pail Lid Closing Press Machine 2-7 Gallon 250 Lb. Capacity Blue / YellowUniform Capacity (lb.): 250
Pail Size (gal.): 2 to 7		236

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PLC-P-FM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Pail Size (gal.): 2 to 7
Uniform Capacity (lb.): 250
Pail Size (gal.): 2 to 7

PLC-P-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Compatible Drum Size: 2-7 Gallons
Compatible Drum Material: Steel & Plastic
Compatible Drum Size: 2-7 Gallons
Compatible Drum Material: Steel & Plastic
For More Details of the Option Click the Red Model Button
PLC-CK PLC-CK30 Days Limited WarrantyPolyurethane Pail Lid Closing Press Caster Kit 3 In. x 1-1/4 In. RedSwivel Stem Caster with Brake (qty.): 4
Caster Material: Poly		9

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Pail Lid Closing Press PDF's will open in a new window when clicked.

Manuals


PLC-P-FM
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PLC-CK

PLC-P-FM

Testing Certificates


PLC-CK

PLC-P-AIR

PLC-P-FM

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Pail Lid Closer Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Steel Pail Lid Closing Tool
Product

Steel Pail Lid Closing Tool

Steel Pail Pals (Pail Opener)
Product

Steel Pail Pals (Pail Opener)

Pail Carousel Racks
Product

Pail Carousel Racks

Variable Height Pail Dispensers
Product

Variable Height Pail Dispensers

Pail Liners
Product

Pail Liners

Hydraulic Pail Crusher
Product

Hydraulic Pail Crusher

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pail Lid Closing Press




This Plastic Pail Lid Closing Press quickly and easily secures a cover onto a plastic pail. The lid closer allows for easily pressing lids on plastic pails in a single motion. The 39" long handle provides a 14:1 advantage, where 50 lbs. on handle applies 700 lbs. on the pail. Adjustable height table allows for use with different sized pails. Compression plate diameter is 16" and is fitted with an adjustable burp plunger. Base frame is predrilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall
  • Two-handle design is easy to operate
  • Long handles provide leverage reducing effort necessary to secure lids to pails
  • Steel construction can handle rugged use

An Air Powered version, model PLC-P-AIR, eliminates the effort of manual lid compression. Through a quick connection to your shops' air source the lid press can be fully functional. With a 16" compression plate diameter, the press delivers results for a wide variety of pails and lids. An adjustable platform provides the ability to work with a diverse range of pail heights. Base frame is pre-drilled for lagging to the floor (hardware not included). Not for use with UN-rated pails for hazardous material shipping.

  • Works with pails 6" to 22" tall
  • Closing force of up to 700 lbs. with just 100 PSI
  • Push button controls
  • Steel construction with a powder coat finish

PLC-CK Optional Caster Kit includes (4) 3" x 1-1/4" poly swivel stem casters with brake.

Check Out Vestil's Pails and Lids:


Pails
Pail Lids

Model # Description Attributes Net Wt.
(lbs)
PLC-P-AIR PLC-P-AIRSteel Pail Lid Closer Press Air Powered 700 Lb. Closing Force 100 PSI 250 Lb. Capacity Blue/YellowCompatible Drum Size: 2-7 Gallons
Compatible Drum Material: Steel & Plastic		240
PLC-P-FM PLC-P-FMSteel Constructed Pail Lid Closing Press Machine 2-7 Gallon 250 Lb. Capacity Blue / YellowUniform Capacity (lb.): 250
Pail Size (gal.): 2 to 7		236
