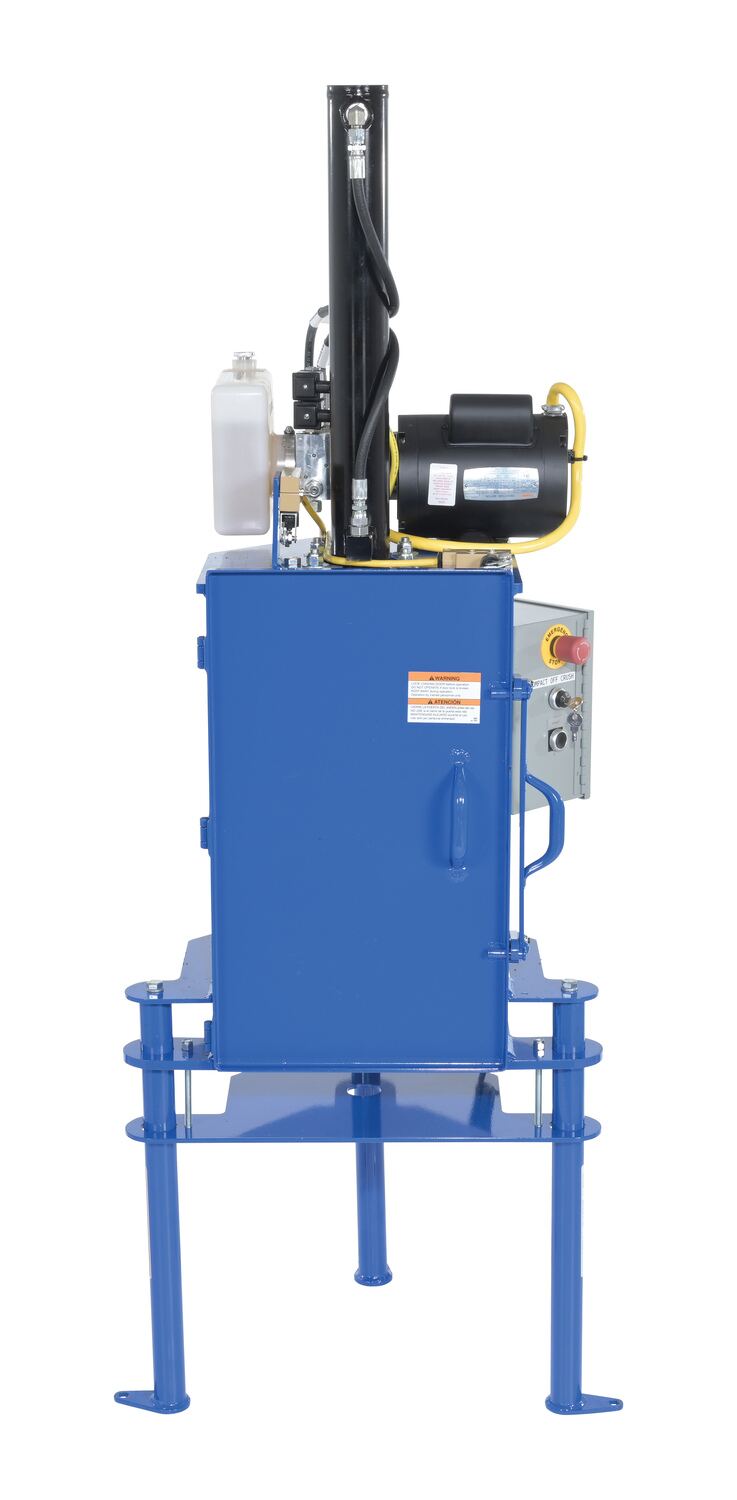

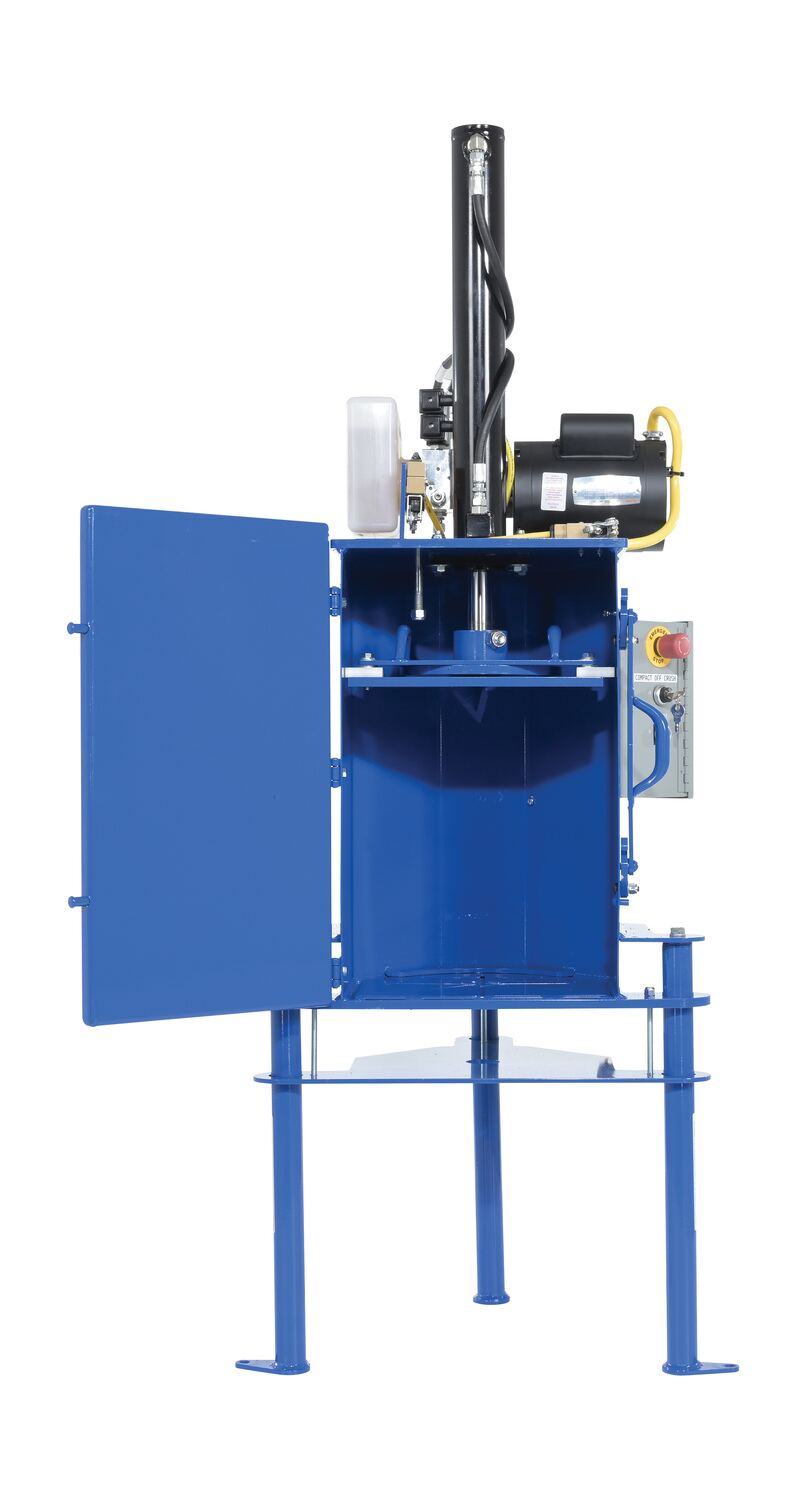

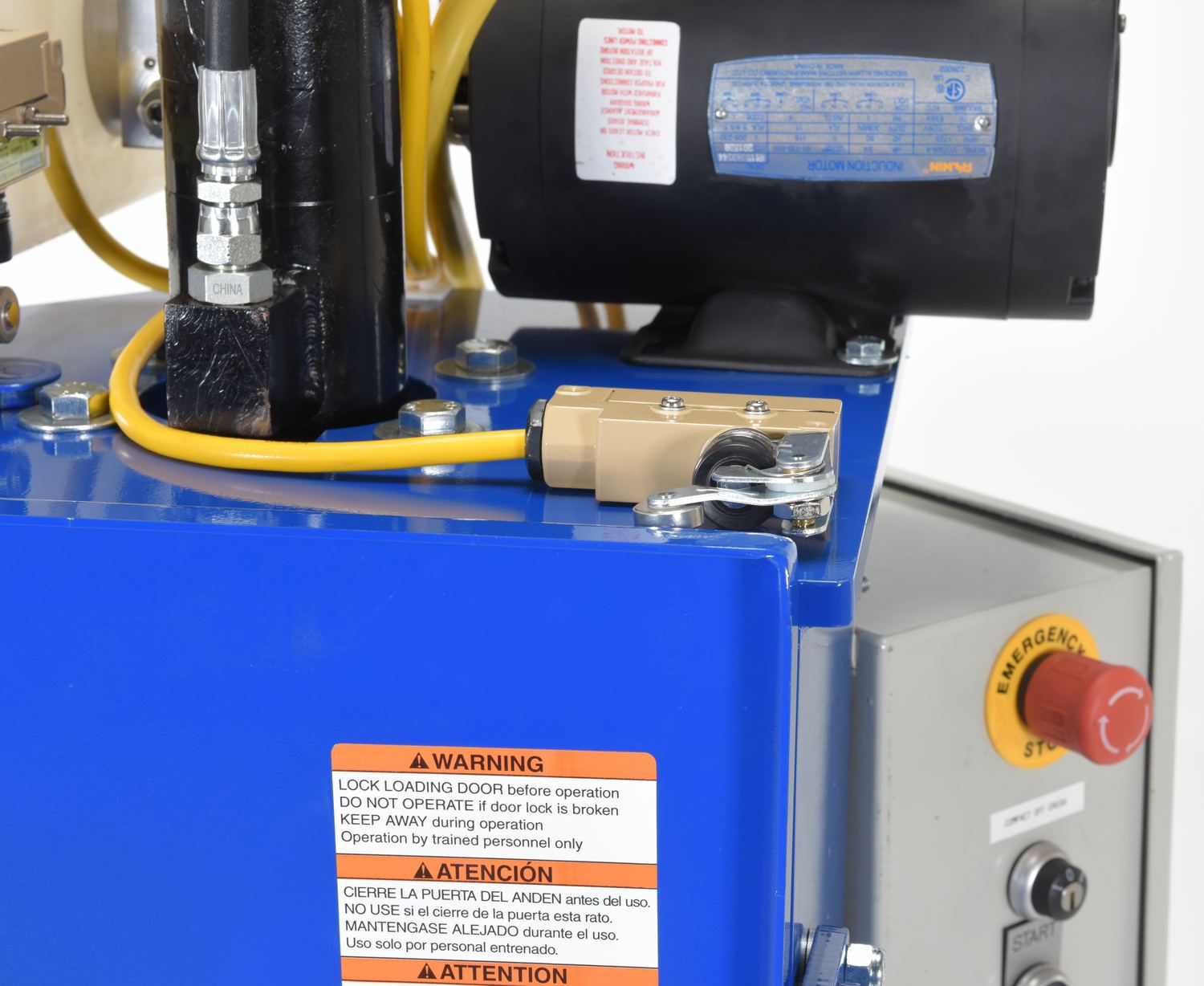

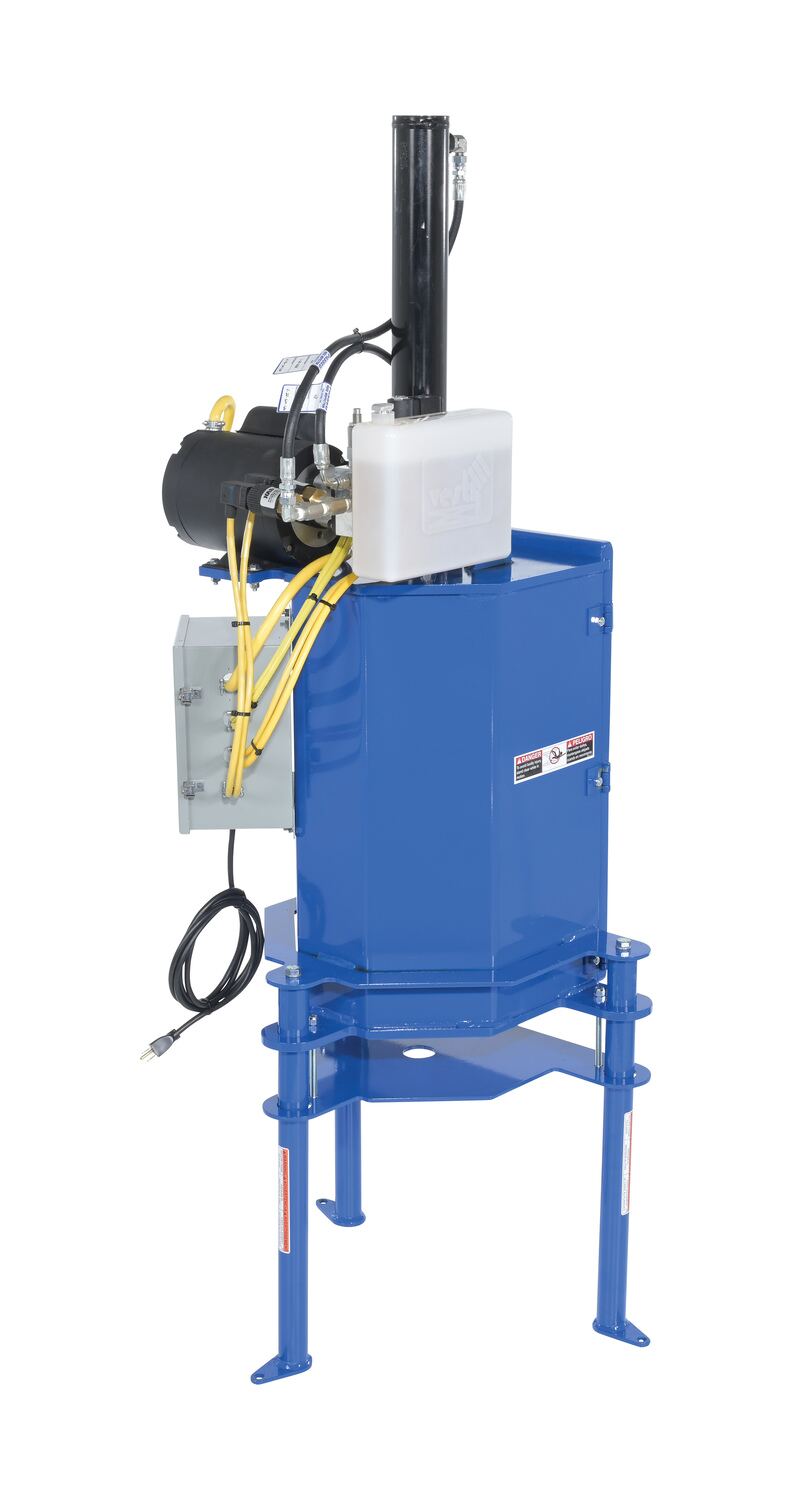

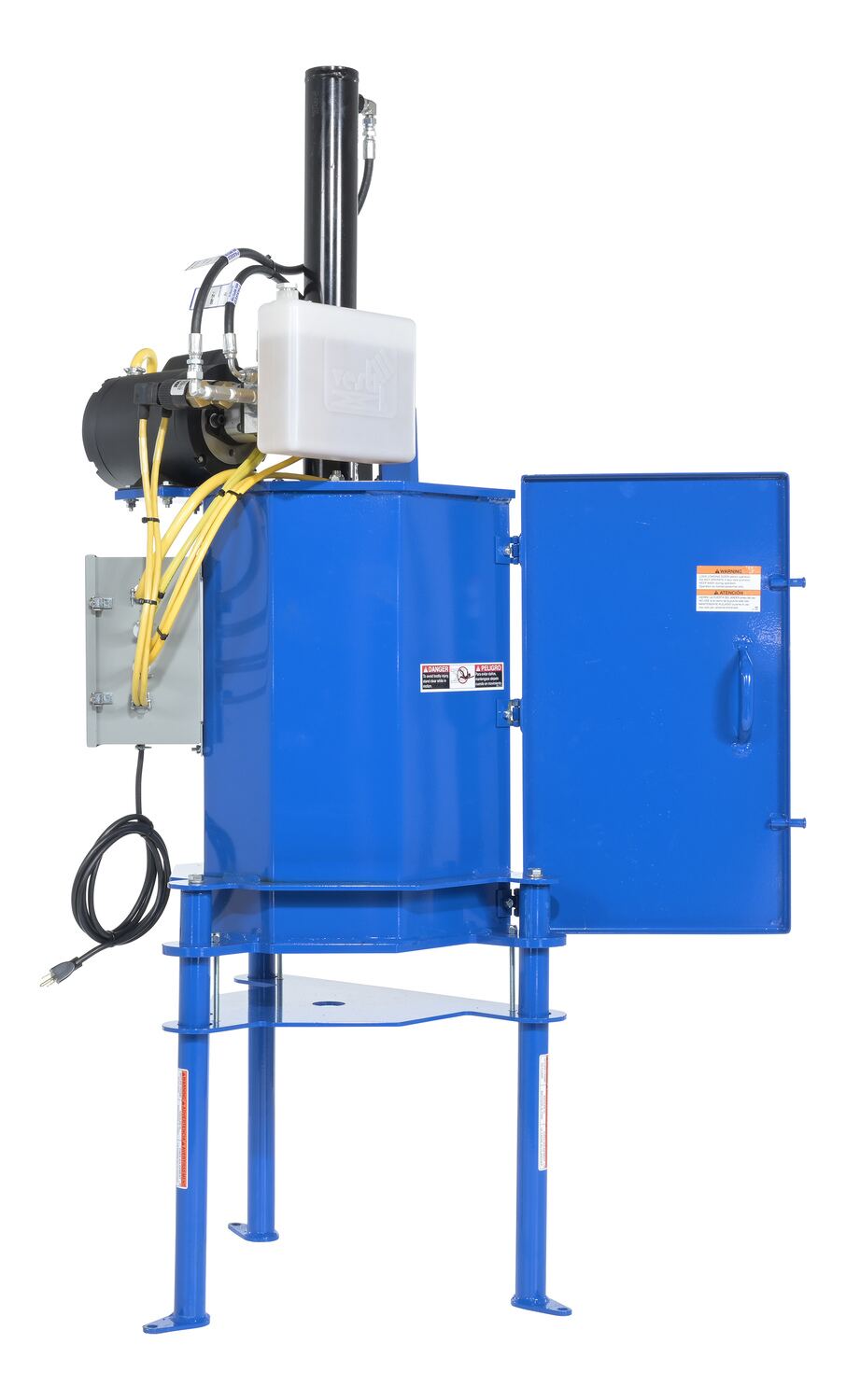

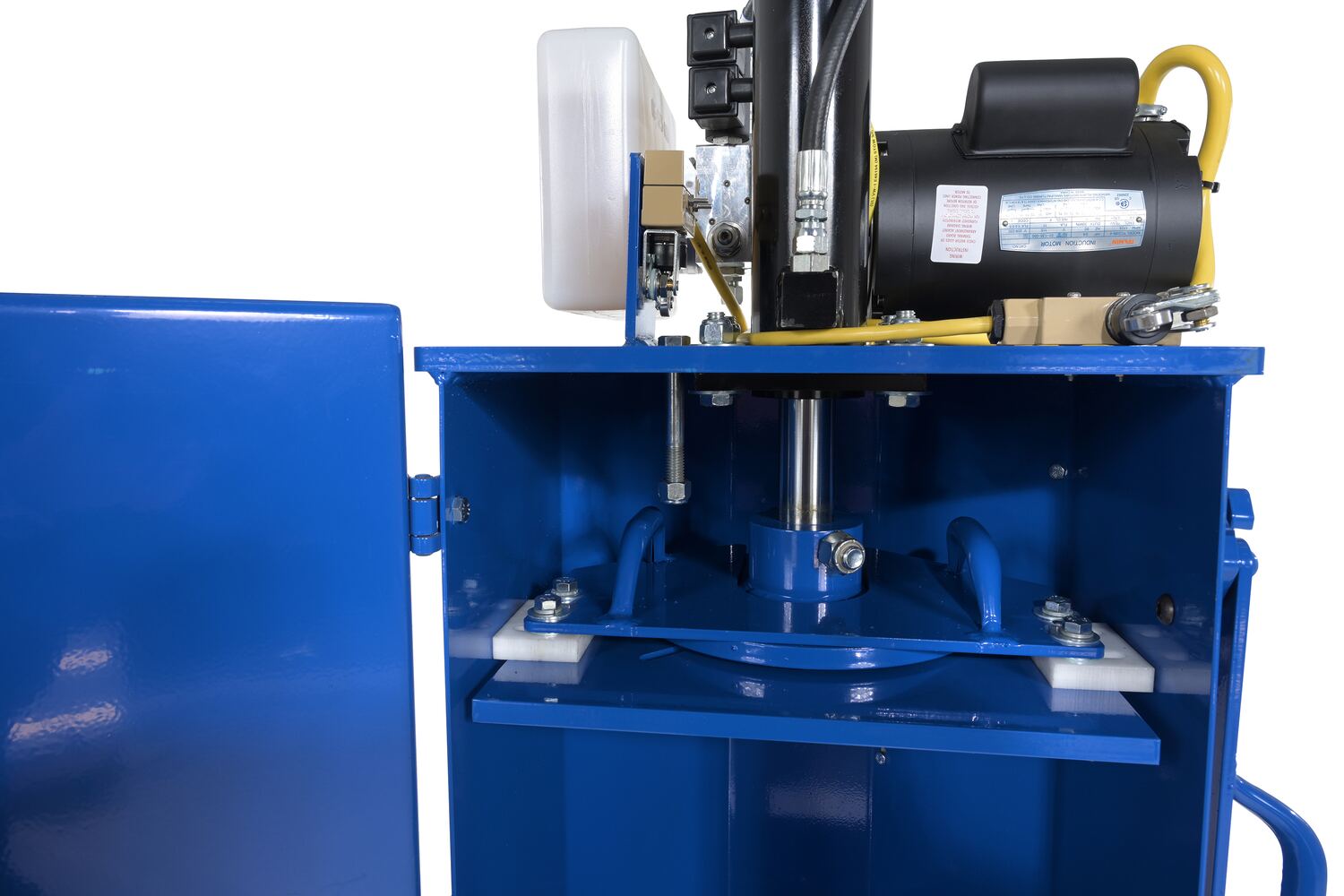

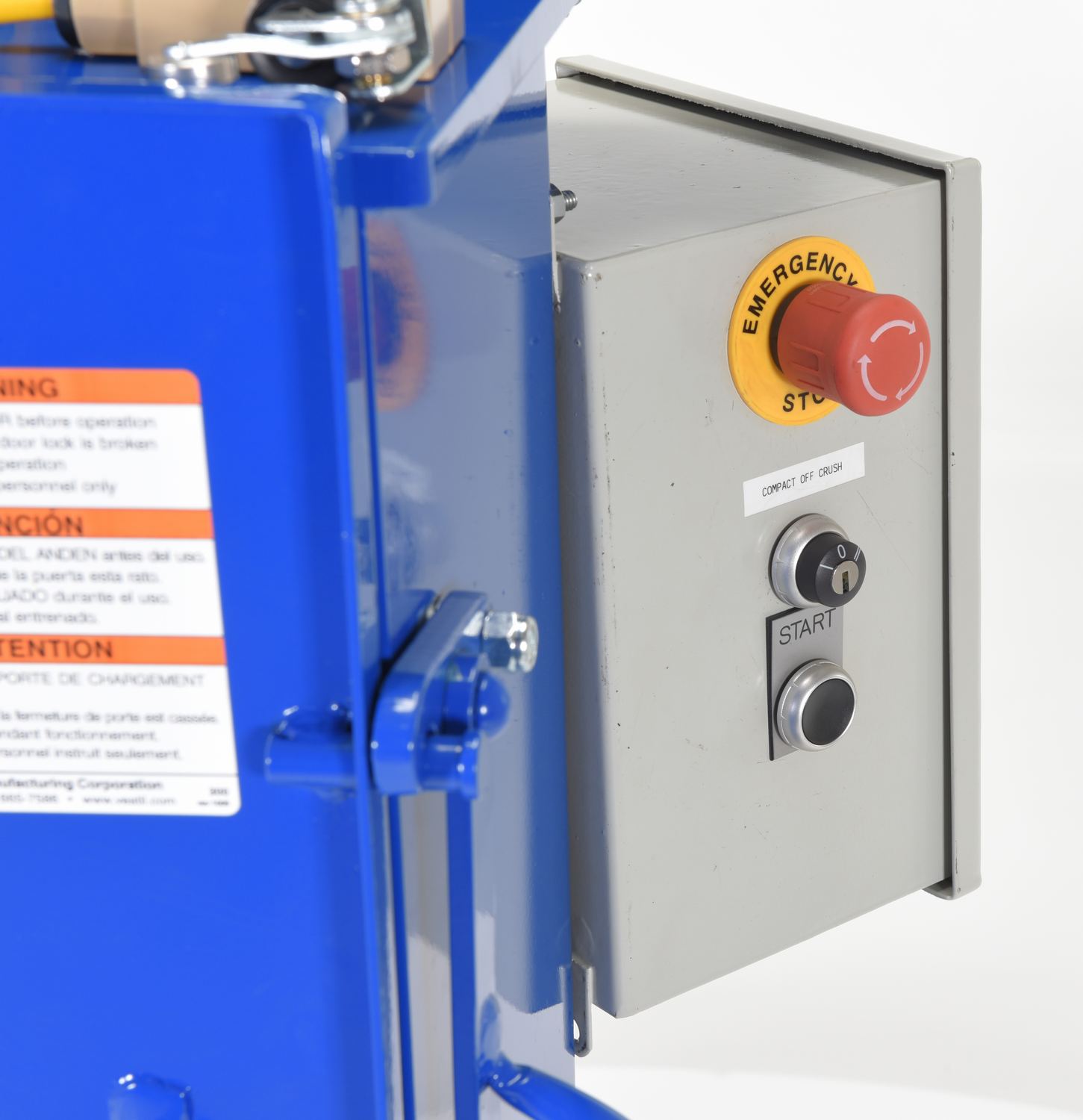

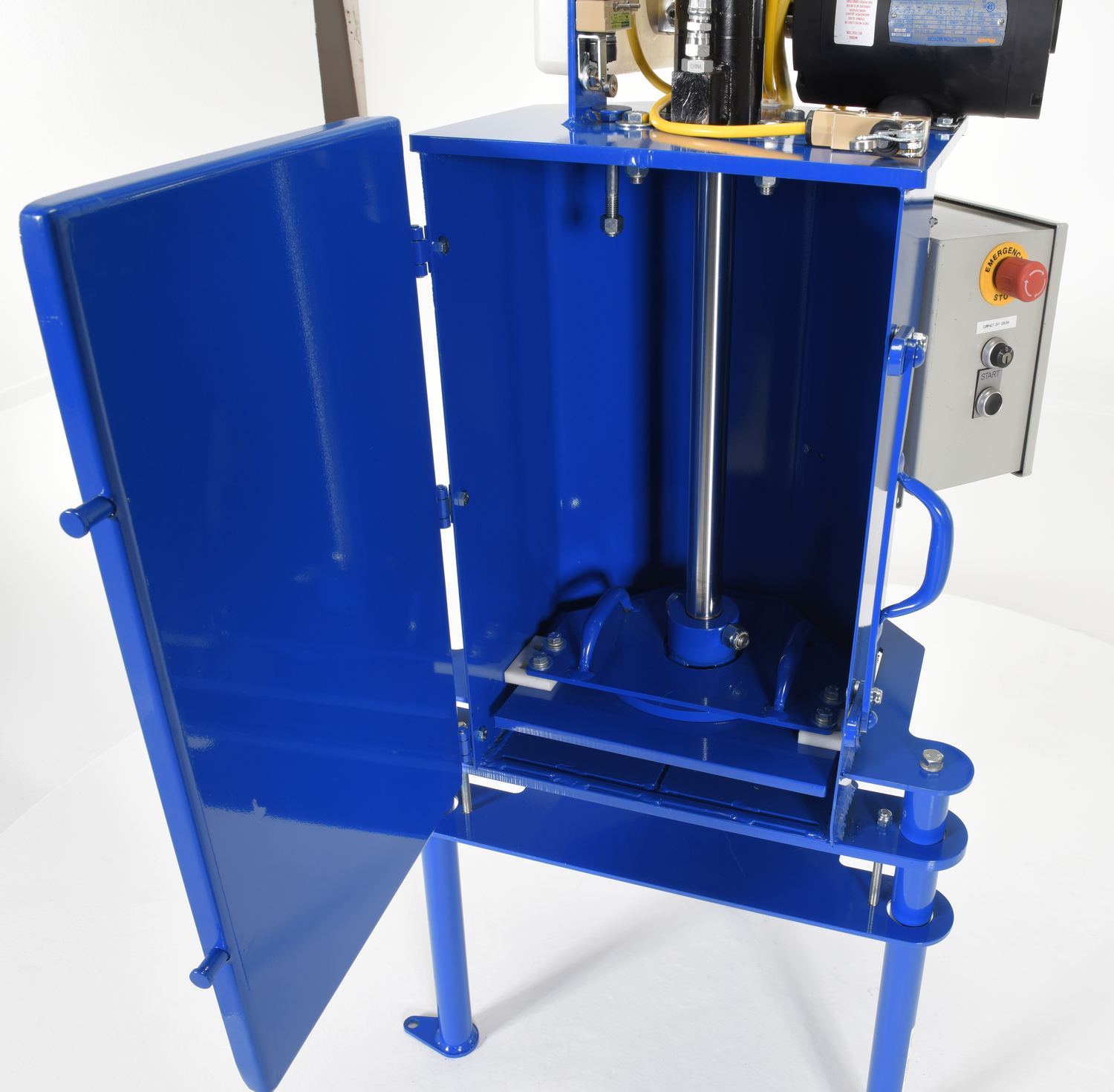

Hydraulic Pail CrusherCrush 5 gallon steel pails quickly and easily. Crushes steel pails to approximately 2" high and resets automatically to crush another pail. Reduce storage space and disposal costs. Safety features include: pressure relief valve to prevent overload, door interlock system to prevent the motor from running if the door is unlatched, and mushroom head emergency stop button. Other features include a hydraulic pump that provides 70 second cycle time, 10,000 pounds of crushing force, removable legs for bench top mounting, and 115 volt single phase for "plug in operation". Meets OSHA and JIC standards. Aluminum drip pan, model HPC-DPN, is available for catching any excess liquid that may be expelled during the crushing operation.
- Crush 5 gallon steel pails quickly and easily to reduce storage space
- Unit crushes a steel pail and resets automatically to crush another
- Includes pressure relief valve prevents overload and emergency stop button for utmost safety
- Features removable legs for mounting and single phase for plug in operation
Manual Pail Tippers
Lids
Pail Carousel Racks
Variable Height Pail Dispensers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| HPC-405 | POPULAR |  | 1 Year Limited Warranty | Steel Hydraulic Pail Crusher 5 Gallon Capacity Blue | Accepts: 5 Gallon Steel Pail Crushed Height (in.): 2 | 360 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accepts: 5 Gallon Steel Pail
Crushed Height (in.): 2
Accepts: 5 Gallon Steel Pail
Crushed Height (in.): 2
For More Details of the Option Click the Red Model Button

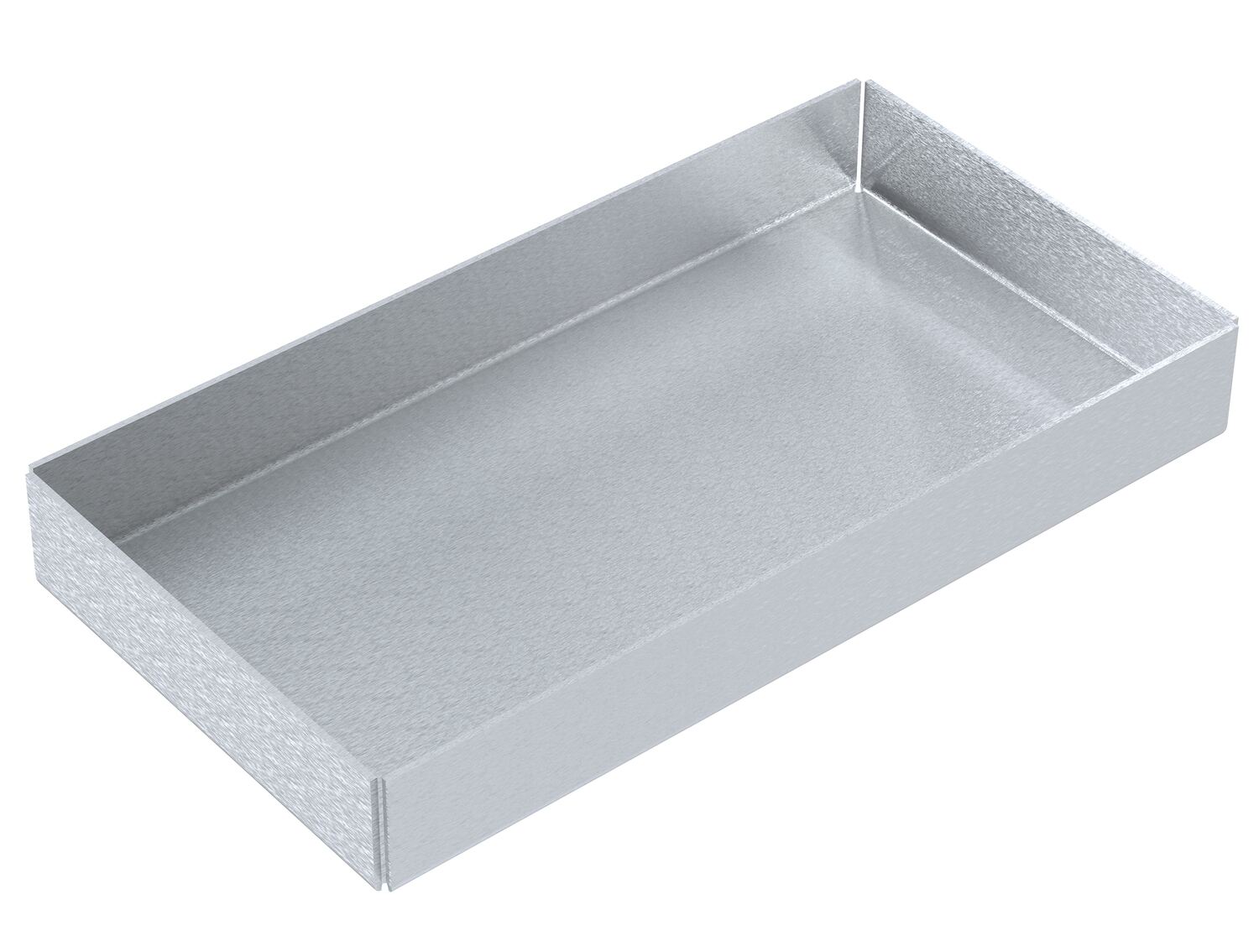

| HPC-DPN |  | 30 Days Limited Warranty | Aluminum Drip Pan For Hydraulic Pail Crusher Models Silver | Pan Capacity (gal.): 1.35 | 4 |
.
