High-Tech Non-Marking PolyurethaneMade of 100% pure polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% bond and "zero" trapped air. Green tread color. 90 +/-5 Shore A. Wheel center is constructed of polyolefin. Made in Taiwan.
100% Bond to Core- Kingpinless
- Resists Most Solvents, Oil, Grease & Water
- Non-Marking
- Smooth Roll
- Roller Bearing (available with precision ball bearings) - contact factory
Polyurethane Casters (Yellow)
Polyurethane (SI) Casters
Polyurethane Casters (Blue)
Polyurethane (SI - Electrostatic Dissipating) Casters
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

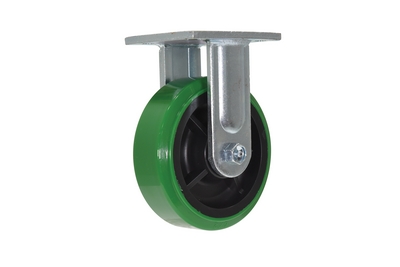

| CST-F40-6X2DT-R |  | 3 YEARS Limited Warranty | 6 x 2 | RIGID | 900 | 7-1/2 | 4 x 4-1/2 | 5 |

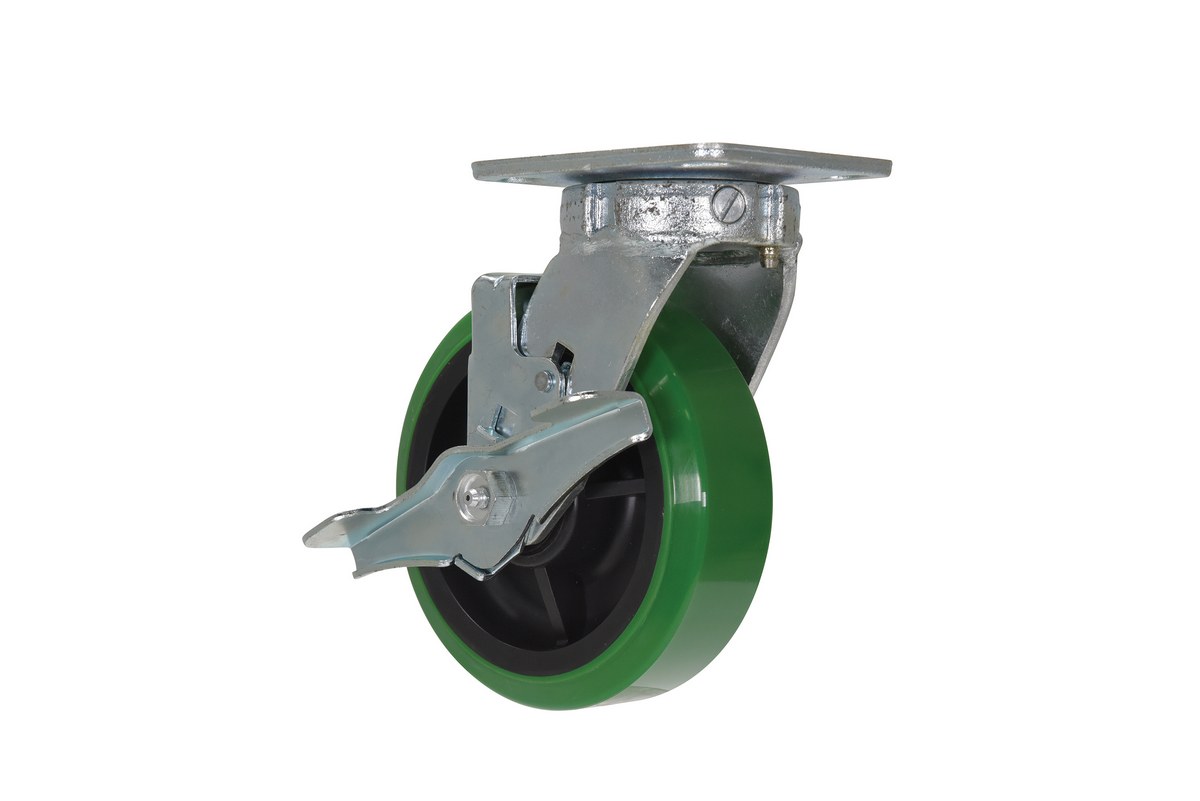

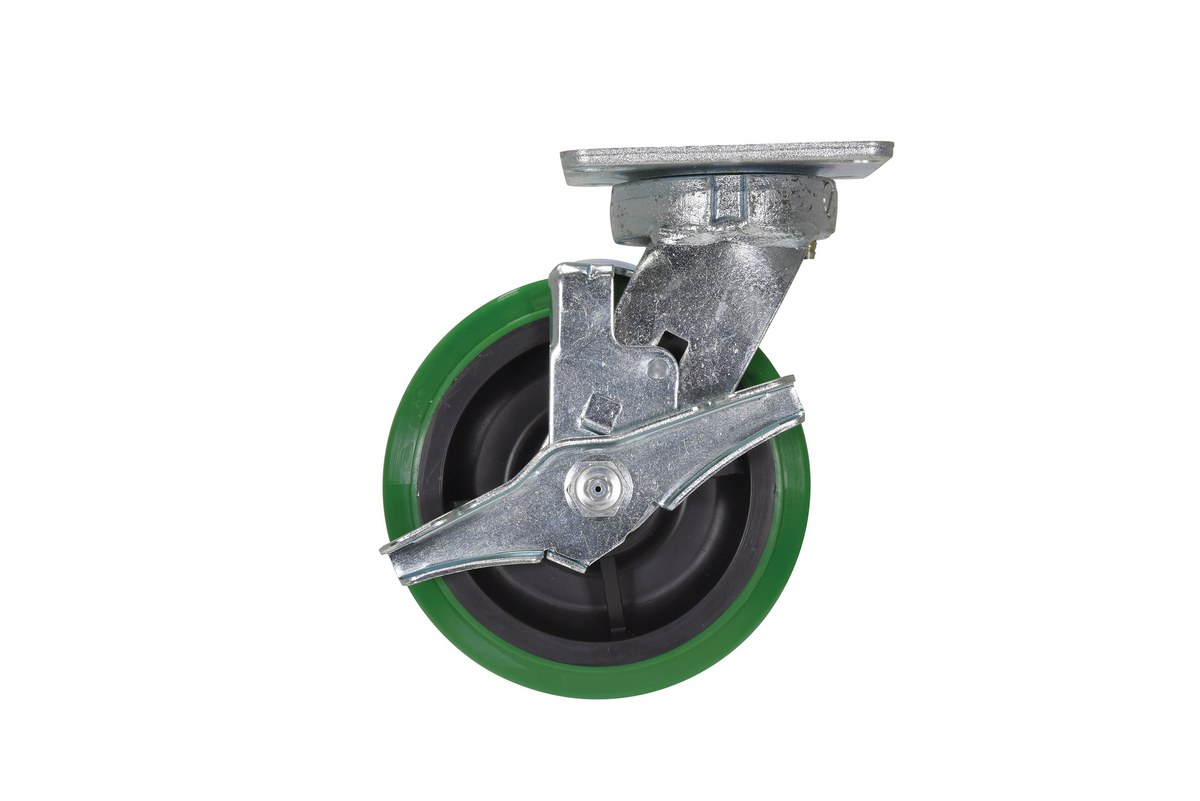

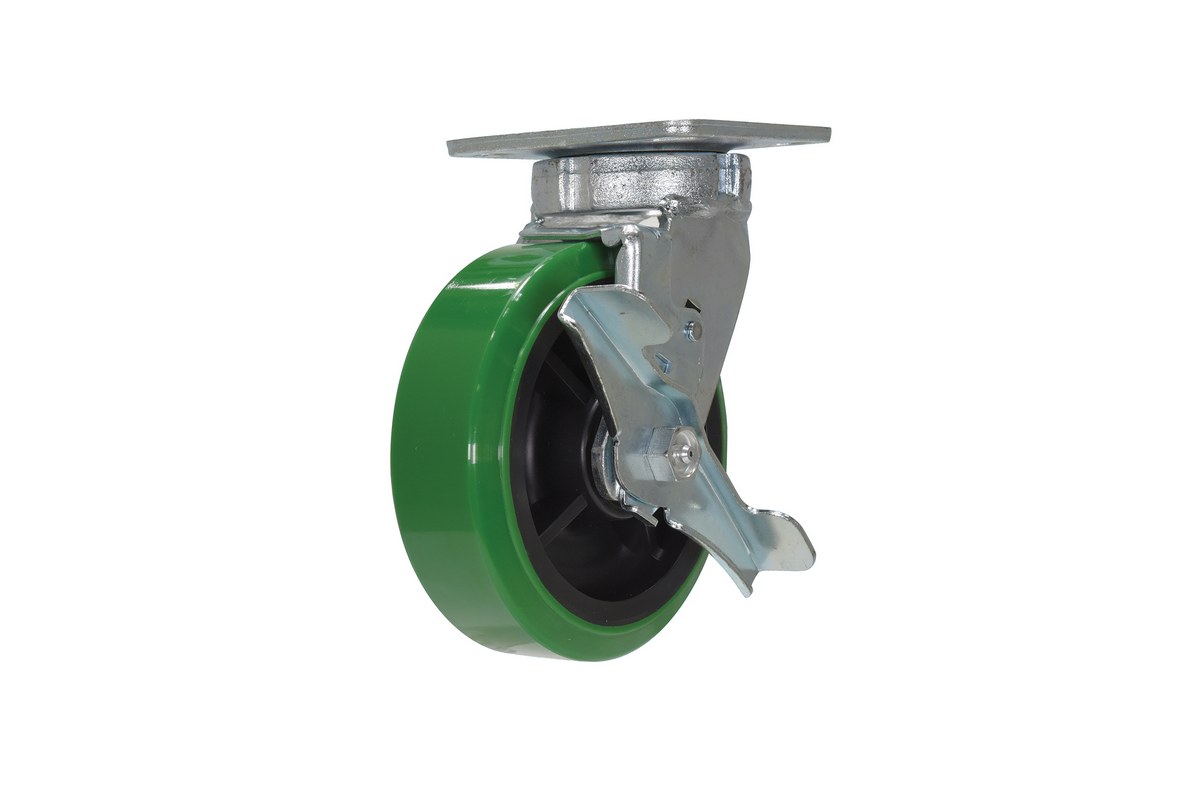

| CST-F40-6X2DT-SWB |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 900 | 7-1/2 | 4 x 4-1/2 | 7 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
High-Tech Non-Marking Polyurethane PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
