Polyurethane (SI) CastersConstructed of proprietary, high-grade elastic polyurethane and coupled with 6203 premium precision ball bearings for added strength and durability. The upgraded tread provides a longer life, reduces the force required for movement, rejects debris, and offers exceptional floor preservation. Orange tread color. 85 shore a. Wheel core is constructed of high-grade, light-weight, water resistant aluminum.
- Non-marking high-quality proprietary tread
- Smooth Ride Performance
- Rejects Debris
- Reduces Push/Pull Force Required For Movement
- High Capacity
- Ergonomic Donut Design
- Light Weight, Rust Resistant Aluminum Core
- Premium sealed precision ball bearings
Polyurethane Casters (Yellow)
Flat-Free (Foam-Filled) Casters
Mold On Rubber Casters
Upgraded Kingpinless Glass Filled Nylon (RX) Casters
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

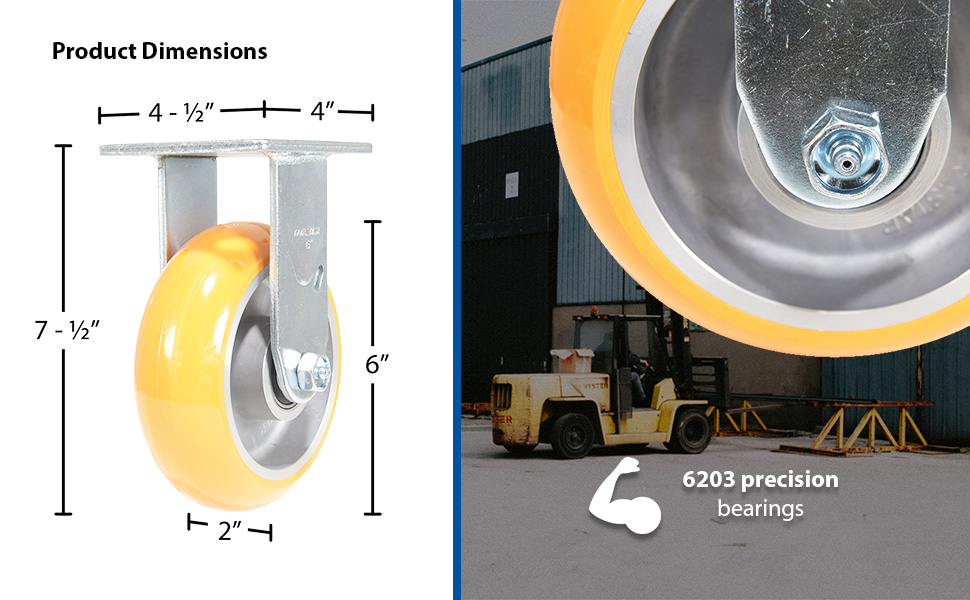

| CST-F34-6X2SI-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 1250 | 7-1/2 | 4 x 4-1/2 | 5 |
| CST-F34-8X2SI-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 1250 | 9-3/8 | 4 x 4-1/2 | 7 |
| CST-F34-6X2SI-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 1250 | 7-1/2 | 4 x 4 1/2 | 6 |
| CST-F34-8X2SI-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 1250 | 7-1/2 | 4 x 4-1/2 | 7 |

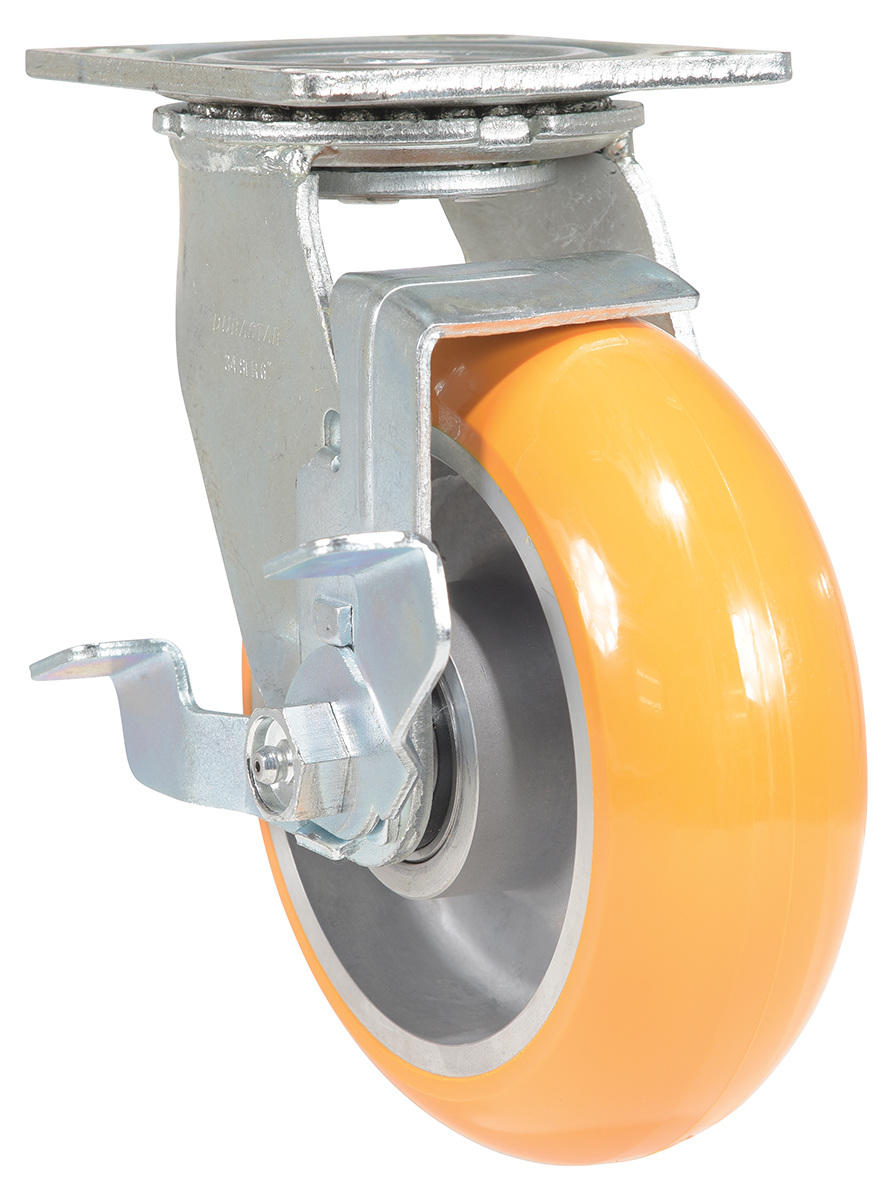

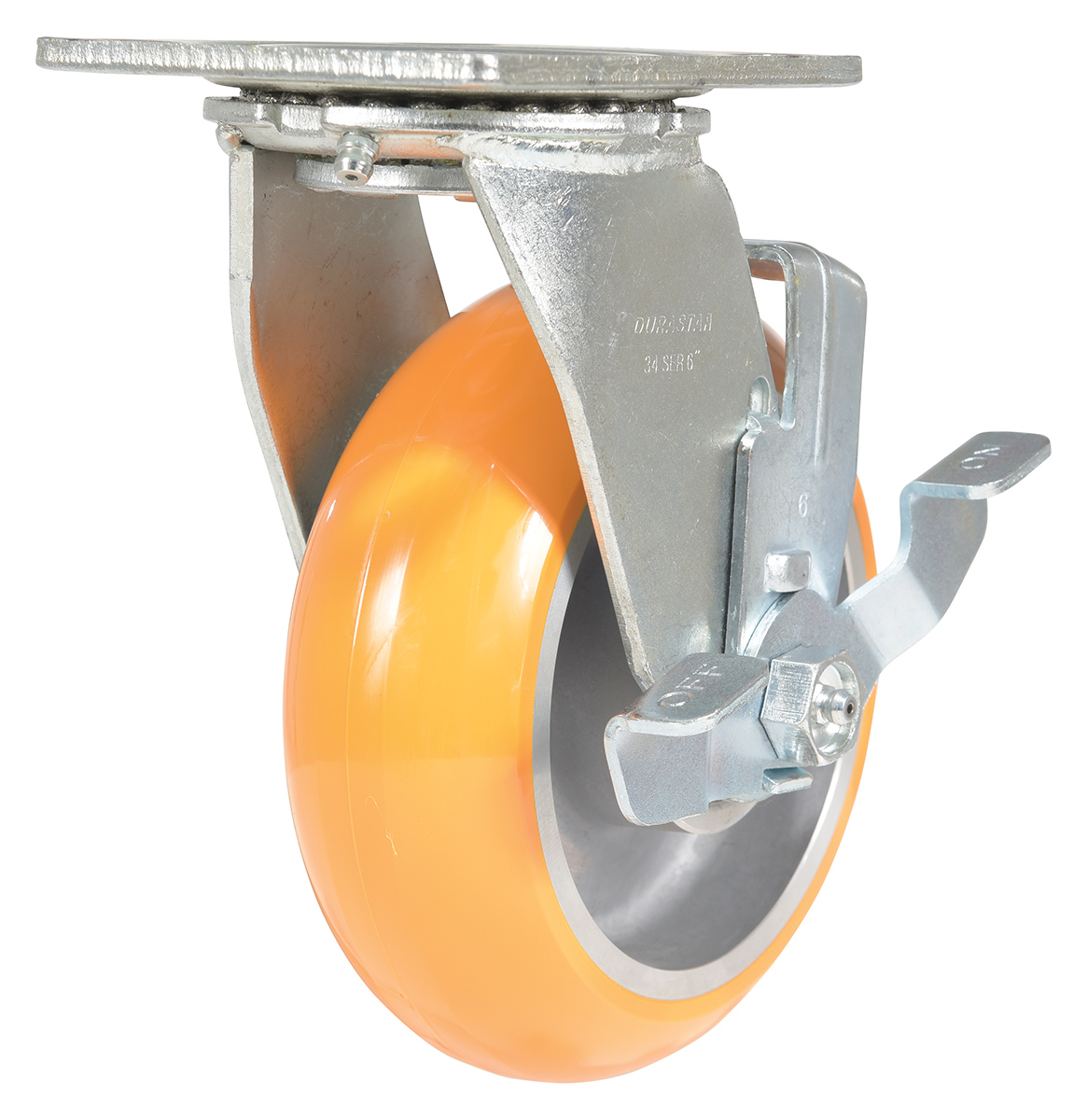

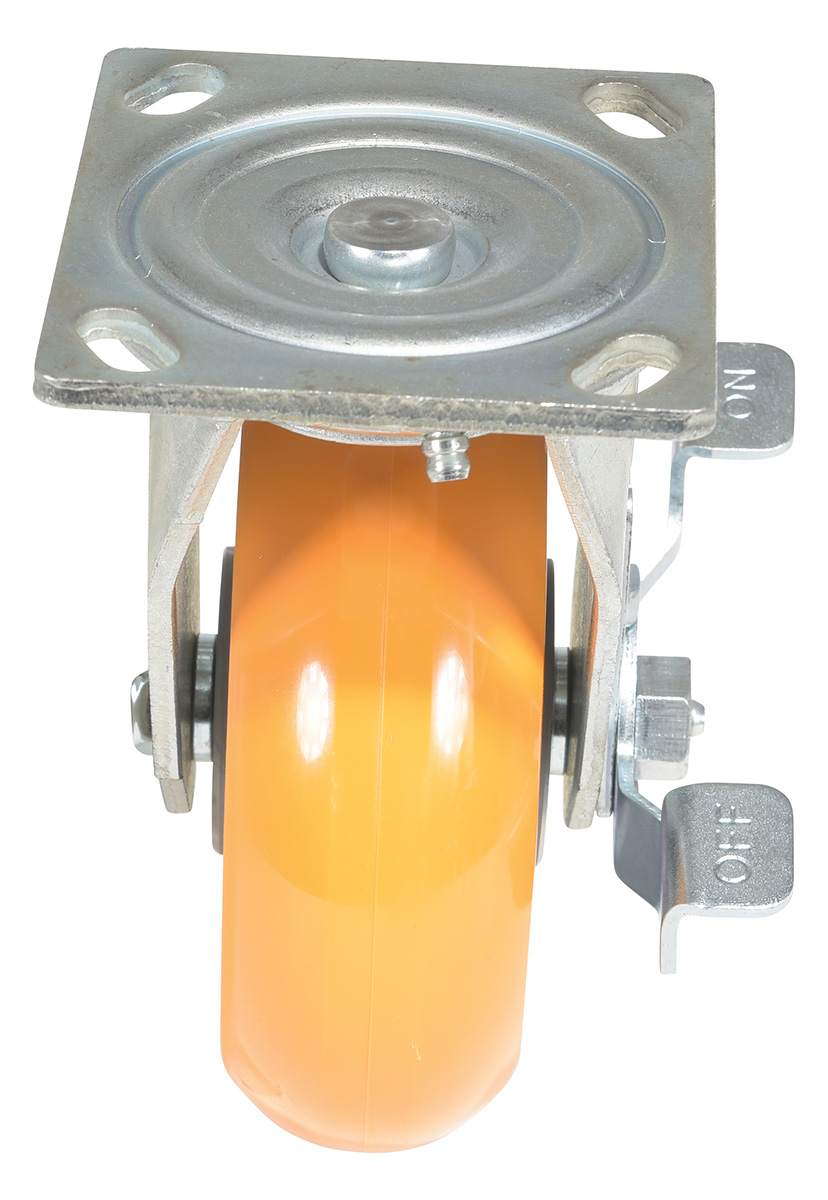

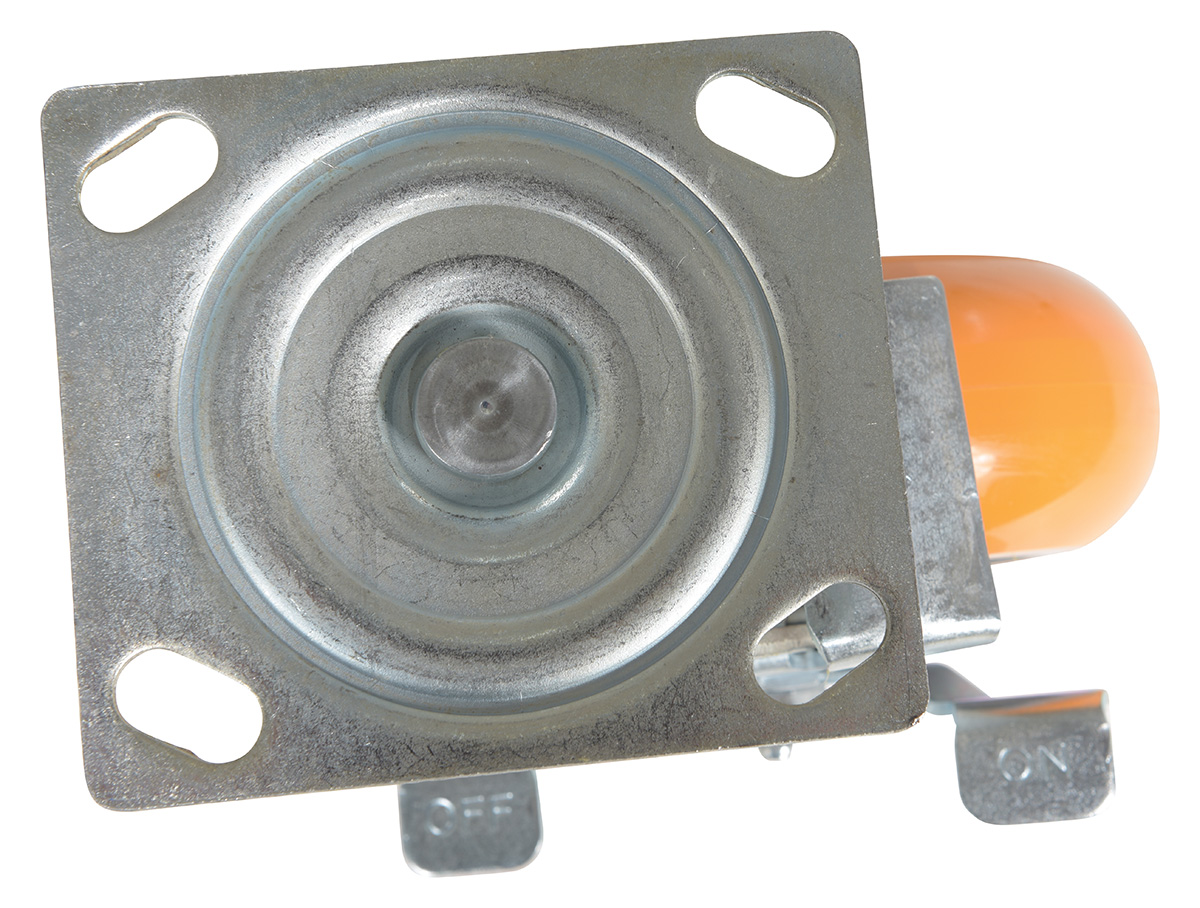

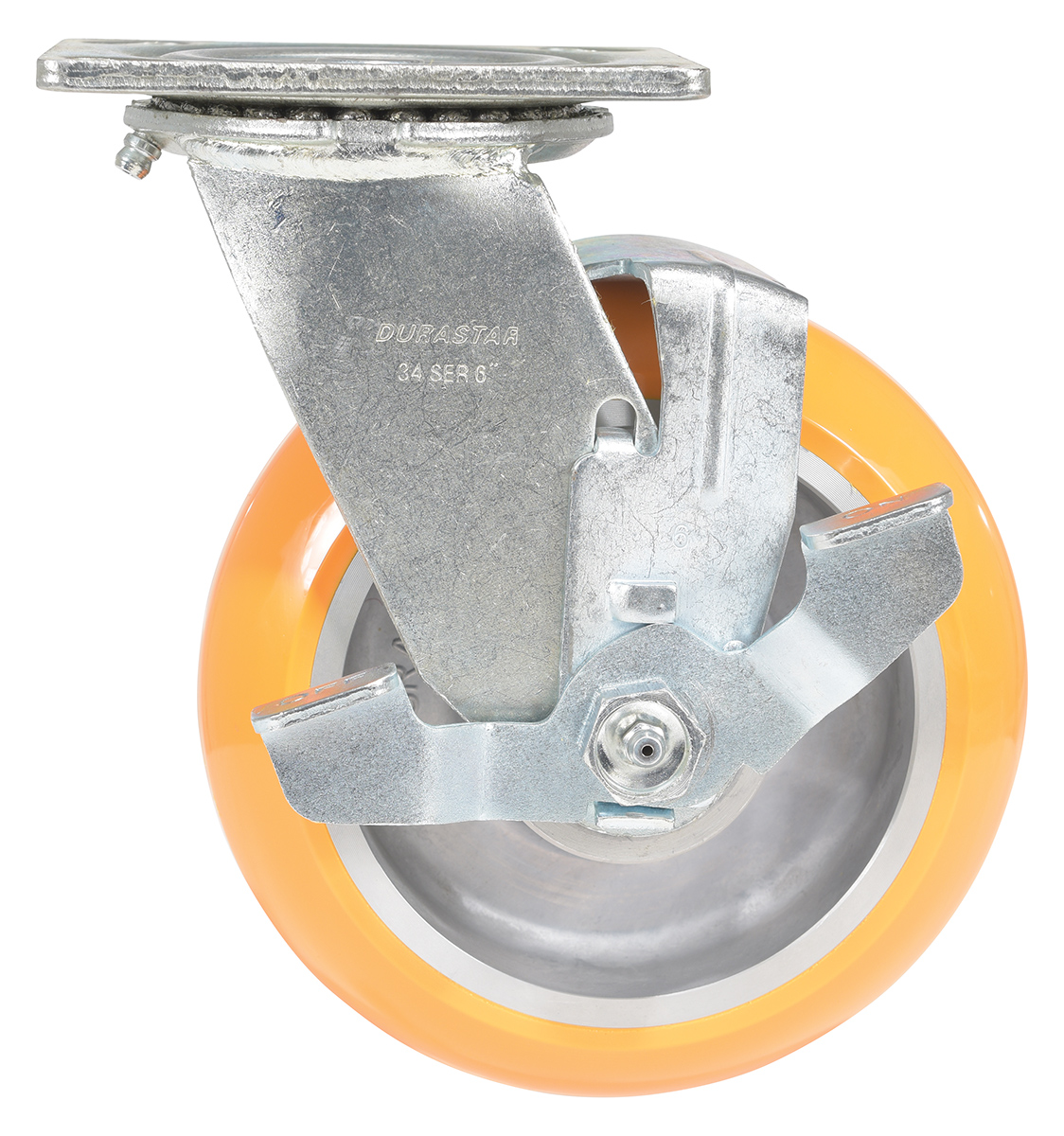

| CST-F34-6X2SI-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1250 | 7-1/2 | 4 x 4-1/2 | 6 |

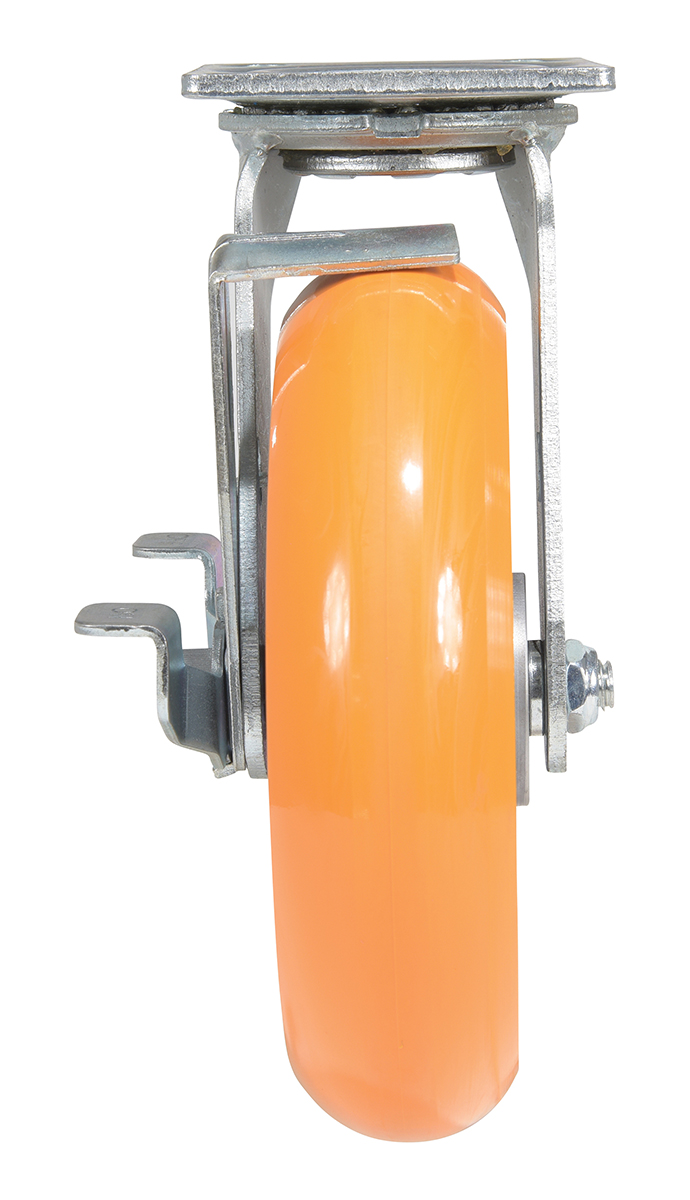

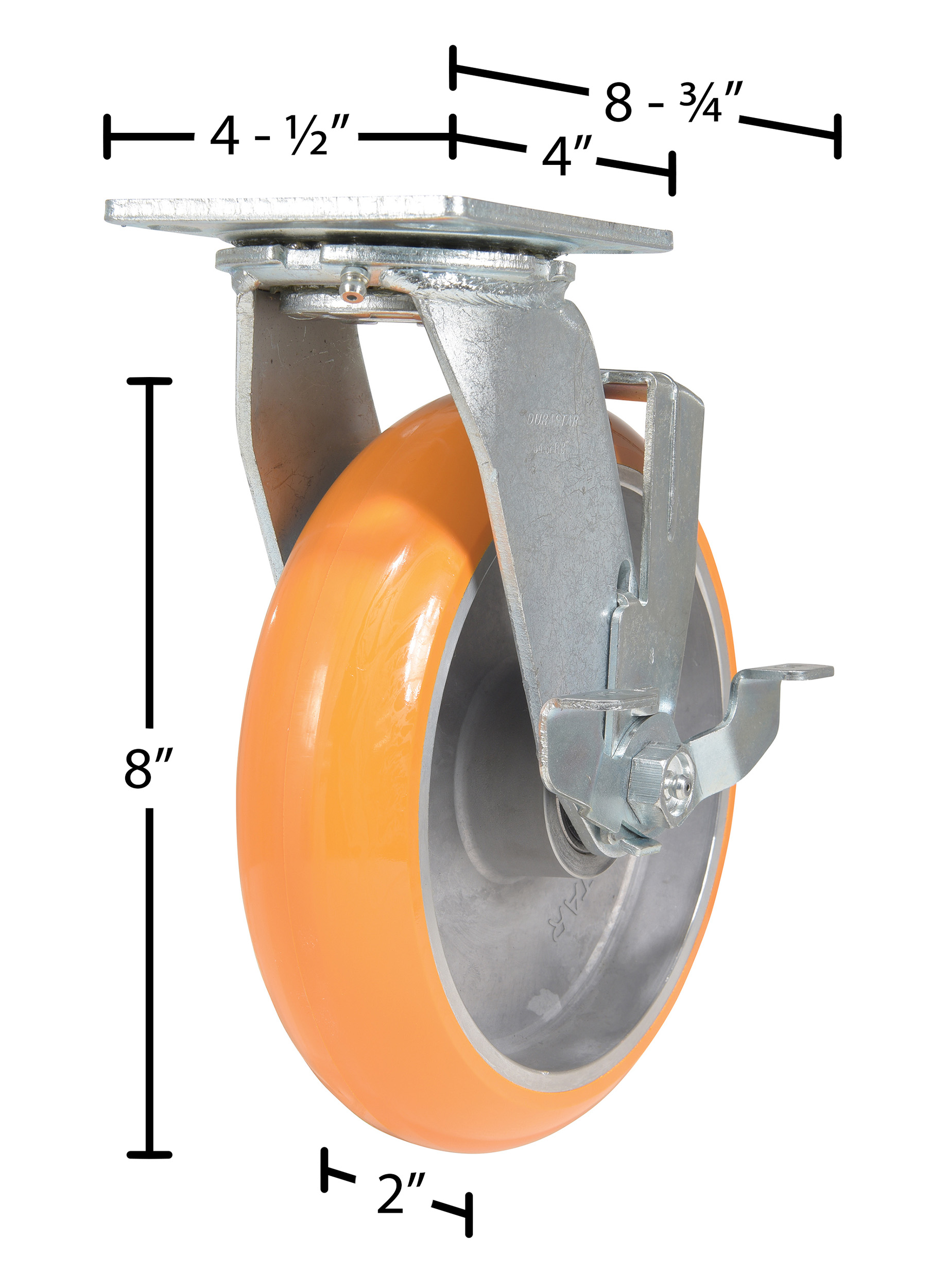

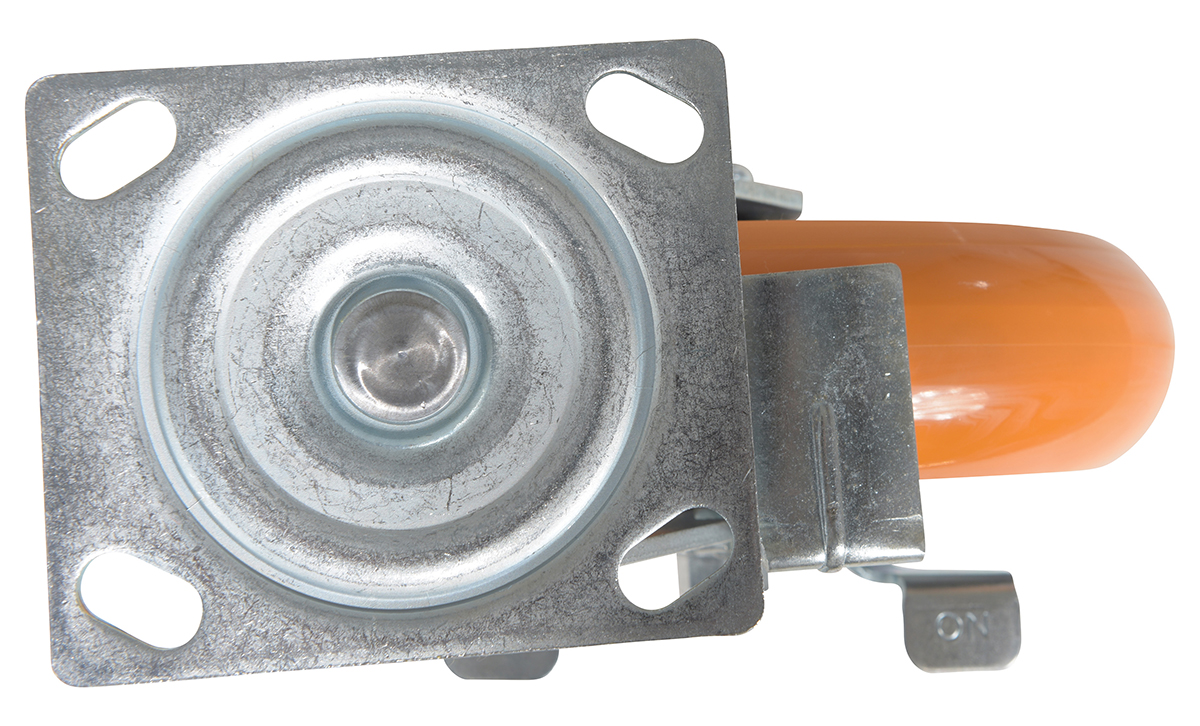

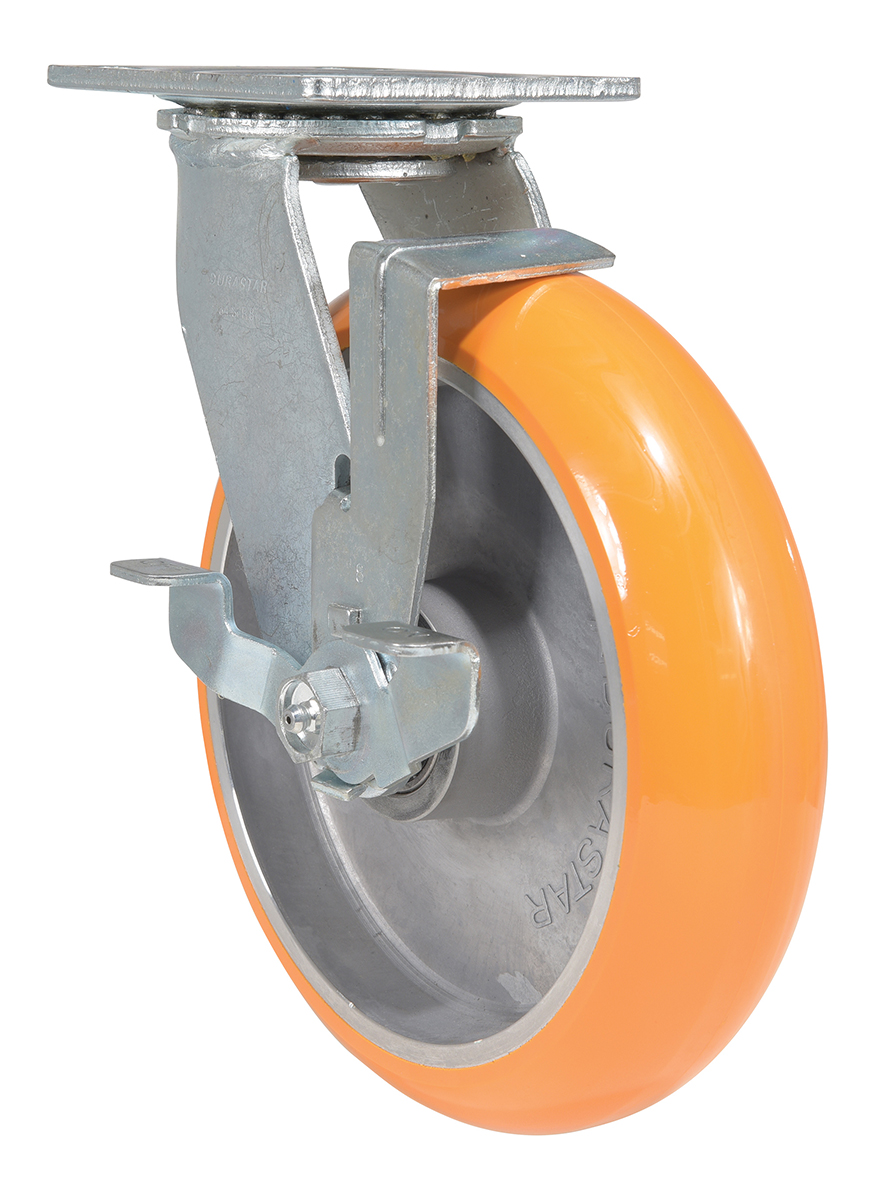

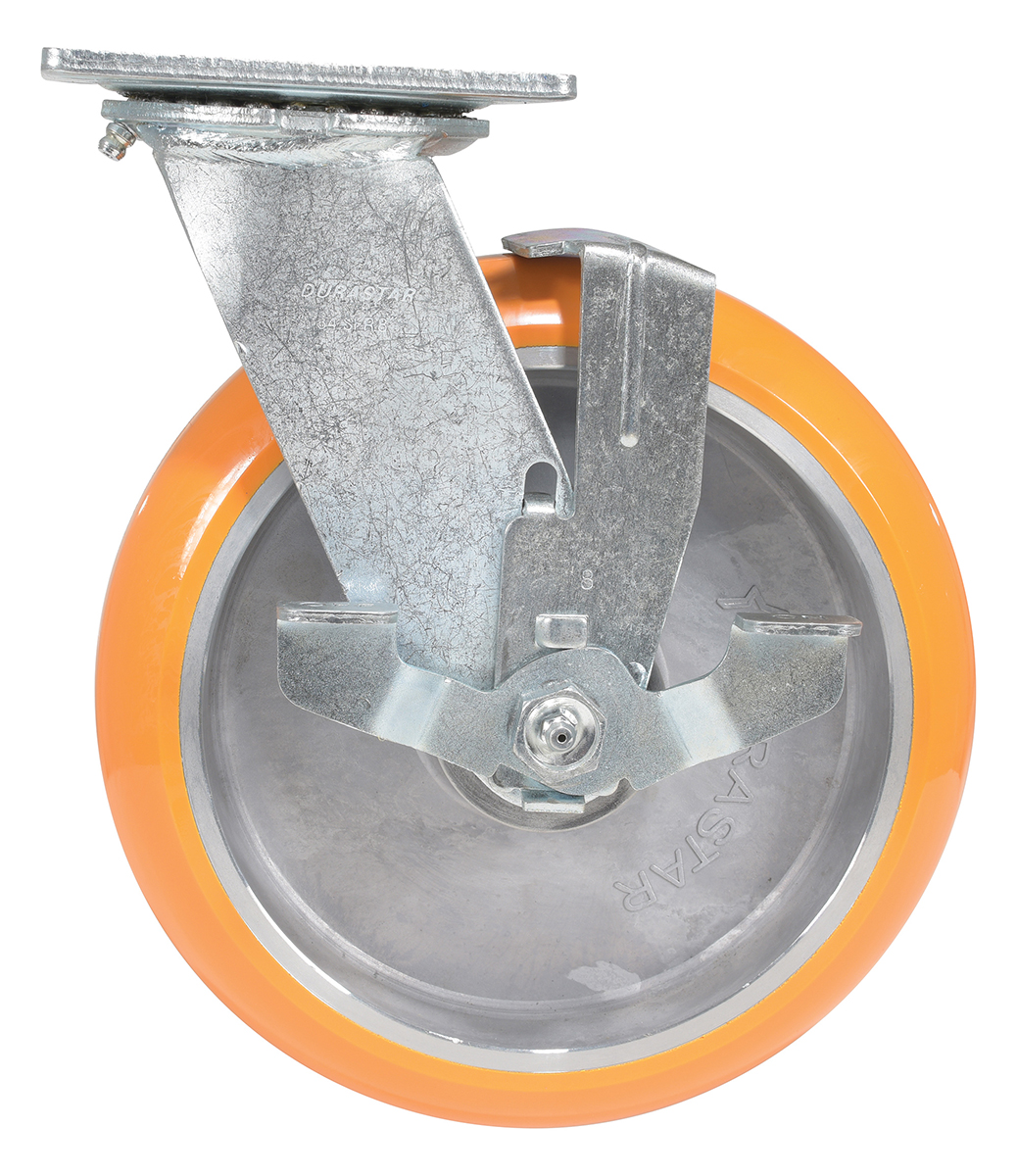

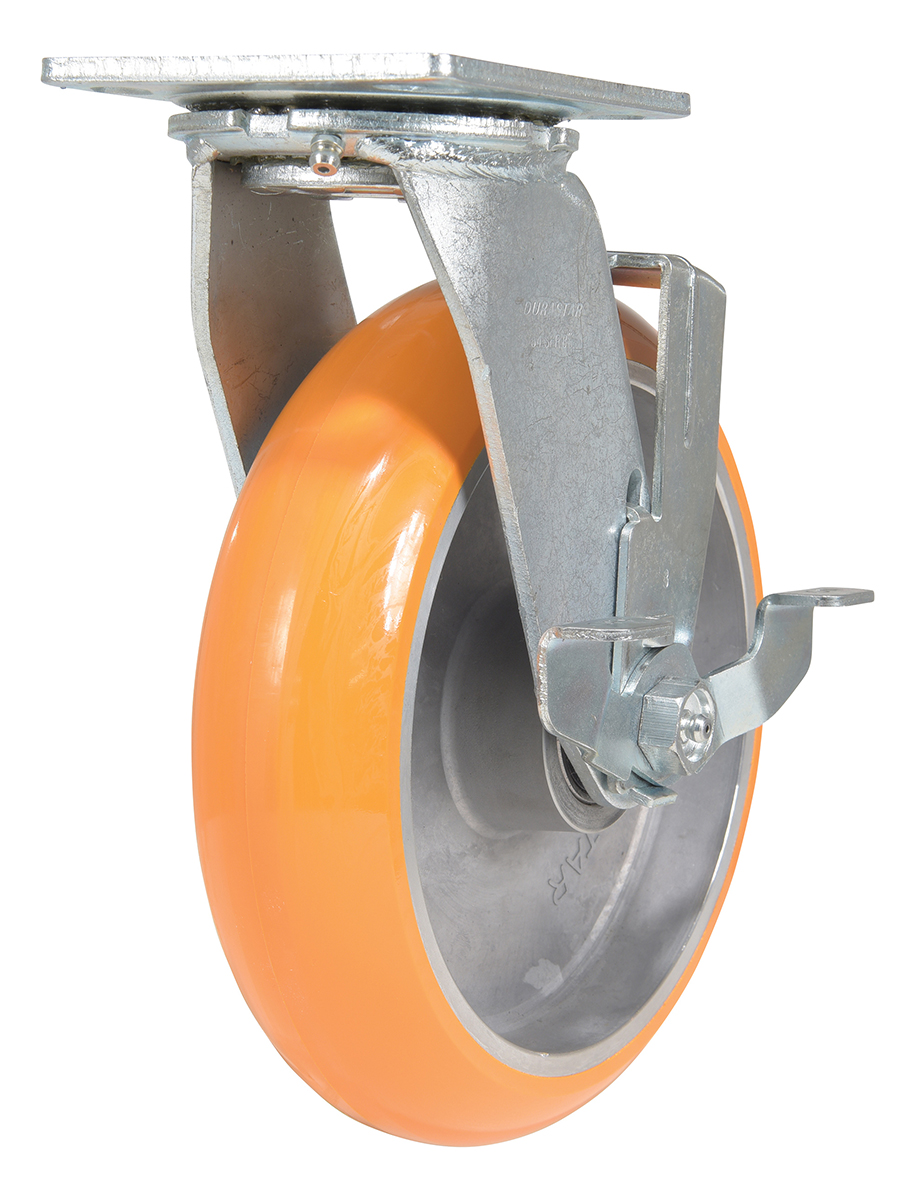

| CST-F34-8X2SI-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 1250 | 9-3/8 | 4 x 4-1/2 | 7 |
| CST-F34-4X2SI-SWTB1 |  | 1 YEAR Limited Warranty | 4 x 2 | Swivel w/Total Brake | 1000 | 5-3/4 | 4 x 4-1/2 | 6 |
| CST-F34-6X2SI-SWTB1 |  | 1 YEAR Limited Warranty | 6 x 2 | Swivel w/Total Brake | 1250 | 7-1/4 | 4 x 4-1/2 | 7 |
| CST-F34-8X2SI-SWTB1 |  | 1 YEAR Limited Warranty | 8 x 2 | Swivel w/Total Brake | 1250 | 9-3/8 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What casters do best in environments with debris?
A: The F34 series with SI tread, the F40 series, the FC47 series or the JKING series do well in environments with debris.
 |
|||||||
Polyurethane (SI) Casters |
|||||||
 |
|||||||
Constructed of proprietary, high-grade elastic polyurethane and coupled with 6203 premium precision ball bearings for added strength and durability. The upgraded tread provides a longer life, reduces the force required for movement, rejects debris, and offers exceptional floor preservation. Orange tread color. 85 shore a. Wheel core is constructed of high-grade, light-weight, water resistant aluminum.
|
|||||||
|
|
|||||||
|
|||||||
