TPR(Thermoplastic Rubber) On Stainless Steel CastersStainless steel casters are excellent for corrosion resistance. They are ideal for applications where frequent wash downs are a necessity or have exposure to cleaning agents, steam, or other corrosive agents which could rust or corrode. Thermoplastic rubber (TPR) provides a smooth quiet ride with a non-marking tread. It offers great floor preservation and is resistant to most chemicals.
- 304 Stainless steel rigging
- Non-marking
- Chemical & moisture Resistant
- Sealed raceway
- Smooth ride performance
- Quiet operation
- 6202 heat treated precision ball
High-Temp Phenolic Casters
Polyurethane Casters
Polyurethane (DT, Green) Casters
Upgraded Kingpinless Glass Filled Nylon (RX) CastersAdditional Models In This Family
CST-E-SS-6X2TPR-S
CST-E-SS-3X1TPR-S
CST-E-SS-5X2TPR-SWB
CST-E-SS-8X2TPR-SWTB
CST-E-SS-6X2TPR-R
CST-E-SS-5X2TPR-SWTB
CST-E-SS-3X1TPR-SWTB
CST-E-SS-5X2TPR-R
CST-E-SS-6X2TPR-R
CST-E-SS-5X2TPR-R
CST-E-SS-5X2TPR-S
CST-E-SS-4X1TPR-S
CST-E-SS-8X2TPR-SWB
CST-E-SS-6X2TPR-SWB
CST-E-SS-8X2TPR-R
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

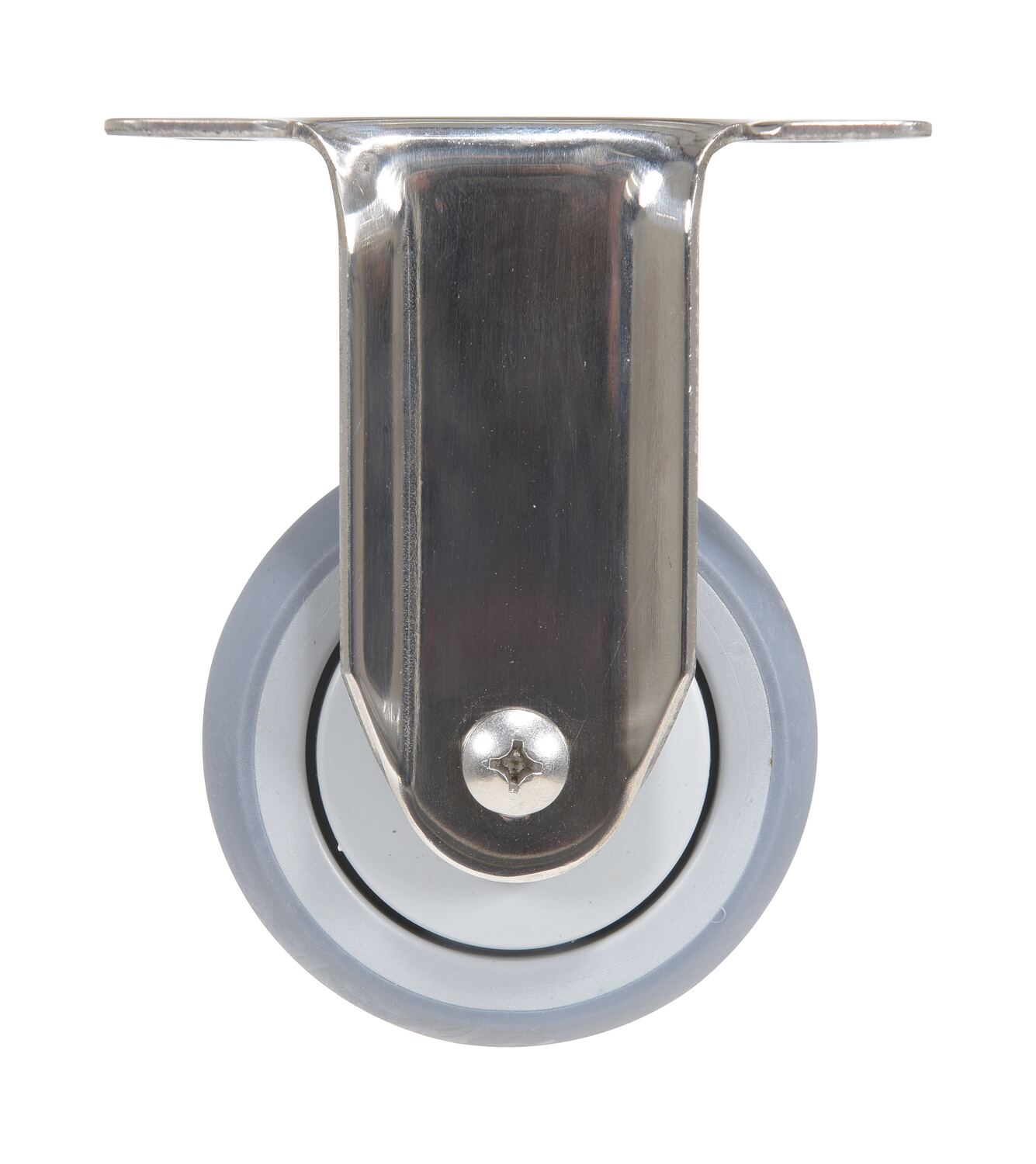

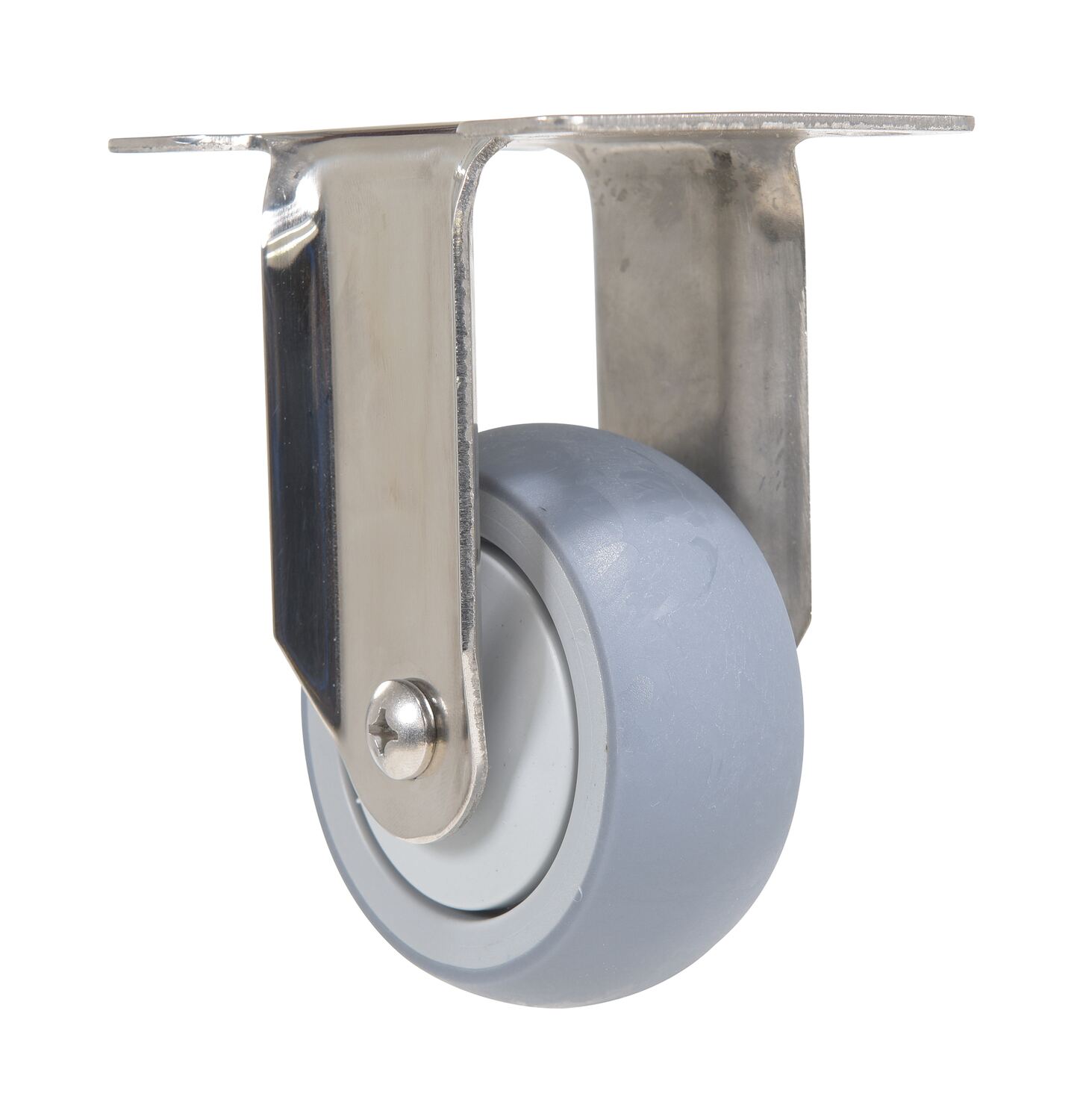

| CST-E-SS-3X1TPR-R |  | 1 YEAR Limited Warranty | 3 x 1-1/4 | RIGID | 225 | 4-1/2 | 2-3/4 x 3-3/4 | 2 |

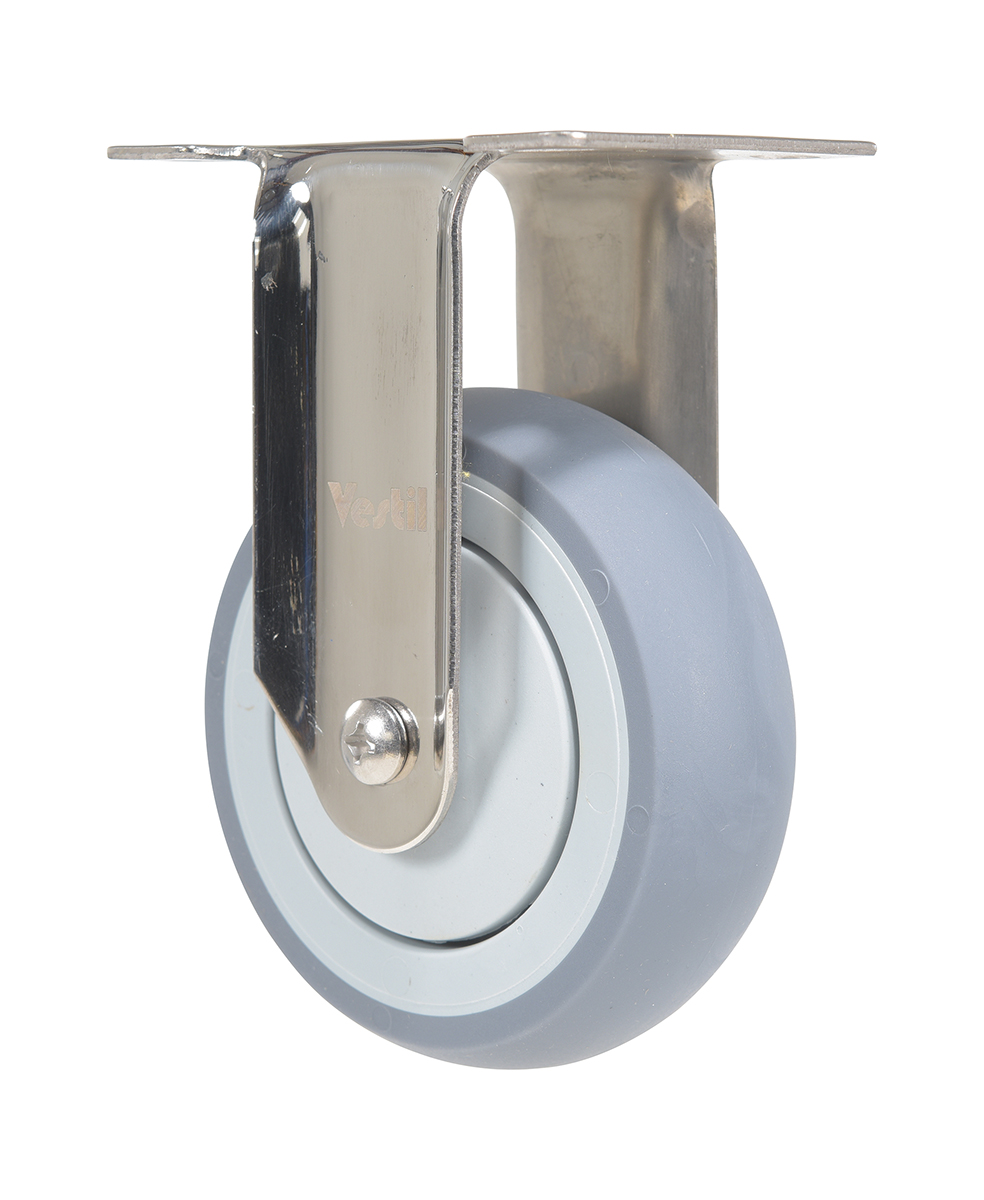

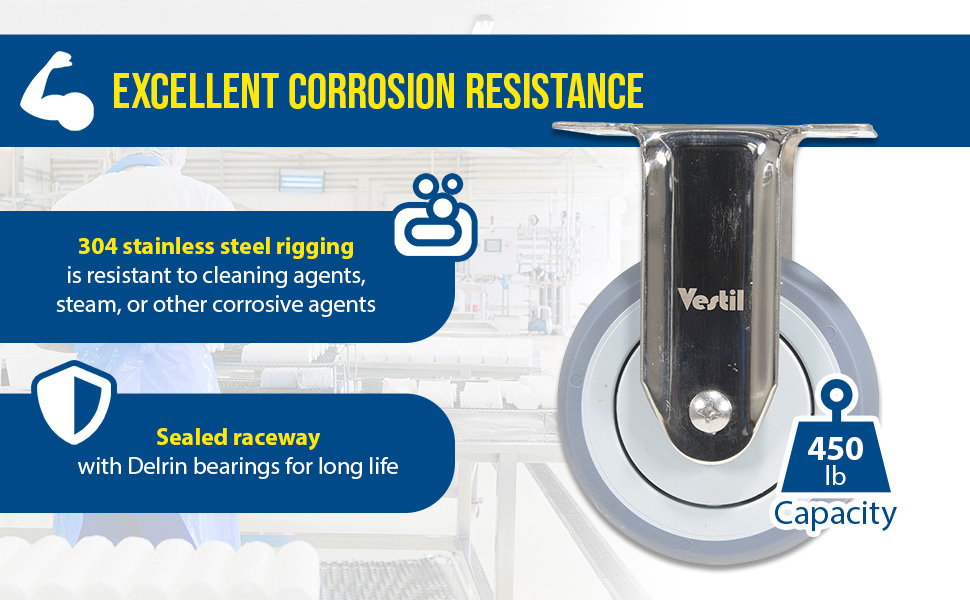

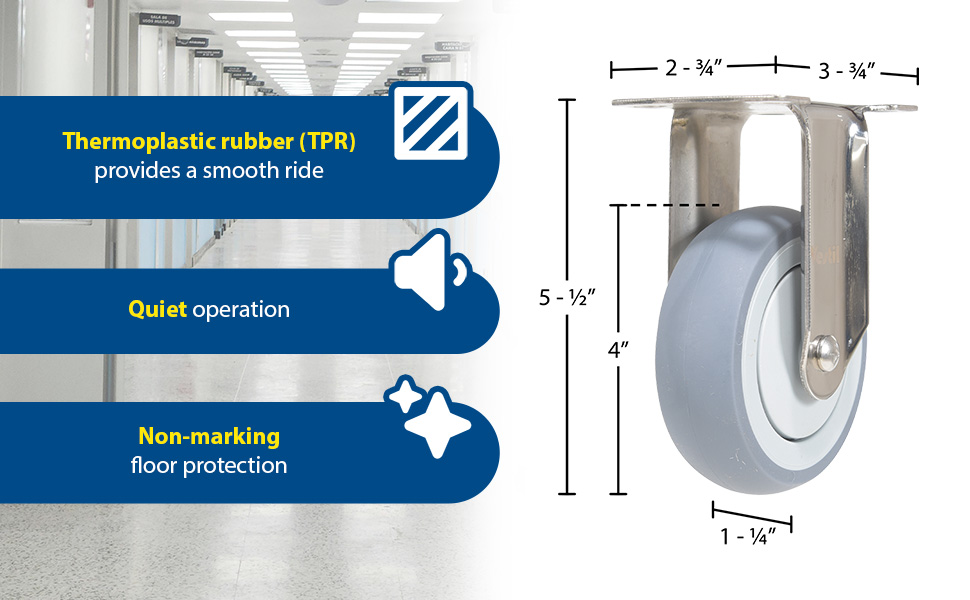

| CST-E-SS-4X1TPR-R |  | 1 YEAR Limited Warranty | 4 x 1-1/4 | RIGID | 450 | 5-1/2 | 2-3/4 x 3-3/4 | 2 |

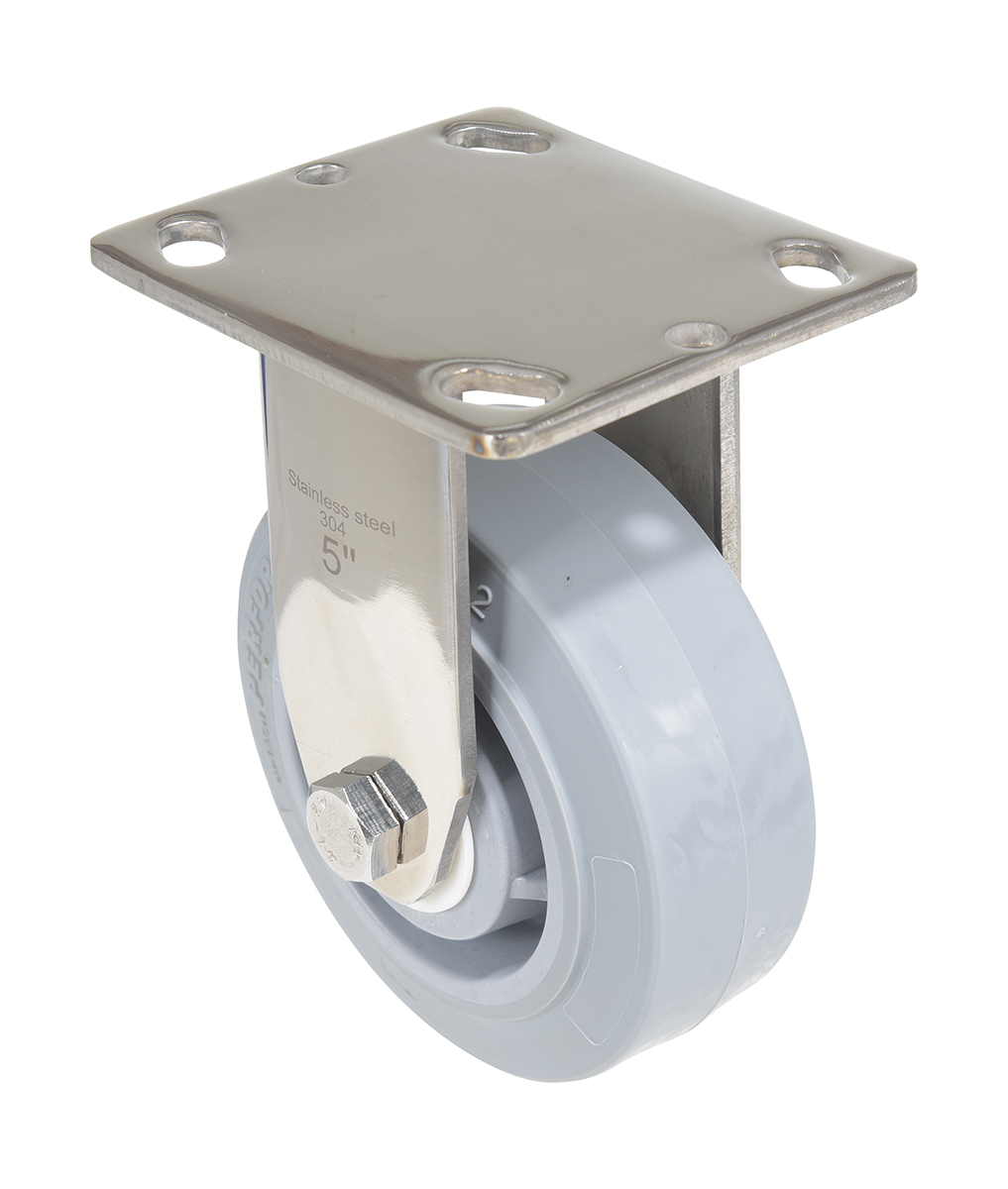

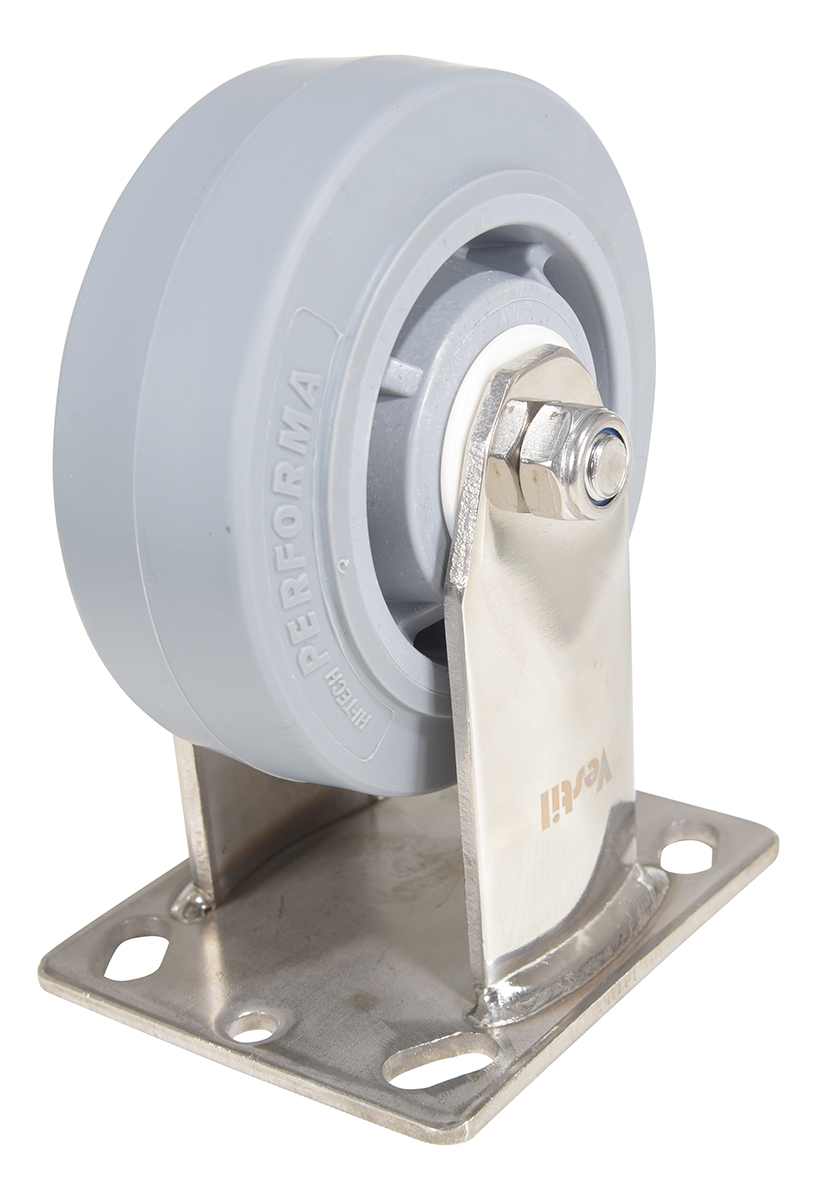

| CST-E-SS-5X2TPR-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 500 | 6-1/2 | 4 x 4-1/2 | 4 |

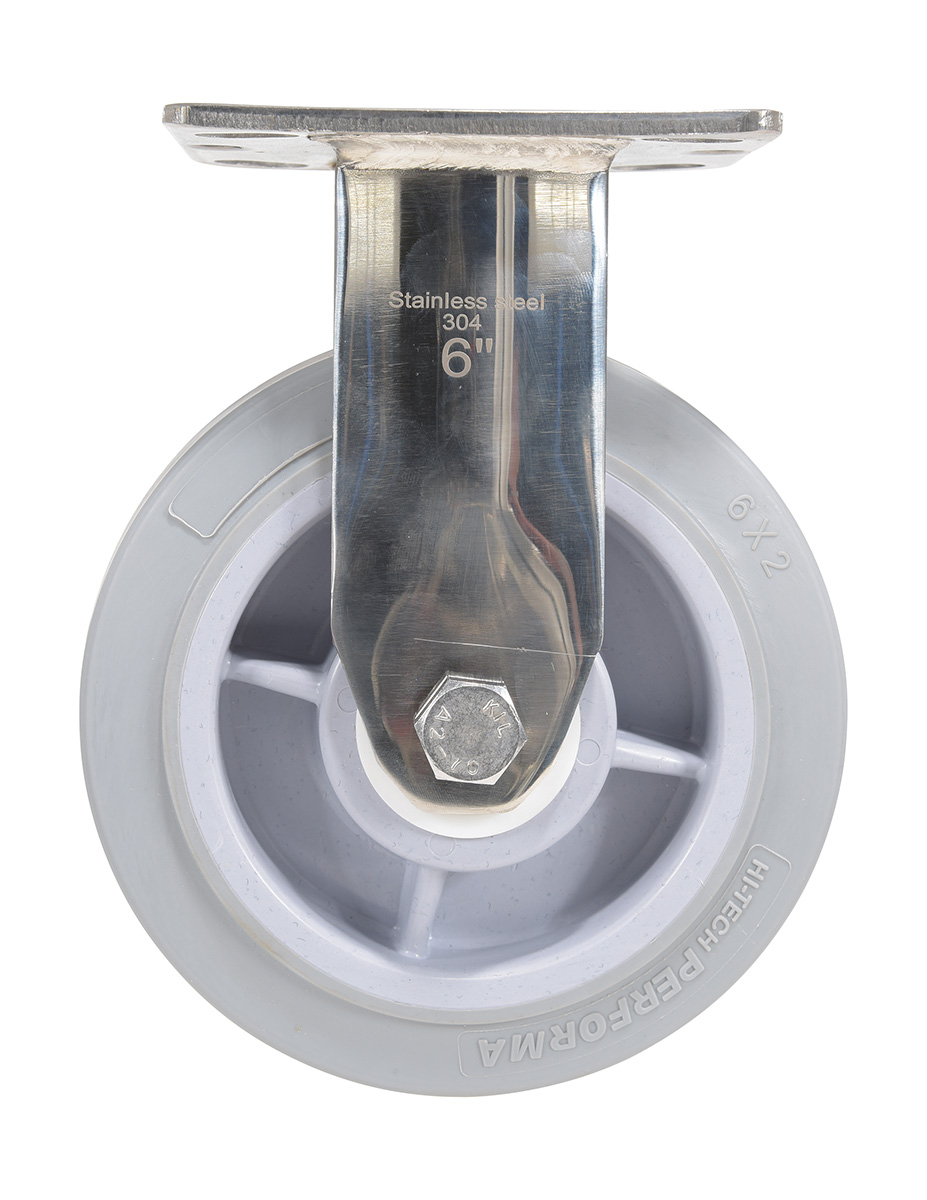

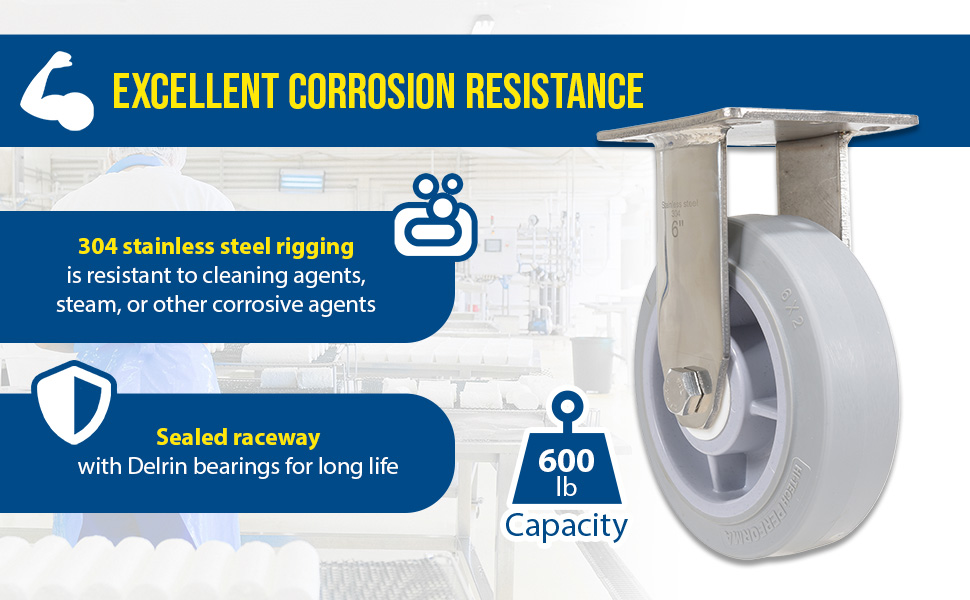

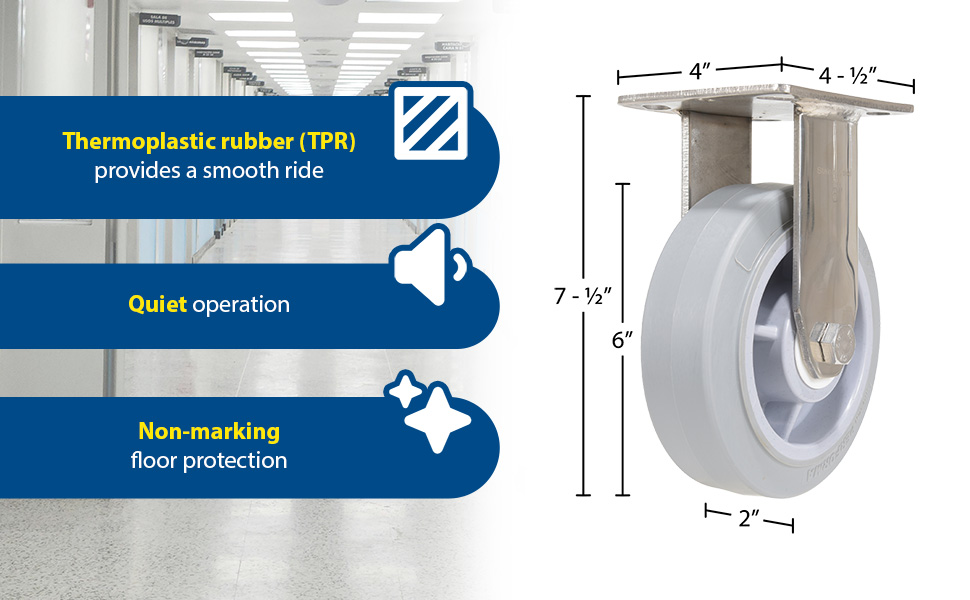

| CST-E-SS-6X2TPR-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 600 | 7-1/2 | 4 x 4-1/2 | 5 |
| CST-E-SS-8X2TPR-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 675 | 9-1/2 | 4 x 4-1/2 | 6 |

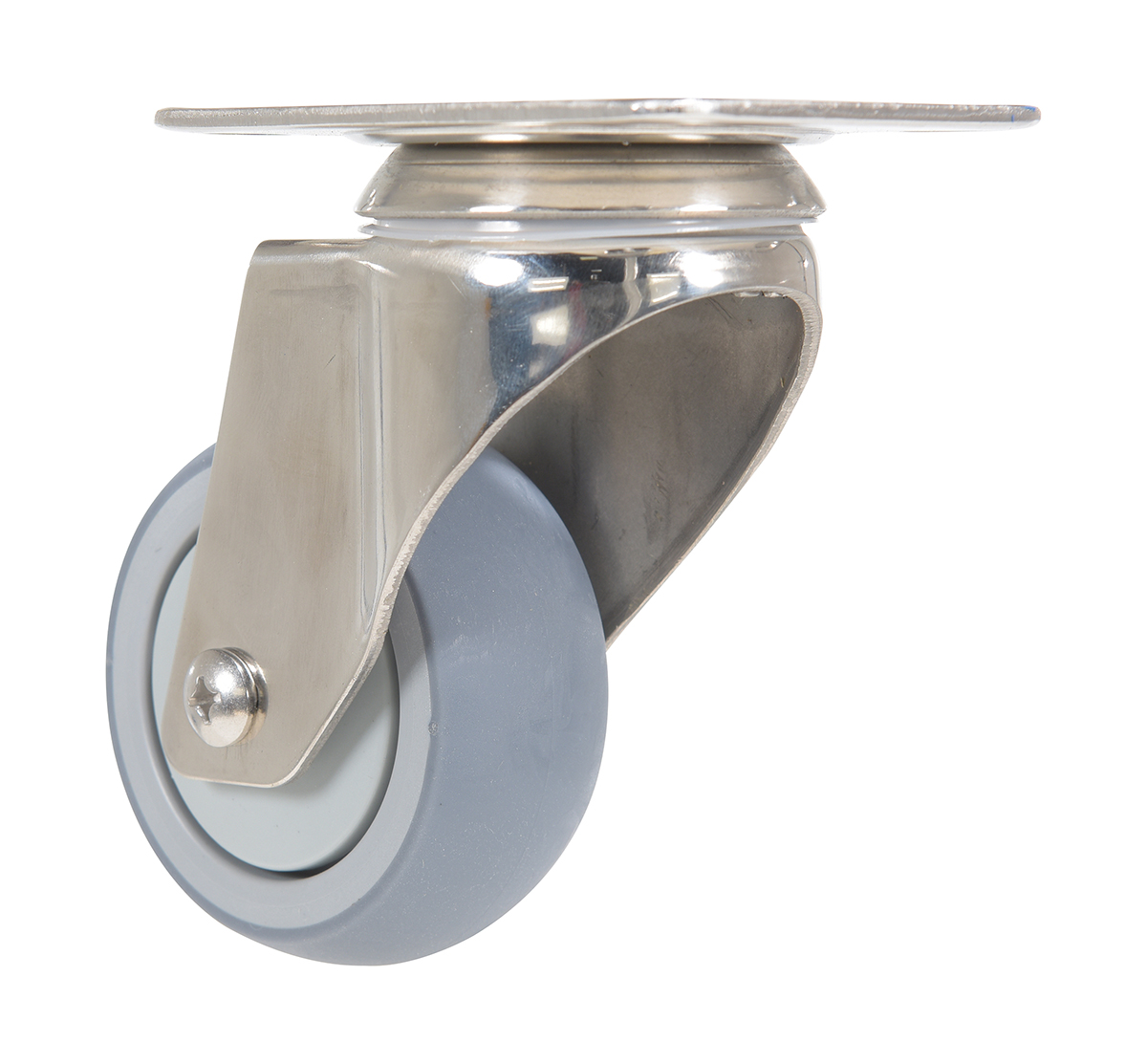

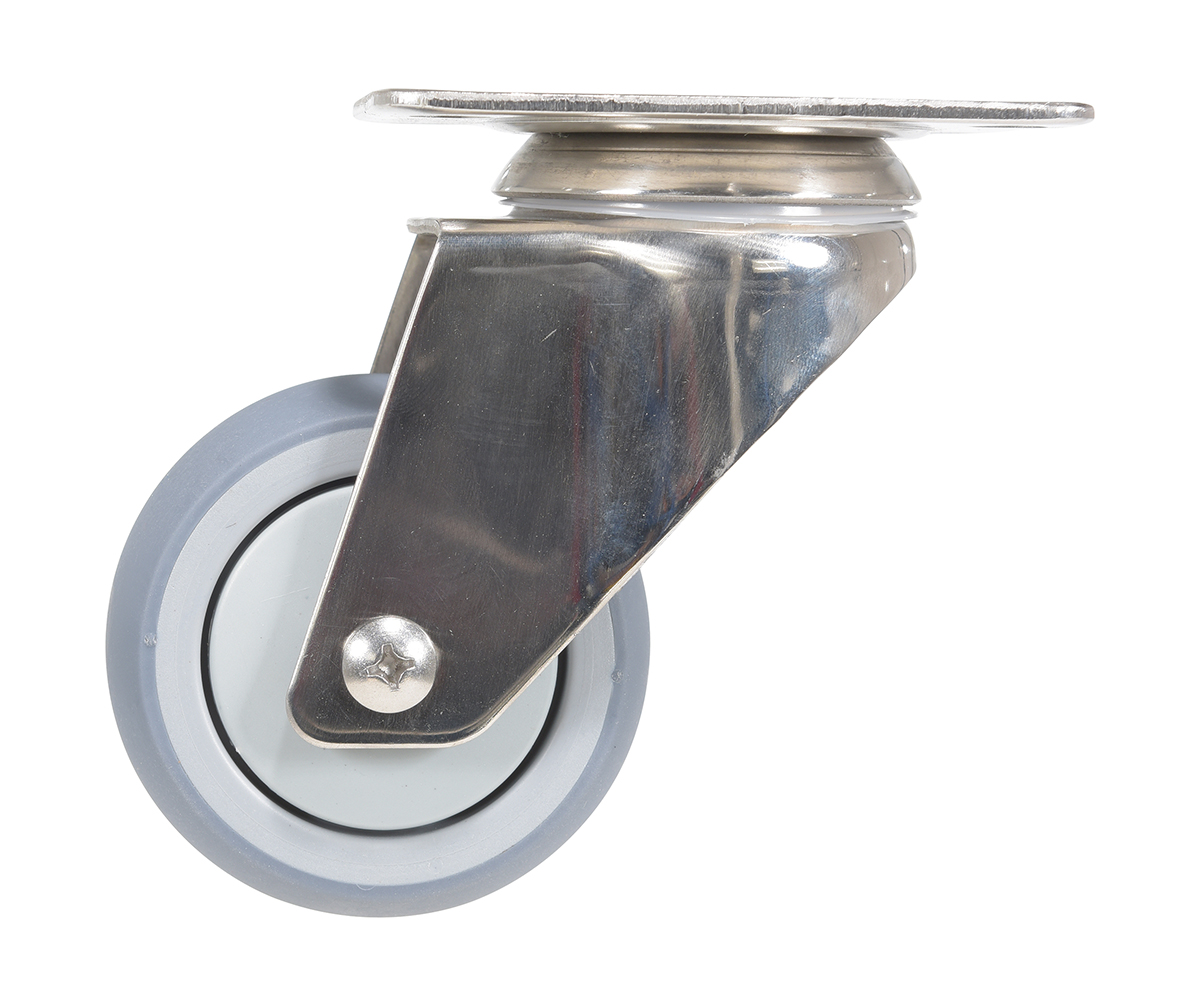

| CST-E-SS-3X1TPR-S |  | 1 YEAR Limited Warranty | 3 x 1-1/4 | SWIVEL | 225 | 4-1/2 | 2-3/4 x 3-3/4 | 2 |

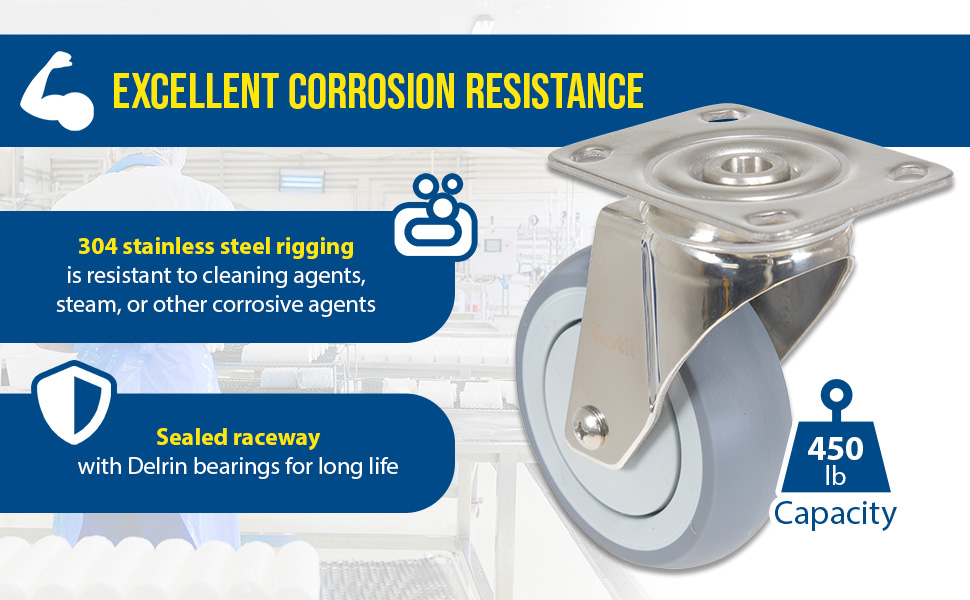

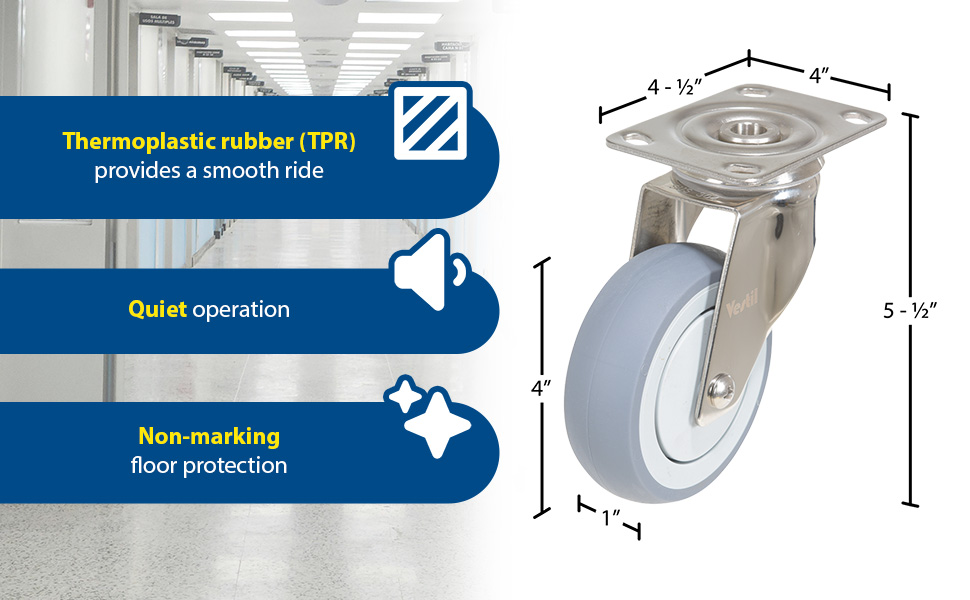

| CST-E-SS-4X1TPR-S |  | 1 YEAR Limited Warranty | 4 x 1-1/4 | SWIVEL | 450 | 5-1/2 | 2-3/4 x 3-3/4 | 3 |

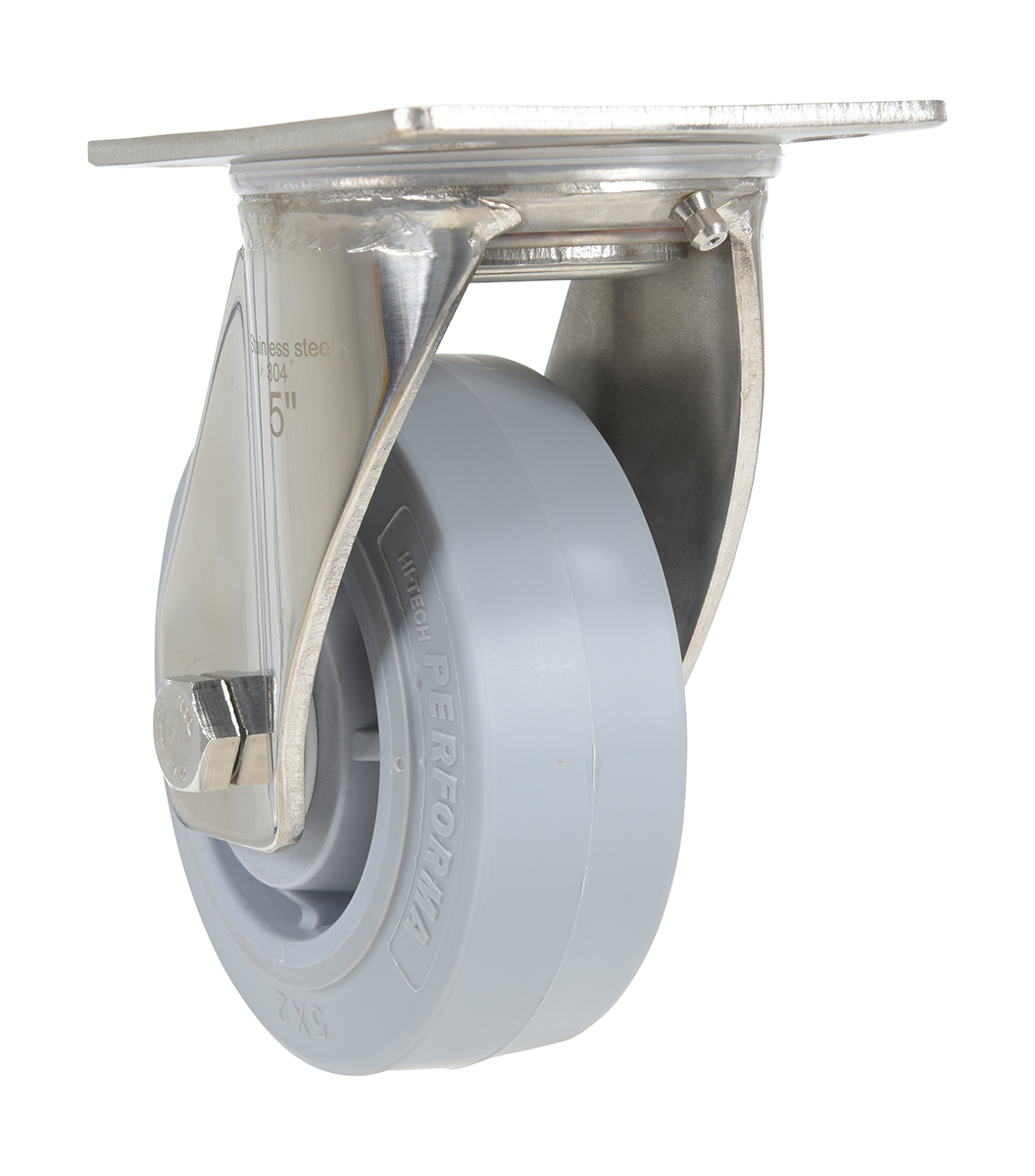

| CST-E-SS-5X2TPR-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 500 | 6-1/2 | 4 x 4-1/2 | 5 |

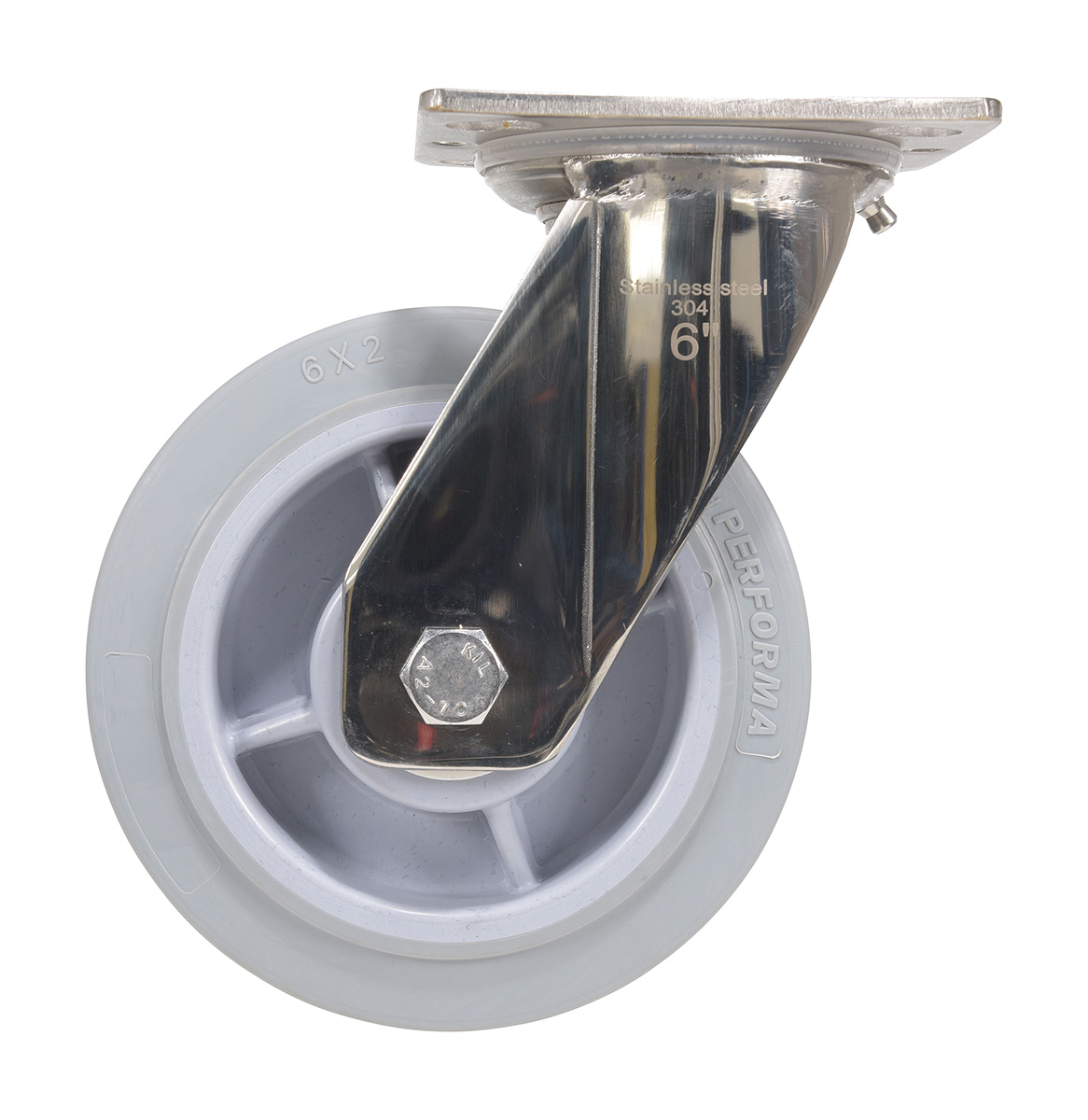

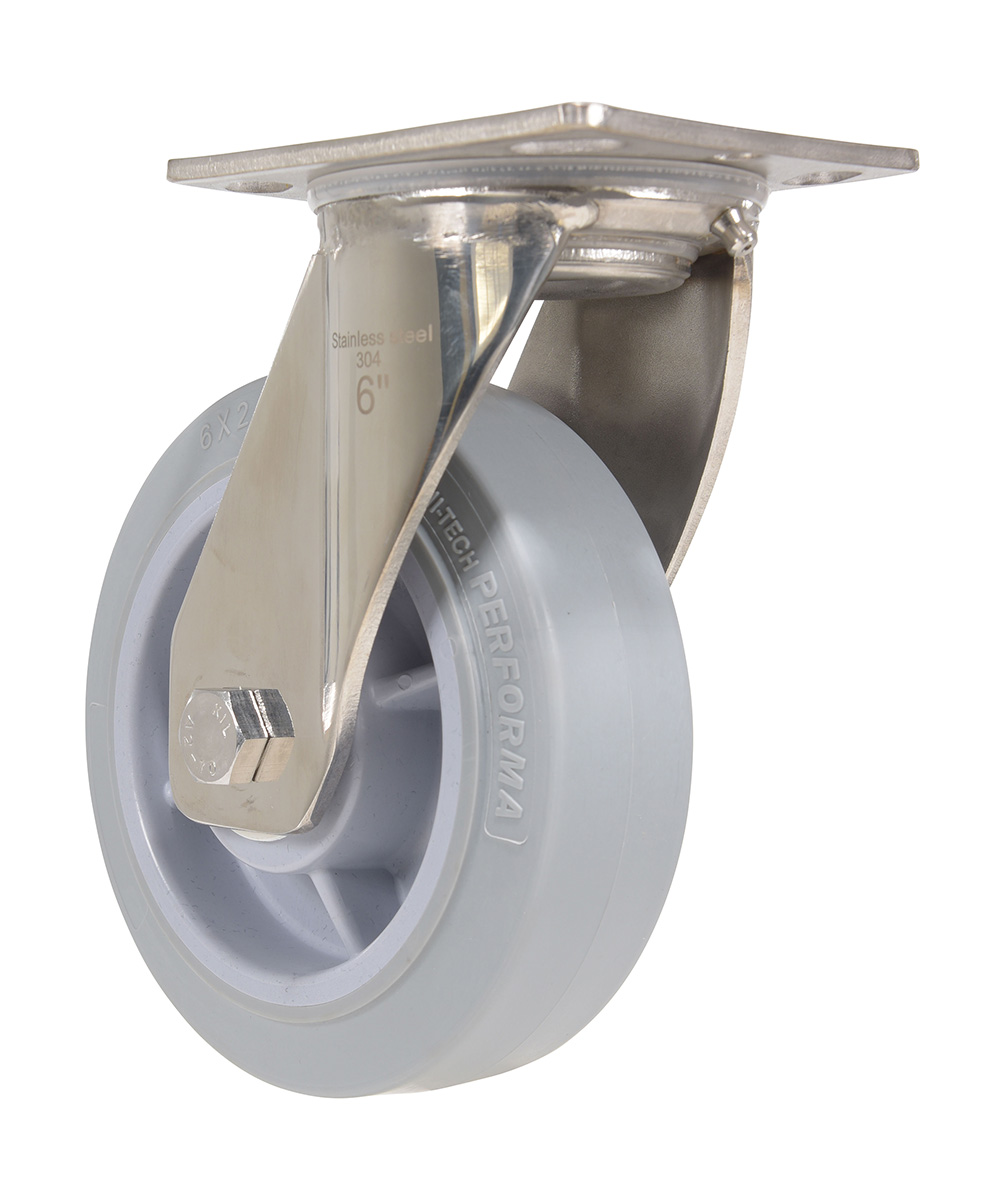

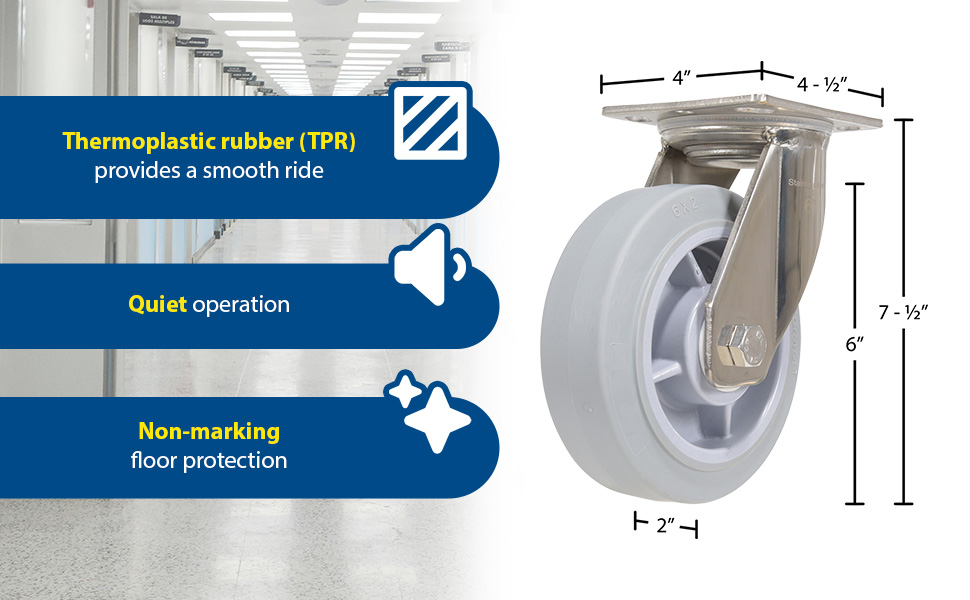

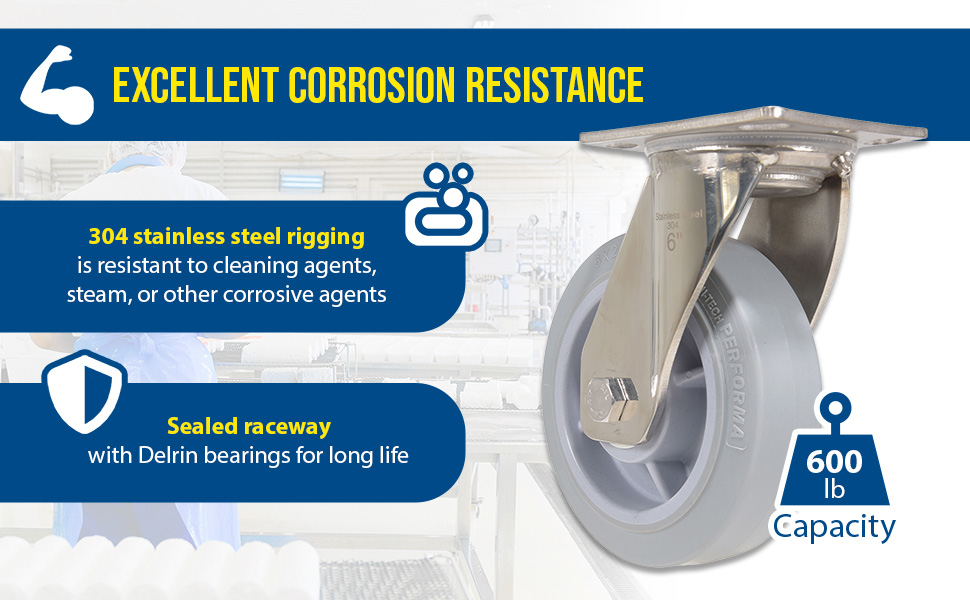

| CST-E-SS-6X2TPR-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 600 | 7-1/2 | 4 x 4-1/2 | 6 |

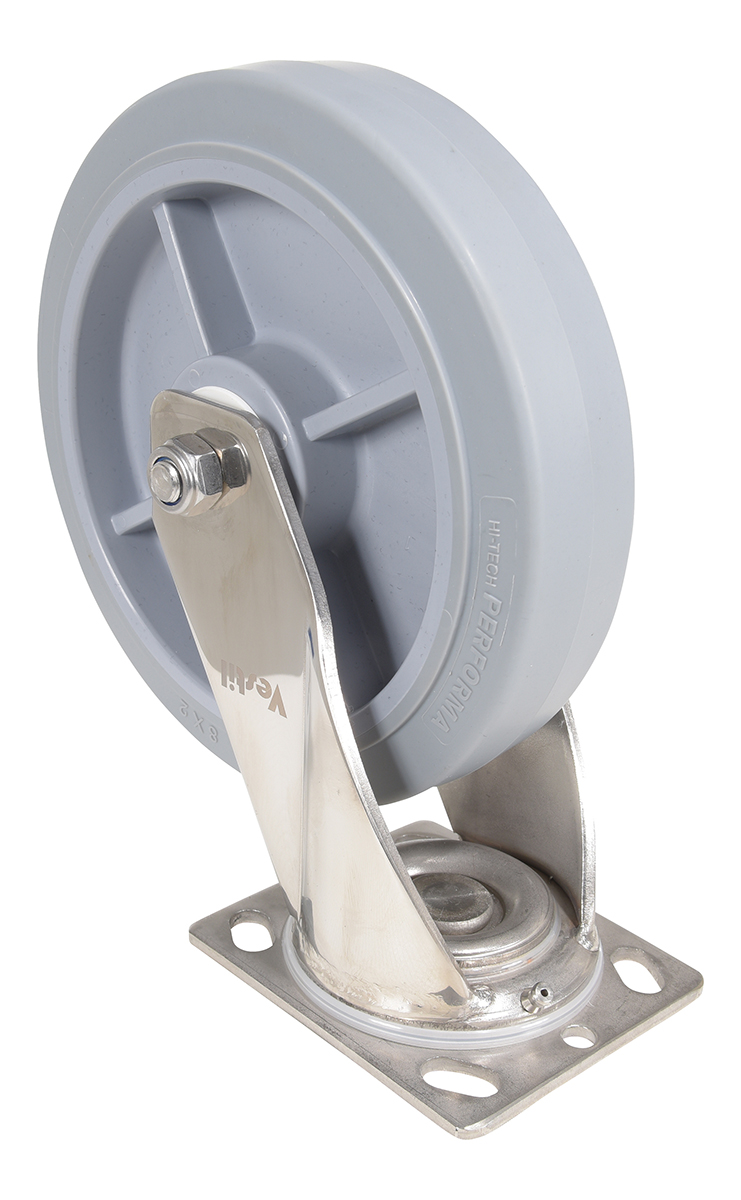

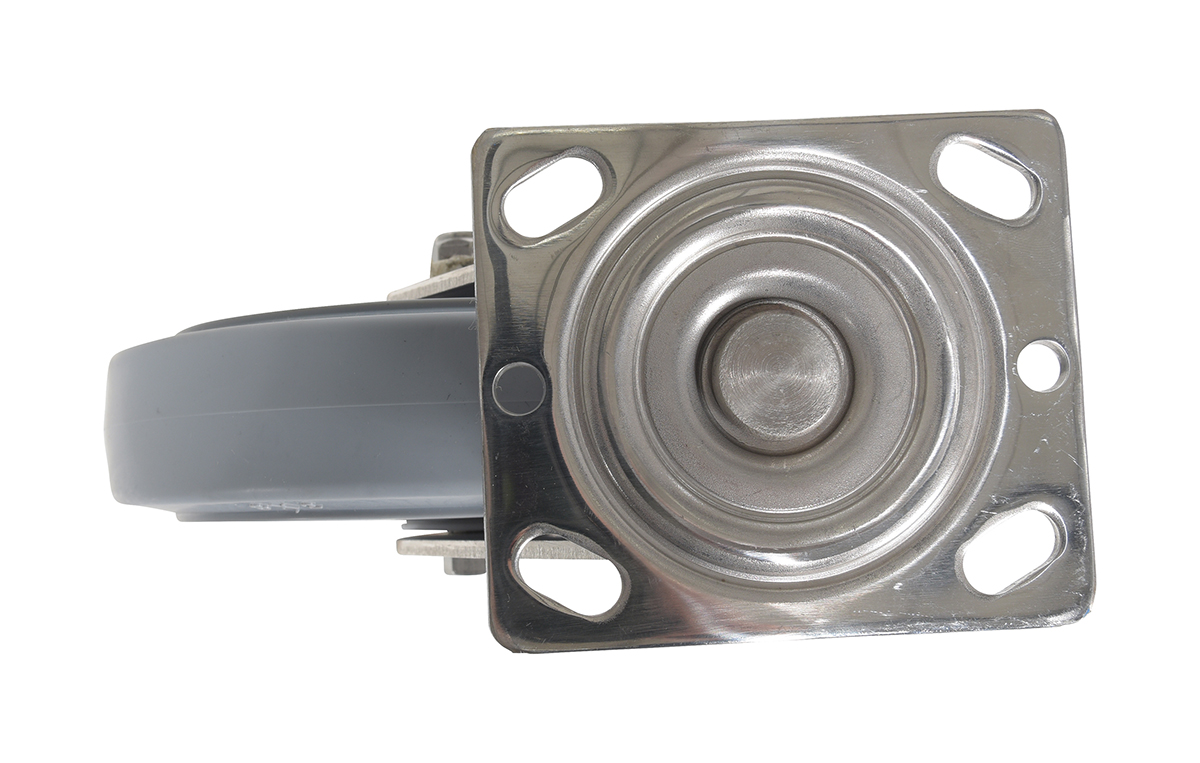

| CST-E-SS-8X2TPR-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 675 | 9-1/2 | 4 x 4-1/2 | 7 |

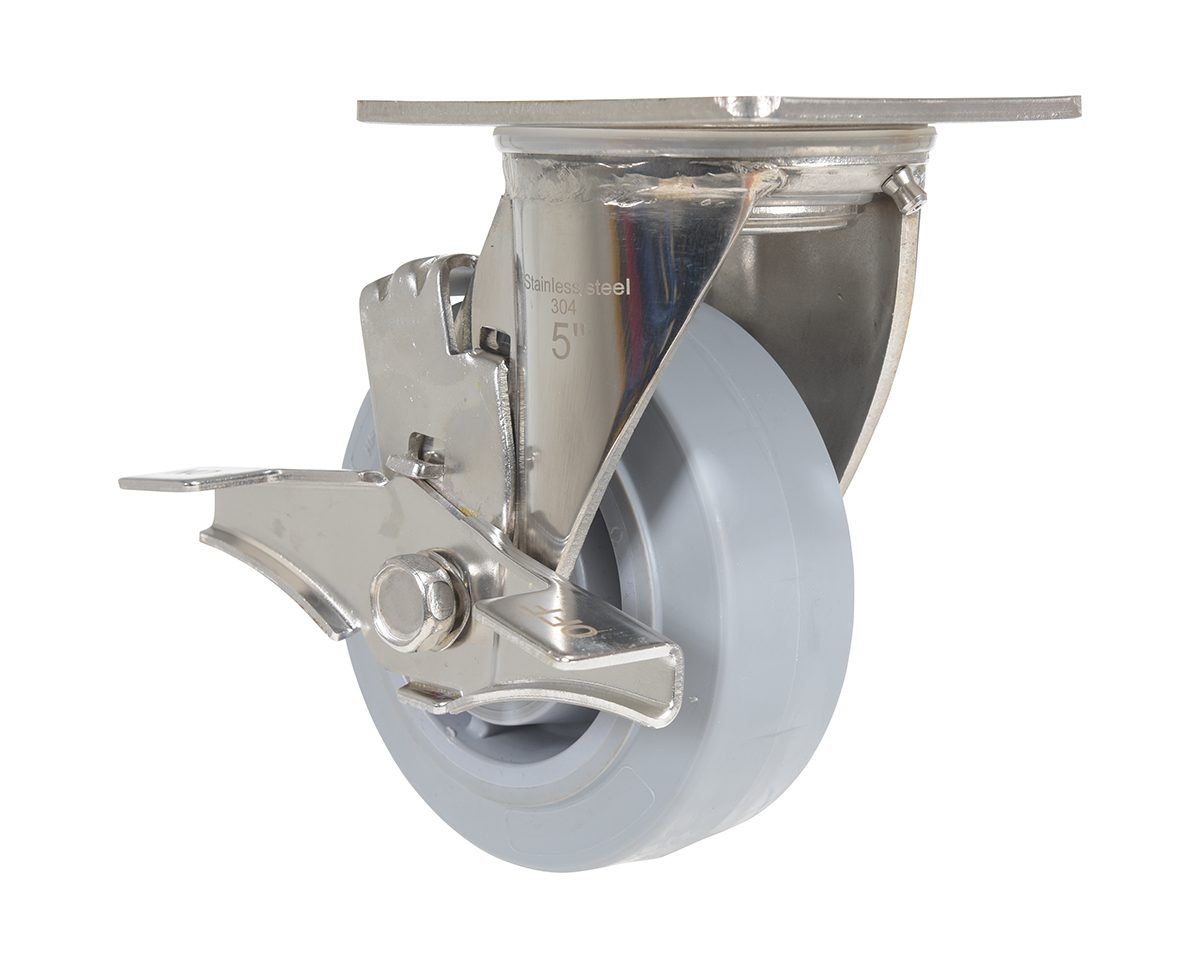

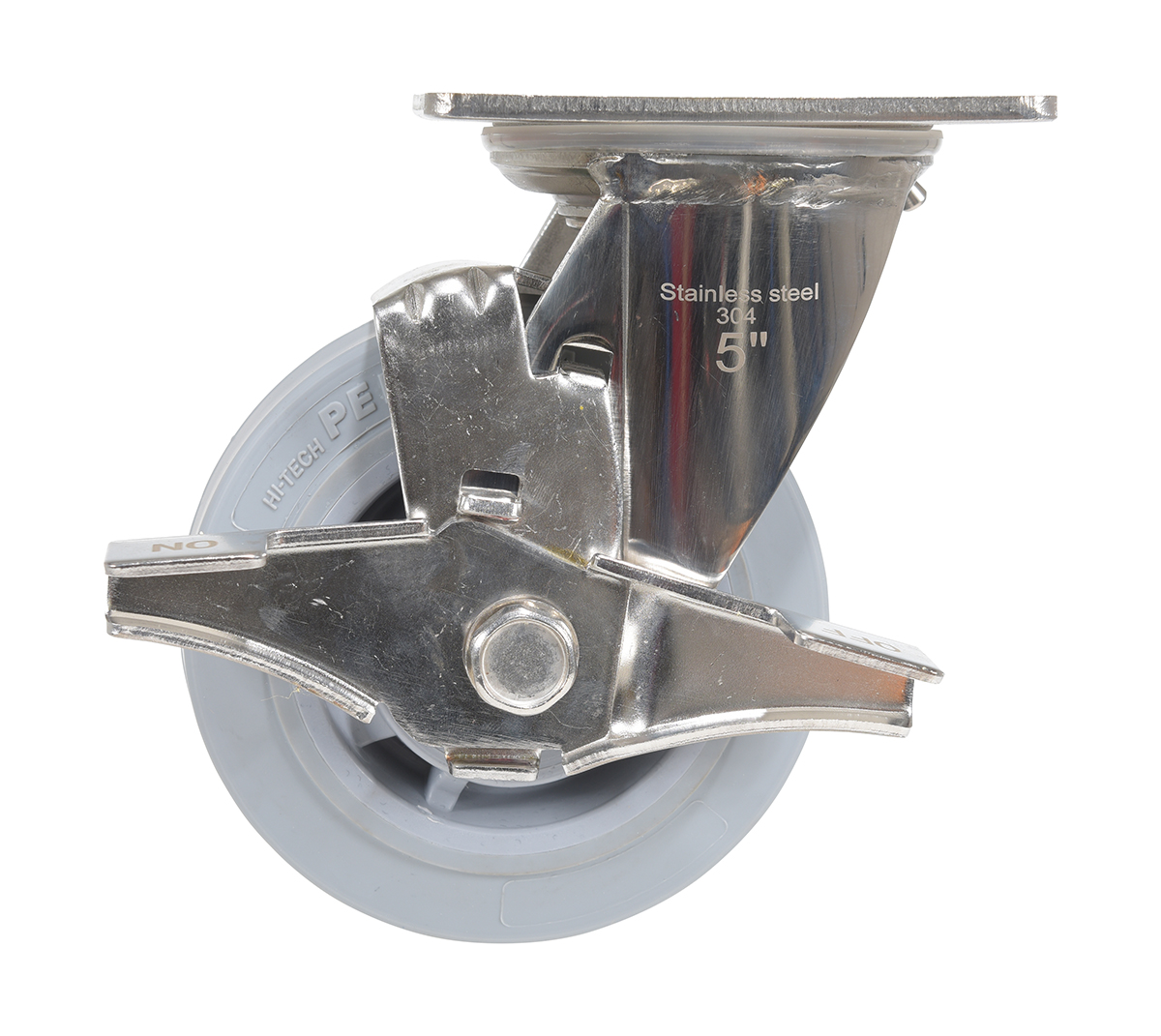

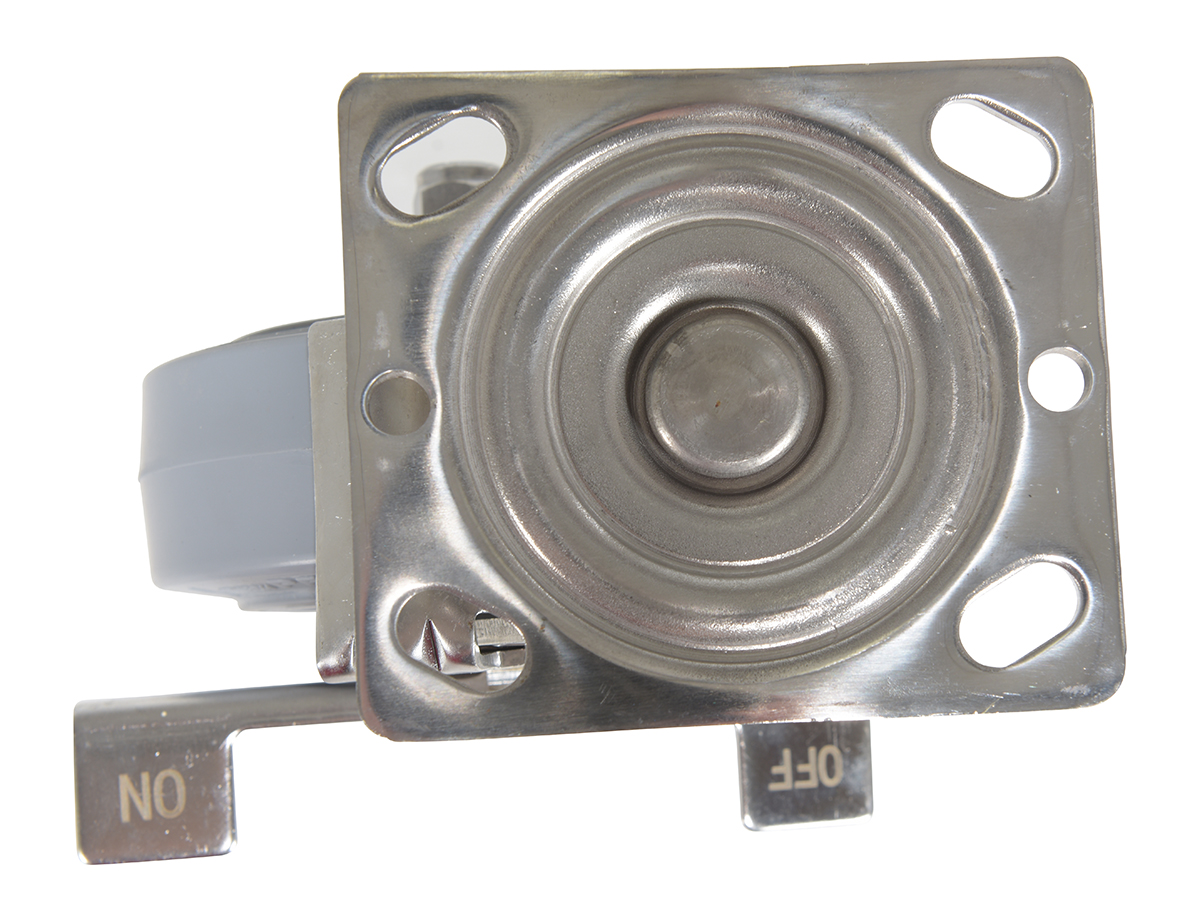

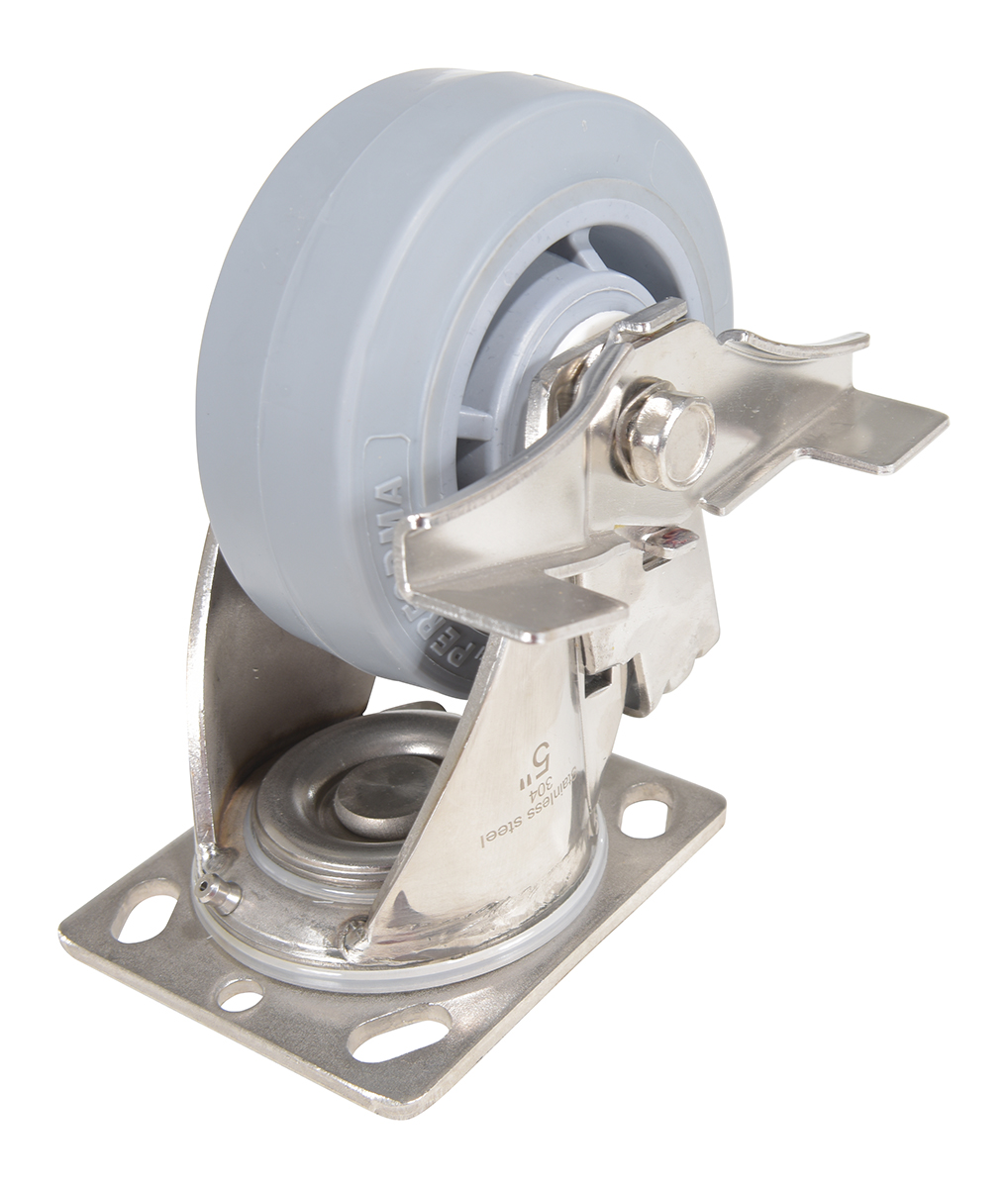

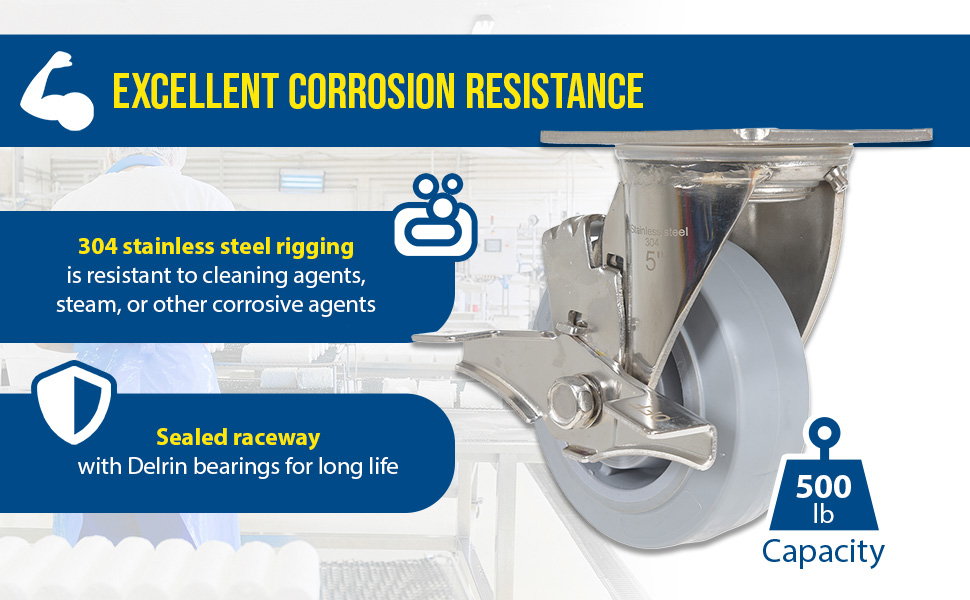

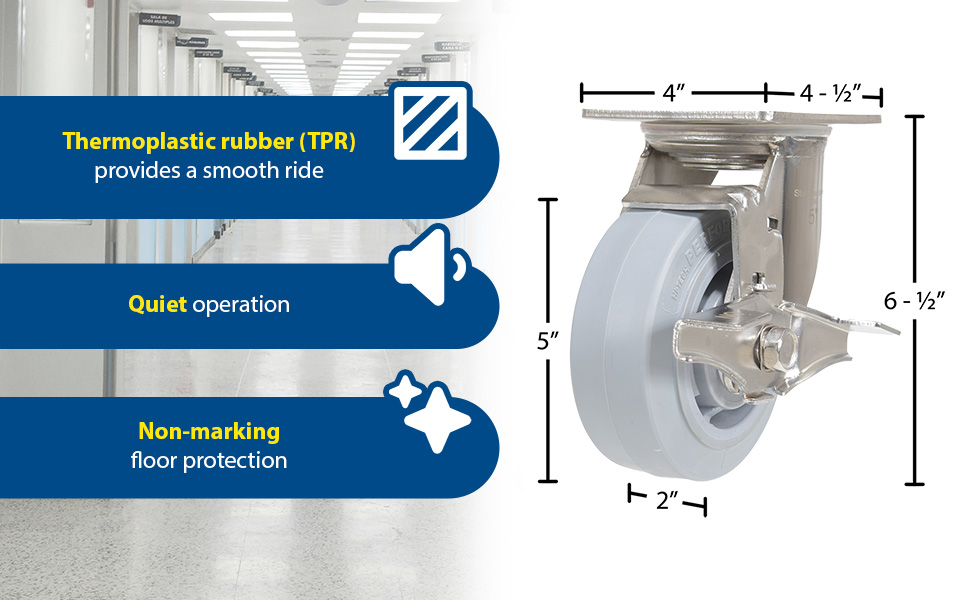

| CST-E-SS-5X2TPR-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 500 | 6-1/2 | 4 x 4-1/2 | 6 |
| CST-E-SS-6X2TPR-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 600 | 7-1/2 | 4 x 4-1/2 | 6 |

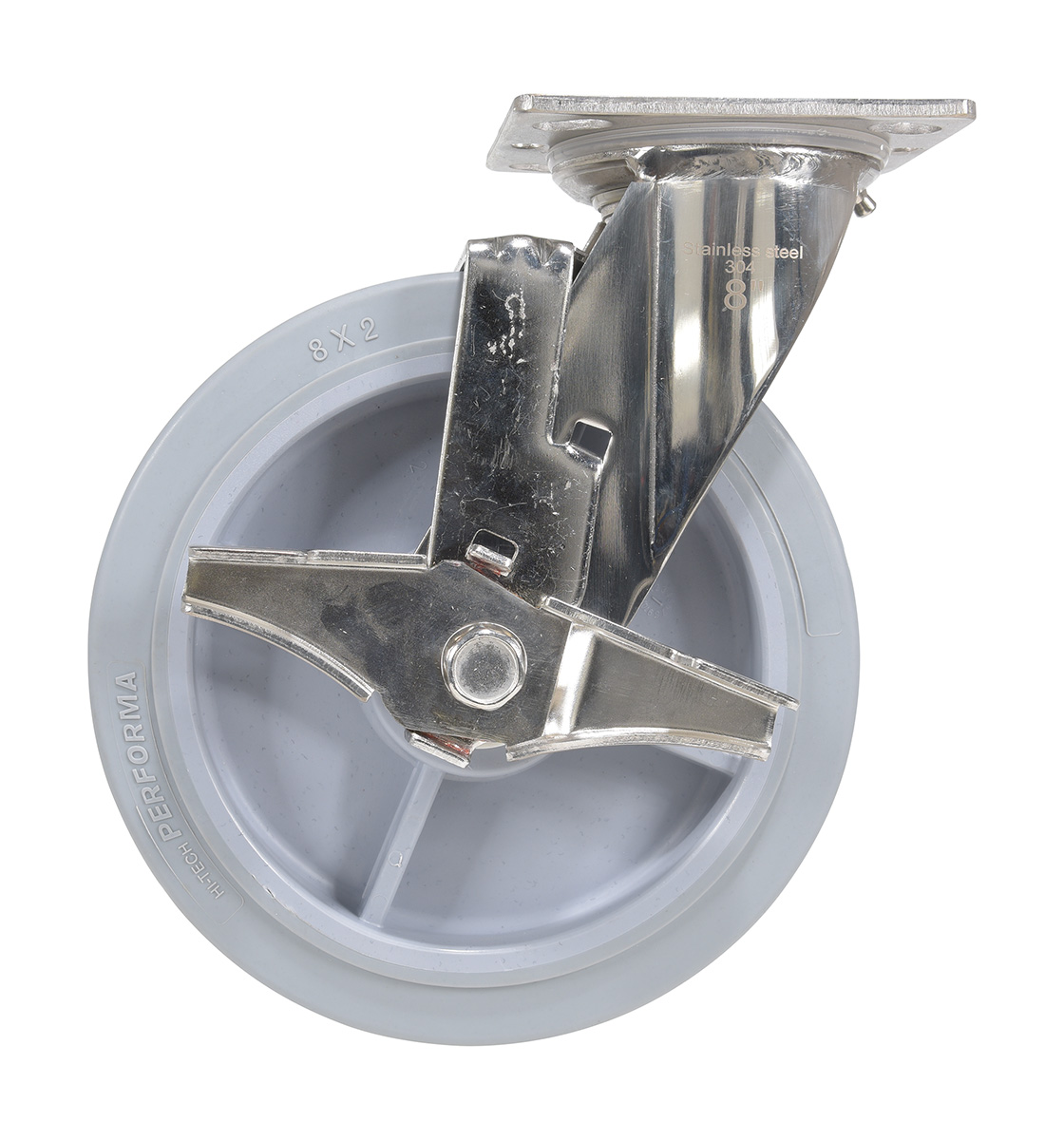

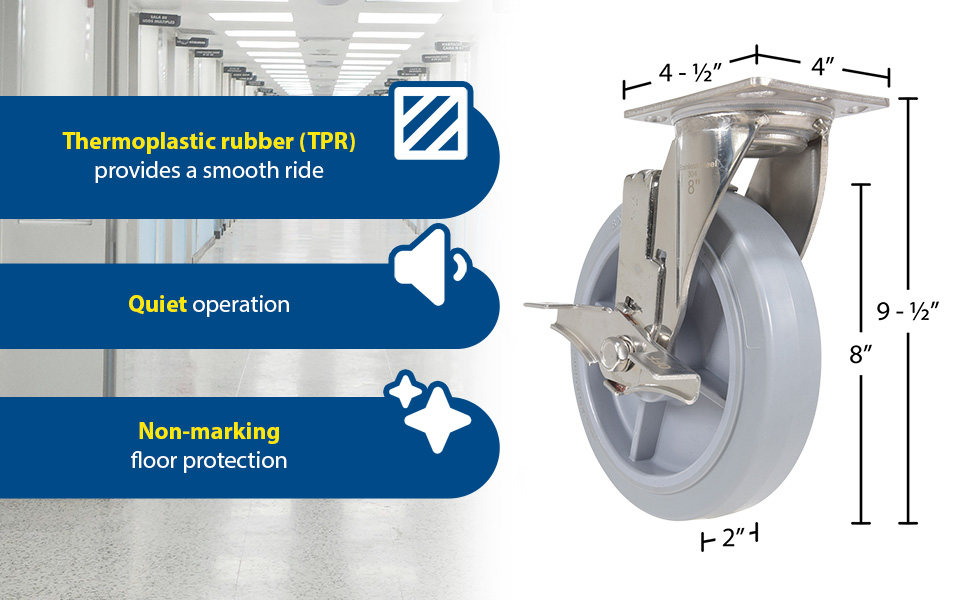

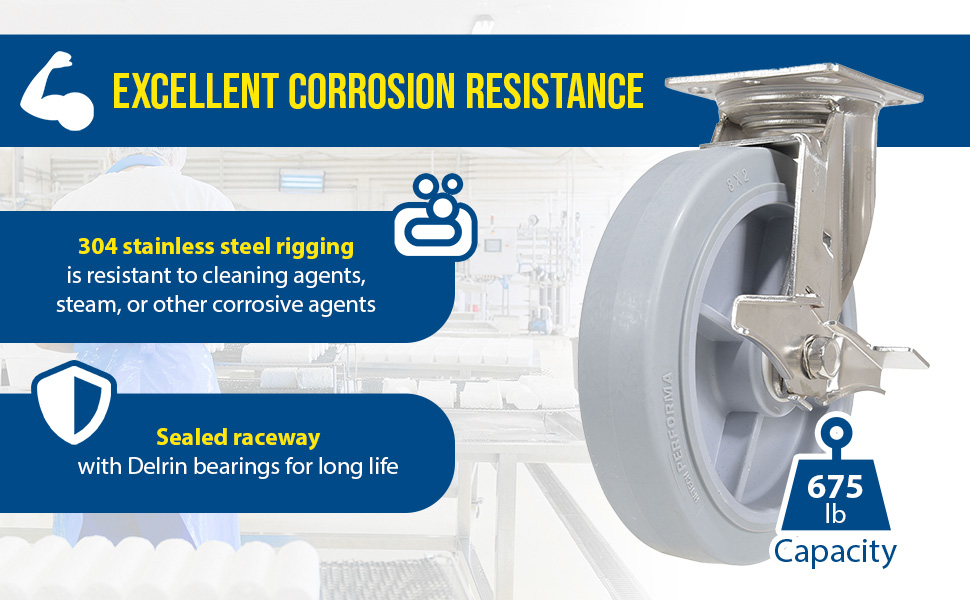

| CST-E-SS-8X2TPR-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 675 | 9-1/2 | 4 x 4-1/2 | 8 |

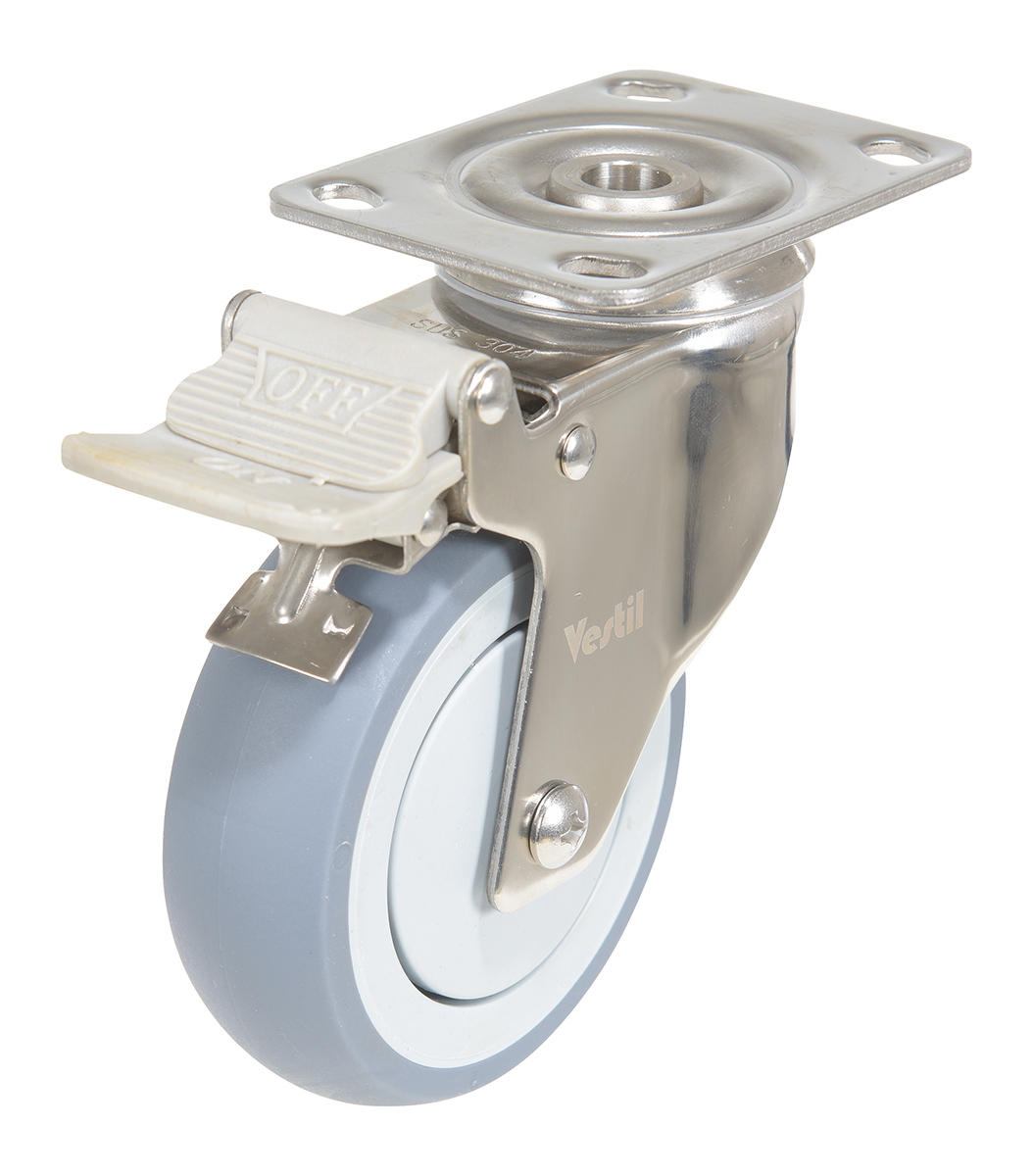

| CST-E-SS-3X1TPR-SWTB |  | 1 YEAR Limited Warranty | 3 x 1-1/4 | SWIVEL W/TOTAL BRAKE | 225 | 4-1/2 | 2-3/4 x 3-3/4 | 3 |

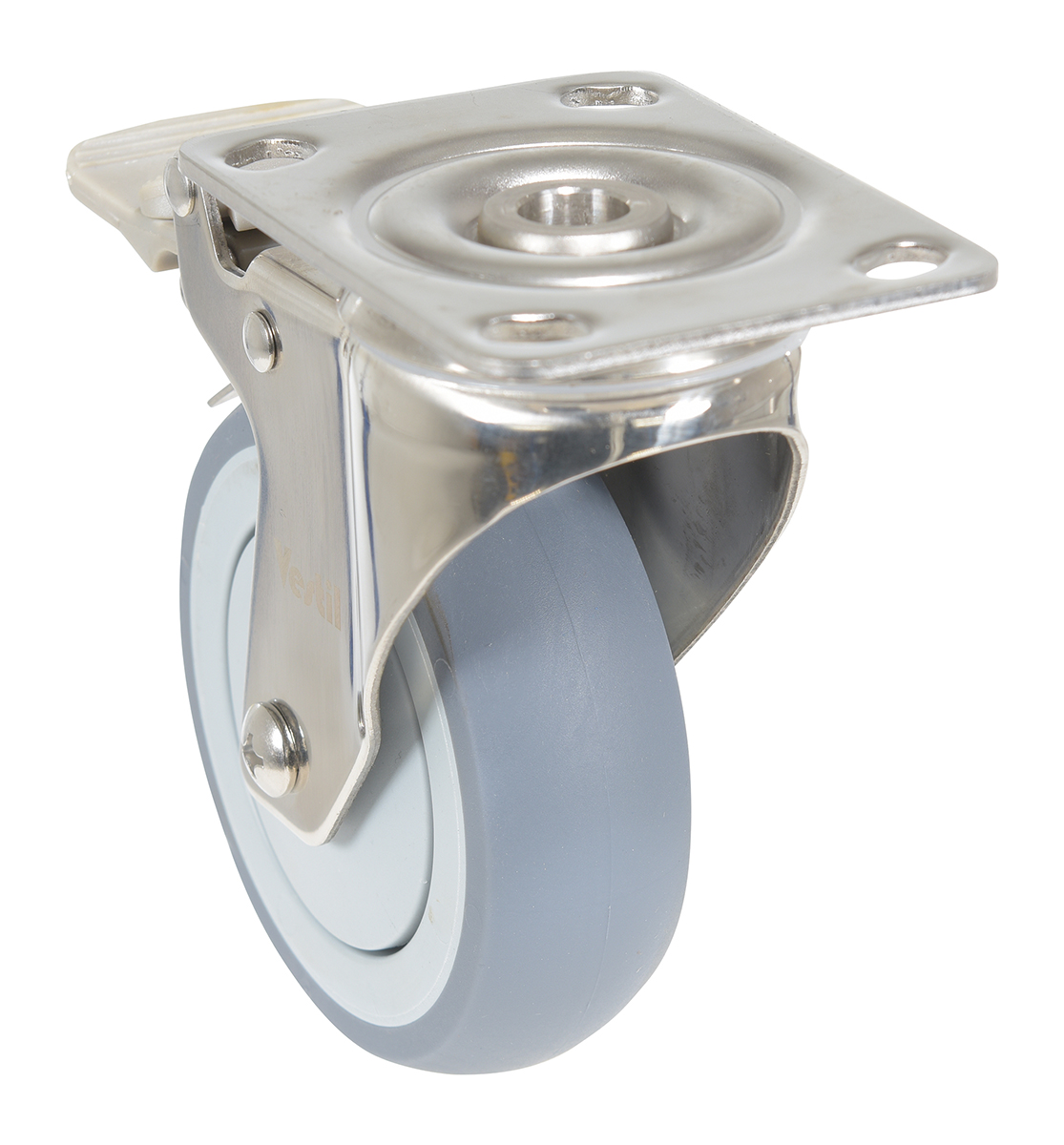

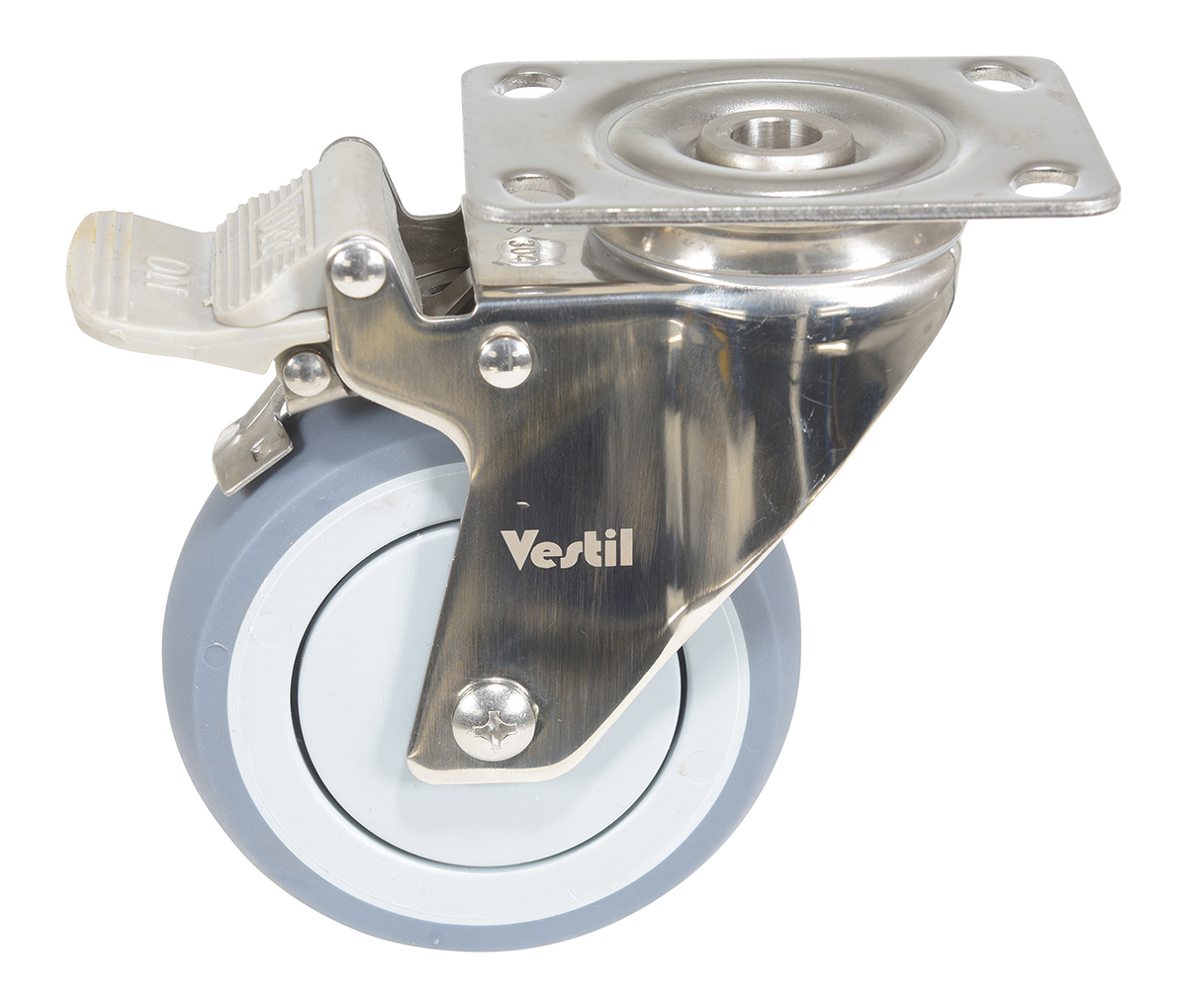

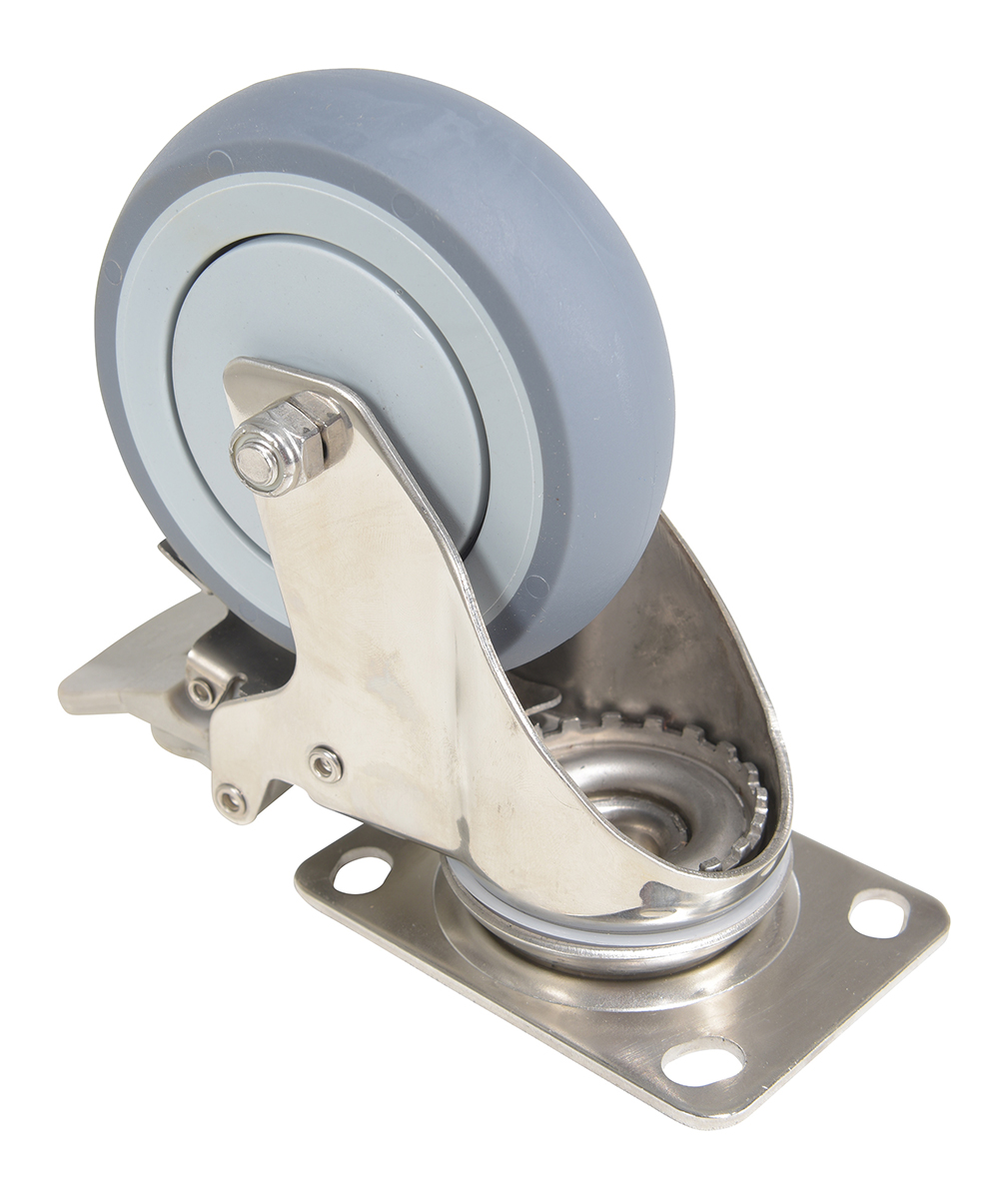

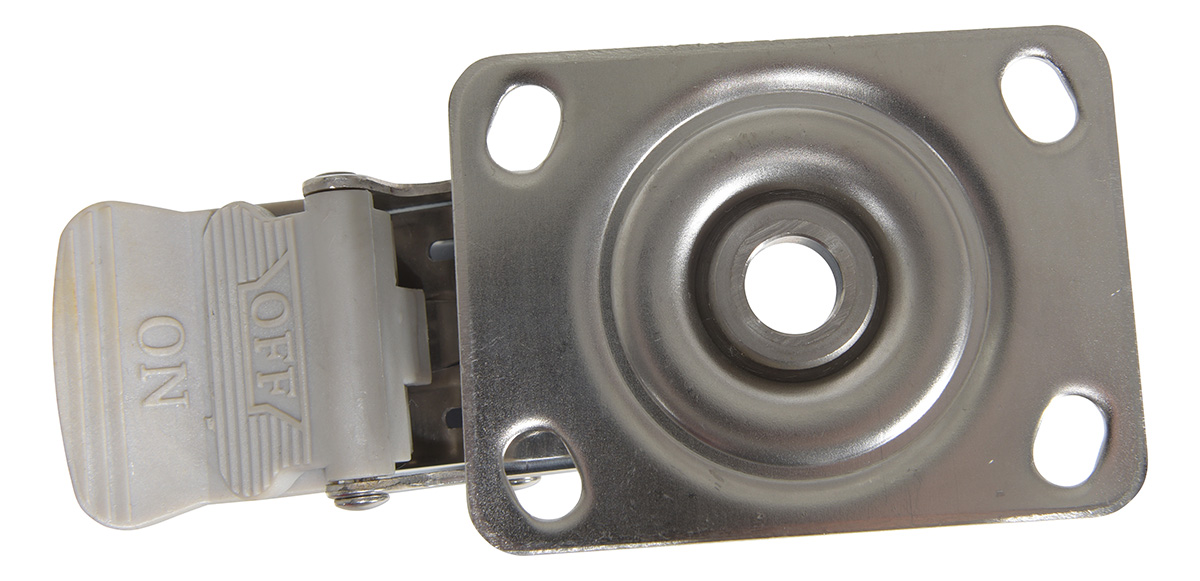

| CST-E-SS-4X1TPR-SWTB |  | 1 YEAR Limited Warranty | 4 x 1-1/4 | SWIVEL W/TOTAL BRAKE | 450 | 5-1/2 | 2-3/4 x 3-3/4 | 3 |

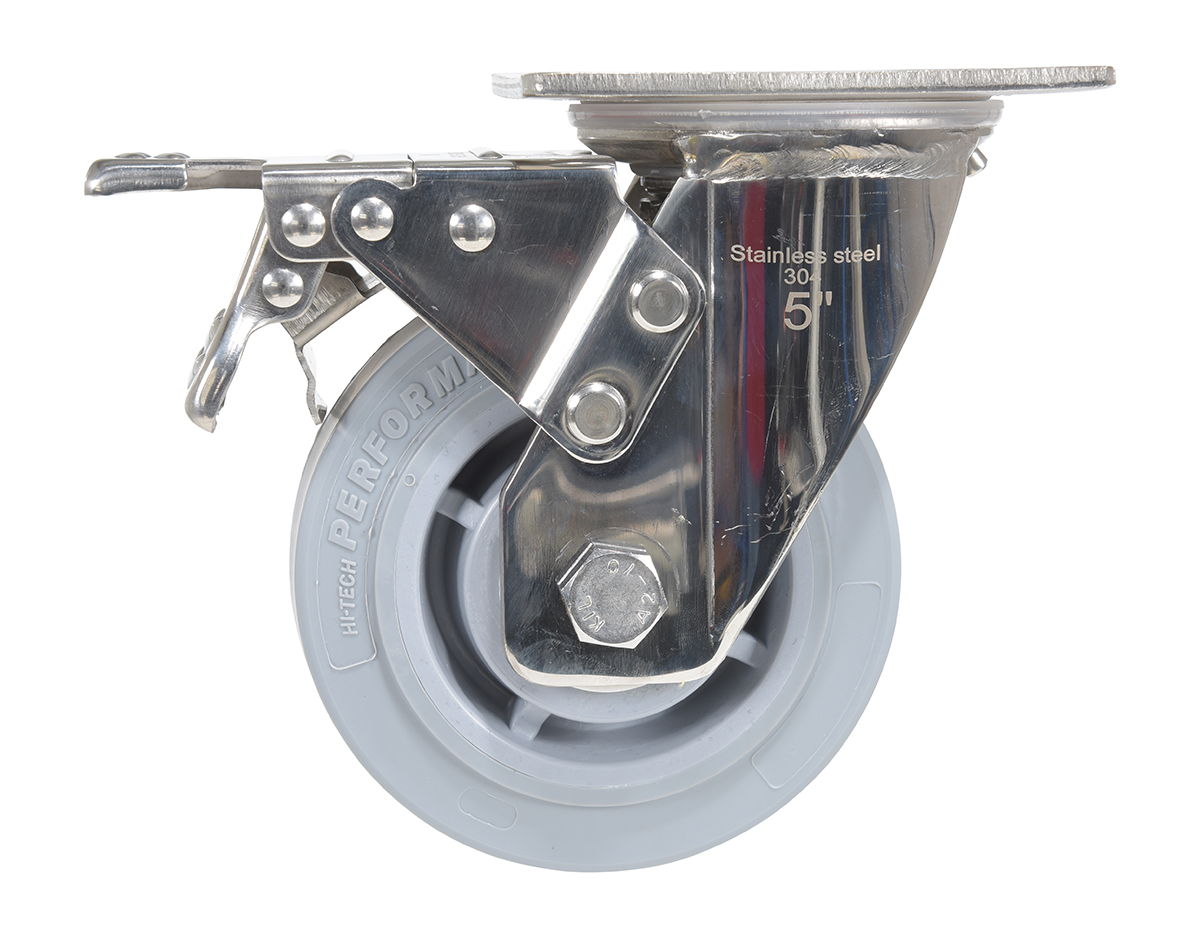

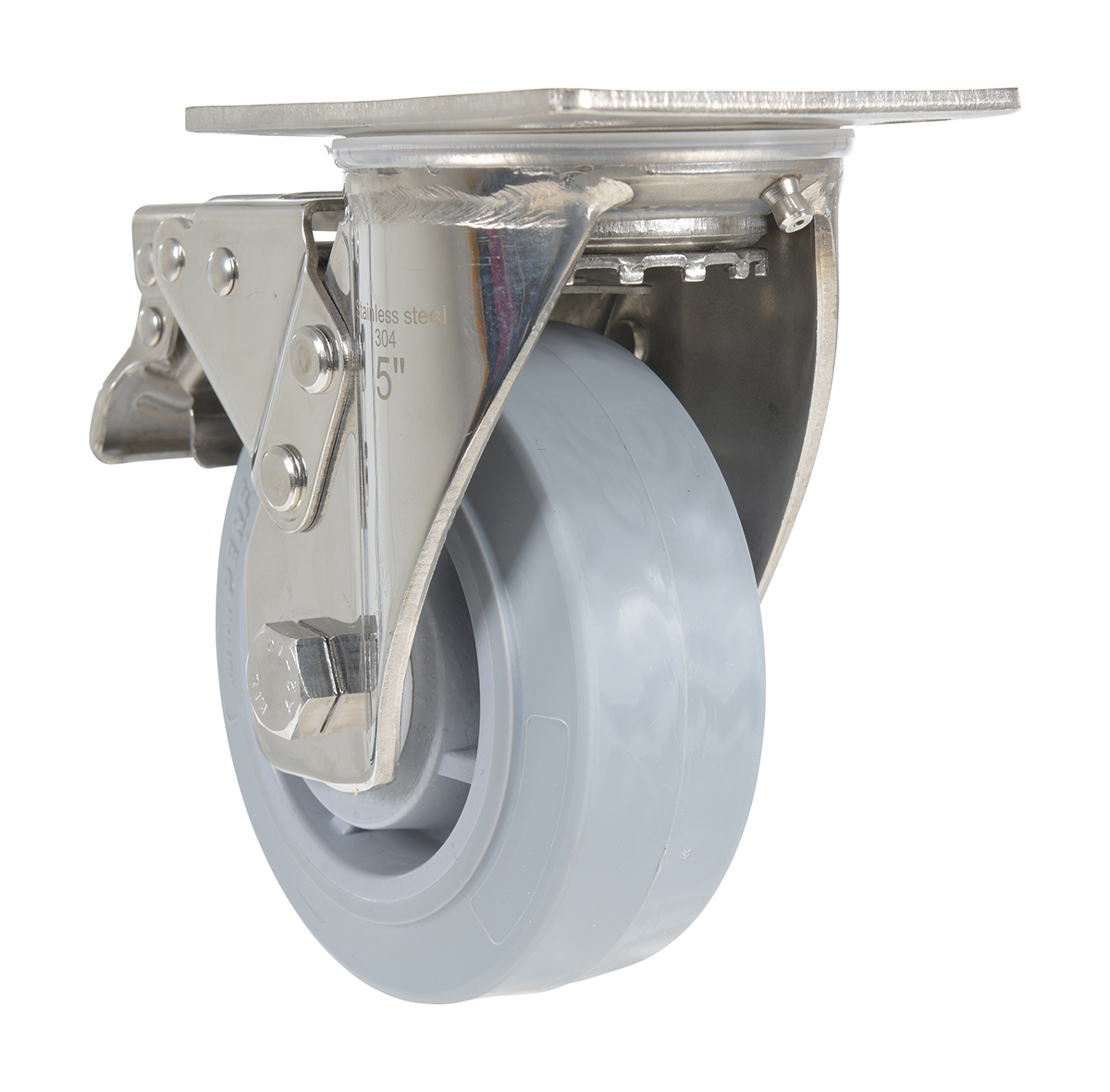

| CST-E-SS-5X2TPR-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 500 | 6-1/2 | 4 x 4-1/2 | 6 |

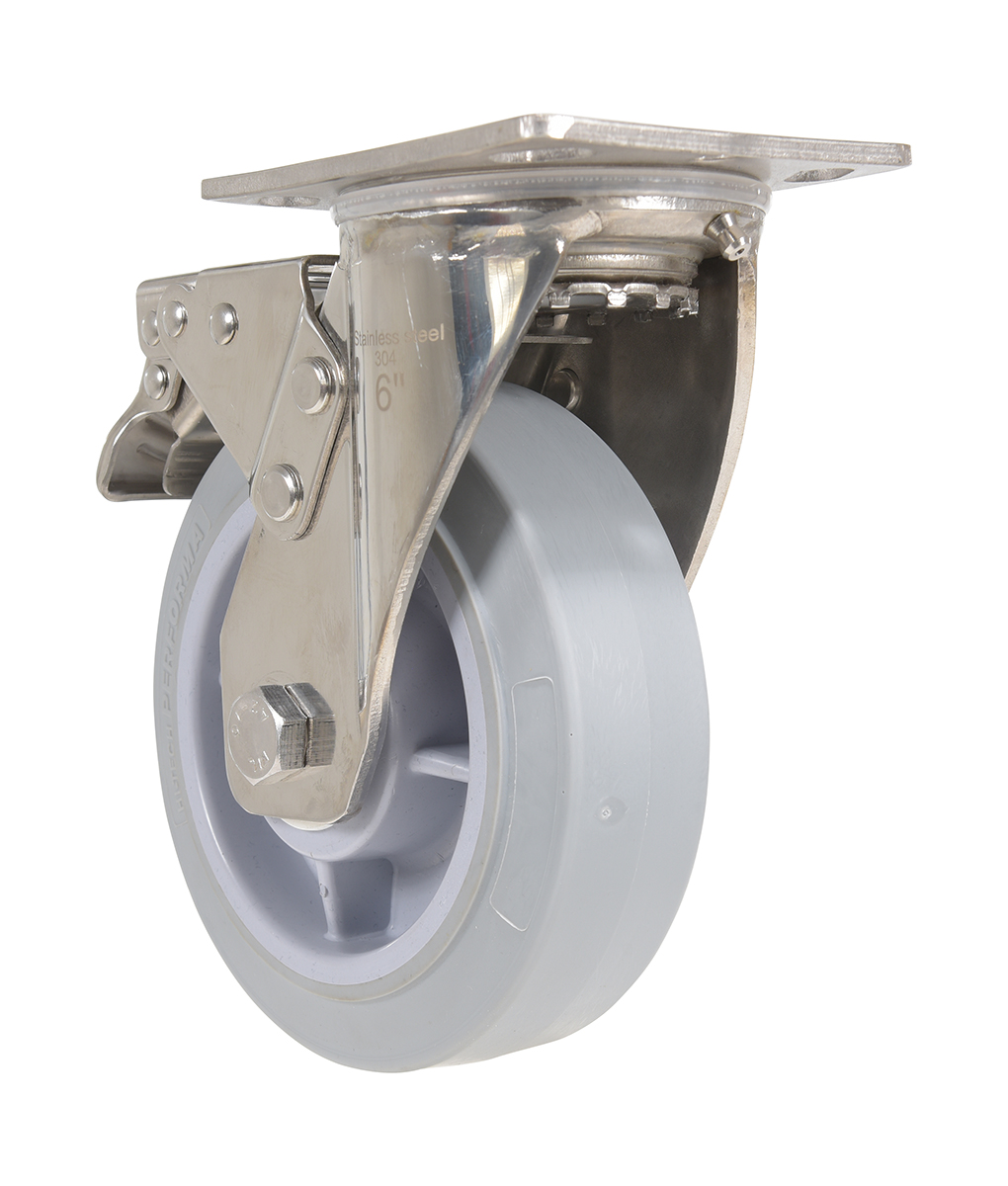

| CST-E-SS-6X2TPR-SWTB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 600 | 7.5 | 4 x 4-1/2 | 7 |

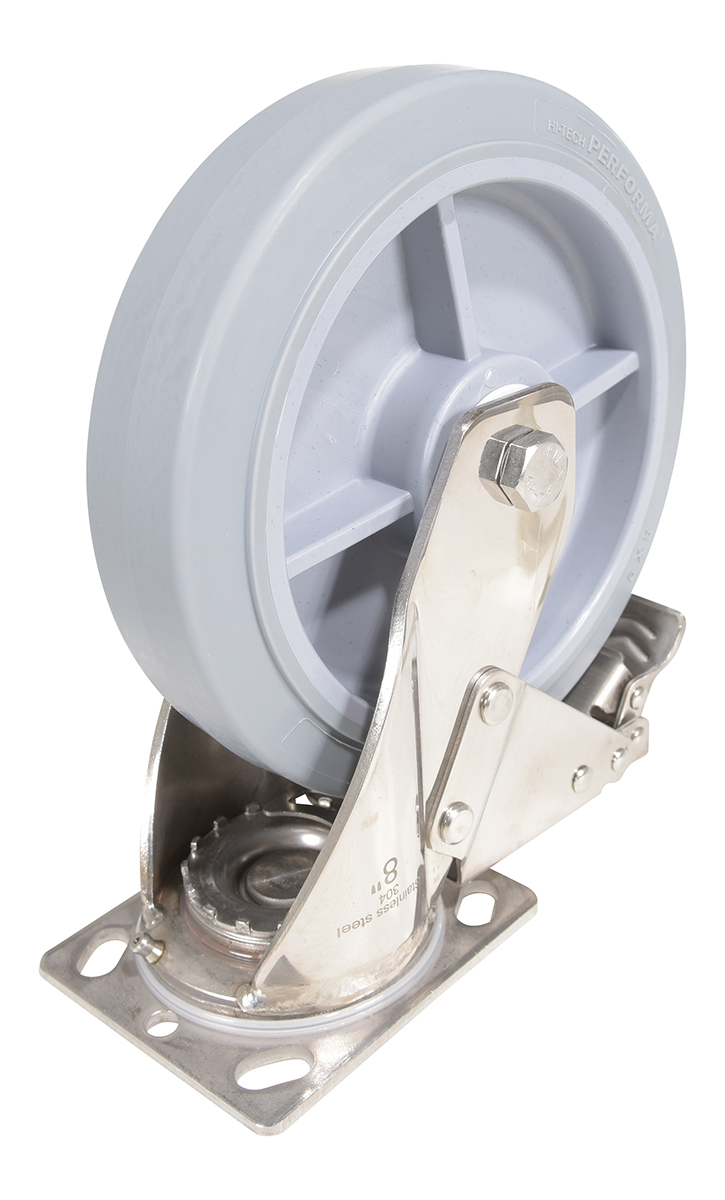

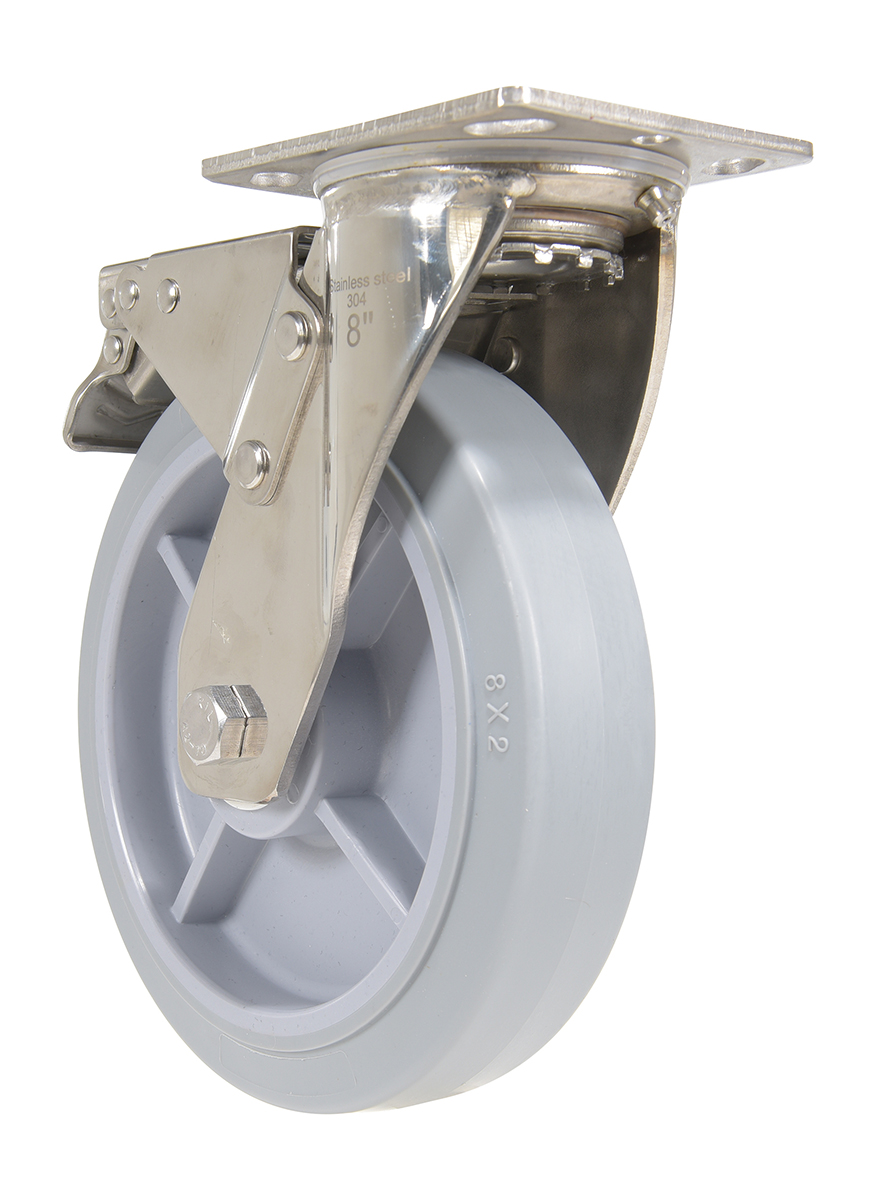

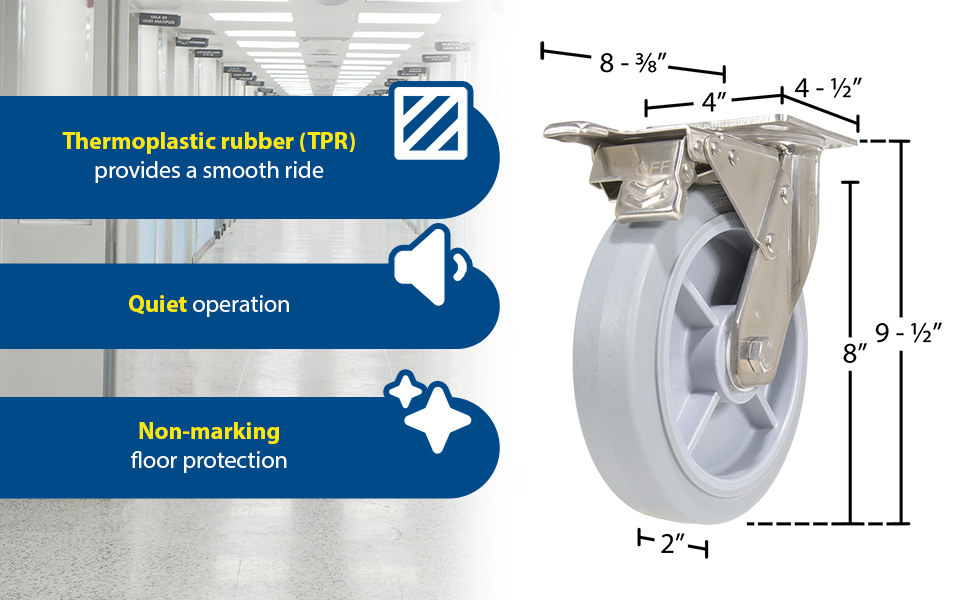

| CST-E-SS-8X2TPR-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 675 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
