Polyurethane (DT, Green) CastersMade with 100% pure polyurethane tread. This caster is a great upgrade for standard polyurethane. Designed using a new liquid cast flow fusion that ensures a 100% mechanical bond to core and "zero" trapped air. It has a high resistance to debris and most chemicals. The proprietary tread provides good floor preservation, and has a longer life performance than standard polyurethanes. Green tread color. 90-95 shore a. Wheel center is constructed of polyolefin.
- Non-marking high-quality proprietary tread
- 100% Mechanical bond to core
- Resists mosts solvents, oils, grease, and water
- Premium precision ball bearings
Poly On Poly Casters (Orange)
Phenolic Casters
Polyurethane CastersAdditional Models In This Family

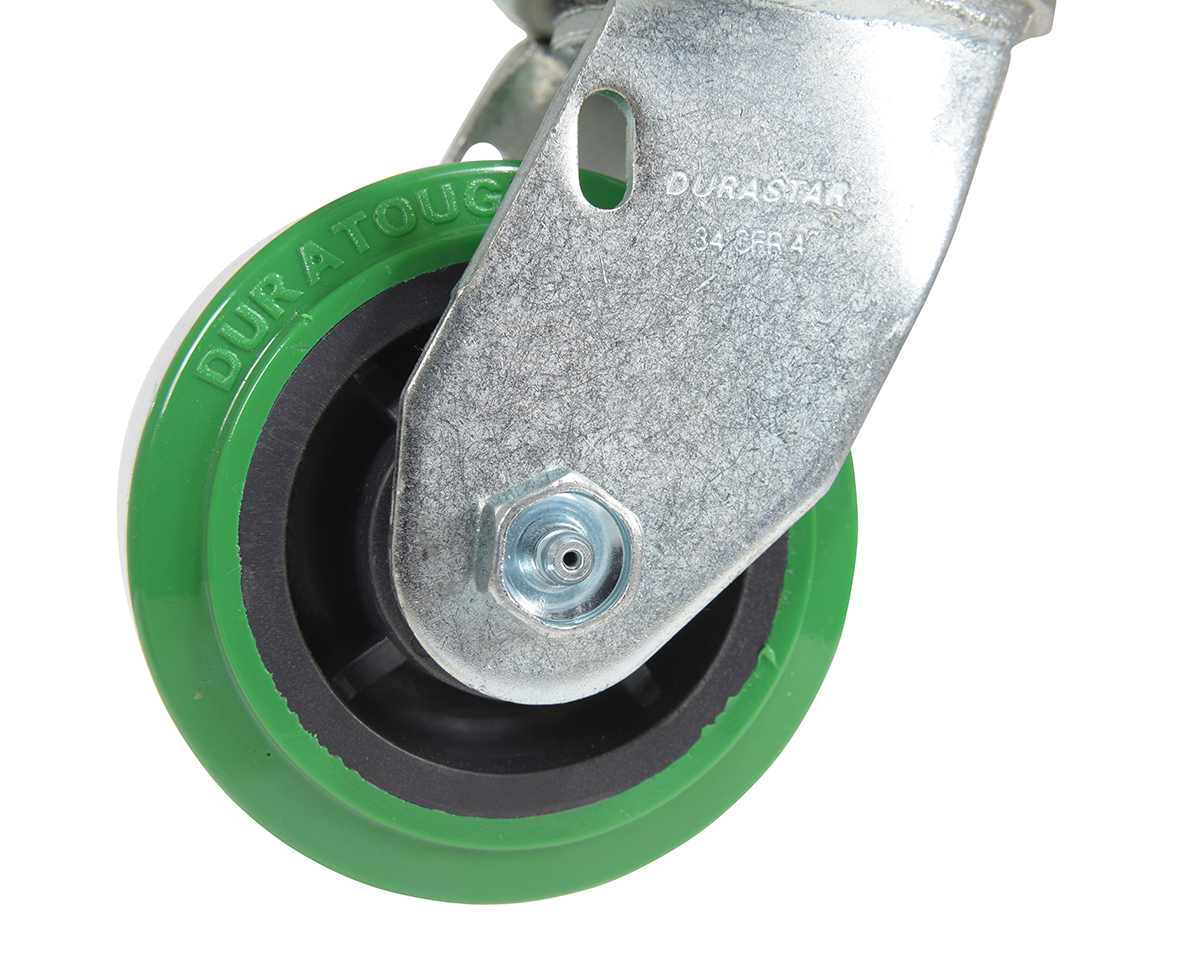

CST-F34-4X2DT-S
CST-F34-5X2DT-R

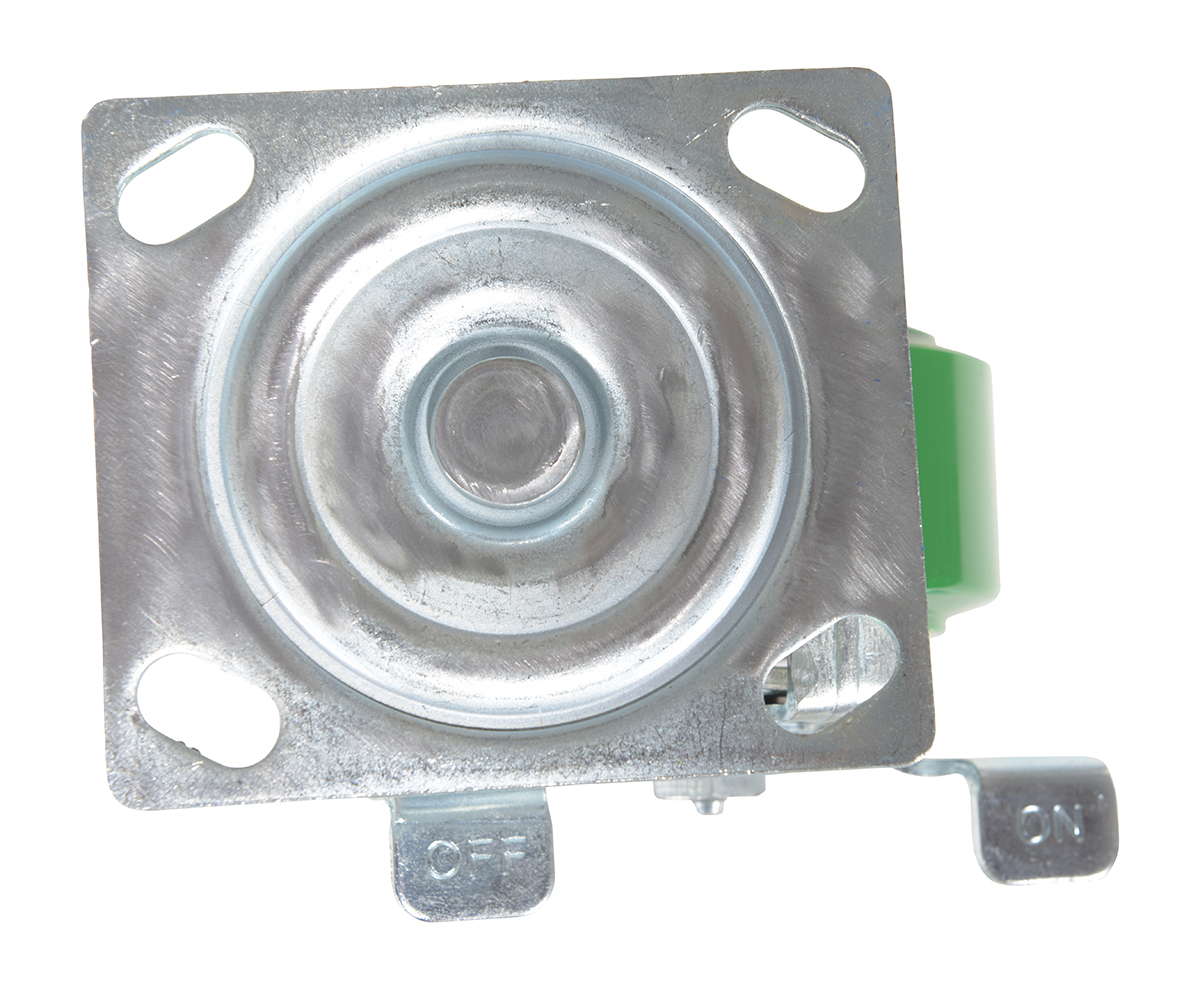

CST-F34-4X2DT-SWB

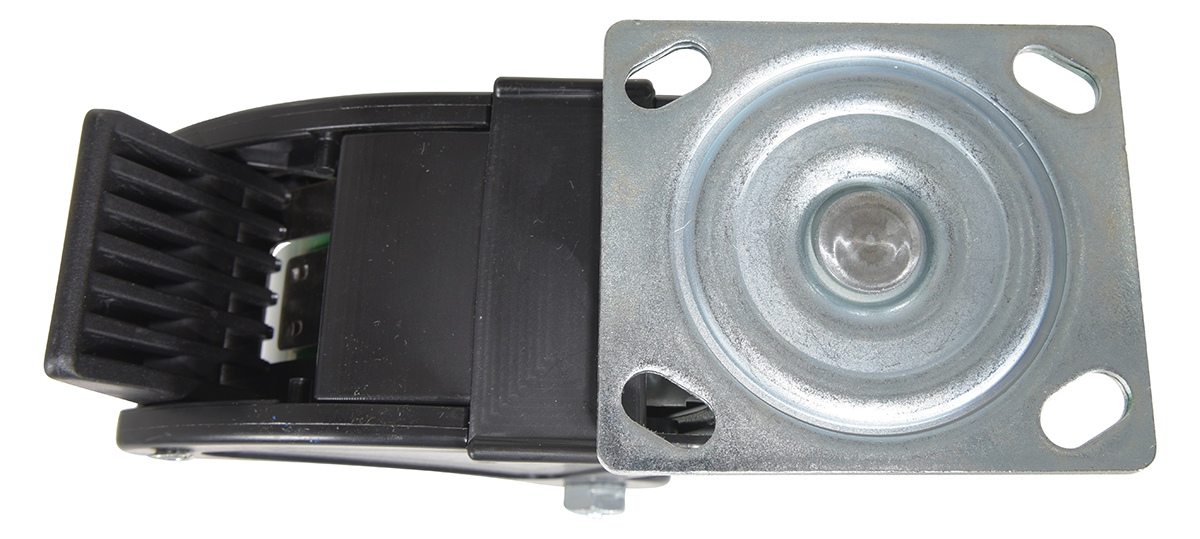

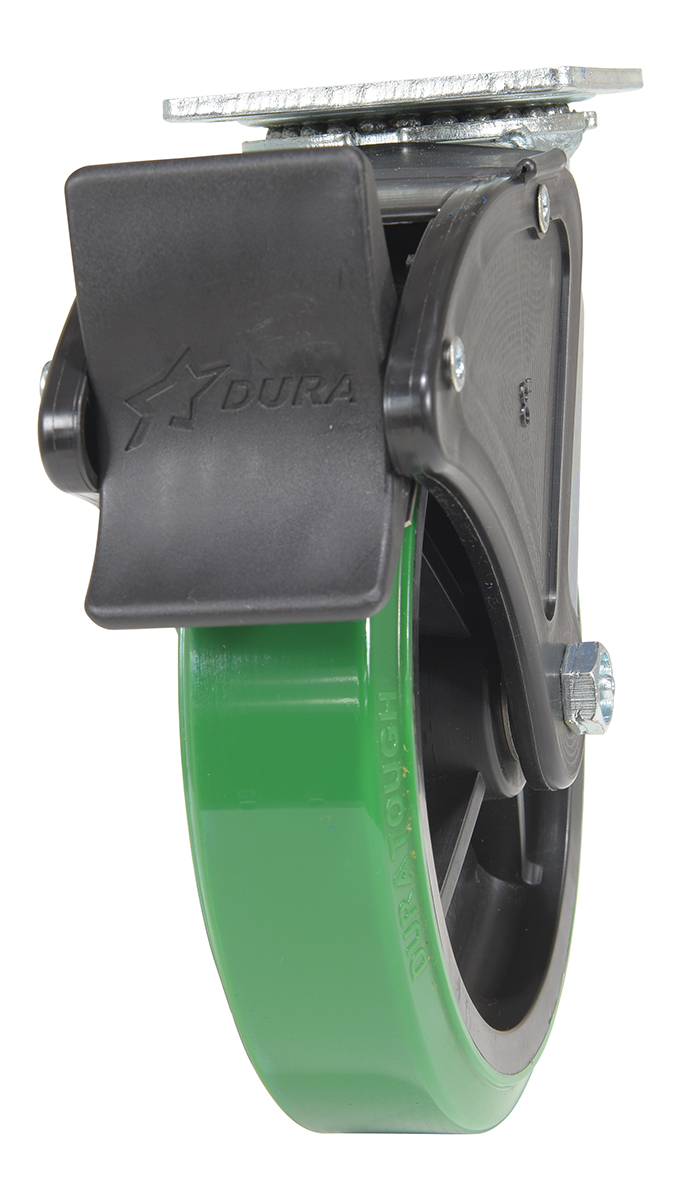

CST-F34-8X2DT-SWTB1
CST-F34-8X2DT-S
CST-F34-8X2DT-S

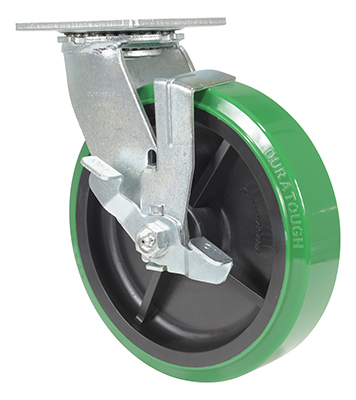

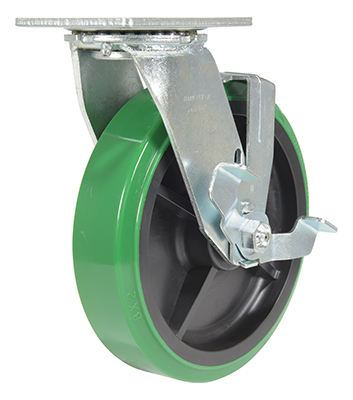

CST-F34-8X2DT-SWB
CST-F34-8X2DT-SWTB1

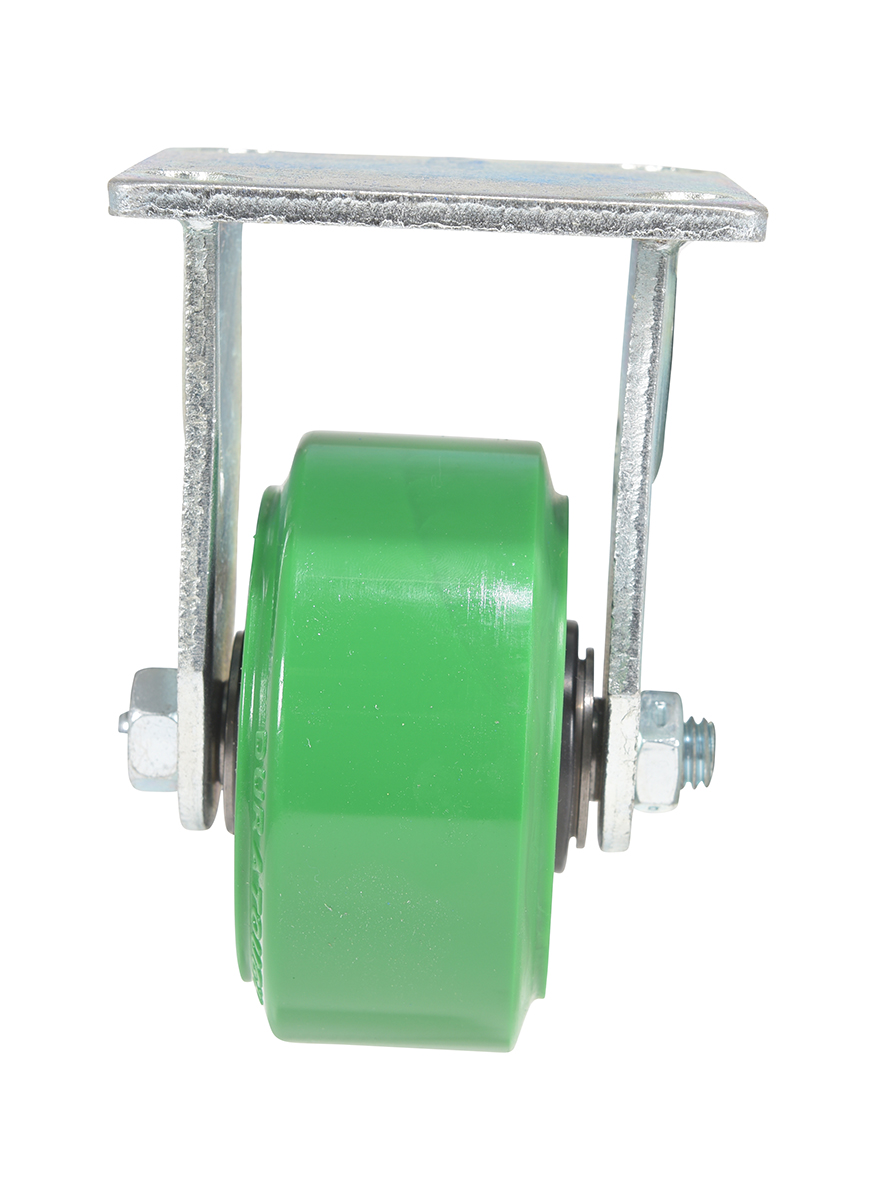

CST-F34-4X2DT-R
CST-F34-8X2DT-SWB
CST-F34-8X2DT-SWTB1
CST-F34-4X2DT-S
CST-F34-8X2DT-S
CST-F34-8X2DT-S
CST-F34-4X2DT-S
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

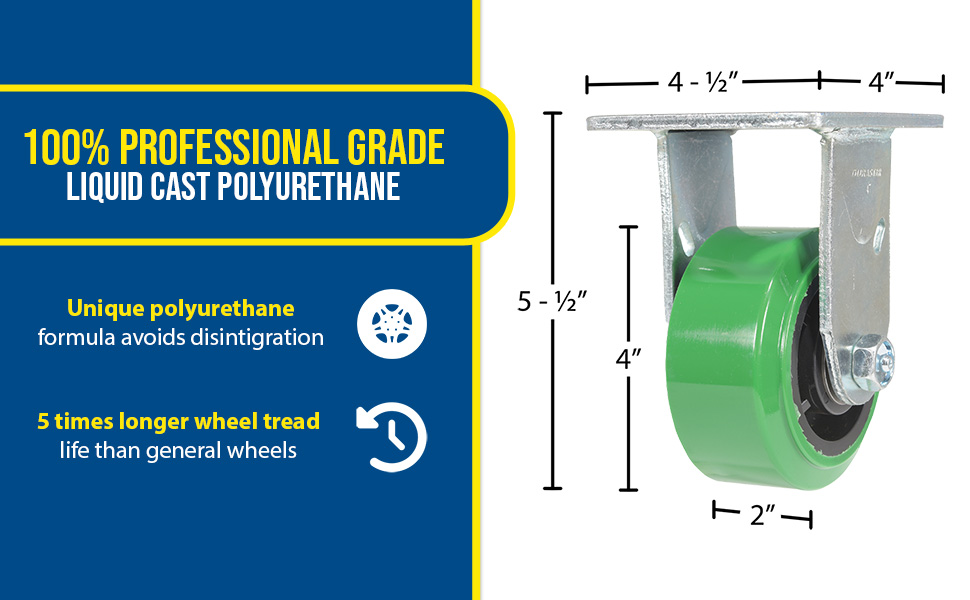

| CST-F34-4X2DT-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 700 | 5-1/2 | 4 x 4-1/2 | 3 |
| CST-F34-5X2DT-R |  | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 750 | 6-1/2 | 4 x 4-1/2 | 4 |

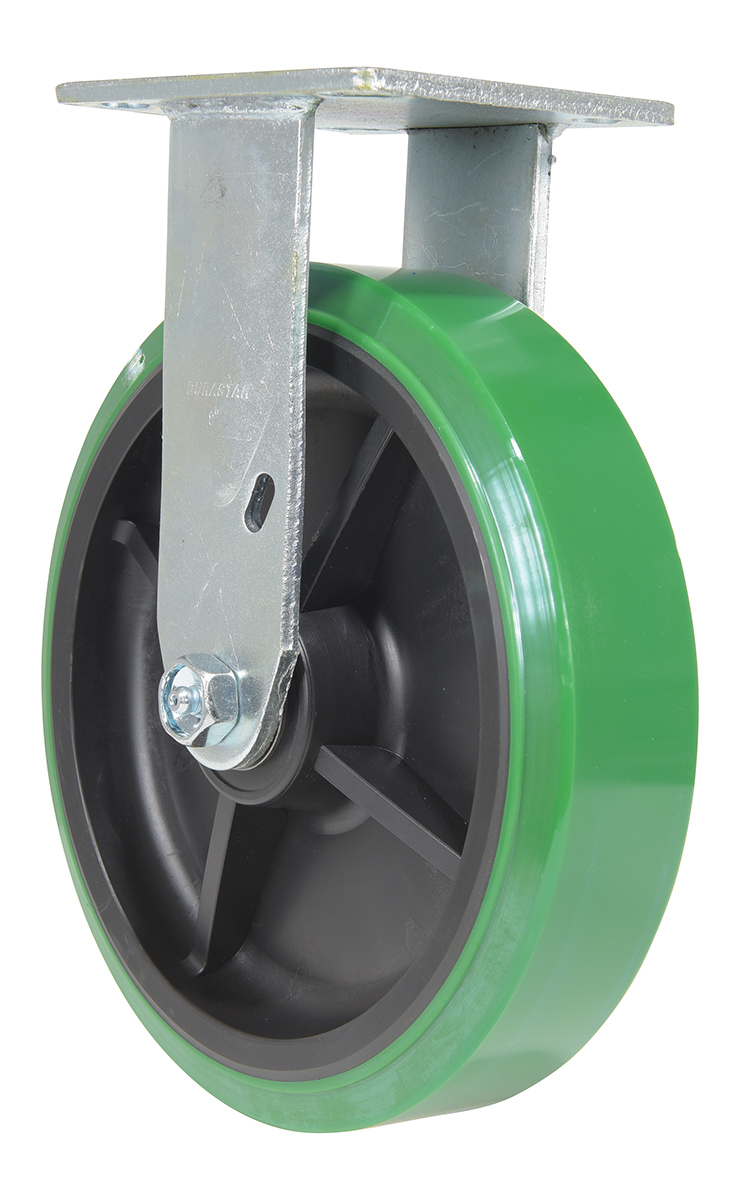

| CST-F34-8X2DT-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 1000 | 9-3/8 | 4 x 4-1/2 | 6 |

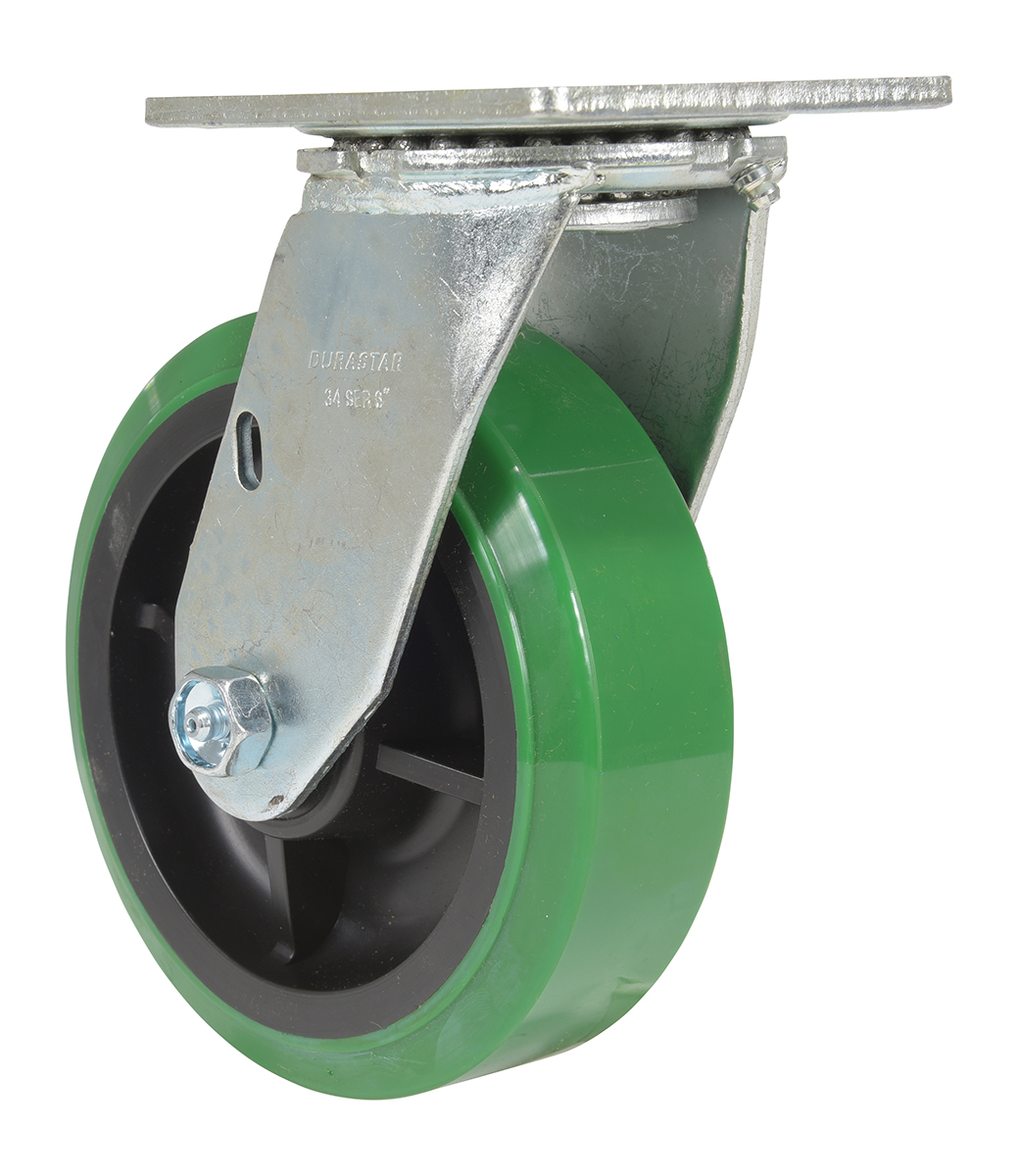

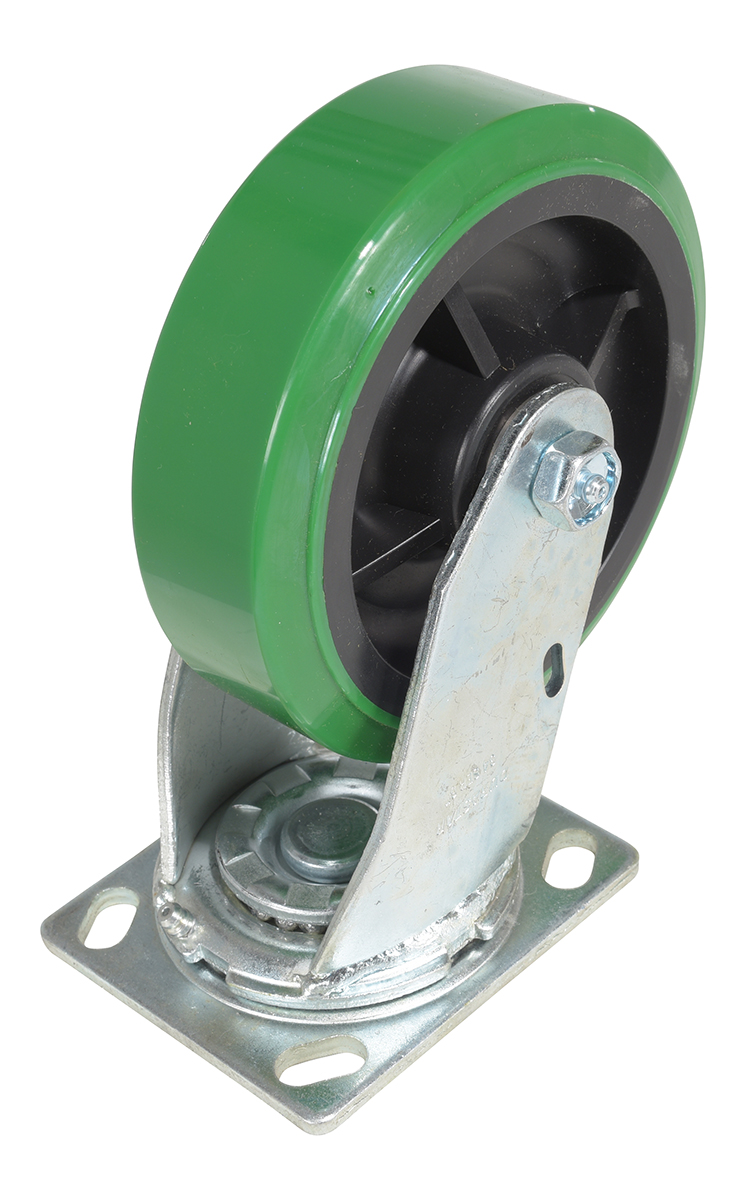

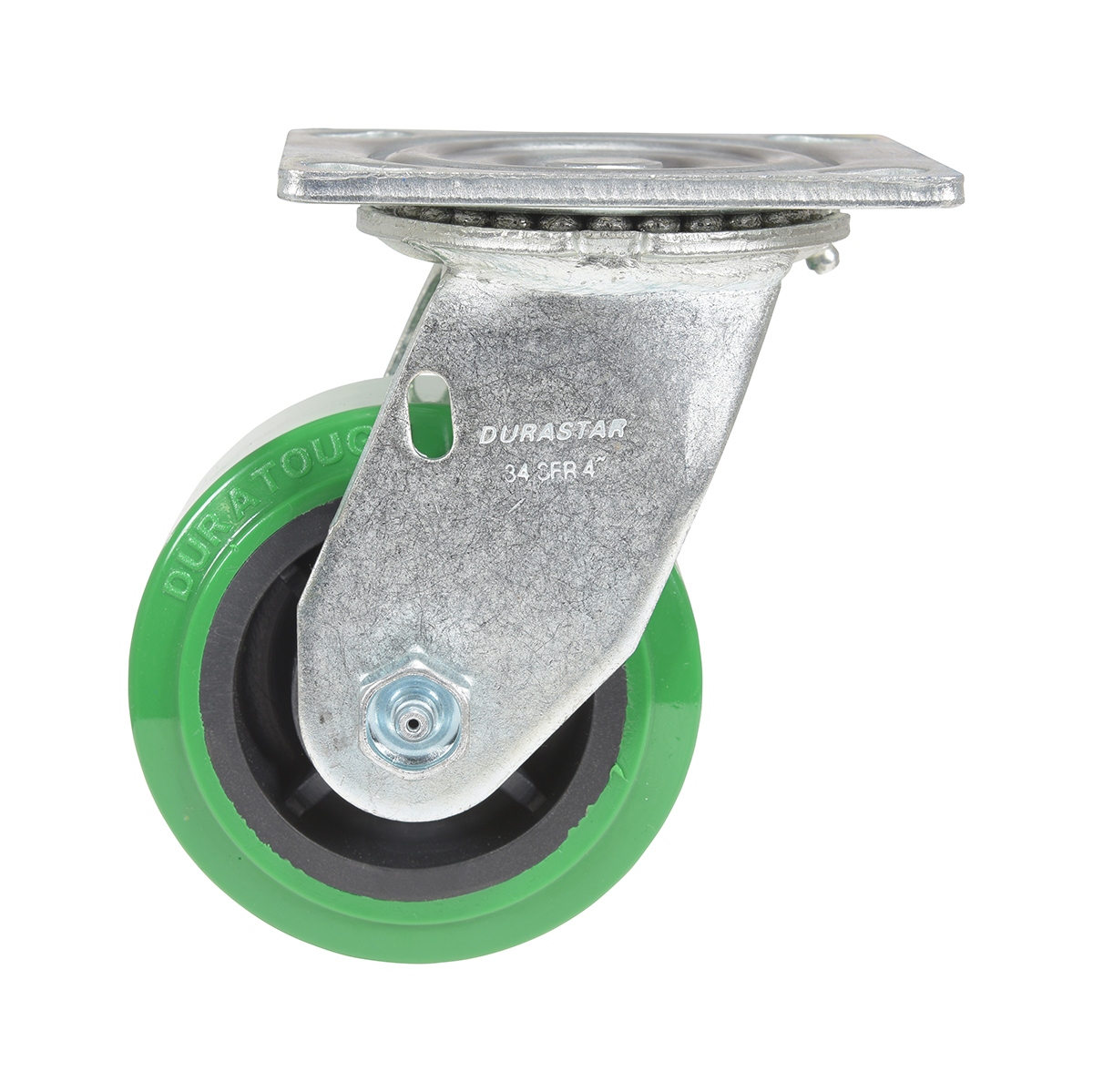

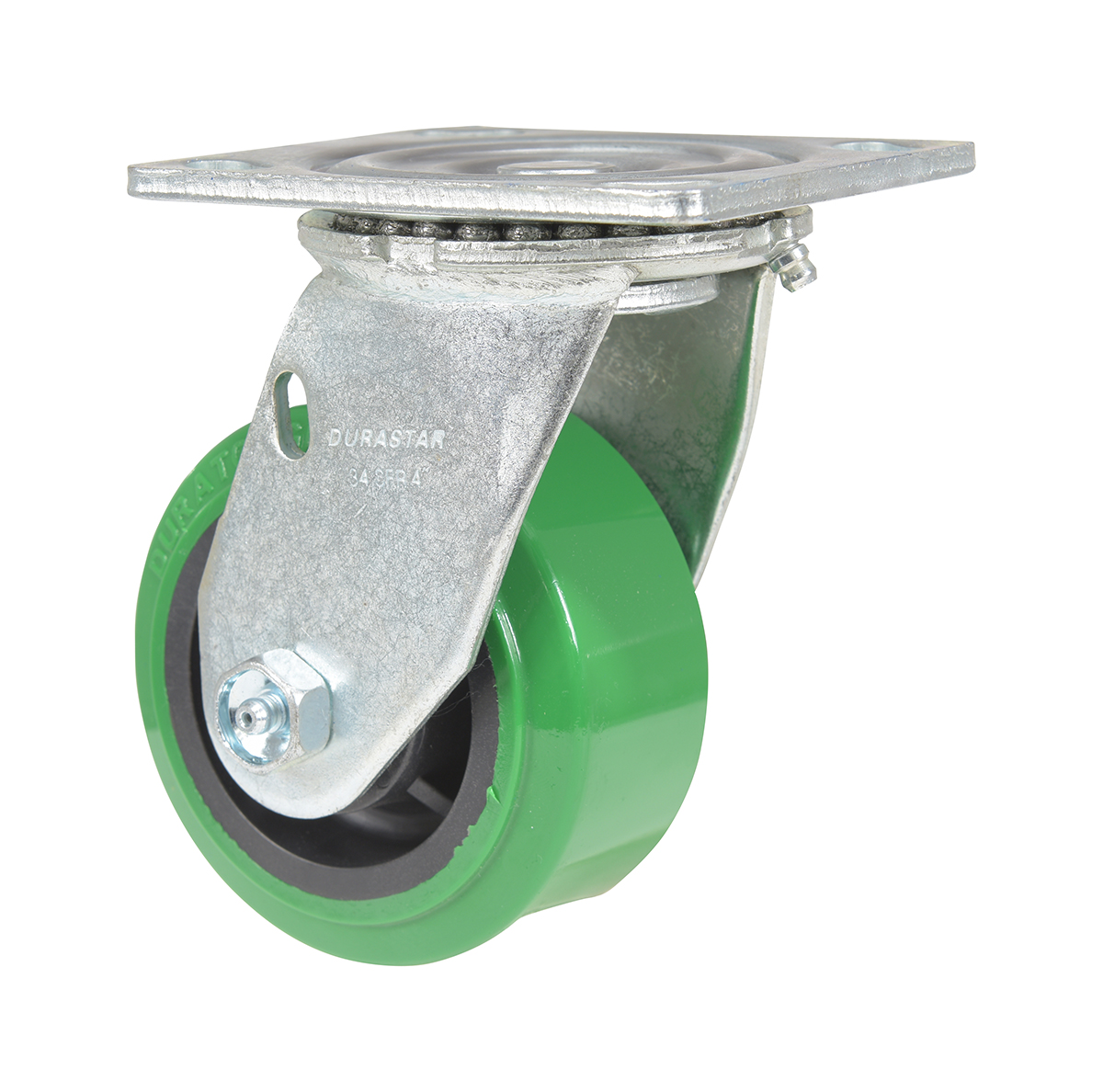

| CST-F34-4X2DT-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 700 | 5-1/2 | 4 x 4-1/2 | 5 |

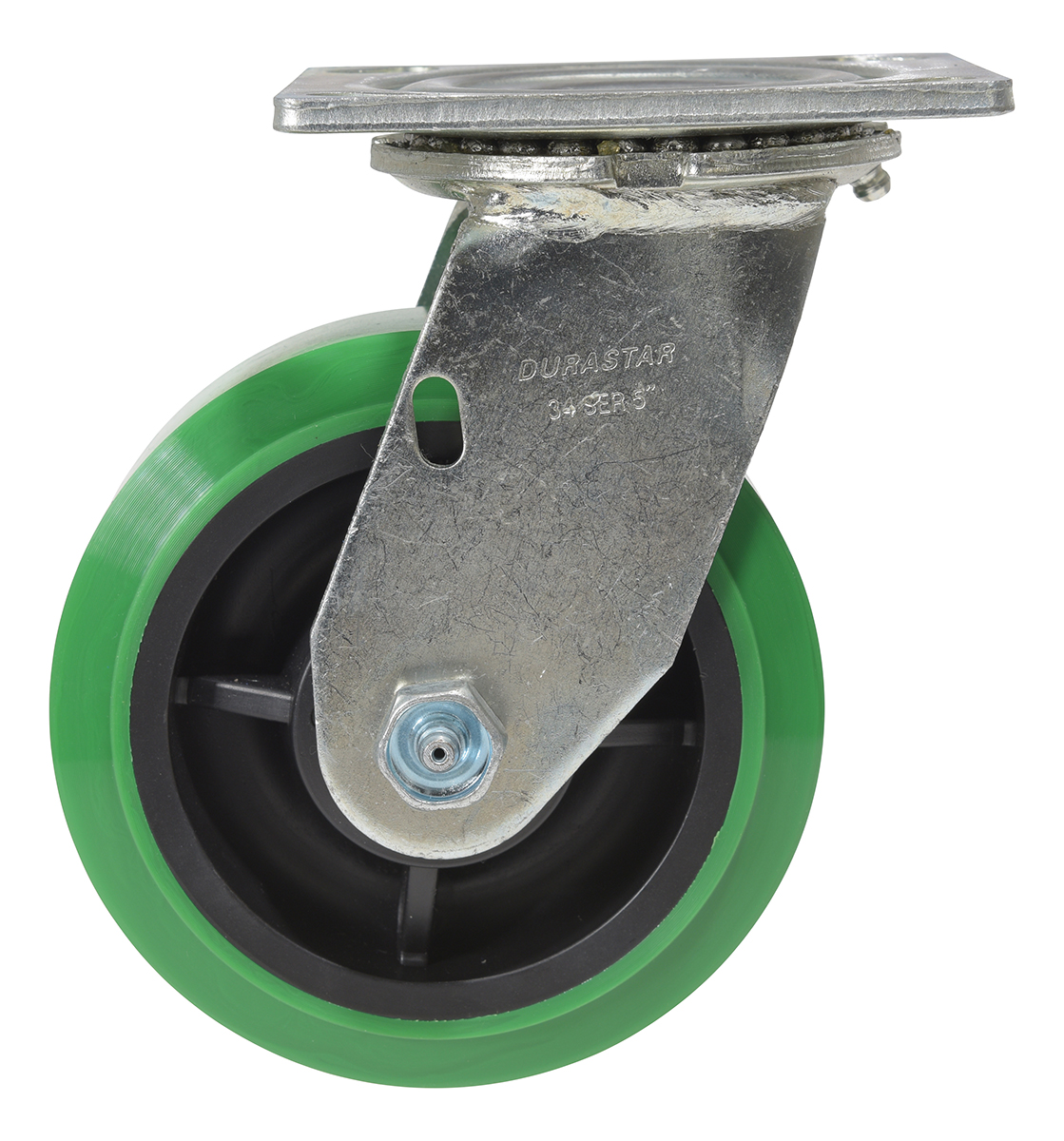

| CST-F34-5X2DT-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 750 | 6-1/2 | 4 x 4-1/2 | 5 |

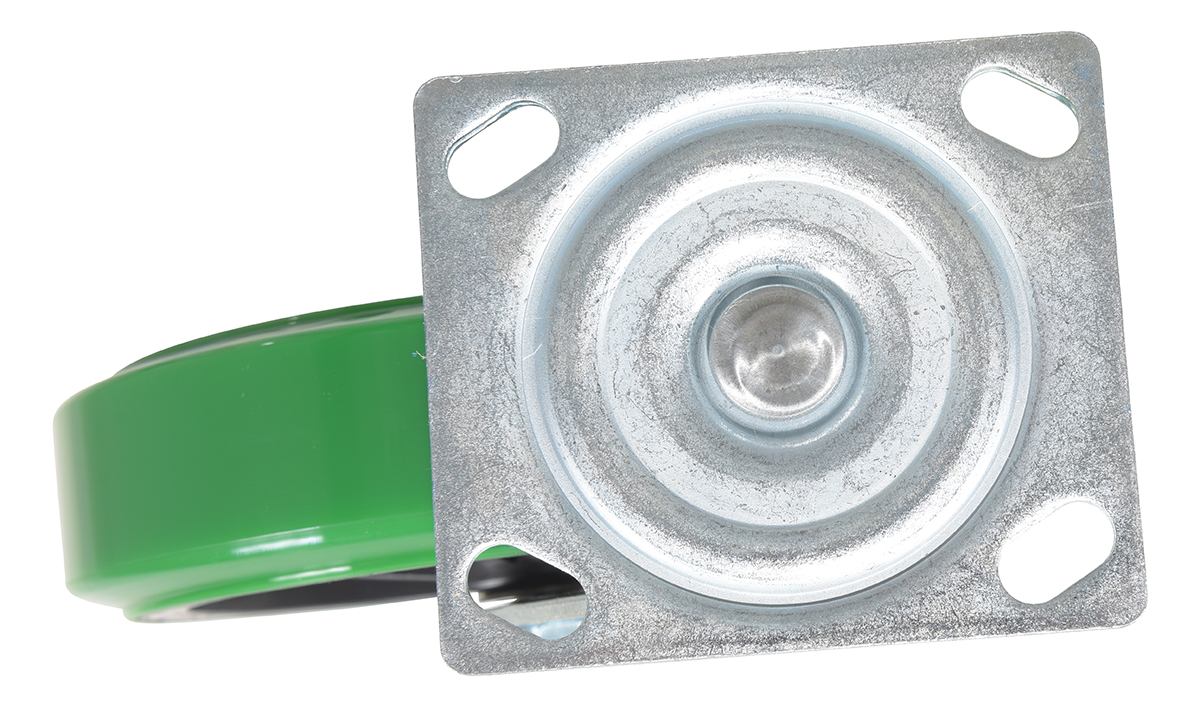

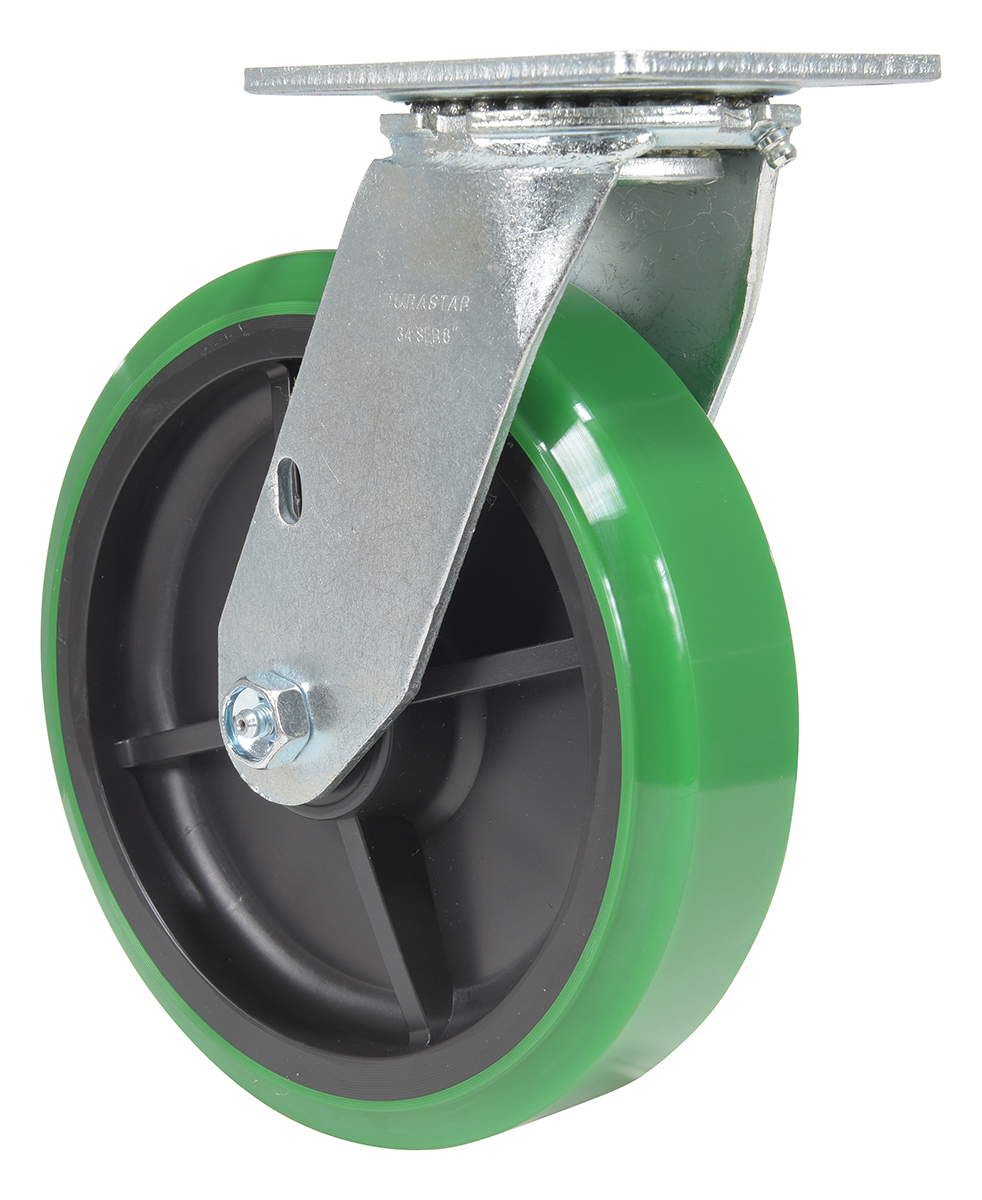

| CST-F34-8X2DT-S | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 1000 | 9-3/8 | 4 x 4-1/2 | 6 |

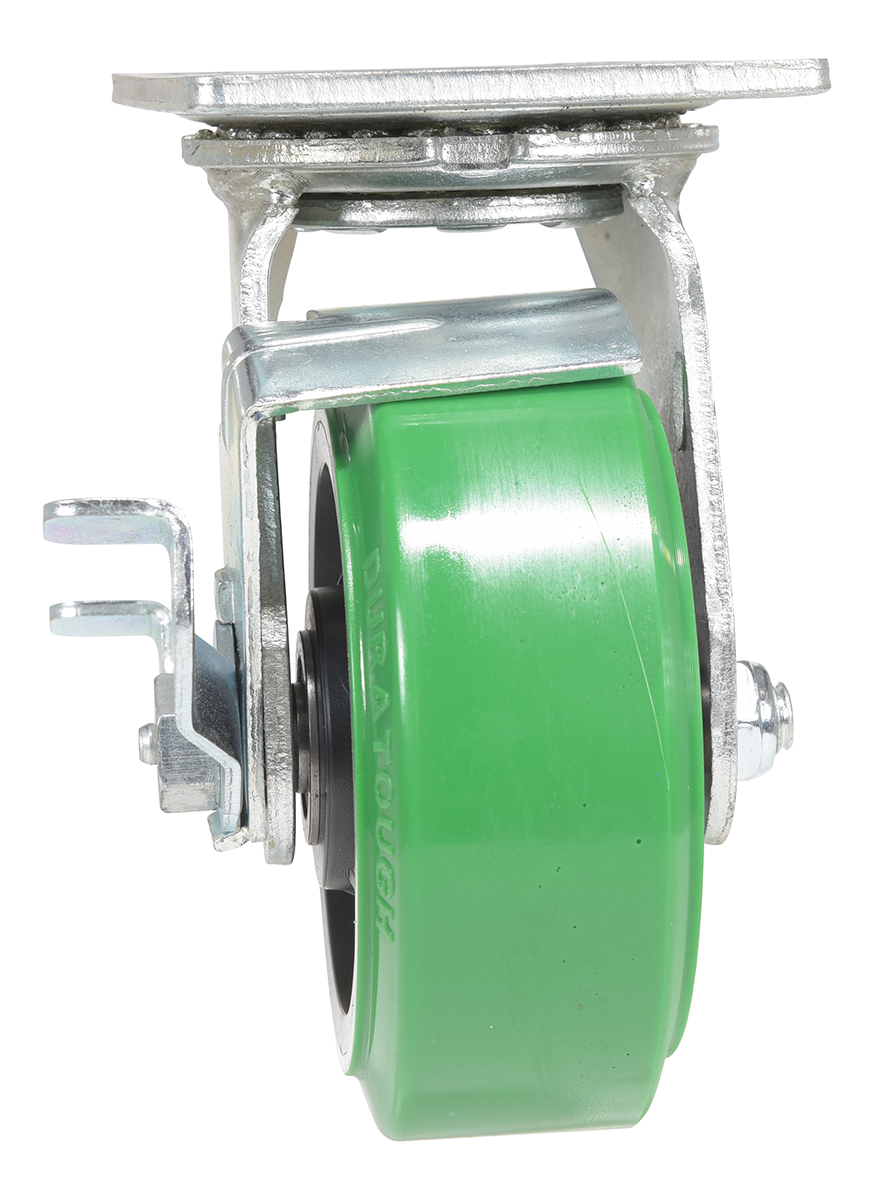

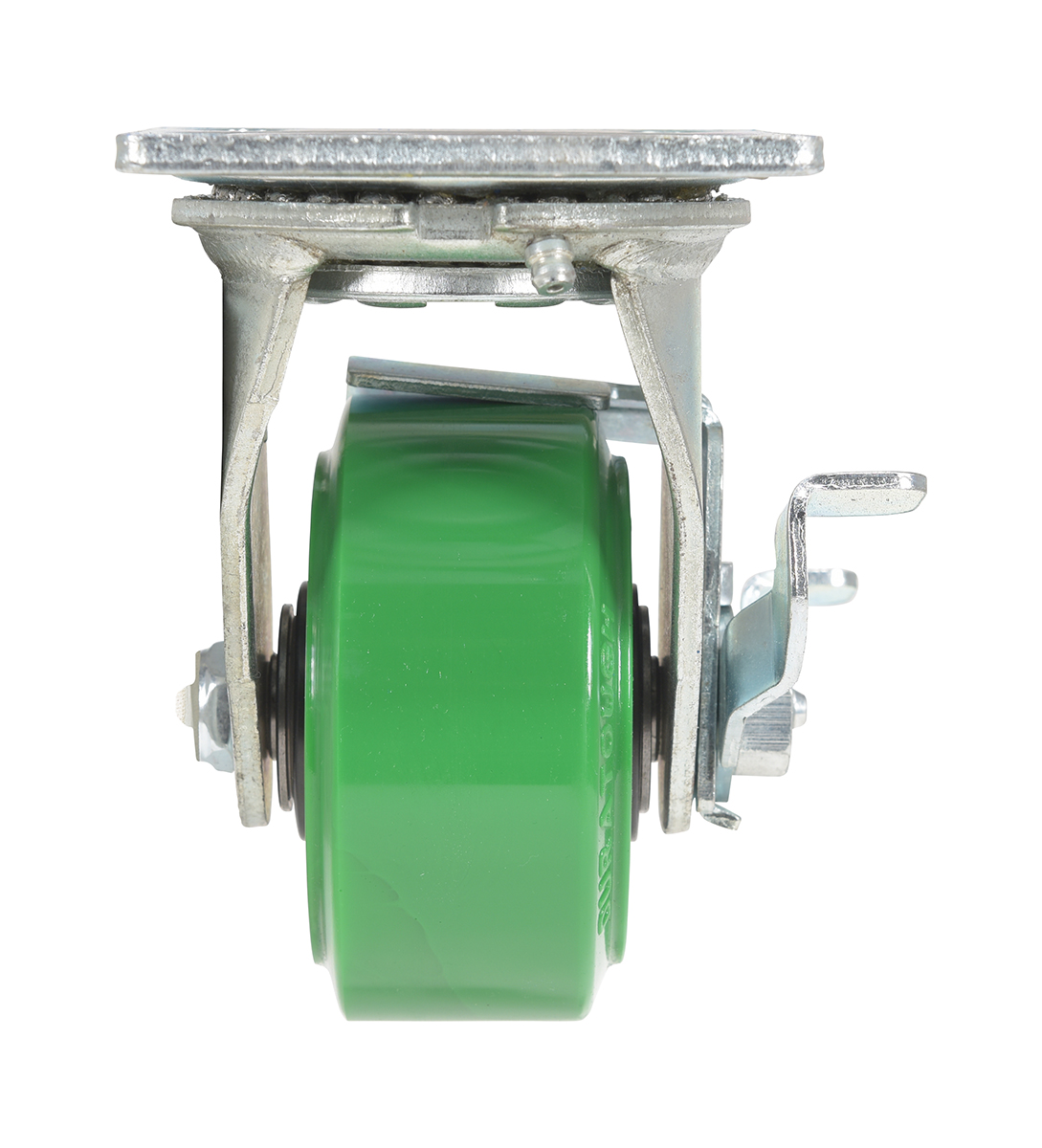

| CST-F34-4X2DT-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 700 | 5-1/2 | 4 x 4-1/2 | 6 |

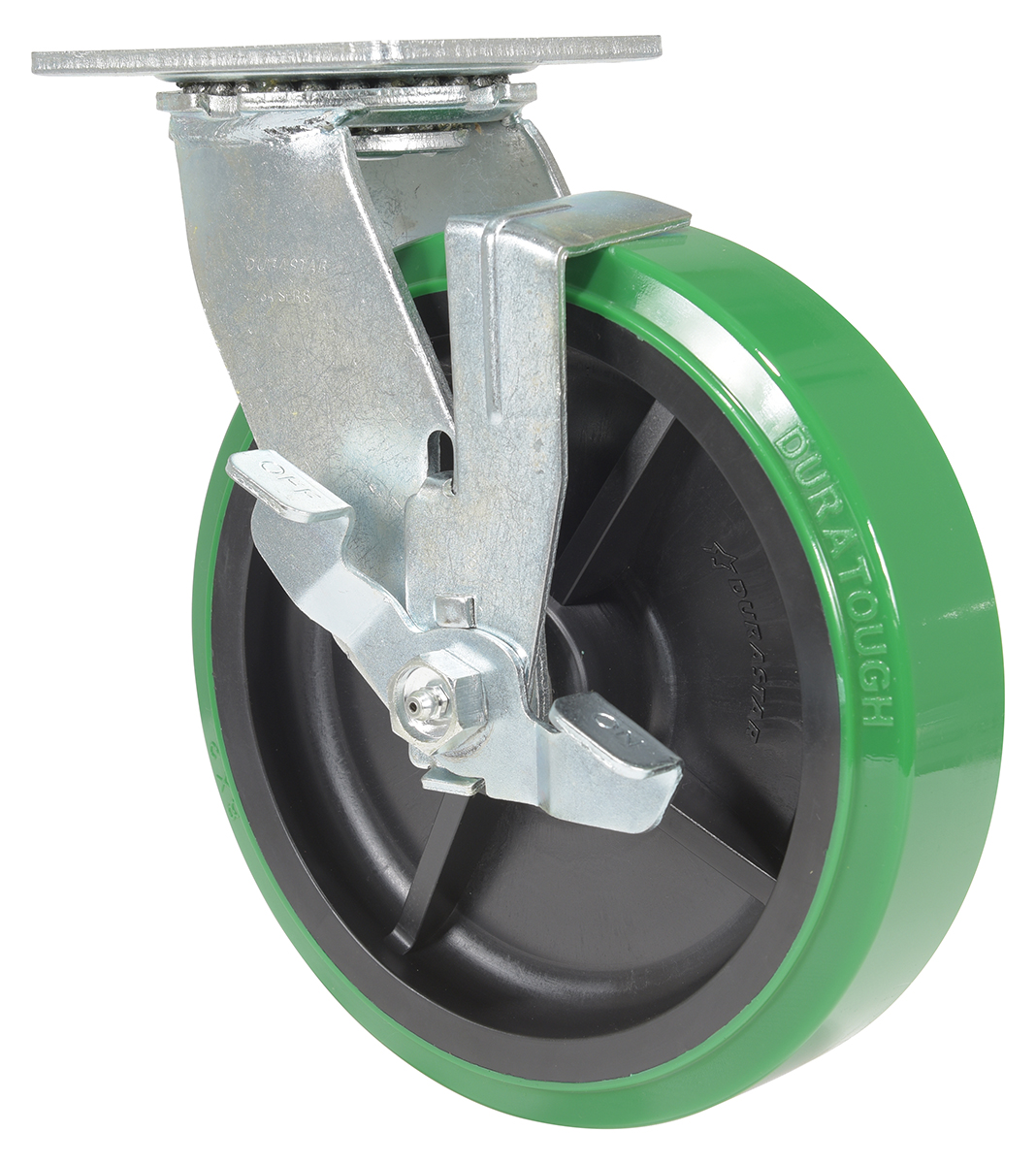

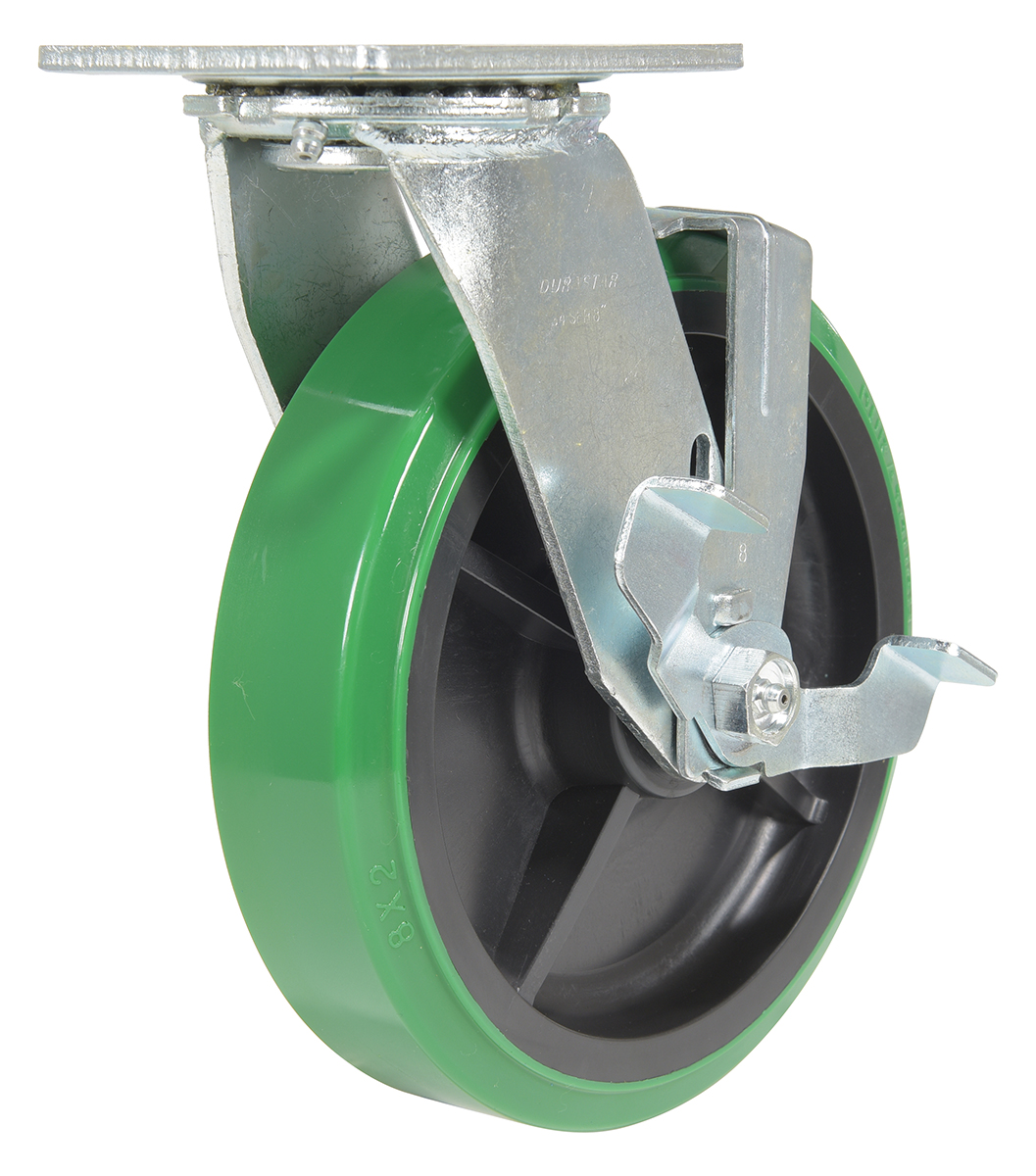

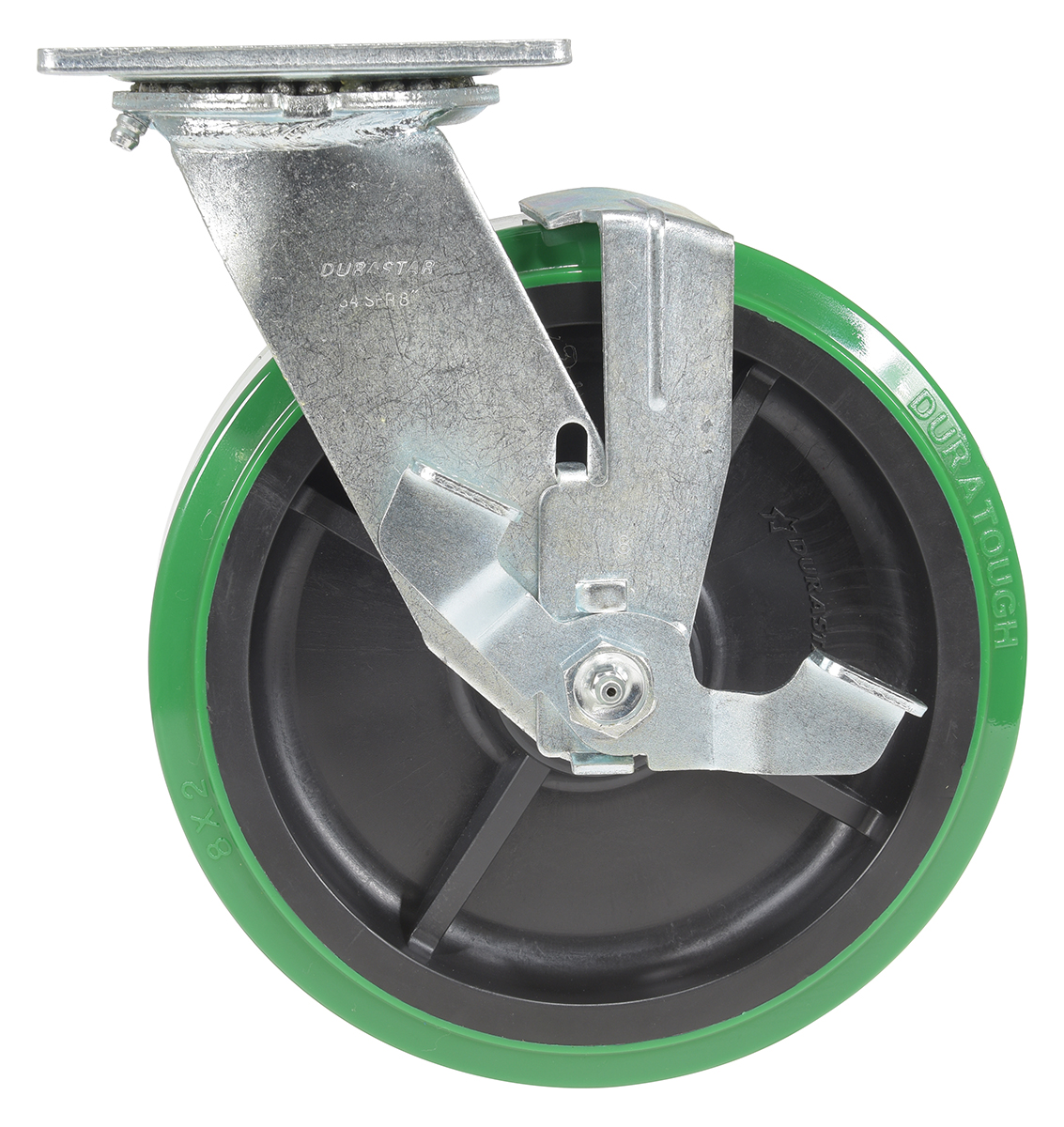

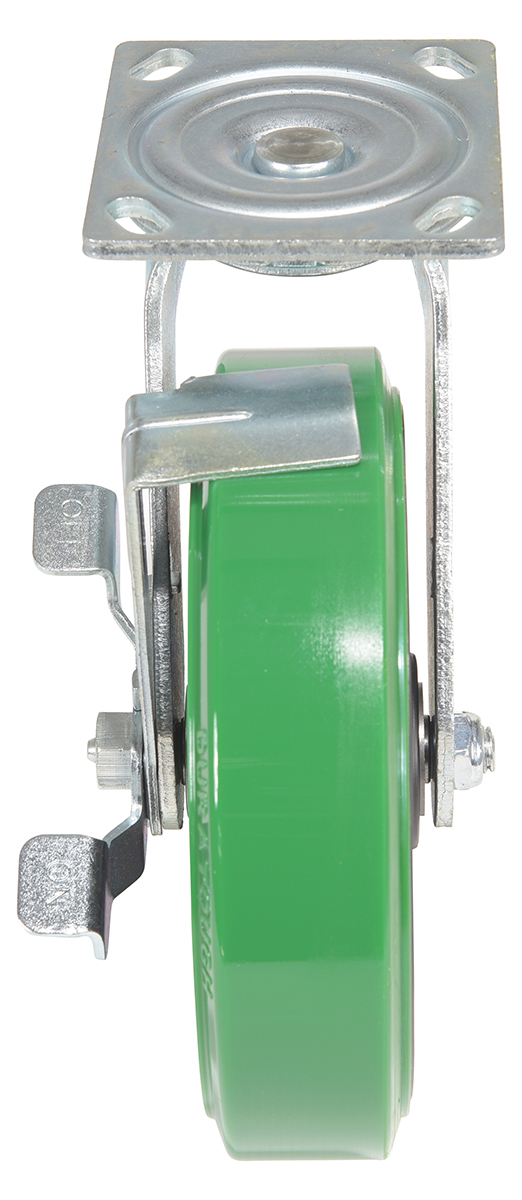

| CST-F34-8X2DT-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 1000 | 9-3/8 | 4 x 4-1/2 | 7 |

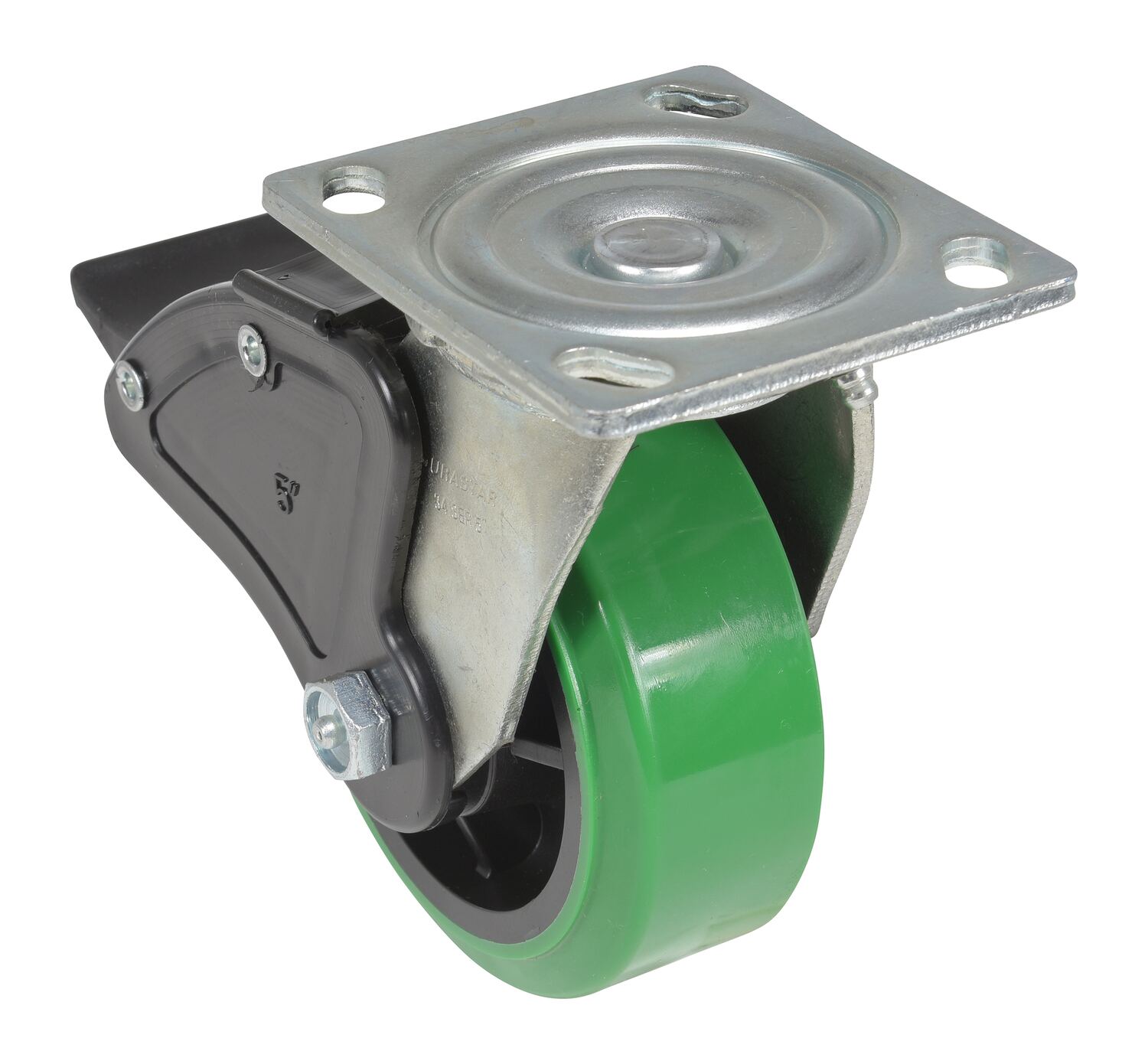

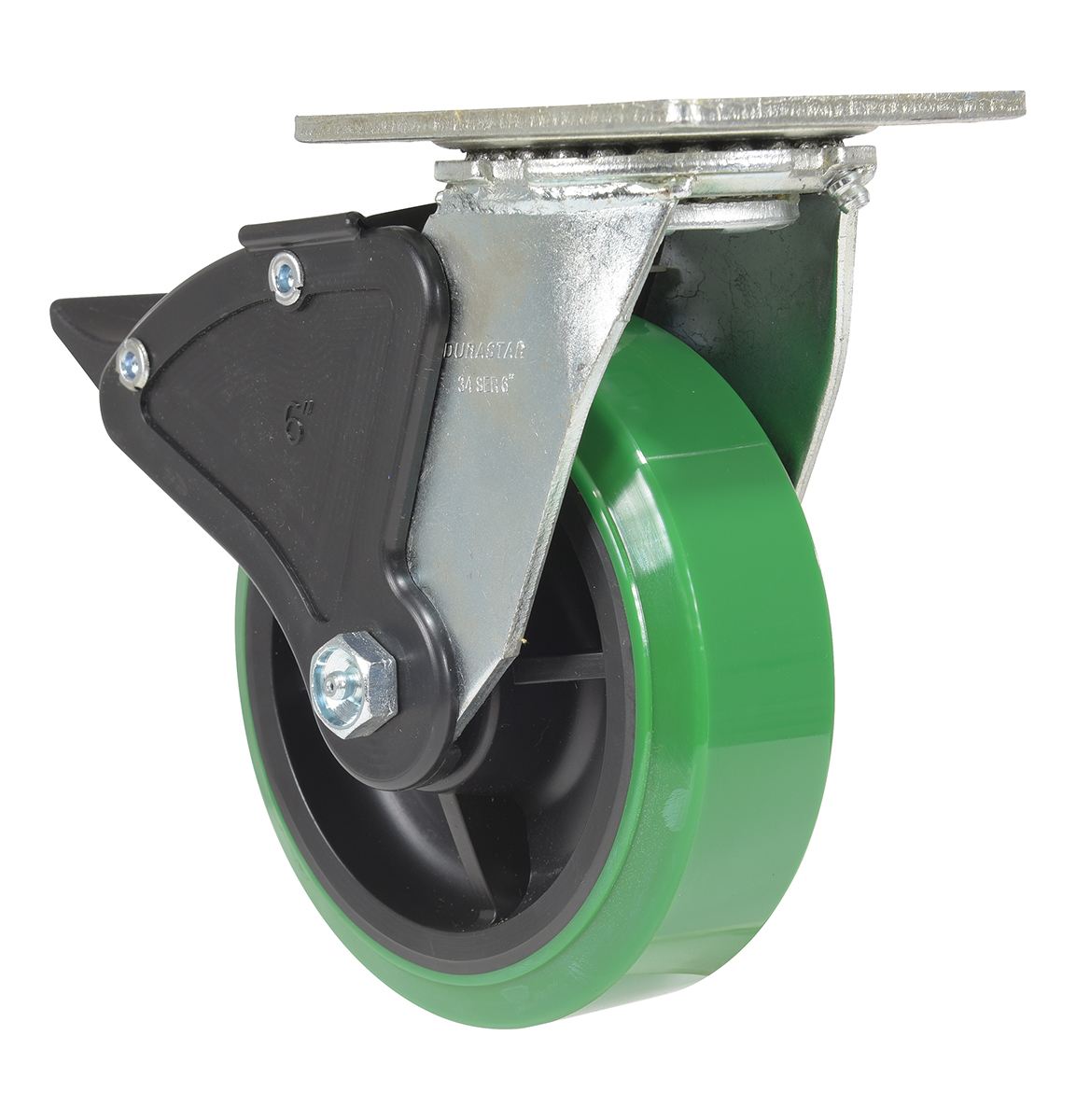

| CST-F34-8X2DT-SWTB1 | | 1 YEAR Limited Warranty | 8 x 2 | Swivel w/Total Brake | 1000 | 9-3/8 | 4 x 4-1/2 | 7 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
