Zero Lift & Tilt Tables

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Zero Lift & Tilt Tables

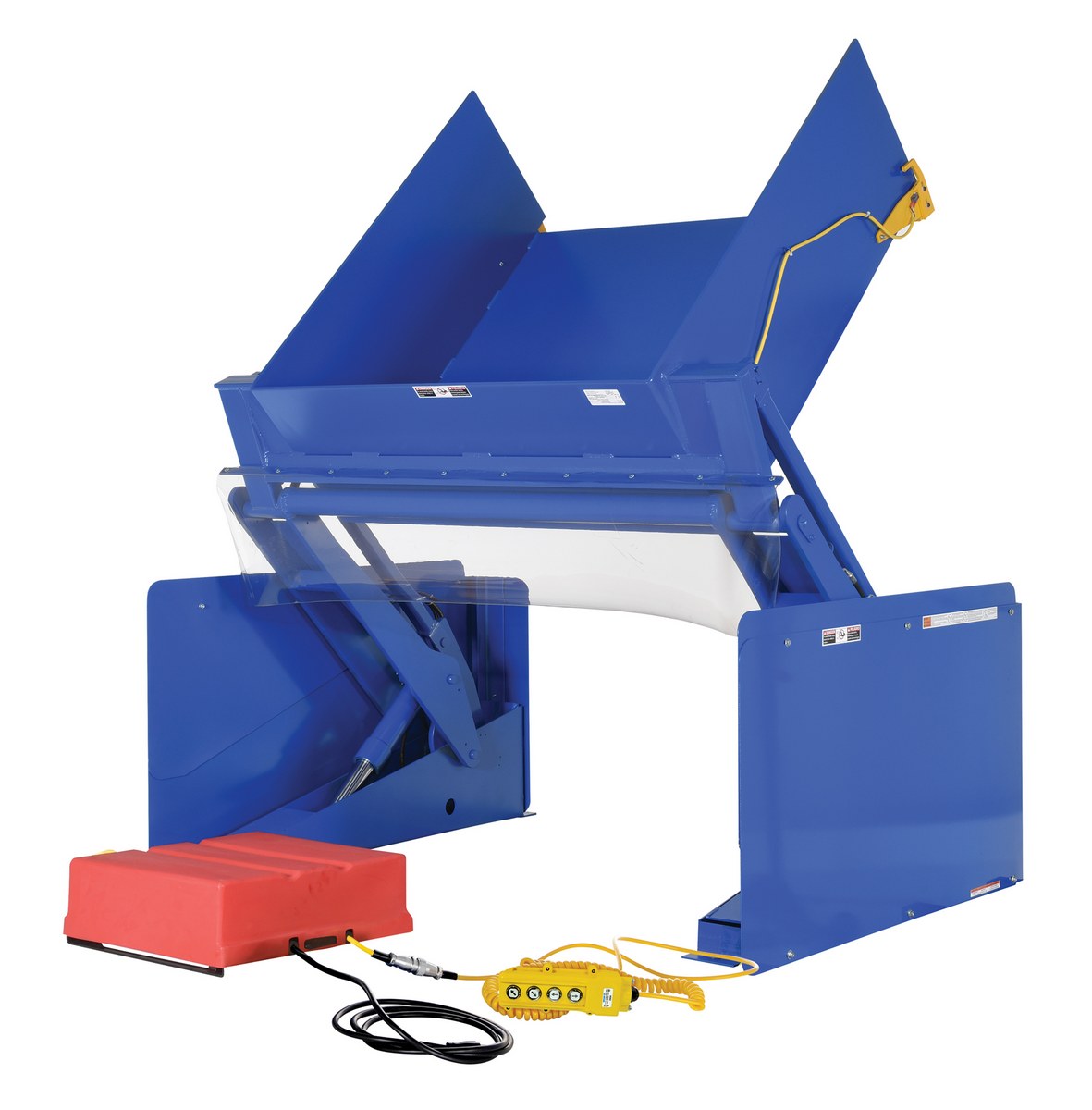

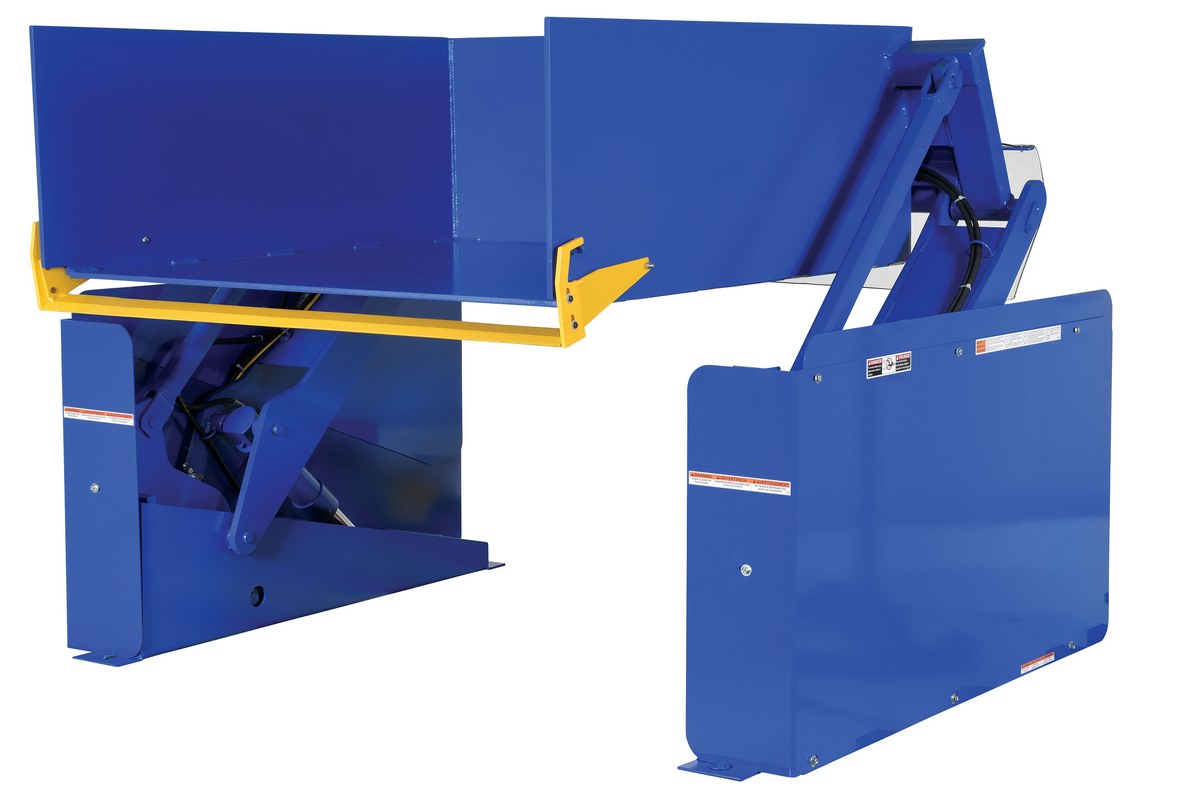

model: ZLTT-5252-2-36

ZLTT-5252-2-36_A.jpg ZLTT-5252-2-36_B.jpg ZLTT-5252-2-36_C.jpg ZLTT-5252-2-36_D.jpg ZLTT-5252-2-36_E.jpg More Images +
Zero Lift & Tilt Tables
SERIES: ZLTT   8Products 3Options
Line-X Finish Ergonomic Options Custom Fabrication

Zero-Height Lift and Tilt Tables for Ergonomic Pallet Loading Workstations

ZLTTZero lift and tilt tables provide an ergonomic material positioning solution for pallets, containers, bins, and work-in-process loads in manufacturing, assembly, packaging, and warehouse applications. The low-profile design allows products to be loaded and unloaded with a standard hand pallet truck, eliminating the need for pit mounting and reducing dependence on fork trucks.

Separate Lift and Tilt Control

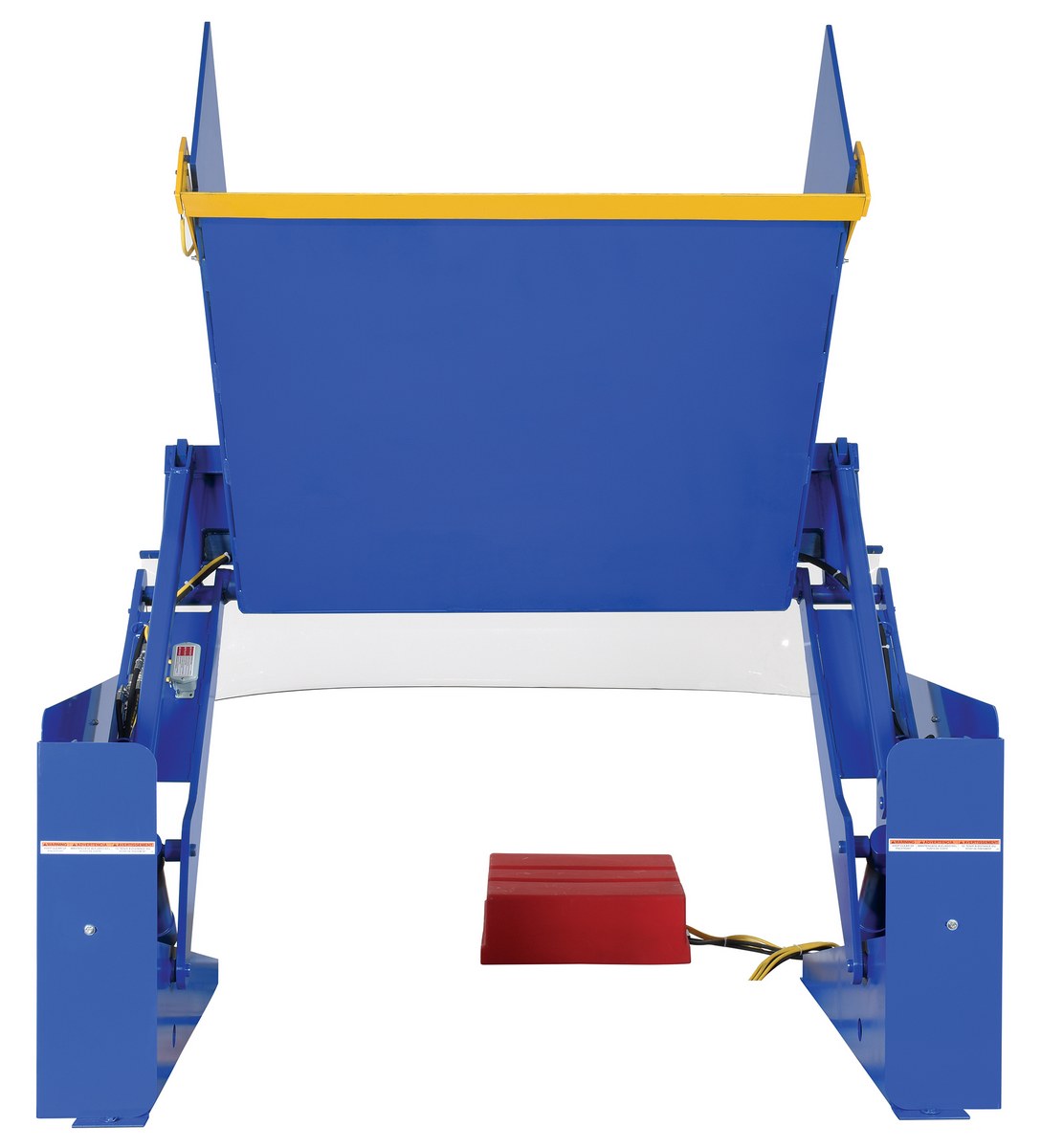

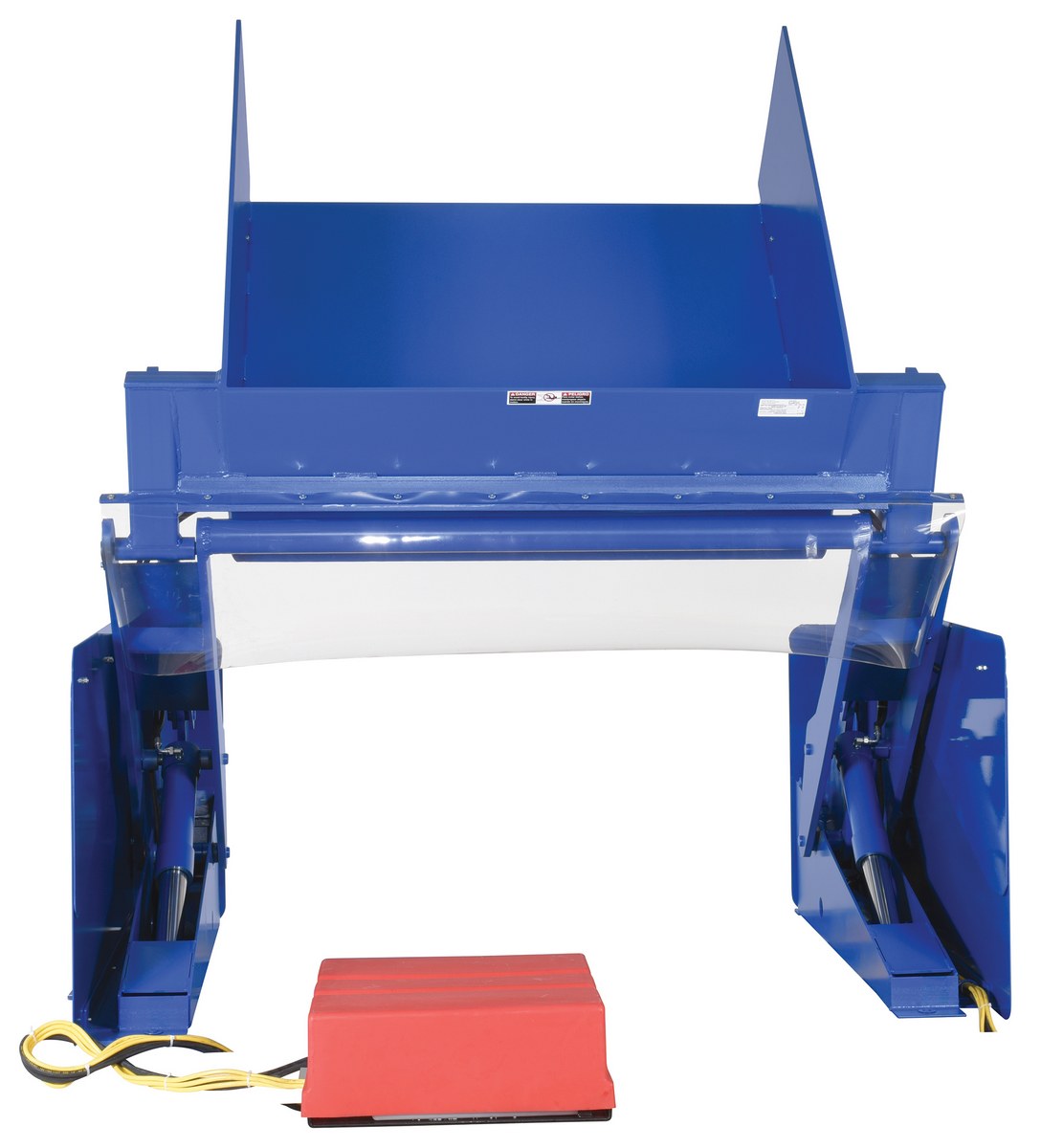

Lift and tilt functions are controlled independently, allowing operators to raise the load to a proper working height and tilt it to a precise access angle. The platform tilts up to 45 degrees, helping reduce bending, reaching, and strain during repetitive loading, unloading, picking, and assembly tasks.

Capacities, Platform Sizes, and Heights

This family includes 2,000 lb. and 4,000 lb. capacity models with platform sizes from 44 inch x 51-1/2 inch to 52 inch x 71-1/2 inch. Raised level heights include 36 inch and 48 inch configurations, giving facilities options for different pallet sizes, workstation layouts, and operator access needs.

Power Unit and Control Options

A remote power unit with hand-held push button control is standard, and the steel frame includes safety shrouding to cover pinch points. Available options include a foot control, hand control pedestal, radio remote control, and additional hydraulic hose lengths for flexible workstation installation.

Zero Lift & Tilt Tables

model: ZLTT-5252-2-36

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
ZLTT-4452-2-36
ZLTT-4452-4-36
ZLTT-4472-2-48
ZLTT-4472-4-48
ZLTT-5252-2-36
ZLTT-5252-4-36
ZLTT-5272-2-48
ZLTT-5272-4-48
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
Model Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-4PB Radio Remote Control 4-Button System (Lift and Tilt Circuit) 1
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
ZLTT, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

8
ZLTT-4452-2-36
Open Drawing
ZLTT-4452-4-36
Open Drawing
ZLTT-4472-2-48
Open Drawing
ZLTT-4472-4-48
Open Drawing
ZLTT-5252-2-36
Open Drawing
ZLTT-5252-4-36
Open Drawing
ZLTT-5272-2-48
Open Drawing
ZLTT-5272-4-48
Open Drawing

Testing Certificates

8
ZLTT-4452-2-36
Open Certificate
ZLTT-4452-4-36
Open Certificate
ZLTT-4472-2-48
Open Certificate
ZLTT-4472-4-48
Open Certificate
ZLTT-5252-2-36
Open Certificate
ZLTT-5252-4-36
Open Certificate
ZLTT-5272-2-48
Open Certificate
ZLTT-5272-4-48
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

8
ZLTT-4452-2-36
ZLTT
Open Label PDF
ZLTT-4452-4-36
ZLTT
Open Label PDF
ZLTT-4472-2-48
ZLTT
Open Label PDF
ZLTT-4472-4-48
ZLTT
Open Label PDF
ZLTT-5252-2-36
ZLTT
Open Label PDF
ZLTT-5252-4-36
ZLTT
Open Label PDF
ZLTT-5272-2-48
ZLTT
Open Label PDF
ZLTT-5272-4-48
ZLTT
Open Label PDF

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Lift & Tilt Tables





Zero Lift & Tilt Tables




Zero-Height Lift and Tilt Tables for Ergonomic Pallet Loading Workstations

ZLTTZero lift and tilt tables provide an ergonomic material positioning solution for pallets, containers, bins, and work-in-process loads in manufacturing, assembly, packaging, and warehouse applications. The low-profile design allows products to be loaded and unloaded with a standard hand pallet truck, eliminating the need for pit mounting and reducing dependence on fork trucks.

Separate Lift and Tilt Control

Lift and tilt functions are controlled independently, allowing operators to raise the load to a proper working height and tilt it to a precise access angle. The platform tilts up to 45 degrees, helping reduce bending, reaching, and strain during repetitive loading, unloading, picking, and assembly tasks.

Capacities, Platform Sizes, and Heights

This family includes 2,000 lb. and 4,000 lb. capacity models with platform sizes from 44 inch x 51-1/2 inch to 52 inch x 71-1/2 inch. Raised level heights include 36 inch and 48 inch configurations, giving facilities options for different pallet sizes, workstation layouts, and operator access needs.

Power Unit and Control Options

A remote power unit with hand-held push button control is standard, and the steel frame includes safety shrouding to cover pinch points. Available options include a foot control, hand control pedestal, radio remote control, and additional hydraulic hose lengths for flexible workstation installation.


Model # Description Attributes Net Wt.
(lbs)

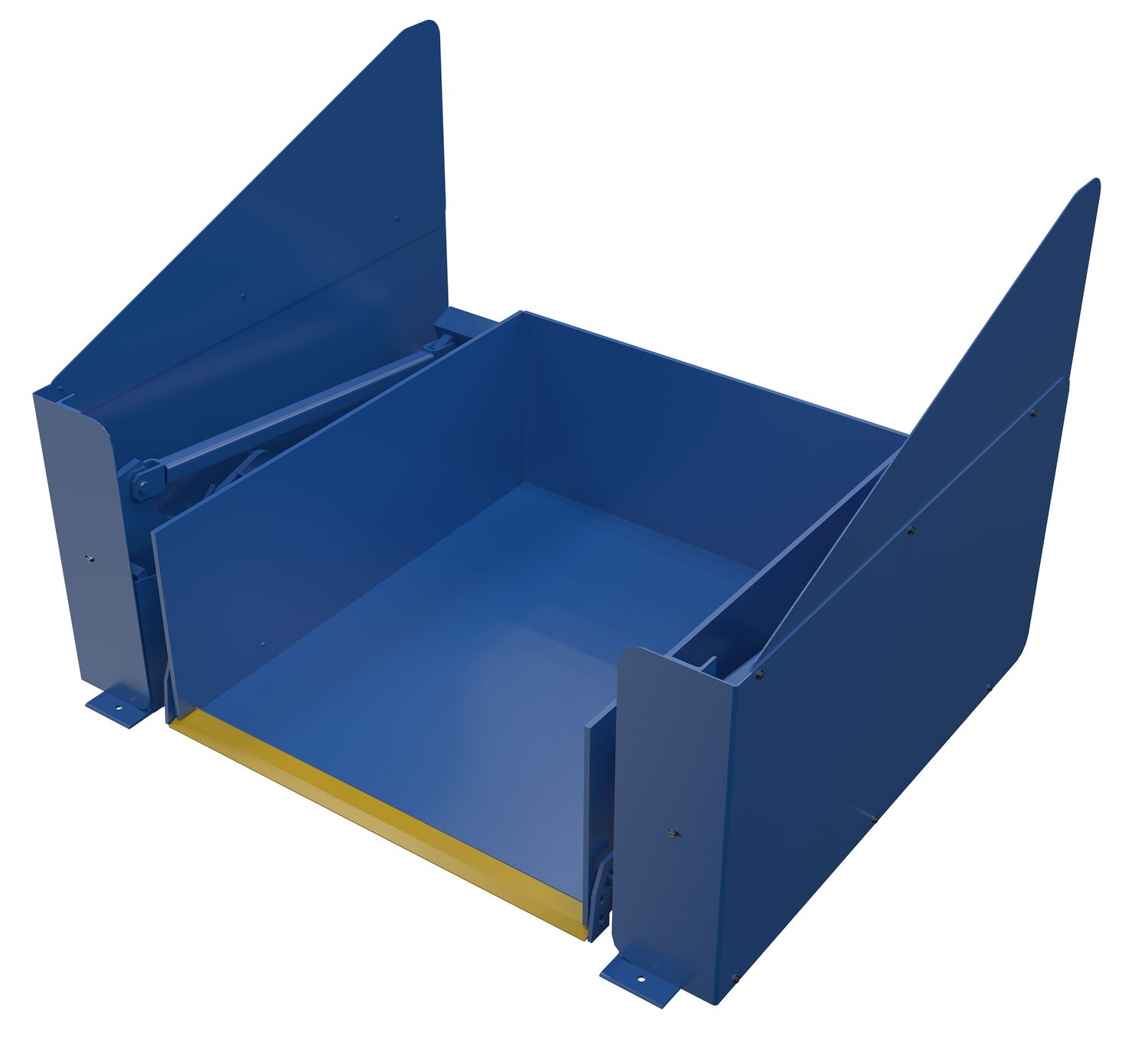

ZLTT-4452-2-36 ZLTT-4452-2-36Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Raised Height (in.): 36		2121

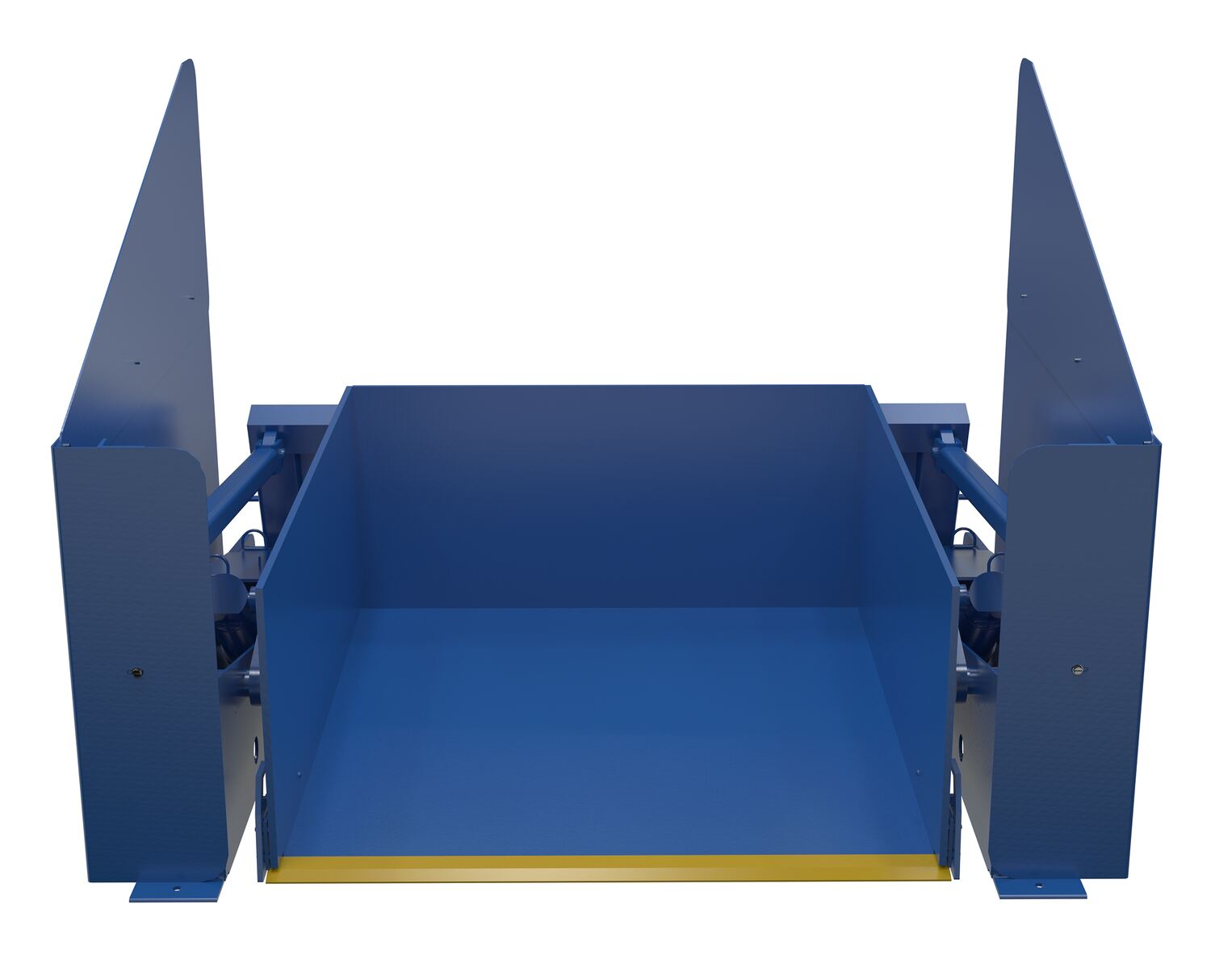

ZLTT-4452-4-36 ZLTT-4452-4-36Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2230

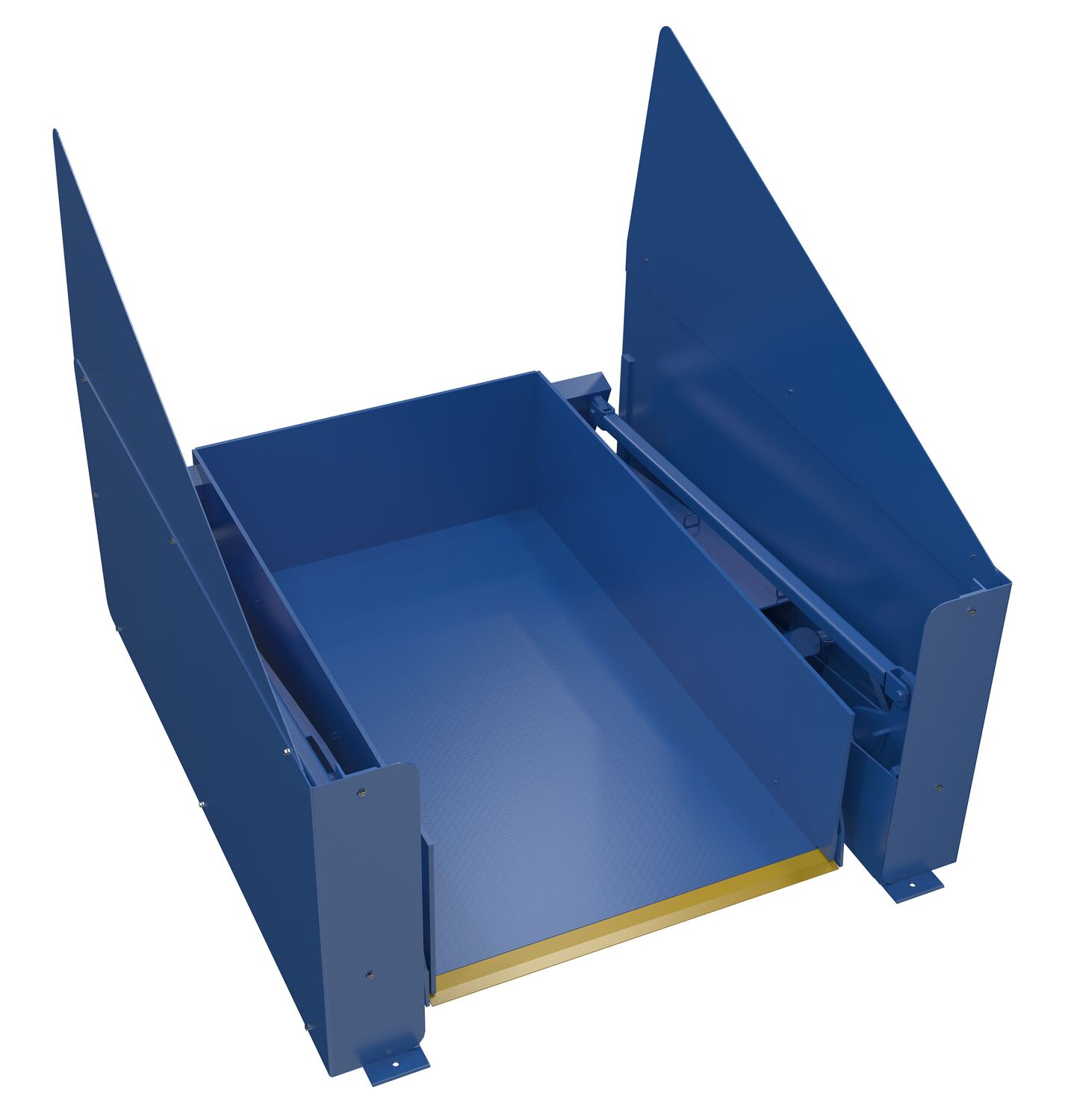

ZLTT-4472-2-48 ZLTT-4472-2-48Steel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		2950
ZLTT-4472-4-48 ZLTT-4472-4-48Steel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3013

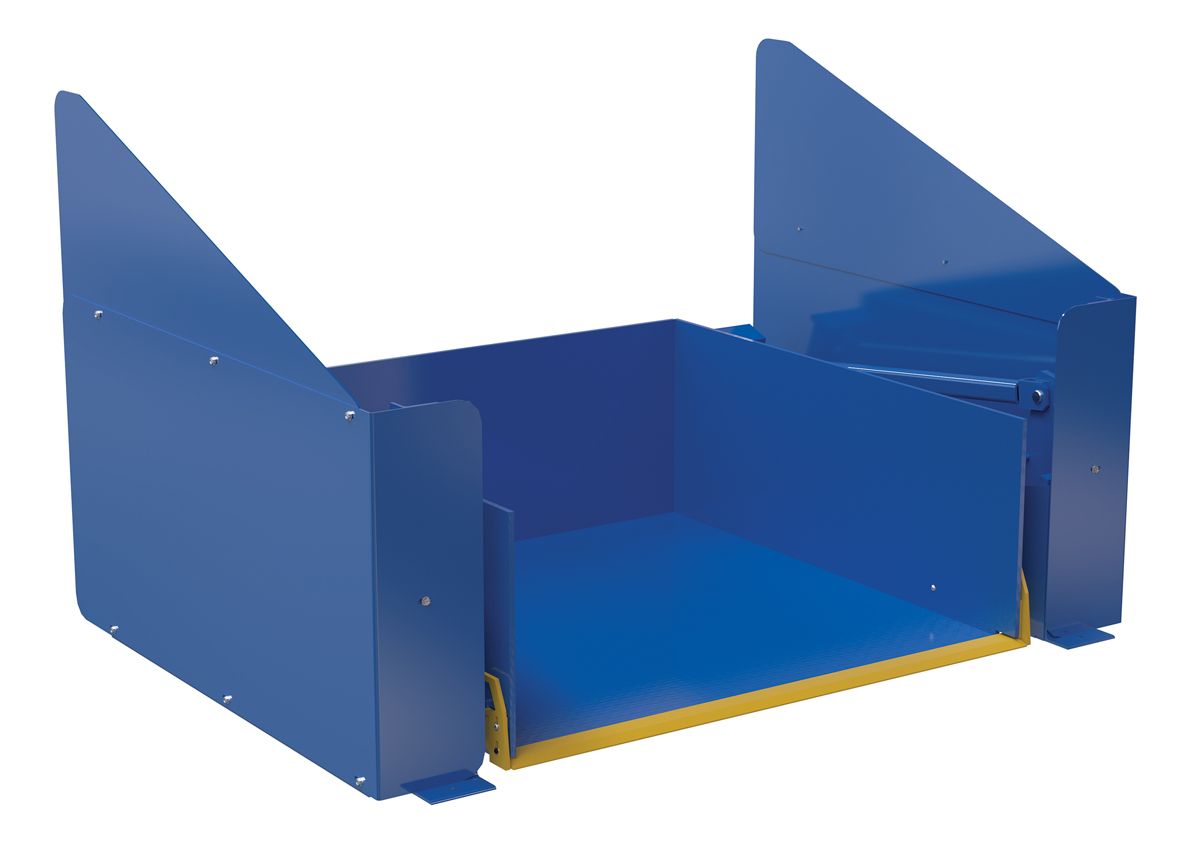

ZLTT-5252-2-36 ZLTT-5252-2-36Steel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 36		2337
ZLTT-5252-4-36 ZLTT-5252-4-36Steel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2322

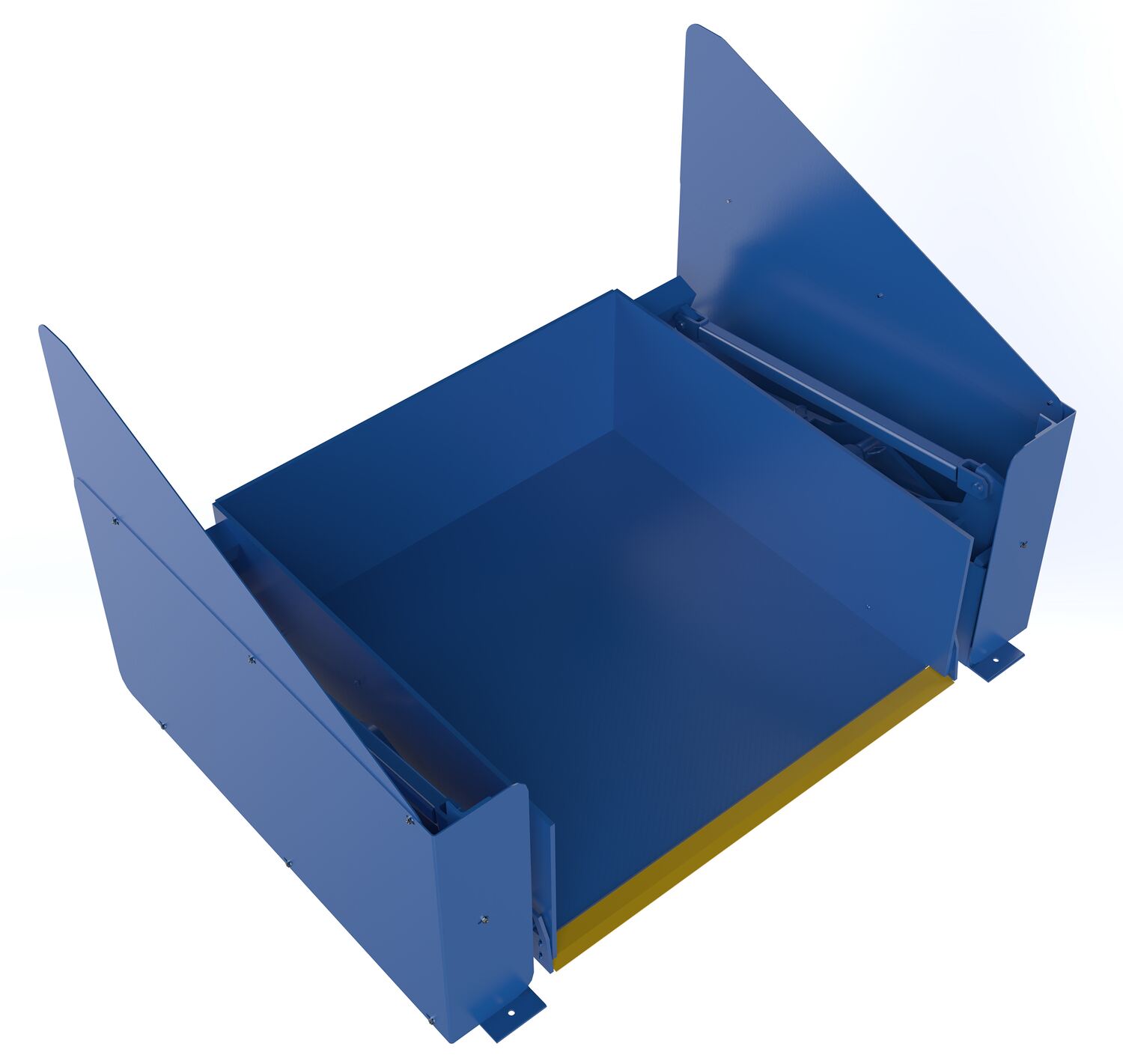

ZLTT-5272-2-48 ZLTT-5272-2-48Steel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		3095

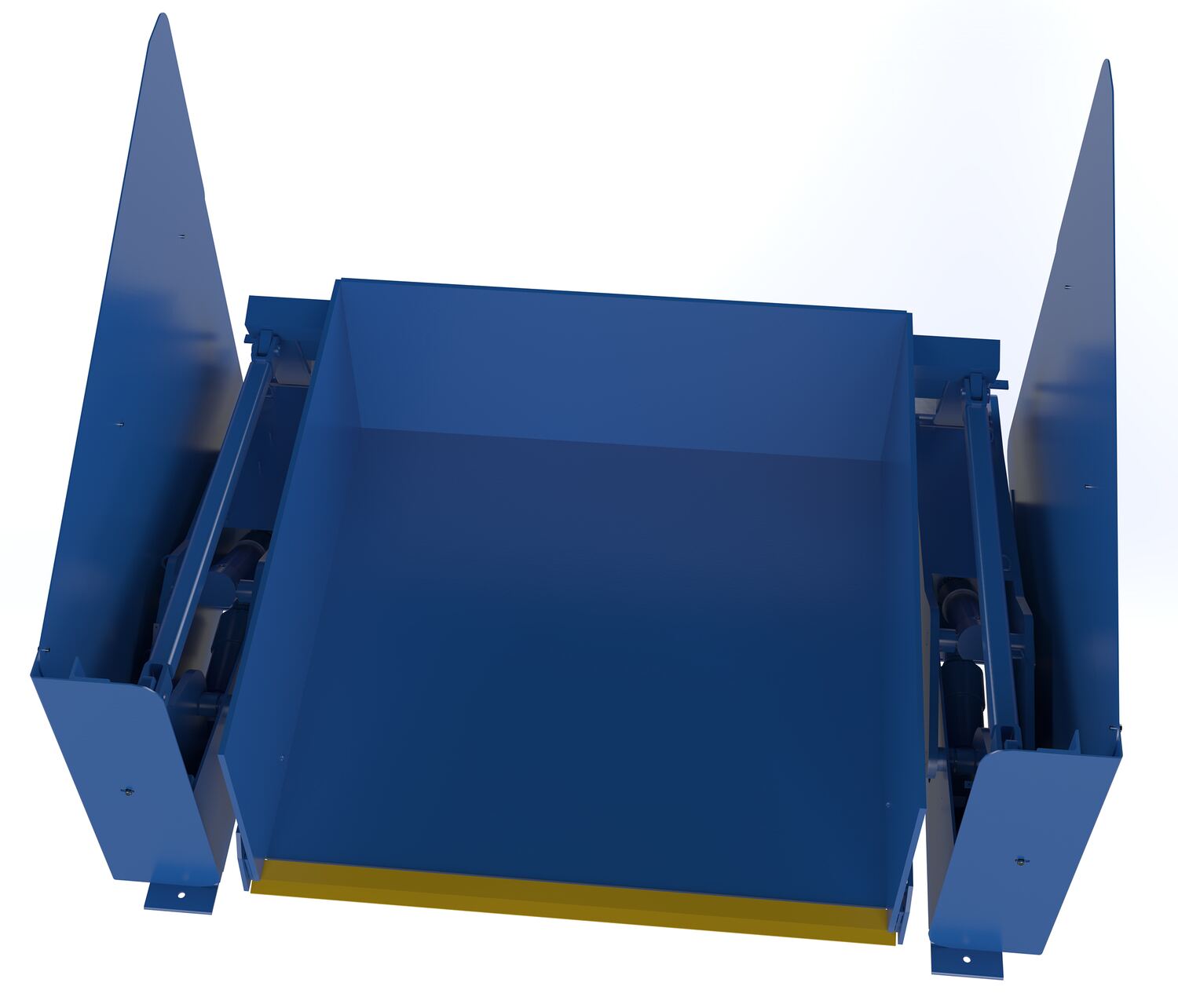

ZLTT-5272-4-48 ZLTT-5272-4-48Steel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3074

Options


Model Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-4PB Radio Remote Control 4-Button System (Lift and Tilt Circuit) 1
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
