Powered Stretch Wrap MachinesThe Powered Stretch Wrap Machine increases productivity in the shipping department or at the end of a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12) and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, simply depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.
The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Optional Approach Ramp allows the operator to load and unload the machine with a pallet truck.
Approach ramps and scales make a great addition to stretch wrap machines. The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
- Stretch wrap design increases shipping productivity
- Simple depress foot pedal powers turntable
- Manual mast allows user to wrap the needed areas
- Steel construction provides a long lasting rugged use
Additional Models In This Family
SWA-COUNT
SWA-50-R-4860-SCL
SWA-5070LP-PMO-RF
SWA-5070LP-PMO
SWA-50-R-4860-SCL
SWA-5070LP-PMO-RF
SWA-70-R-4860-SCL
SWA-70-R-4860-SCL
SWA-50-R-4848
SWA-MST-FLR
SWA-70
SWA-70-R-4860-SCL
SWA-50-SCALE
SWA-50-R-4848
SWA-5070LP-PMO
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

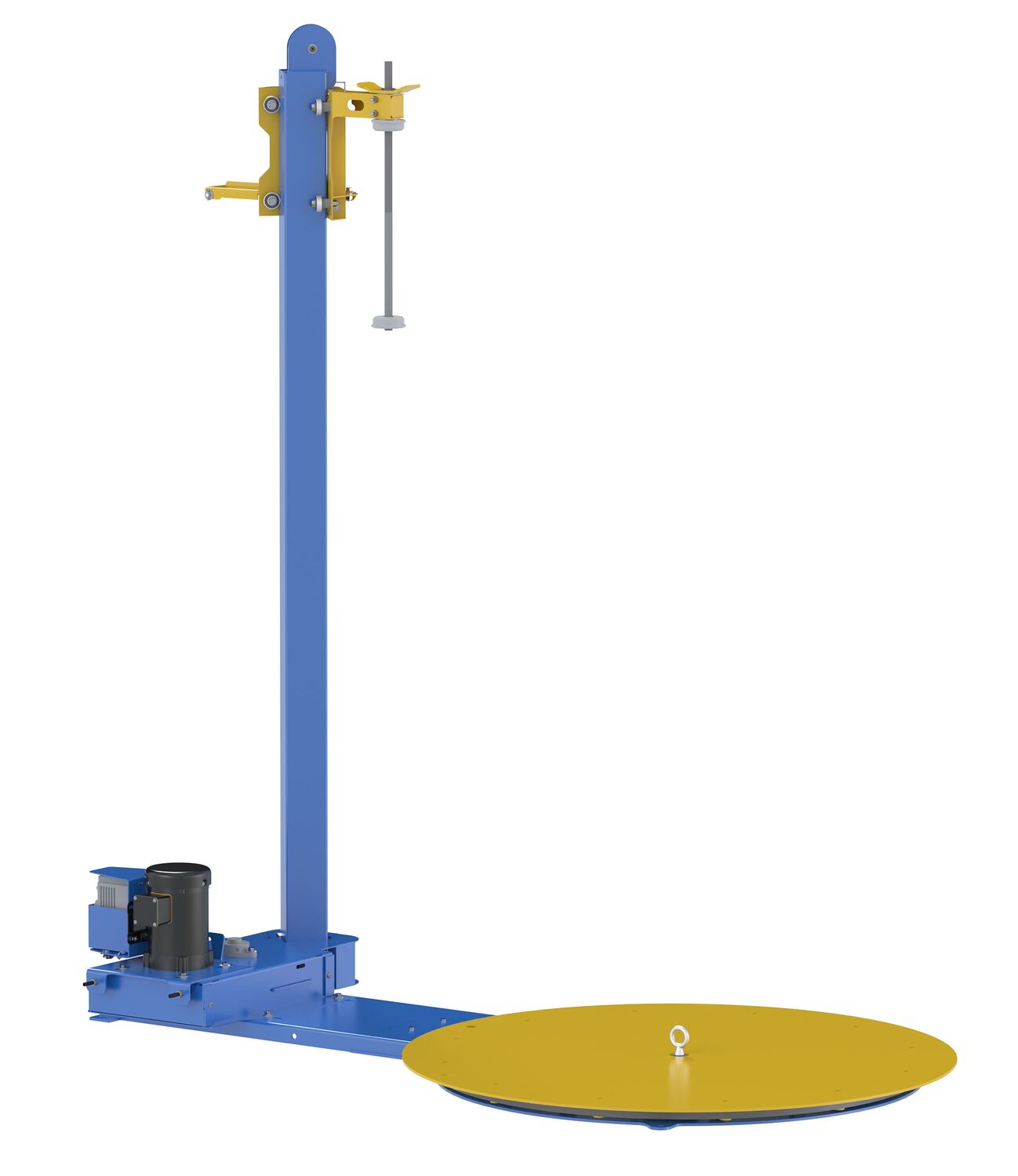

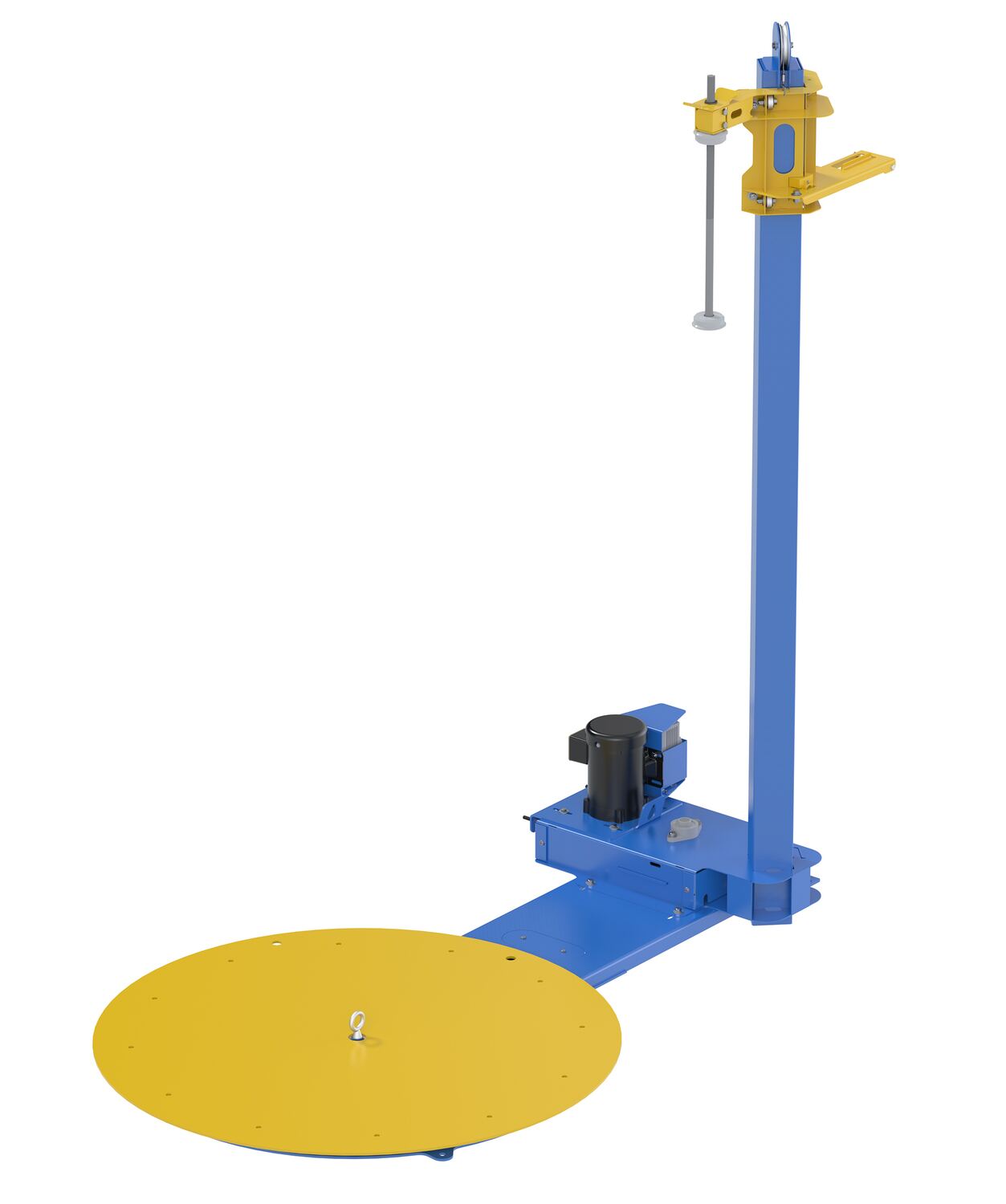

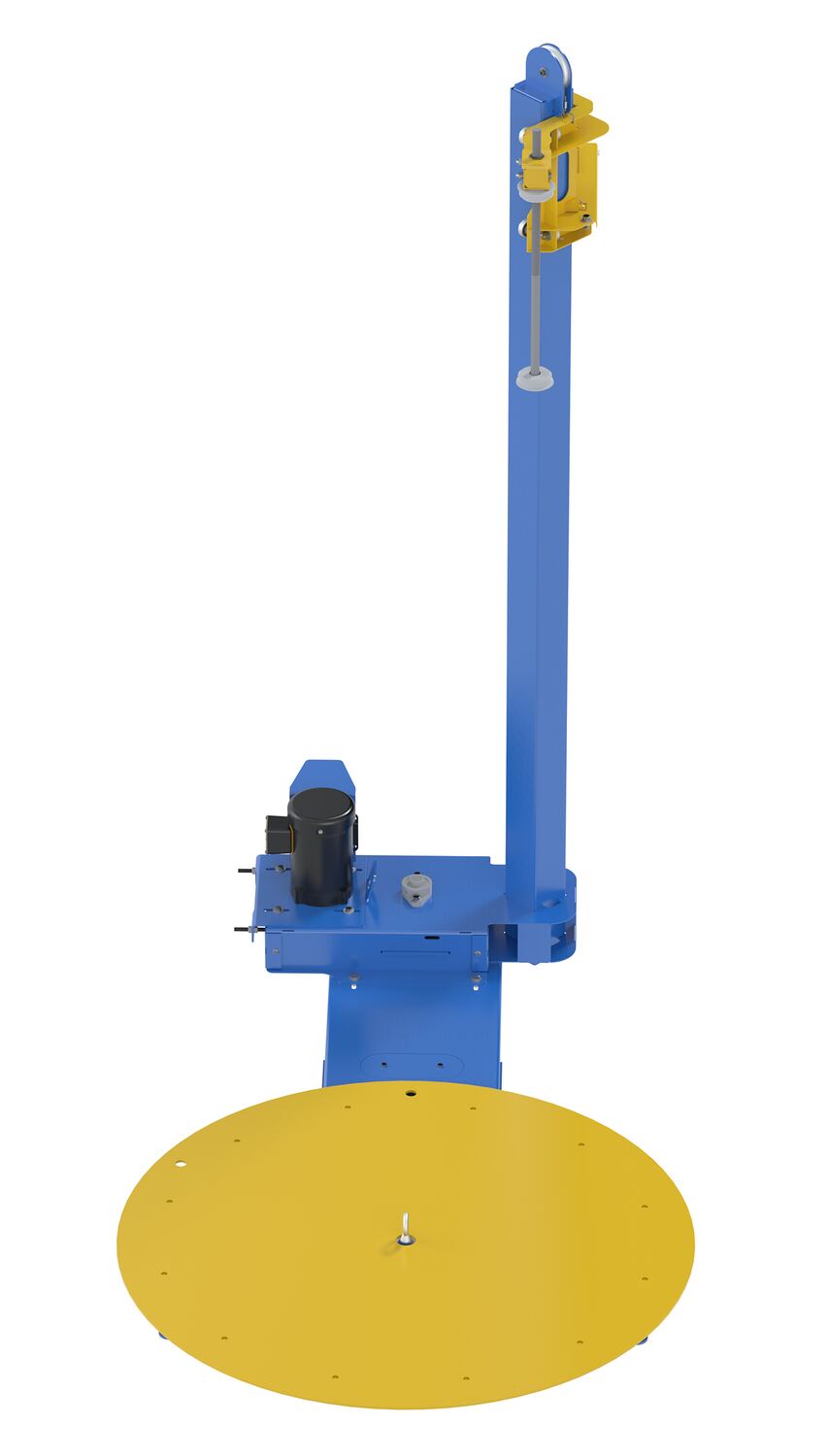

| SWA-50 | POPULAR |  | 1 Year Limited Warranty | Steel Semi-Automatic Stretch Wrap Machine 50 In. Turntable Diameter 4,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 50 | 615 | |

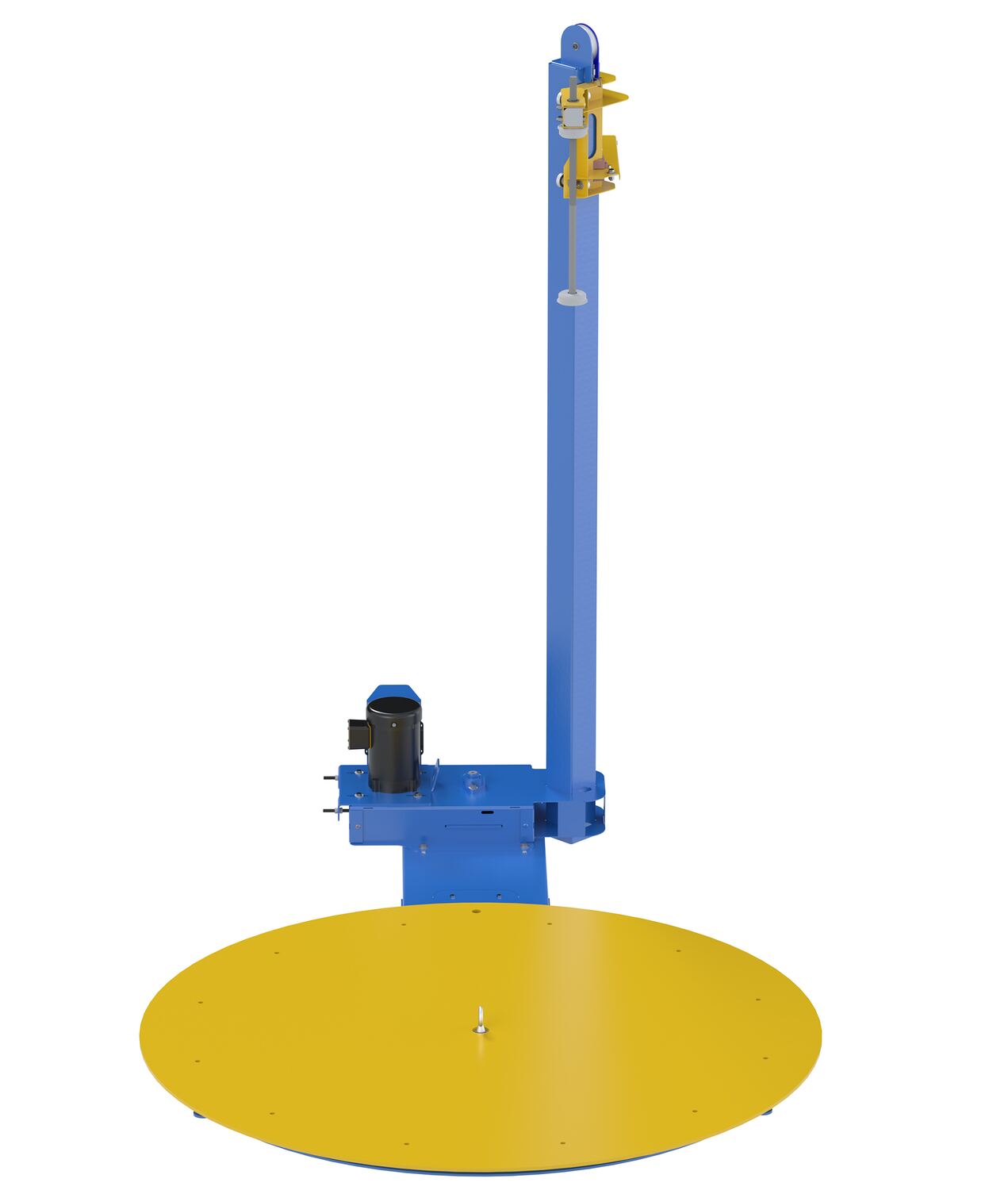

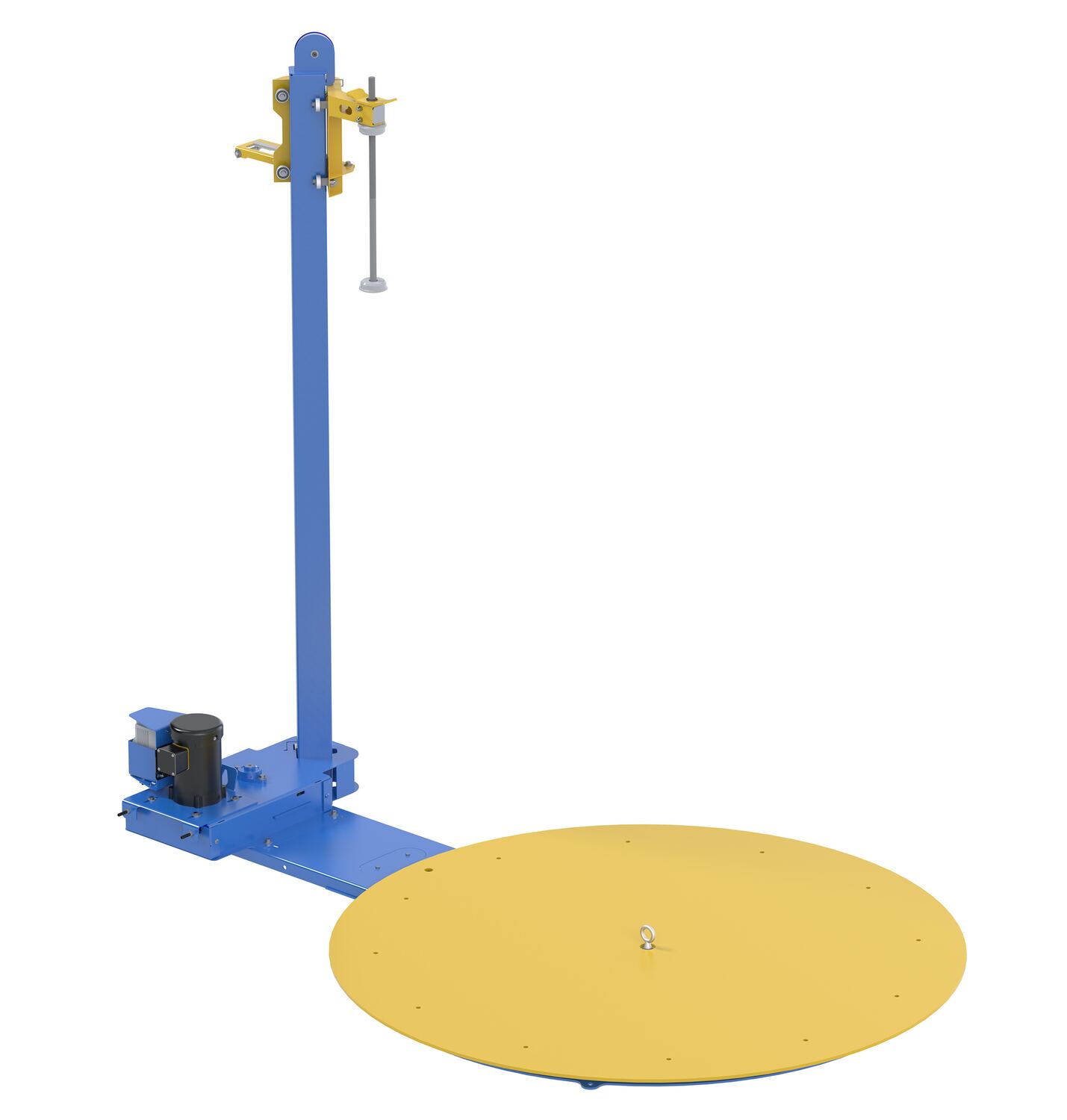

| SWA-70 |  | 1 Year Limited Warranty | Steel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 70 | 985 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
For More Details of the Option Click the Red Model Button
| PMO-VCC-208/230-1 |  | 90 Days Limited Warranty | Factory Installed Voltage Change 208-230 Volt Single Phase For Power Mast Units | DC Voltage: 208/230 Phase: 1 | ||
| PMO-VCC-208/230-3 | | 90 Days Limited Warranty | Factory Installed Voltage Change 208-230 Volt Three Phase For Power Mast Units | DC Voltage: 208/230 Phase: 3 | 455 | |
| PMO-VCC-460-3 | | 90 Days Limited Warranty | Factory Installed Voltage Change 460 Volt Three Phase For Power Mast Units | DC Voltage: 460 Phase: 3 | 455 | |

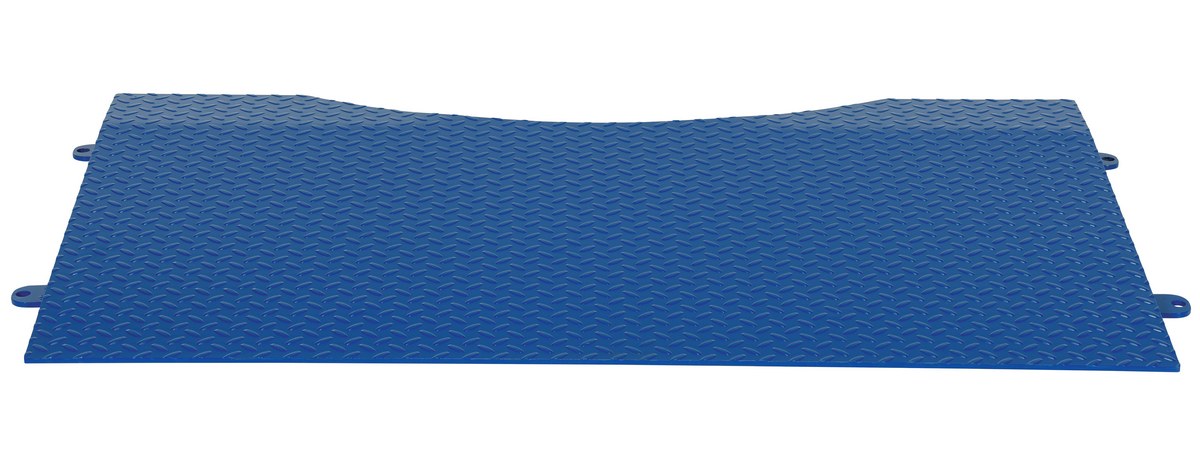

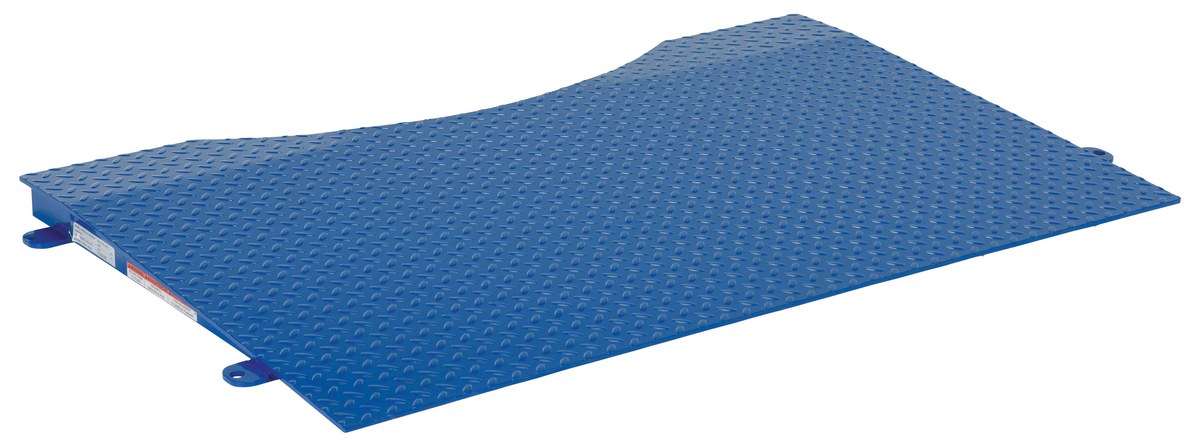

| SWA-50-R-4848 |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-50 | Maximum Capacity (lb.): 4000 Usable Width (in.): 48 | 196 | |

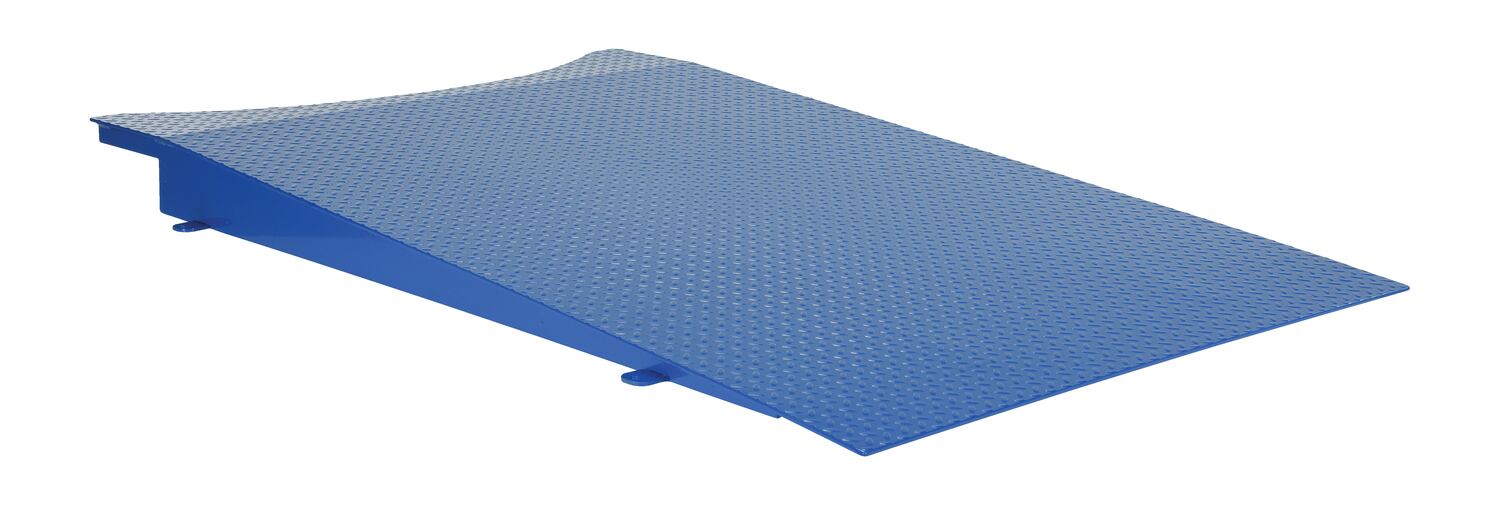

| SWA-50-R-4860-SCL | | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Models SWA-50 + SWA-50-SCALE | Maximum Capacity (lb.): 4000 Usable Width (in.): 48 | 346 | |

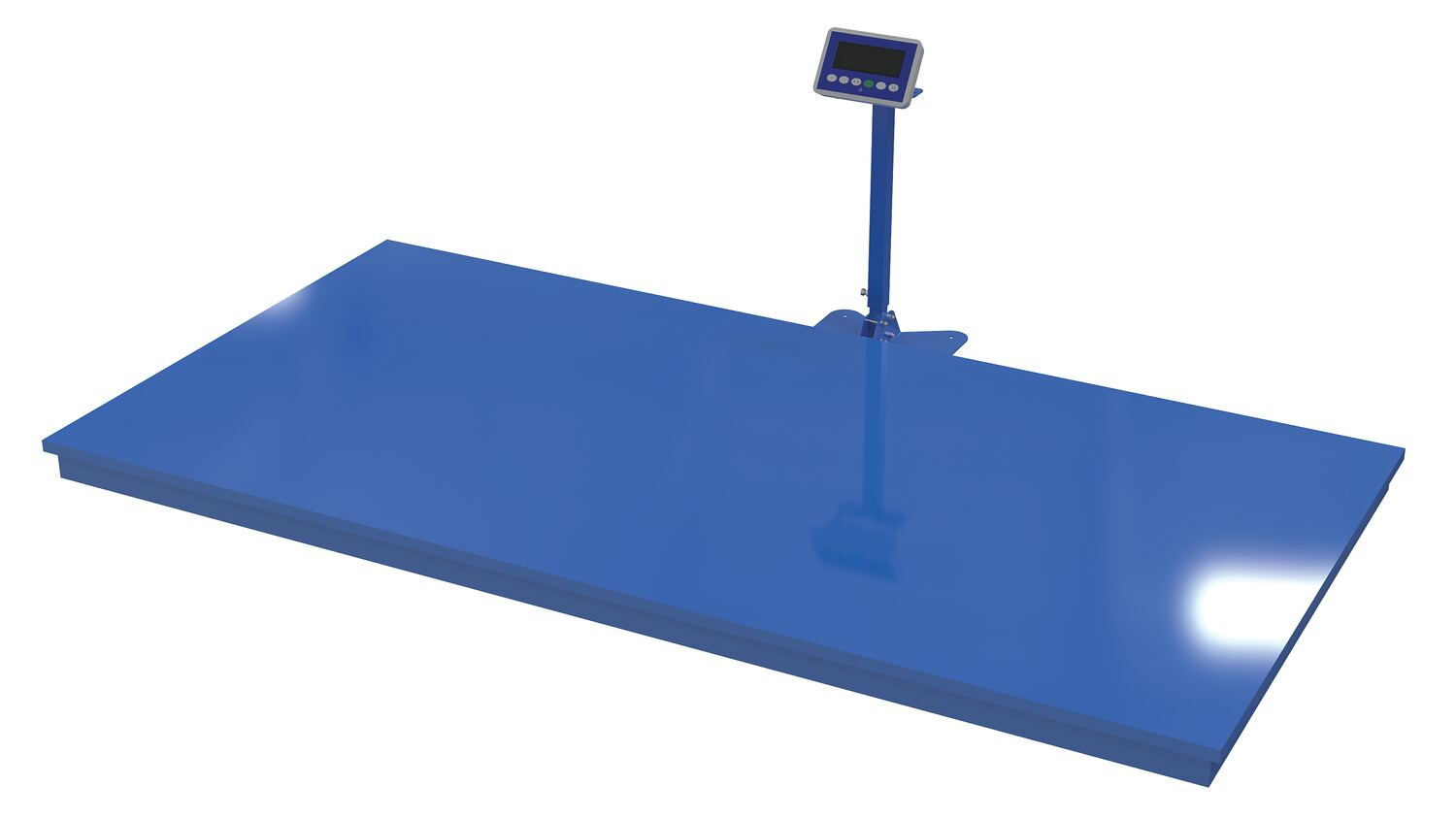

| SWA-50-SCALE | | 1 Year Limited Warranty | Digital Stretch Wrap Scale For Use With SWA-50 | Uniform Capacity (lb.): 5,000 Scale Height (in.): 3-1/2 | 680 | |

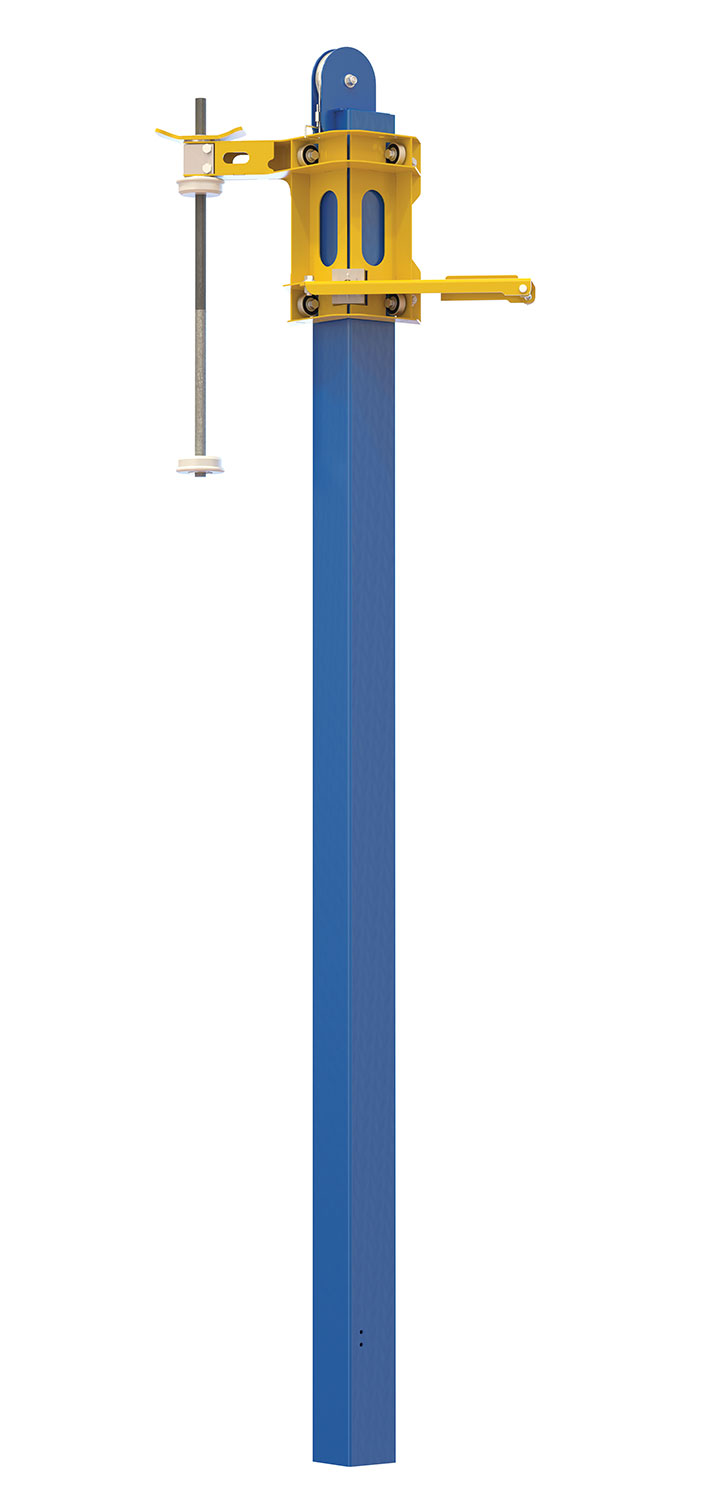

| SWA-5070LP-M-RF |  | 1 Year Limited Warranty | Steel Manual Mast 84 In. Wrap Height Blue / Yellow For Use With Model SWA-50 | Wrap Height (in.): 84 | 153 | |

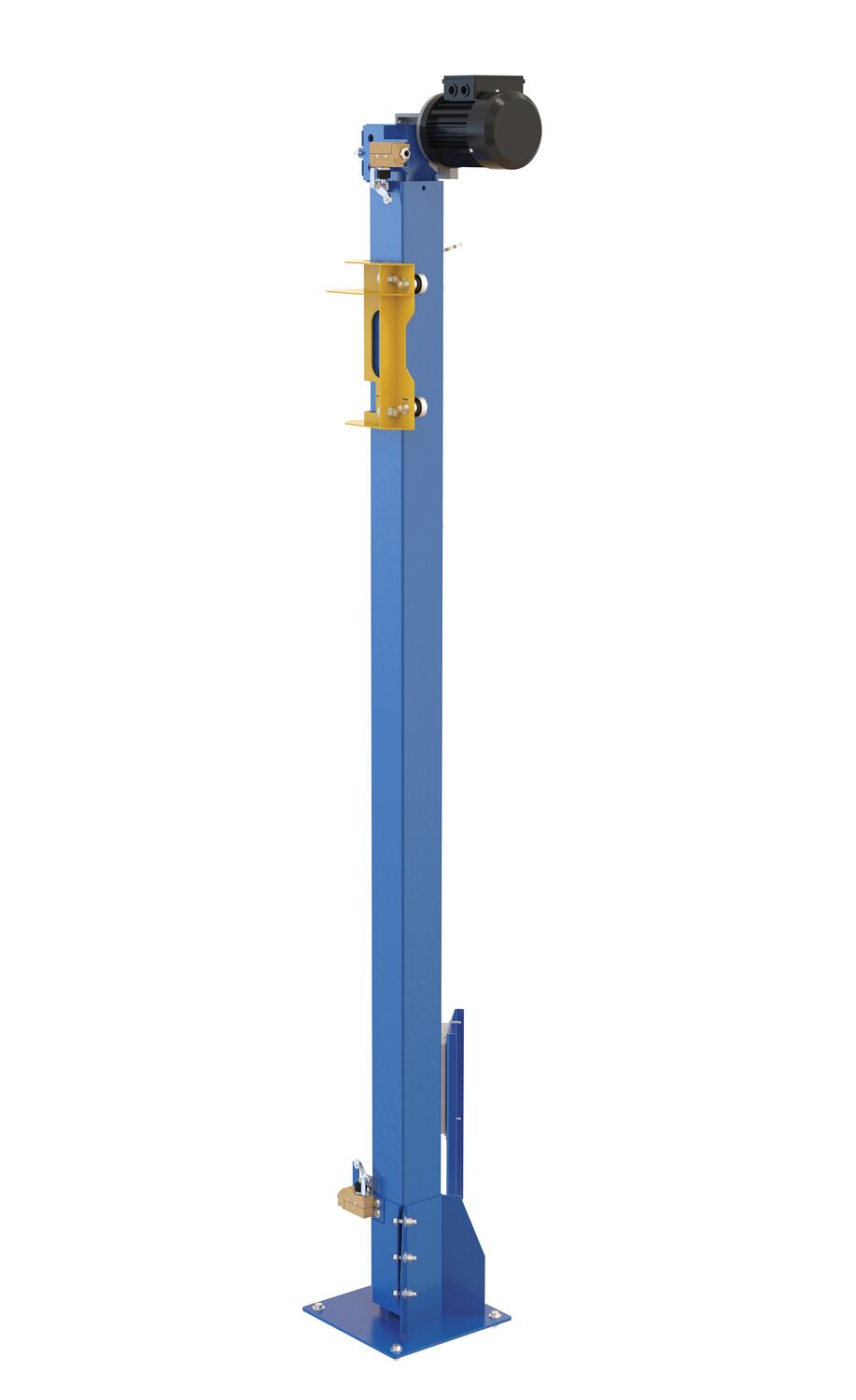

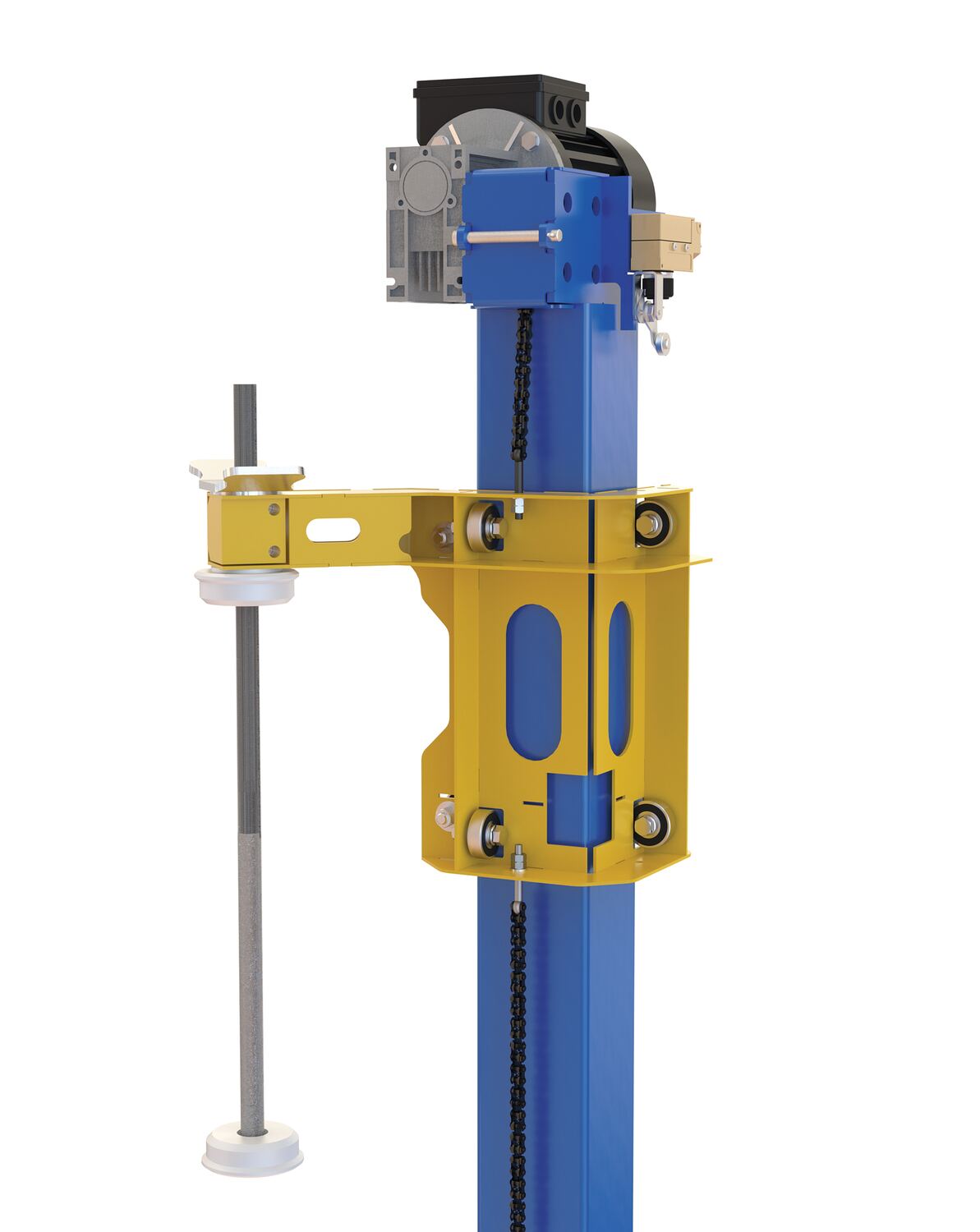

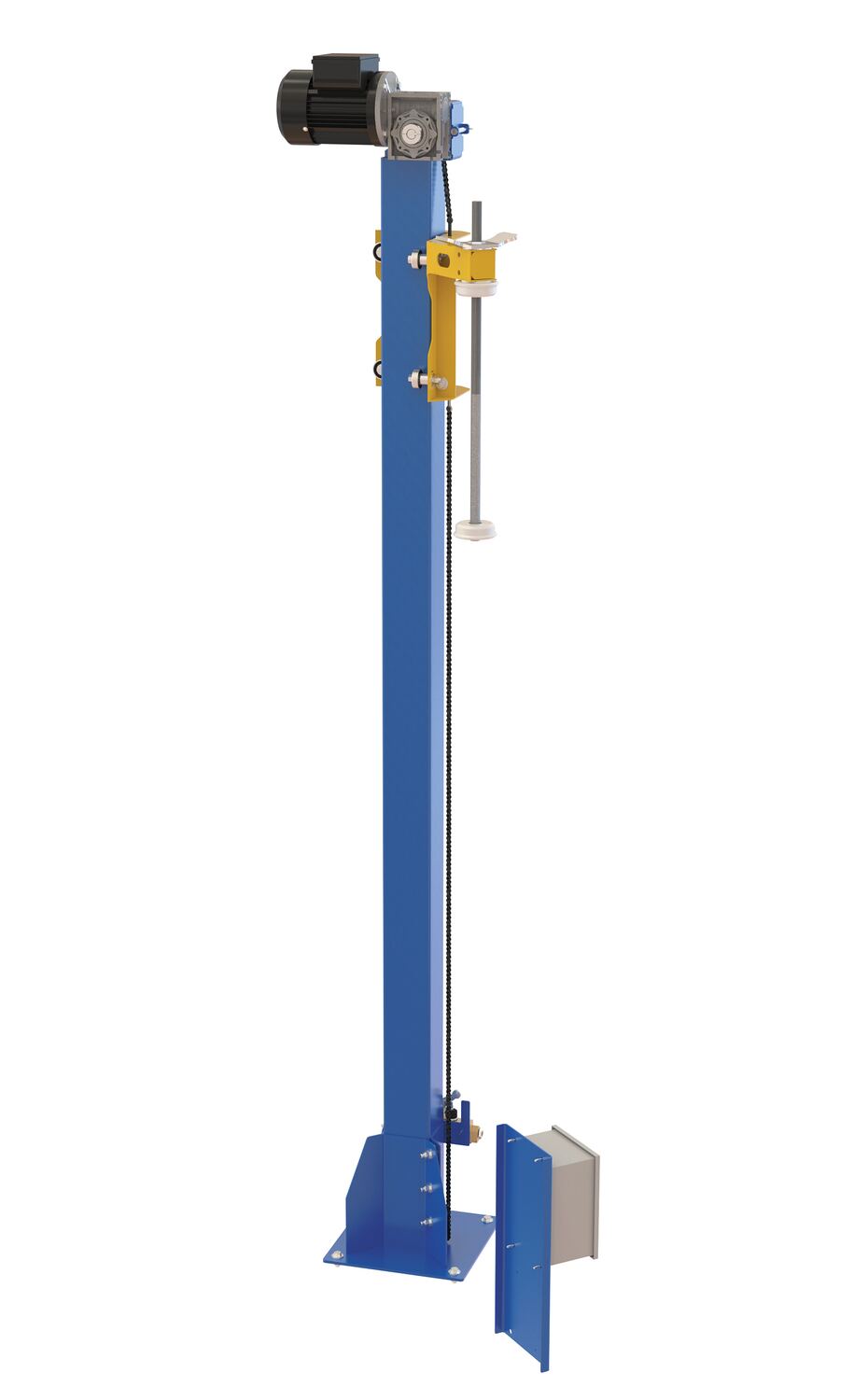

| SWA-5070LP-PMO |  | 1 Year Limited Warranty | Factory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-50 And SWA-70 | Wrap Height (in.): 80-9/16 Motor Voltage/Phase: 115/1 | 183 | |

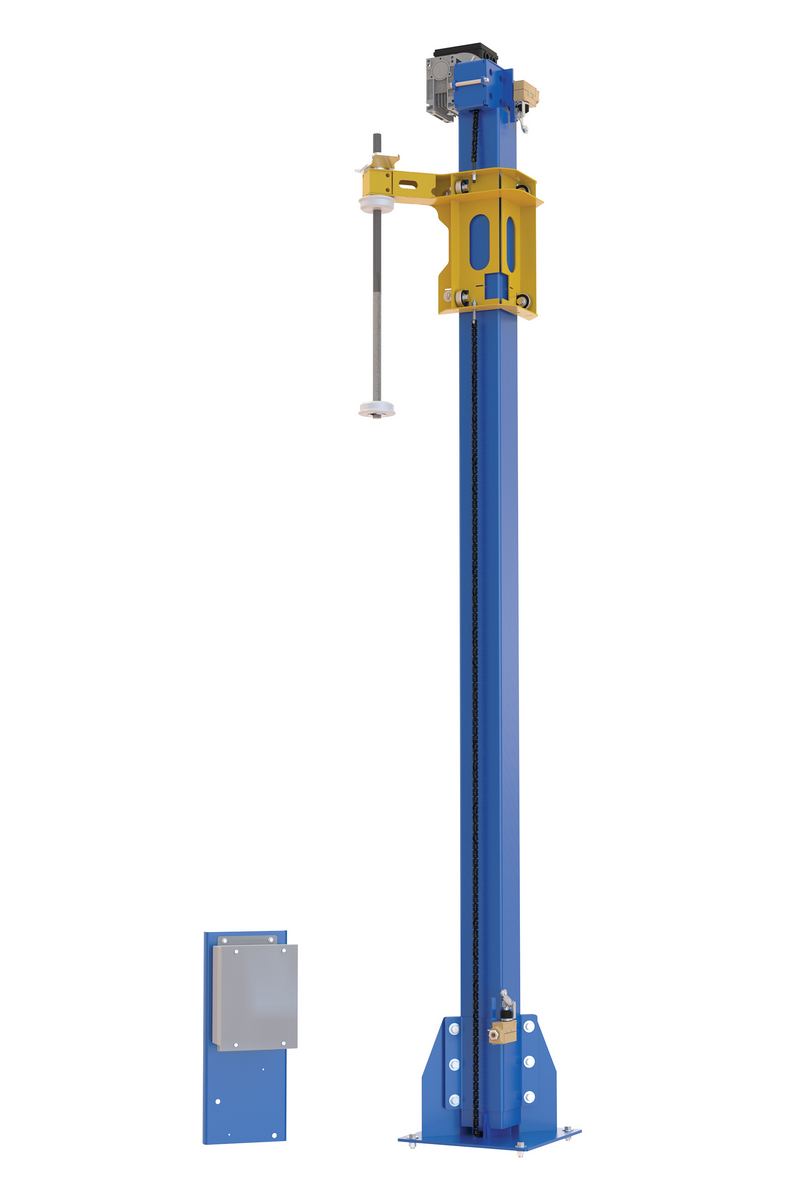

| SWA-5070LP-PMO-RF |  | 1 Year Limited Warranty | Steel Retrofit Power Mast Wrap Machine 80-9/16 In. Wrap Height Blue / Yellow For Use With Model SWA-50 | Wrap Height (in.): 80-9/16 Motor Voltage/Phase: 115/1 | 183 | |

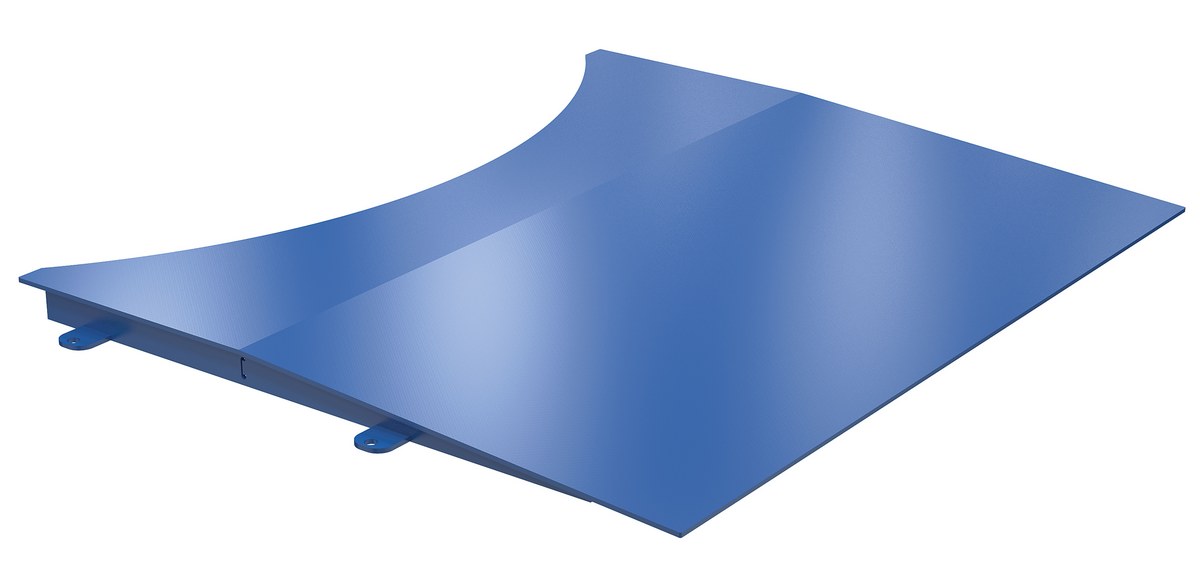

| SWA-70-R-4848 |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-70 | Maximum Capacity (lb.): 4000 Usable Width (in.): 48 | 200 | |

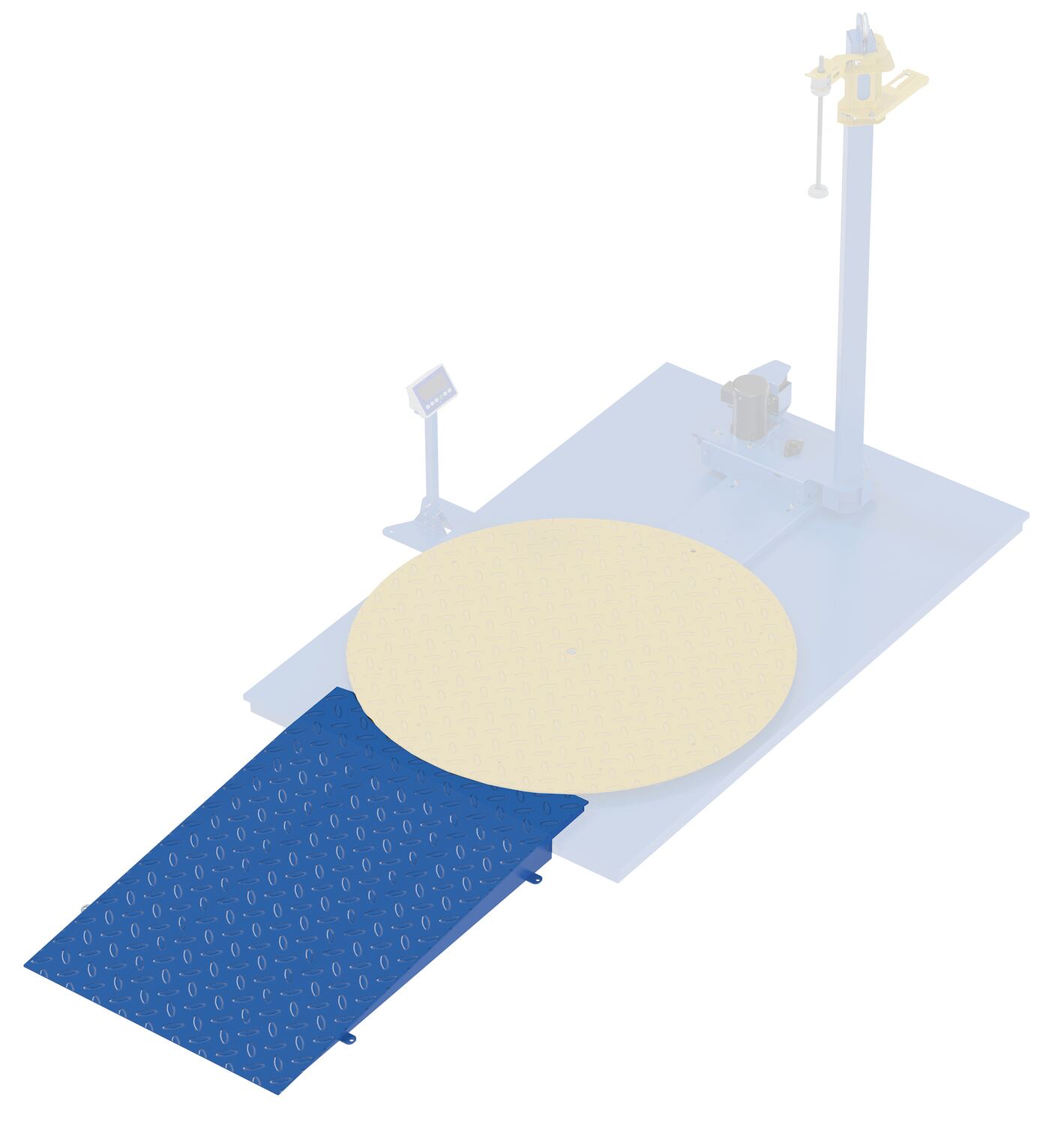

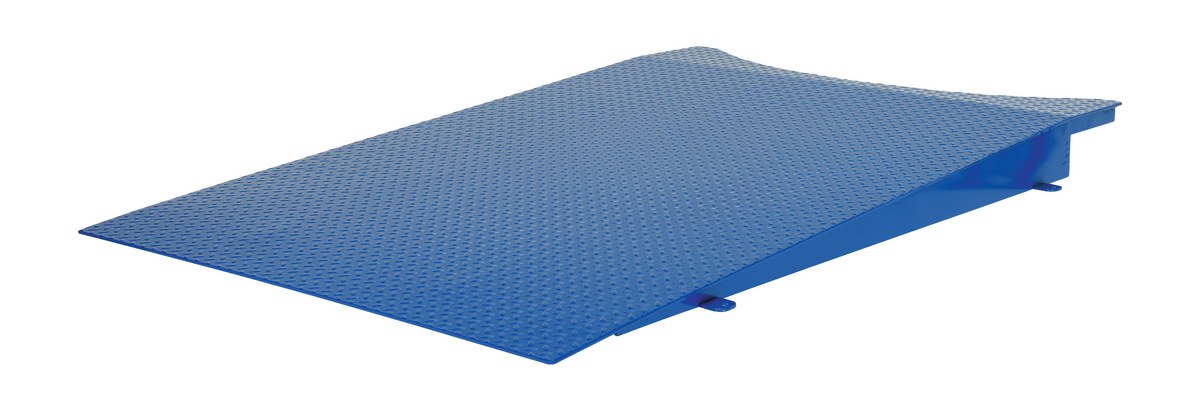

| SWA-70-R-4860-SCL |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Models SWA-70 + SWA-70-Scale | Maximum Capacity (lb.): 4000 Usable Width (in.): 48 | 352 | |

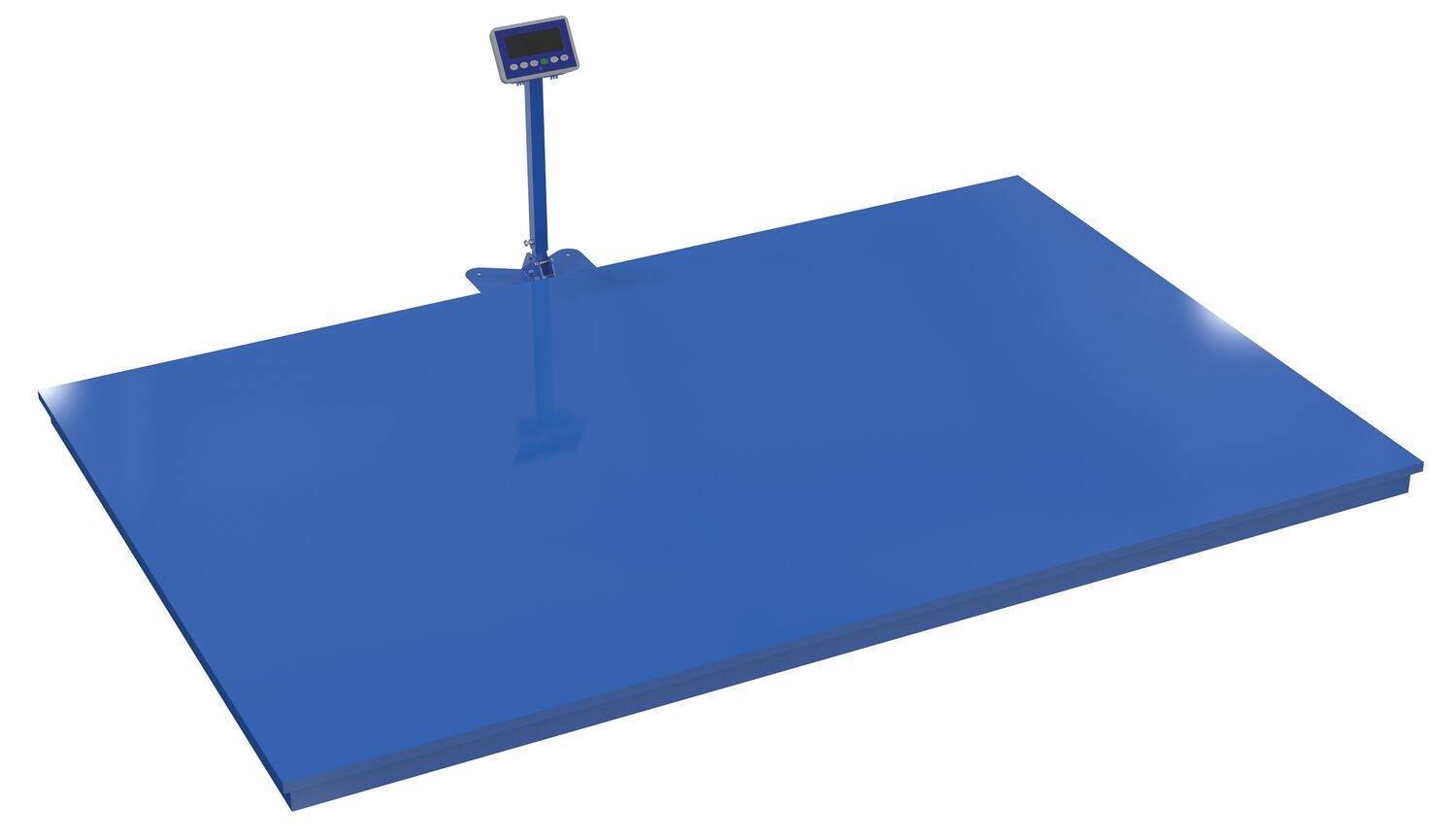

| SWA-70-SCALE |  | 1 Year Limited Warranty | Digital Stretch Wrap Scale For Use With SWA-70 | Uniform Capacity (lb.): 10,000 Scale Height (in.): 3-1/2 | 884 | |

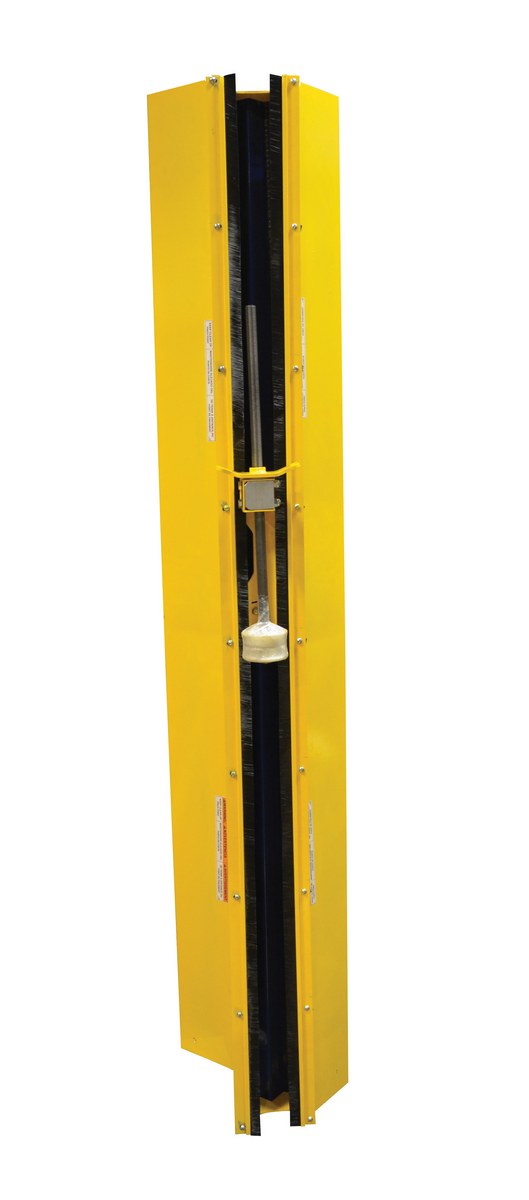

| SWA-CG |  | 90 Days Limited Warranty | Steel Stretch Wrap Power Mast Chain Guard Yellow | - | 110 | |

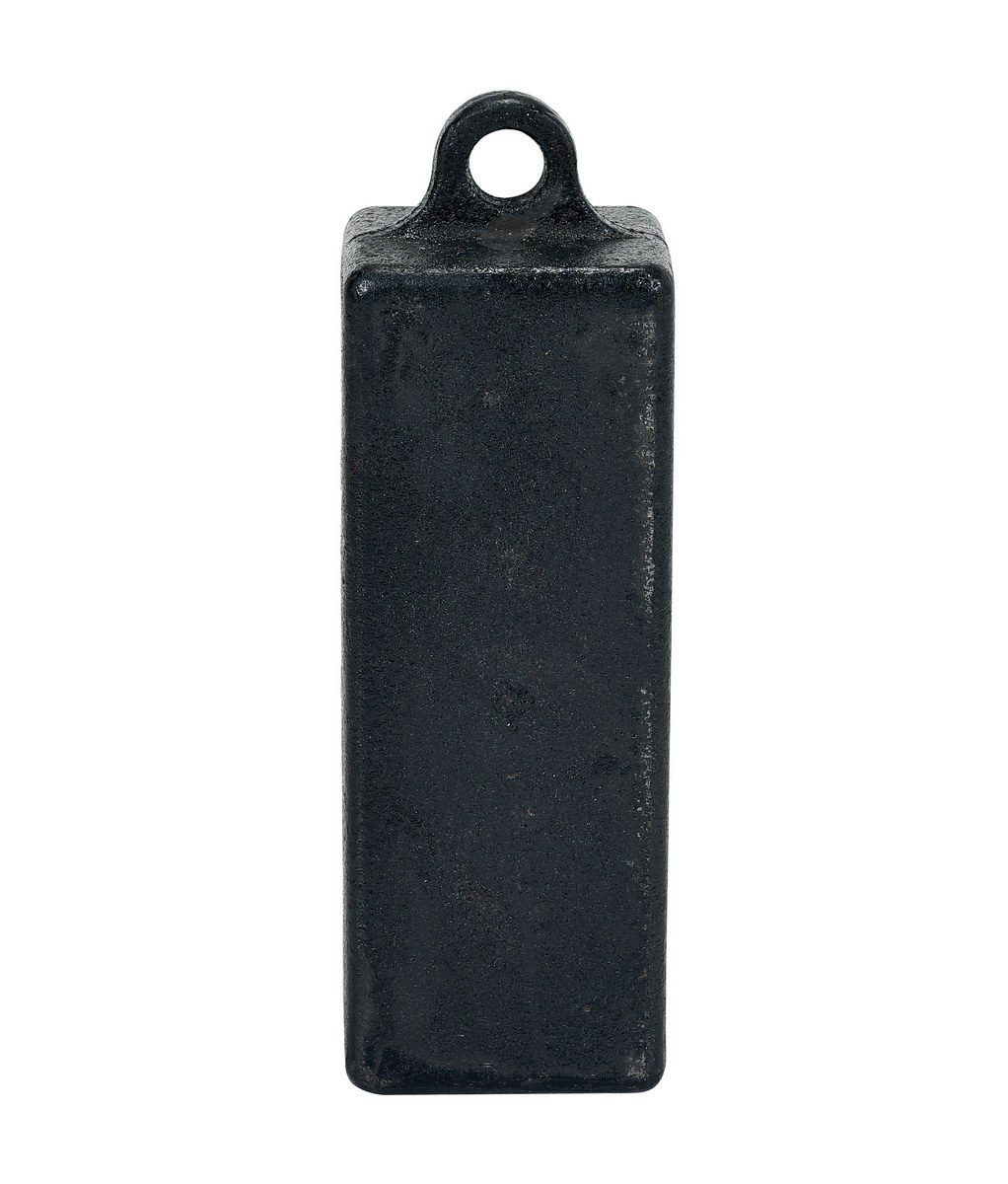

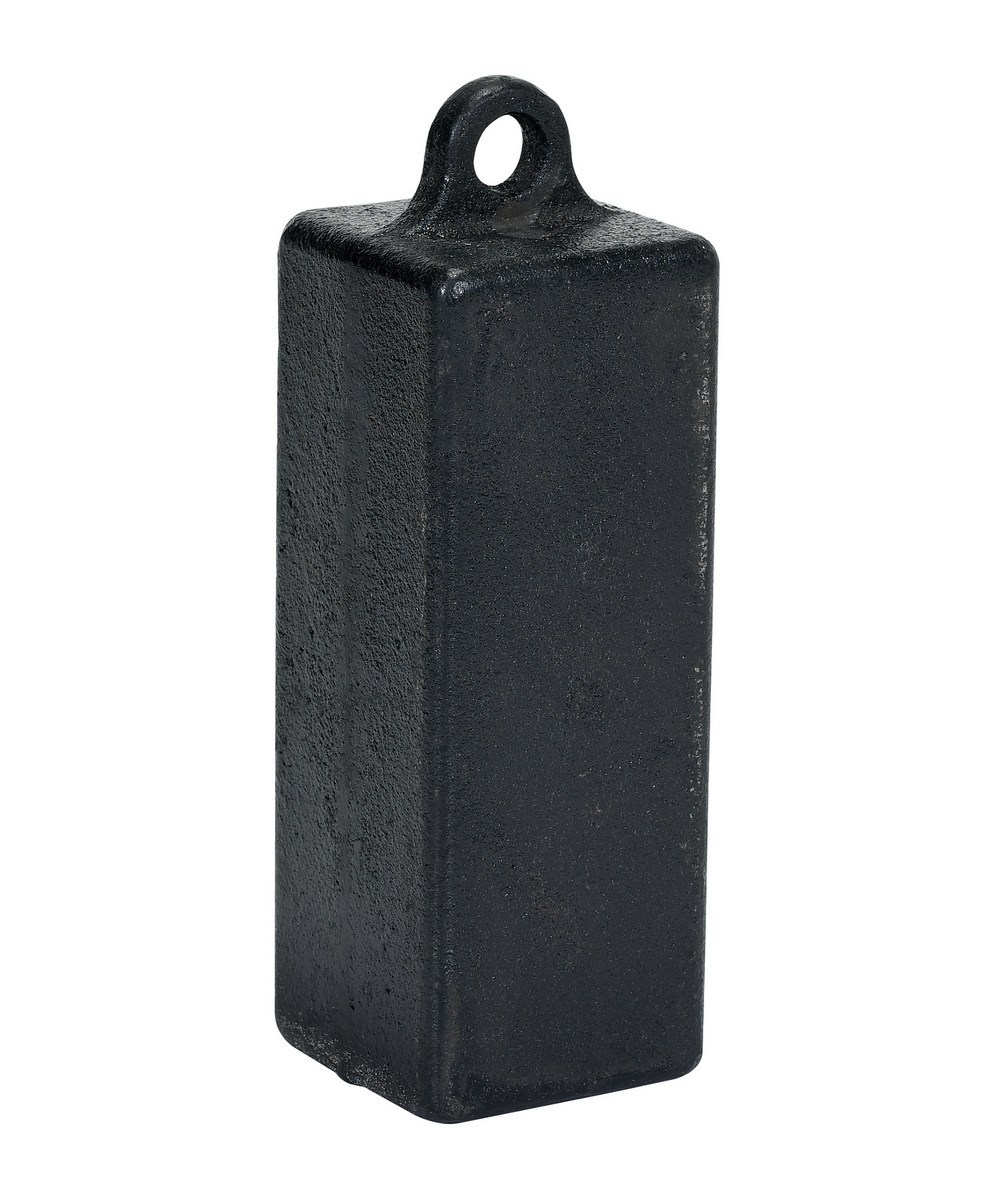

| SWA-COUNT |  | 90 Days Limited Warranty | Factory Installed Carousel Rotation Counter Weight For Stretch Wrap Machines | Brand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO Additional Contents: Factory Installed | 27 | |

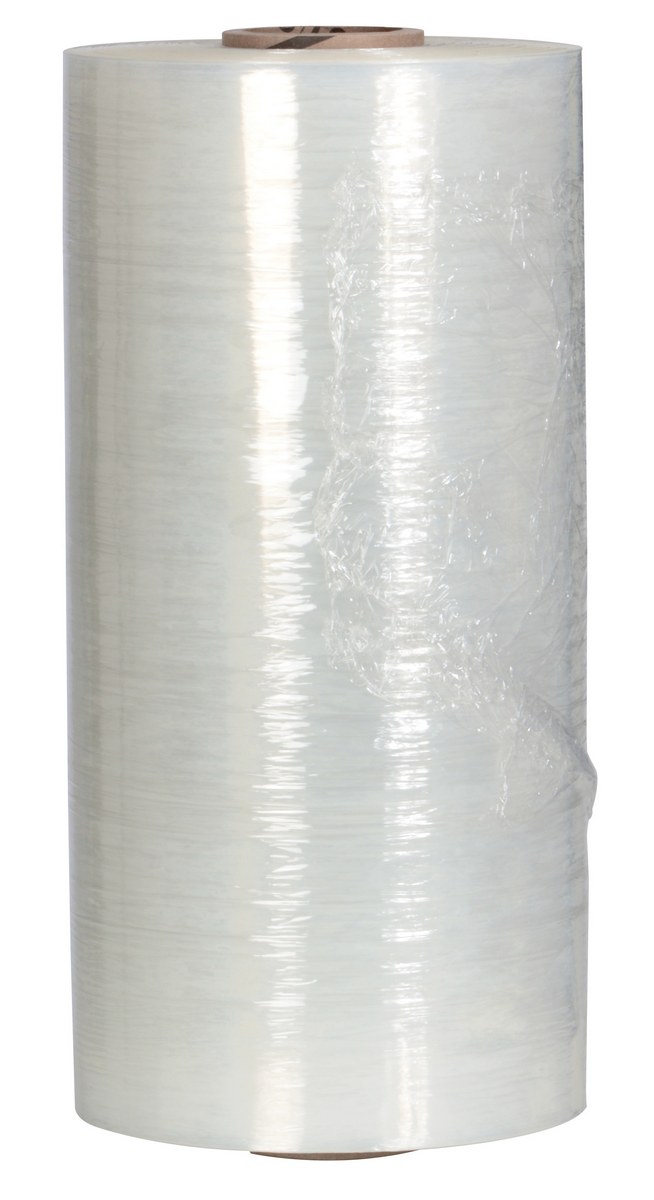

| SWA-FILM |  | 30 Days Limited Warranty | Polyethylene Stretch Wrap-Wrap Machine 6,000 Ft. Film Length 80 Gauge Clear | Gage: 80 Roll Film Length (ft.): 6000 | 42 | |

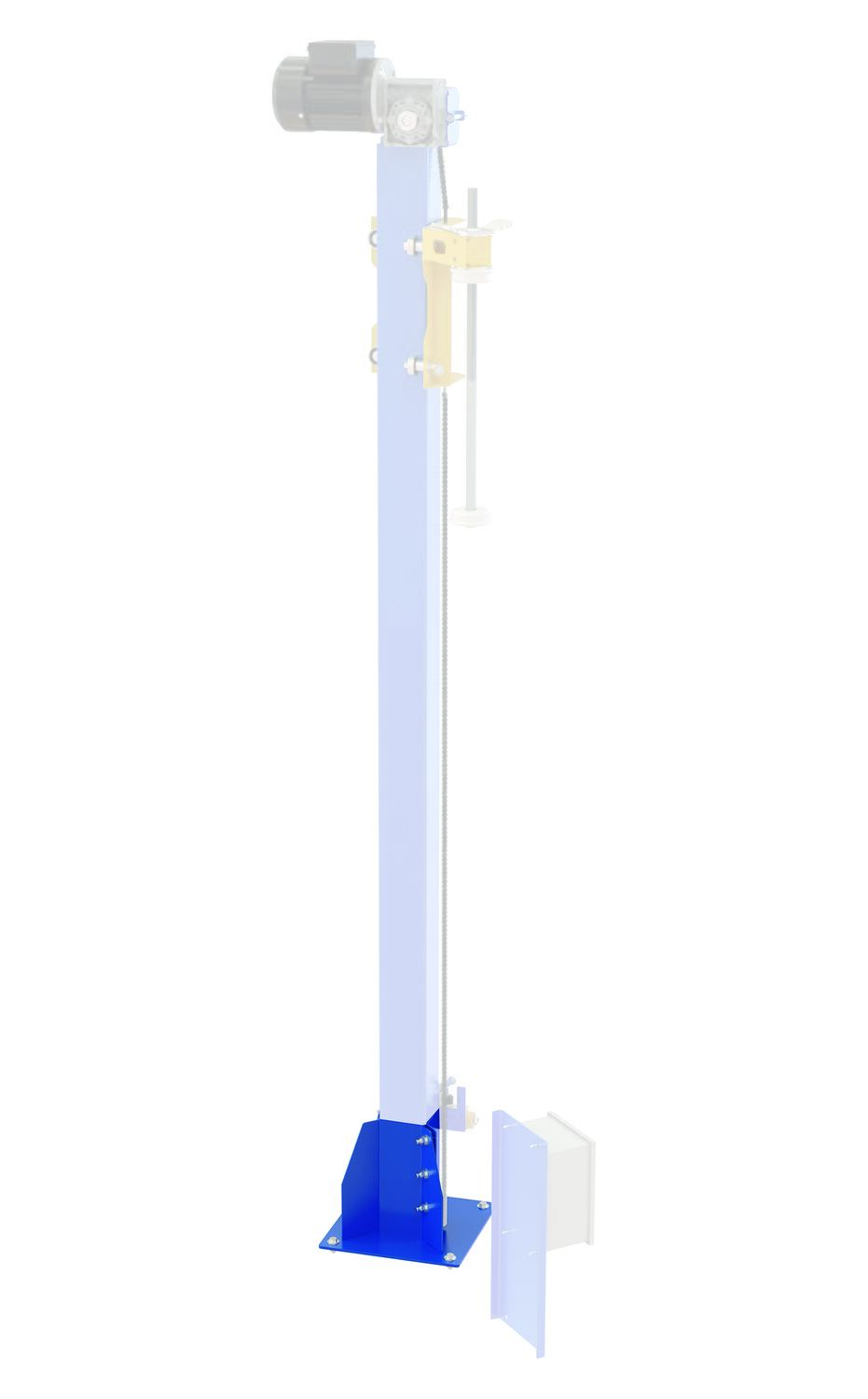

| SWA-MST-FLR | | 30 Days Limited Warranty | Steel Floor Mounting Mast Bracket For Use With SWA Models | Mounting Holes Quantity/Diameter (in.): 4/3/8 | 21 | |
| SWA-NRTL-COMP | | 1 Year Limited Warranty | Factory Provided Nationally Recognized Testing Lab Certification For Stretch Wrap Machines | Brand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO Additional Contents: Factory Installed | 601 | |
| SWA-VCC-208/230-1 | | 30 Days Limited Warranty | Factory Installed Voltage Change 208/230 Volt Single Phase For Stretch Wrap Machine Units | DC Voltage: 208/230 Phase: 1 | ||
| SWA-VCC-208/230-3 | | 30 Days Limited Warranty | Factory Installed Voltage Change 208/230 Volt Three Phase For Stretch Wrap Machine Units | DC Voltage: 208/230 Phase: 3 | ||
| SWA-VCC-460-3 | | 30 Days Limited Warranty | Factory Installed Voltage Change 460 Volt Three Phase For Stretch Wrap Machine Units | DC Voltage: 460 Phase: 3 |
| Model | Image | Details | ||||
| PLATF-MTG-CA |  |
Factory Installation/Mounting of SWA onto Scale | ||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: PMO-VCC-460-3
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-1
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-3
Hydraulic Oil SDS Sheet for: SWA-VCC-460-3
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does this stretch wrap machine have fork pockets so it can be moved?
A: No it does not. Please see the SWA-54 and the SWA-60 that include fork pockets.
Q: Can the wrap height be set on the Powered Mast Options so when the stretch wrap reaches a specified height, it either stops or reverts back down?
A: No, the wrap height be set on the Powered Mast Options. The Powered Mast Options height is controlled by an up/down hand control.
Q: If you order the SWA-50 or SWA-70 with the powered mast option (SWA-5070LP-PMO), will you still receive the standard manual mast with the machine?
A: No, the SWA-5070LP-PMO option is factory installed- so it replaces the standard manual mast.
Q: How do you control the powered mast? Do you have to keep pressing the up and down buttons for it to move? Is there a stop button?
A: The Powered Mast Options (-PMO and -PMO-RF) have a hand control. The user must hold the up or down button for the wrap to move. There is no stop button as the mast will stop when the button is released.
Q: How does the stretch wrap machine attach to the scale?
A: The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
