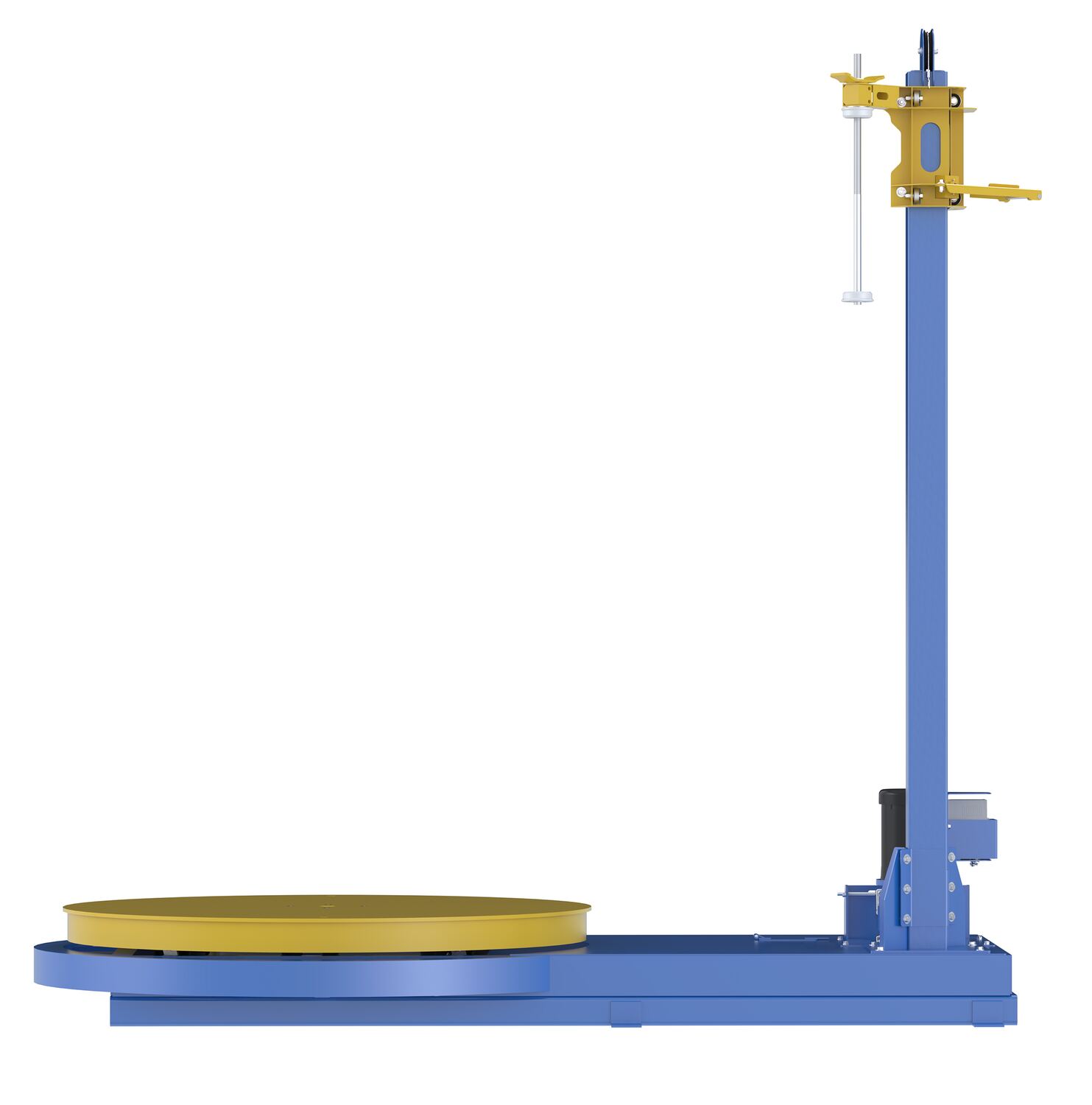

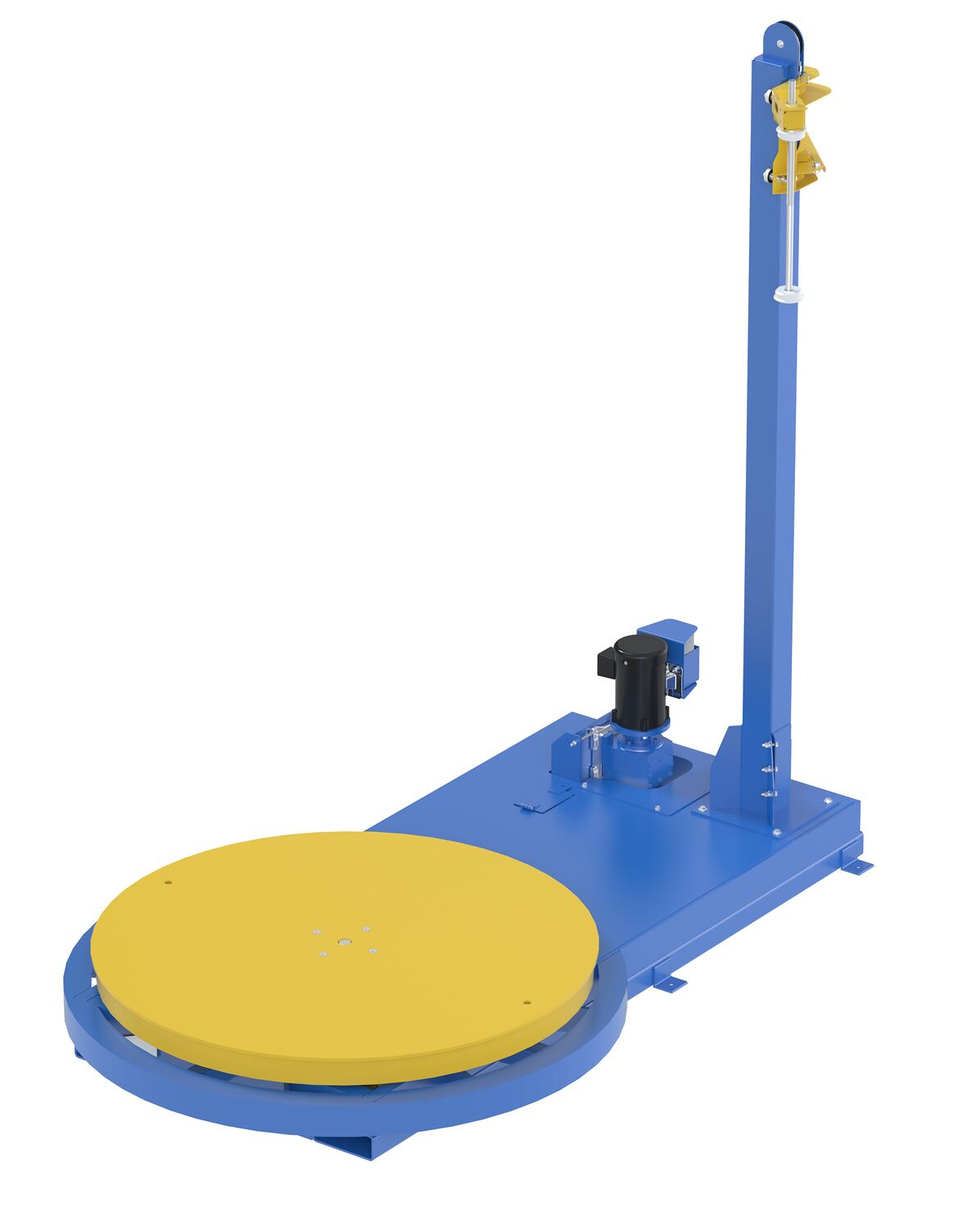

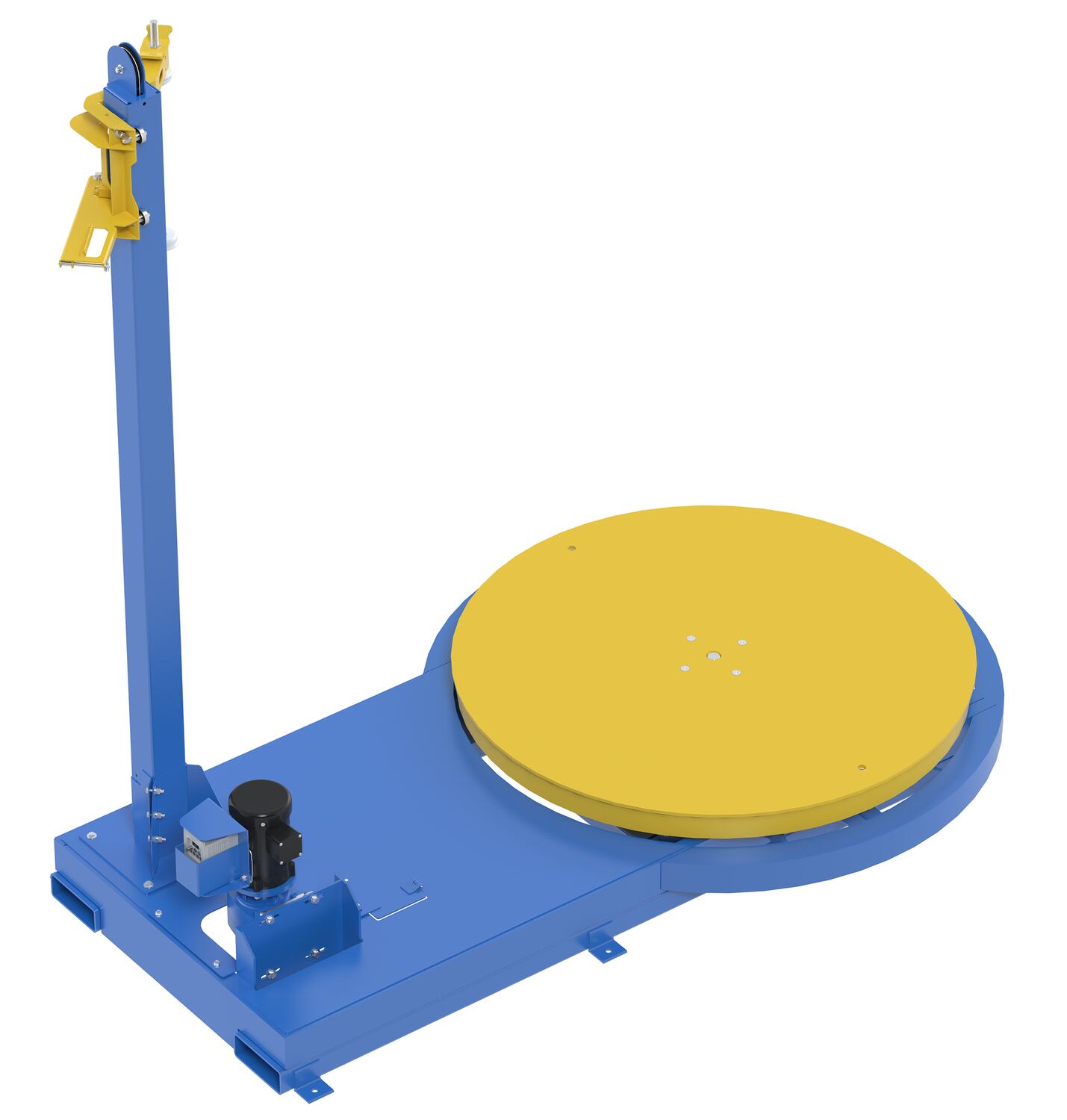

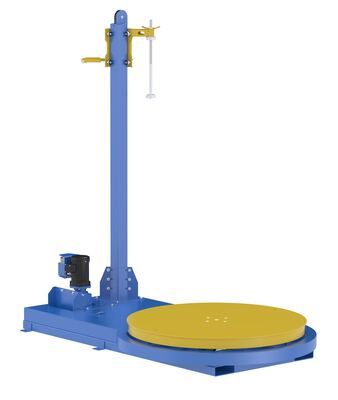

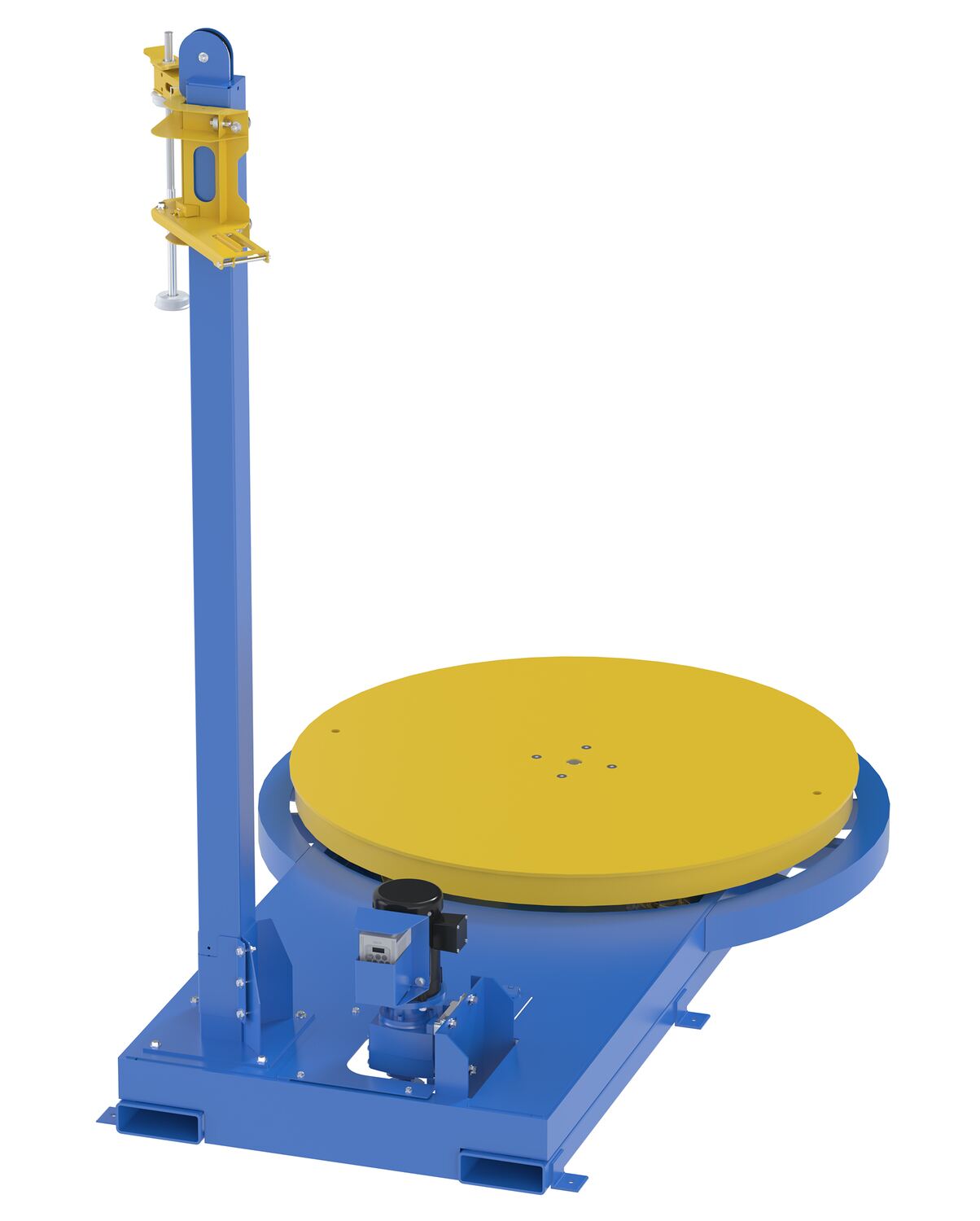

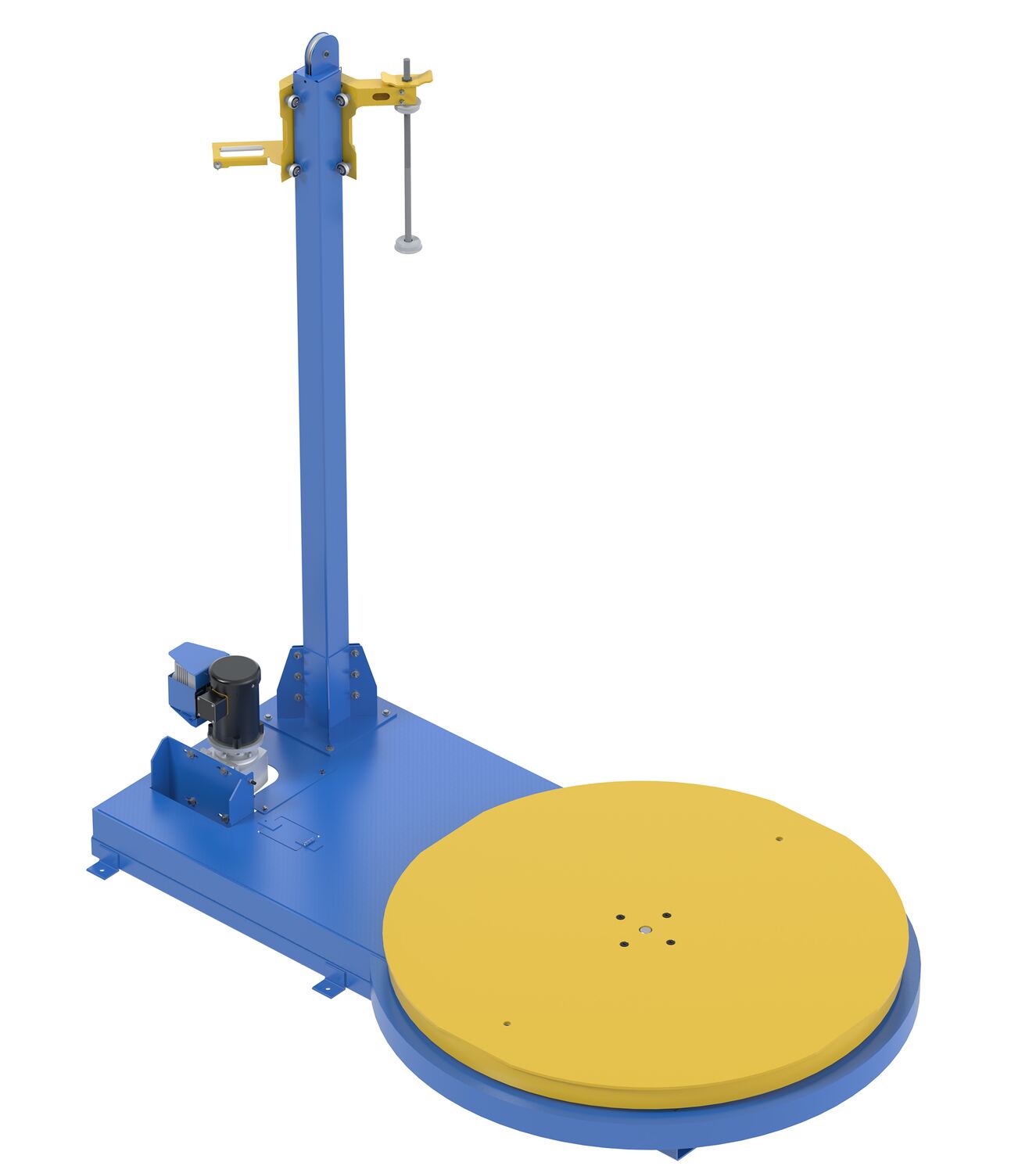

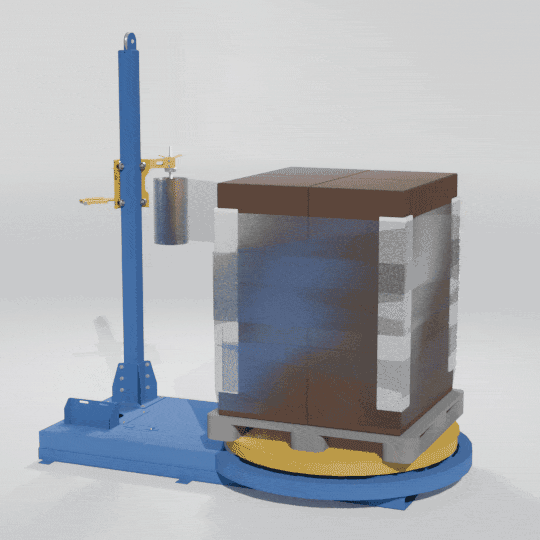

Medium Duty Powered Stretch Wrap MachinesVestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable (RPM is vairable from 3 and 12) and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.
The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.
Approach ramps and scales make a great addition to stretch wrap machines. The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
- Stretch wrap design increases shipping productivity
- Simple depress foot pedal powers turntable
- Manual mast allows user to wrap the needed areas
- Steel construction provides a long lasting rugged use
Low Profile Stretch Wrap Machine
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
Powered Stretch Wrap Machines
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SWA-54 |  | 1 Year Limited Warranty | Steel Semi-Automatic Stretch Wrap Machine 54 In. Turntable Diameter 5,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 5,000 Turntable Diameter (in.): 54 | 1365 | ||
| SWA-60 |  | 1 Year Limited Warranty | Steel Semi-Automatic Stretch Wrap Machine 60 In. Turntable Diameter 5,000 Lb. Capacity Blue / Yellow | Uniform Capacity (lb.): 5,000 Turntable Diameter (in.): 60 | 1393 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
For More Details of the Option Click the Red Model Button

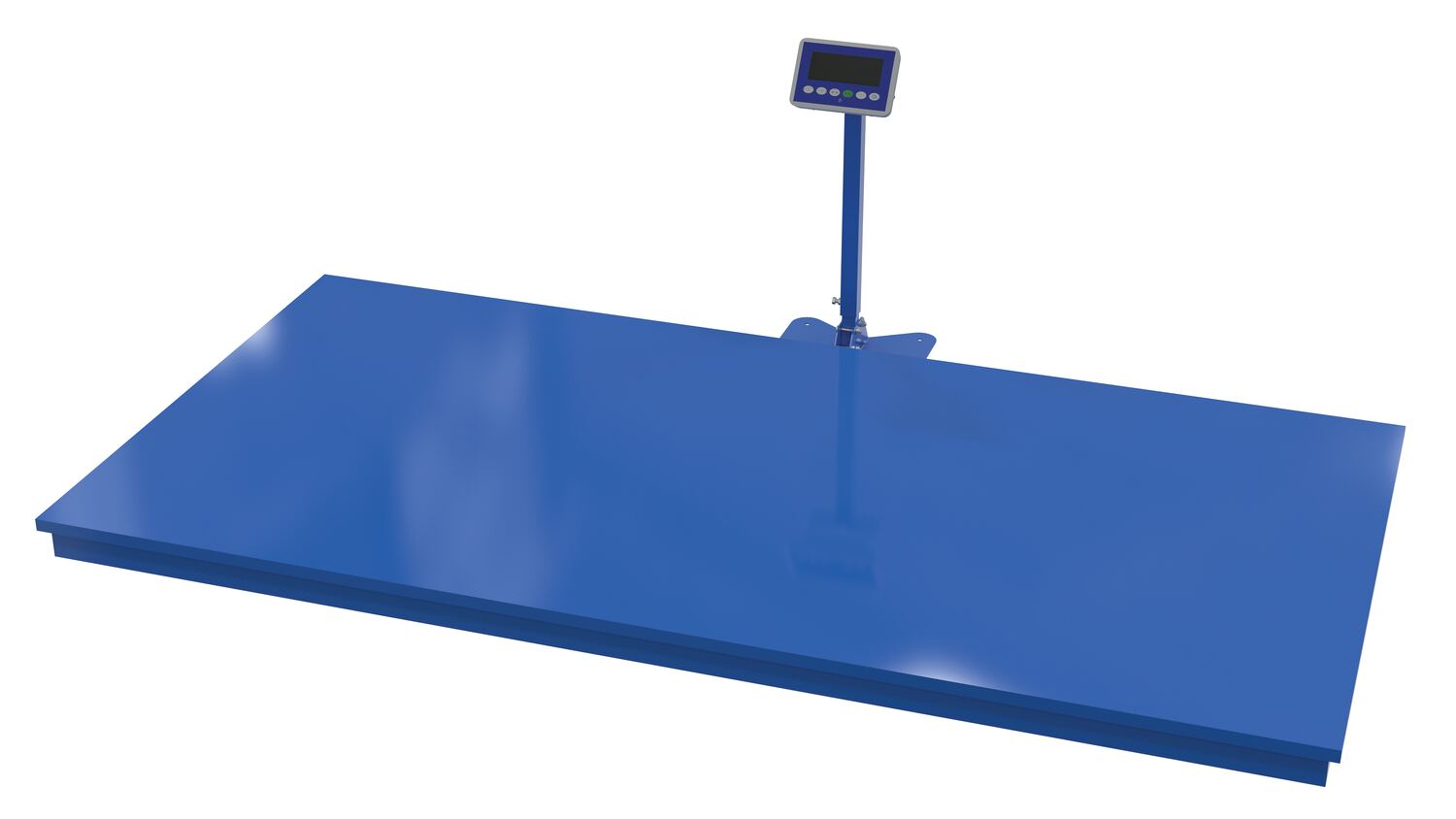

| SWA-54-SCALE |  | 1 Year Limited Warranty | Digital Stretch Wrap Scale For Use With SWA-54 | Uniform Capacity (lb.): 10,000 Scale Height (in.): 3-1/2 | 838 | |

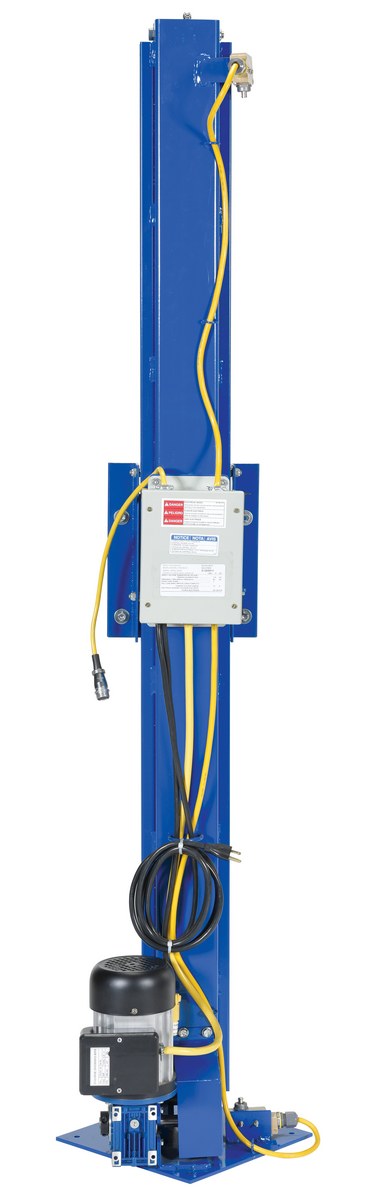

| SWA-5460-PMO |  | 1 Year Limited Warranty | Factory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-54 And SWA-60 | Wrap Height (in.): 80-13/16 Motor Voltage/Phase: 115/1 | 1044 | |

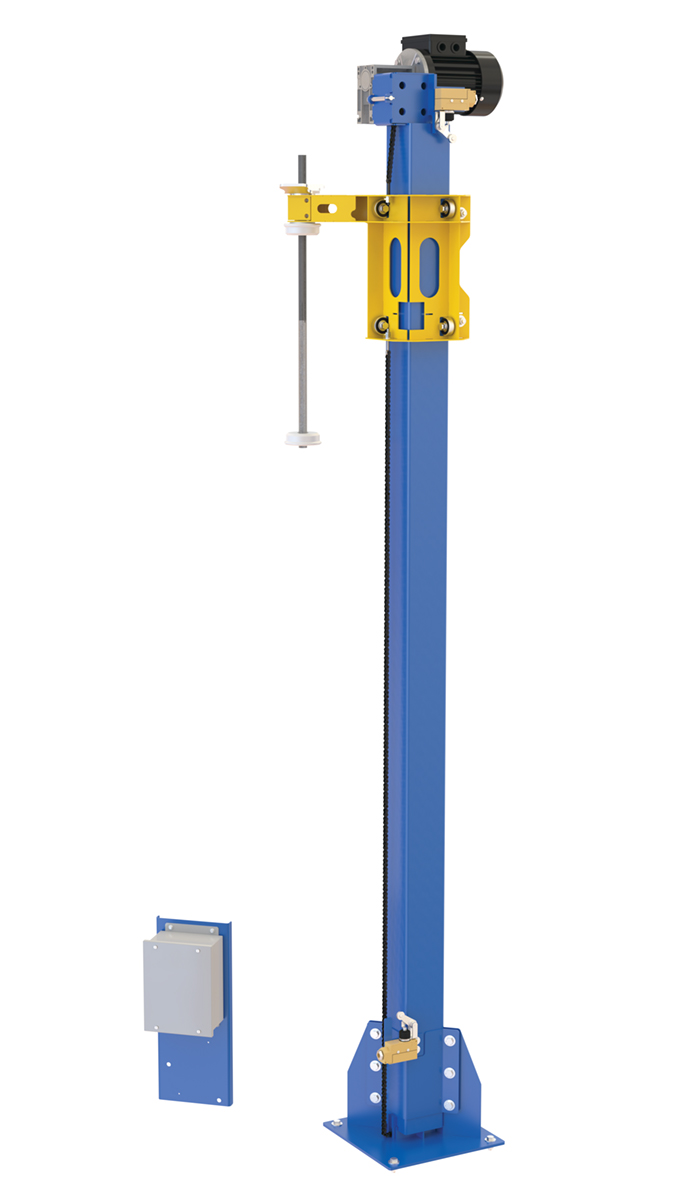

| SWA-5460-PMO-RF |  | 1 Year Limited Warranty | Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow For Use With SWA-54 And SWA-60 | Wrap Height (in.): 80-13/16 Motor Voltage/Phase: 115/1 | 220 | |

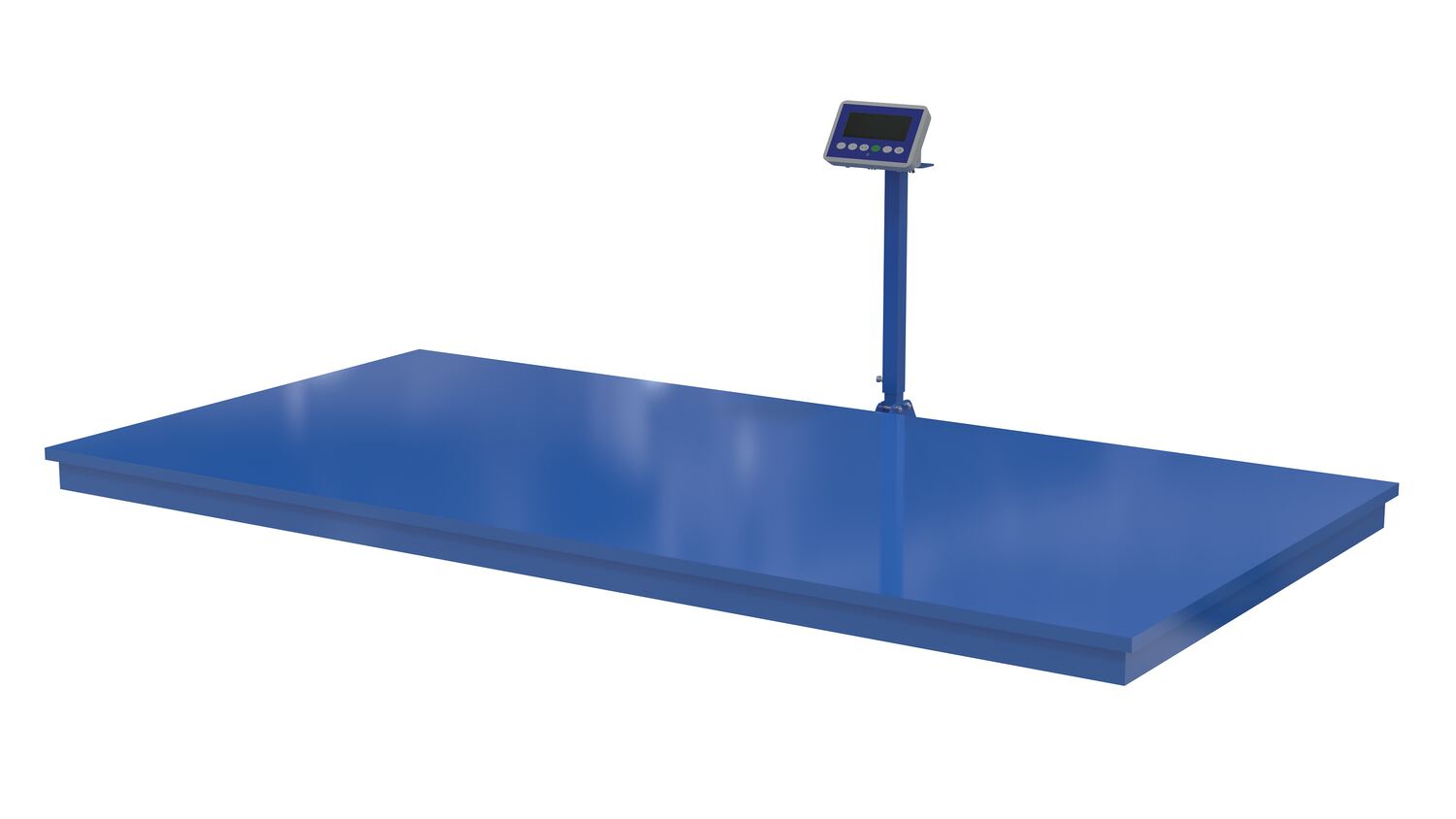

| SWA-60-SCALE |  | 1 Year Limited Warranty | Digital Stretch Wrap Scale For Use With SWA-60 | Uniform Capacity (lb.): 10,000 Scale Height (in.): 3-1/2 | 838 | |
| SWA-INDEX |  | 30 Days Limited Warranty | Factory Installed Auto Indexing For Stretch Wrap Machines | Cable Length (ft): 8 Brand / Model Compatibility: SWA-54, SWA-60 | 1 | |

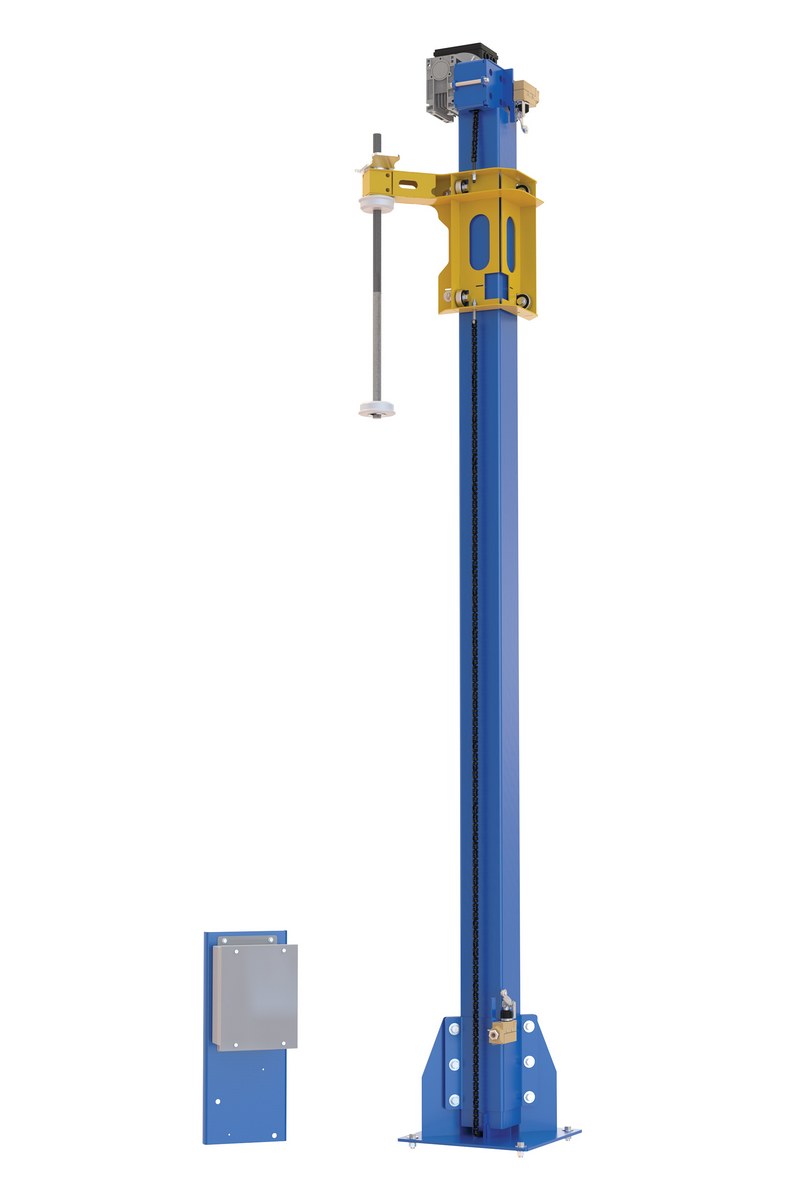

| SWA-PMO-RF |  | 1 Year Limited Warranty | Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow | Wrap Height (in.): 80-13/16 Motor Voltage/Phase: 115/1 | 194 |
| Model | Image | PDFs | Details | Wt. (lbs) |
||||
| SWA-COUNT |  |
- | Counter option | 1 | ||||
| SWA-NRTL-COMP | |
- | UL Approved components | -- | ||||
| SWA-FILM |  |
- | 20"H x 80 ga. x 6,000' x 3" Core (one Roll) | 42 | ||||
| PLATF-MTG-CA | |
- | Factory Installation/Mounting of SWA onto Scale | - | ||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does this stretch wrap machine have fork pockets so it can be moved?
A: Yes, the SWA-54 and the SWA-60 have fork pockets.
Q: Can the wrap height be set on the Powered Mast Options so when the stretch wrap reaches a specified height, it either stops or reverts back down?
A: No, the wrap height be set on the Powered Mast Options. The Powered Mast Options height is controlled by an up/down hand control.
Q: If you order the SWA-54 or SWA-60 with the powered mast option (SWA-5460-PMO), will you still receive the standard manual mast with the machine?
A: No, the SWA-5460-PMO option is factory installed- so it replaces the standard manual mast.
Q: How do you control the powered mast? Do you have to keep pressing the up and down buttons for it to move? Is there a stop button?
A: The Powered Mast Options (-PMO and -PMO-RF) have a hand control. The user must hold the up or down button for the wrap to move. There is no stop button as the mast will stop when the button is released.
Q: How does the stretch wrap machine attach to the scale?
A: The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
