Medium Duty High Performance Auto-Wrap Stretch Wrap Machine115V 1-Phase Standard

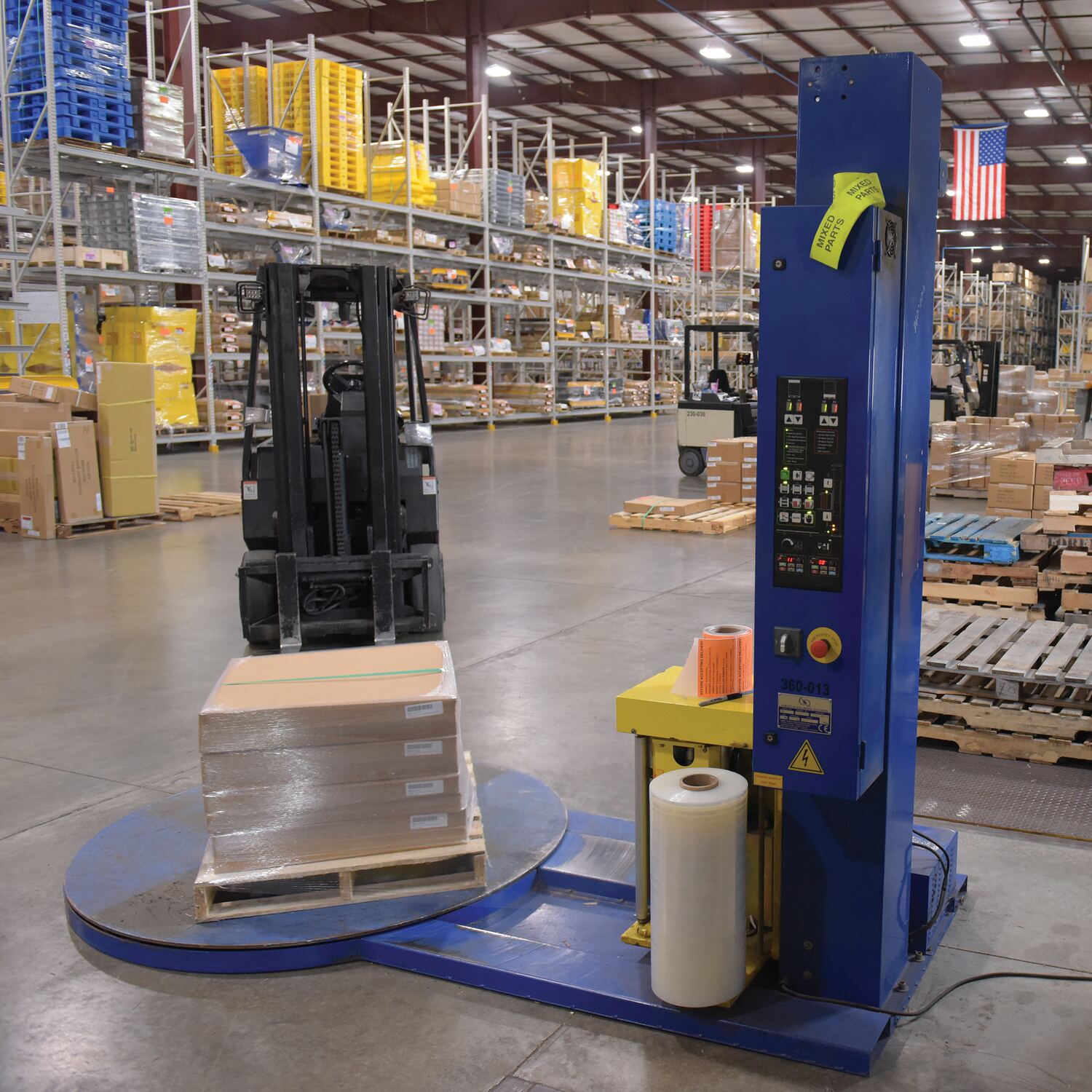

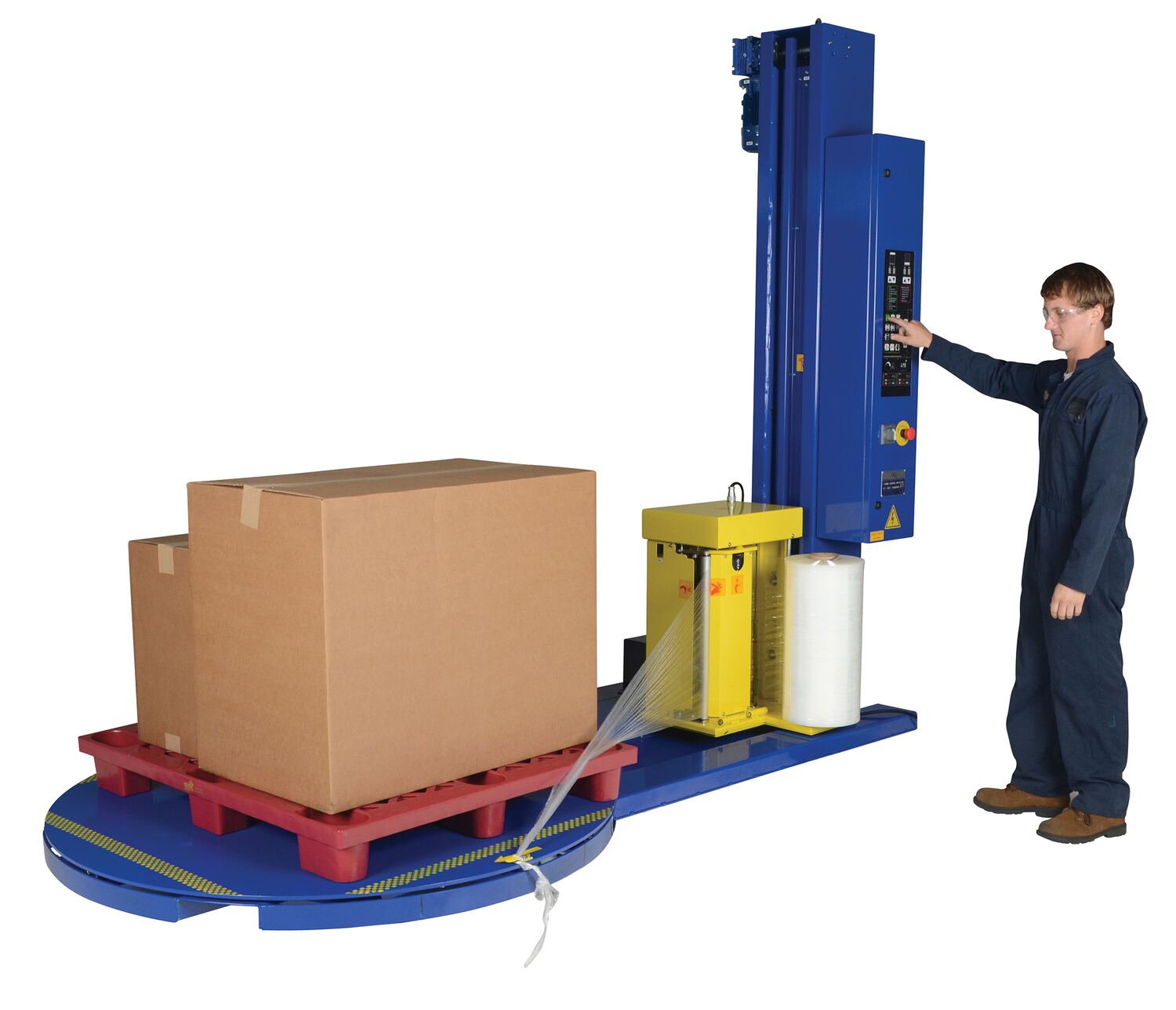

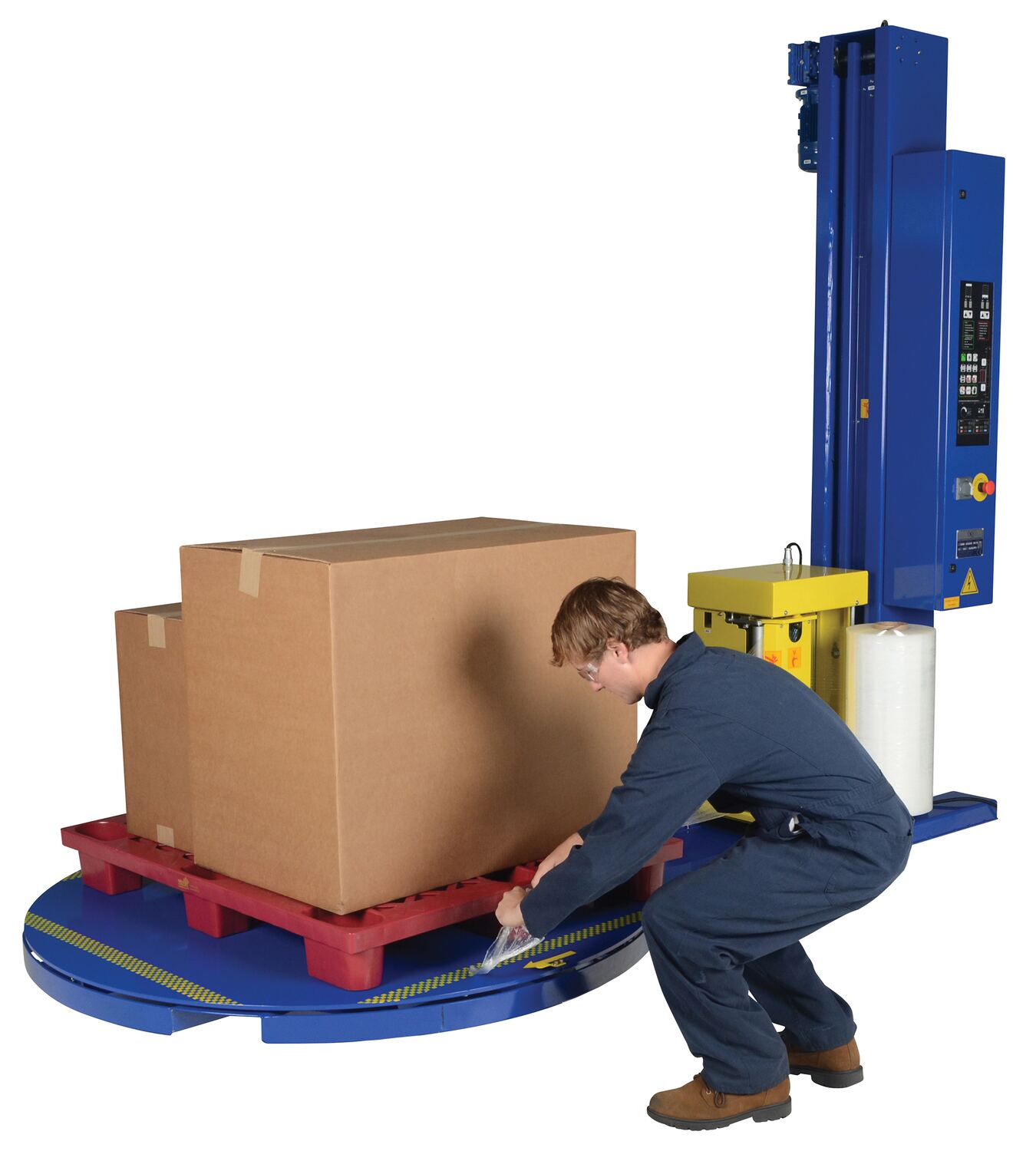

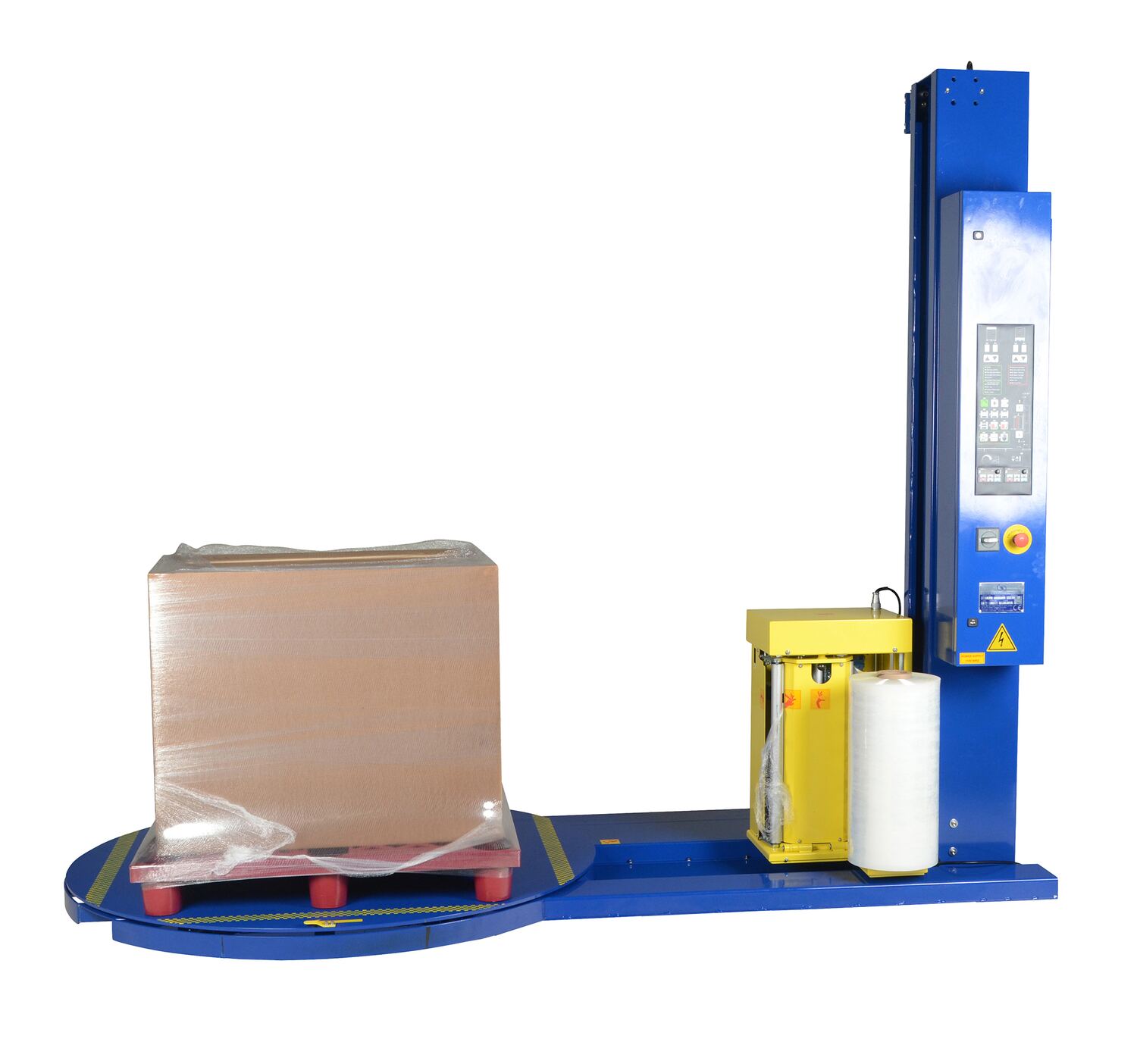

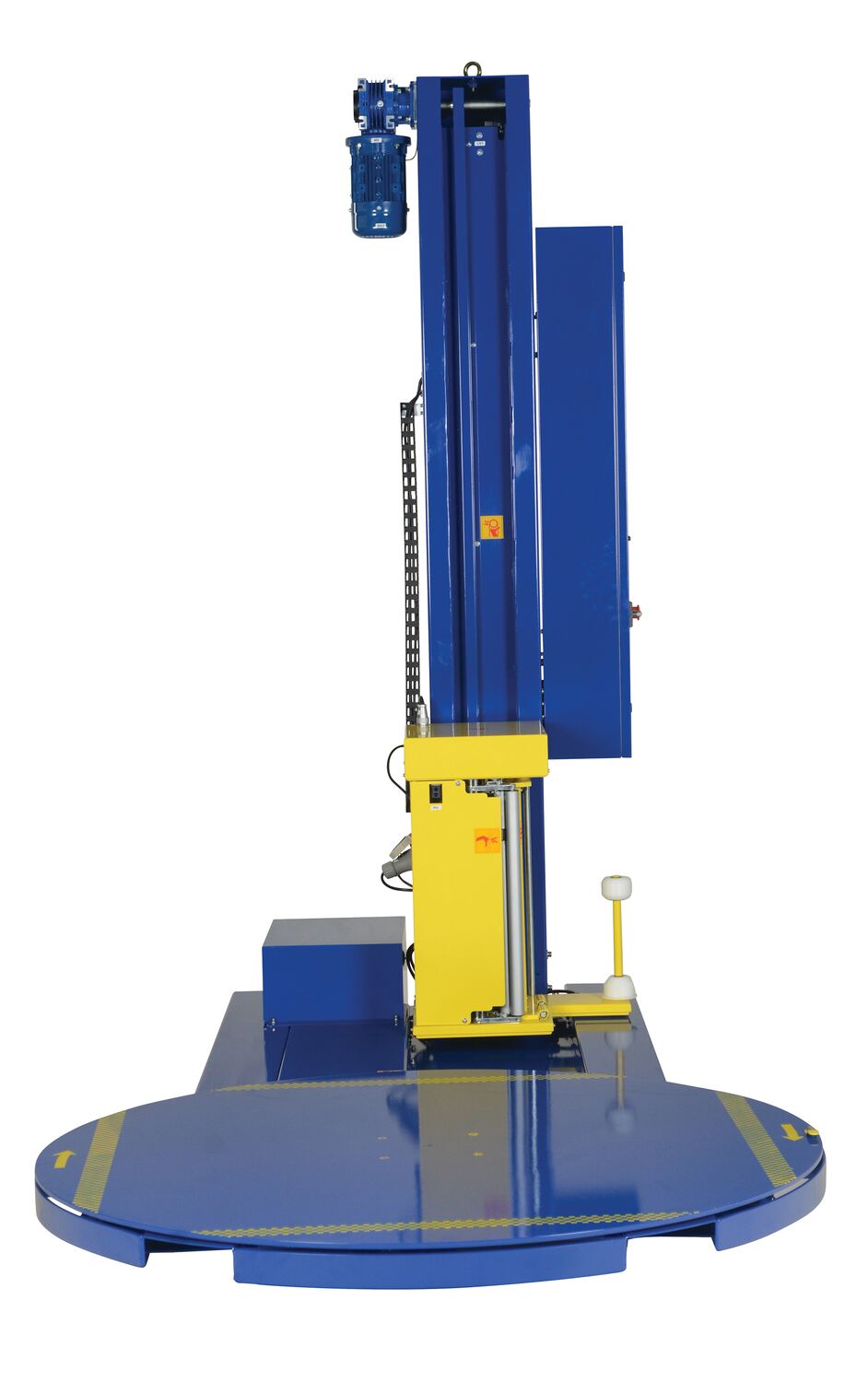

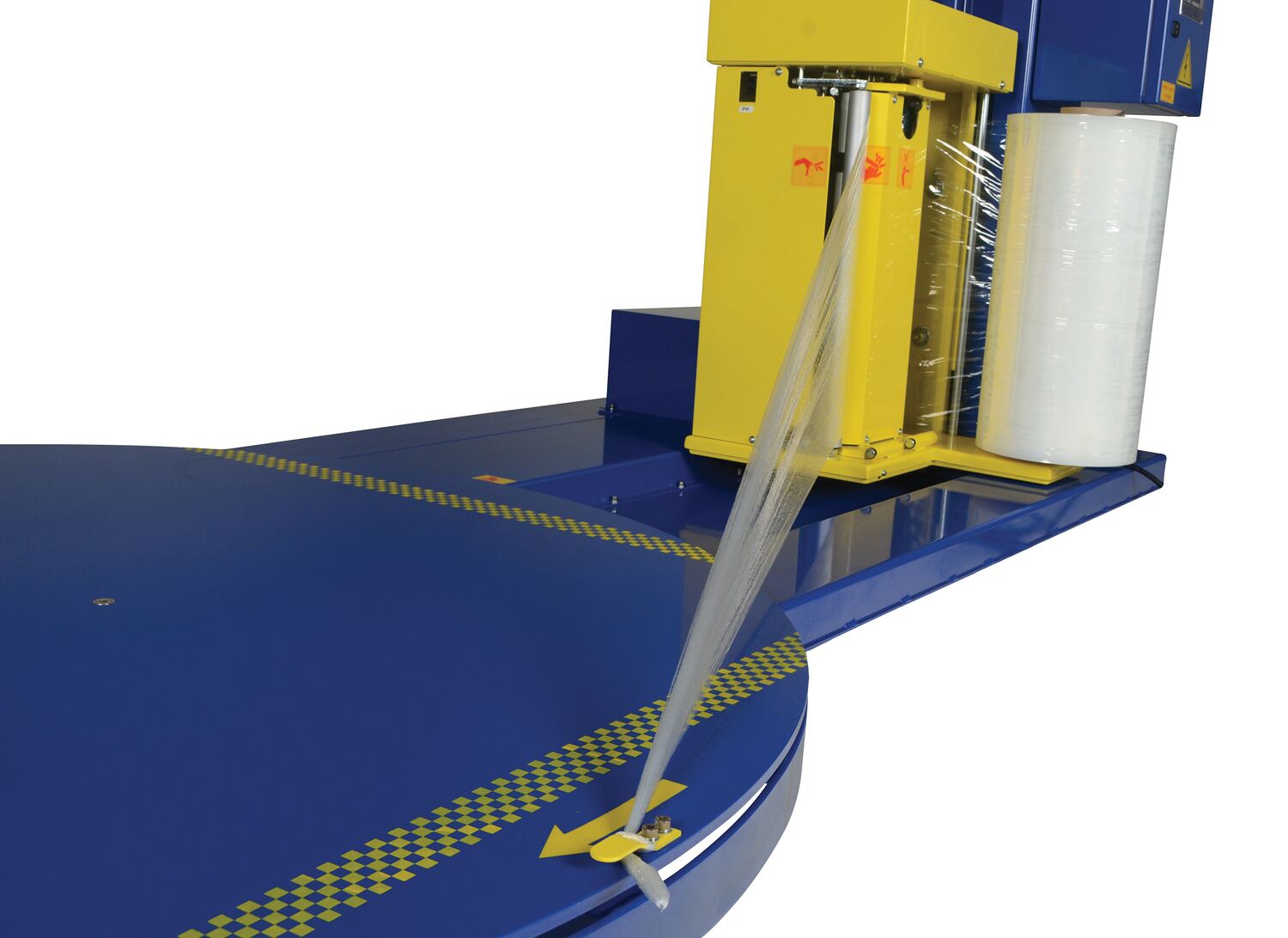

The Medium Duty High Performance Auto-Wrap Stretch Wrap Machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds 0 to 13 with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights. Uniform capacity is 4,000 pounds.
SWA-60-AW can accept material rolls betwen 10" and 20".
- Stretch wrap design increases shipping productivity
- Simple to use automatic wrap technology
- Adjustable wrap speed to fit users preference
- Steel construction provides a long lasting rugged use
Low Profile Stretch Wrap Machine
Medium Duty Powered Stretch Wrap Machines
Powered Stretch Wrap Machines
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

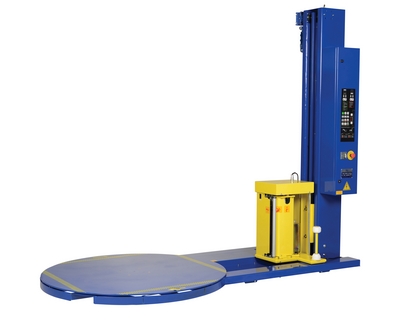

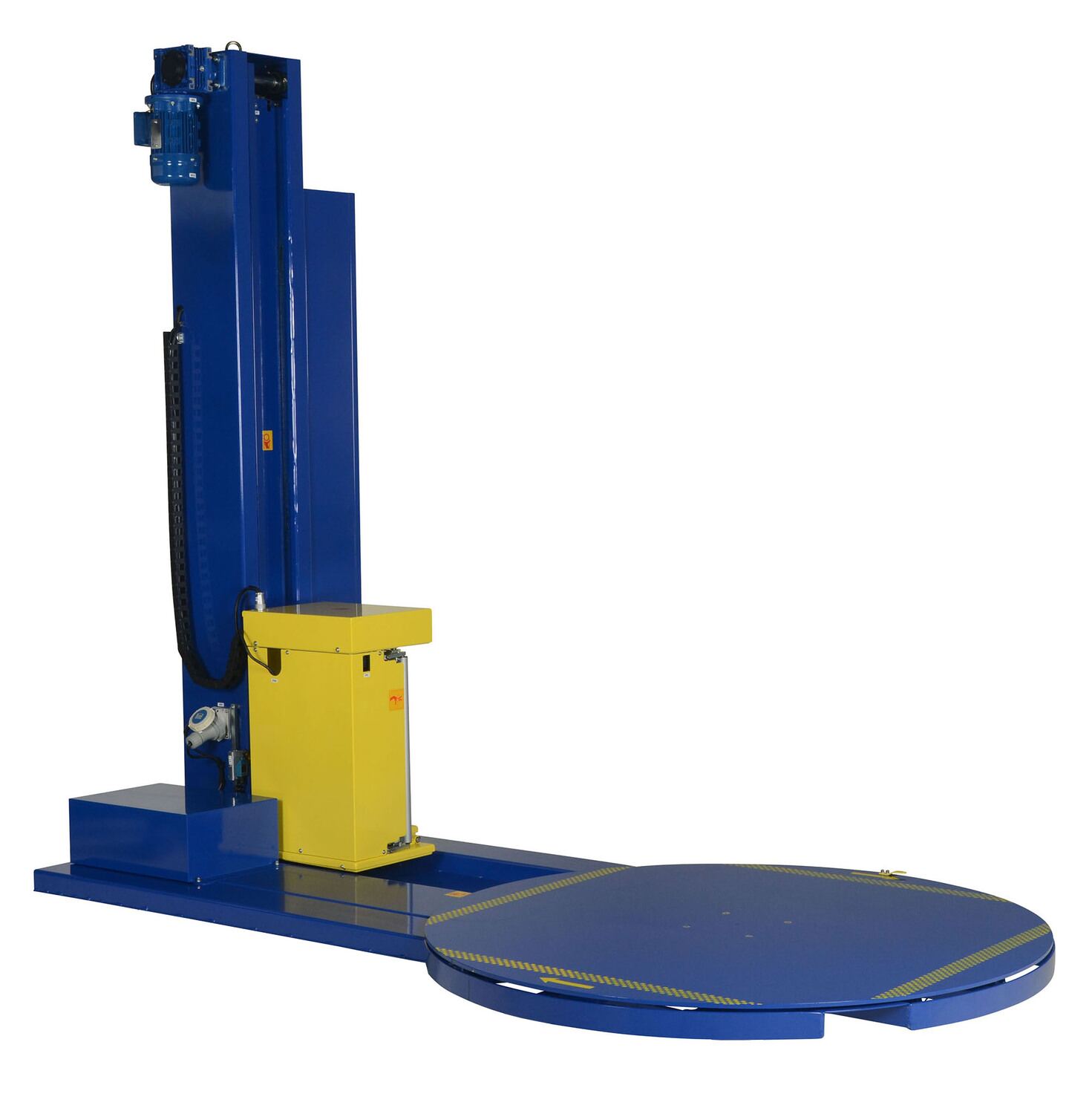

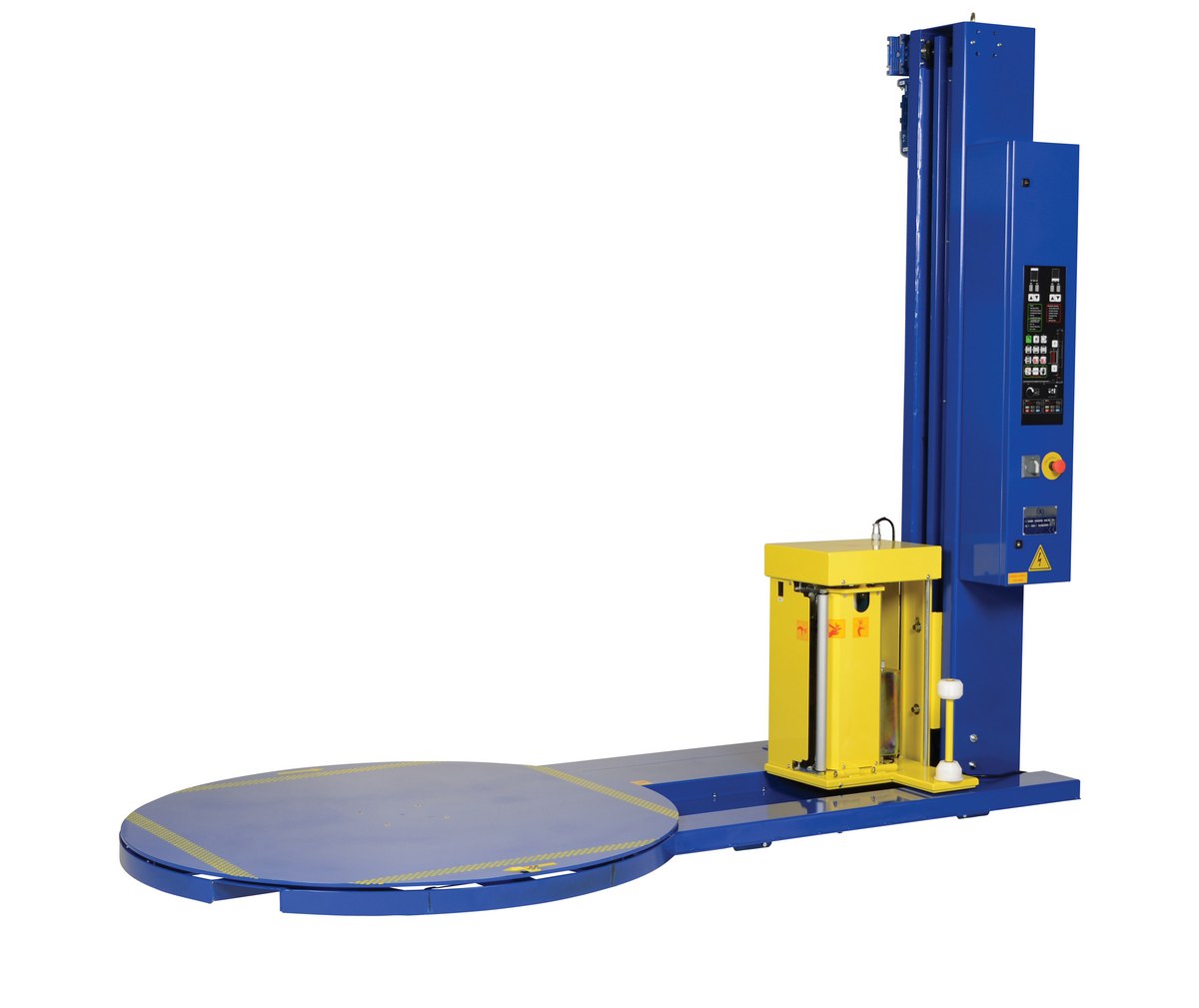

| SWA-60-AW | POPULAR |  | 1 Year Limited Warranty | Steel Auto Wrap Stretch Wrap Machine 60 In. Turntable Diameter 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 59 | 1512 | |

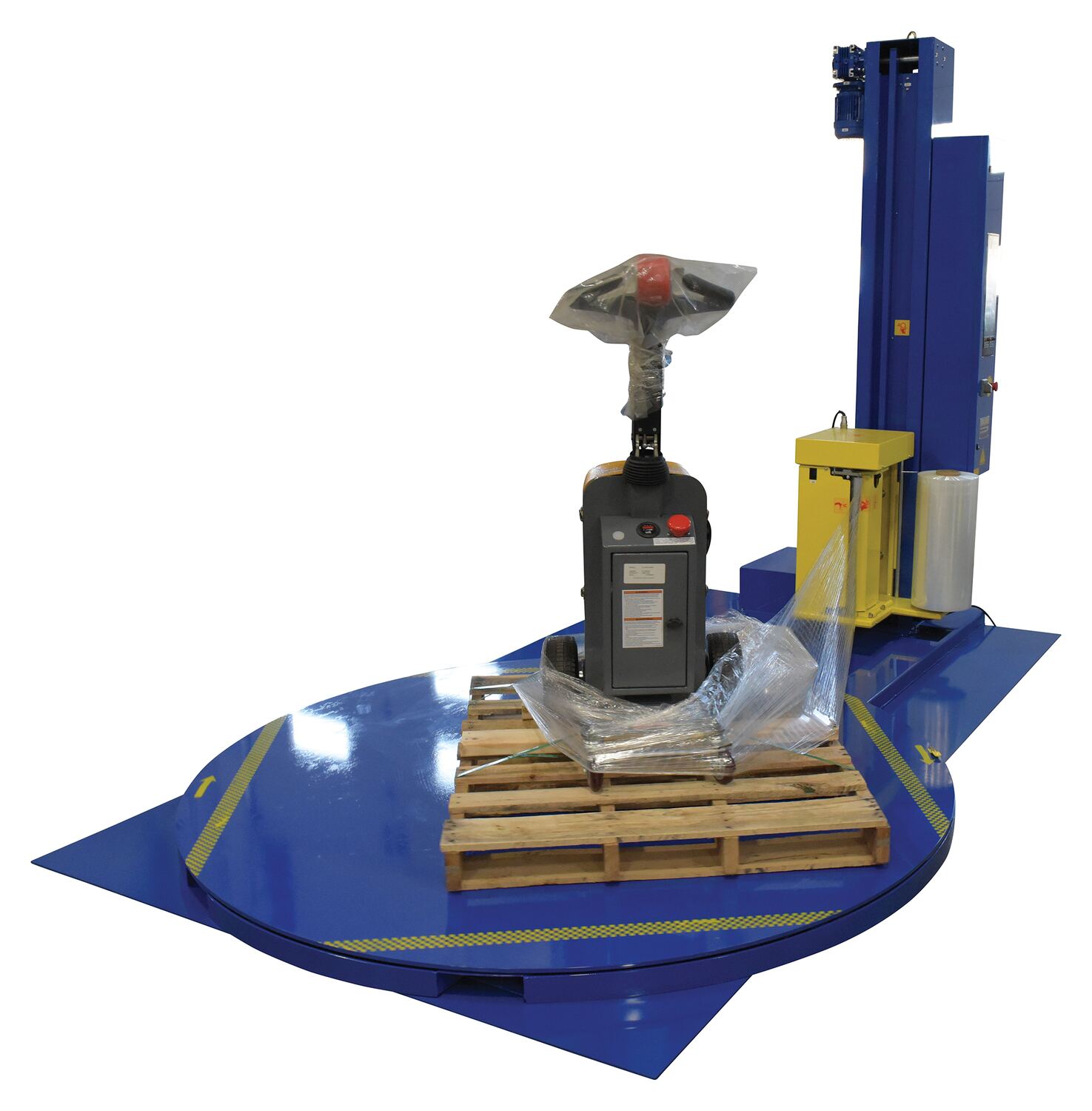

| SWA-82-AW |  | 1 Year Limited Warranty | Steel Auto Wrap Stretch Wrap Machine 78-3/4 In. Turntable Diameter 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 78-3/4 | 2186 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 59
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 59
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 78-3/4
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 78-3/4
For More Details of the Option Click the Red Model Button

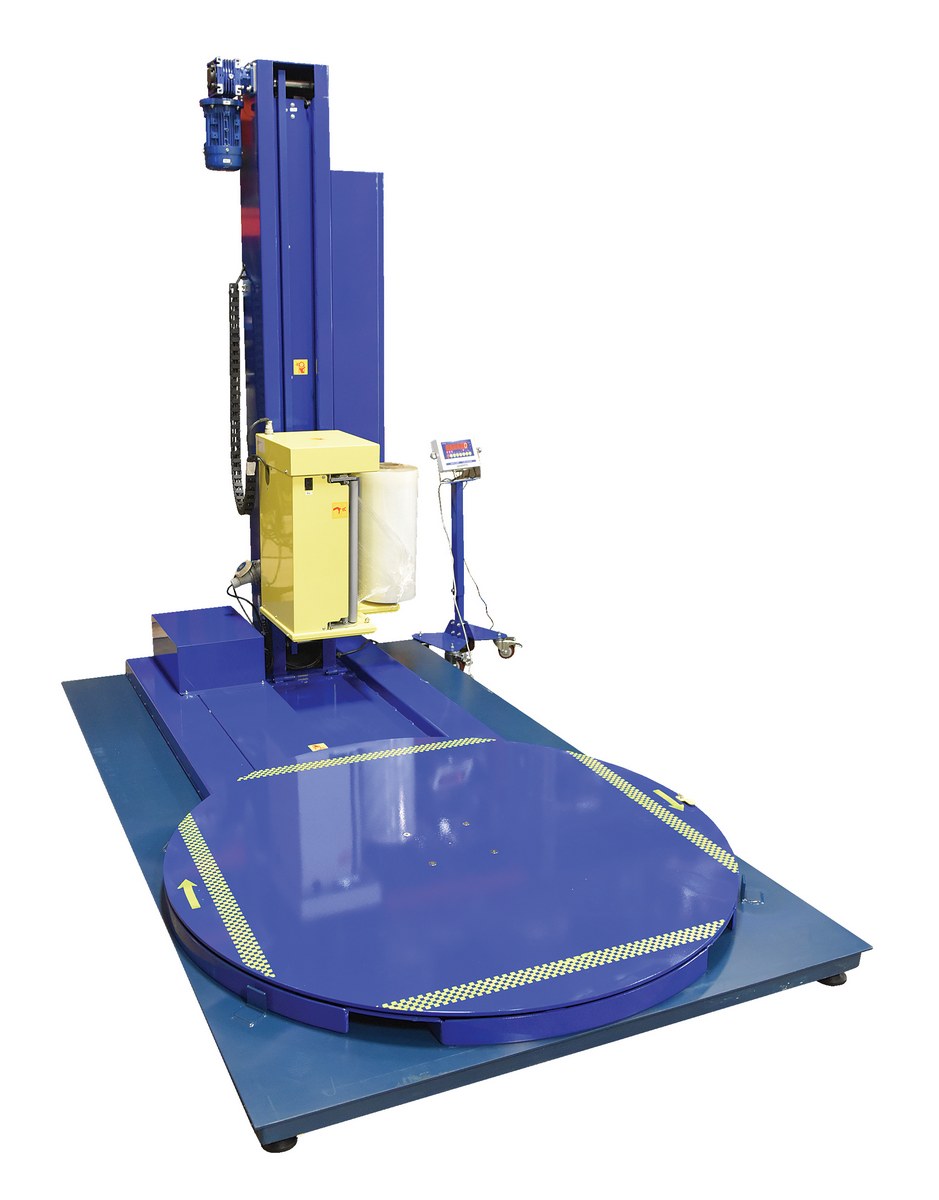

| SWA-60-AW-SCL |  | 1 Year Limited Warranty | Digital Stretch Wrap Scale For Use With SWA-60-AW | Uniform Capacity (lb.): 10,000 Scale Height (in.): 3-1/2 | 924 | |
| SWA-R-60-AW |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-60-AW | Uniform Capacity (lb.): 4,000 Usable Width (in.): 48 | 334 | |

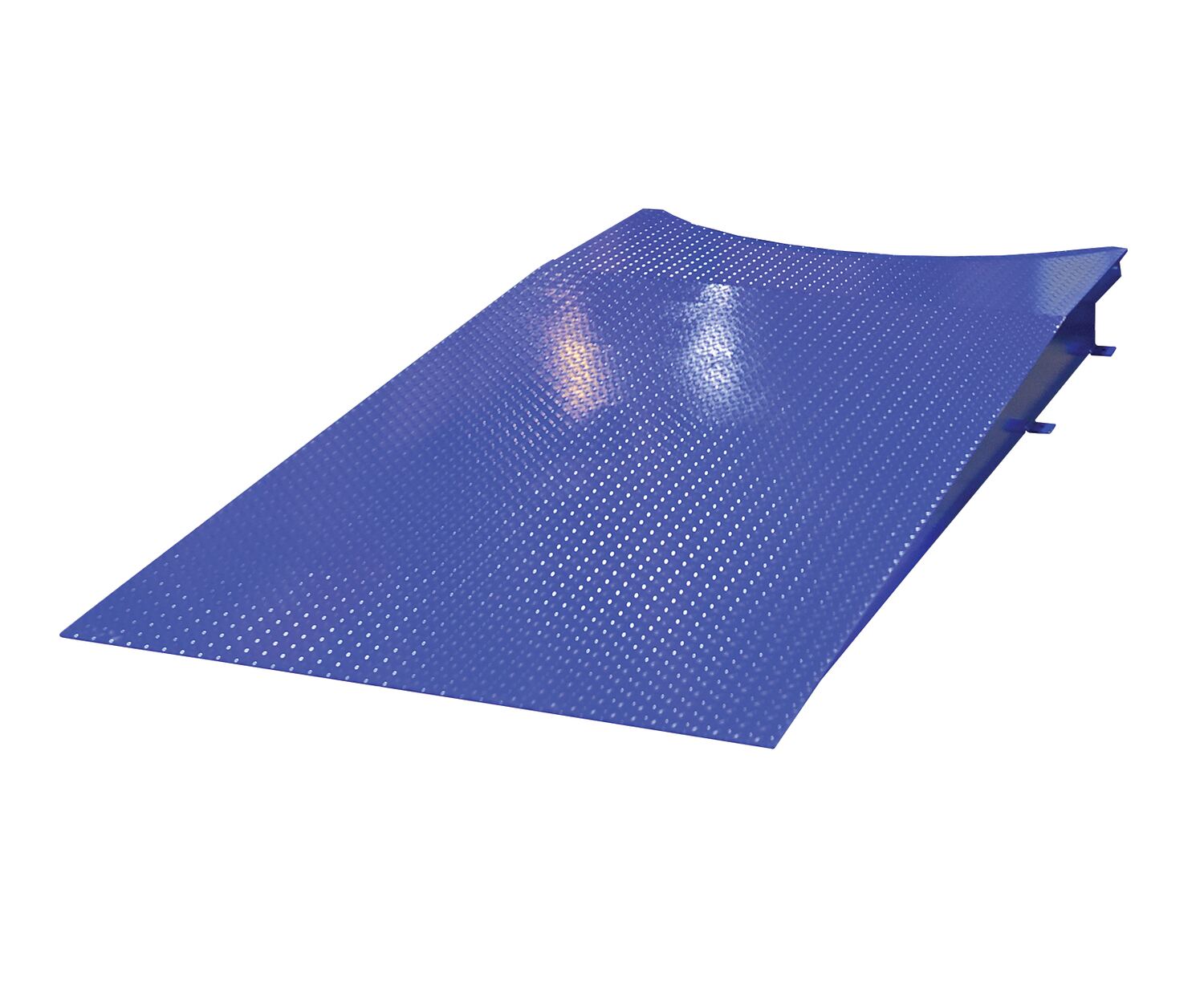

| SWA-R-60-AW-SCL |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Models SWA-60-AW + SWA-60-AW-SCL | Uniform Capacity (lb.): 4,000 Usable Width (in.): 48 | 543 | |

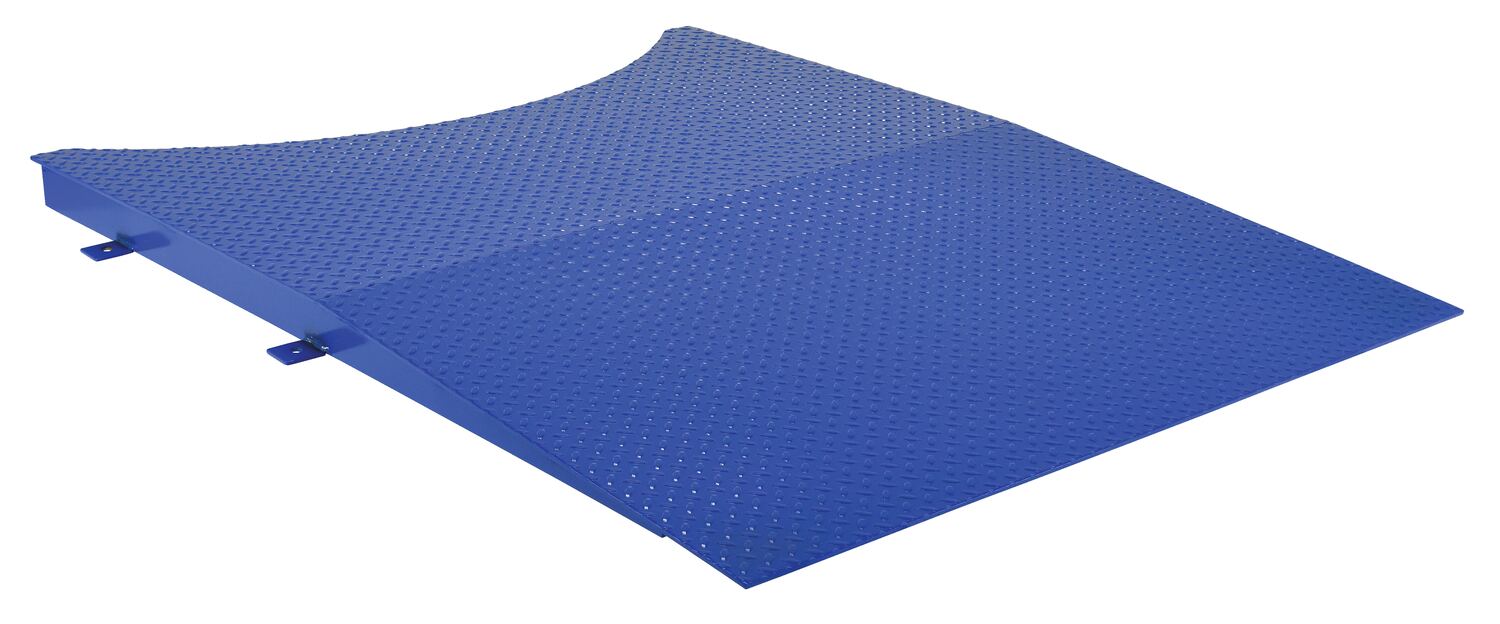

| SWA-R-82-AW |  | 90 Days Limited Warranty | Steel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-82-AW | Uniform Capacity (lb.): 4,000 Usable Width (in.): 48 | 329 |
| Model | Image | Details | ||||
| PLATF-MTG-CA |  |
Factory Installation/Mounting of SWA onto Scale | ||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the amp draw for SWA-60-AW?
A: 15 AMPS.
Q: Do you have to use the foot control to rotate the stretch wrap machine?
A: The AW models are automatic and do not use foot controls.
Q: What is SWA-60-AW-SCL accuracy ratio?
A: 0.1% of the applied load
Q: How does the stretch wrap machine attach to the scale?
A: The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
 |
|||||||||||||||||
