Thin SpinsWhen confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.
* Low-Profile design is ideal for use with Pallet Trucks
Optional Lifting Loop:
An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.
- Precision ball bearings allow for manual 360 degrees rotation
- Locking device prevents unnecessary rotation
- Pallet truck loadable due to its sleek overall height
- Unique design works well when there is minimum floor space
Stainless Steel Manual Carousels
Powered Photography Carousel
Low-Profile Powered Carousels
Aluminum Mini Carousels
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

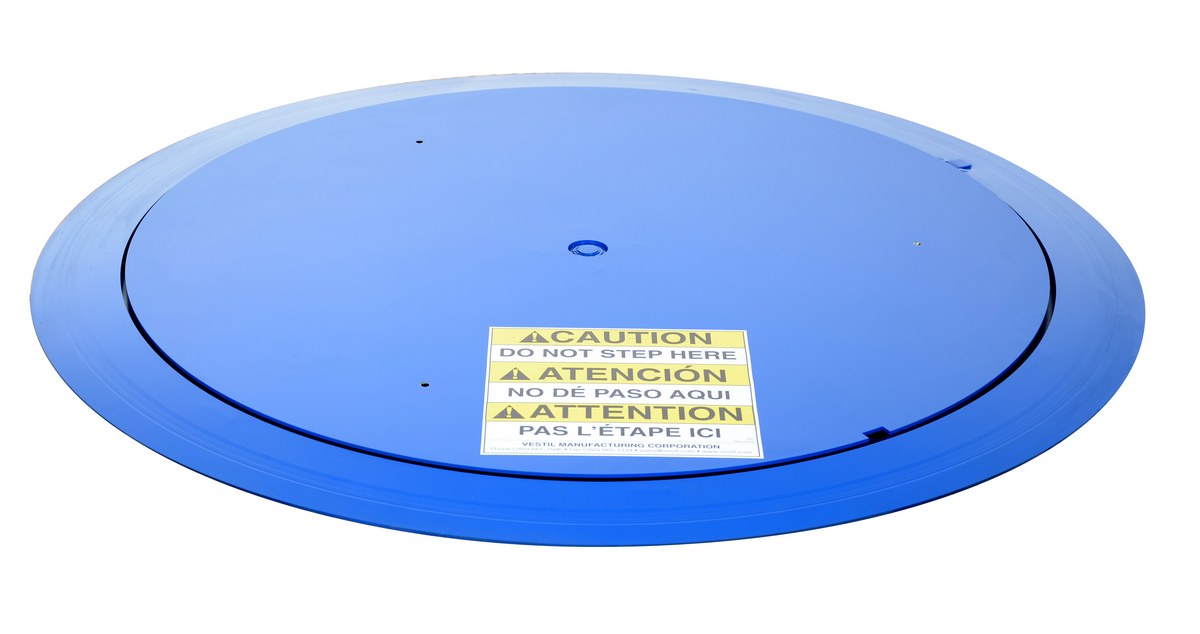

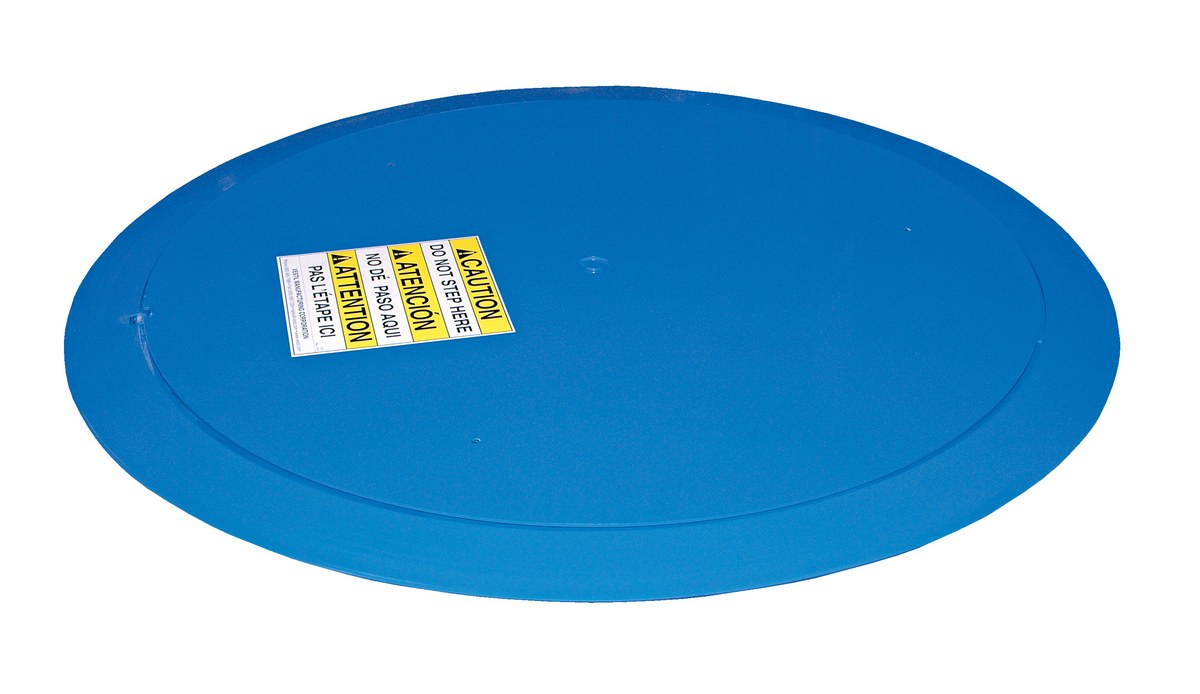

| LP-4000T |  | 90 Days Limited Warranty | Steel Thin Spin 59-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 | 270 | ||

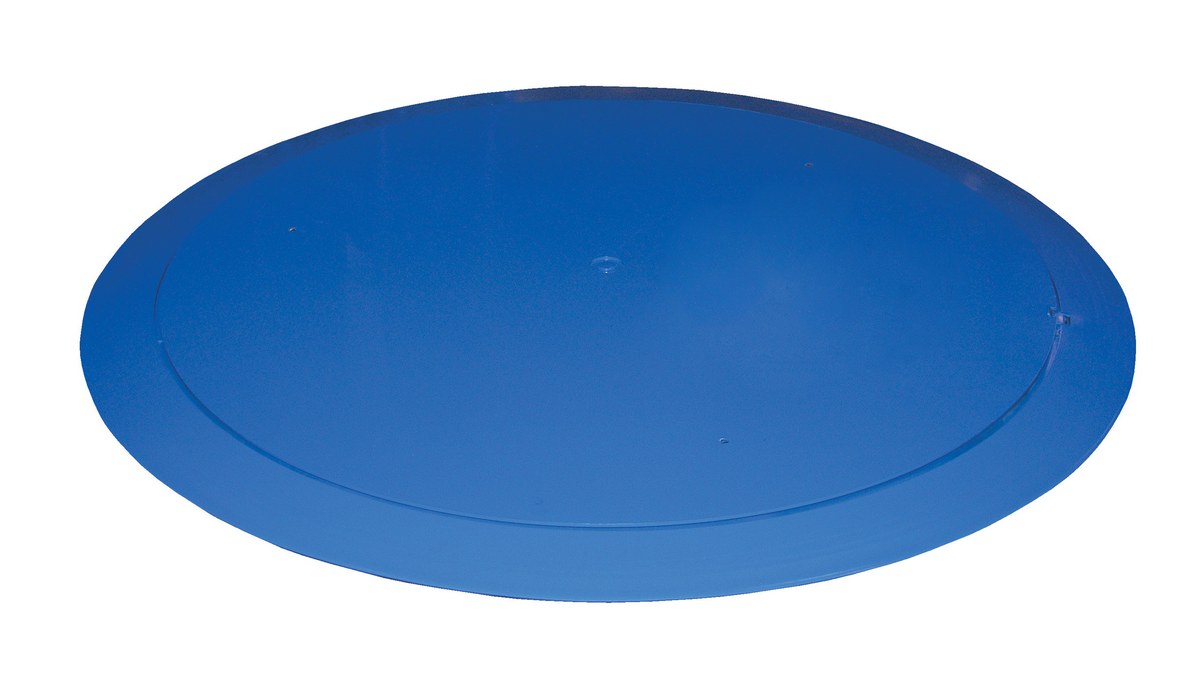

| LP-4000T-39 |  | 90 Days Limited Warranty | Steel Thin Spin 47-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 | 189 | ||
| LP-4000T-39-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 47-11/16 In. Diameter 4000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 | 206 | |

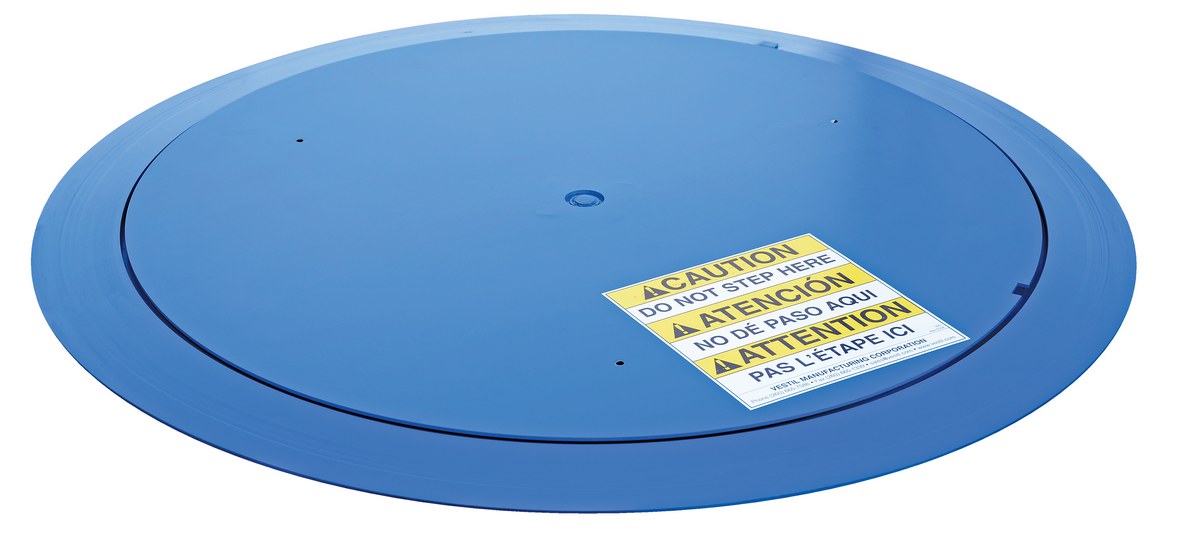

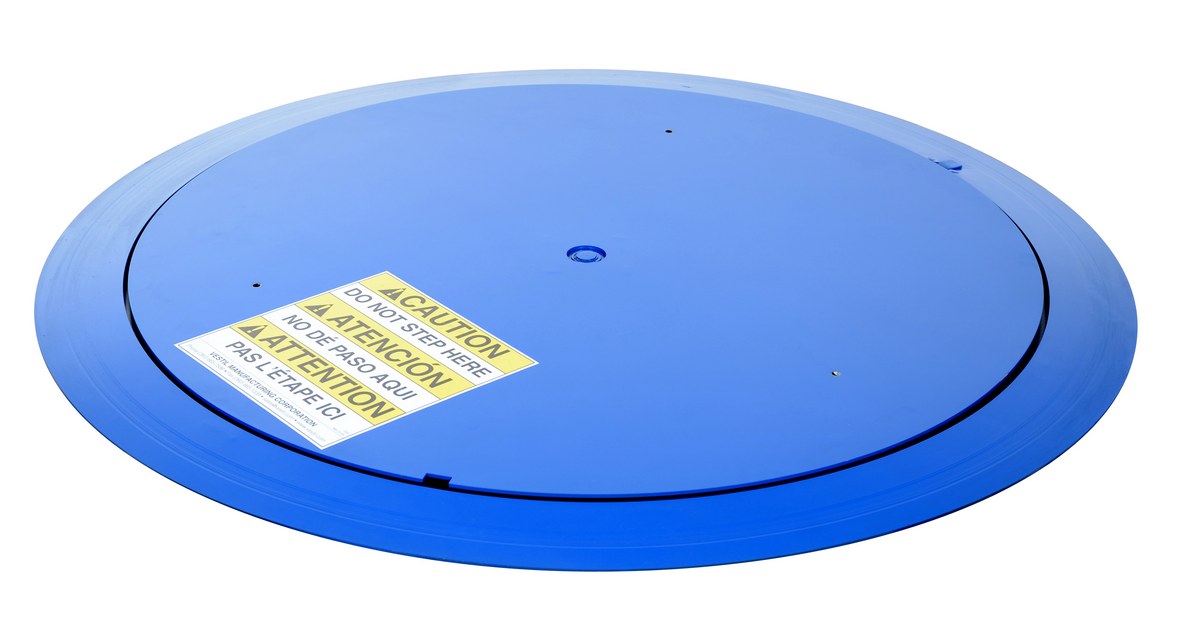

| LP-4000T-45 |  | 90 Days Limited Warranty | Steel Thin Spin 53-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 45 | 257 | ||
| LP-4000T-45-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 53-11/16 In. Diameter 4000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 45 | 253 | |

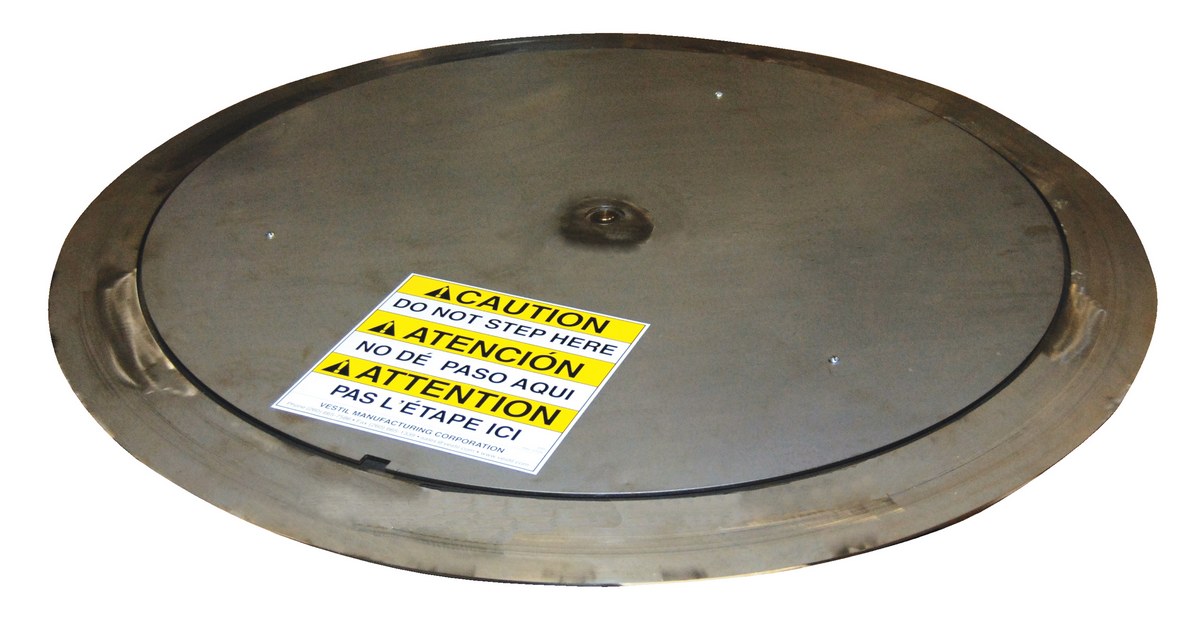

| LP-4000T-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 59-11/16 In. Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 | 300 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
For More Details of the Option Click the Red Model Button

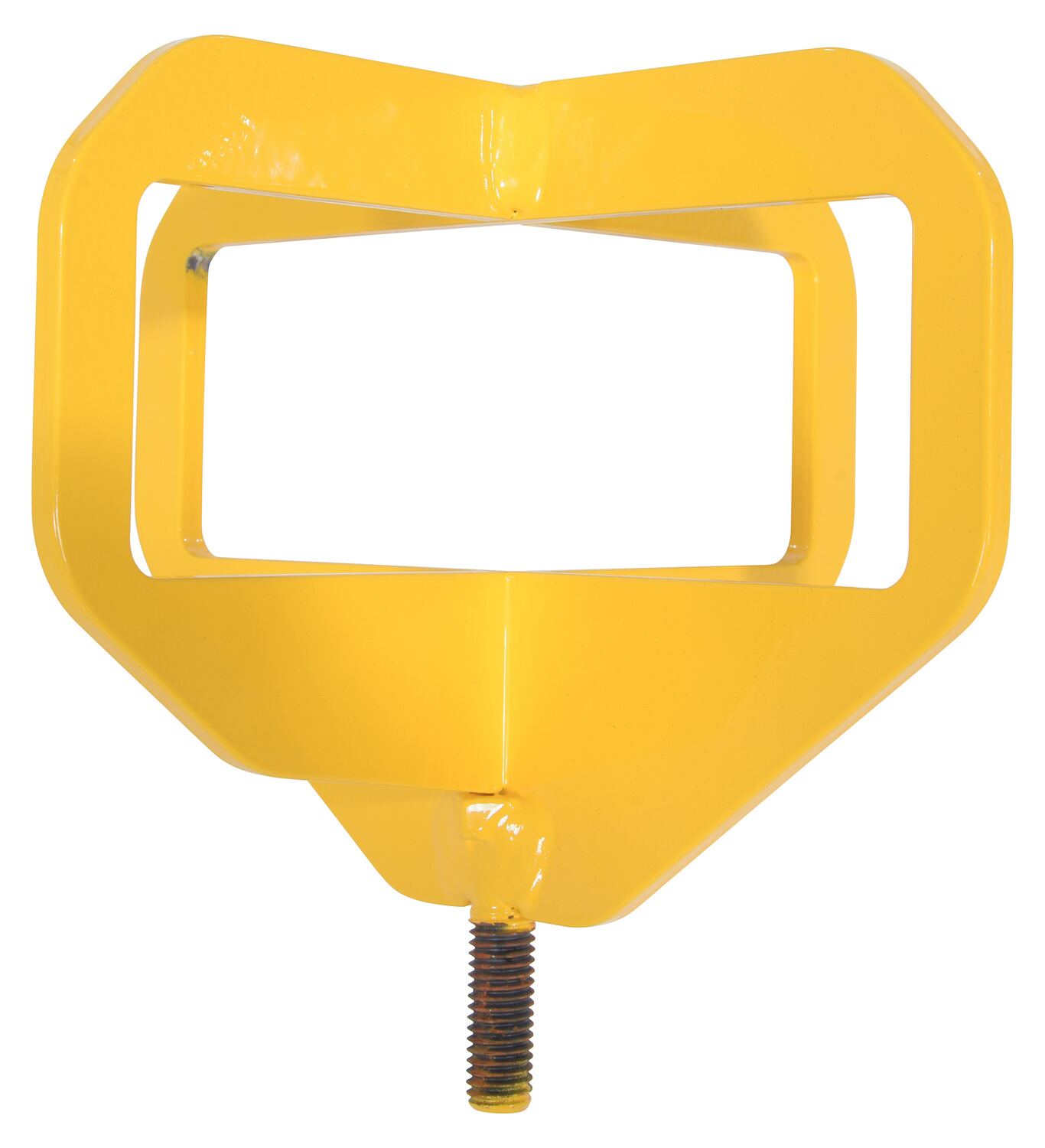

| LP-LL | NEW |  | 90 Days Limited Warranty | Steel Thin Spin Lifting Loop Yellow | Finish: Powder Coat Fork Pocket Width (in.): 5 | 6 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: We are in the food industry and are interested in the stainless steel thin spin. Is it designed for washdown?
A: The stainless steel thin spins models LP-4000T-SS,LP-4000T-45-SS and LP-4000T-39-SS are not designed for washdown. Water would collect and pool in the grooves that contain the ball bearings.
Q: How do you move these carousels? Is there something to use to lift them?
A: We recommend wedging something between the floor and the carousel (crowbar, prying tool, etc...) and just lift it up a bit so forks can insert under the carousel to lift it .
Q: Do you have other sizes or capacities?
A: No, we are not able to offer custom diameters.
Q: What material are the ball bearings?
A: The ball bearings in the LP-4000T-39-SS are 9/16" stainless steel.
 |
|||||||||||||||||||||||||||||||||||||
