Heavy Duty Precision Turret Bearings

- - - -

Description
Model Chart
PDF's
Image Gallery

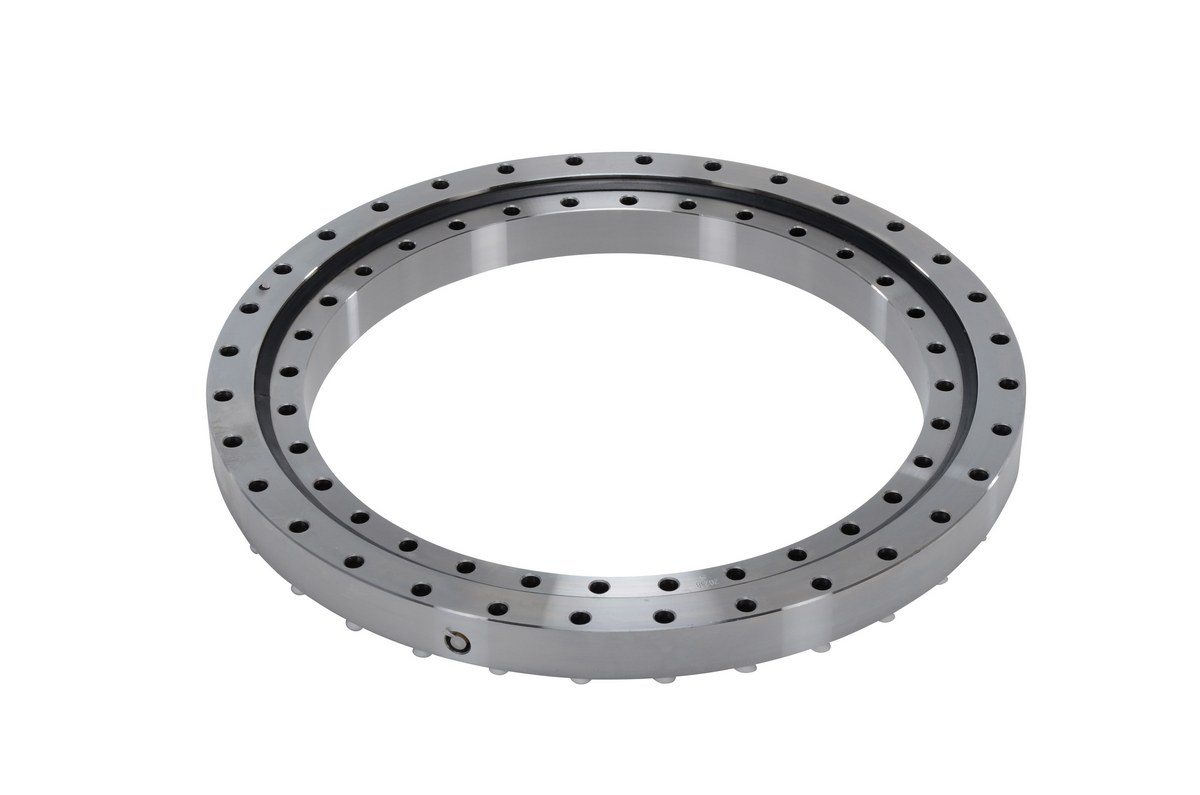

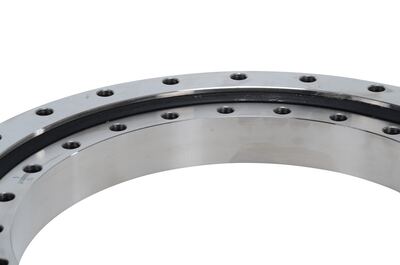

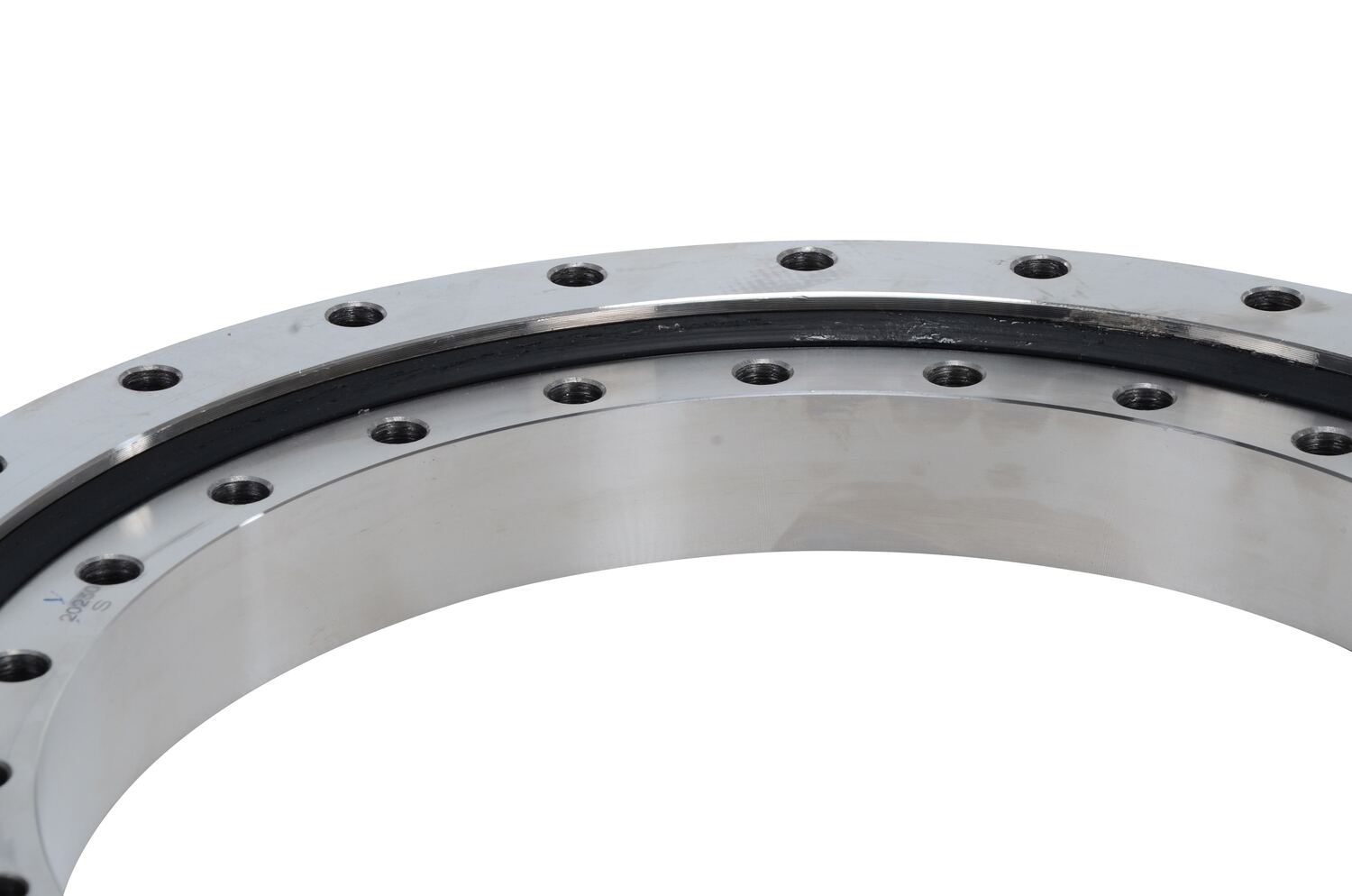

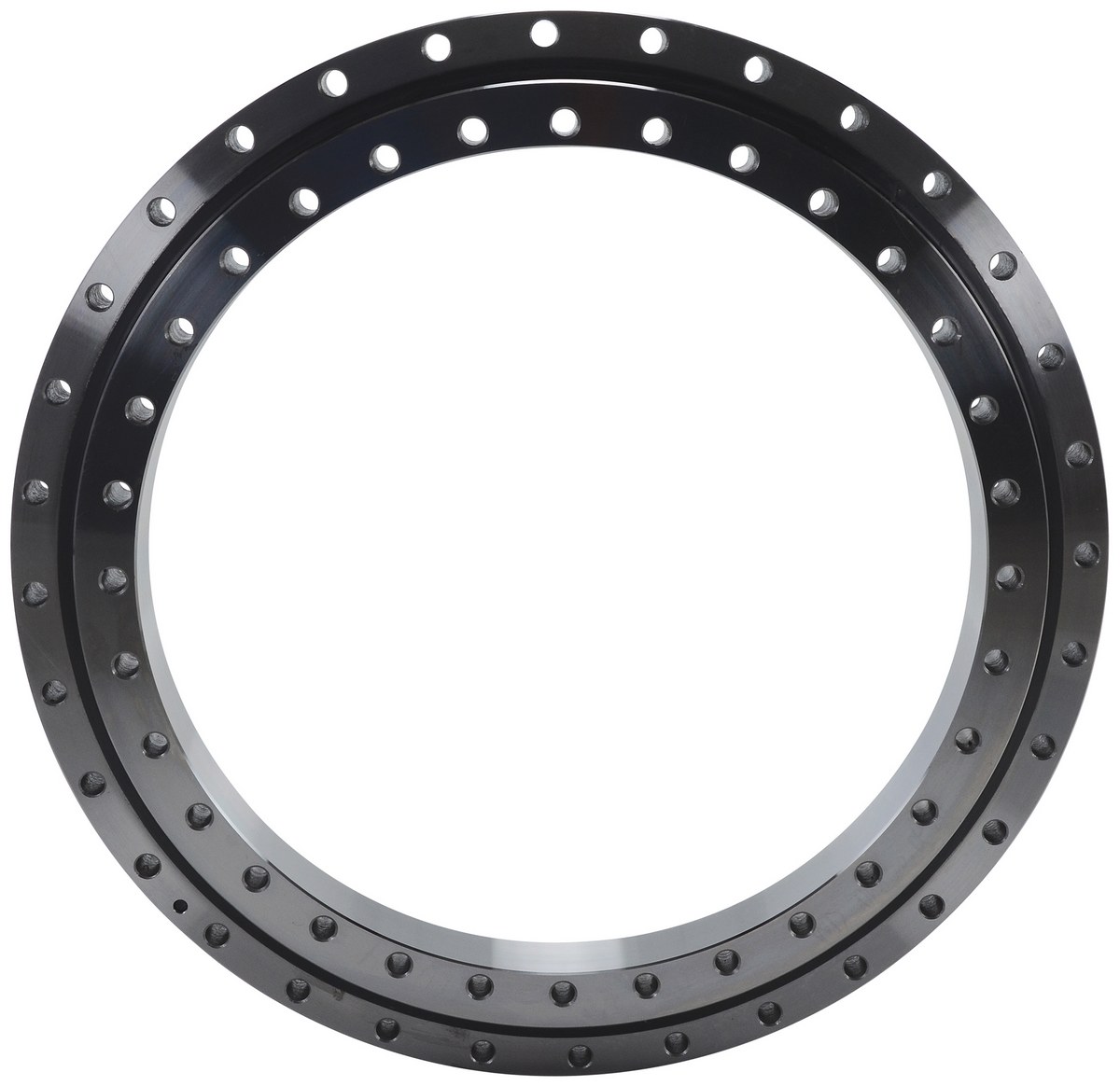

PTB-24_A.jpg PTB-24_B.jpg PTB-19_C.jpg
Heavy Duty Precision Turret Bearings

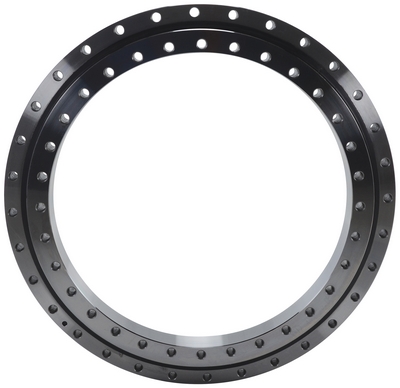

model: PTB-24



Featured Packaging Equipment


Powered Stretch Wrap Machines
Pallet Wedge
Portable Bench Scale - Legal for Trade
Scales
Carton & Box Staplers
Impulse Bag Sealers
Wall-Mounted Strapping Dispenser
Edge Guards
Poly Strapping & Seals
model chart

Product Family Overview

Print Friendly
Heavy Duty Precision Turret Bearings
SERIES: PTB

The Precision Turret Bearing is ideal for consistent turntable maneuvering. The bearing is able to meet the most precise degree, when they matter most. The unit can be used as a stand-alone carousel in a variety of manufacturing settings. With a lightweight construction the bearing is easily transported and turned softly during procedure.

  • Precision turret bearing is ideal for consistent turntable maneuvering
  • Use as a stand-alone carousel in a variety of settings for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

The Precision Turret Bearing is ideal for consistent turntable maneuvering. The bearing is able to meet the most precise degree, when they matter most. The unit can be used as a stand-alone carousel in a variety of manufacturing settings. With a lightweight construction the bearing is easily transported and turned softly during procedure.

  • Precision turret bearing is ideal for consistent turntable maneuvering
  • Use as a stand-alone carousel in a variety of settings for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Other Carousels

 Thin Spins Pallet Cart & Carousel Heavy-Duty Manual Turntables Heavy Duty Precision Turret Bearings

Additional Models In This Family
view entire Image Gallery

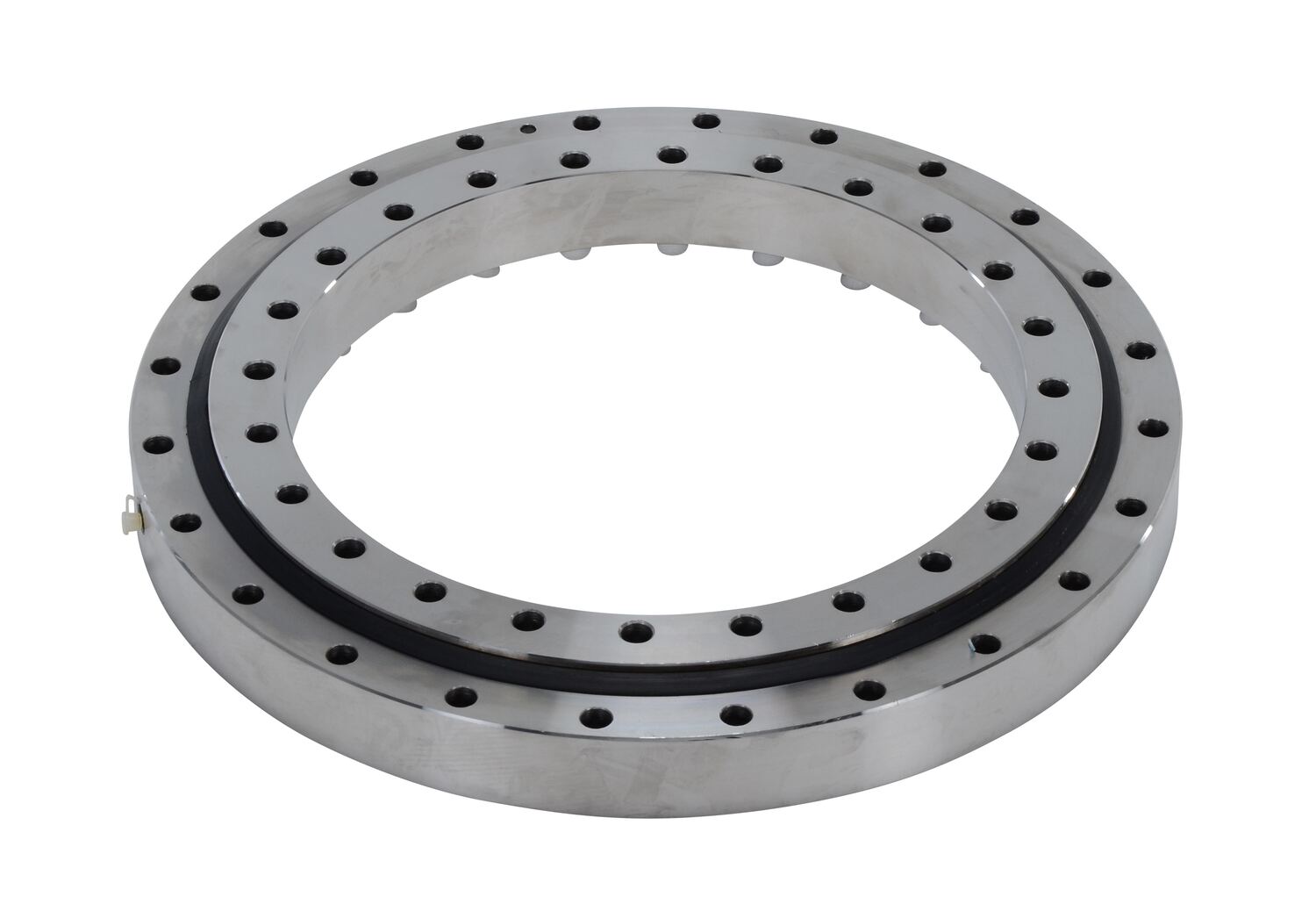

PTB-19

model PTB-19

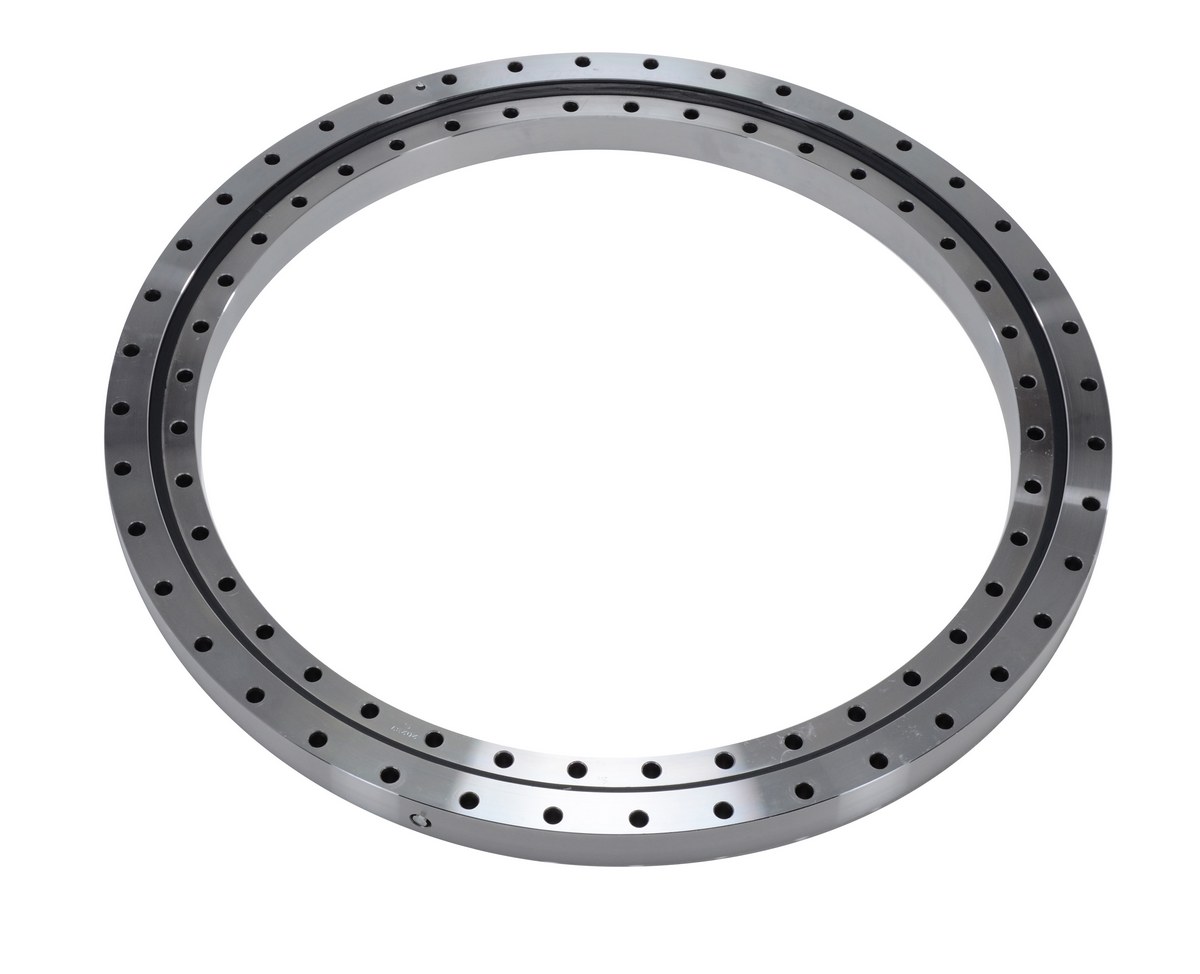

PTB-32

model PTB-32

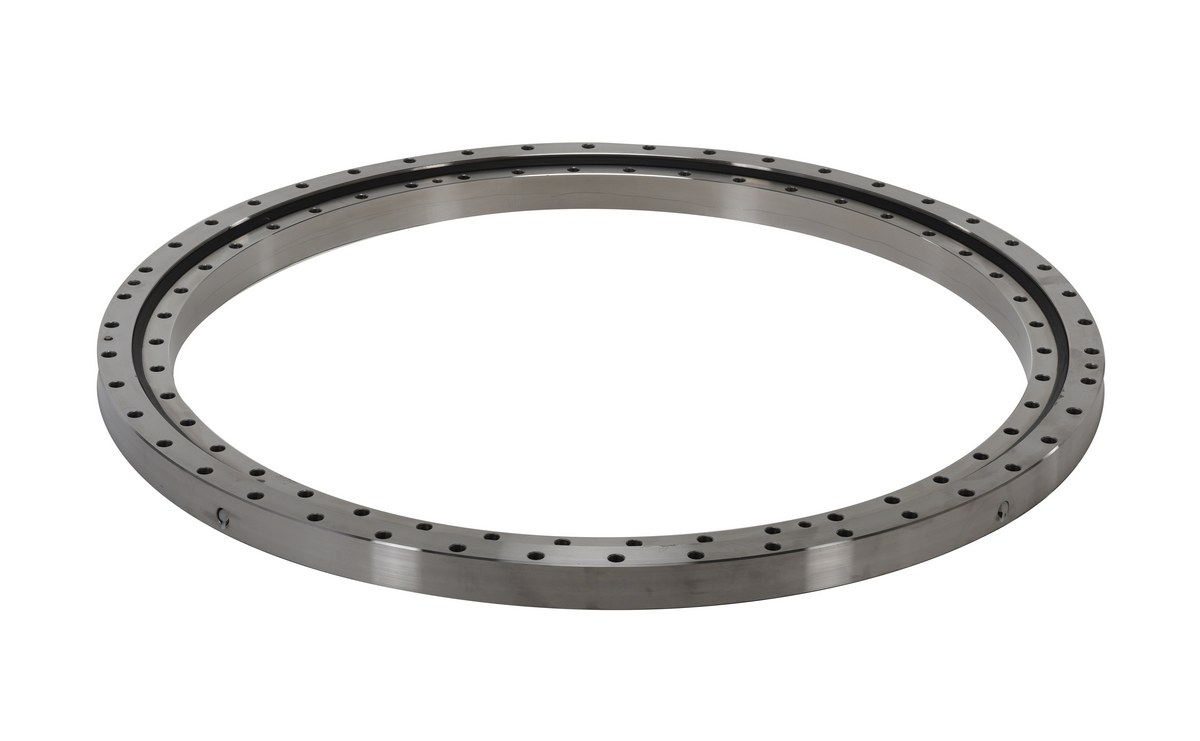

PTB-40

model PTB-40

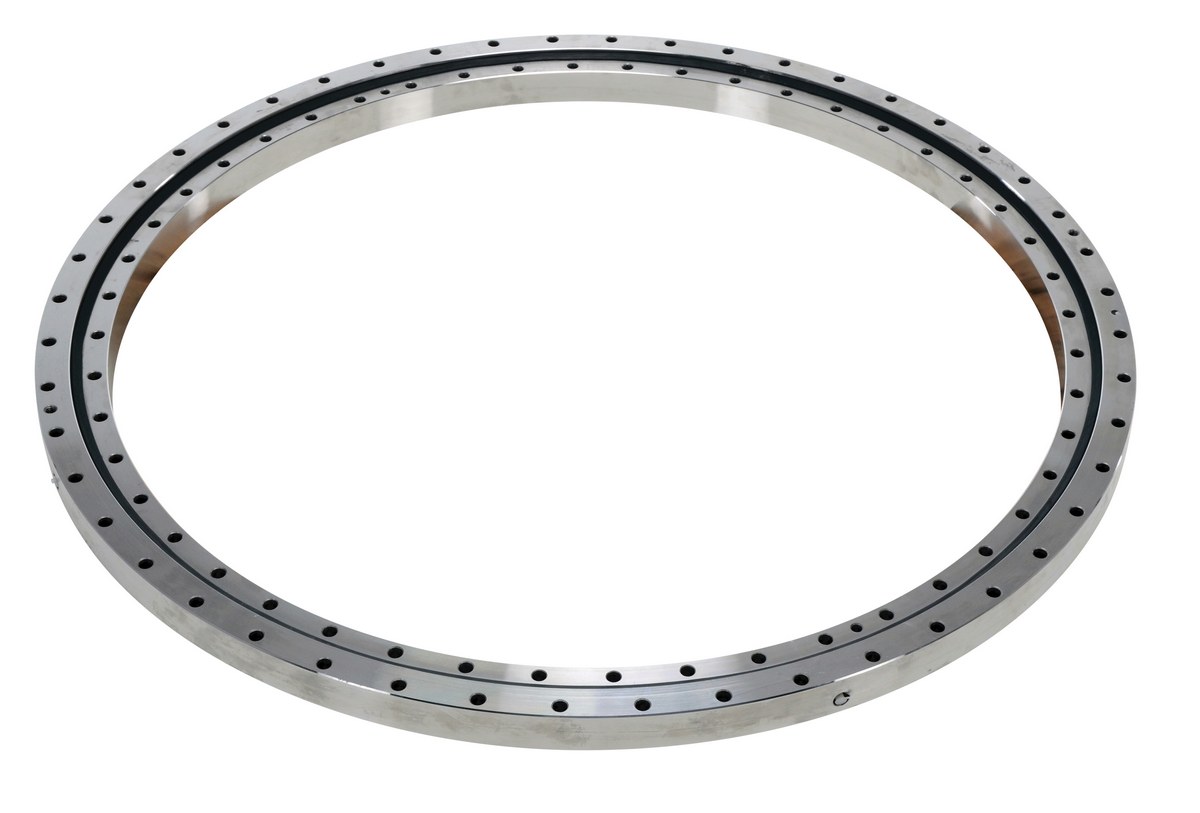

PTB-46

model PTB-46

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PTB-19 POPULAR PTB-1990 Days Limited WarrantySteel Precision Turret Bearing 19-1/8 In. x 19-1/8 In. x 2-1/4 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Mounting Hole Quantity: 24		98
PTB-24 PTB-2490 Days Limited WarrantySteel Precision Turret Bearing 24-1/4 In. x 24-1/4 In. x 2-1/4 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Mounting Hole Quantity: 32		98
PTB-32 PTB-3290 Days Limited WarrantySteel Precision Turret Bearing 32-1/8 In. x 32-1/8 In. x 2-1/4 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Mounting Hole Quantity: 40		152
PTB-40 PTB-4090 Days Limited WarrantySteel Precision Turret Bearing 41-3/16 In. x 41-3/16 In. x 2-1/4 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Mounting Hole Quantity: 44		188
PTB-46 PTB-4690 Days Limited WarrantySteel Precision Turret Bearing 45-7/8 In. x 45-7/8 In. x 2-1/4 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Mounting Hole Quantity: 47		215

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PTB-19
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 24
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 24

PTB-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 32
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 32

PTB-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 40
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 40

PTB-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 44
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 44

PTB-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 47
Uniform Capacity (lb.): 6,000
Mounting Hole Quantity: 47
Heavy Duty Precision Turret Bearings PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PTB-19

PTB-24

PTB-32

PTB-40

PTB-46

Testing Certificates


PTB-19

PTB-24

PTB-32

PTB-40

PTB-46

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Heavy Duty Precision Turret Bearings Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What grade of stainless is this?

A: I do not show that these are stainless steel, I show that they are plated.

Q: What is the side to side play for all PTB models?

A: 0.023"

Q: Is there a maintenance schedule for PTB-19?

A: Maintenance should be performed every 6 months

Q: What grease type should be used for PTB-19?

A: NLGI 1 or NLGI 2- both will work.
