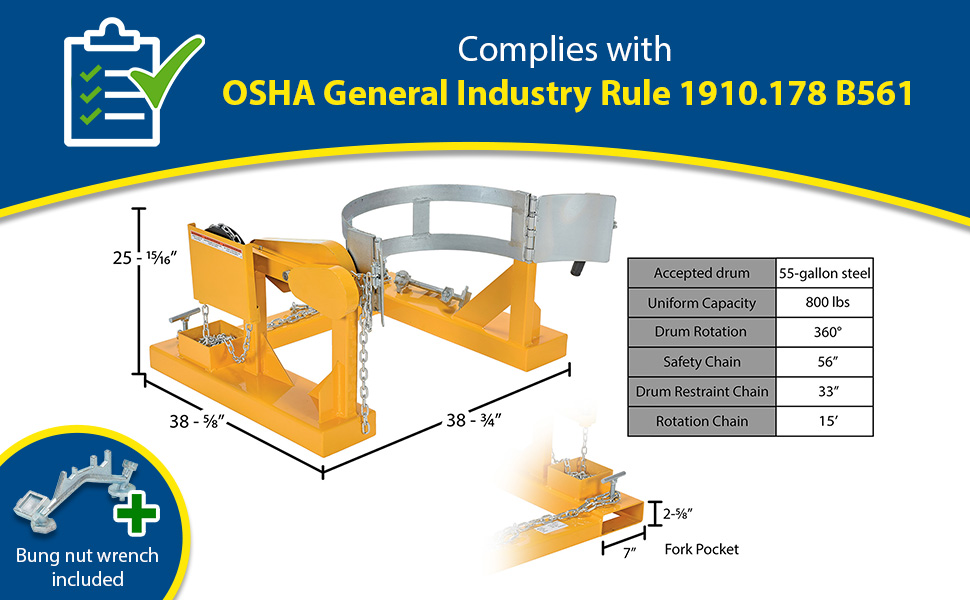

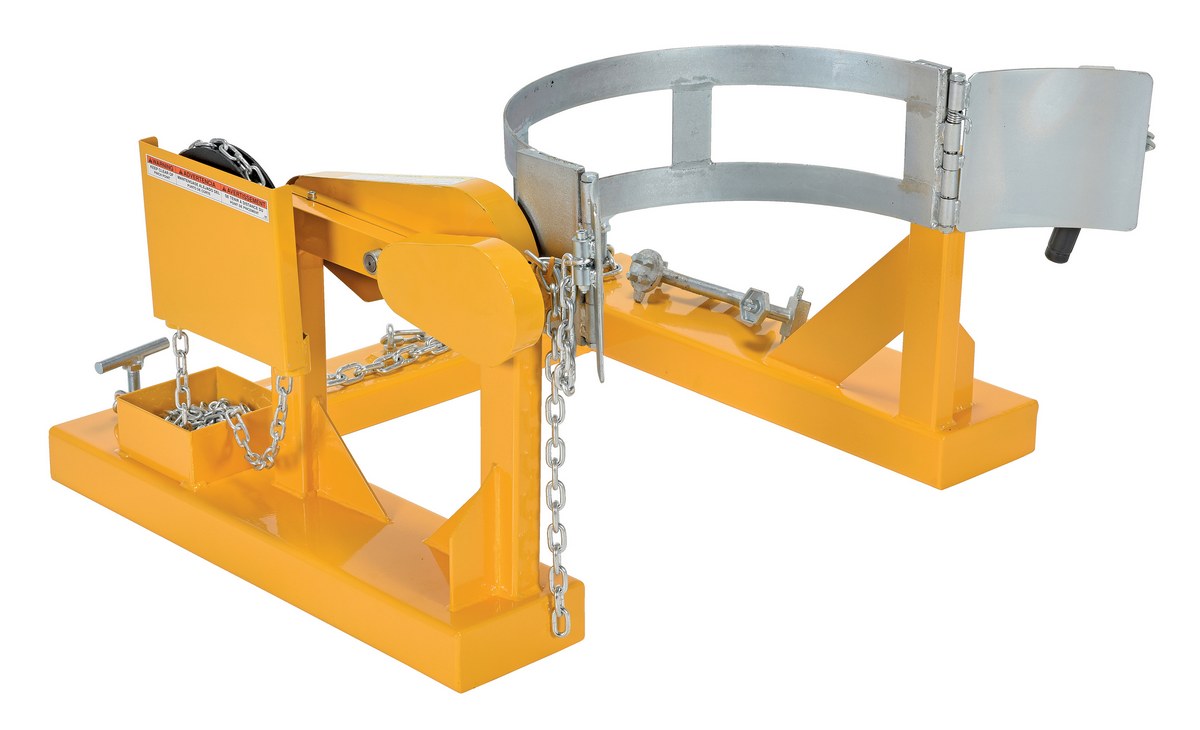

Fork Truck Drum Carrier/RotatorsThis product allows you to easily transport and rotate 55-gallon steel drums using a fork truck. Each standard unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360 degrees from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable, except DCR-205-8 and DCR-205-15 usable is 7" W. DC powered units include (2) two 12V batteries, on-board charger, battery charge indicator gauge, and hand held control on a 4 ft. to 20 ft. long coil cord. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I-W, is also included for opening and closing drums.

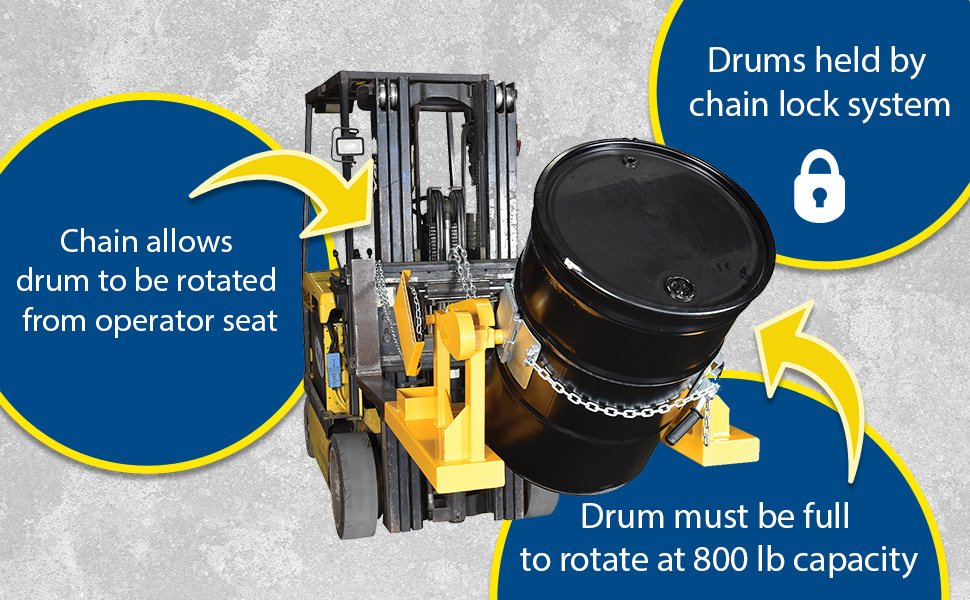

- Drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck

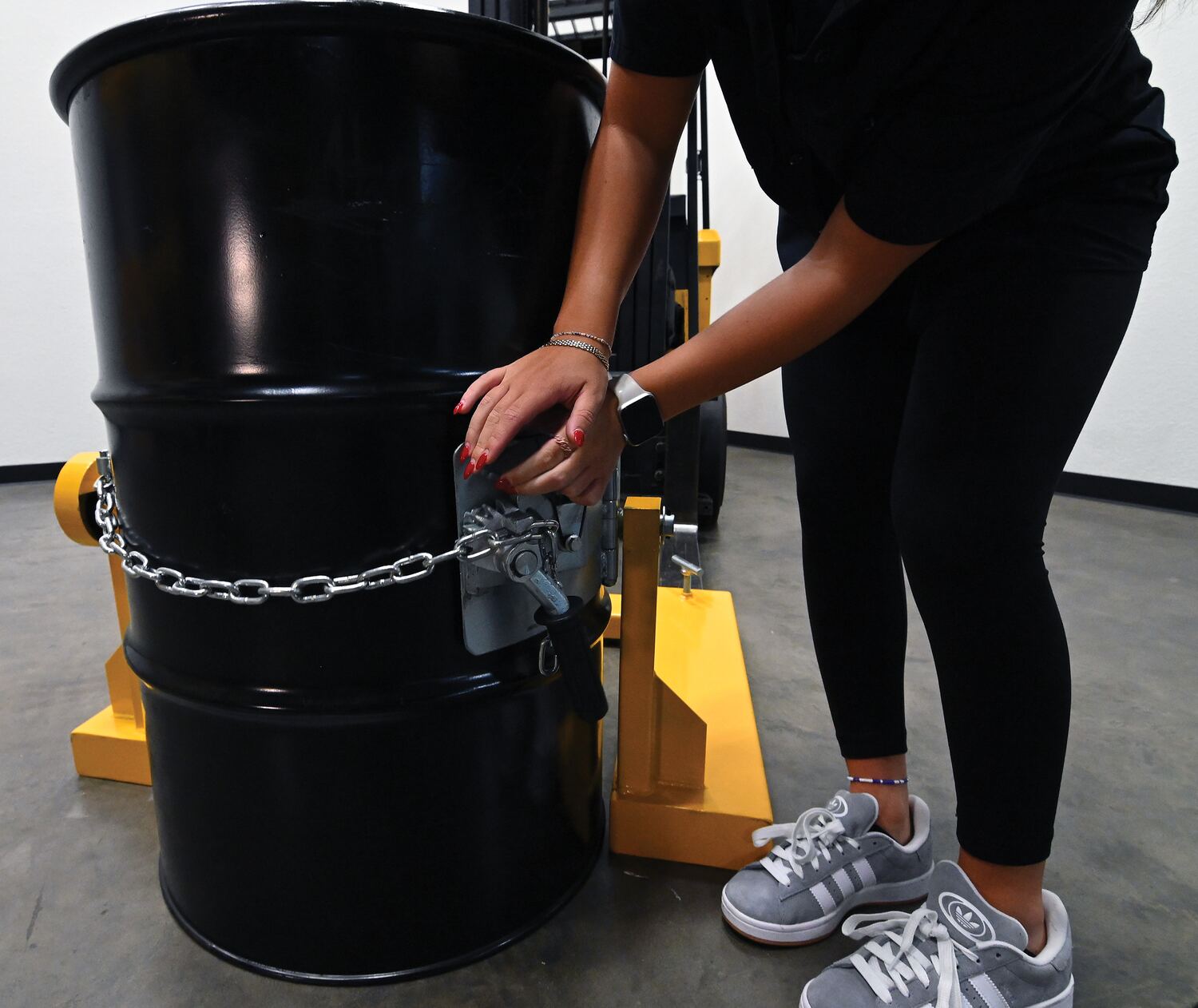

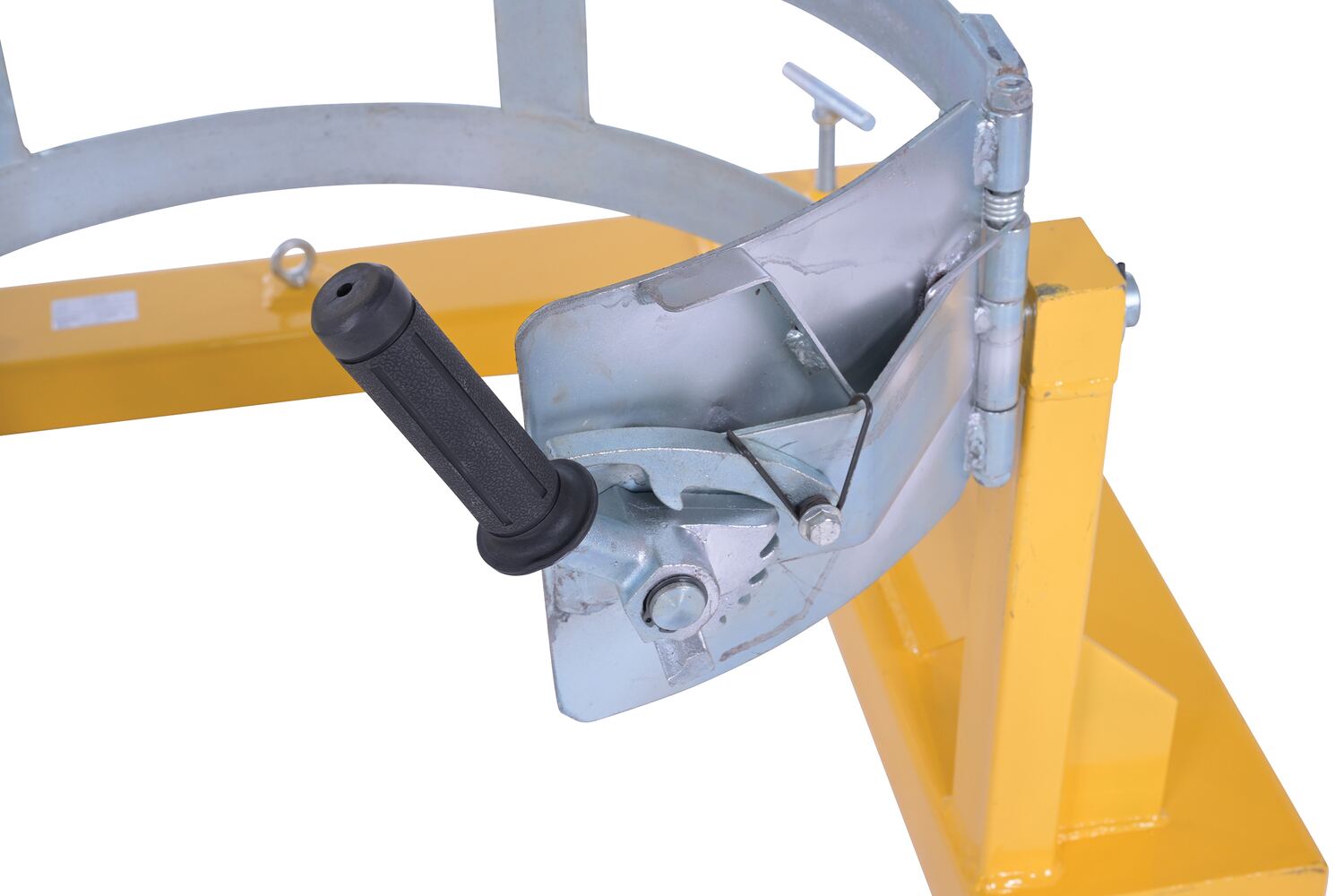

- Drums are held by a durable chain locking system in order to be secure in place

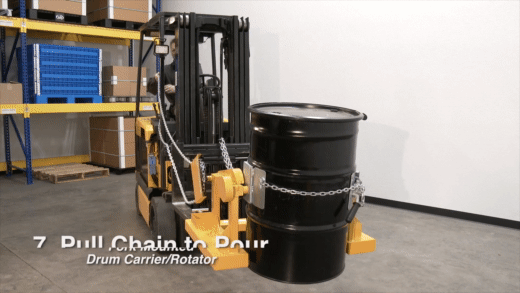

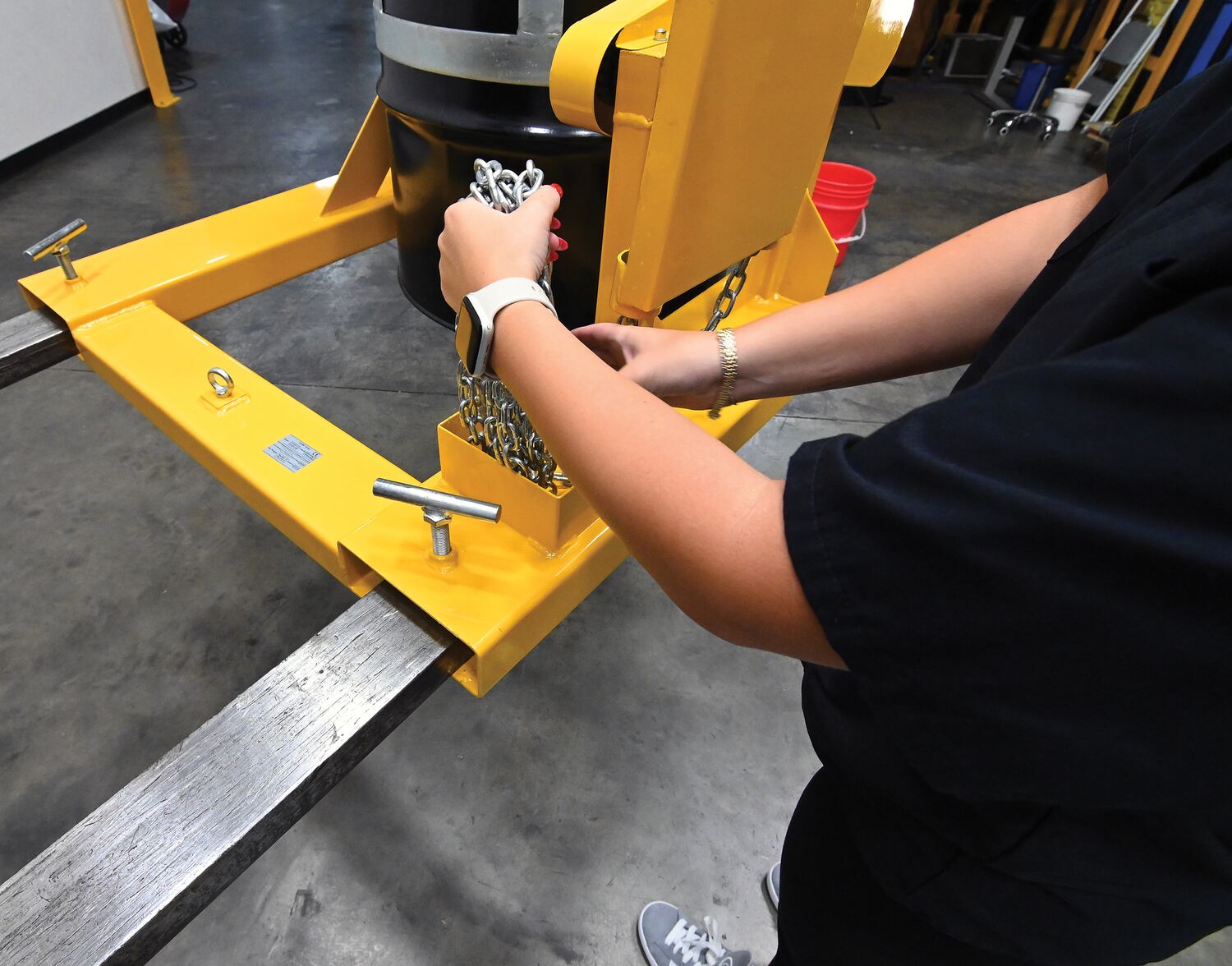

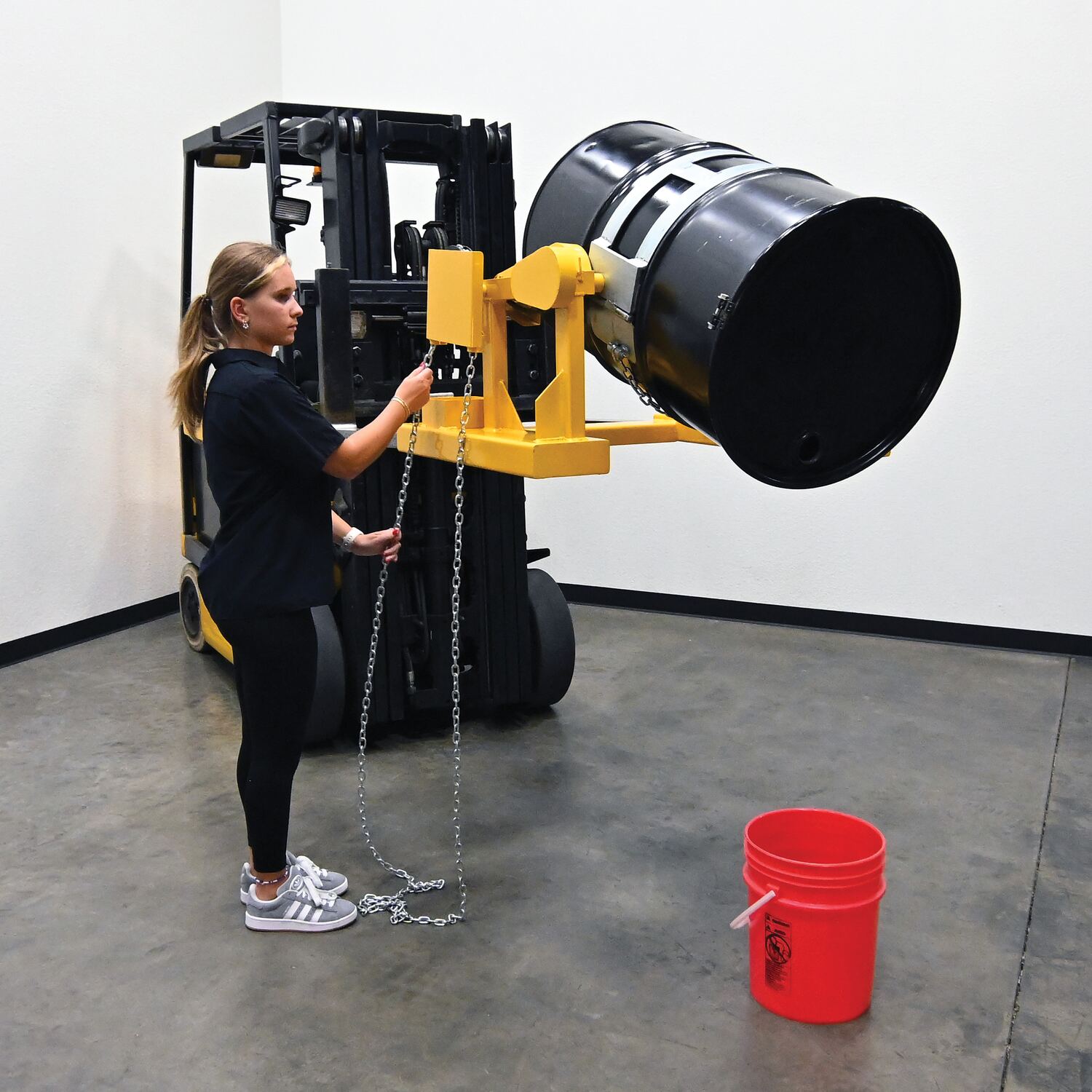

- Carrier/rotator is provided with a chain to allow the drum to be rotated from the operator's seat
- Bung nut wrench is also included for opening and closing drums
Fork Mounted Poly Drum Handlers
Plastic & Fiber Drum Adapters and Other Upgrades
Drum Grippers
Spring Grip Fork Mounted Drum Gripper
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DCR-205-8 |  | 90 Days Limited Warranty | Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow | Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum | 228 | ||

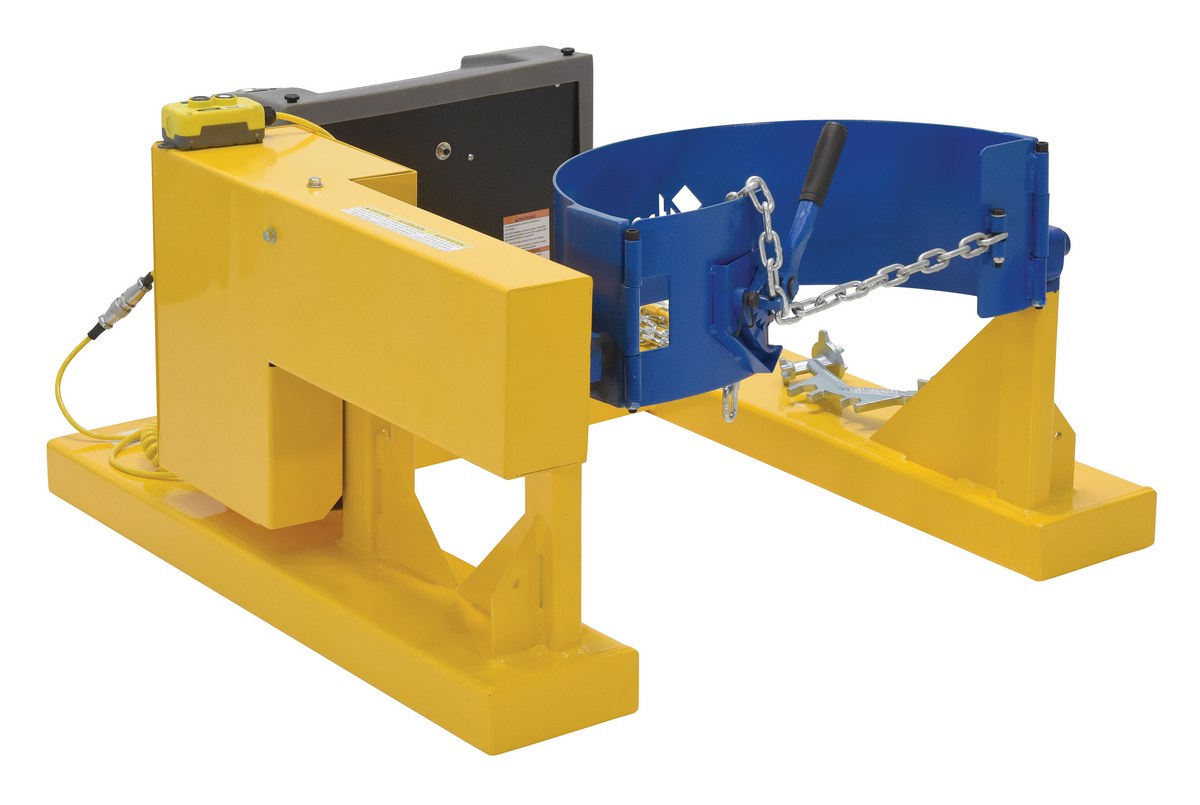

| DCR-205-8-DC |  | 90 Days Limited Warranty | Steel DC Fork Mounted Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow | Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum | 327 | ||

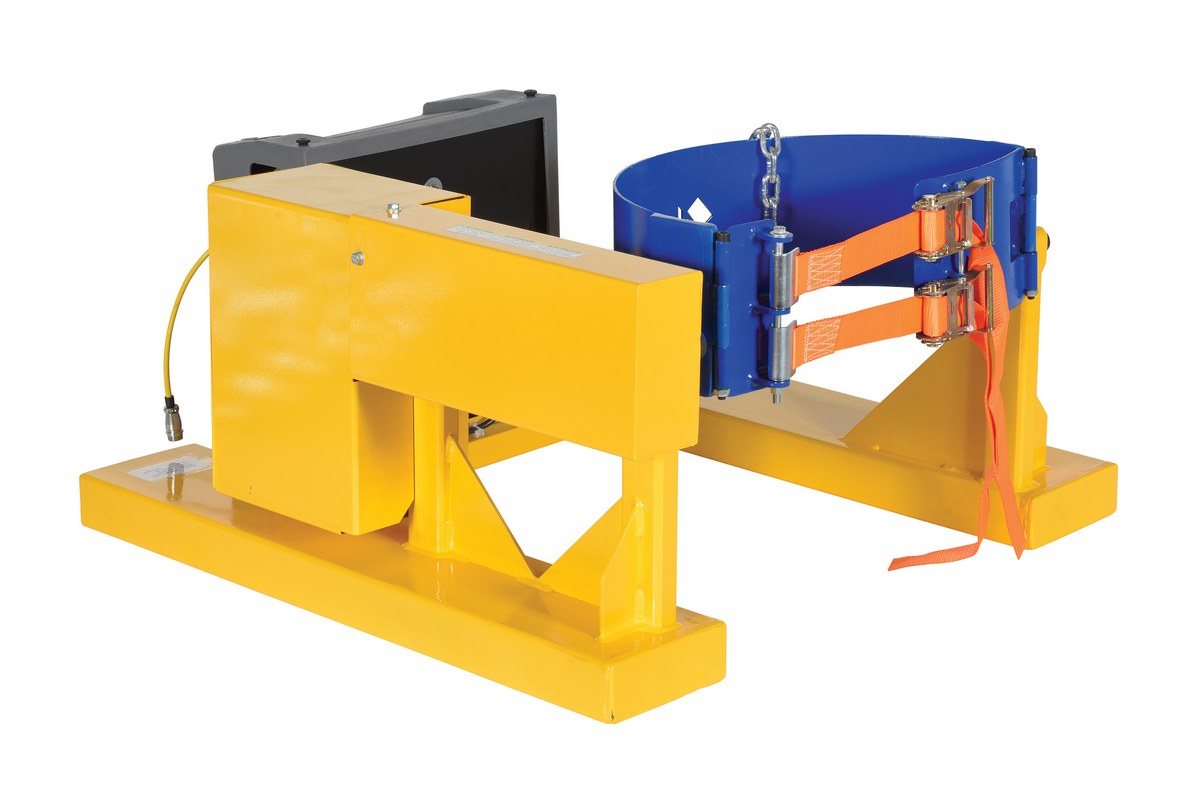

| DCR-205-12-DC |  | 90 Days Limited Warranty | Steel DC Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1200 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,200 Accepts: 55-gallon steel drum | 327 | ||

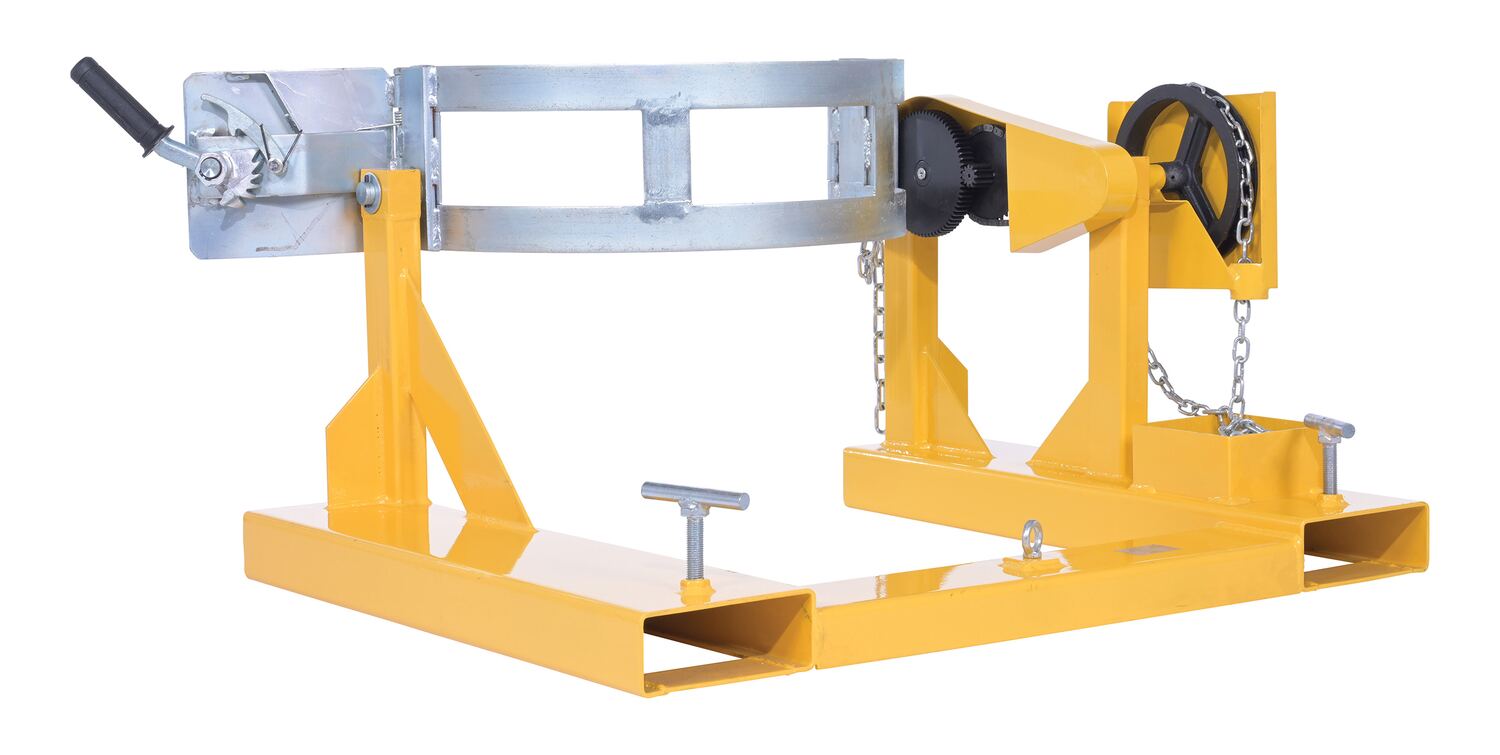

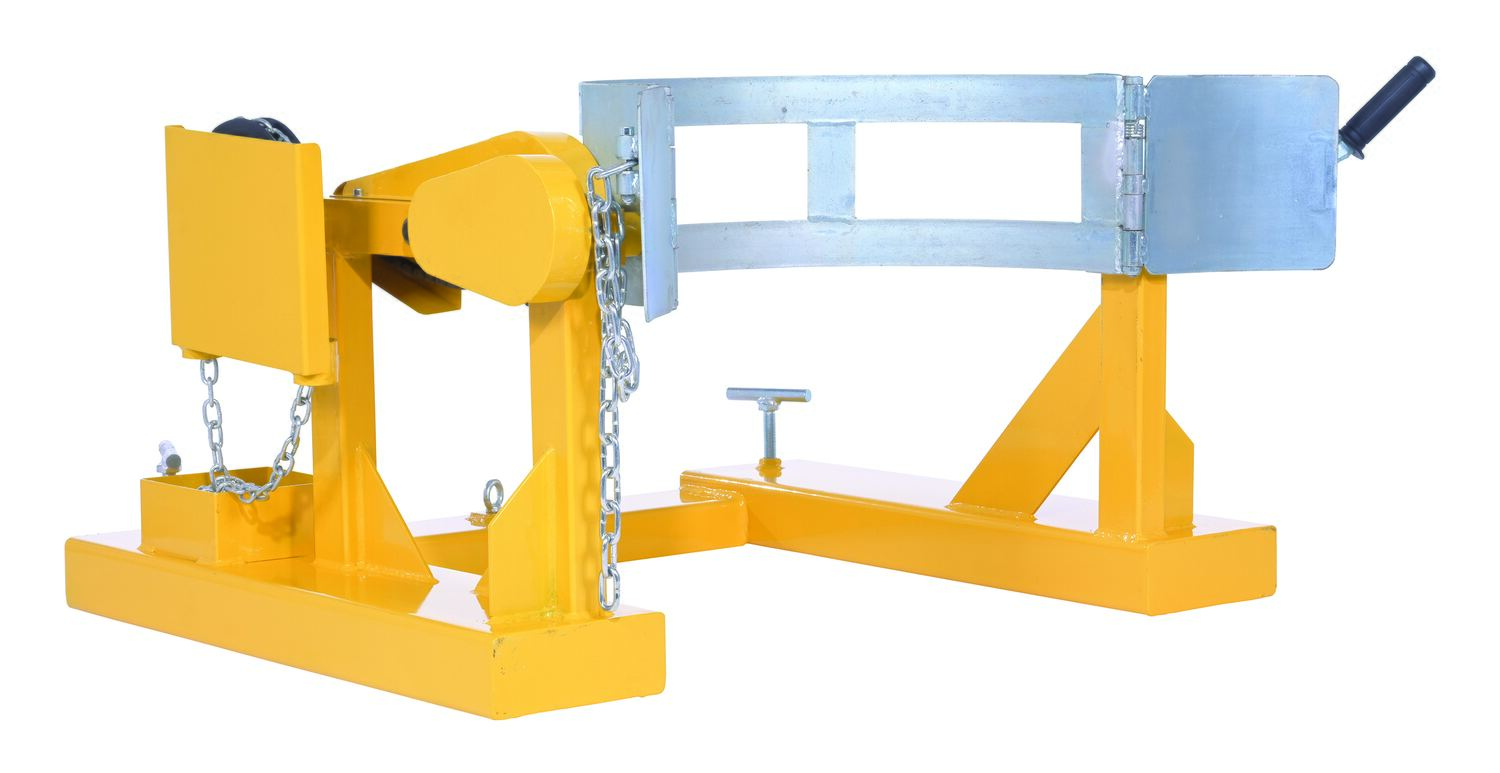

| DCR-205-15 | POPULAR |  | 90 Days Limited Warranty | Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,500 Accepts: 55-gallon steel drum | 222 | |

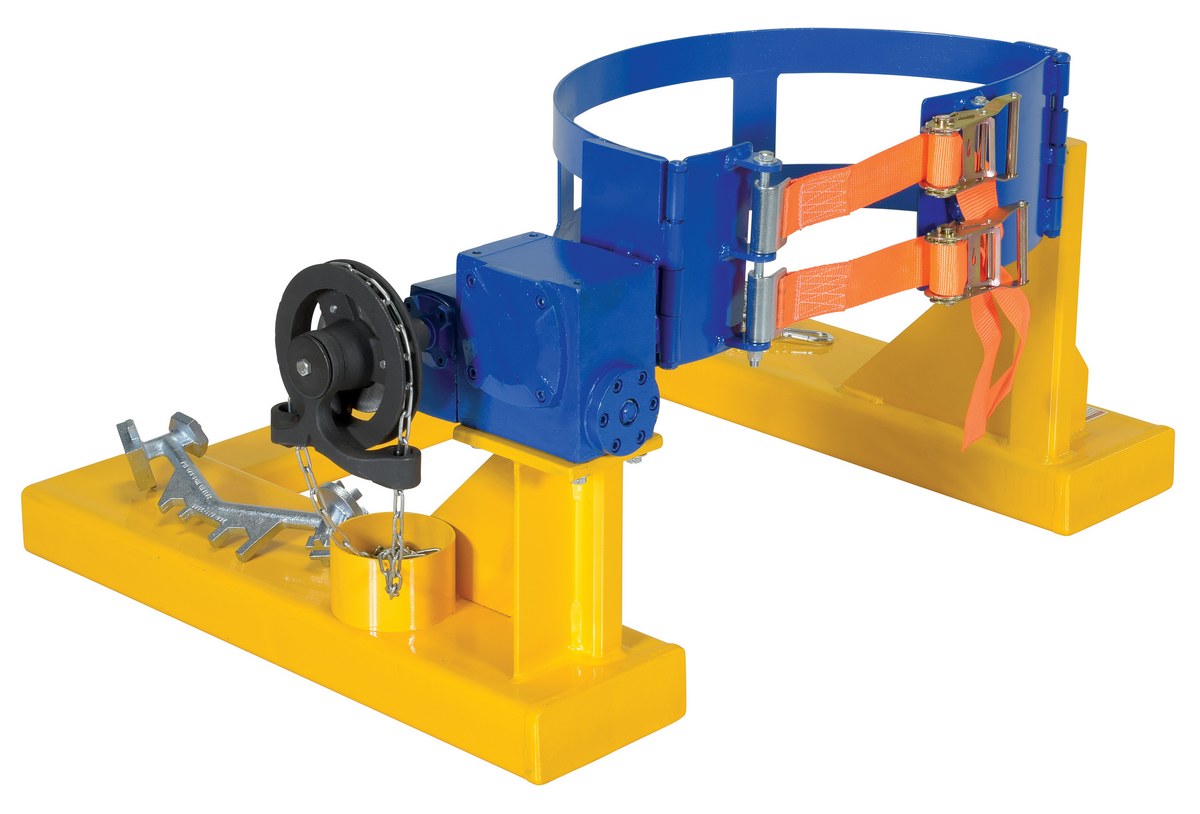

| DCR-205-20 |  | 90 Days Limited Warranty | Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 2000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2,000 Accepts: 55-gallon steel drum | 229 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 1,200
Accepts: 55-gallon steel drum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 2,000
Accepts: 55-gallon steel drum
For More Details of the Option Click the Red Model Button

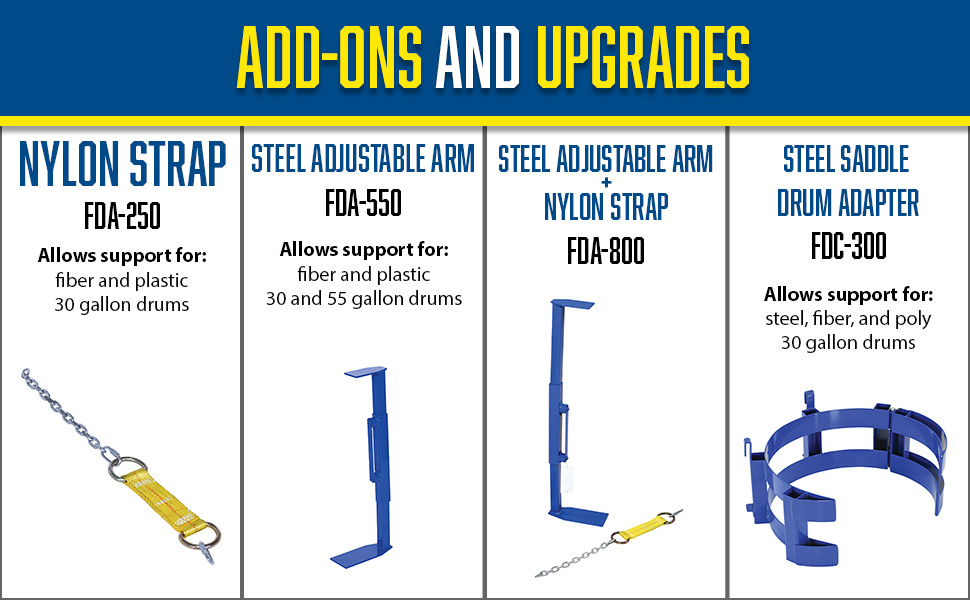

| Model | Image | Description | Wt (lbs.) | ||||
| FDA-250 |  |
Nylon Strap 29-9/16 In. Length For Fiber Drum Adapter Models | 2 | ||||
| FDA-550 | |
Steel Adjustable Arm 28-3/4 In. to 36-3/4 In. Height For Fiber Drum Adapter Models Blue | 12 | ||||
| FDA-800 | |
Steel Fiber & Plastic Drum Adapter Carrier/Rotator For 30 Gallon and 55 Gallon Drums Blue | 18 | ||||
| HCP-2642 |  |
Optional Hand Control Pedestal | |||||
| RRC-2PB |  |
Radio Remote Control use w/ DC units | 1 | ||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Valve Regulated Lead-Acid Battery SDS Sheet for: DCR-205-12-DC
Hydraulic Oil SDS Sheet for: DCR-205-12-DC
Valve Regulated Lead-Acid Battery SDS Sheet for: DCR-205-8-DC
Hydraulic Oil SDS Sheet for: DCR-205-8-DC
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can the drum carrier/rotator be used with plastic drums?
A: Yes. Adapters are available for the DCR-205 products that work with most plastic and fiber drums. Please see the options tab on the drum carrier/rotator page and select the drum adapter link.
Q: Is the DCR-R-815-HC factory installed or can we add it later?
A: The DCR-R-815-HC can be retrofitted in the field or factory installed.
Q: Can the DCR-205 series frames be modified to accommodate specialty fork trucks?
A: No, the DCR-205 series frames cannot be modified.
 |
||||||||||||||||||||||||||||||||||||||||||||||
