Fork Mounted Drum Lifters

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
FMDL-850_A.jpg FMDL-850_B.jpg
Fork Mounted Drum Lifters

model: FMDL-850



Featured Drum Handling Equipment


Plastic & Fiber Drum Adapters and Other Upgrades
Drum Tiers
Drum Wrenches, Sockets & Tools
Welding Cylinder Torch Carts
Fork Truck LP Tank Caddy
Cylinder Dollies
Vertical Steel Retention Basins
Welding Tank Cart
Economical Drum Transporters
model chart

Product Family Overview

Print Friendly
Fork Mounted Drum Lifters
SERIES: FMDL

Fork truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum.

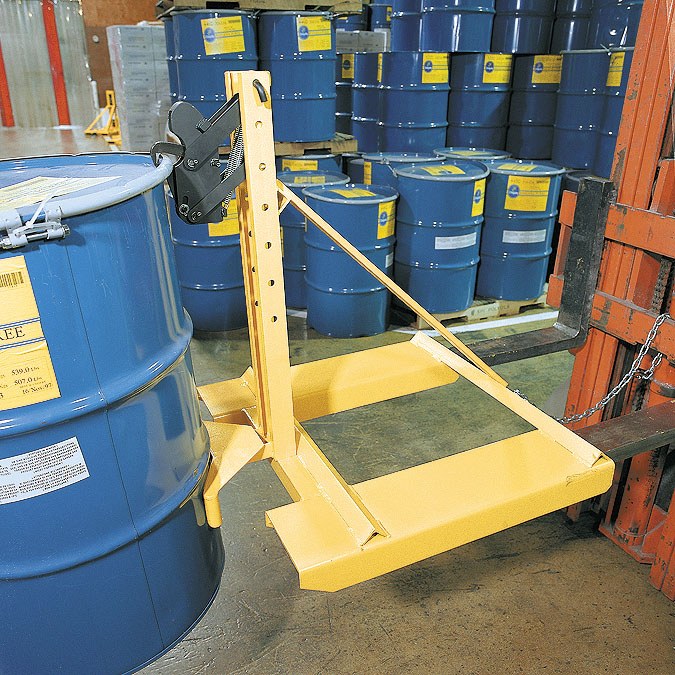

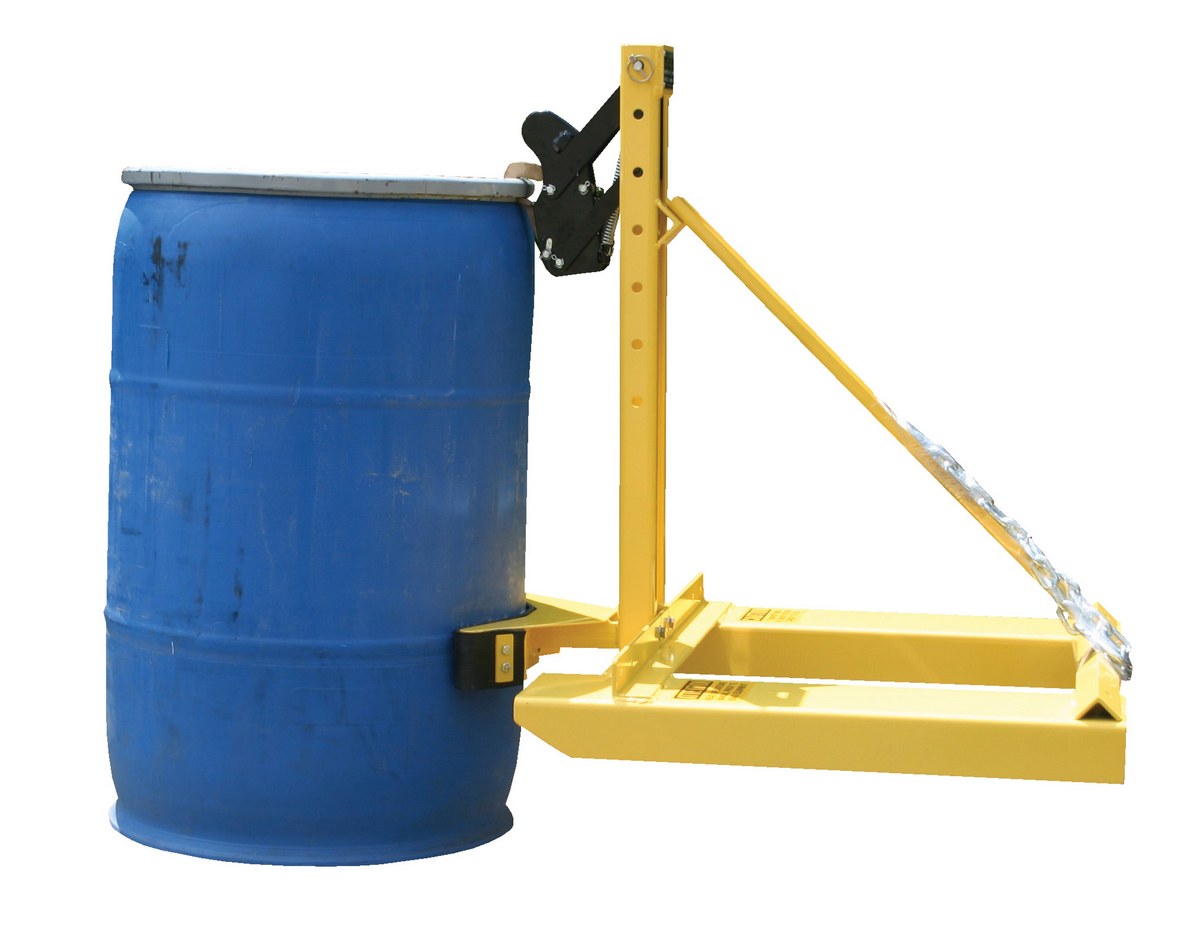

Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation.

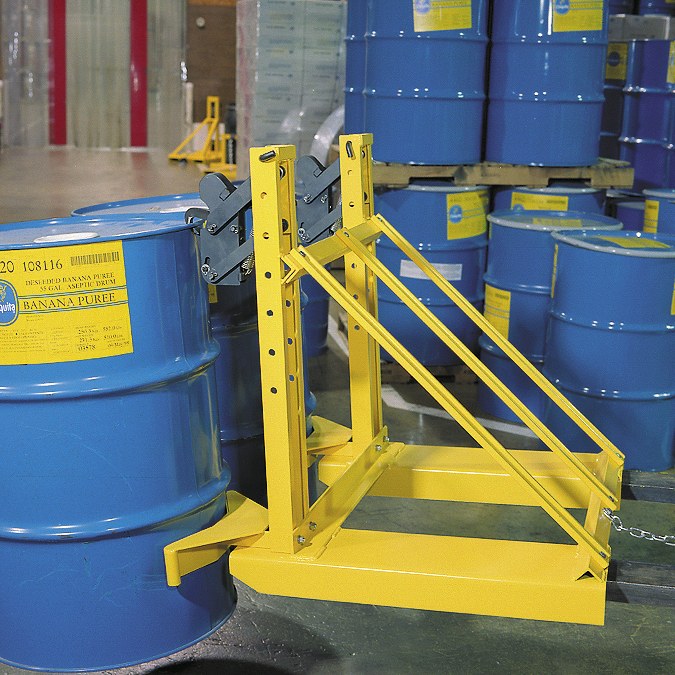

Model FMDDL-1700 is fork mounted, with fork pockets and safety chain. The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck.

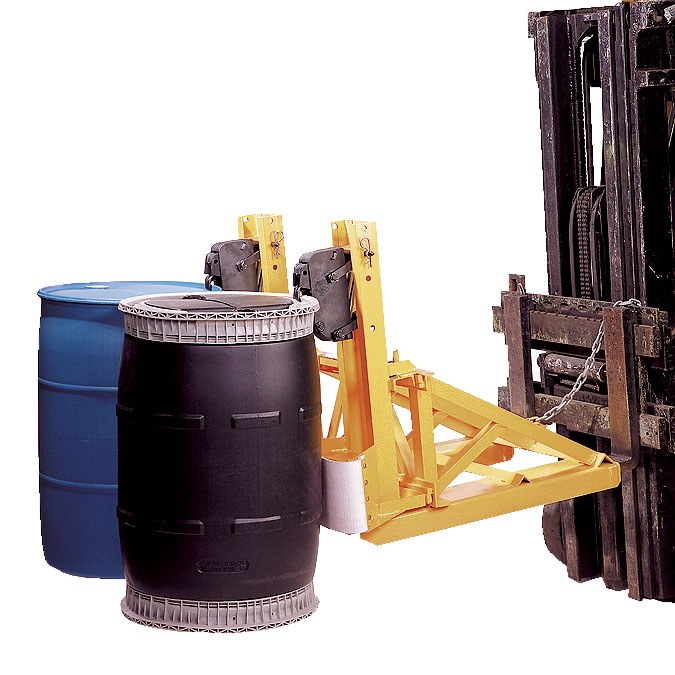

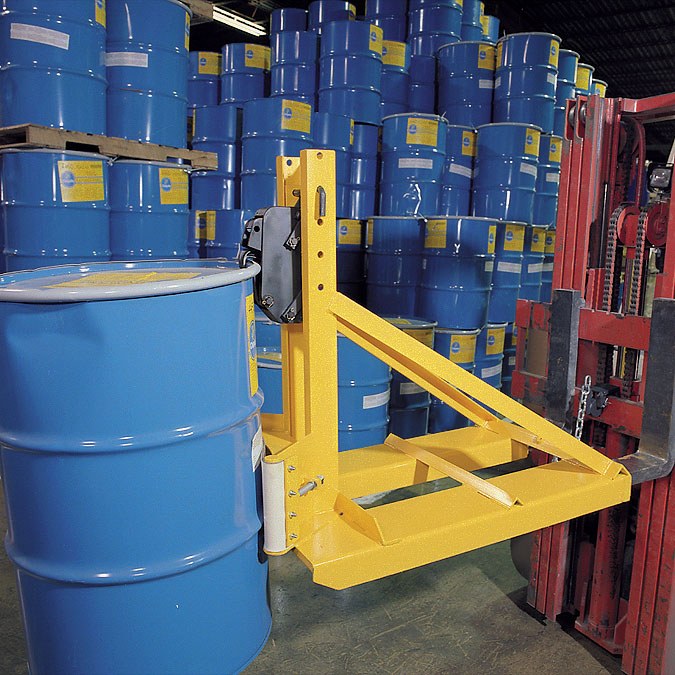

Models FMDL-1500 & FMDDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications.

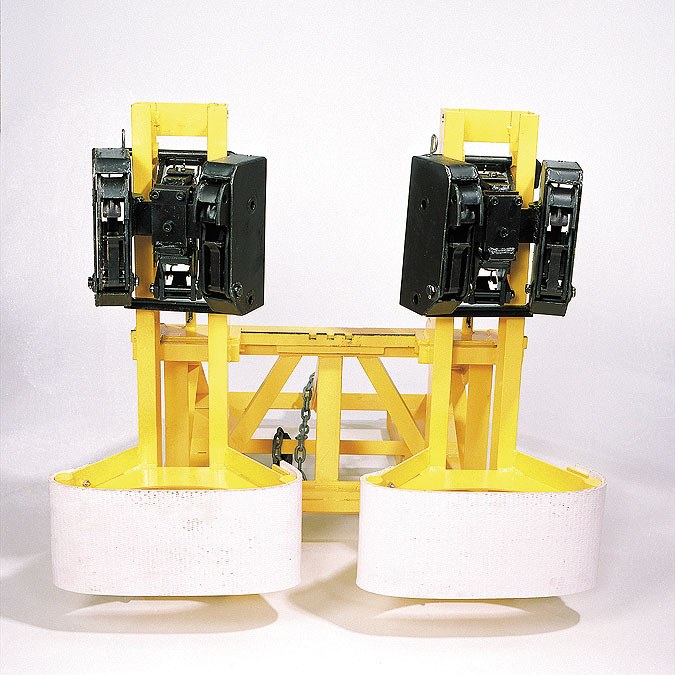

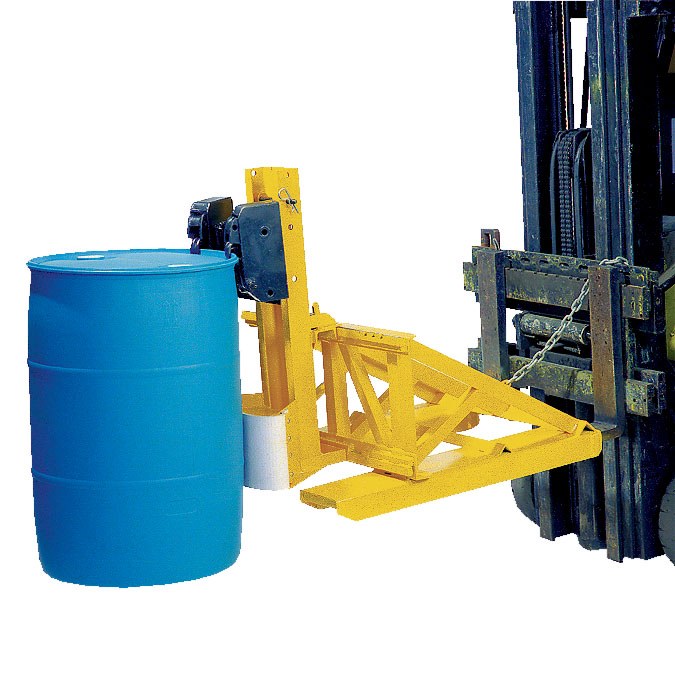

Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart.

Fork truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum.

Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation.

Model FMDDL-1700 is fork mounted, with fork pockets and safety chain. The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck.

Models FMDL-1500 & FMDDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications.

Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart.

Other Fork Mounted Drum Lifters

 Deluxe Combination Fork Mounted Drum Lifter Fork Mounted Poly Drum Handlers Fork Mounted Drum Grippers Horizontal Drum Positioner

Additional Models In This Family
view entire Image Gallery

FMDDL-1700

FMDDL-1700

FMDL-850

FMDL-850

FMDDL-4000

FMDDL-4000

FMDL-1500

FMDL-1500

FMDDL-4000

FMDDL-4000

FMDDL-3000

FMDDL-3000

FMDL-850

FMDL-850

FMDL-2000

FMDL-2000

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FMDDL-1700 FMDDL-170090 Days Limited WarrantySteel Fork Mounted Lifter 2 Drum 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Accepts (qty.): 2		200
FMDDL-3000 FMDDL-300090 Days Limited WarrantySteel Fork Mounted Lifter 2 Drum 3,000 Lb. Capacity YellowUniform Capacity (lb.): 3,000
Accepts (qty.): 2		432
FMDDL-4000 FMDDL-400090 Days Limited WarrantySteel Fork Mounted Lifter 2 Drum 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Accepts (qty.): 2		500
FMDL-1500 FMDL-150090 Days Limited WarrantySteel Fork Mounted Drum Lifter 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Accepts (qty.): 1		340
FMDL-2000 FMDL-200090 Days Limited WarrantySteel Fork Mounted Drum Lifter 2,000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Accepts (qty.): 1		366
FMDL-850 FMDL-85030 Days Limited WarrantySteel Fork Mounted Drum Lifter 750 Lb. Capacity YellowUniform Capacity (lb.): 750
Accepts (qty.): 1		170

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FMDDL-1700
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts (qty.): 2
Uniform Capacity (lb.): 1,500
Accepts (qty.): 2

FMDDL-3000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Accepts (qty.): 2
Uniform Capacity (lb.): 3,000
Accepts (qty.): 2

FMDDL-4000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Accepts (qty.): 2
Uniform Capacity (lb.): 4,000
Accepts (qty.): 2

FMDL-1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts (qty.): 1
Uniform Capacity (lb.): 1,500
Accepts (qty.): 1

FMDL-2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts (qty.): 1
Uniform Capacity (lb.): 2,000
Accepts (qty.): 1

FMDL-850
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Accepts (qty.): 1
Uniform Capacity (lb.): 750
Accepts (qty.): 1
For More Details of the Option Click the Red Model Button
Model Image PDFs Description
DLH-CL2-1 icon_approvaldrawings.jpg Fork Mounted Drum Lifter Carraige Option
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fork Mounted Drum Lifters PDF's will open in a new window when clicked.

Manuals


FMDL
Owners Manual

FMDDL-1700
Owners Manual

FMDL,%20Manual%20(Drop%20ship
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the fork pocket opening size on the FMDL-1500?

A: The pockets measure 7" wide x 2.5" tall.
