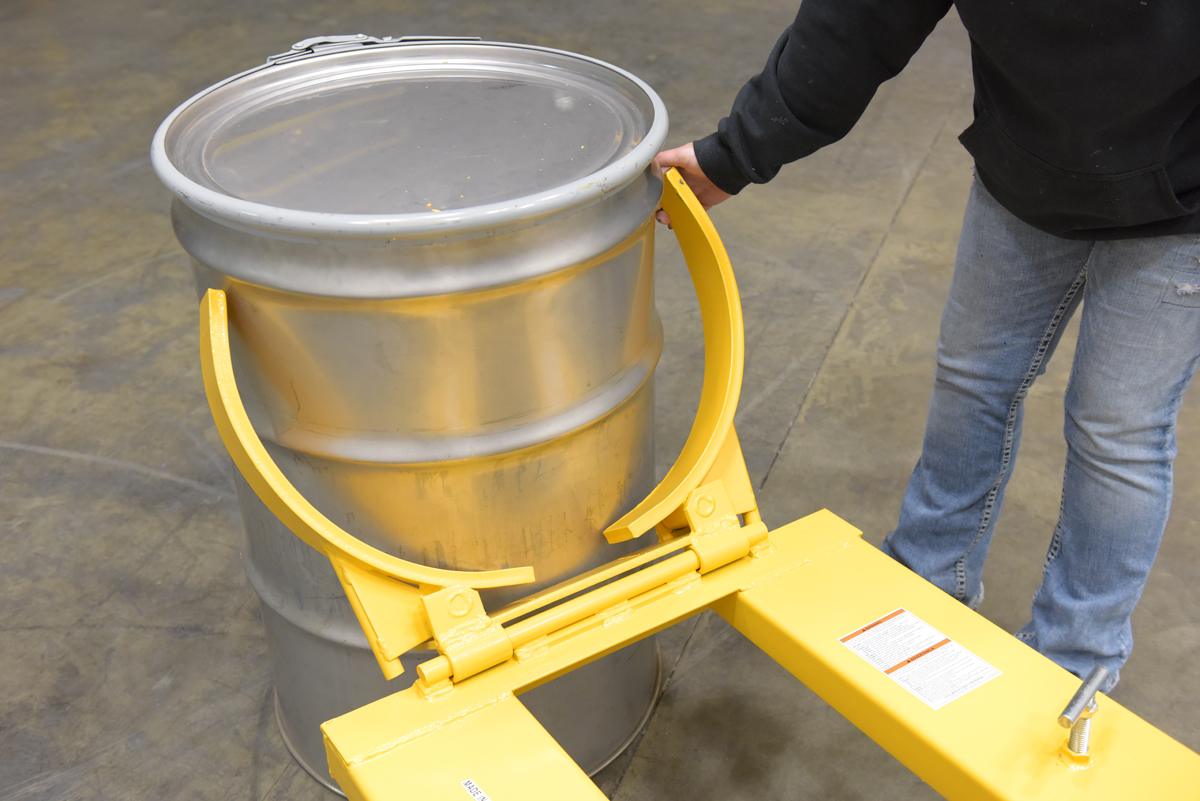

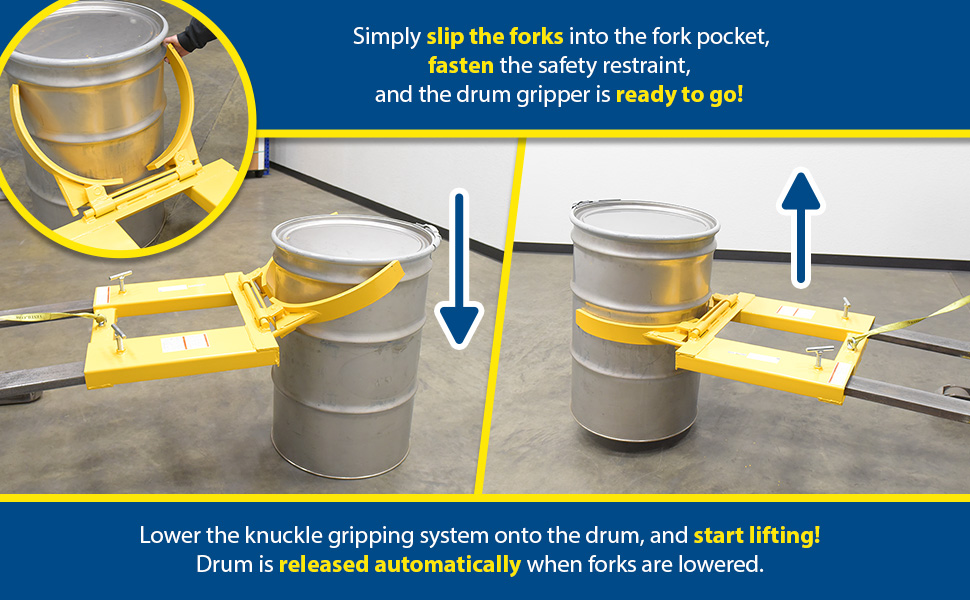

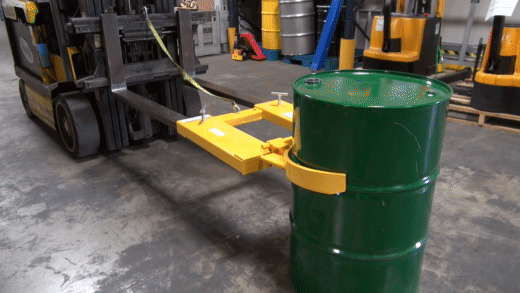

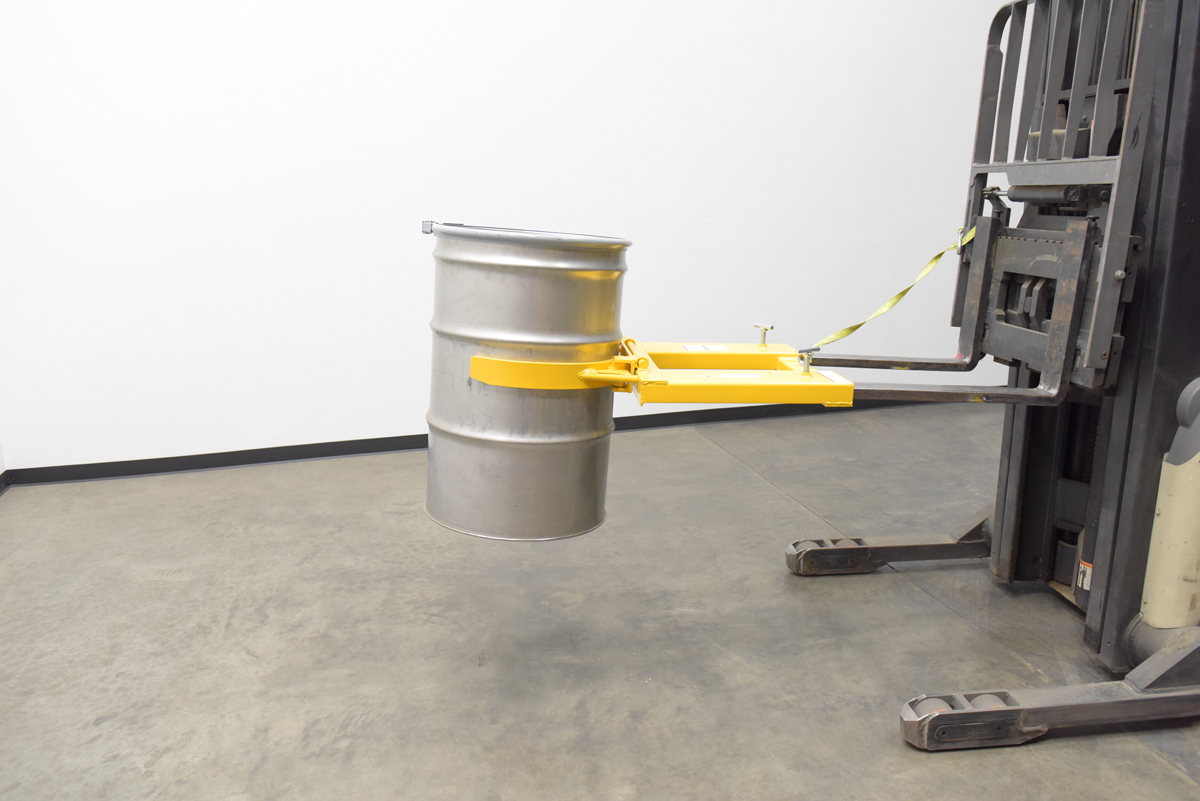

Drum GrippersThe Drum Gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

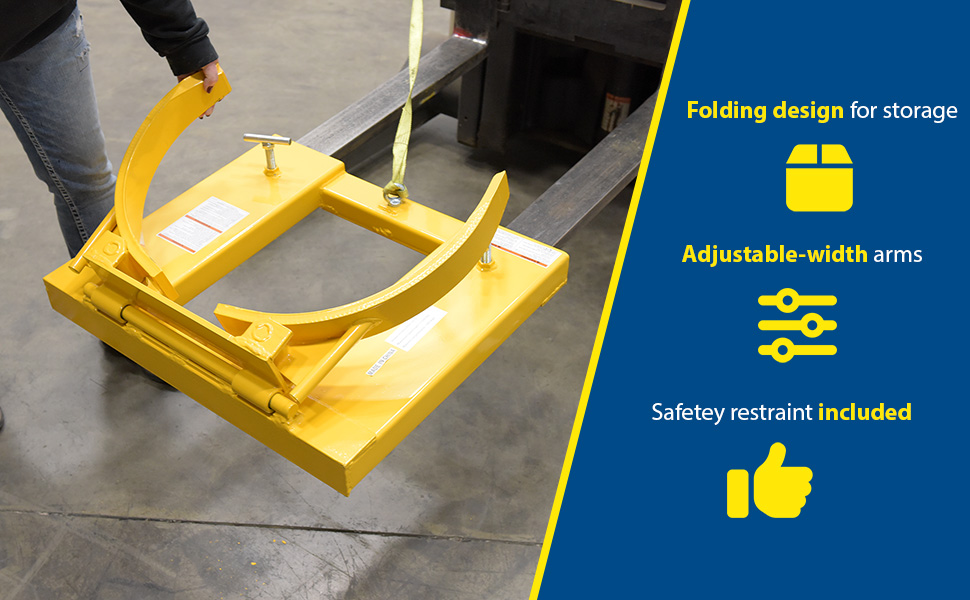

Models DGS-A, DGD-A, and DGS-A-PSD features adjustable-width arms for use with both 30-gallon and 55-gallon steel and plastic drums (with top ring or top ridge). Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.
Plastic & Fiber Drum Adapters and Other Upgrades
Fork Mounted Drum Grippers
Automatic Eagle Beak Drum Lifters
Fork Mounted Drum LiftersAdditional Models In This Family
DGS-55-D
DGD-A
DGS-55-D
DGS-55-D
DGS-55-D-G
DGS-55-D
DGD-A
DGD-A
DGS-A-PSD
DGS-A-PSD
DGD-A
DGD-55-D-G
DGS-A
DGS-55-D-G
DGS-55-D-G
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

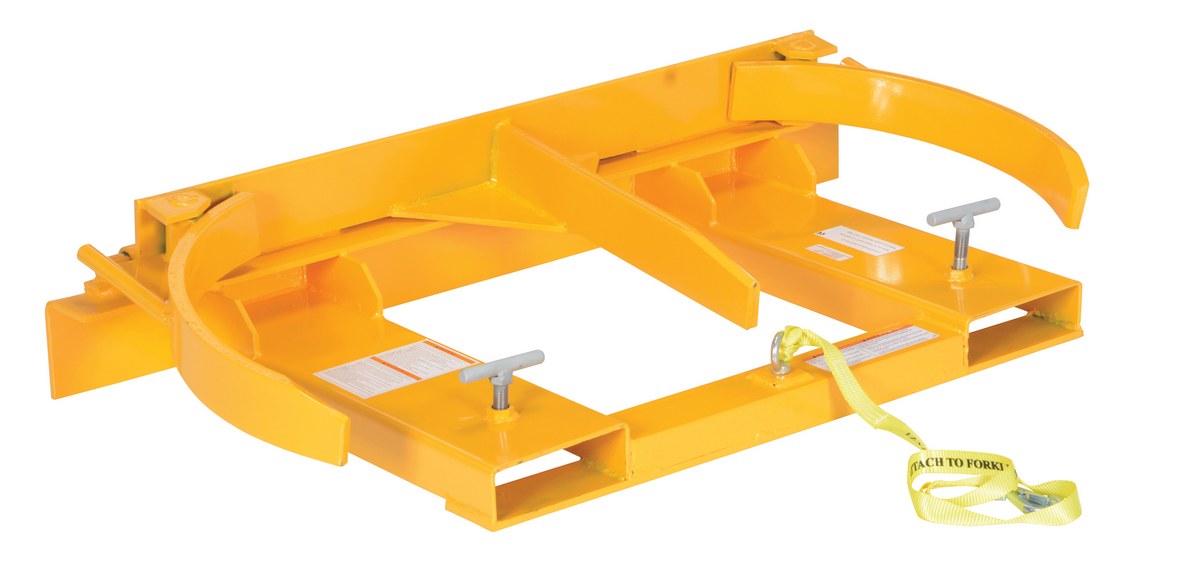

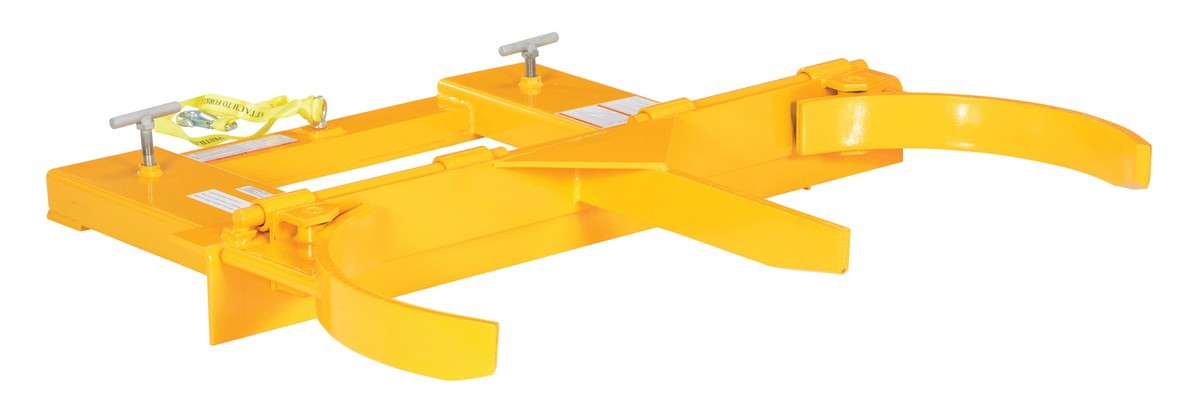

| DGD-55-D |  | 90 Days Limited Warranty | Steel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46-1/4 In. x 9-3/8 In. 2000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2,000 Accepts: (2) 55-gallon steel drums | 223 | ||

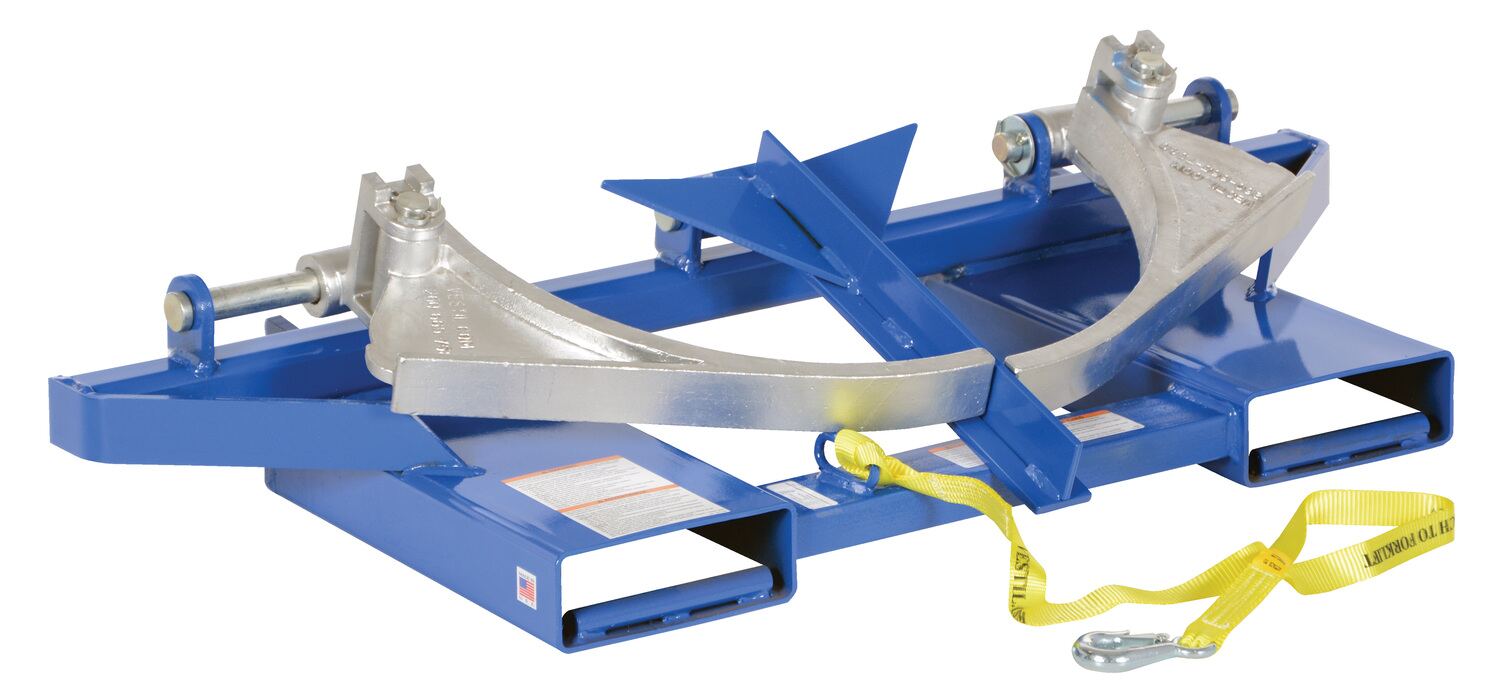

| DGD-A | | 90 Days Limited Warranty | Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Accepts: (2) 30 and/or 55-gallon steel drums | 211 | ||

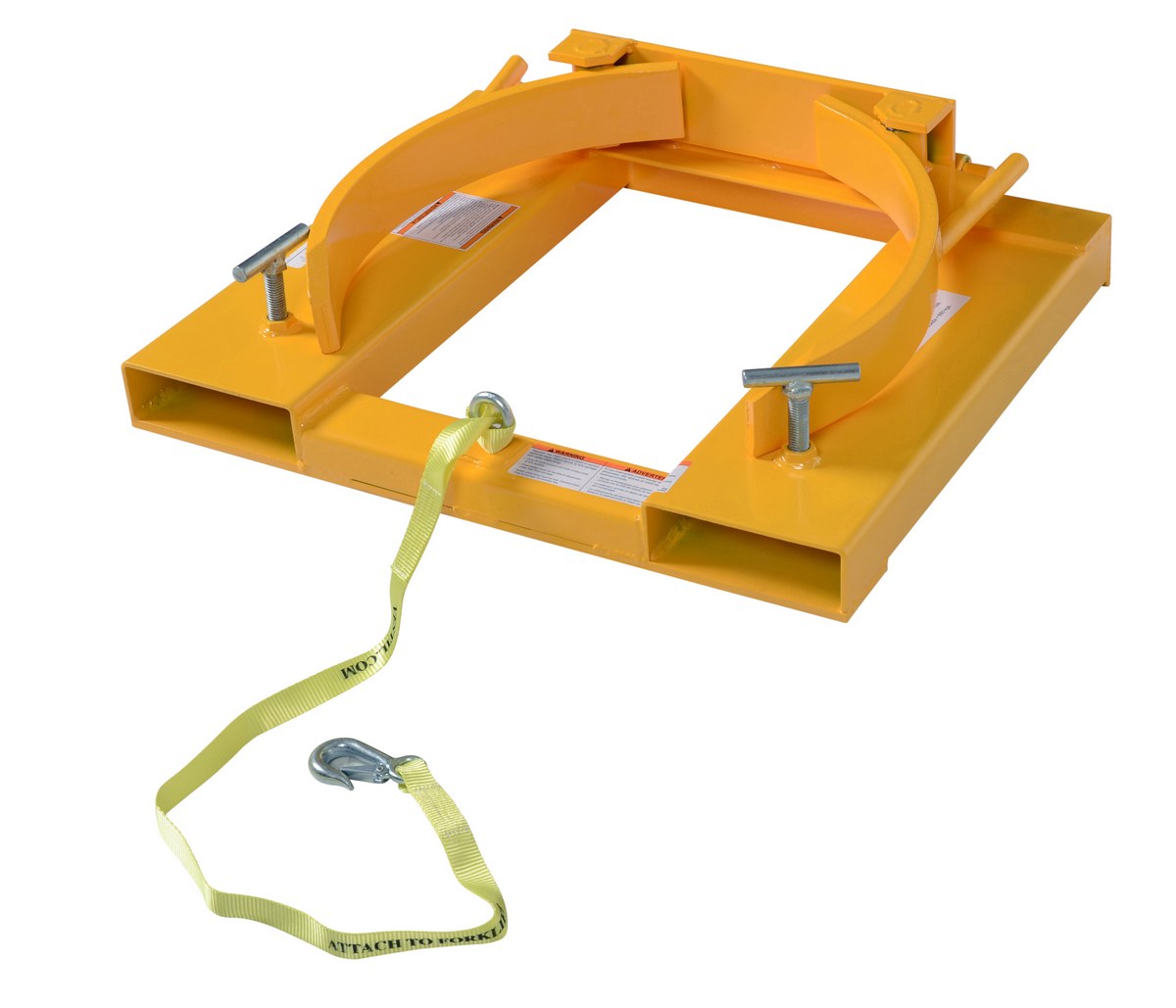

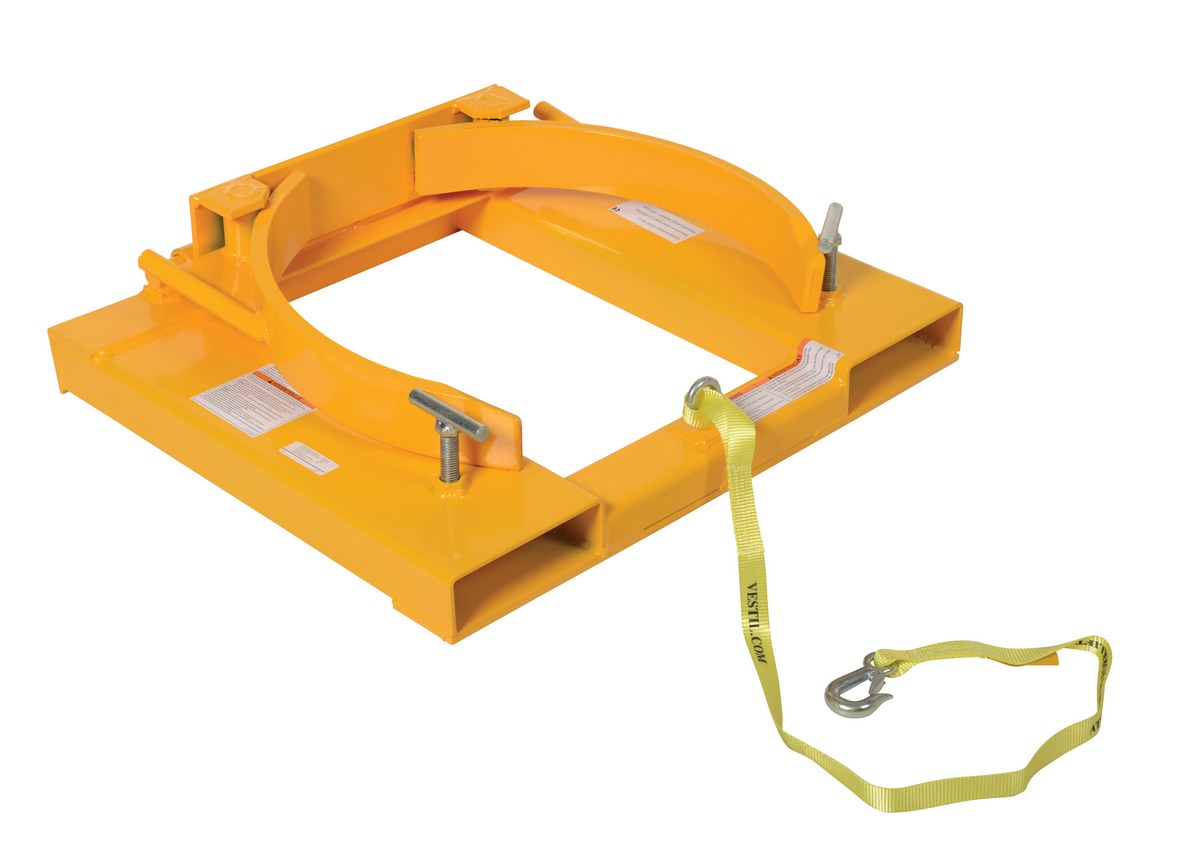

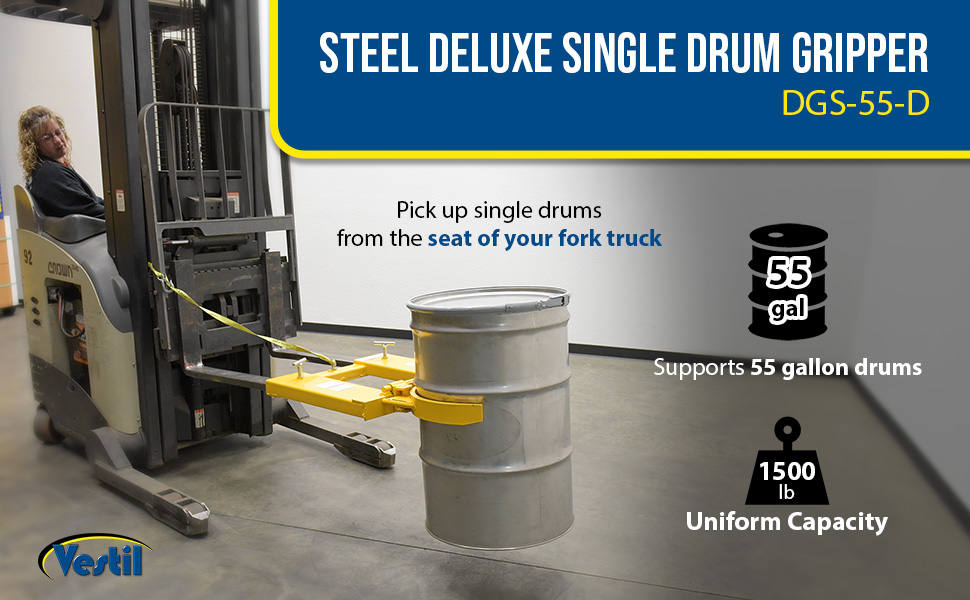

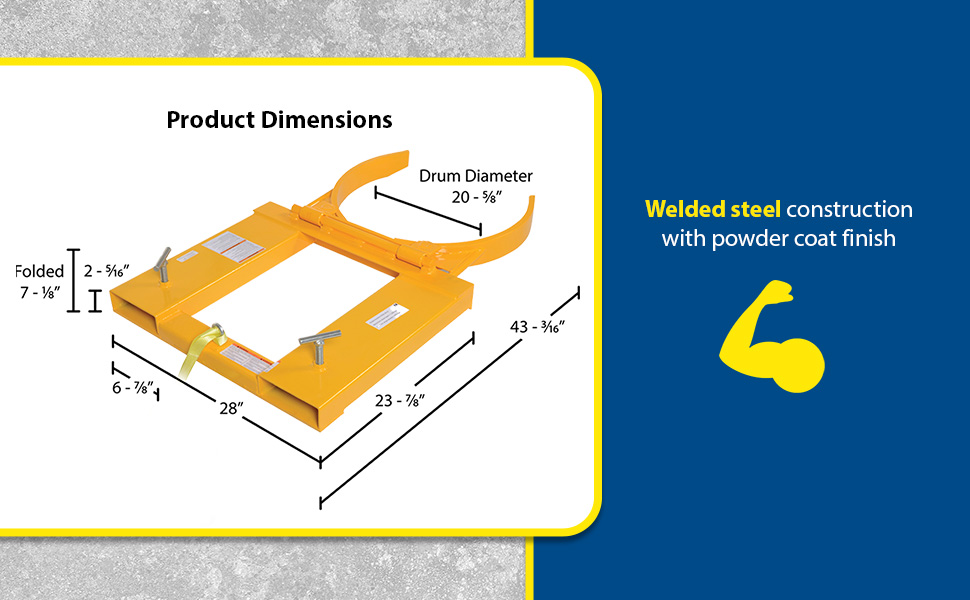

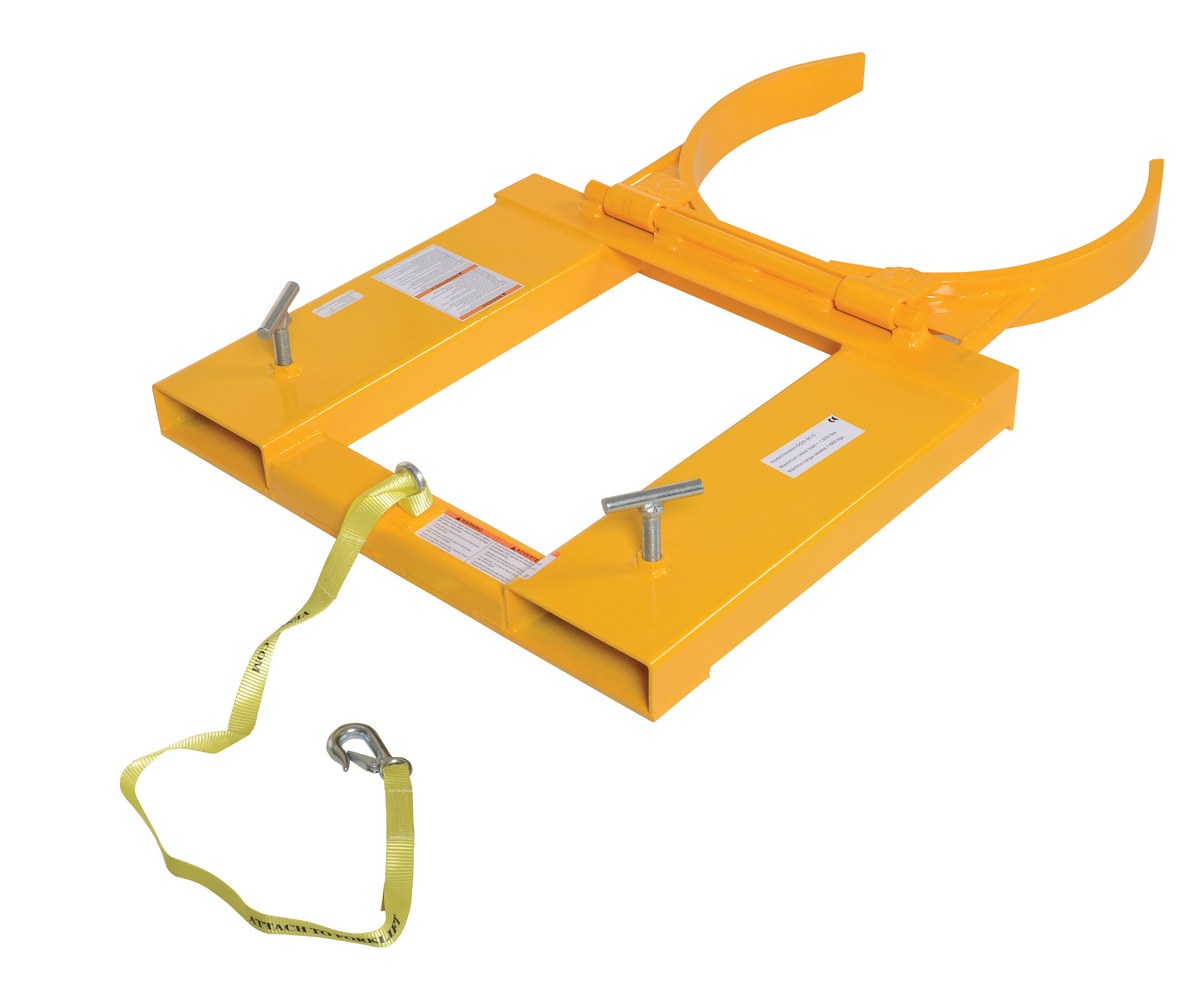

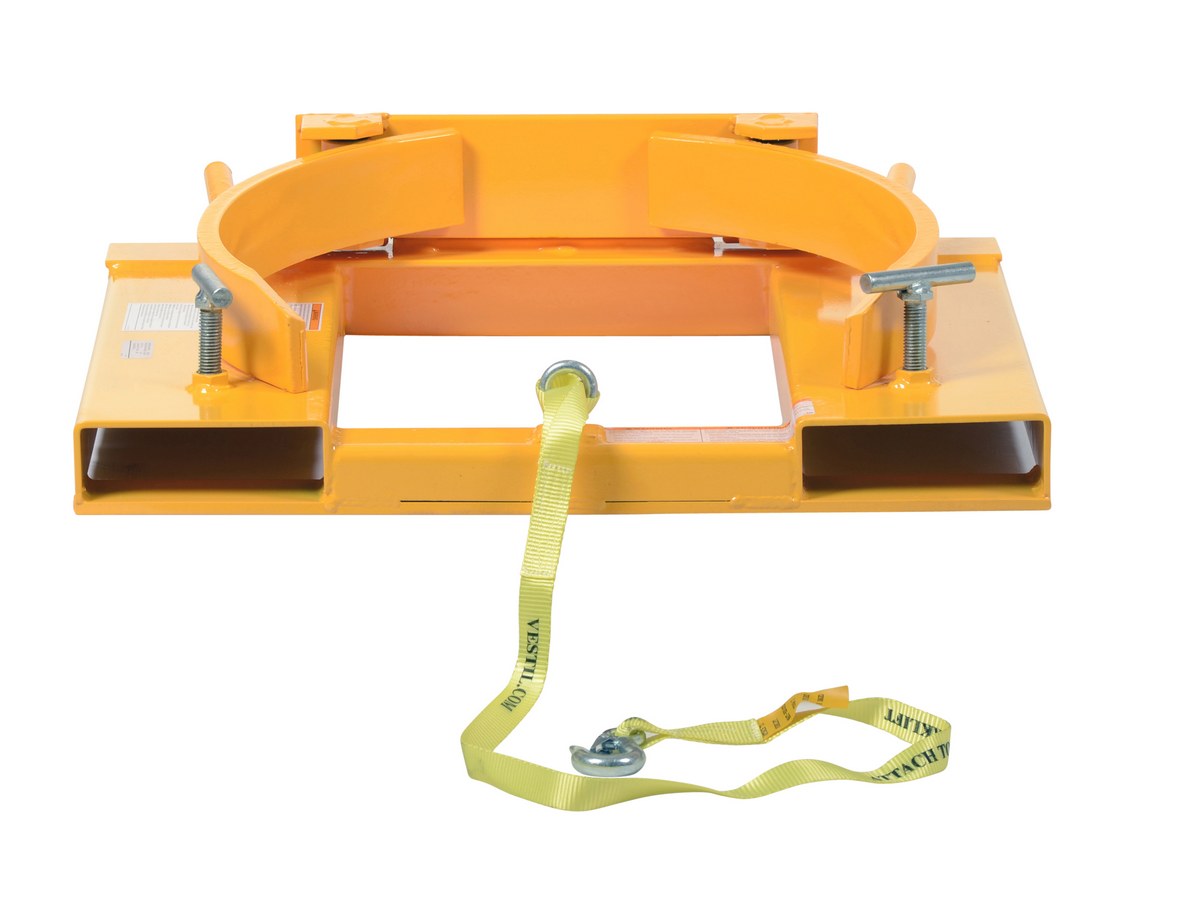

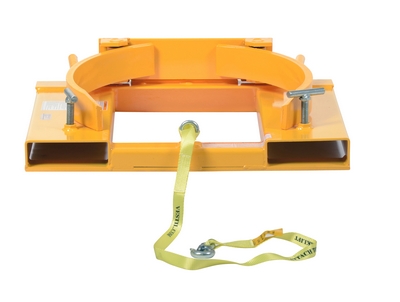

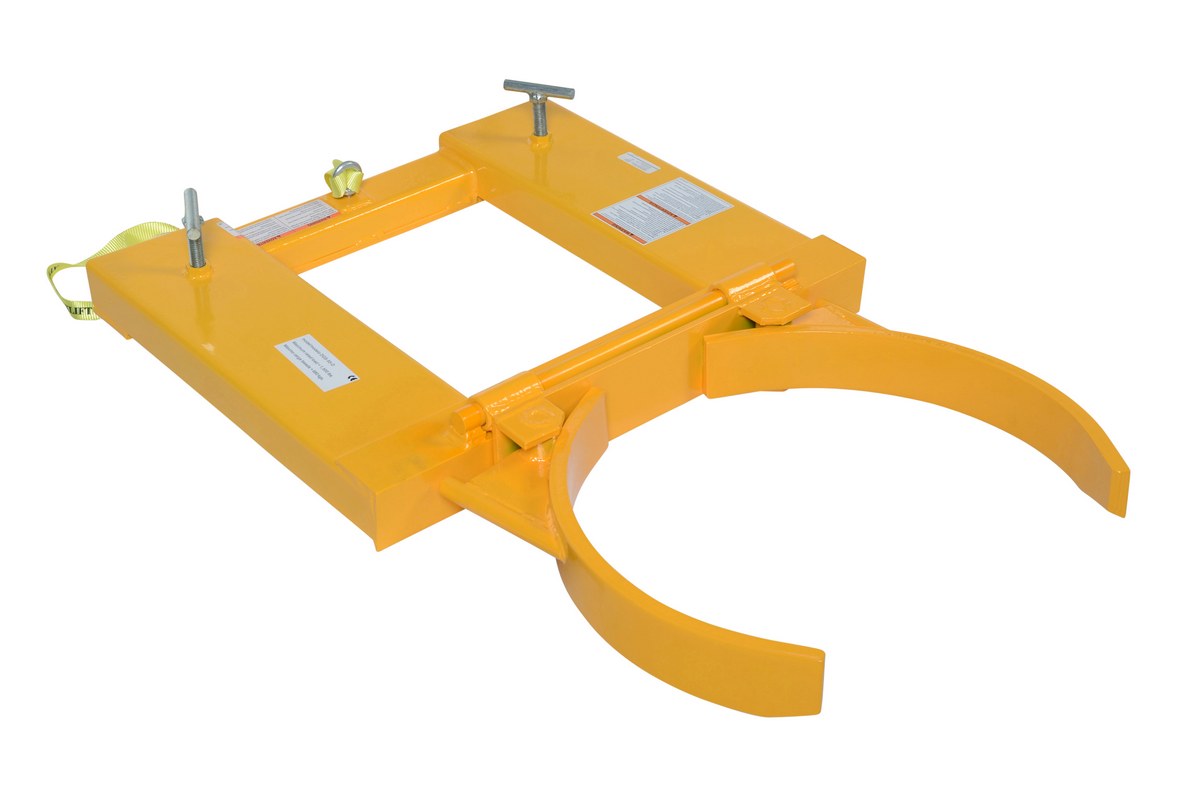

| DGS-55-D | POPULAR |  | 90 Days Limited Warranty | Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In x 28 In x 7-1/8 In 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums | 110 | |

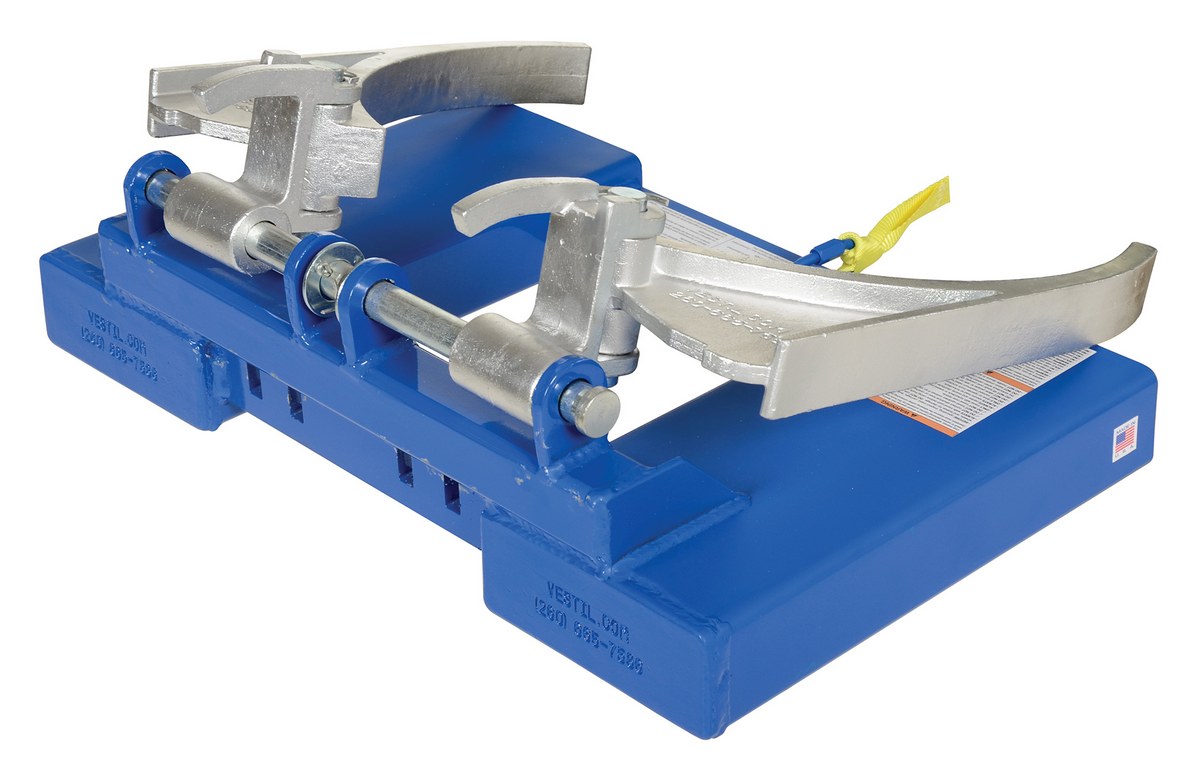

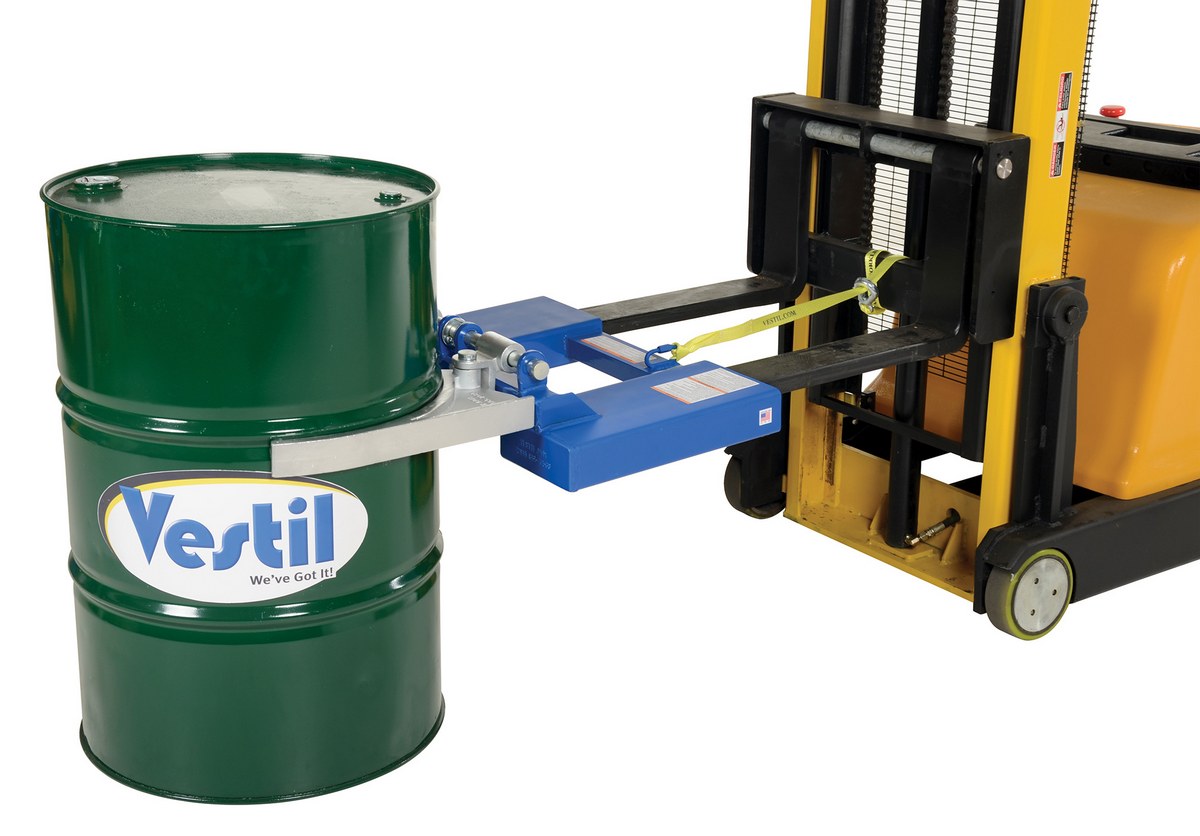

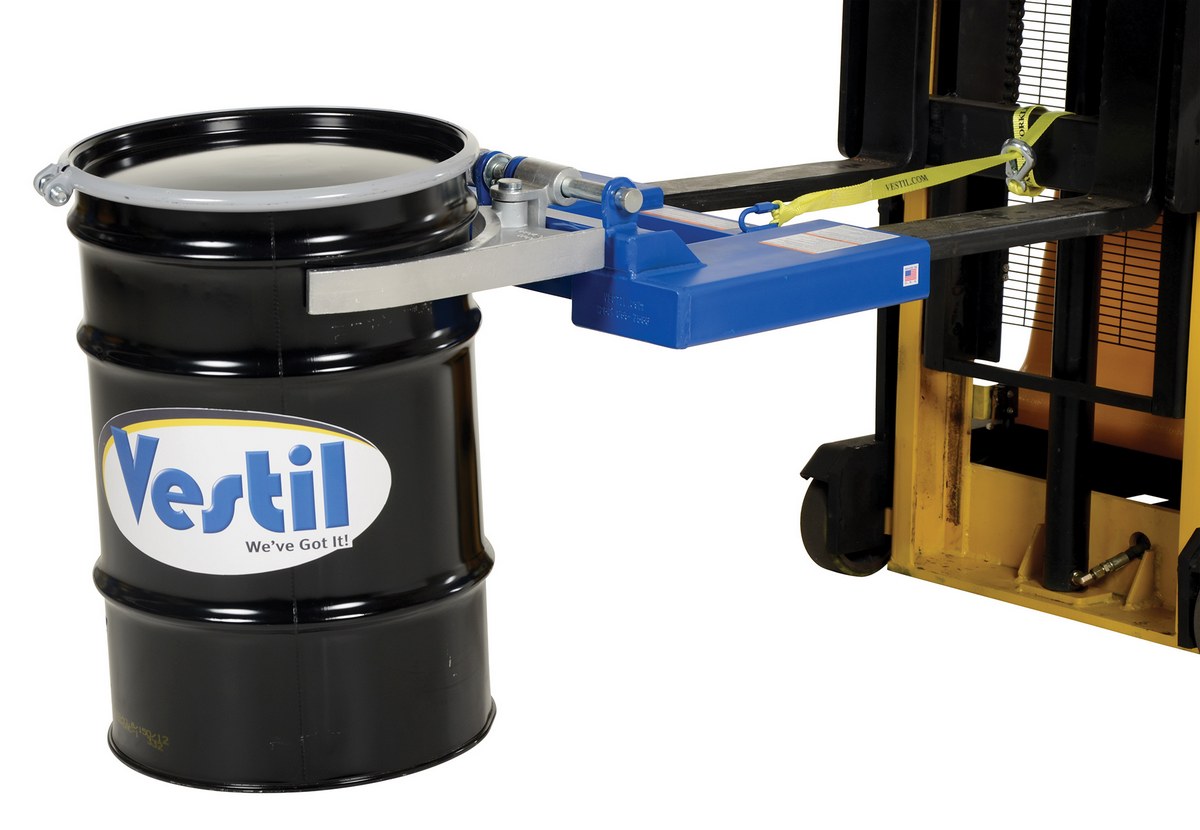

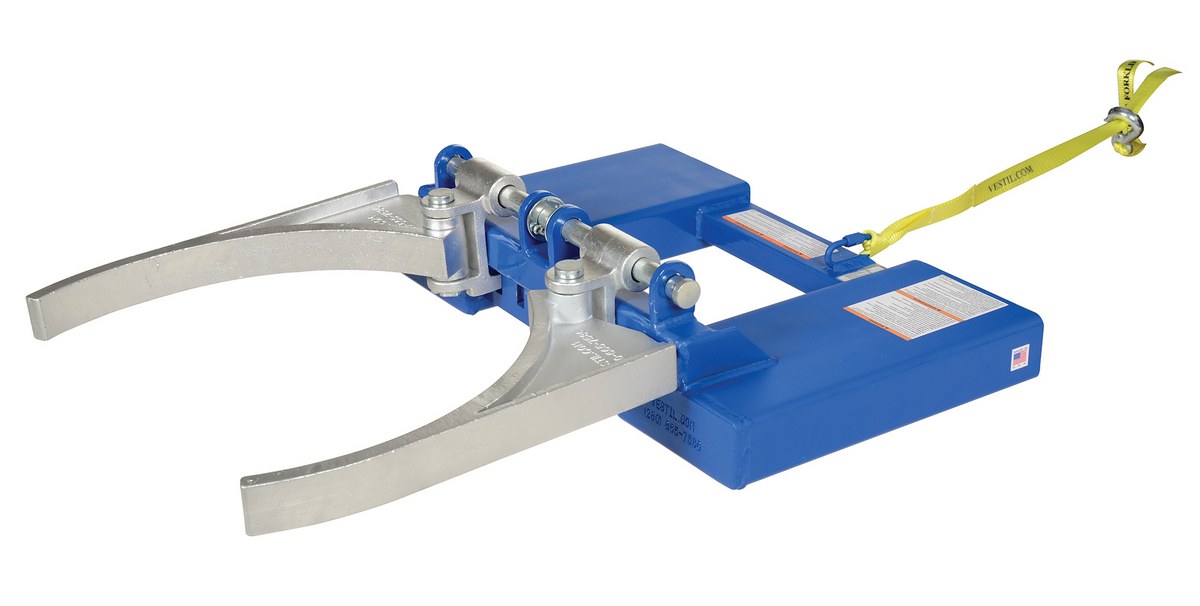

| DGS-A |  | 90 Days Limited Warranty | Steel Adjustable Single Drum Gripper 35 In. x 27-3/4 In. x 7-1/2 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Accepts: (1) 30 or 55-gallon steel drums | 164 | ||

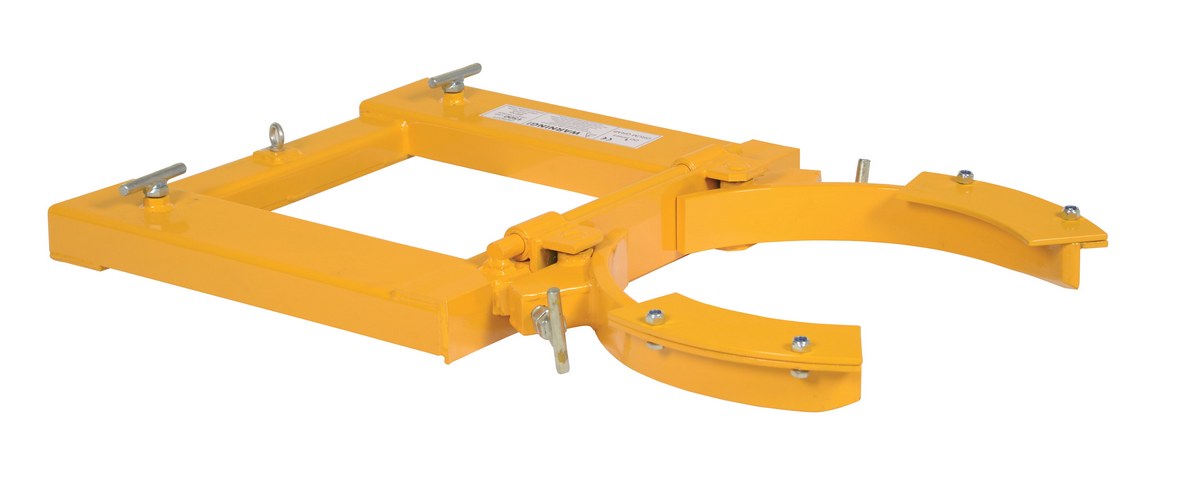

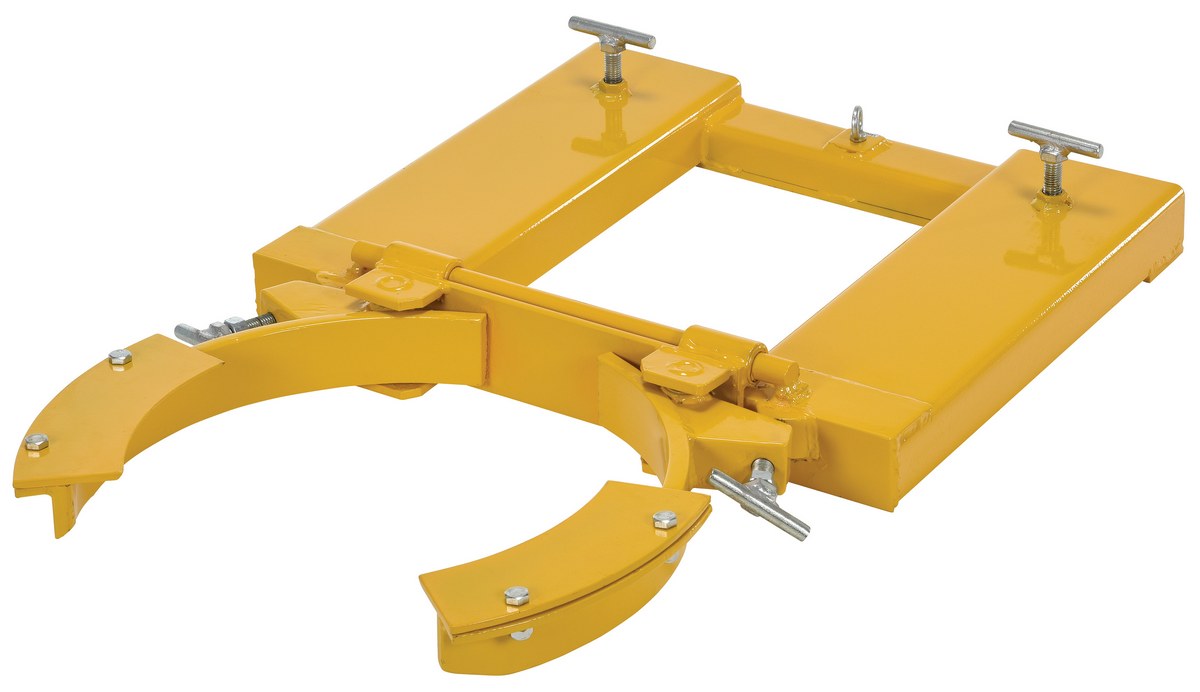

| DGS-A-PSD | | 90 Days Limited Warranty | Steel Adjustable Single Drum Gripper 24 In. x 28 In. x 8 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Fork Pocket Width (in.): 7 | 147 | ||

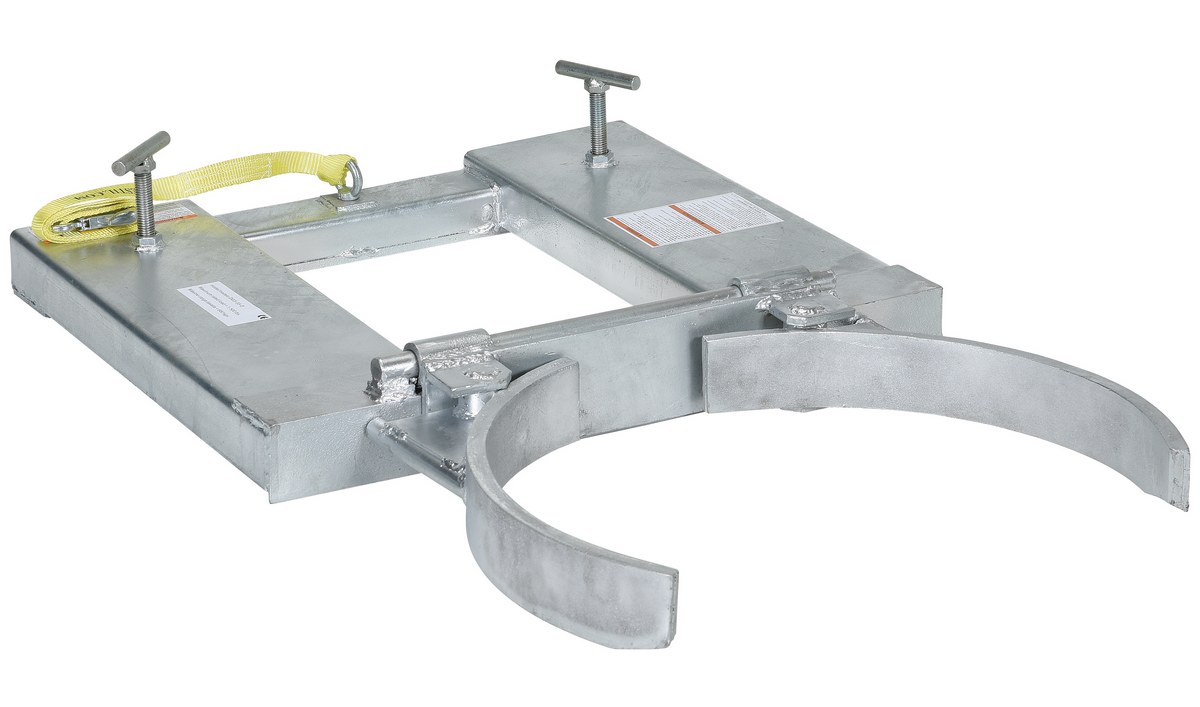

| DGS-55-D-G |  | 90 Days Limited Warranty | Galvanized Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In. x 28 In. x 7-1/8 In. 1500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums | 110 | ||

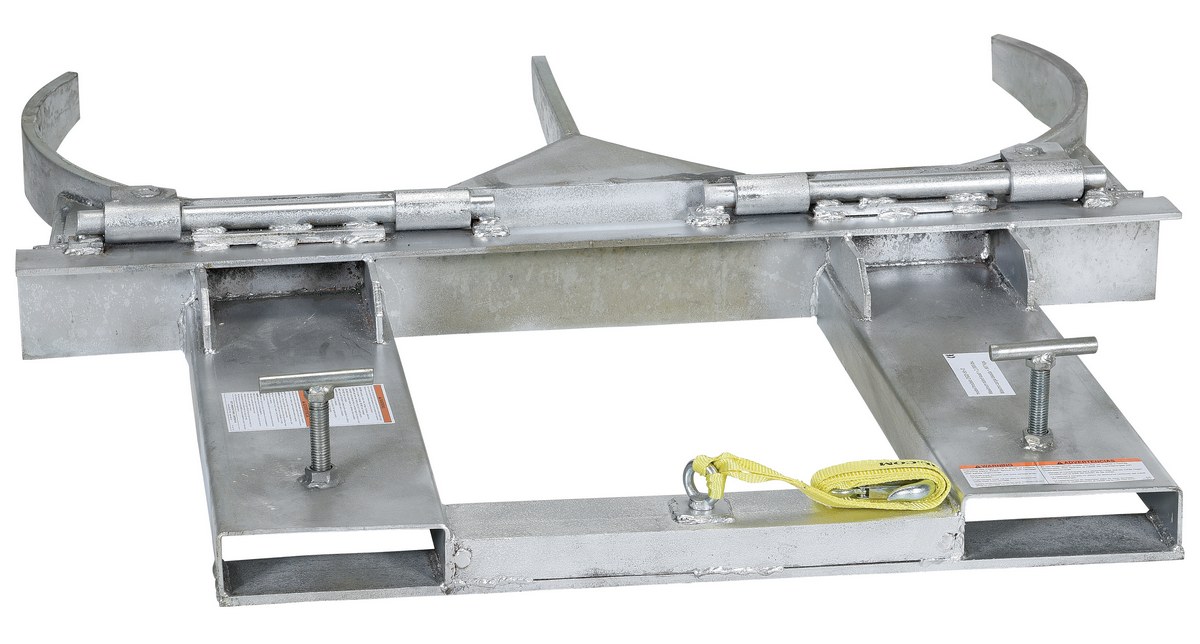

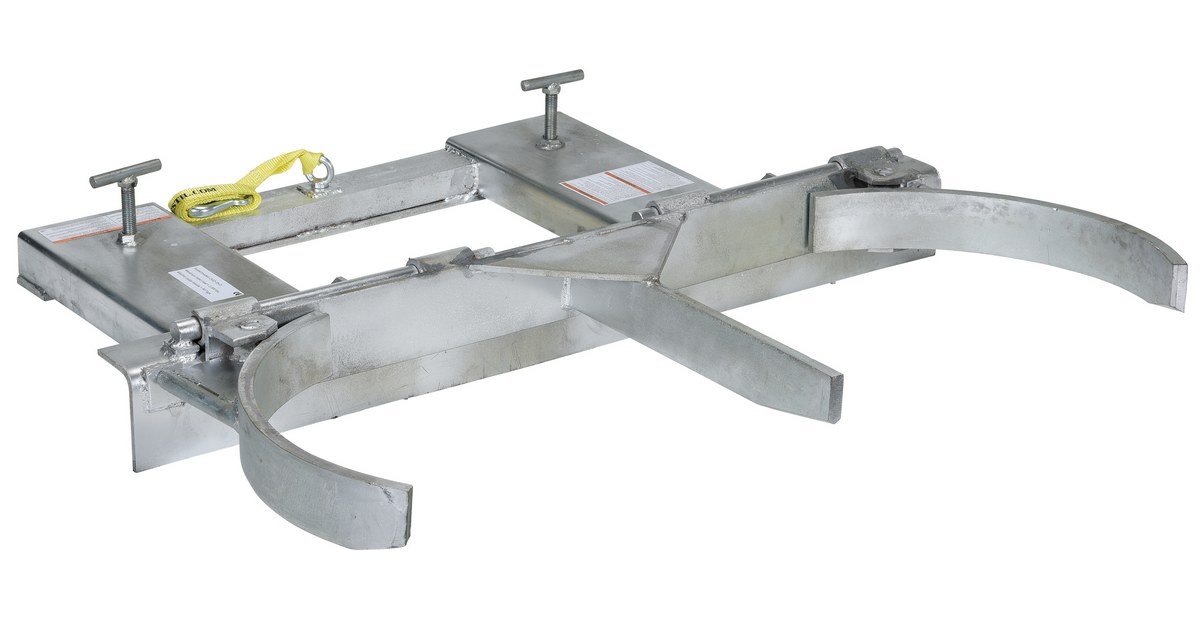

| DGD-55-D-G | | 90 Days Limited Warranty | Galvanized Steel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46 In. x 9-1/2 In. 2000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Accepts: (2) 55-gallon steel drums | 258 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: (1) 30 or 55-gallon steel drums
Uniform Capacity (lb.): 800
Accepts: (1) 30 or 55-gallon steel drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Fork Pocket Width (in.): 7
Uniform Capacity (lb.): 1500
Fork Pocket Width (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can I use the DGD-55-D on one just one drum?
A: Yes, this product will still work with one drum, or with two drums.
Q: What is the size of the fork pockets?
A: The size of the fork pockets is 20.5" center to center.
 |
||||||||||||||||||||||||||||||||||||||||||
