TPR (Thermoplastic Rubber) CastersThermoplastic rubber (tpr) provides a smooth quiet ride with a non-marking tread. It offers exceptional floor preservation and is resistant to most chemicals.
- Non-marking
- Chemical & moisture resistant
- Smooth ride performance
- Quiet operation
- High capacity (compared to standard Tpr)
- Anti-corrosive & rust resistant zinc plated finish
- Grease zerk fittings
- Precision ball bearings
Mold On Rubber (On Aluminum) Casters
Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters
Flat-Free (Foam-Filled) CastersAdditional Models In This Family
CST-F-5X1TPR-S
CST-VE-8X2TPR-S
CST-VE-4X2TPR-SWTB
CST-VE-5X2TPR-SWTB
CST-VE-5X2TPR-SWTB
CST-VE-4X2TPR-SWTB
CST-VE-8X2TPR-SWTB
CST-VE-5X2TPR-SWTB
CST-VE-5X2TPR-SWB
CST-VE-4X2TPR-SWB
CST-VE-5X2TPR-S
CST-VE-4X2TPR-SWTB
CST-VE-4X2TPR-SWB
CST-VE-5X2TPR-SWB
CST-VE-4X2TPR-S
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

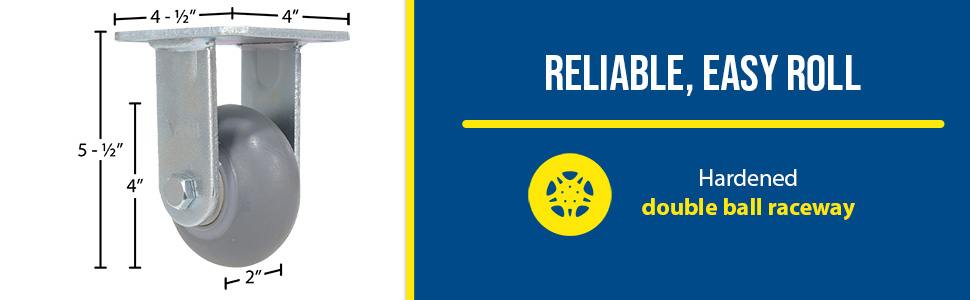

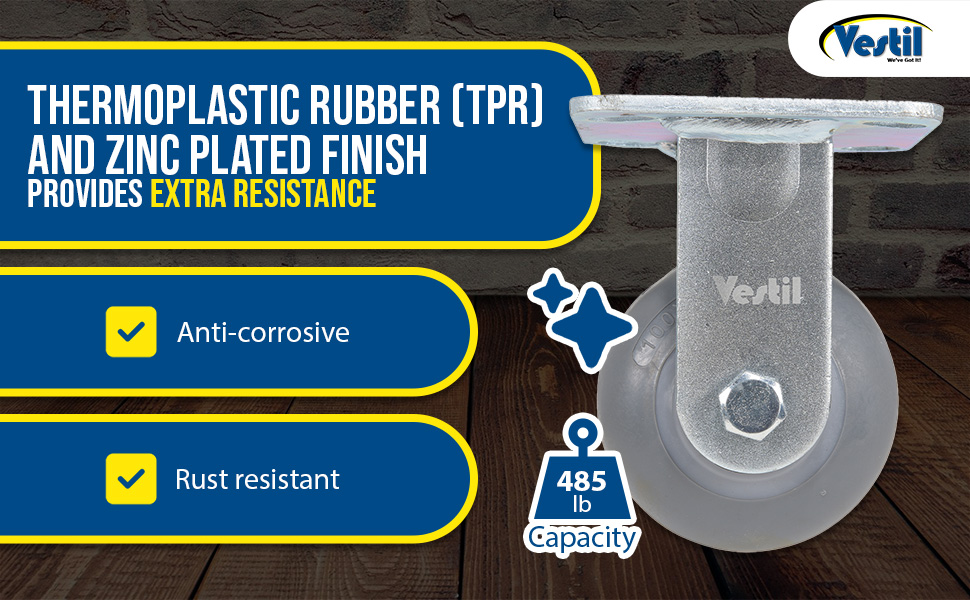

| CST-VE-4X2TPR-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 485 | 5-1/2 | 4 x 4-1/2 | 4 |

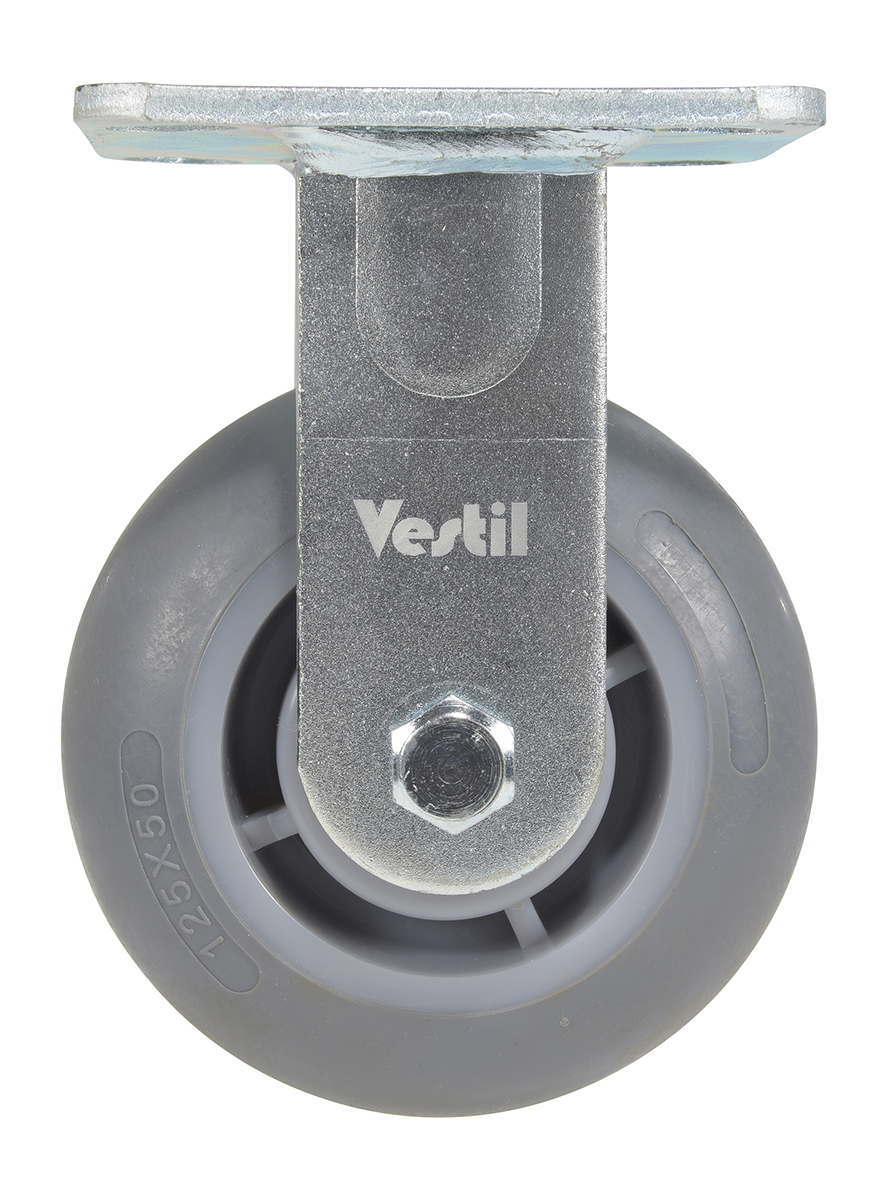

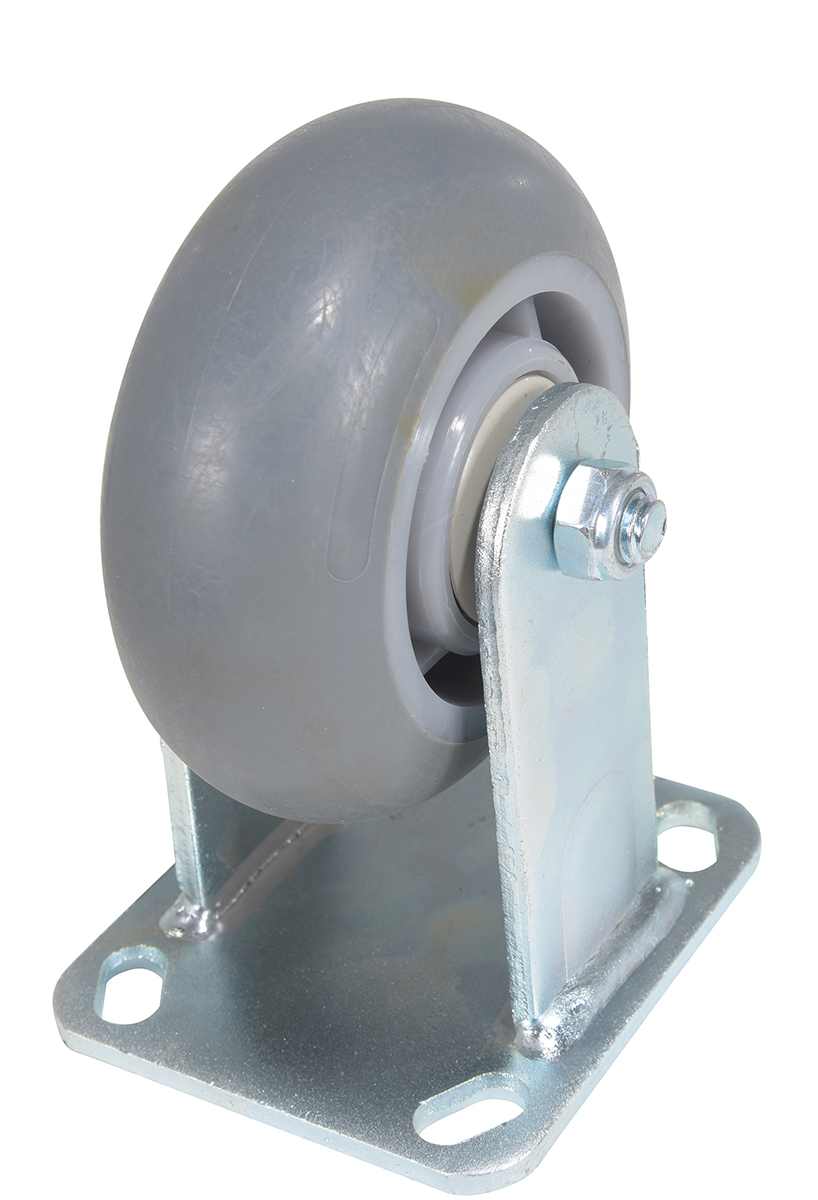

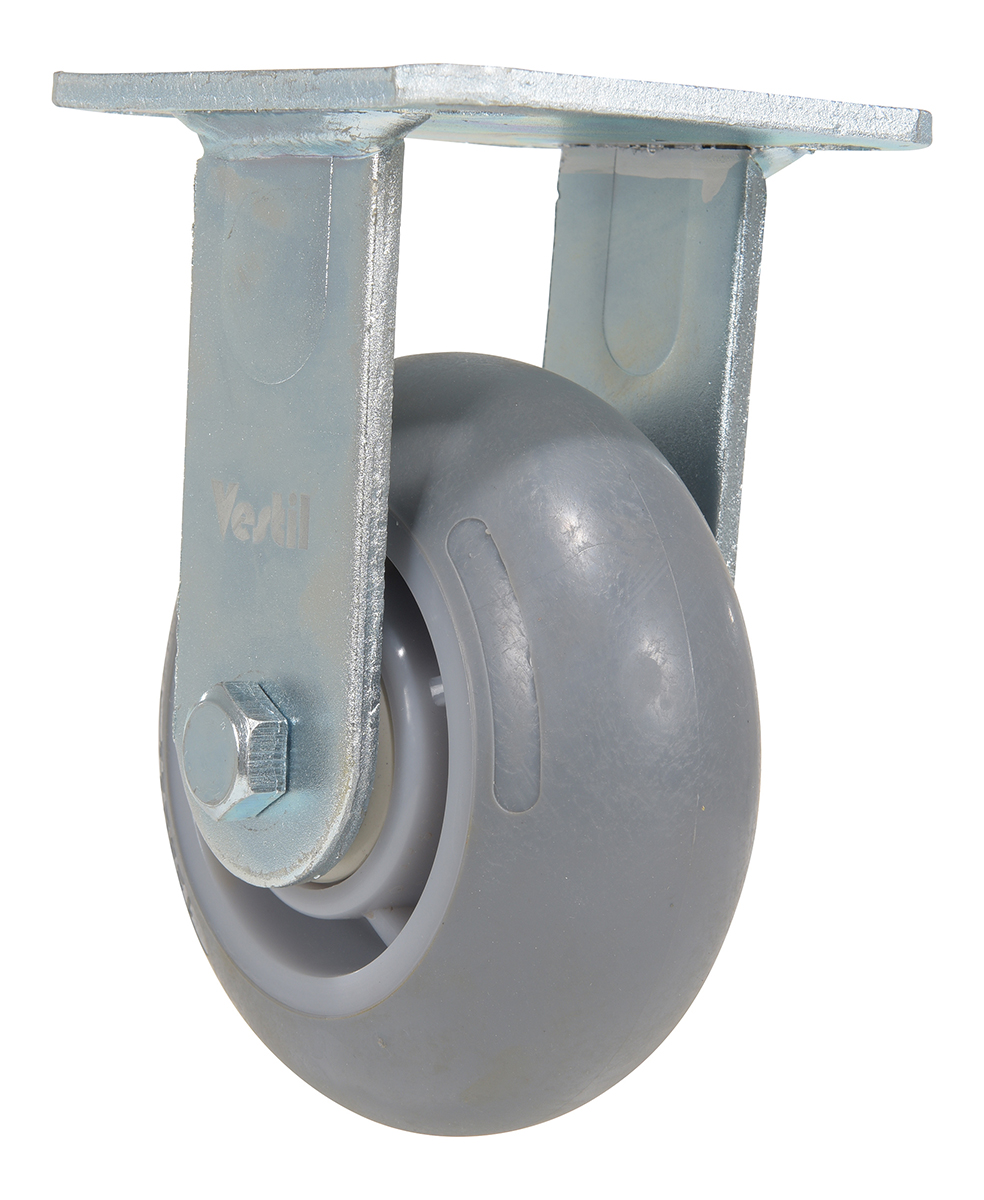

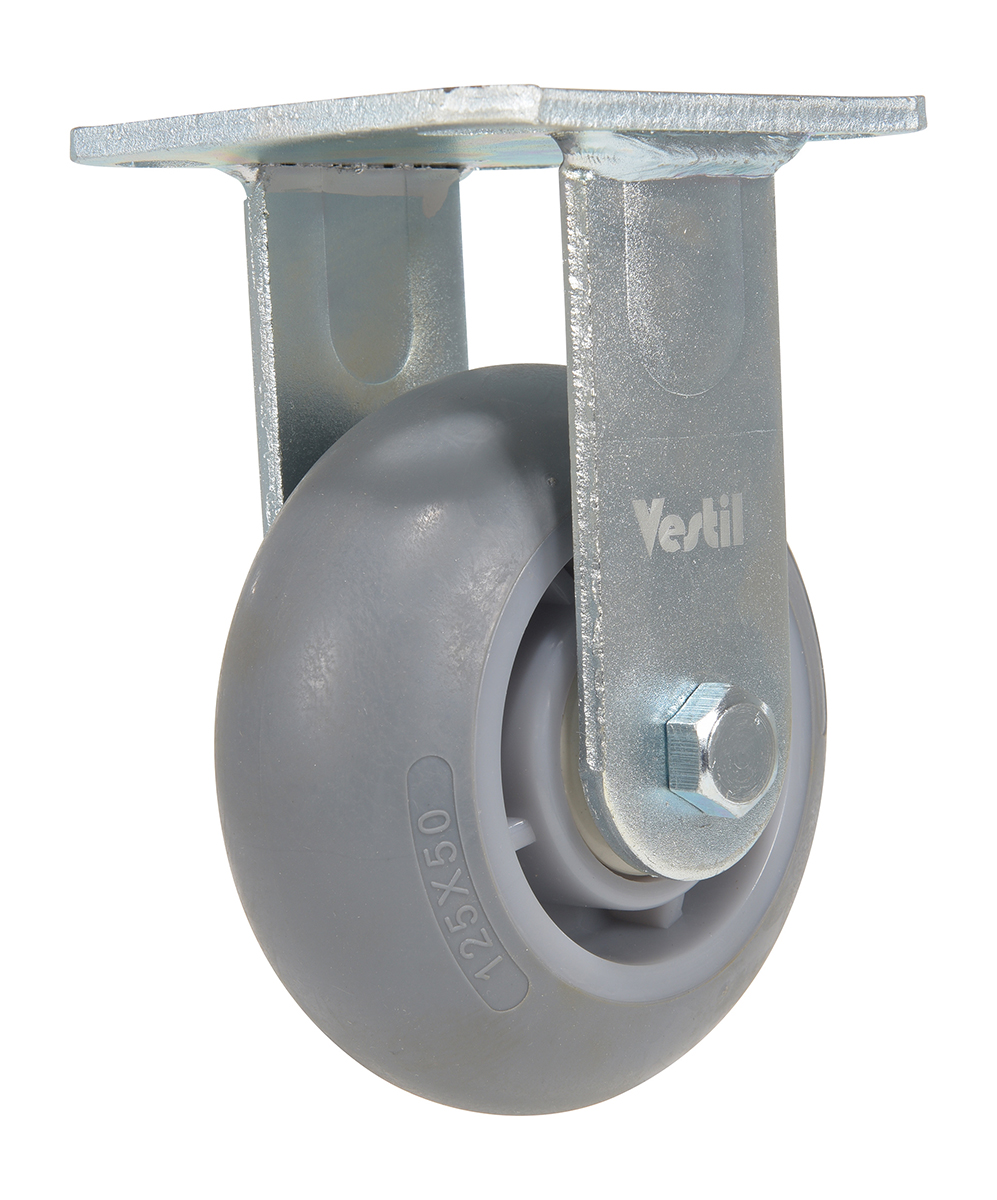

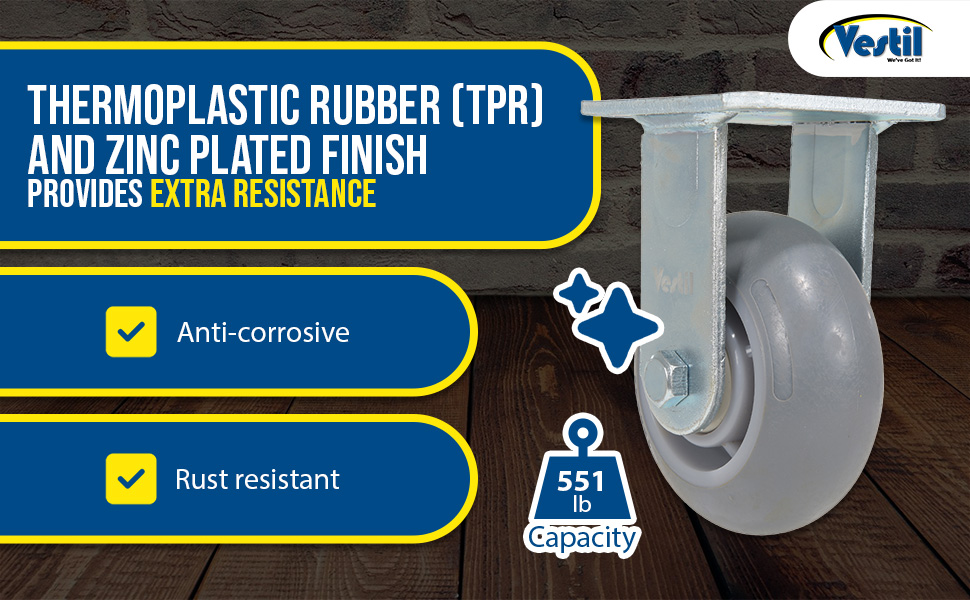

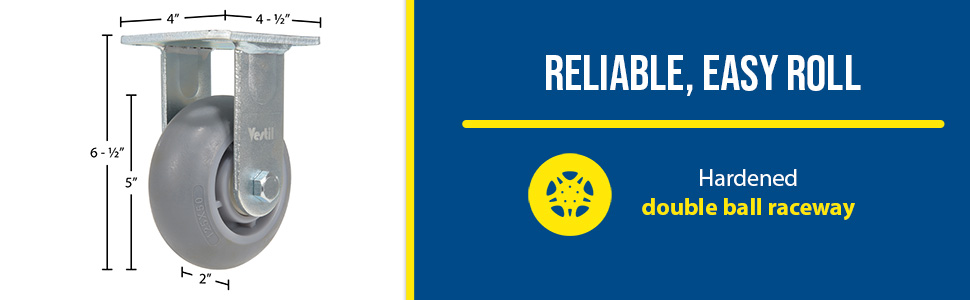

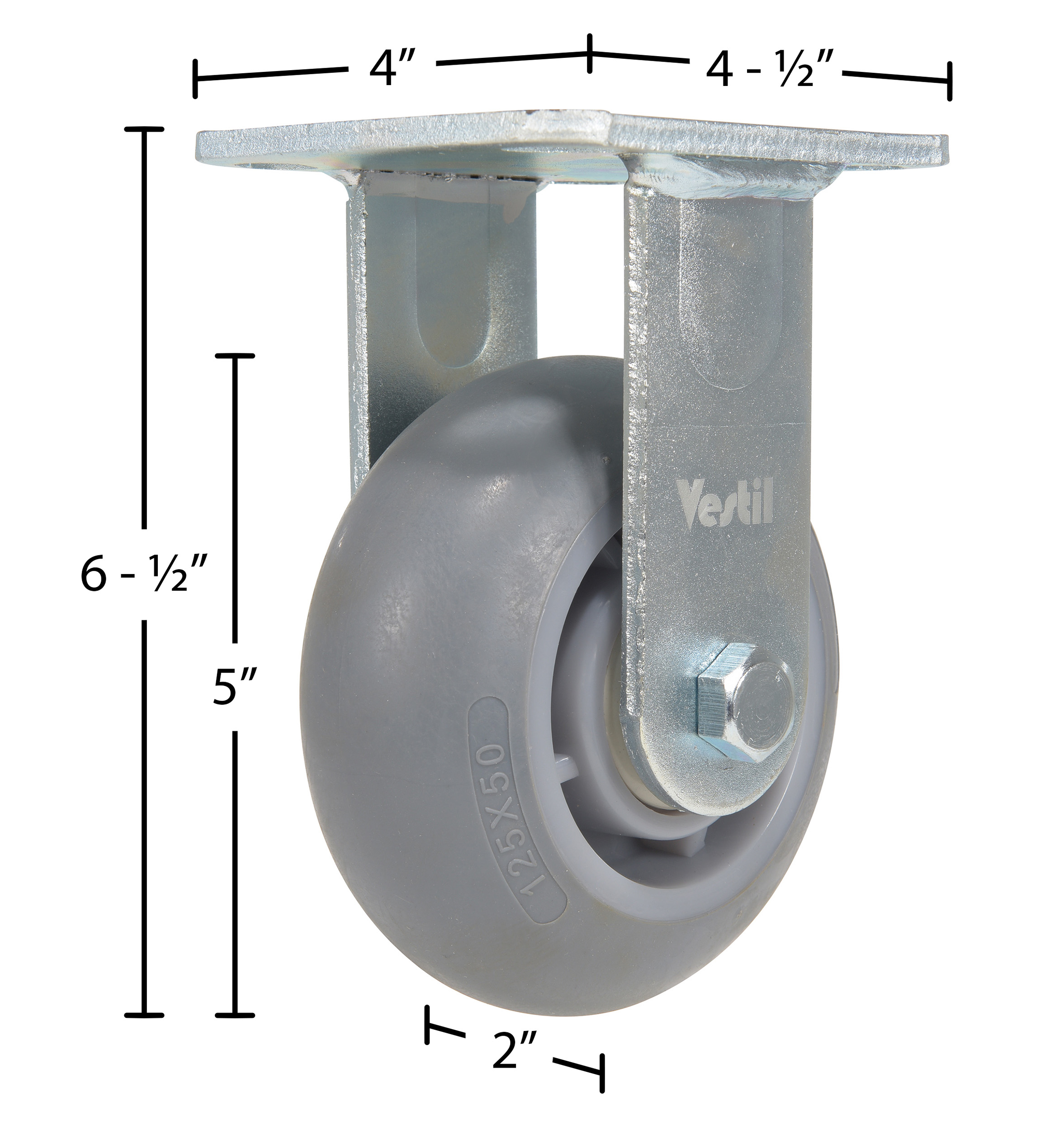

| CST-VE-5X2TPR-R |  | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 551 | 6-1/2 | 4 x 4-1/2 | 5 |

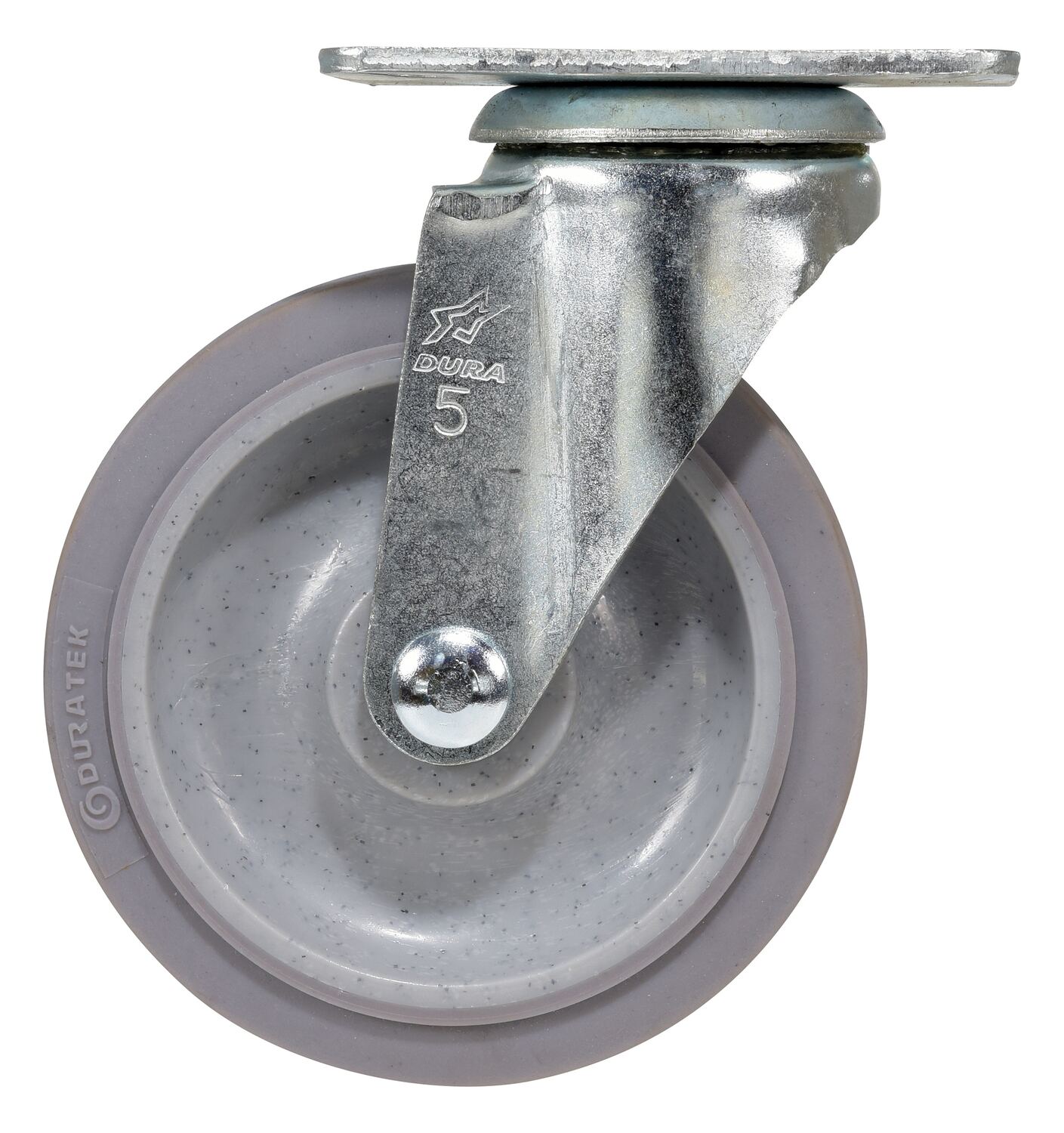

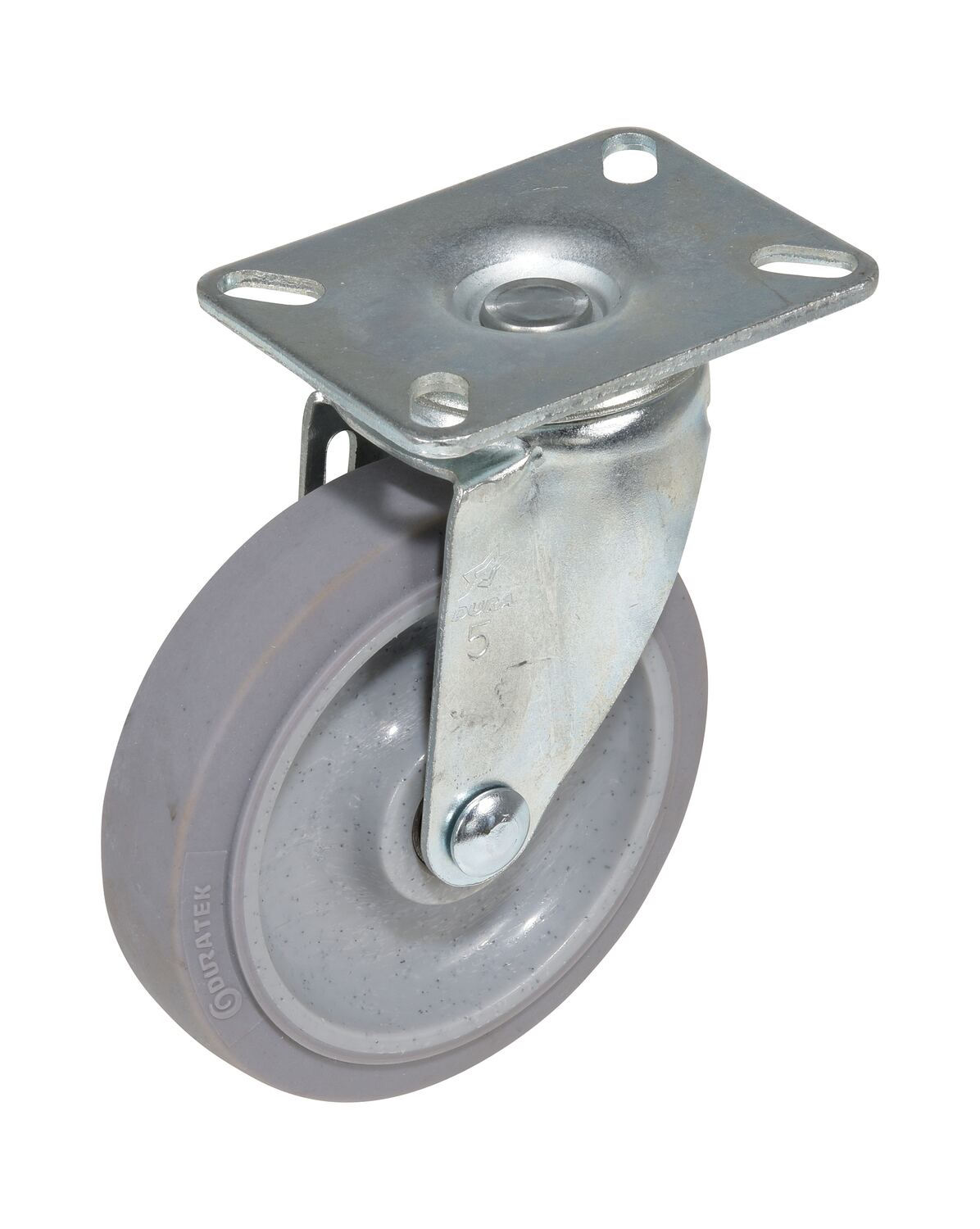

| CST-F-5X1TPR-S | | 1 Year Limited Warranty | 5" x 1-1/4" | Swivel | 325 | 6.125 | 4-1/8" x 3-1/8" | 4 |

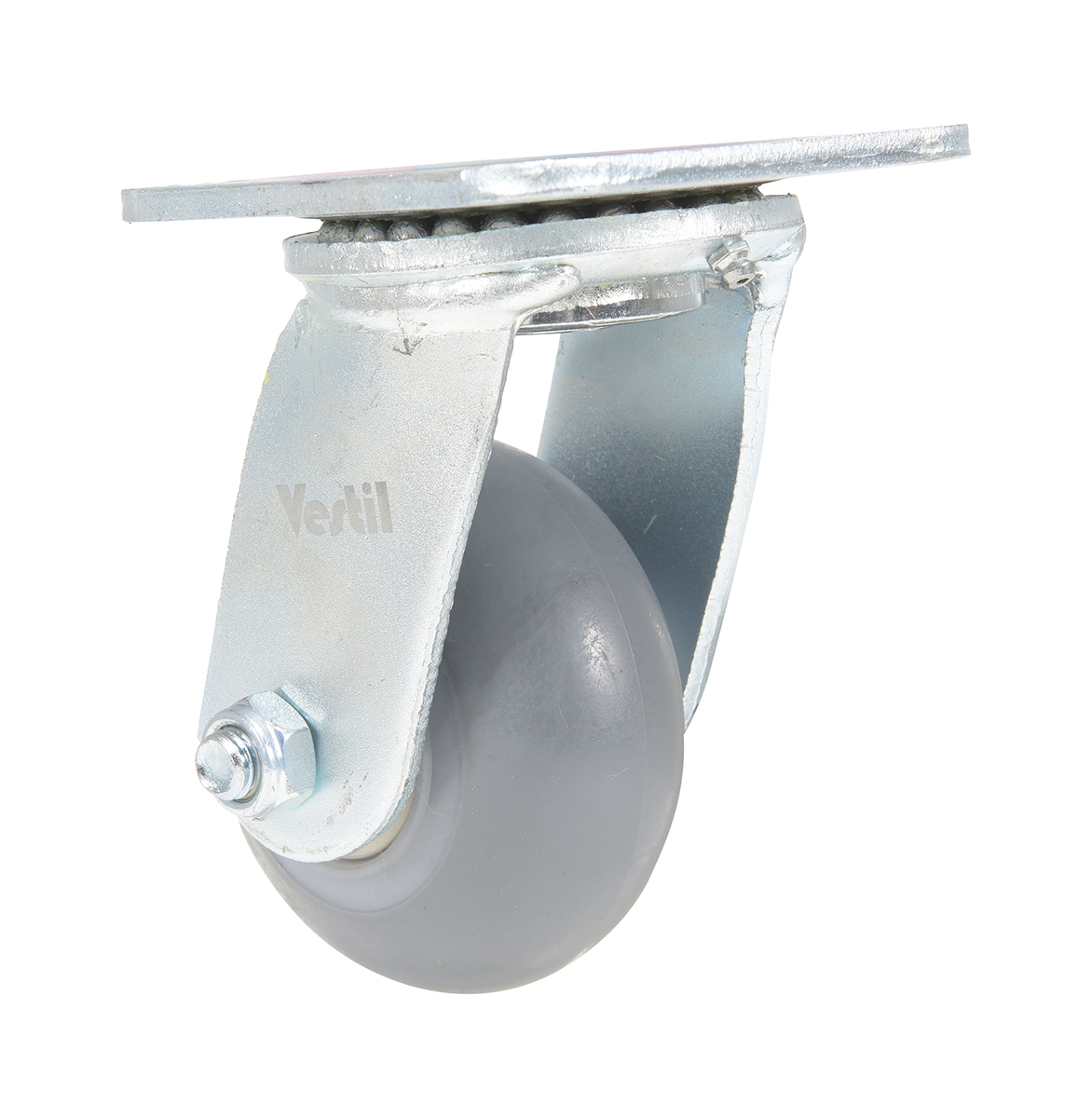

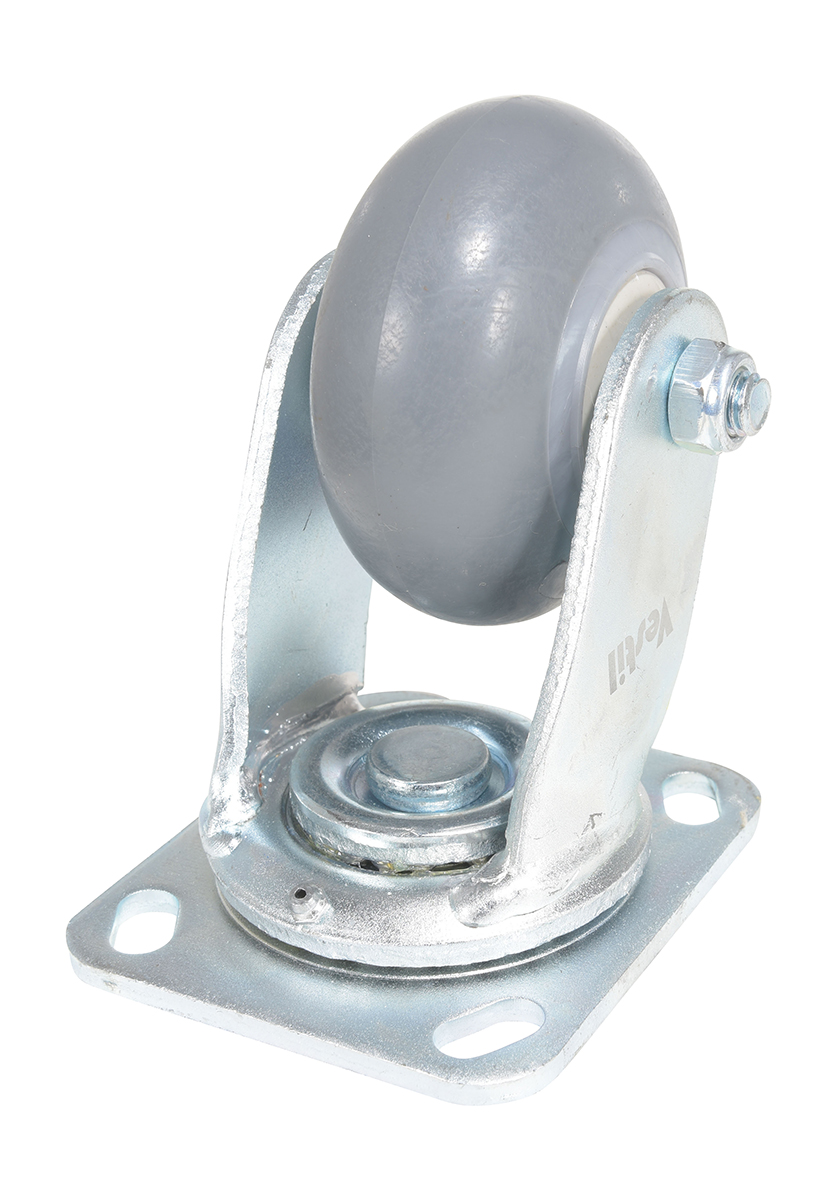

| CST-VE-4X2TPR-S | | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 485 | 5-1/2 | 4 x 4-1/2 | 5 |

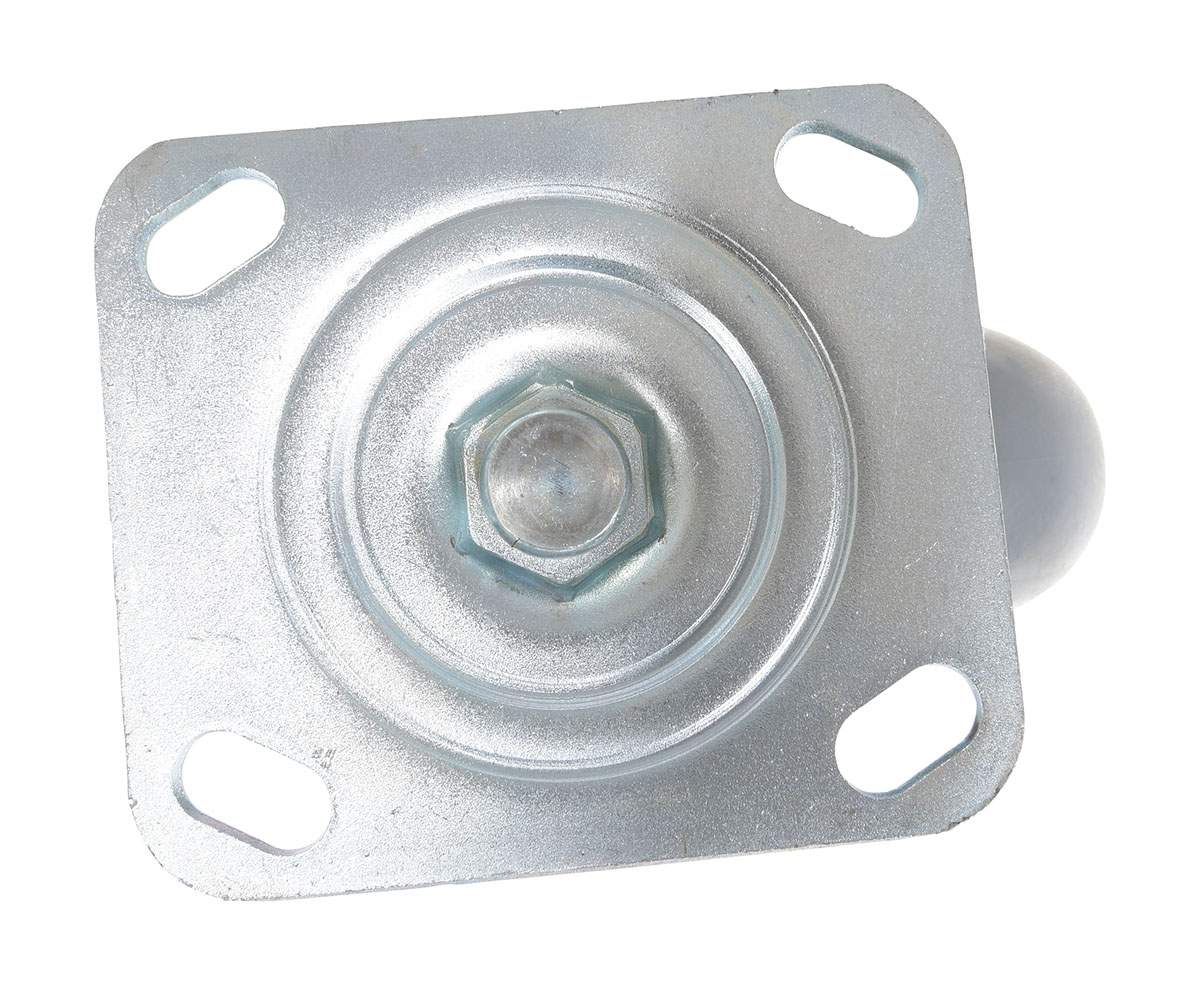

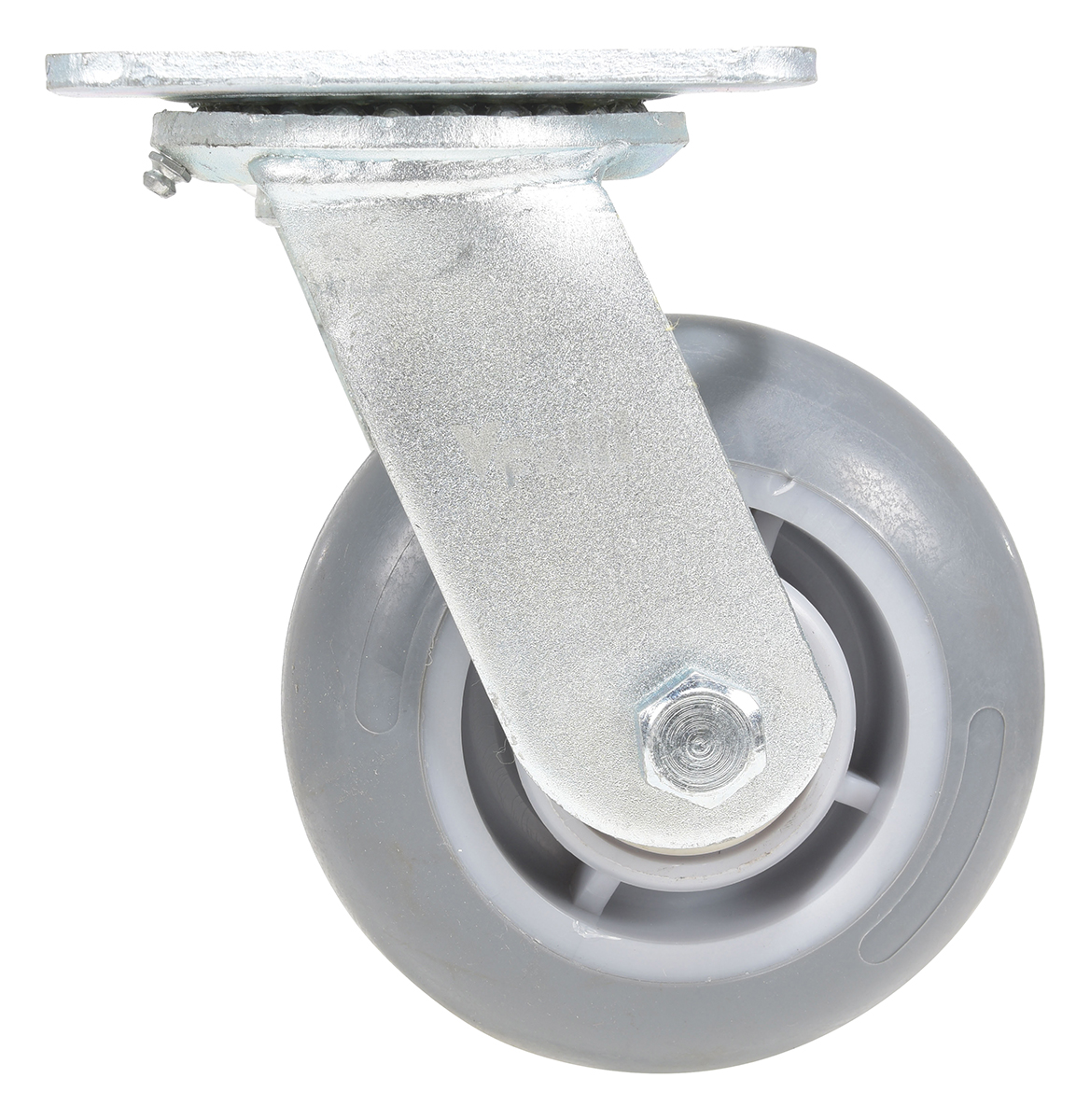

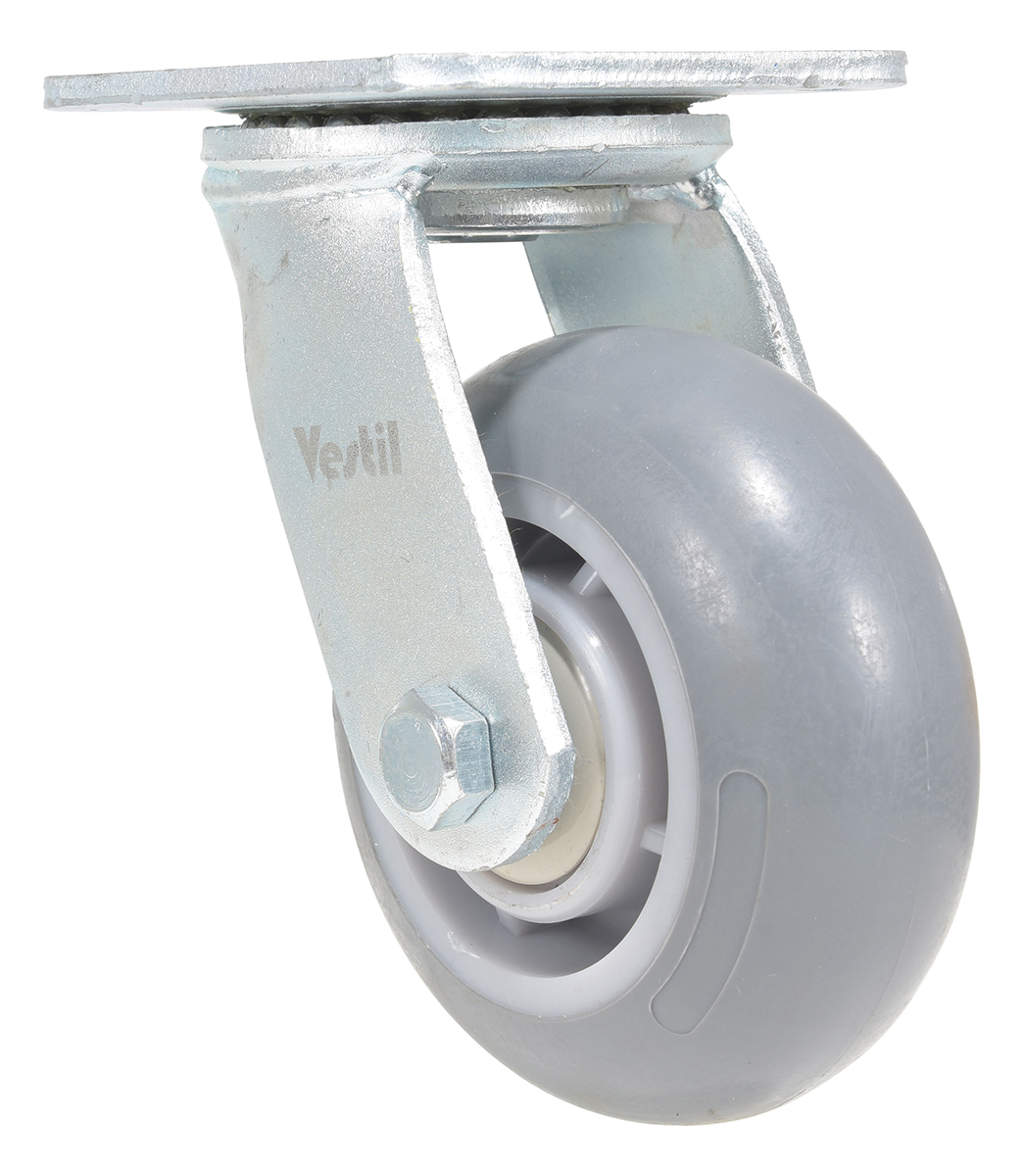

| CST-VE-5X2TPR-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 551 | 6-1/2 | 4 x 4-1/2 | 5 |

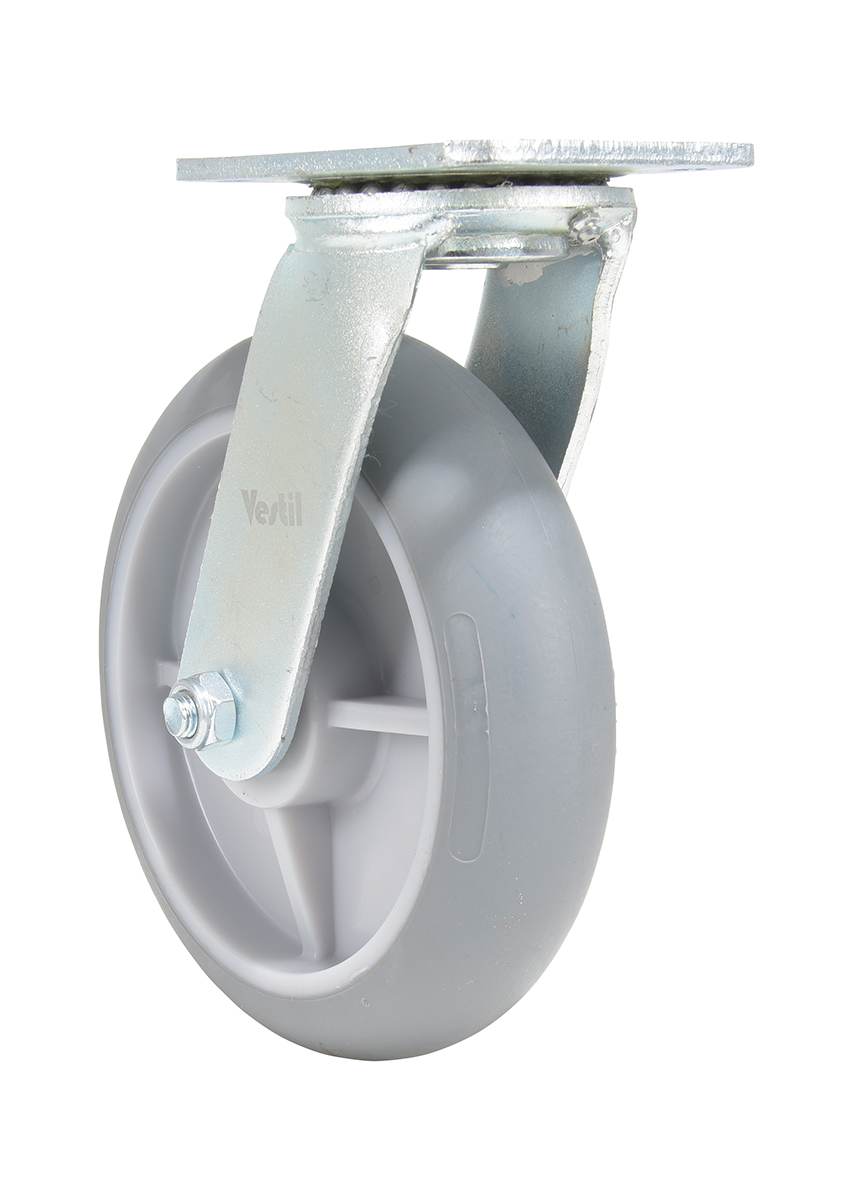

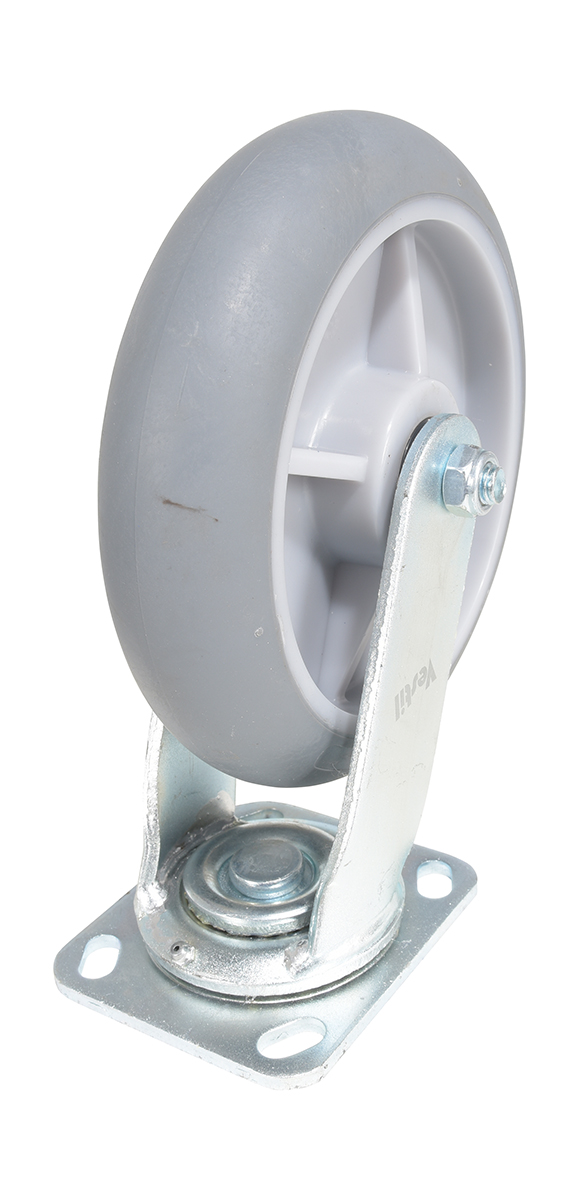

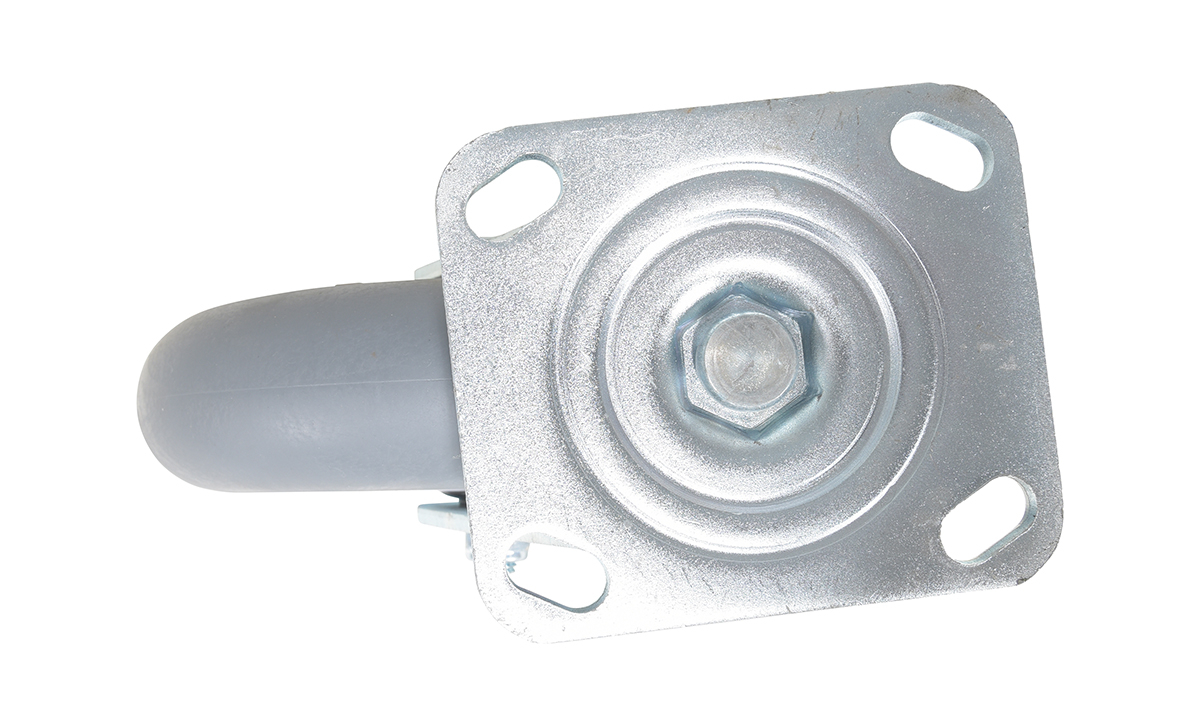

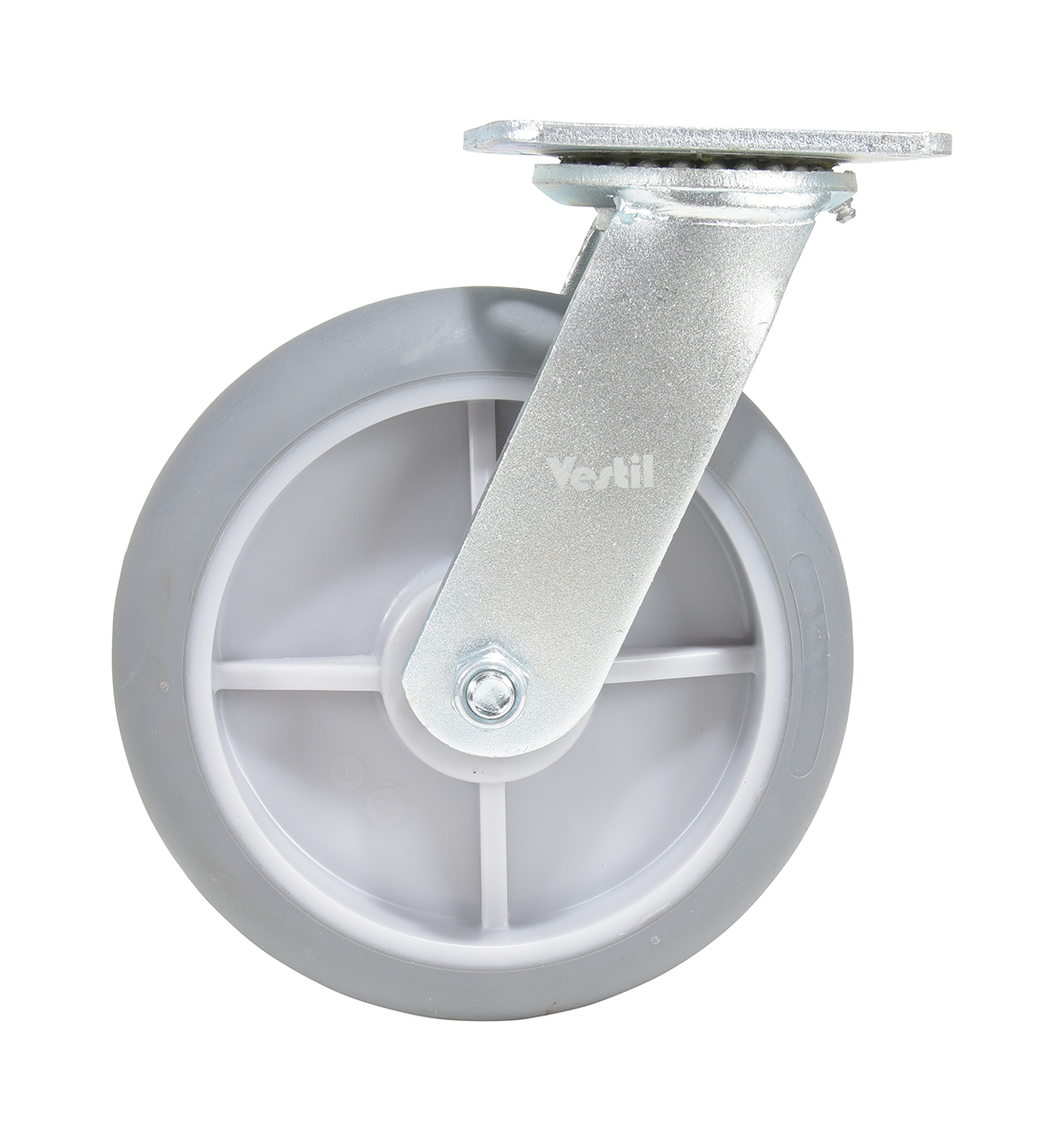

| CST-VE-8X2TPR-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 705 | 9-1/2 | 4 x 4-1/2 | 7 |

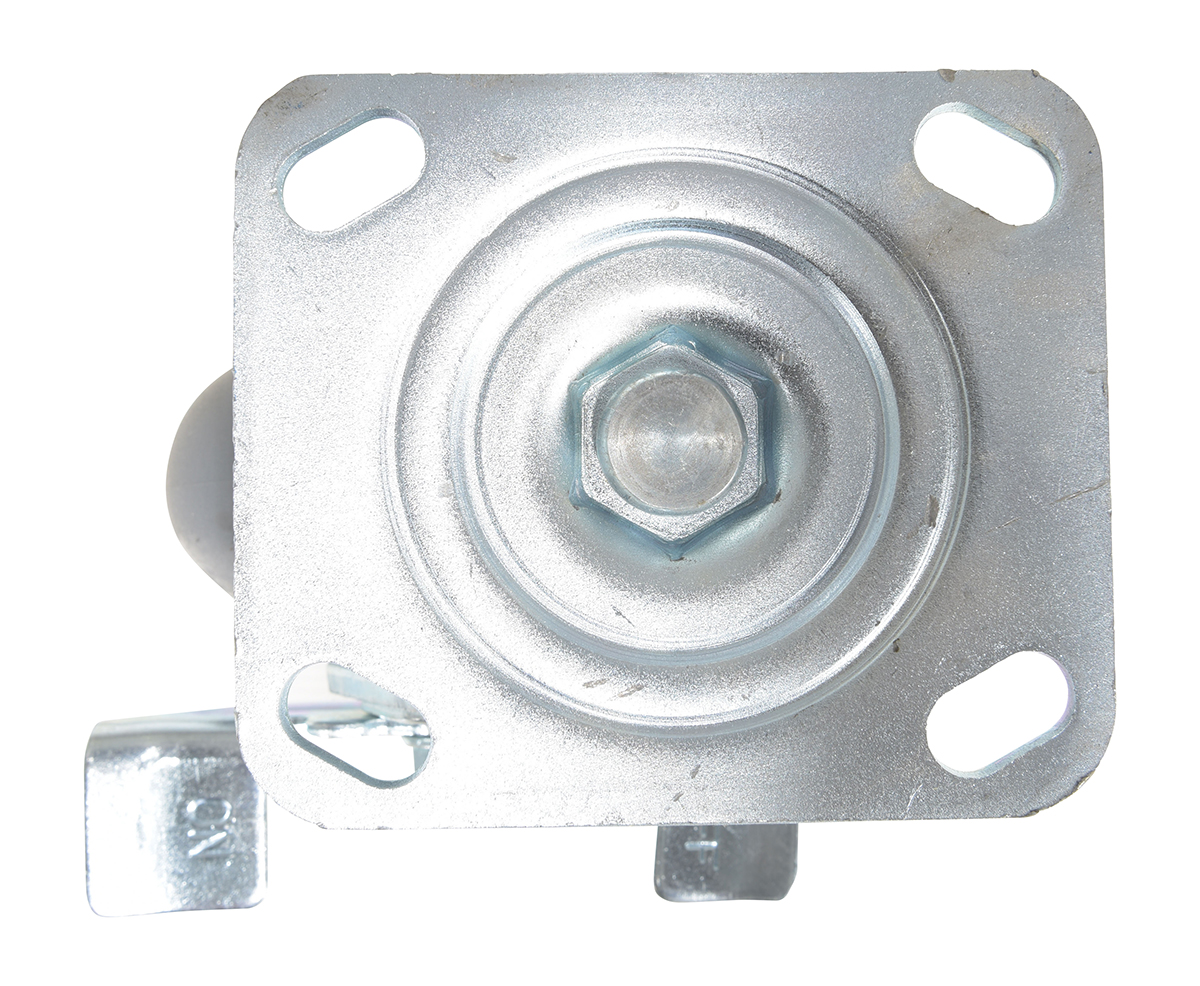

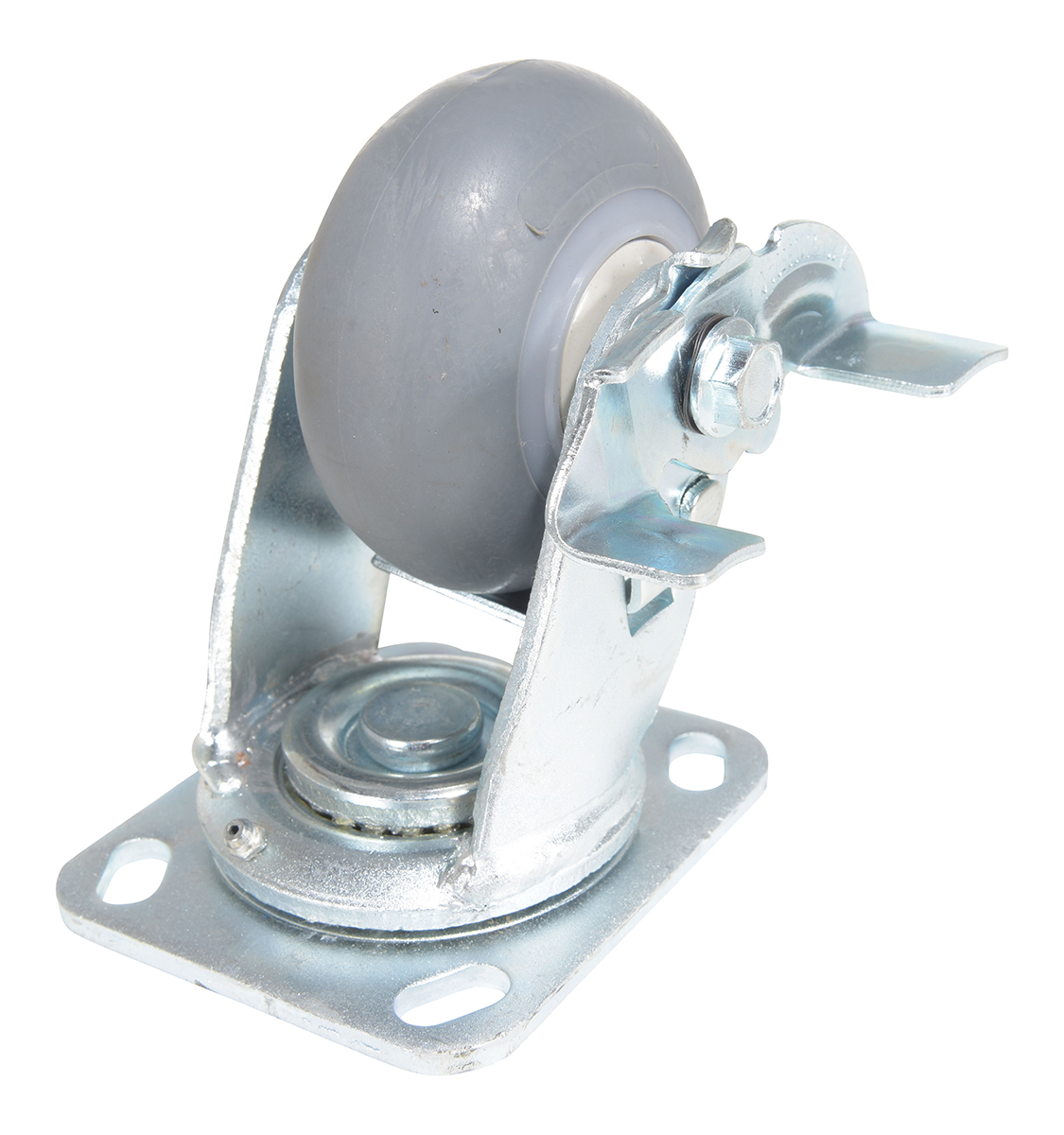

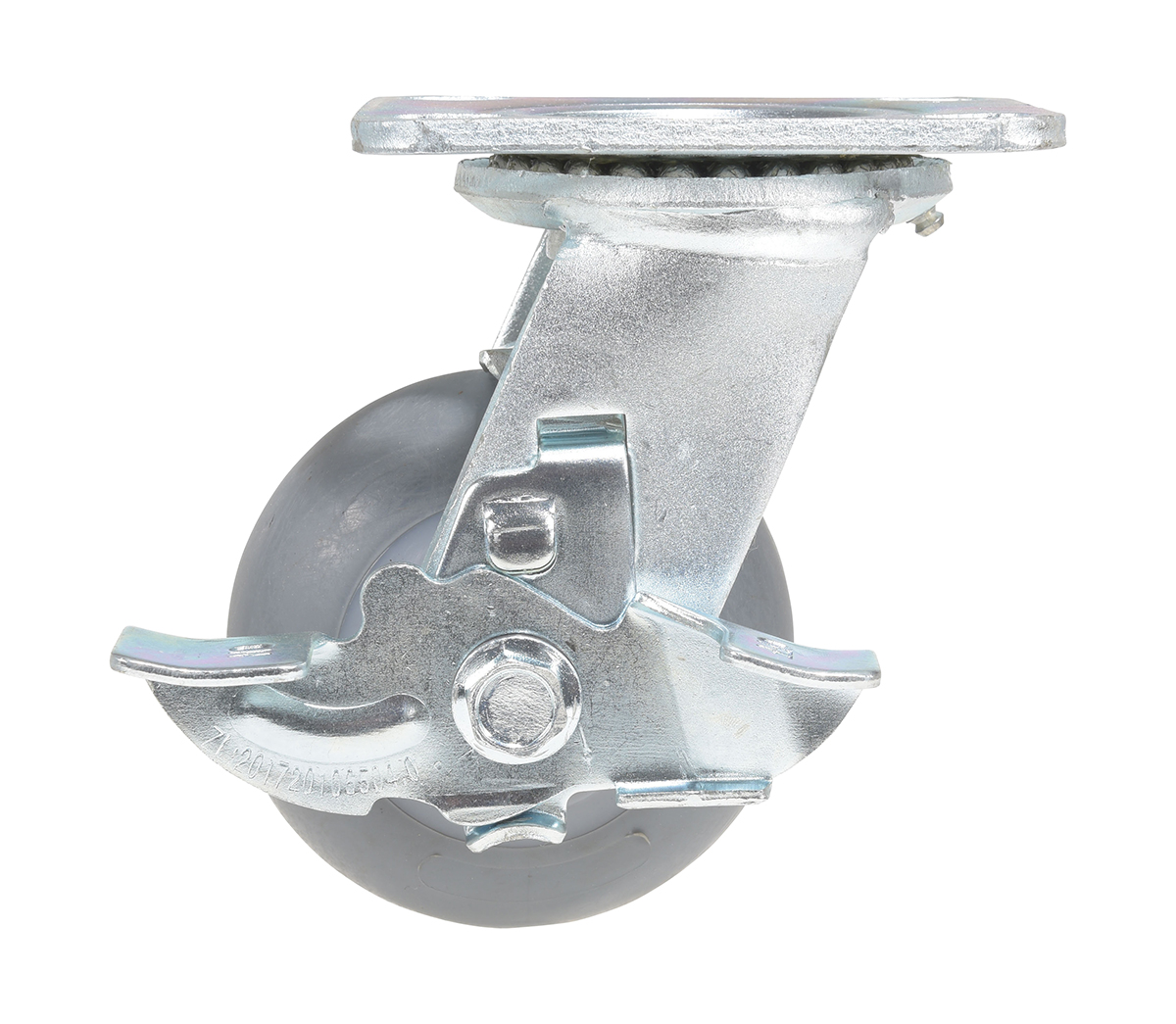

| CST-VE-4X2TPR-SWB | | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 485 | 5-1/2 | 4 x 4-1/2 | 5 |

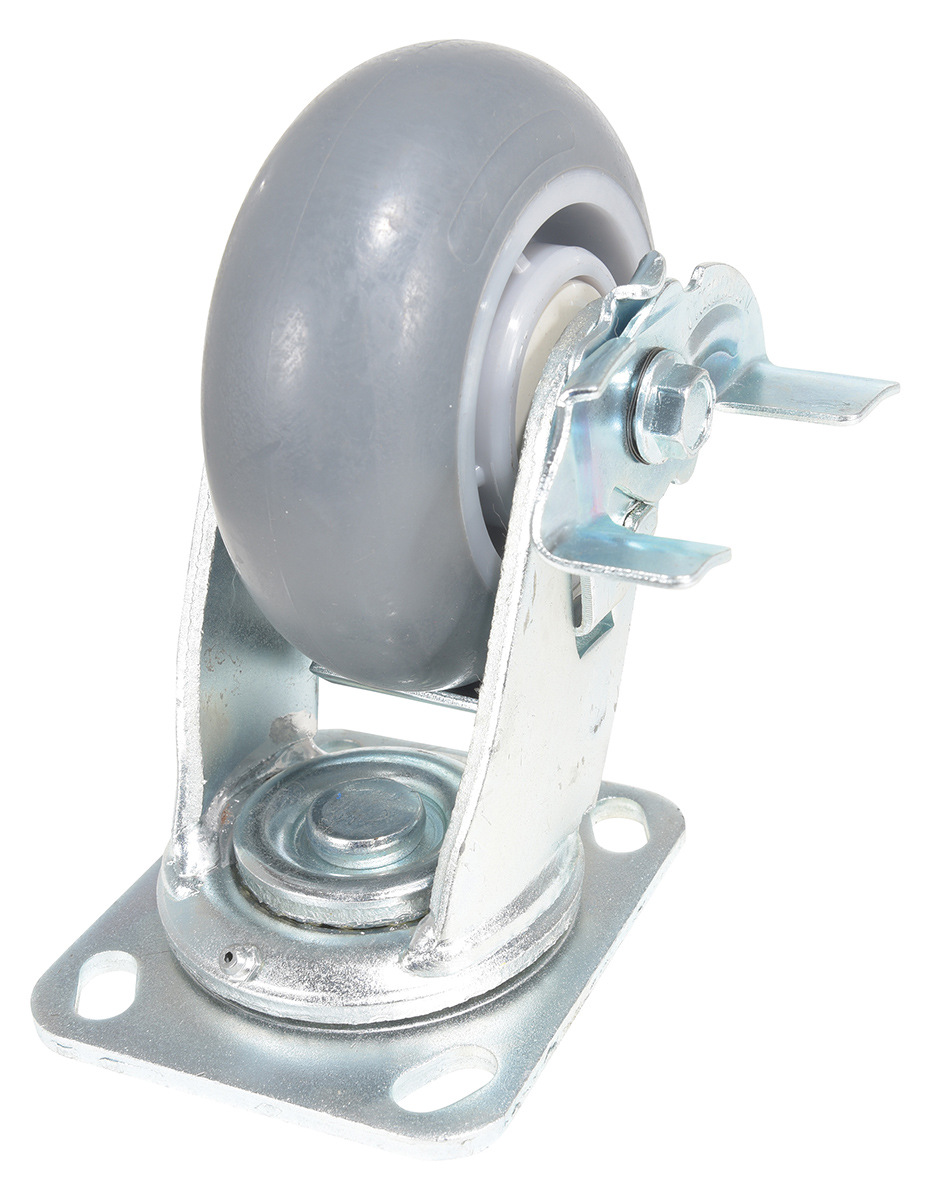

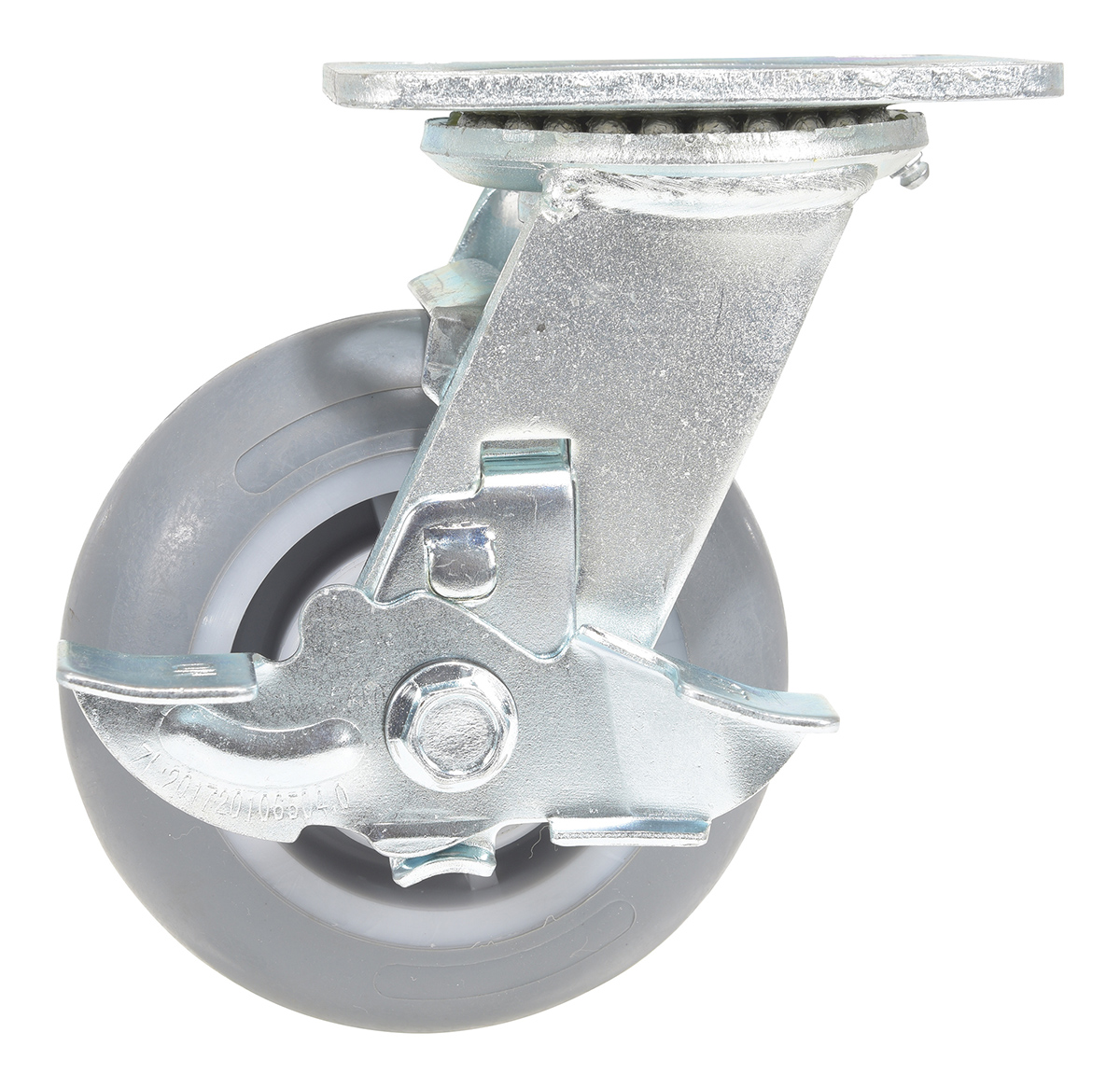

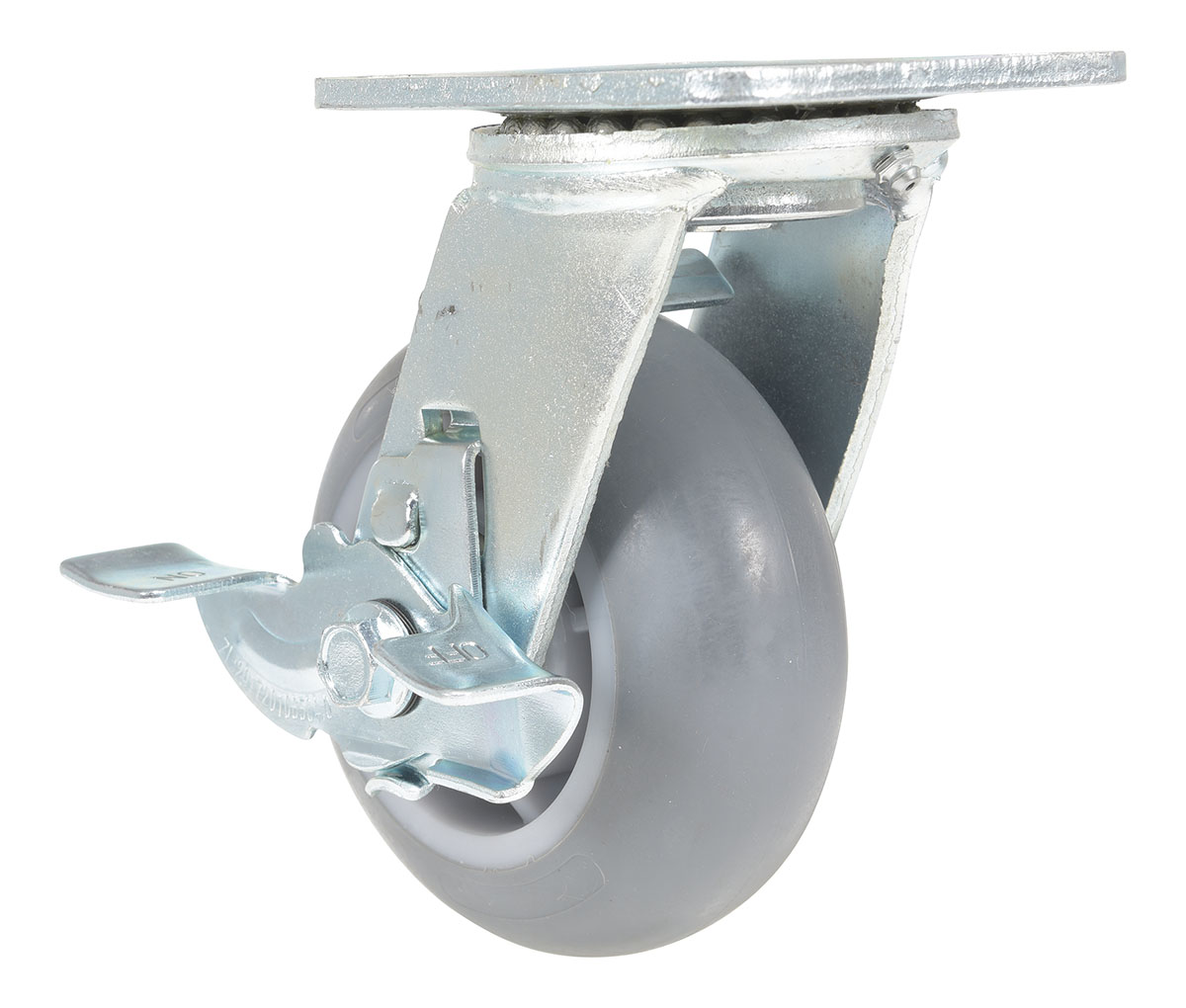

| CST-VE-5X2TPR-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 551 | 6-1/2 | 4 x 4-1/2 | 6 |

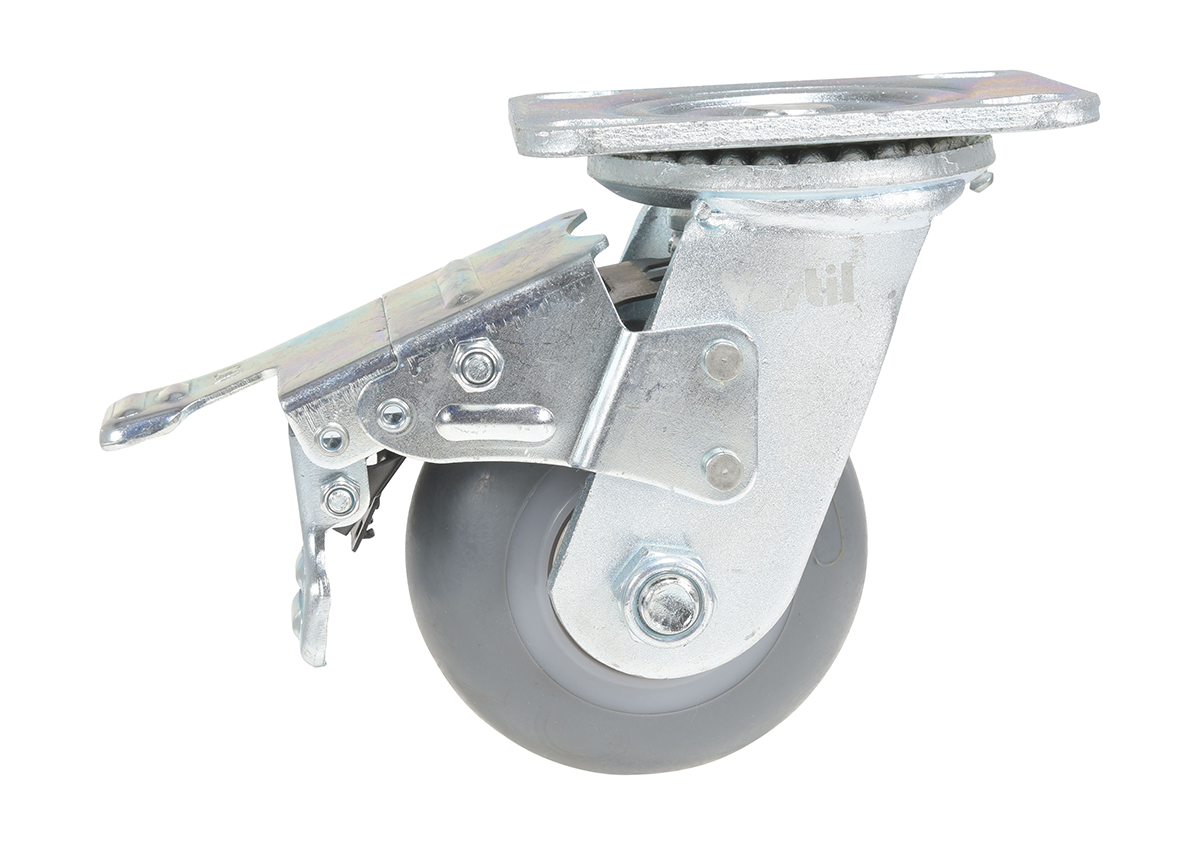

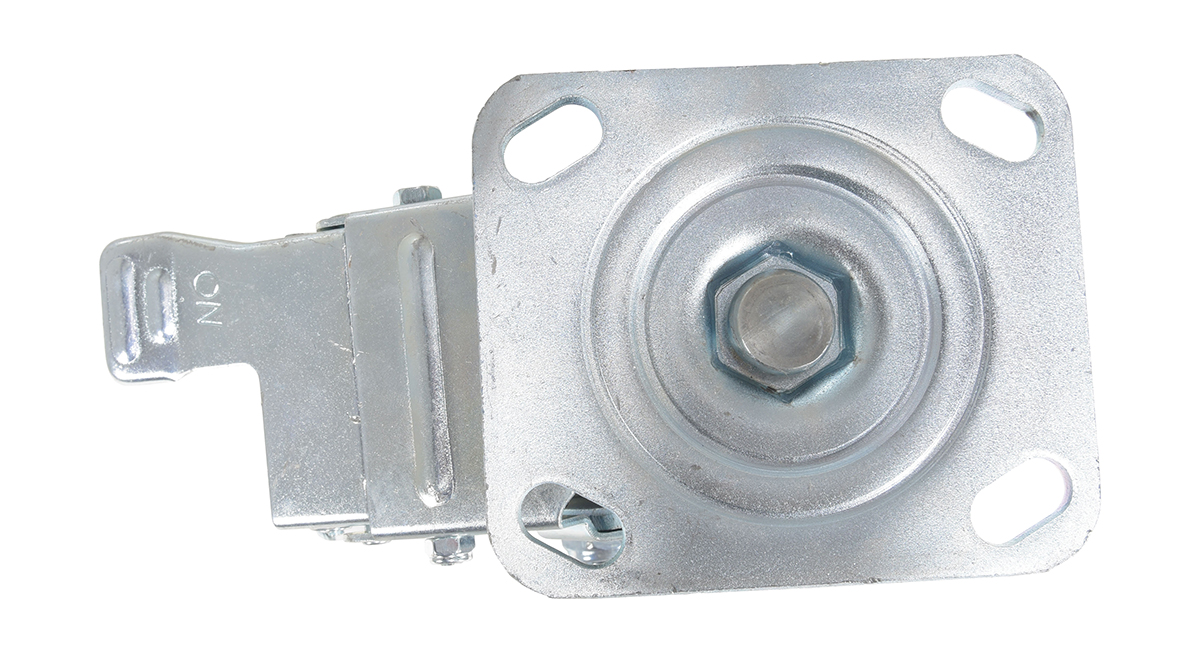

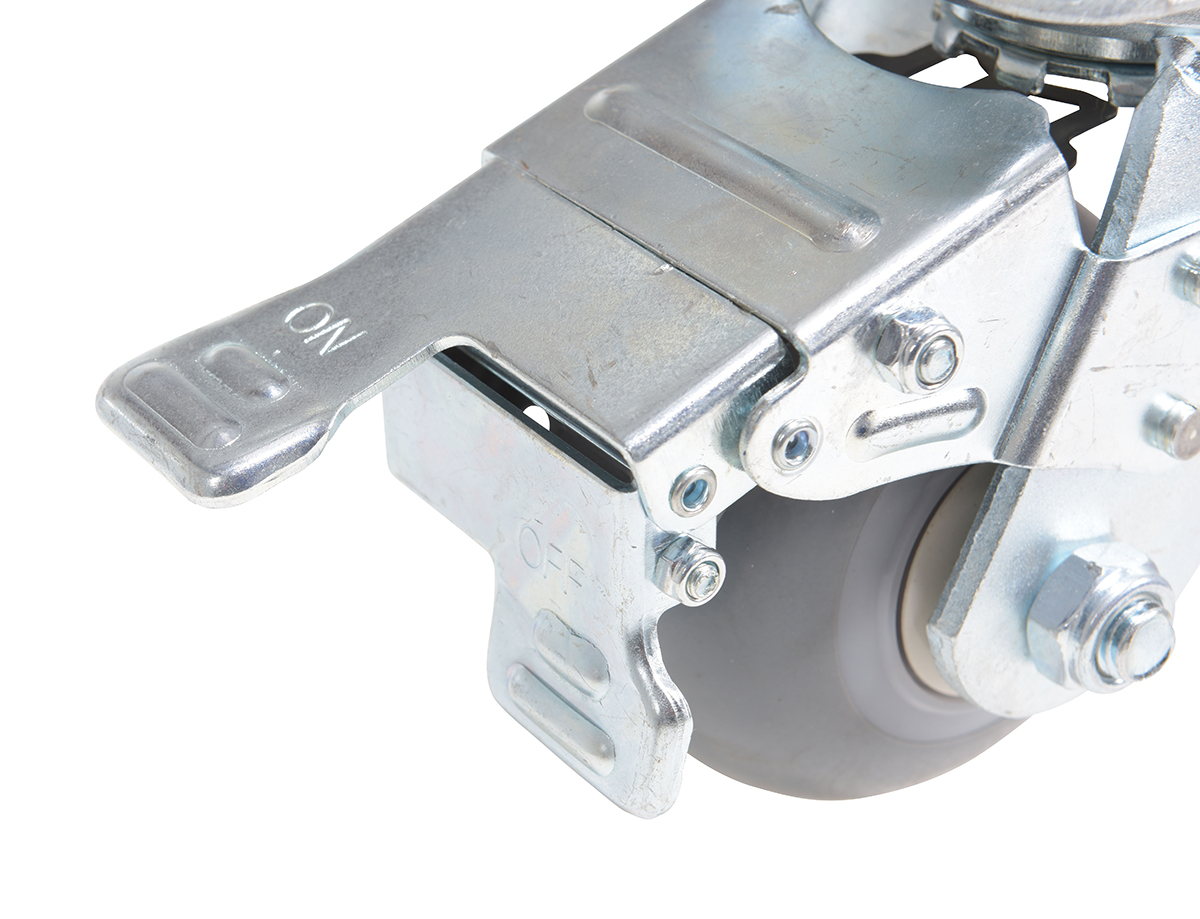

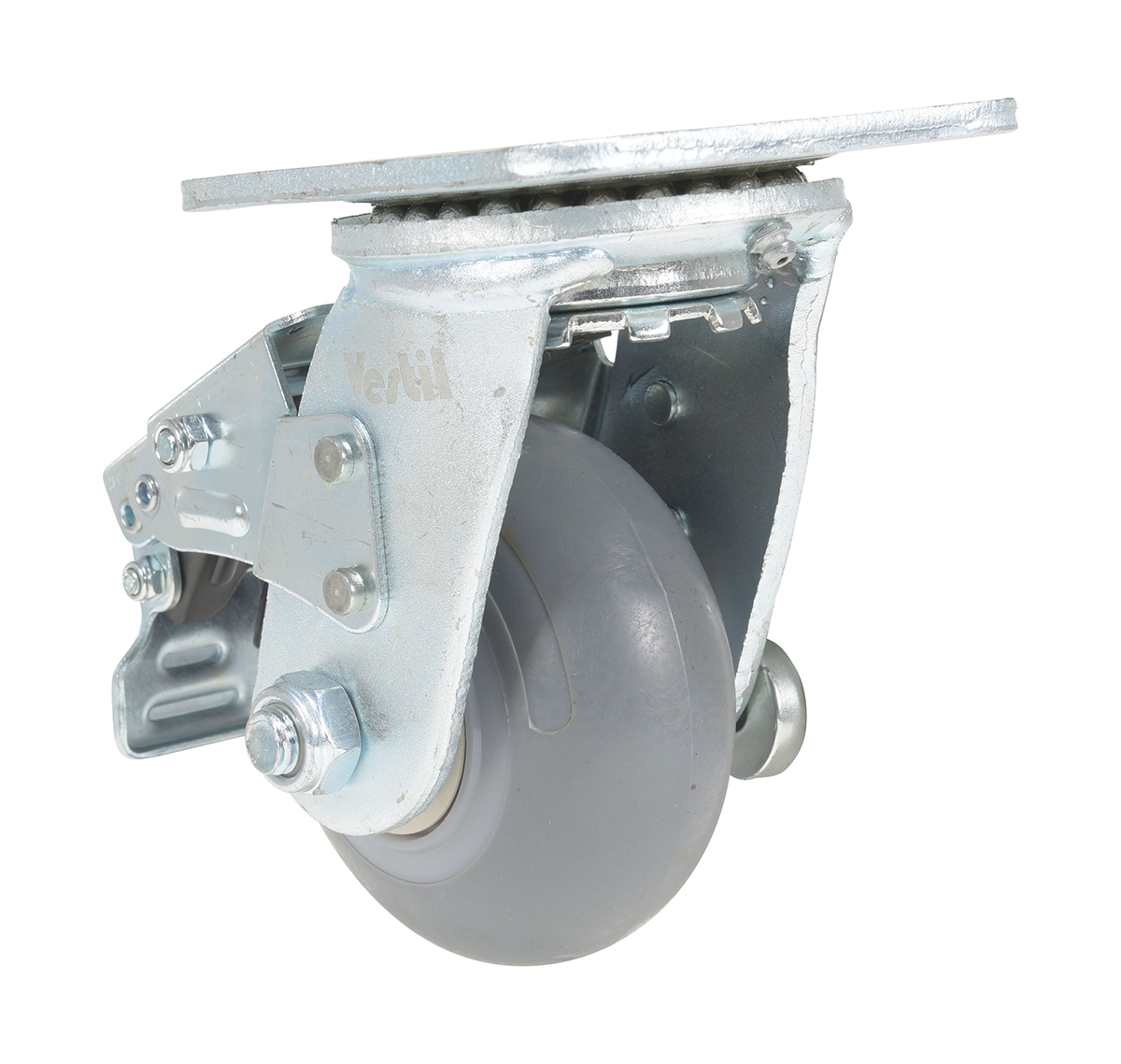

| CST-VE-4X2TPR-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 485 | 5-1/2 | 4 x 4-1/2 | 6 |

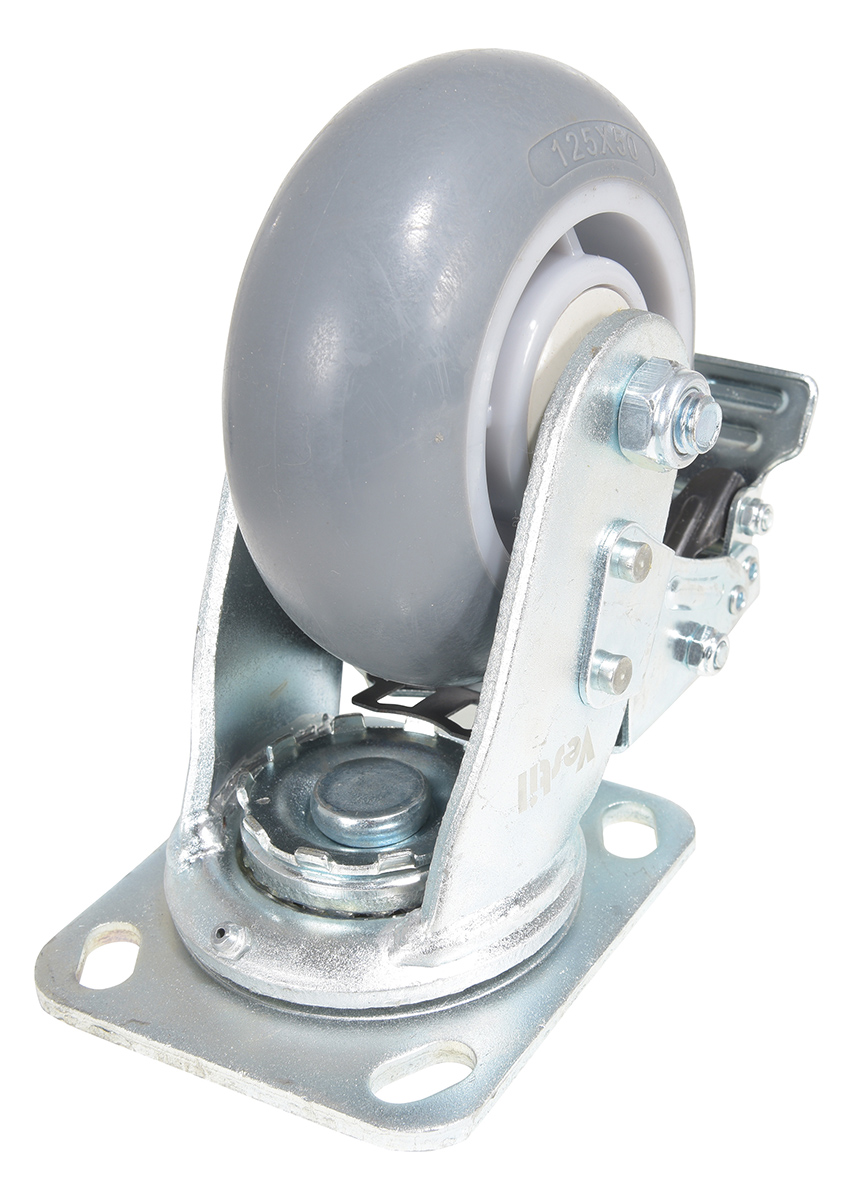

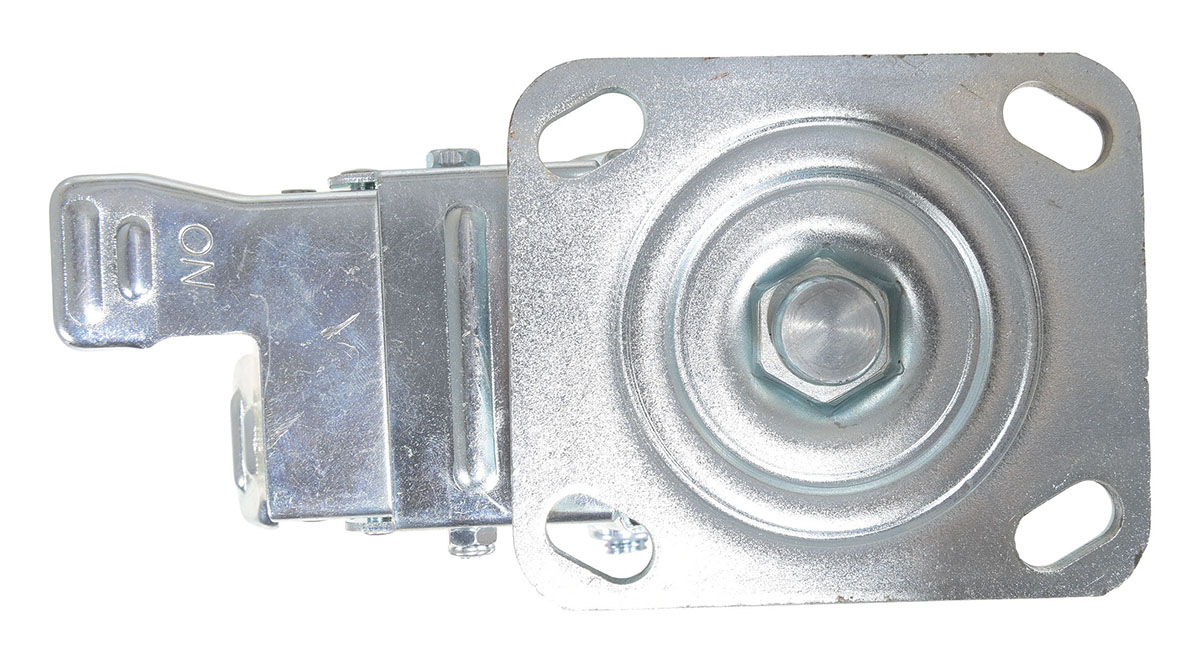

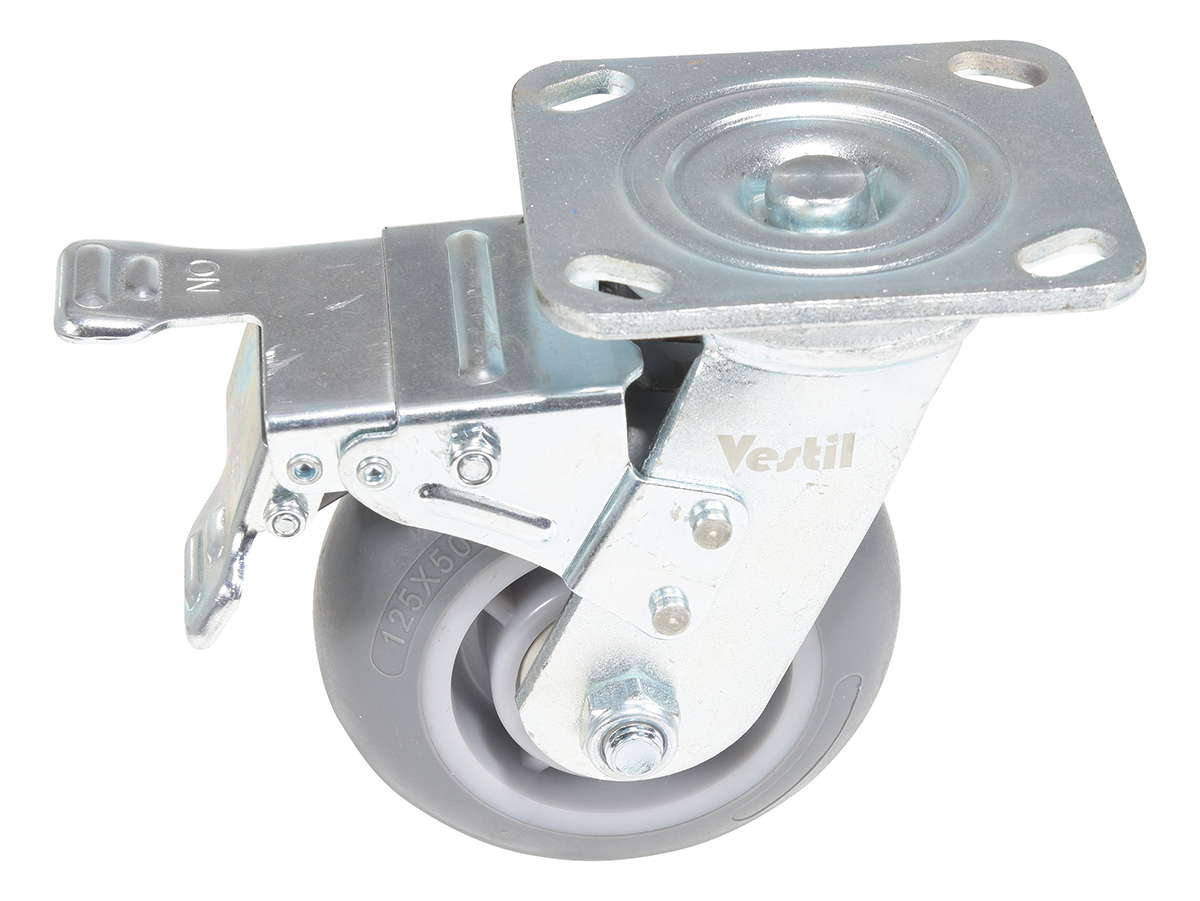

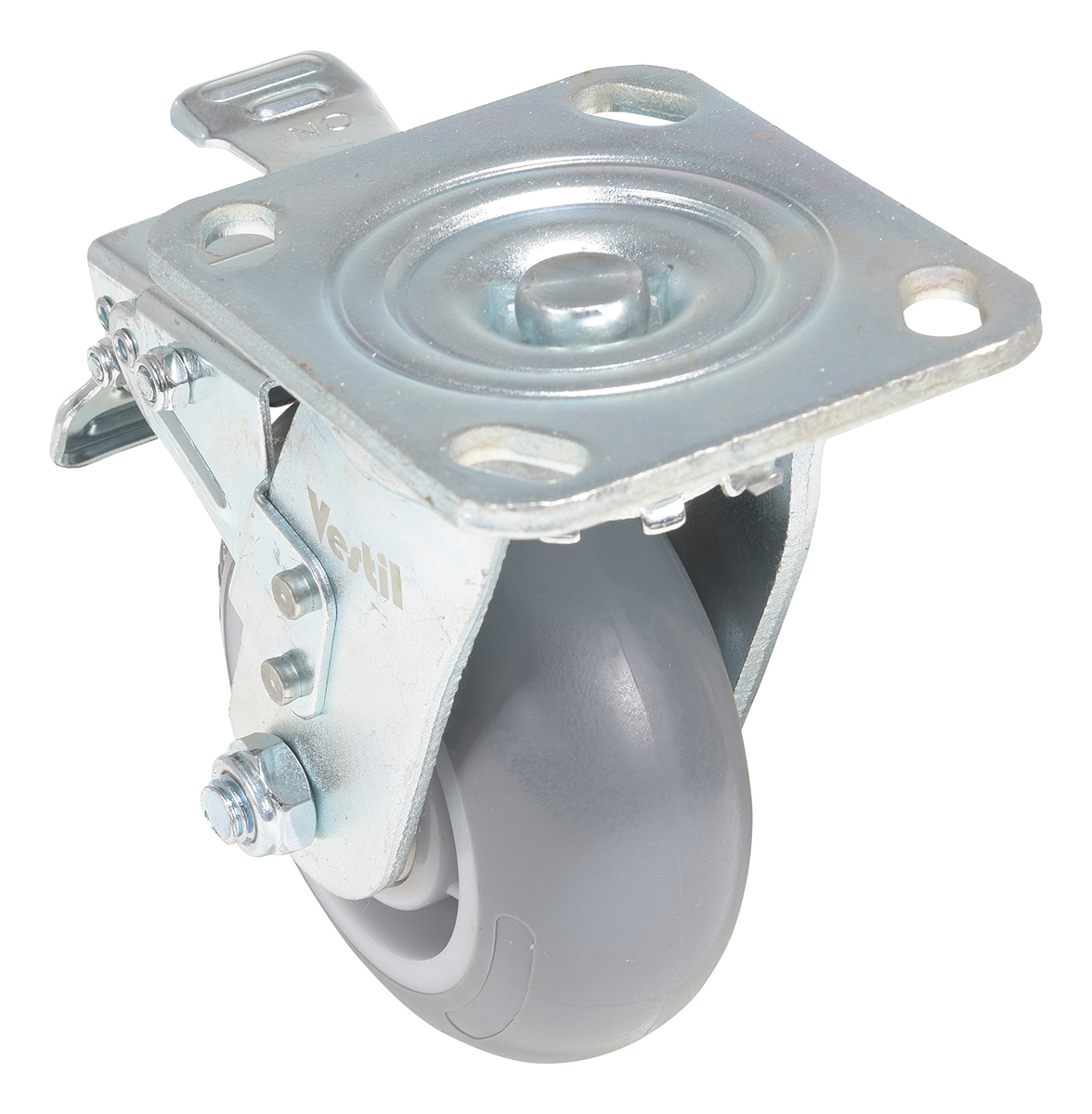

| CST-VE-5X2TPR-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 551 | 6-1/2 | 4 x 4-1/2 | 6 |

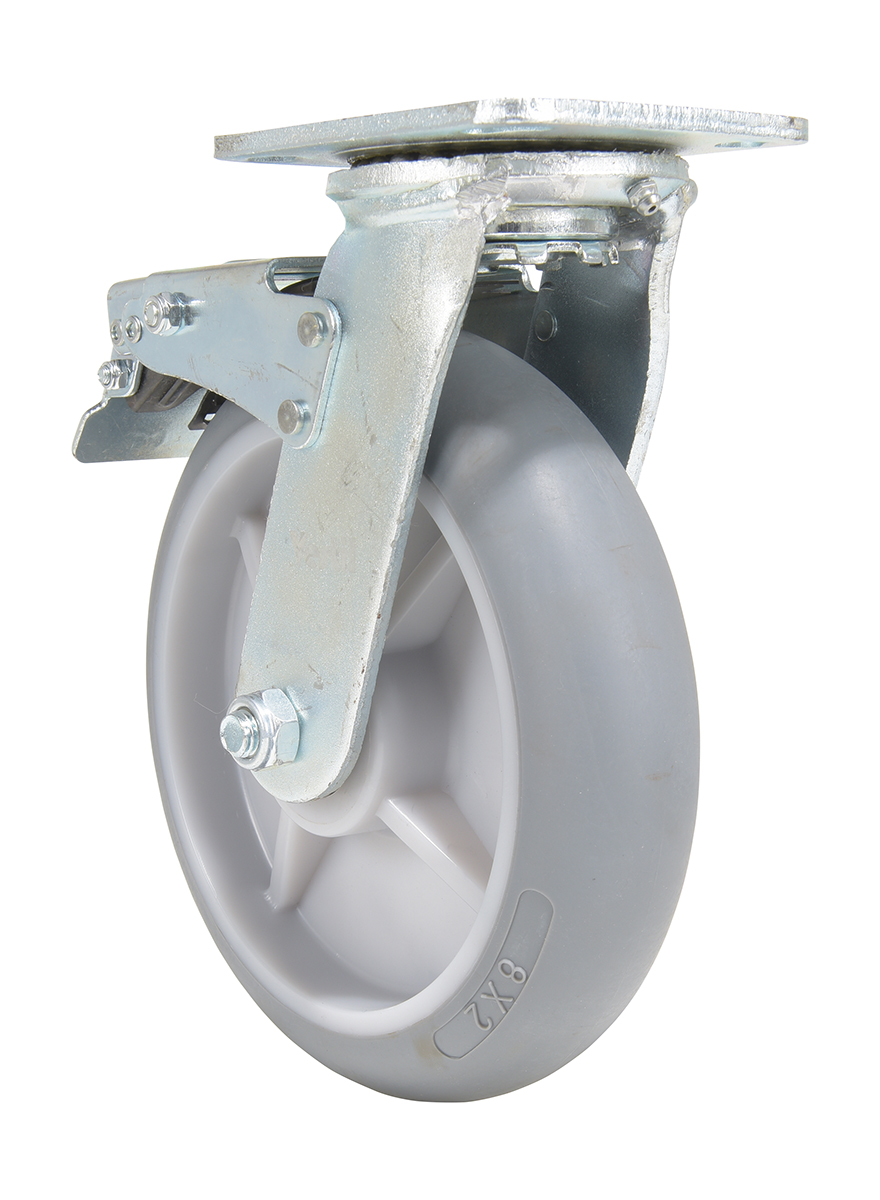

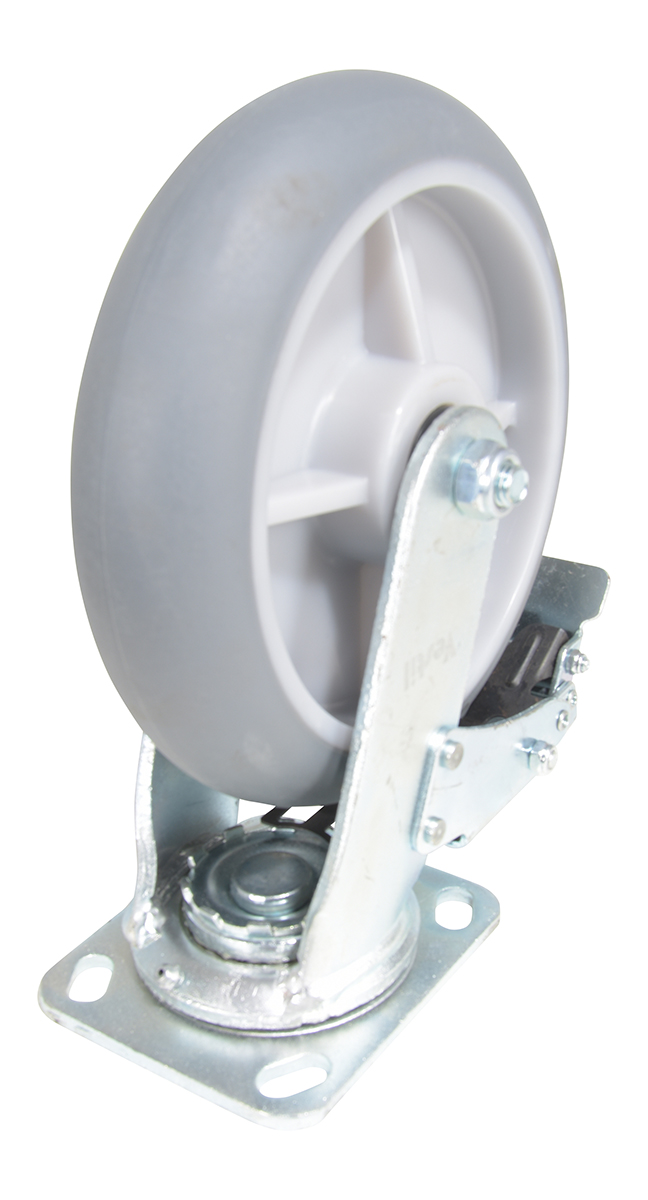

| CST-VE-8X2TPR-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 705 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
TPR (Thermoplastic Rubber) Casters PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
Directory Links Of Available PDF's For All Products

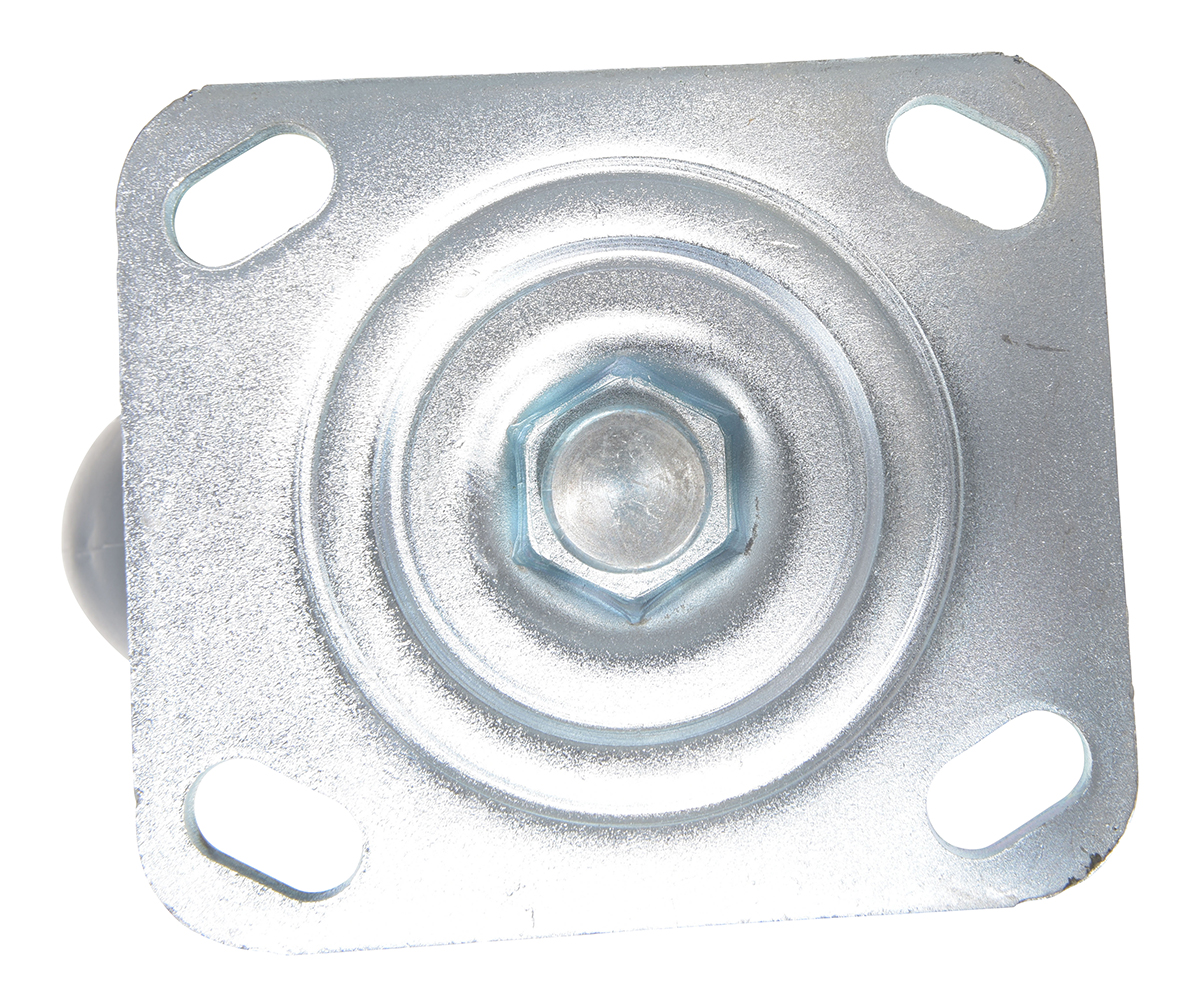

Q: What are the dimensions of the mounting plate for the caster?
A: The mounting plate is 4.5" wide x 4" long.
 |
|||||||
