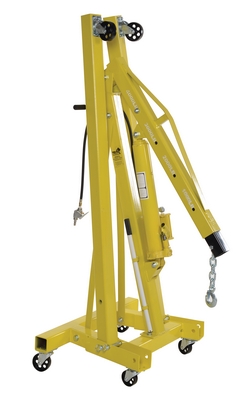

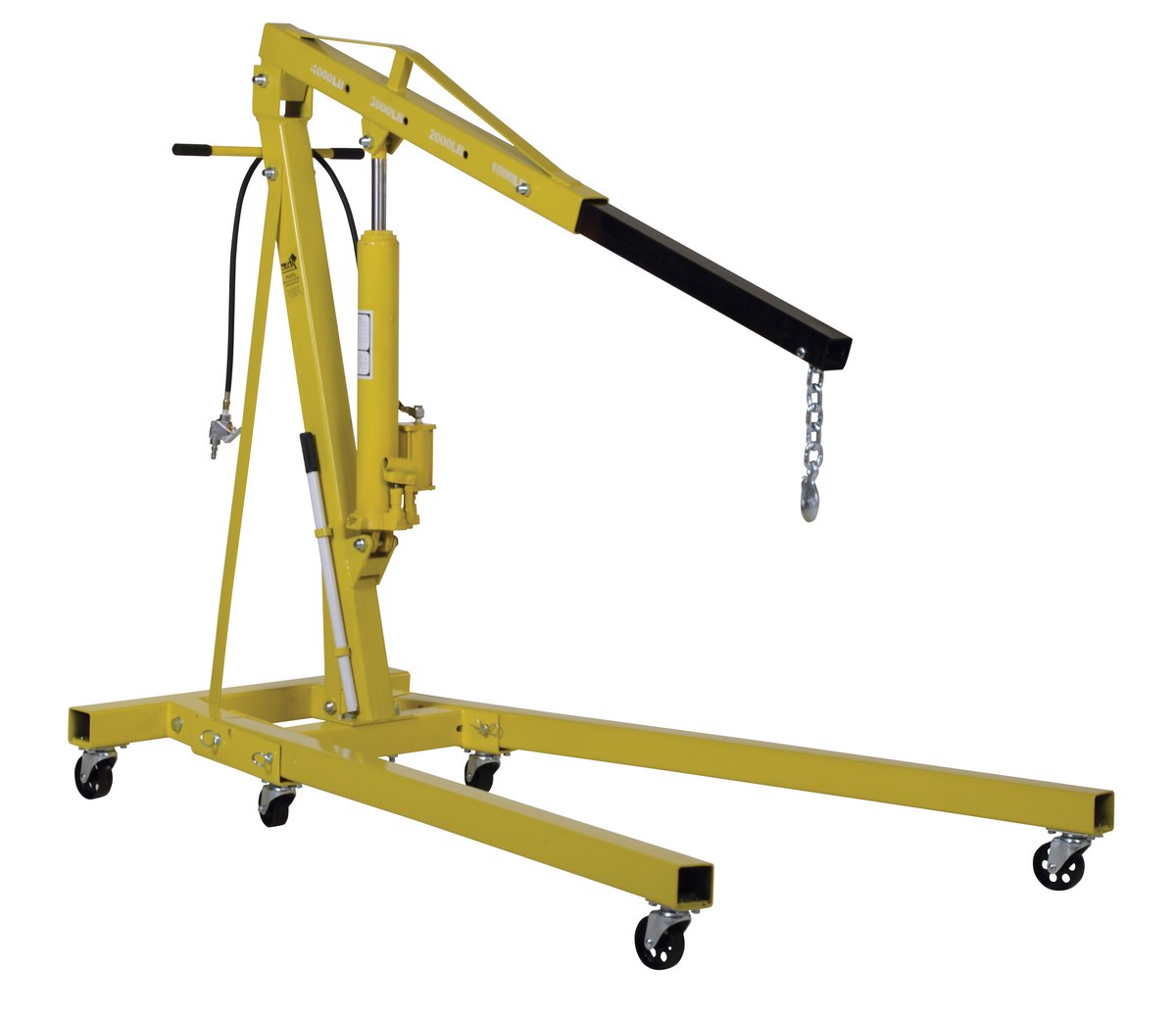

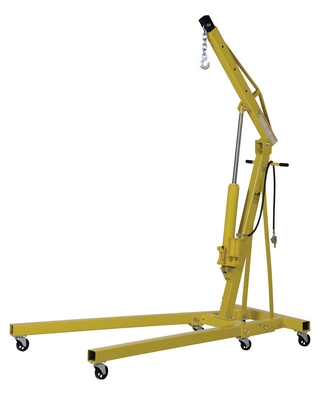

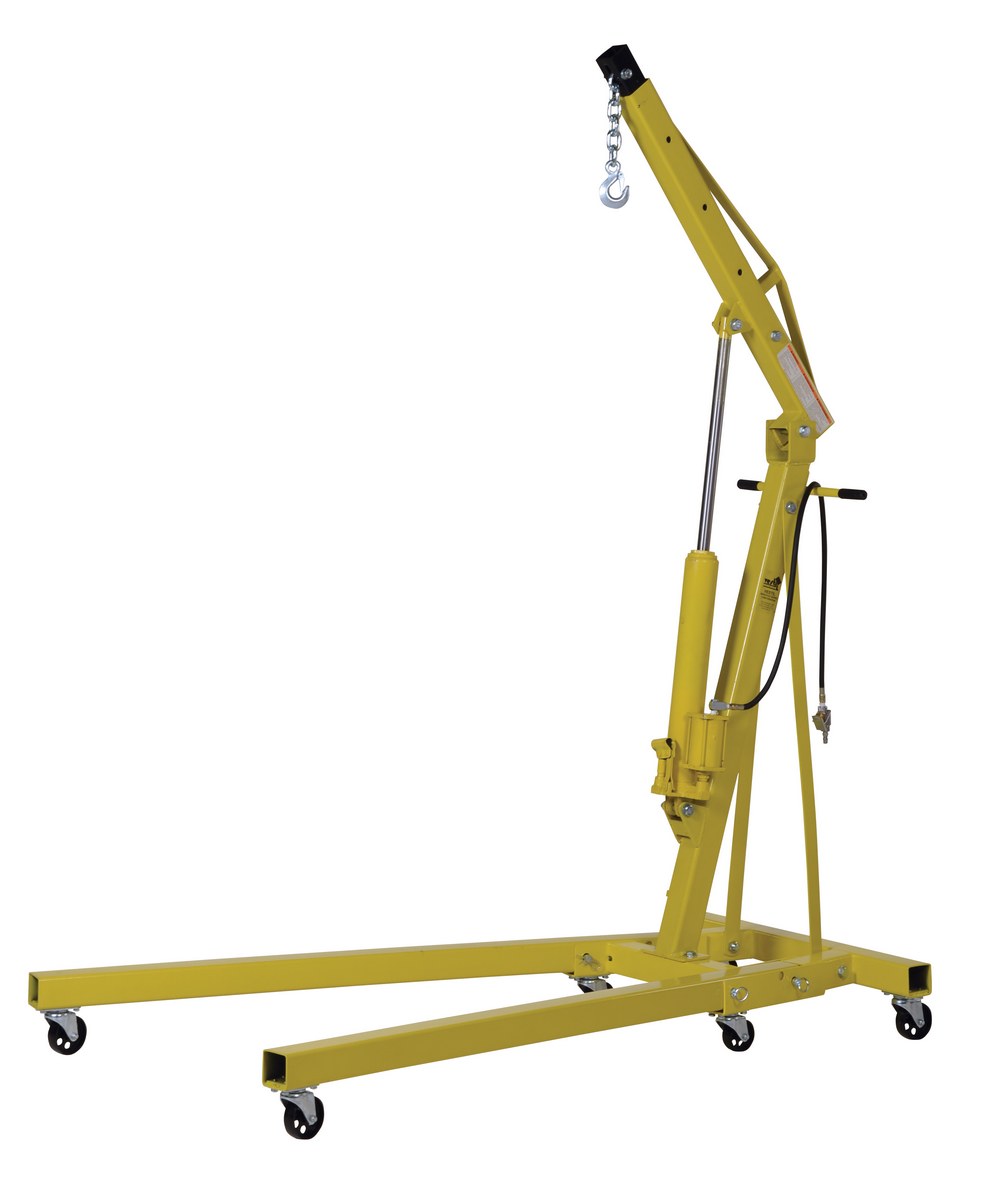

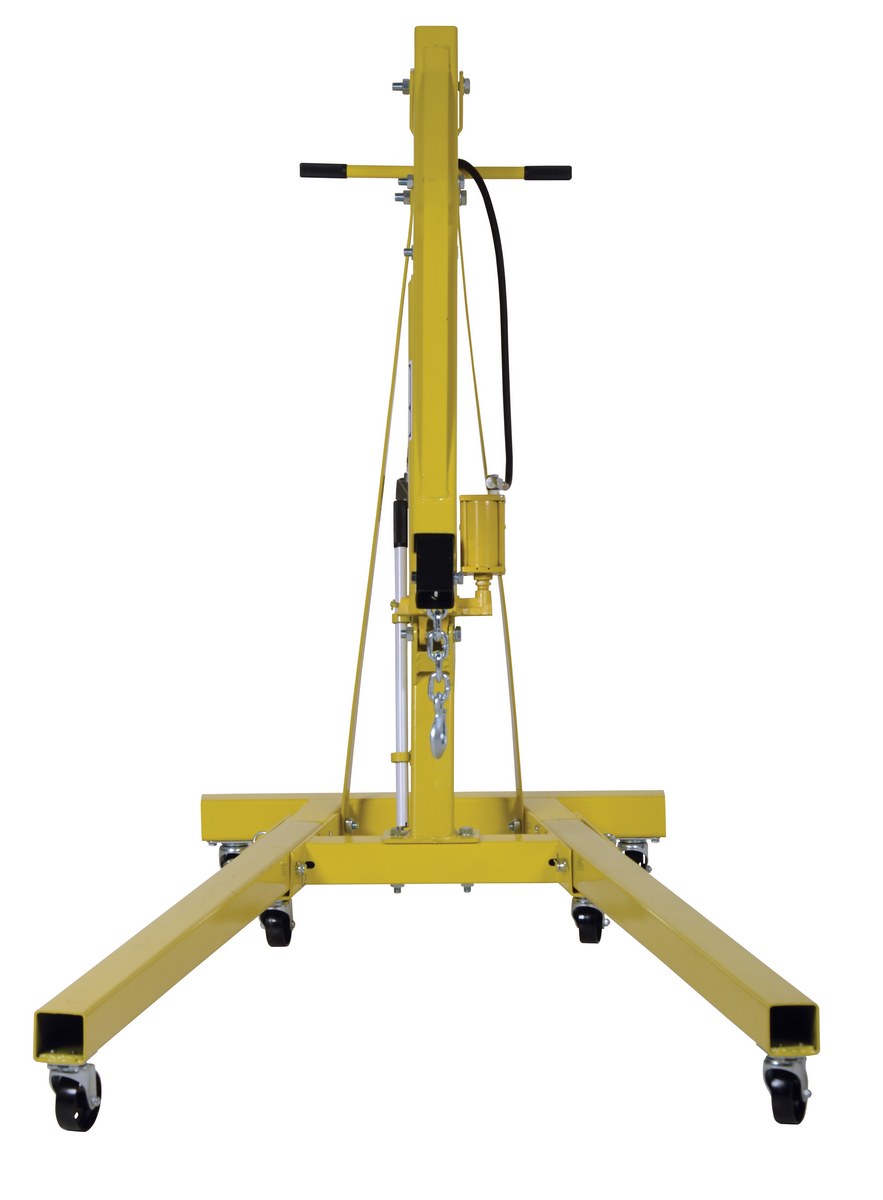

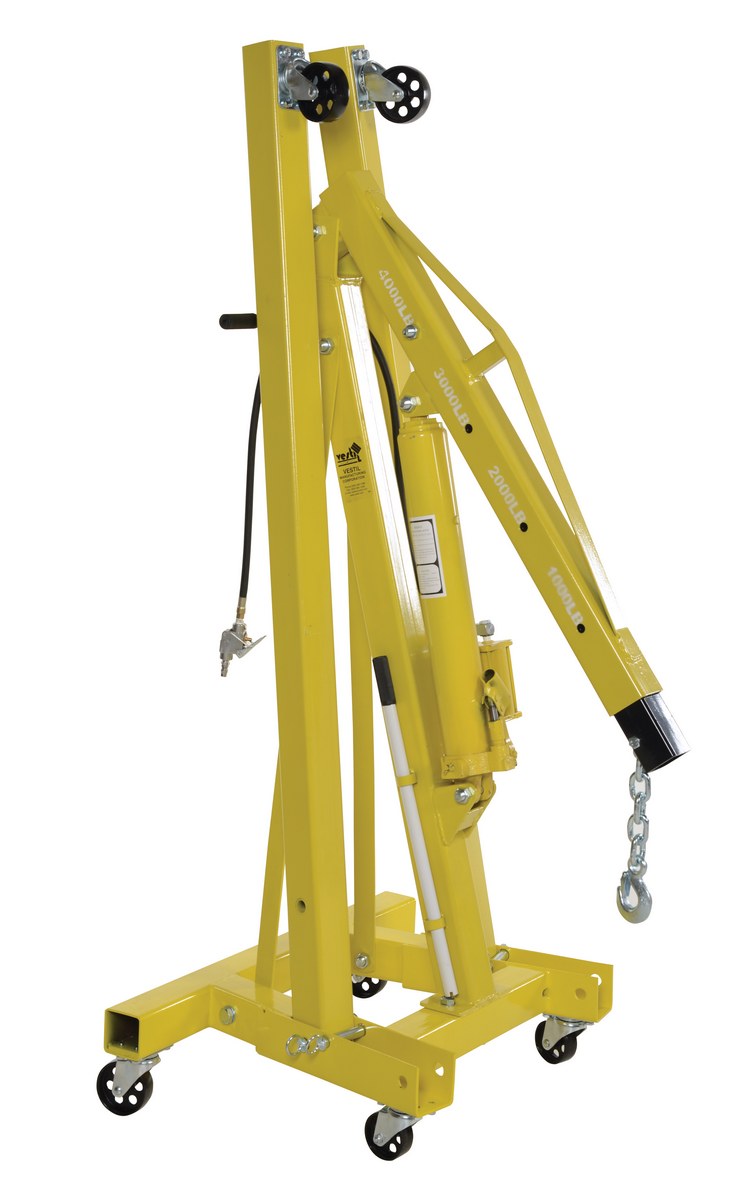

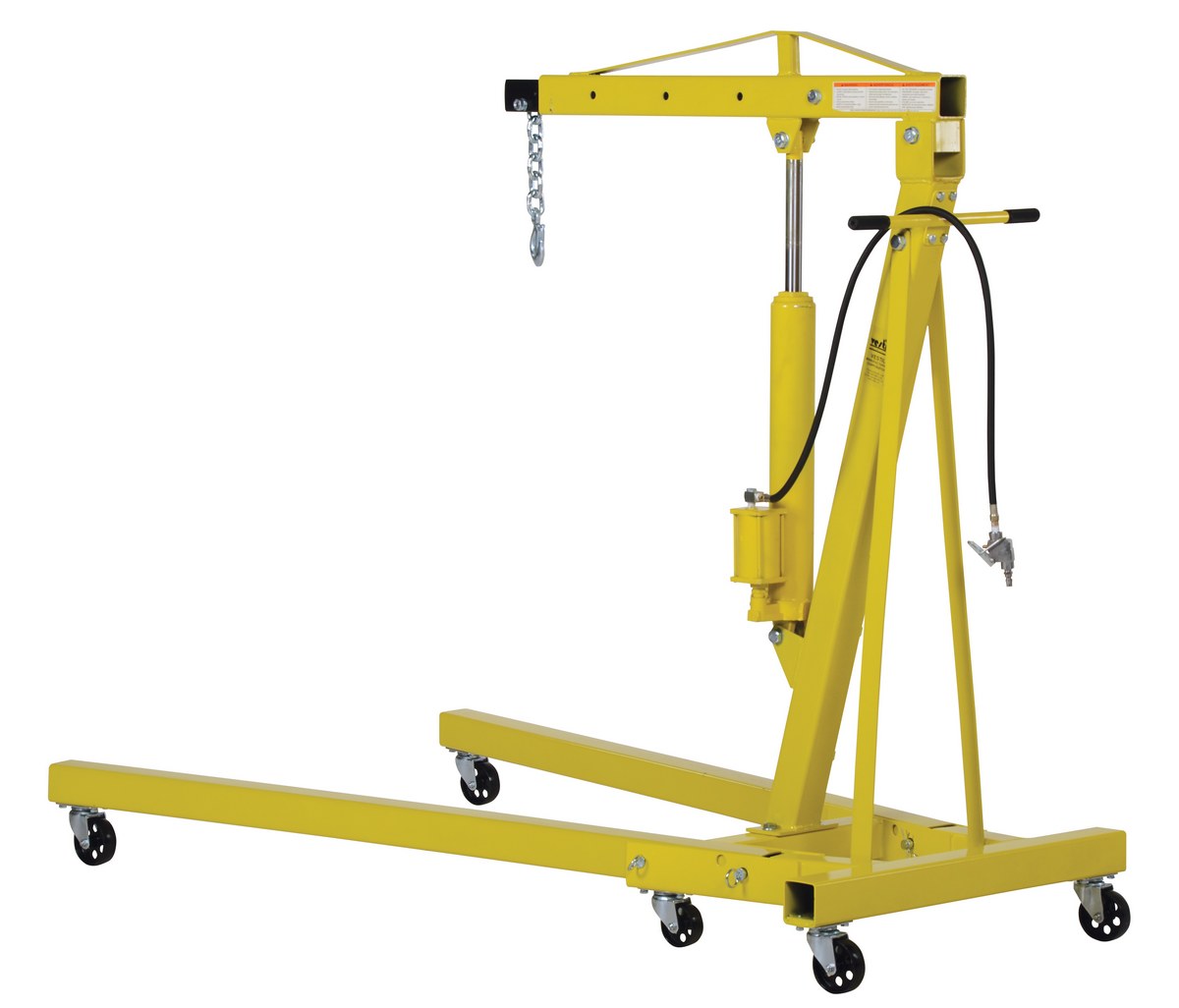

Air/Hand Pump Hydraulic Shop CraneThis crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." cast steel casters, (4) swivel in back (2) rigid in front. The Hoist offers heavy-duty lifting power, while optimizing space when in the folded position. Standard features: foldable legs, adjustable boom, swivel hook, and steel construction.
- Telescopic boom with four settings for different lifting heights and capacities
- Boom is raised and lowered with a manual hydraulic hand pump
- High-capacity hydraulic cylinder provides for faster lifting action
- Features a large diameter ram to withstand angled loads when lifting
Hoist Trailer
Pallet Truck Hoist
Electric Powered Floor Cranes
Power Lift Jib Cranes
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHN-40-C-AH |  | 90 Days Limited Warranty | Steel Air and Hand Pump Hydraulic Shop Crane 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Leg Design: Foldable | 249 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHN-40-C-AH
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How long is the chain on the EHN-40-C?
A: The chain on the EHN-40-C is 7".
Q: What size are the tube leg members for EHN-40-C?
A: The tube leg members are 2-3/4".
Q: What is the wall thickness of the tubes?
A: The wall thickness of the tubes is 1/8".
Q: Model: EHN-40-C-AH. I want to know how much air pressure (PSI) it needs to lift equipment.
A: The air pressure requirement is 70 to 90 psi.
 |
||||||||||||
